TOP AND CABINET PARTS
For Model: LSC9355BQ1, LSC9355BZ1
(Designer White) (Designer Almond)
3−95 Litho in U.S.A.(L.T.) Part No. 881180
AUTOMATIC WASHER
TOP AND CABINET PARTS
2
LITERATURE AND OPTIONAL PARTS
For Model: LSC9355BQ1, LSC9355BZ1
(Designer White) (Designer Almond)
881180
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1
357213
Nut, Push−In (2)
2
Top
3358200
For White Model
3358201
For Almond Model
3
62750
Spacer, Cabinet To
Top (4)
5
Cabinet
63424
For White Model
63425
For Almond Model
6
62780
Clip, Top & Cabinet
& Rear Panel (2)
8
3356311
Screw & Washer,
Lid Switch (2)
11
3352629
Switch, Lid
13
3351355
Screw, Lid Hinge
Mounting (4)
15
54584
Hinge, Lid (L.H.)
16
54583
Hinge, Lid (R.H.)
17
19119
Bumper, Lid Hinge
18
21258
Bearing, Lid
Hinge (2)
19
Lid
3361392
For White Model
3361393
For Almond Model
20
358684
Strike, Lid Switch
22
93770
Bumper, Lid (2)
28
384435
Screw,
10−16 x 1/2 (5)
31
90016
Clip, Harness
32
3362952
Dispenser, Bleach
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
LITERATURE PARTS
LIT3360057
Sheet, Installation
Instructions
LIT3357470
Guide, Use and
Care
LIT3361371
Energy Guide
LIT3361173
Label, Wiring
Diagram
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
LIT4313896
Manual, (Washer)
OPTIONAL PARTS NOT INCLUDED
PAINT, TOUCH−UP (1/2oz.)
72017
White
72107
Almond
72110
Golden Harvest
PAINT, PRESSURIZED SPRAY
(13 oz.)
350938
Primer, Gray
350930
White
350956
Almond
261890
Golden Harvest
PAINT, BULK (1 qt.)
799344
White (Uncut)
978883
Almond (Uncut)
261891
Golden Harvest
(Uncut)
OIL
350572
Oil, Gearcase
(16 Oz.)
LUBRICANT
285208
Lubricant (Use
Only in Brake
Shoe Assembly
On Roller and
Pin)
SEALER
285195
Sealer, Gasket
(.20 Fl. Oz.) (6 ml)
SHIPPING KIT
3348675
Shipping Kit
ACCESSORY PARTS
89121
Stand−Pipe Kit
367031
Drain Protector
285320
Siphon Break Kit
3
CONTROLS AND REAR PANEL PARTS
For Model: LSC9355BQ1, LSC9355BZ1
(Designer White) (Designer Almond)
881180
4
CONTROLS AND REAR PANEL PARTS
MISCELLANEOUS PARTS
For Model: LSC9355BQ1, LSC9355BZ1
(Designer White) (Designer Almond)
881180
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1
16123
Washer, Water
Inlet Hose (4)
(1−1/16 x 5/8)
3
3354858
Hose, Water
Inlet (2)
4
694419
Mini Buzzer
5
387402
Hinge, Console (2)
6
3357978
Panel, Rear
7
62747
Pad, Rear Panel
8
661575
Hose, Drain
(4’− 8")
661577
Hose, Drain
(9’−9")
(Not Included)
3357090
Extension
Drain Hose
(21 Inches)
(Not Included)
9
3946440
Timer, Control
(60 Hz.)
(Motor Not A
Service Part)
11
3390646
Screw, 8−18 x 5/16
12
Switch,Water Level
3357481
For White Model
3357480
For Almond Model
13
3361233
Bracket, Control
14
3360514
Cord, Power
15
63848
Strain Relief,
Power Cord
16
Cap, End (L.H.)
3358531
White/Chrome
3358532
Almond/Chrome
17
96160
Screen, Filter (2)
18
3360392
Valve, Water
Mixing
19
90864
Screw,
10−24 x 3/8 (2)
21
370451
Clamp, Hose
272846 (Alt.)
353367 (Alt.)
22
3357328
Hose, Vacuum
Break
23
371503
Clamp, Hose
24
387606
Break, Vacuum
25
63290
Support, Rear
Panel
26
3361805
Hose−Corrugated
Assy.
27
356138
Clamp, Hose
30
371502
Clamp, Hose
31
660628
Clamp, Hose
272858 (Alt.)
370447 (Alt.)
353097 (Alt.)
32
62731
Hose, Pump To Tub
34
Switch, Touch Pad
(2)
3360452
For White Model
3360453
For Almond Model
35
Switch, Touch−Pad
(7)
3363673
For White Model
3363675
For Almond Model
36
96435
Screw, Timer
Mounting
(10−32 x 1) (2)
39
Panel, Console
3364054
For White Model
3364055
For Almond Model
44
Knob, Timer
3364291
For White Model
3364293
For Almond Model
45
Dial, Timer
3946261
For White Model
3946262
For Almond Model
49
3353145
Screw, 8−18 (2)
(Panel to Top)
50
62863
Screw, 10−16 x 3/8
51
Cap , End (R.H.)
3358516
White/Chrome
3358517
Almond/Chrome
55
3357011
Screw,
10−16 x 1/2
57
3357027
Nozzle, Hose
Drain
58
3357331
Clamp, Drain
Hose
59
3348424
Shield, Suds
60
3361937
Harness, Wiring
(For Detail See
Page 10.) Also
See Clips.
Illus. Part
No. No. DESCRIPTION
1
3359460
Miscellaneous
Parts Bag
2
16123
Washer, Inlet
Hose
(1−1/16 x 5/8) (4)
4
3359452
Nut, Lock
(3/8−16)
5
389102
Foot, Front (2)
7
356138
Clamp, Hose
5
AGITATOR, BASKET AND TUB PARTS
For Model: LSC9355BQ1, LSC9355BZ1
(Designer White) (Designer Almond)
881180
6
AGITATOR, BASKET AND TUB PARTS
For Model: LSC9355BQ1, LSC9355BZ1
(Designer White) (Designer Almond)
881180
Illus. Part
No. No. DESCRIPTION
1
63580
Dispenser
2
358237
Screw & Washer
(5−16−24 x 1)
3
3348752
Clothes Mover
4
3347288
Agitator
5
63851
Tub Ring & Gasket
6
3359585
Seal, Tub Ring
7
3354845
Clip, Agitator
8
3355921
Washer, Agitator
9
3351001
Cam Driven
10
387091
Dog, Agitator
Clutch
12
21366
Nut, Spanner
13
3350649
Basket & Balance
Ring
14
3361948
Filter, Plate
16
388893
Tub
(Includes Item 25)
17
389140
Block, Basket
Drive
18
383727
Gasket, Centerpost
19
3347780
Hose, Pressure
Switch
20
3348117
Agitator
(Complete Asy.)
22
3350389
Spacer, Thrust
23
3347290
Cap, Barrier
24
3348855
Seal, Inner Cap
25
3358198
Hose, Bleach
BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS
7
For Model: LSC9355BQ1, LSC9355BZ1
(Designer White) (Designer Almond)
881180
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1
388952
Brake & Drive
Tube (Complete)
(Refer to Page 10
For Further
Breakdown)
2
63292
Washer, Spin
Tube Thrust
3
62697
Ring, Spin
Tube Support
4
63283
Ring, Retainer
5
3946794
Clutch (Complete)
6
3946793
Band & Lining,
Clutch (Includes
Illus. 7 & 8)
7
62646
Cap, Clutch
Spring (2)
8
3363337
Spring, Clutch
9
3360630
Gearcase
(Complete)
(Refer To Page 11
For Further
Breakdown
10
3357334
Screw, Gearcase
To Base (3)
11
62611
Plate, Motor
Mount To
Gearcase
12
62691
Grommet, Motor (4)
13
3363664
Coupling, Motor
& Isolation
15
3355454
Clip,
Anti−Rattle
16
3357334
Screw
17
3349637
Retainer, Motor (2)
18
3362089
Shield, Tub
To Motor
19
3352287
Motor, Main
Drive
20
62850
Switch, Main
Drive Motor
21
62700
Retainer, Pump (2)
22
3363394
Pump (Complete)
23
3387485
Screw, 10−16 x 5/8
24
3946532
Shield, Motor
25
62863
Screw,
10−16 x 3/8
26
3348058
Capacitor
27
357030
Clamp, Capacitor
8
MACHINE BASE PARTS
For Model: LSC9355BQ1, LSC9355BZ1
(Designer White) (Designer Almond)
881180
Illus. Part
No. No. DESCRIPTION
1
343641
Screw, Bracket
Mounting
(10−16 x 5/8)
2
64067
Bracket, Spring
Outer (2)
3
63907
Spring
Suspension,(3)
4
3362087
Support & Brake,
Tub
5
64065
Bracket, Spring
Outer (L.F.)
6
3348727
Link, Leveling
Mechanism (2)
7
62597
Spring, Leveling
Mechanism
8
62837
Pin, Knurled
9
62596
Foot, Rear (2)
13
3347047
Bearing,
Centerpost (2)
14
357409
Seal, Centerpost (3)
15
388492
Spring,
Counterweight
16
62568
Pad, Plate
17
3946509
Plate, Suspension
(Includes Illus. 16)
18
3363660
Pad, Base
19
3946512
Base Assembly
(Includes Illus, 6,
7, 8, 9, 18 & 26)
21
3359452
Nut, Lock
(3/8−16)
22
389102
Foot, Front (2)
23
356934
Seal, Centerpost (2)
24
285203
Centerpost
Bearing Kit
(Includes Illus.
13, 14 & 23)
25
63134
Ring, Sound
Deadening
26
63806
Retainer,
Suspension Spring
WIRING HARNESS PARTS
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
FOR COMPLETE WIRING HARNESS REFER TO
CONTROL AND REAR PANEL PARTS PAGE
WH2D
1 3349557 Clip, Harness
2 388498 Clip, Harness
3 3347812 Clip, Harness
4 3352501 Clip, Harness
5 90016 Clip, Harness
6 3390496 Clip, Harness
7 389379 Retainer,
(Suds Models)
8 352090 Timer, Block
Disconnect
(White)
9 352089 Timer, Block
Disconnect
(Black)
10 62889 Receptacle,
Terminal
(3−Way)
(Lid Switch)
(Use Term.94613)
Or 94614.)
11 353424 Plug, Terminal
(3−Way)
(Power Cord)
(Use Term.94613)
12 62505 Block, Disconnect
(Motor 2 Speed)
(Use Term.352088)
13 3348075 Block, Disconnect
(Motor 3 Speed)
(Use Term. 94613
Or 94614.)
14 3347243 Block, Disconnect
(Use Term. 352088)
15 63523 Protector
16 717252 Connector
(2−Way)
(Use Term.94614)
17 387566 Plug, Terminal
(4−Way)
(Power Cord)
(Use M3 Screws)
18 3352944 Clip, Harness
19 3390423 Block, Disconnect
(12−Way)
(Timer)
(Use Term. 94613)
20 3347730 Receptacle
(6−Way)
(Use Term. 94613)
21 388818 Plug, Terminal
(12−Way)
(Use Term. 94613
Or 94614.)
22 3369366 Timer, Block
Disconnect
(Black) (Amp)
(Use Term.3369365)
23 3349494 Connector, Etc
24 60687 Connector, Relay
(Use Term.308569
Or 338664.)
25 3407125 E.T.C. Control
9
For Model: LSC9355BQ1, LSC9355BZ1
(Designer White) (Designer Almond)
881180
Illus. Part
No. No. DESCRIPTION

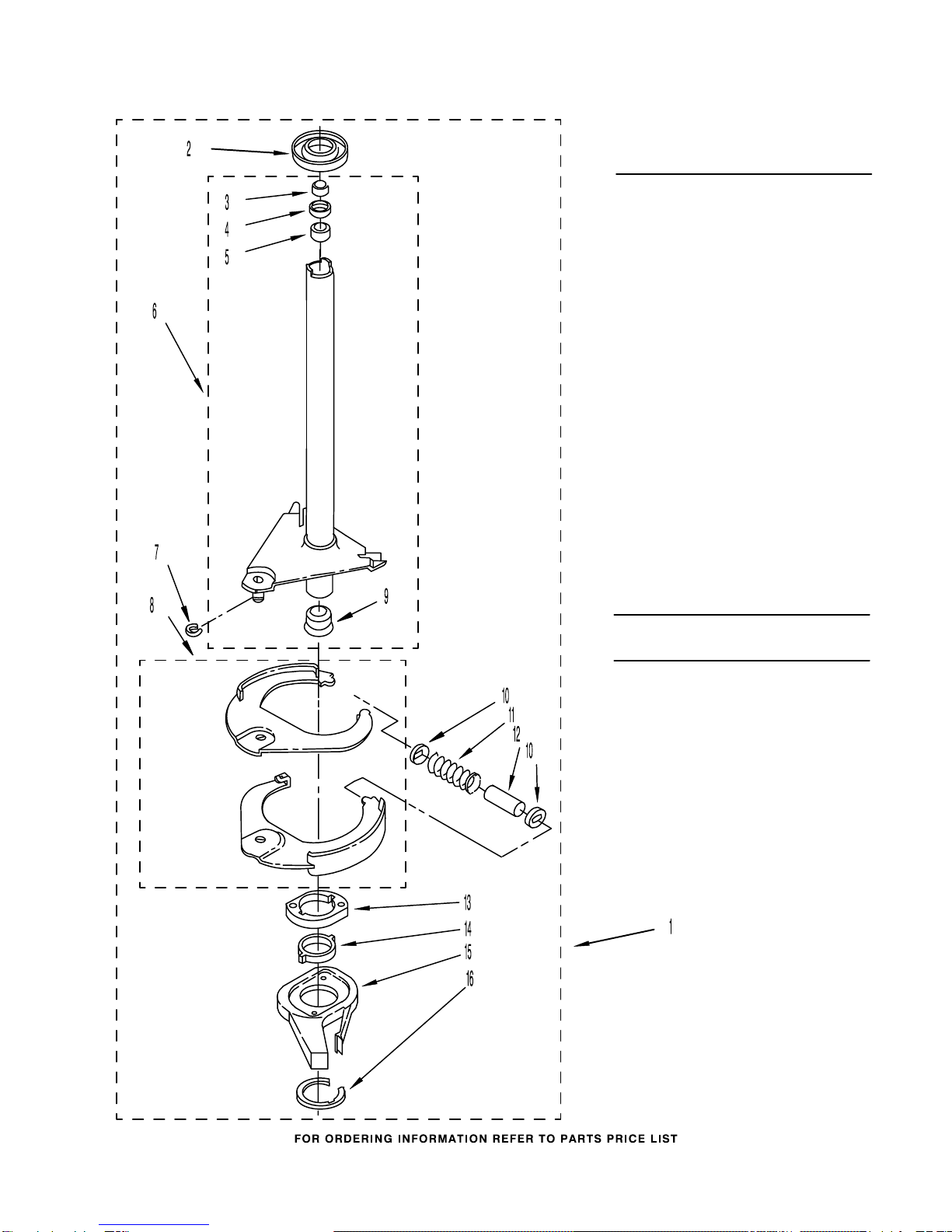

BRAKE AND DRIVE TUBE PARTS
1 388952 Brake And Drive
Tube (Complete)
2 62658 Ring, Thrust
3 91939 Seal, Oil
4 356427 Seal, Drive Tube
5 356937 Spacer, Drive
Tube
6 64027 Tube, Basket
Drive (Includes
Illus. 3, 4, 5 & 9)
7 64035 Ring, Retaining
8 64232 Shoe, Brake
9 62703 "T" Bearing,
Spin Tube
10 62648 Cap, Brake
Spring (2)
11 387806 Spring, Brake
12 62909 Sleeve, Brake
Spring
13 63023 Cam, Brake
Release
14 63022 Sleeve, Cam
15 64194 Driver, Brake
Cam
16 90368 Ring, Retaining
FOLLOWING PARTS
NOT ILLUSTRATED
285208 Lubricant
(Use Only In
Brake Shoe
Assembly On
Roller & Pin)
BD−315A
10
For Model: LSC9355BQ1, LSC9355BZ1
(Designer White) (Designer Almond)
881180
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Whirlpool Rondelle
Whirlpool
Whirlpool WFW95HEDC Manuel utilisateur
Whirlpool
Whirlpool Cabrio WTW6400SW2 Manuel utilisateur
Whirlpool
Whirlpool WTW4880AW Instructions de montage
Whirlpool
Whirlpool WMA-780 Manuel utilisateur
Whirlpool
Whirlpool AWE7101N Guide d'installation
Whirlpool
Whirlpool WFW75HEFW Manuel utilisateur
Whirlpool
Whirlpool Cabrio WTW5700AC Instructions de montage
Whirlpool
Whirlpool LA531OXP Manuel utilisateur
Whirlpool
Whirlpool ADG 3550 Manuel utilisateur
Whirlpool
Whirlpool NTW5100TQ Manuel utilisateur
Whirlpool
Whirlpool FFB 9469 BV SPT Manuel utilisateur
Whirlpool
Whirlpool AWM 8000-GR Manuel utilisateur
Whirlpool
Whirlpool 8LSP8245AW1 Manuel utilisateur
Whirlpool
Whirlpool WWI206 Manuel utilisateur
Whirlpool
Whirlpool LA6058XS Manuel utilisateur
Whirlpool
Whirlpool LA5300XK Manuel utilisateur
Whirlpool
Whirlpool LA980OXK Manuel utilisateur
Whirlpool
Whirlpool WTW4950X Series Manuel utilisateur
Whirlpool
Whirlpool WFW94HEAW Manuel utilisateur
Whirlpool
Whirlpool FFB 9469 BV SPT Manuel utilisateur
