SERVICE MANUAL

Vertical axis Washing Machine

Model: LHB 1402

Caution :

In this Manual. some parts/technical specification can

be changed for improving, their performance without

notice in the parts list. So, if you need the latest parts

information, please refer to Spare parts list in service

information.

_______________________________________________________________________________________

Page | 2

INDEX

1. TOP LOAD WASHING MACHINE 03

2. WASHER SPECIFICATION 04

3. PARTS LIST BY ASS'Y 05

4. CONTROLS PART FUNCTION SPECIFICATION 23

5. WARNINGS & ERROR MESSAGE 25

6. ERROR DISPLAY & ITS DIAGNOSIS 26

7. PROBLEMS & CHECKLIST 29

8. CONTROL PANEL 30

7. PROGRAM CHART & TIME CHART 31

8. KEY FEATURES 33

9. WIRING DIAGRAM 34

VERTICAL AXIS WASHING MACHINE

SERVICE MANUAL

_______________________________________________________________________________________

Page | 3

1.TOP LOAD WASHING MACHINE

Lint Management System

The wash plate has radial vanes at the bottom which repeatedly force water through

the filter and ensures maximum lint collection, resulting lower lint deposition in your

clothes.

Flexi Loading/ Add a Garment

The machine allows you to add clothes in between cycles such that precious time,

water and energy are saved by avoiding repetition of a cycle for the clothes that

were left out.

Spray Rinse

The clothes are rinsed with multiple low water sprays that ensure there is Zero

detergent residue for maintaining the freshness of the clothes and also reducing the

risk of any irritation or allergy.

Friction Dampening System

The new friction dampening system coupled with a unique cabinet pattern doesn't

only add to the aesthetic appeal but also reduces noise levels and machine walk by

suppressing vibration.

The CARESS –Pattern Drum

The new iconic 'S' pattern design in the drum makes sure that the clothes are

handled with gentle care while enhancing soil removal for a better wash. True care

for your clothes.

_______________________________________________________________________________________

Page | 4

2. PRODUCT SPECIFICATION

Model

LHB 1402

Dimension (mm)

620x670x1090

Maximum Mass Of Fabric(kg)

14.0 Kg Dry Linen

Machine Weight(kg)

48.0

Power supply

220 V AC, 60 Hz, 16 A

Spin Speed(RPM)

740 rpm

Operating Water Pressure

0.2 - 7.0 Kg/cm2

_______________________________________________________________________________________

Page | 5

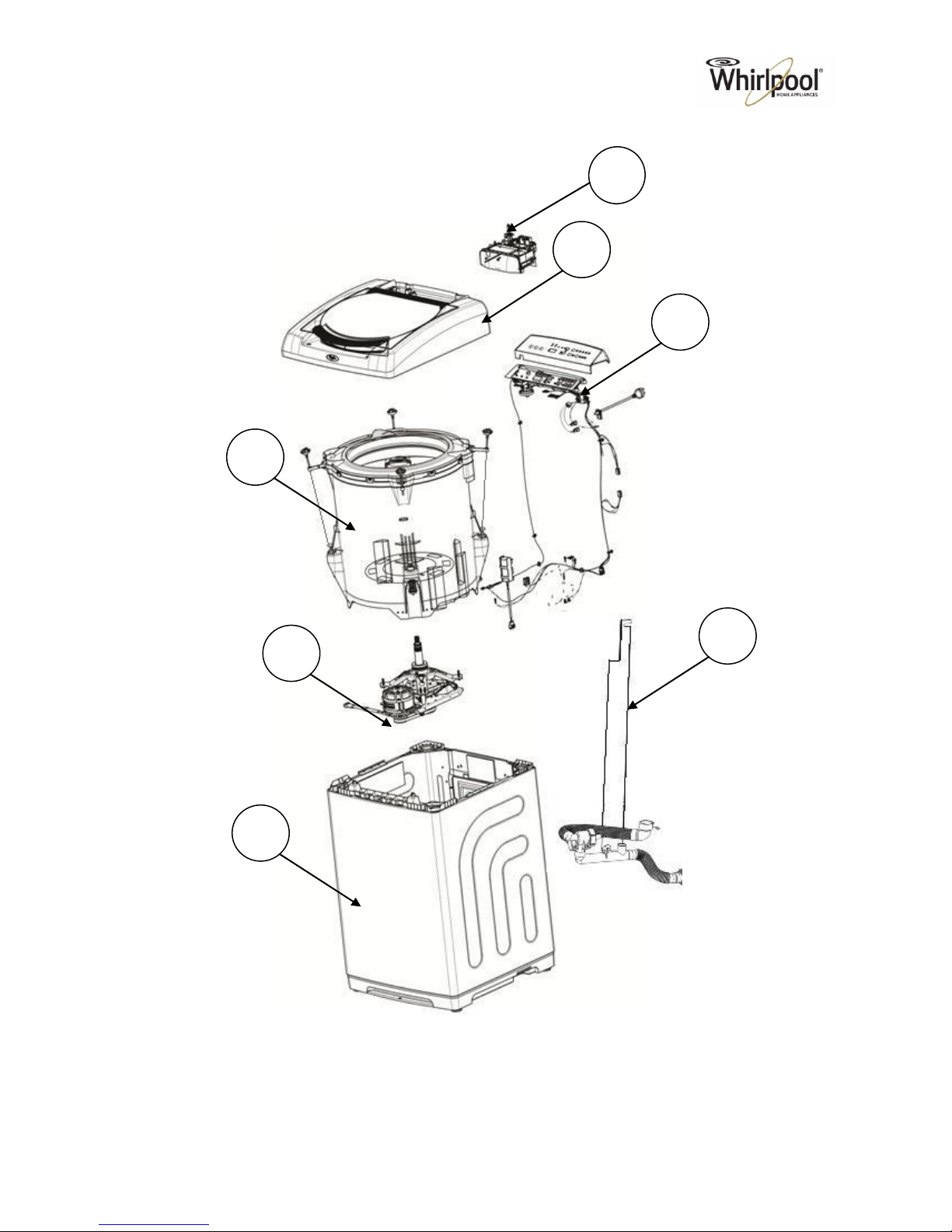

3. FULL MACHINE ASSEMBLY

_______________________________________________________________________________________

Page | 6

3. FULL MACHINE ASSEMBLY

Sl.No.

Description

CABINET TOP AND LID

WASH UNIT

DRIVE SYSTEM

CABINET-ENCLOSURE

HYDRAULIC INLET SYSTEM

UI-CONTROLS

HYDRAULIC SYSTEM OUTLET

_______________________________________________________________________________________

Page | 7

4a. CABINET ASSEMBLY

_______________________________________________________________________________________

Page | 8

4A. CABINET ASSEMBLY

Sl. No

Part No

Description

Qty

W10623606

FRONT STIFFNER, G62

P018821140A

DAMPER PAD EPE WITH ADHESIVE,G62

W10617104

CABINET & BRIDGE PLATE ASM-GRAPHITE,G62

W10798533

CABINET ASSY COMPLETE - GRAPHITE 0.71MM

W10564582

UNDERBASE-CHARCOAL GREY,G62

W10625389

UNDERBASE-WHITE, G62

W10626453

REAR SPLIT FRAME, G62

P018821140A

DAMPER PAD - EPE WITH ADHESIVE

W10814435

INSPECTION COVER,G62

S0113203900

SCREW ST4.2X13 WITH INTEGRATED WASHER

W10482282

ADJUSTABLE FOOT-ASSEMBLY,SAPPHIRE-G62

S0113205200

SCREW-ST4.8X17-F(U/B/TOCAB)P.HEAD&DR.MOT

W10462202

RAT MESH,G62

_______________________________________________________________________________________

Page | 9

4b. TOP & LID ASSEMBLY

_______________________________________________________________________________________

Page | 10

4b. TOP & LID ASSEMBLY

Sl. No

Part No

Description

Qty

W10710360

LID ASSEMBLY(4MM TINTED)-VARI62 (BLACK)

P018810250A

PLUG LEFT - GRAPHITE

P018810260A

PLUG RIGHT - GRAPHITE

W10698062

TOP SOFT 62 VARI GRAPHITE PAINT

W10520394

HINGE PIN - VARI

W10746911

SCREW ST 4.2x13 ( OLIVE DRAB)

P018830060B

BRACKET LID SWITCH 24 INCH

W10732242

SWITCH LID - CHAGAL STYLE

W10899975

CONTROL COVER - INLET VALVE - 62CM VARI

W10746911

SCREW ST 4.2x13 ( OLIVE DRAB)
