Whirlpool LBR5432JQ1 Manuel utilisateur

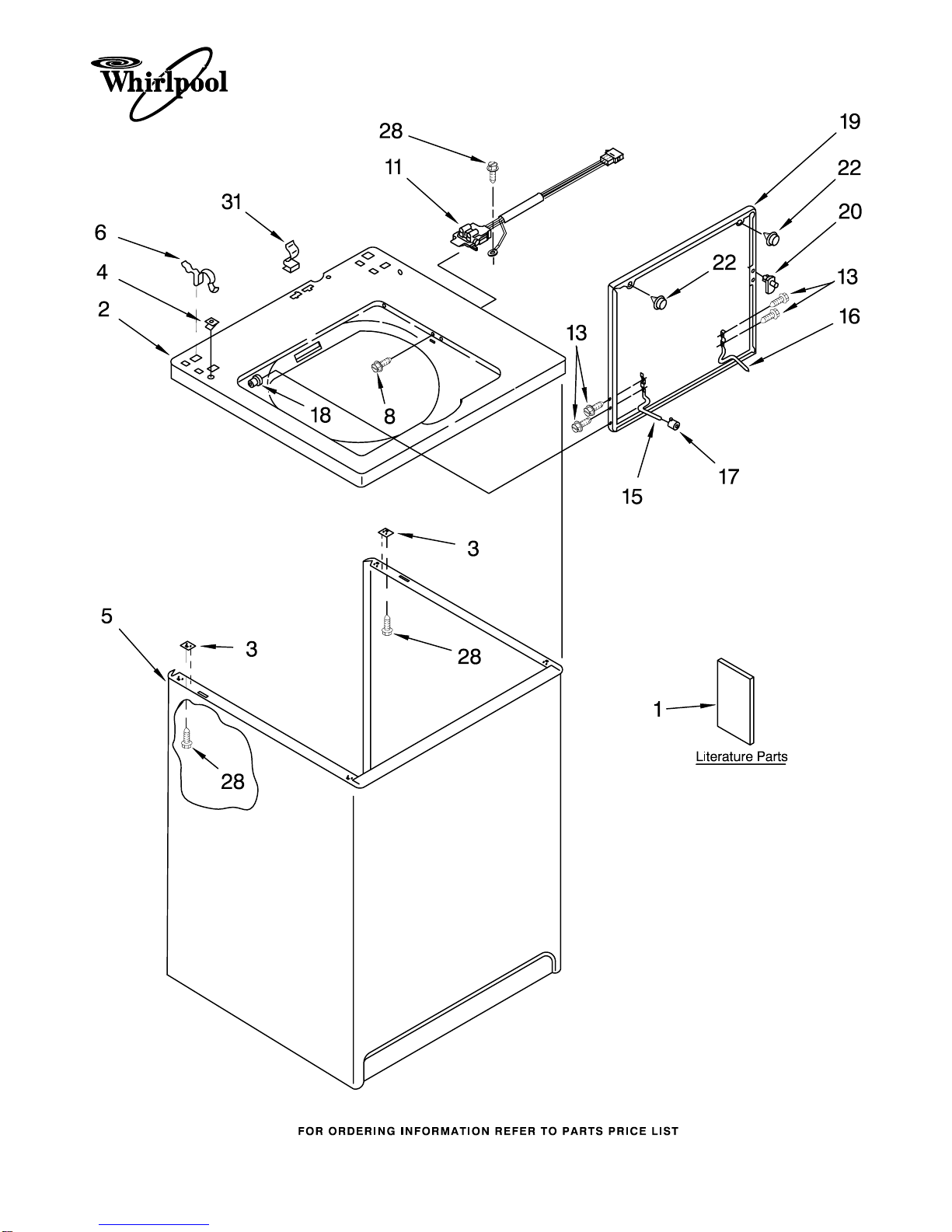

TOP AND CABINET PARTS

For Models: LBR5432JQ1, LBR5432JT1

(Designer White) (Biscuit)

6−02 Litho in U.S.A. (djc) Part No. 8179567

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Models: LBR5432JQ1, LBR5432JT1

(Designer White) (Biscuit)

8179567

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

Installation

Instructions

LIT3952817

English

LIT3951578

French

Use & Care Guide

LIT3955155

English

LIT3954821

French

LIT3954706

Wiring Diagram

LIT3954545

Energy Guide

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT4313896

Manual, Washer

2 Top

8274311 White

8274313 Biscuit

3 62750 Spacer, Cabinet To

Top (4)

4 357213 Nut, Push−In (2)

5 Cabinet

63128 White

3954777 Biscuit

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

8 3356311 Screw & Washer,

Lid Switch (2)

11 3949239 Switch, Lid

13 3351355 Screw, Lid Hinge

Mounting (4)

15 54584 Hinge, Lid (L.H.)

16 91770 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid

Hinge (2)

19 Lid

3361411 White

3954457 Biscuit

20 358684 Strike, Lid Switch

22 9724509 Bumper, Lid (2)

28 3390631 Screw, 10−16 x 3/8

31 90016 Clip, Harness

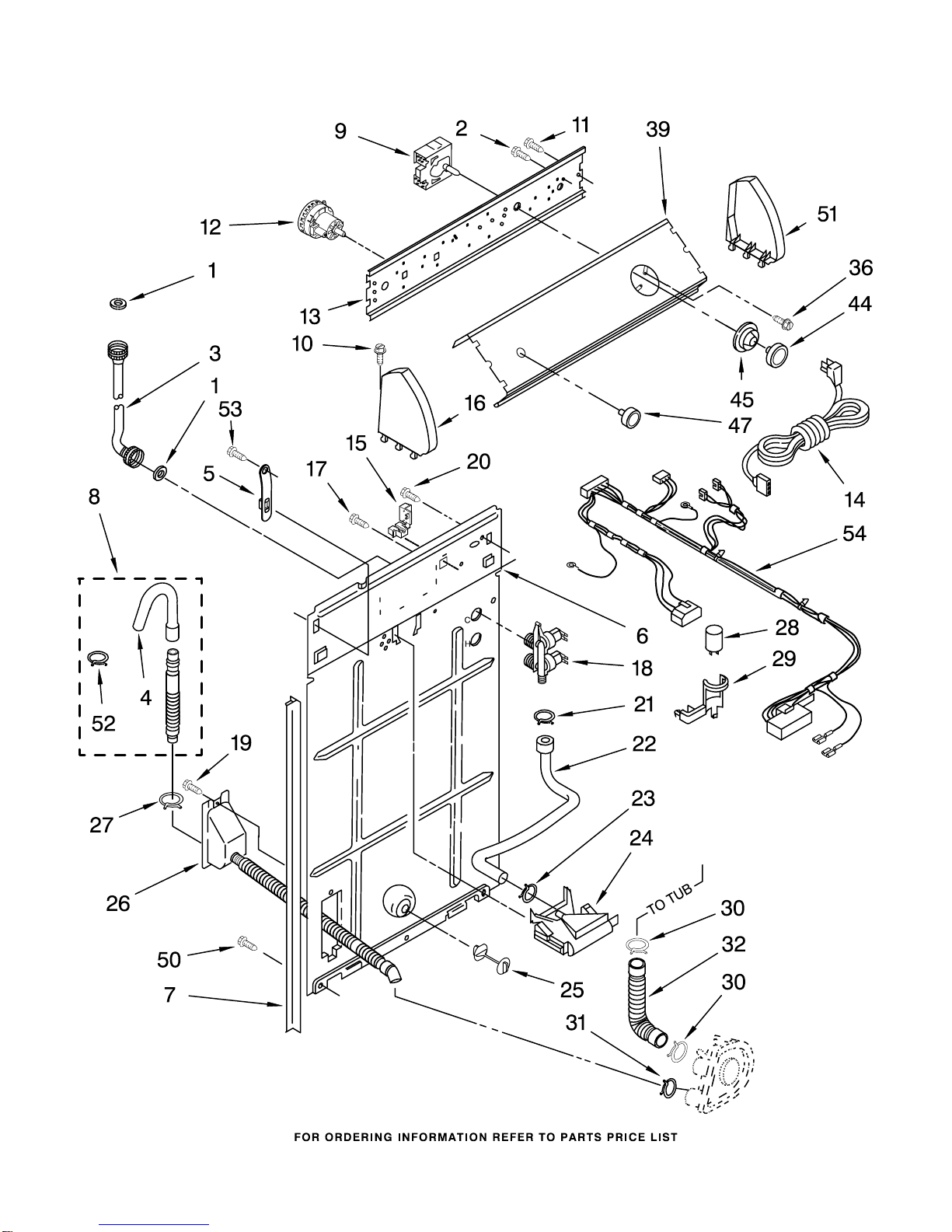

CONTROLS AND REAR PANEL PARTS

For Models: LBR5432JQ1, LBR5432JT1

(Designer White) (Biscuit)

8179567

CONTROL AND REAR PANEL PARTS

For Models: LBR5432JQ1, LBR5432JT1

(Designer White) (Biscuit)

8179567

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3976300 Washer, Water

Inlet Hose (4)

2 3400073 Screw, Ground

3 Hose, Water

Inlet

3949374 Blue Coupler

3949375 Red Coupler

4 3357027 Nozzle−Drain

Hose

5 8318255 Hinge, Console (2)

6 3357976 Panel, Rear

7 62747 Pad, Rear Panel

8 3951609 Hose, Drain

(4 ft.)

661577 Hose, Drain

(9 ft.)

(Not Included)

3357090 Extension,

Drain Hose

(21 Inches.)

(Not Included.)

9 3949620 Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

10 388326 Screw, 8−18 x 1.25

11 90767 Screw, 8−18 x 3/8

12 3366849 Switch, Water Level

13 3948814 Bracket, Control

14 3948063 Cord, Power

15 3952821 Strain Relief,

Power Cord

16 Cap, End (L.H.)

8271365 White

8271368 Biscuit

17 9740848 Screw, 8−18 x 1/2

18 3952164 Valve, Water

Mixing

19 90864 Screw, 10−24 x 1/2

20 3351614 Screw, 10−24 x 3/8

21 370451 Clamp, Hose

22 62662 Hose, Vacuum

Break

23 371503 Clamp, Hose

24 3347034 Break, Vacuum

25 8519200 Support, Rear

Panel

26 3361805 Hose−Corrugated

Assembly

27 3366912 Clamp, Hose

28 661606 Capacitor,

Motor Start

29 8318201 Clip, Capacitor

30 3363366 Clamp, Hose

31 660628 Clamp, Hose

32 3951449 Hose, Pump To Tub

36 3400064 Screw, Timer

Mounting (2)

39 Panel, Console

3954214 White

3954211 Biscuit

44 Knob, Timer

8274290 White

8274293 Biscuit

45 Dial, Timer

8274331 White

8274333 Biscuit

47 Knob, Control

8271339 White

8271348 Biscuit

50 62863 Screw, 10−16 x 3/8

51 Cap, End (R.H.)

8271359 White

8271362 Biscuit

52 3366913 Clamp, Drain

Hose

53 3390647 Screw, 8−18 x 1/2

54 3955005 Harness, Wiring

(For Detail See

Page 9 & 10)

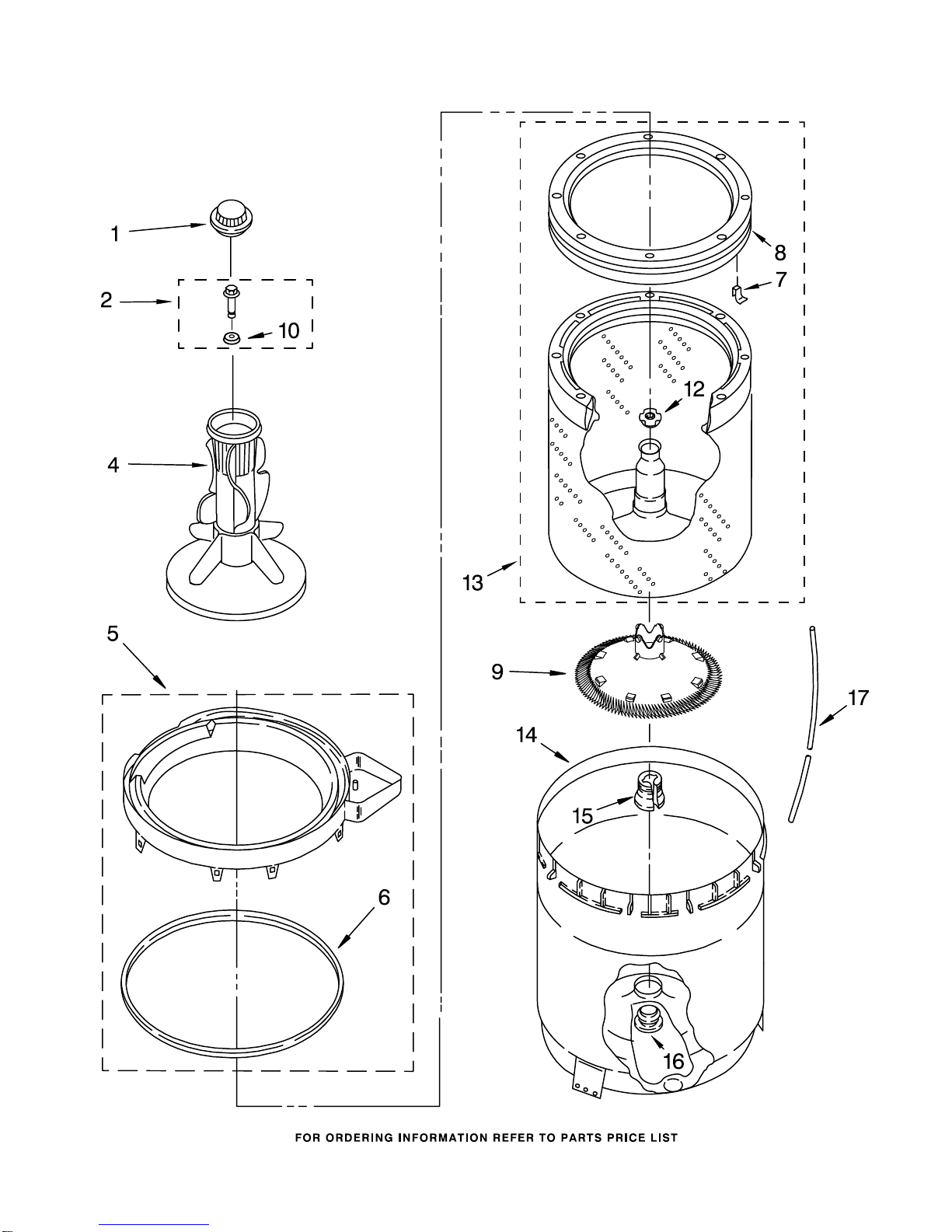

AGITATOR, BASKET AND TUB PARTS

For Models: LBR5432JQ1, LBR5432JT1

(Designer White) (Biscuit)

8179567

AGITATOR, BASKET AND TUB PARTS

For Models: LBR5432JQ1, LBR5432JT1

(Designer White) (Biscuit)

8179567

Illus. Part

No. No. DESCRIPTION

1 3352483 Cap, Agitator

2 358237 Screw & Washer

(5/16−24 x 1)

4 63377 Agitator

5 3360611 Tub Ring & Gasket

Assembly

6 3359586 Gasket, Tub Ring

7 387867 Clip, Balance

Ring (8)

8 387868 Balance Ring

9 3952746 Plate, Filter

10 3949550 Washer

12 21366 Nut, Spanner

13 8271646 Basket & Balance

Ring

(Also Order #9)

14 63125 Tub

15 389140 Block, Basket

Drive

16 383727 Gasket, Centerpost

17 3363657 Hose, Pressure

Switch

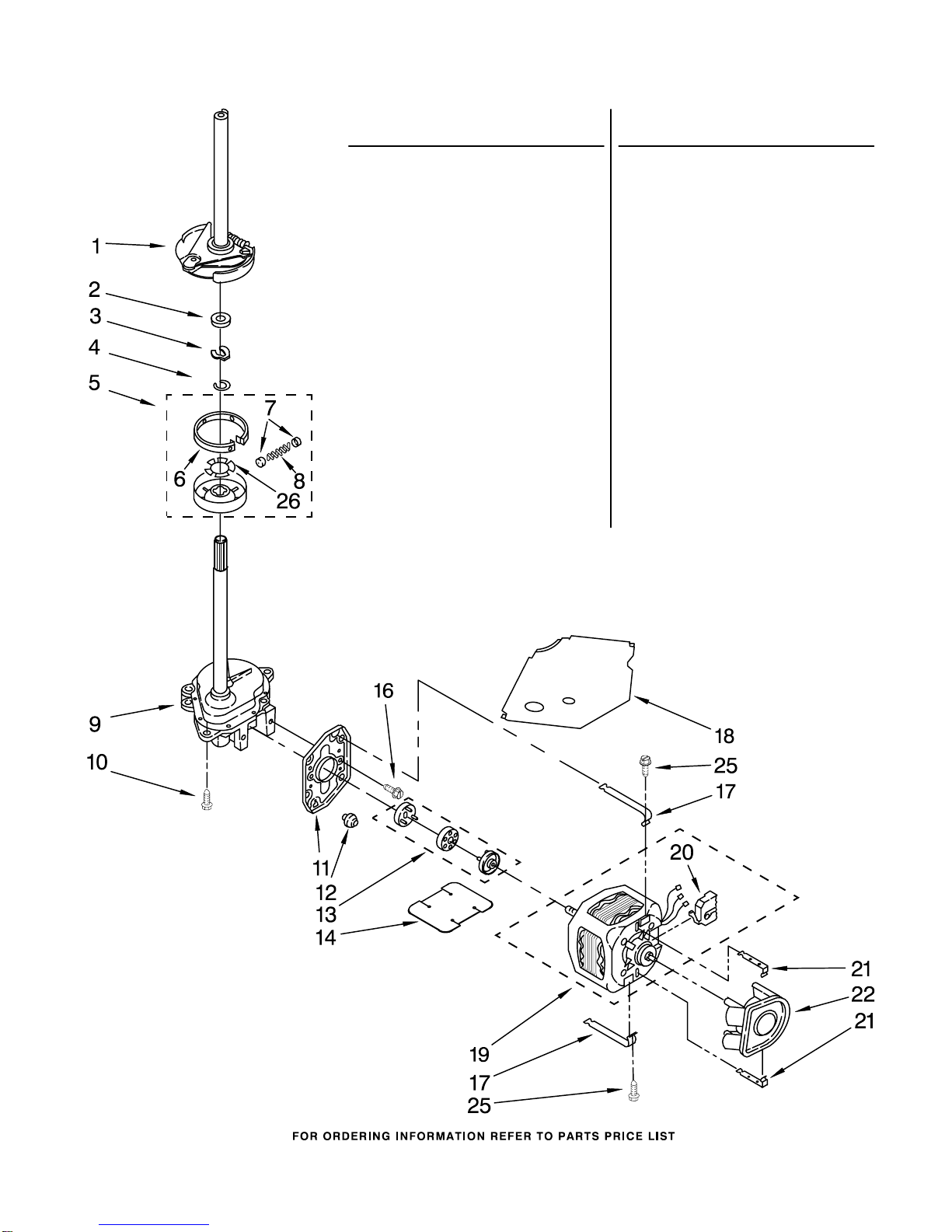

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Models: LBR5432JQ1, LBR5432JT1

(Designer White) (Biscuit)

8179567

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 388951 Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3951311 Clutch (Complete)

6 3951308 Band & Lining,

Clutch (Includes

Illus. 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3946792 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page

12 For Further

Breakdown.)

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 3364003 Coupling, Motor

And Isolation

Coupling

14 3946532 Shield, Motor

16 3400516 Screw

17 3349637 Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 661600 Motor, Main

Drive

20 62850 Switch, Main

Drive Motor

21 62700 Retainer, Pump (2)

22 3363394 Pump (Complete)

25 3387485 Screw, 10−16 x 5/8

26 3355454 Clip,

Anti−Rattle

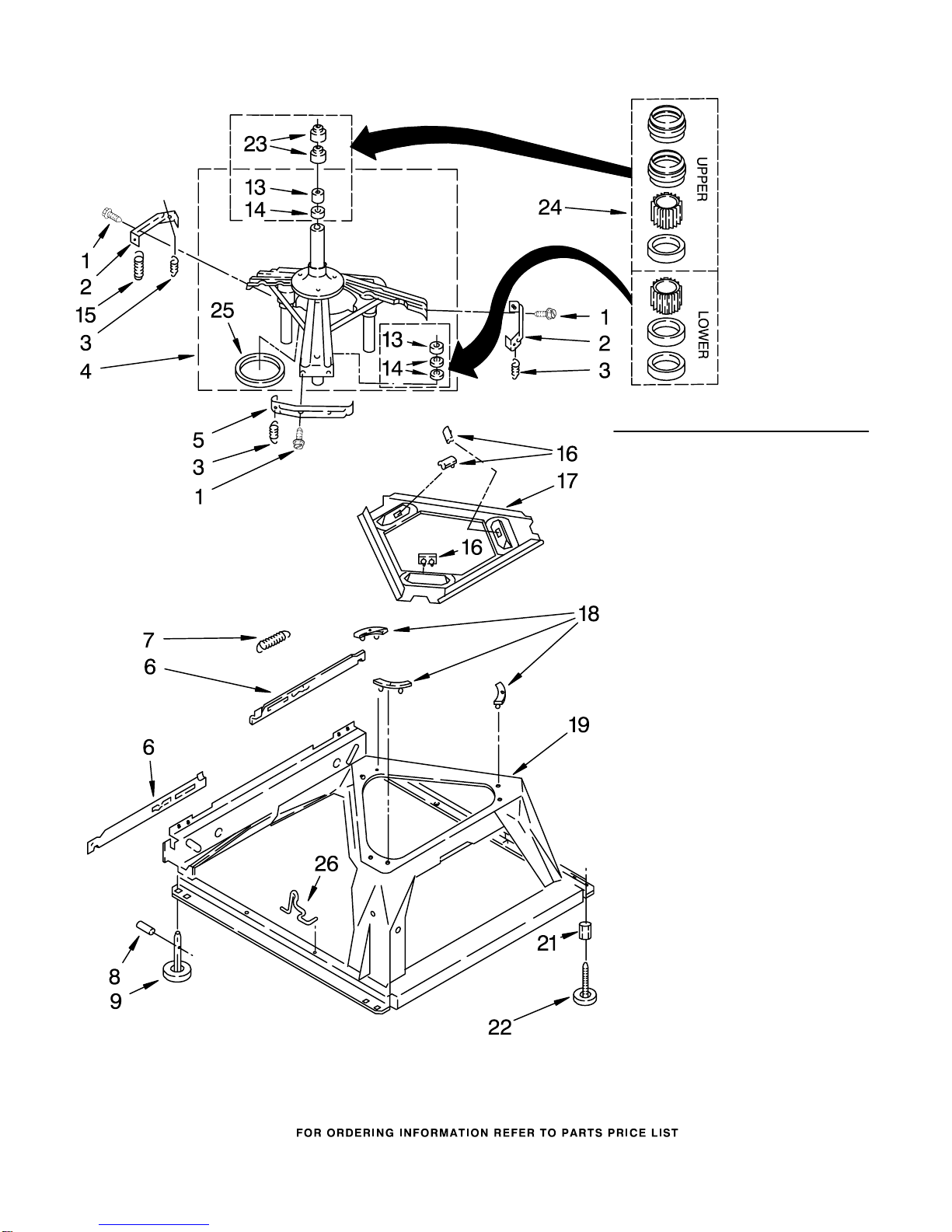

MACHINE BASE PARTS

For Models: LBR5432JQ1, LBR5432JT1

(Designer White) (Biscuit)

8179567

Illus. Part

No. No. DESCRIPTION

1 3400076 Screw, Bracket

Mounting

(10−32 x 5/8)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring (3)

4 3362087 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 63138 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

13 3347047 Bearing,

Centerpost (2)

14 357409 Seal, Centerpost (3)

15 388492 Spring,

Counterweight

16 62568 Pad, Plate

17 3946509 Plate, Suspension

(Includes Illus. 16)

18 3363660 Pad, Base

19 3349337 Base Assembly

(Includes Illus, 6,

7, 8, 9, 18 & 26)

21 3359452 Nut, Lock

(3/8−16) (2)

22 389102 Foot, Front (2)

23 356934 Seal, Centerpost (2)

24 285203 Centerpost

Bearing Kit

(Includes Illus.

13, 14 & 23)

25 63134 Ring, Sound

Deadening

26 63806 Retainer,

Suspension Spring

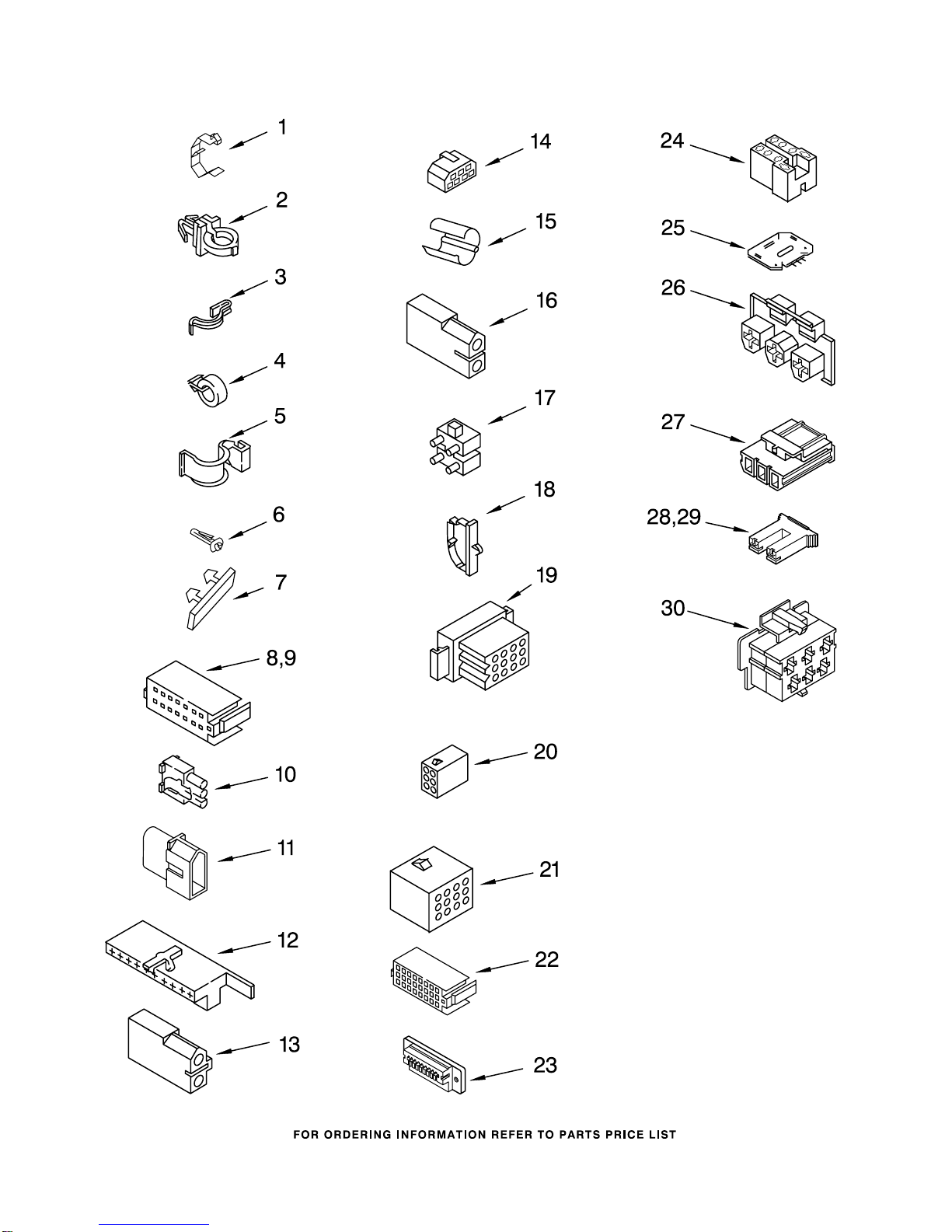

WIRING HARNESS PARTS

WH2G

For Models: LBR5432JQ1, LBR5432JT1

(Designer White) (Biscuit)

8179567

WIRING HARNESS PARTS

WH2G

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

FOR COMPLETE WIRING HARNESS REFER TO

CONTROL AND REAR PANEL PARTS PAGE

1 3349557 Clip, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

5 90016 Clip, Harness

6 3390496 Clip, Harness

7 389379 Retainer,

(Suds Models)

8 352090 Timer, Block

Disconnect

(White)

9 352089 Timer, Block

Disconnect

(Black)

10 62889 Receptacle,

Terminal

(3−Way)

(Lid Switch)

(Use Term.94613)

Or 94614.)

11 353424 Plug, Terminal

(3−Way)

(Power Cord)

(Use Term.94613)

12 62505 Block, Disconnect

(Motor 2 Speed)

(Use Term.352088)

13 3348075 Block, Disconnect

(Motor 3 Speed)

(Use Term. 94613

Or 94614.)

14 3347243 Block, Disconnect

(Use Term. 352088)

15 63523 Protector

16 717252 Connector

(2−Way)

(Use Term.94614)

17 387566 Plug, Terminal

(4−Way)

(Power Cord)

(Use M3 Screws)

18 3352944 Clip, Harness

19 3390423 Block, Disconnect

(12−Way)

(Timer)

(Use Term. 94613)

20 3347730 Receptacle

(6−Way)

(Use Term. 94613)

21 388818 Plug, Terminal

(12−Way)

(Use Term. 94613

Or 94614.)

22 3369366 Timer, Block

Disconnect

(Black) (Amp)

(Use Term.3369365)

23 3349494 Connector, Etc

24 60687 Connector, Relay

(Use Term.308569)

25 3407125 E.T.C. Control

26 3948617 Connector (T.P.A.)

(3−Circuit)

(Lid Switch)

(Use Term. 3948619

OR 3948620.)

27 3360056 Connector (T.P.A)

(3−Circuit)

(Pressure Switch)

(Use Term.3948619

OR 3948620.)

28 3354925 Block, Connector

(Cold Valve)

(Use Term.693217)

29 3354926 Block, Connector

(Hot Valve)

(Use Term.693217)

30 3948615 Connector (T.P.A.)

(6−Circuit)

(Temp. Switch)

(Use Term.3948619

OR 3948620.)

For Models: LBR5432JQ1, LBR5432JT1

(Designer White) (Biscuit)

8179567
