Whirlpool LA7899XP Manuel utilisateur

AUTOMATIC

WASHER

Design 2000”’

Super Capacity

Model

LA7899XP

Microwave Ovens Trash Compactors Room .41r Candlllaners Uehumldlflers Aulomallc Washers Clothes Dryers Freezers Relrlgeralor

Parts and features

MAGIC CLEAN’

LINT FILTER

(not shown)

LAUNDRY TEMPERATURE

LIQUID FABRIC

SOFTENER DISPENSER

LIQUID BLEACH

DISPENSER

MODEL AND SERIAL

NUMBER PLATE

(not shown)

Buy Guide label. It will be

eosier to remove before

the washer is used.

3 Removethe Co”s”mer

You should wipe out the

basket with a damp cloth

before using to remove

dust from storing or

shipping.

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this information ready:

Model Number

1. Complete Model and Serial Numbers

(from plate under the lid near the Serial Number

hinge).

2. Purchase date from sales slip.

Purchase Date

Copy this information in these spaces.

Keep this book in the Laundry Information

Center with your “Laundry Guide:’ sales

Service Company/

slip and warranty.

Phone Number

Please complete and mail the Owner Registration Card furnished witi

this product.

Iur

?ad tt

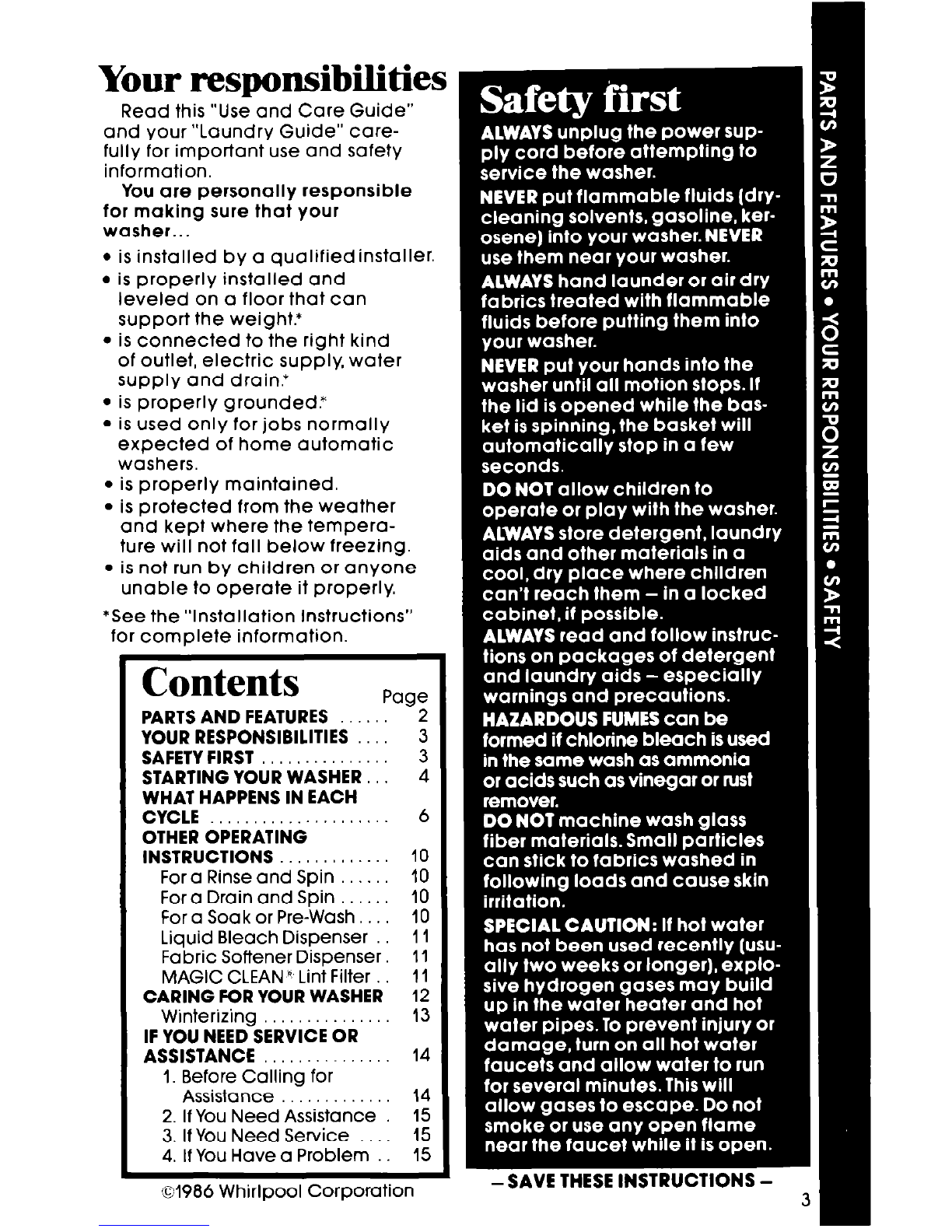

responsibilities

iis “Use and Core Guide”

and your “Laundry Guide” care-

fully for important use and safety

information.

You ore personally responsible

for making sure that your

washer...

is installed by a qualifiedinstaller.

is properly installed and

leveled on a floor that con

support the weight?

is connected to the right kind

of outlet, electric supply, water

supply and drain.*

is properly grounded:

is used only for jobs normally

expected of home automatic

washers.

is properly maintained.

is protected from the weather

and kept where the tempera-

ture will not fall below freezing.

is not run by children or anyone

unable to operate it properly.

*See the “Installation Instructions”

for complete information.

Contents

Page

PARTS AND FEATURES 2

YOUR RESPONSiBiLiTiES 3

SAFETY FIRST 3

STARTING YOUR WASHER. 4

WHAT HAPPENS IN EACH

CYCLE 6

OTHER OPERATING

INSTRUCTIONS 10

For a Rinse and Spin 10

For a Drain and Spin 10

For Q Soak or Pre-Wash 10

Liquid Bleach Dispenser 11

Fabric Softener Dispenser. 11

MAGIC CLEAN ’ Lint Filter 11

CARING FOR YOUR WASHER 12

Winterizing 13

IF YOU NEED SERVICE OR

ASSISTANCE 14

I. Before Calling for

Assistance 14

2. If You Need Assistance 15

3. If You Need Service 15

4. IfYou Hove a Problem 15

01986 Whirlpool Corporation

Starting your washer

Before starting

your washer: 1. Measure and add detergent.

2. Place sorted load In washer.

3. Start washer.

Select a Select WATER

1. LOAD SIZE 2. TEMPERATURES

Turn the knob to point at a setting

that describes the size of load you

want to wash.

Set the knob anywhere on or be-

tween HAND WASHABLE (a few small

items) and EX LARGE [a full load).

See your “Laundry Guide” for details

on load sizes.

NOTE: Use the EX LARGE water

level for best permanent press

results.

Select wash and rinse water tem-

peratures by pushing a button.

. This drawing shows a warm wash

[top temperature) and cold rinse

(bottom temperature) selection.

Recommended wash temperatures

can be found in your “Laundry Guide:

LOAD SIZES AND WATER LEVELS

For best cleaning results, the

load must be able to move freely

in the water. Too big a load or too

little water can cause wear or

tearing of load items. 8

CAUTION :

DO NOT

OVERLOAD WASHER.

*Approximate

fill with load.

EX LARGE (21.7 galsJ82.1L)’

MEDIUM (16.4 gals.162.1L)’

HAND WASHABLES (11.9 gals./45OL)’

3. Start the washer

Push in the Control Knob and

turn it to the right. It must be

pushed in and turned only

clockwise.

Stop on a number in the cycle

you want. The numbers are min-

utes of wash time. The drawing

shows10 minutes of agitation in

the REGULAR Cycle.

C. Start the washer by pulling out

the Control Knob. The washer

will fill to the level you set with

wash water of the selected

temperature. After filling, the

washer will agitate for the

selected number of minutes.

To stop the washer at any time

push in the Control Knob. To

restart the washer, pull out the

Control Knob.

What happens in each cycle*

Each cycle has different agrtation and spin speeds designed for different

kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH

agitation time.

When the Cycle Control Knob is set to a number and pulled out, the washer

fills before agitation and timing starts, After agitation starts, the knob turns clock-

wise until it points to OFF and the cycle ends

REGULAR HEAVY Cycle

A cycle for sturdily con-

structed fabrics that are

heavily soiled.

REGULAR Cycle

A cycle for regular loads of

fabrics that are moderately

soiled.

PERMANENT PRESS Cycle

A special cycle with the

necessary cool down rinse

which helps keep wrinkles

from setting into Permanent

Press and some synthetic

fabrics.

REFILL

COOL

DOWN

NOTE: You may hear the sound of water spraying during the Spin parts of

some cycles. In some cycles, cold water is sprayed on the spinning loa

with the rinsing.

WASH

NOTE: Always use cold rinse water

High

cnnnrl for permanent press fabrics. I

KNIT /GENTLE Cycle A cycle that gently washes

and spins delicate items

and washable knits.

SOAK AND PRE-WASH Cycles

Brief periods of agitation

and soak time help remove

heavy soils and certain

stains that need extra

pretreatment. Use recom-

mended amount of

detergent or pre-soa k

additive. The SOAK Cycle

should always be fol-

lowed by a Wash Cycle.

SUPER WASH Cycle

Use for washing heavily

soiled loads that require

maximum soil removal.

Double the amount of

detergent recommended

when using the SUPER

WASH Cycle.

1Agitation 1’ 1 Speed 1’ IAgit&tionI ’ I Speed I ’ I

I’I

Cycle

I u 1- Pre-wash setting begins here, (see pagelo).

Special care is needed when soaking or pre-washing laundry.

See your”laundry Guide” for, proper use of this cycle. I

The washer will proceed to

the Regular/Heavy Cycle. If

you want a different cycle to

follow Super Wash, push in

the cycle control knob, turn

to the cycle and time you

want, pull knob out to start.

Other operating instructions

For

a rinse and spin

You may need an extra rinse and

spin for heavily soiled loads which

need more detergent. [Extra de-

tergent can require an extra rinse.)

Push Control Knob in.

Turn clockwise to any. on the dial.

See above drawing.

Pull Control Knob out.

The washer will fill to selected

level; agitate 2 minutes; drain

and spin.

For a drain and spin

Your washer can be set to drain

and spin out water.

Push Control Knob in.

Turn clockwise to the bar just before

OFF in any cycle. See above

drawing.

Pull Control Knob out.

The washer will drain and spin.

For agitation and spin speeds in each cycle, see pages 6-9.

For a soak or pre-wash

For best results, use warm water

for soaking or pre-washing stained

laundry Hot wafer can set stains.

Use recommended amount of

detergent or presoak product.

Push Control Knob in.

Turn clockwise to point at a number

in the SOAK Cycleuse the 6-minute

mark for a pre-wash.”

Pull Control Knob out to start washer.

When the cycle is over, add de-

tergent for the next selected wash

cycle. The SOAK Cycle should

always be followed by a Wash

Cycle.

Important: See additional care

information on page 7 of your

“Laundry Guide!’

*To start soak or pre-wash with agitation, the Cycle Control Knob

must point to a number in the SOAK Cycle.
