Whirlpool LA7700XP Manuel utilisateur

AUTOMATIC

WASHER

Design 2000

Large Capacity

Model

LA7700XP

mvave Ovens Trash Compactors Room AIM Conditioners Dehum~dll~er~ Automatic Washers Clothes Dryers Freezers Refrigerator-Freezer

Parts and features

LOAD LAUNDRY

INFORMATION TEMPERATURE MAGIC CLEAN

LINT FILTER

(not shown]

LIQUID FABRIC

SOFTENER DISPENSER

LIQUID BLEACH

DISPENSER

MODEL AND SERIAL

NUMBER PLATE

[not shown)

CLOTHES

- GUARD

1 AGITATOR

1 BASKET

‘TUB

Remove the Consumer

Buy Guide label. It will be

easier to remove before

the washer is used.

You should wipe out the

basket with a damp cloth

before using to remove

dust from storing or

shipping.

Copy’ your Model and ,Serial Numbers here

When youneed service or call with a -.-- -

question, have this tnformatlon ready.

Mod&’ ‘9umUer

1. Complete Model and Serial N Jm-

bers [from plate under the Ild near the -~--

hinge). Se,l,J, x

imber

2. Purchase date from sales

slip -____

Copy this information in these spazes

Pl,rchcr-e Dole

Keep this book in the Laundry Informa-

tion Center with your “Laundry Guide,”

Service Company

sales slip and warranty

Phone Number

There IS no warranty registration tc, return Proof of-purchase

all

that IS required for In-warranty serv ce

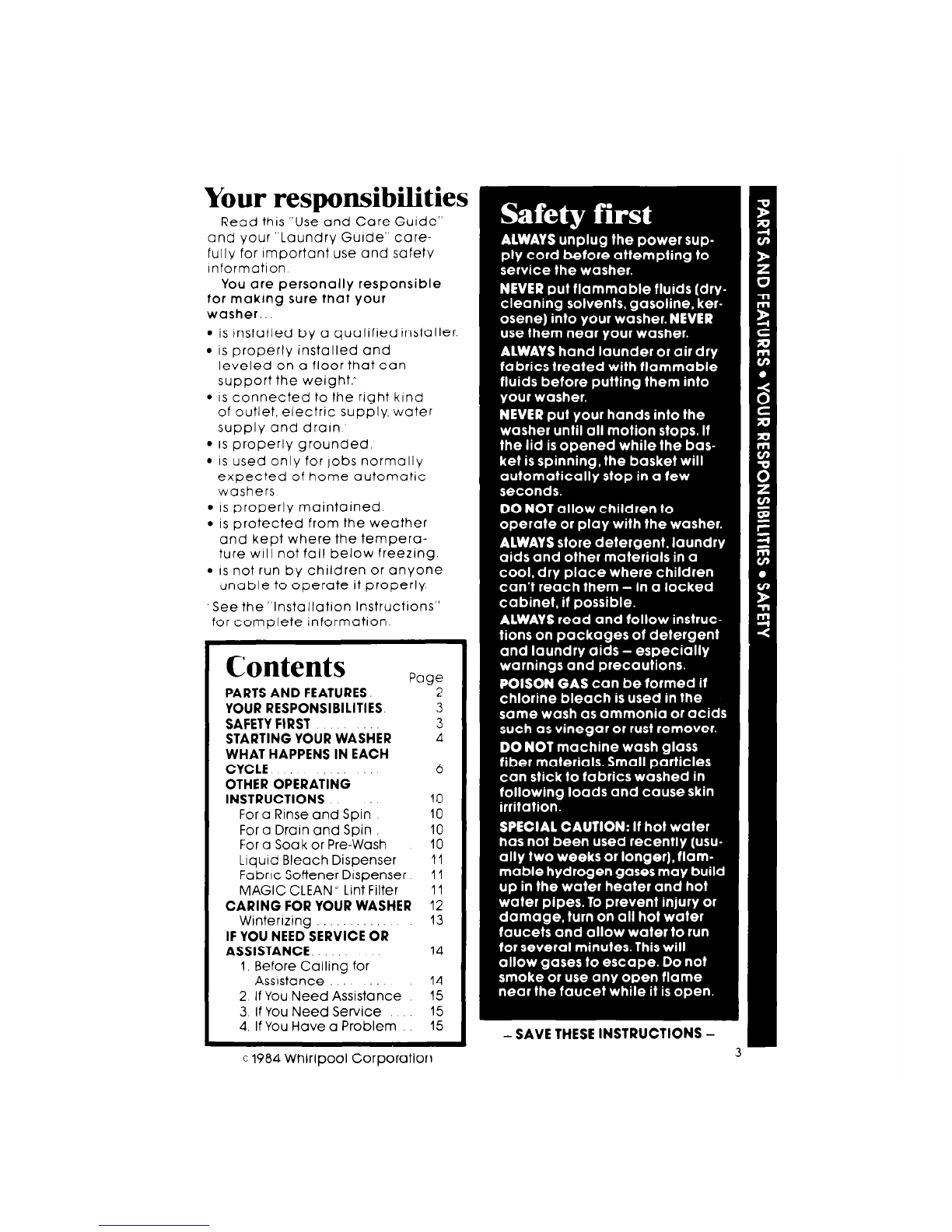

Your responsibilities

Read this “Use and Care Guide”

and your “Laundry Gurde” care-

fully for Important use and safety

information

You are personally responsible

for making sure that your

washer,.

is installed by a qualified Installer.

IS properly installed and

leveled on a floor that can

support the weight.-

* IS connected to the right kind

of outlet, electric supply. water

supply and dram

IS properly grounded.

. IS used only for fobs normally

expected of home automatic

washers

IS properly maintained

is protected from the weather

and kept where the tempera-

ture will not fall below freezing.

IS not run by children or anyone

unable to operate it properly

.See the “Installation Instructions”

for complete information.

Contents

Page

PARTS AND FEATURES. 2

YOUR RESPONSIBILITIES 3

SAFETY FIRST

STARTING YOUR WAiilER 3

WHAT HAPPENS IN EACH

CYCLE. 6

OTHER OPERATING

INSTRUCTIONS 10

For a Rinse and Spin 10

For a Drain and Spin 10

For a Soak or Pre-Wash 10

Liquid Bleach Dispenser 11

Fabric Softener Dispenser 11

MAGIC CLEAN’ Lint Filter 11

CARING FOR YOUR WASHER 12

Winterfzing 13

IF YOU NEED SERVICE OR

ASSISTANCE.

I. Before Calling for’ 14

Assistance 14

2 If You Need Assistance 15

3 If You Need Service 15

4. If You Have a Problem 15

c 1984 Whirlpool Corporation

-SAVE THESE INSTRUCTIONS - 3

Starting your washer

1 Measure and add detergent

2 Place sorted load In washer

3 Start washer

Select a

1. LOAD SlZE Select WATER

TEMPERATURES

Turn the knob to point at a setting

that describes the size of load you

want to wash

. Set the knob anywhere on or

between EX SMALL (a few items)

and LARGE (a full load)

DO NOT LOAD

ABOVE CLOTHES GUARD

NOTE: Use the LARGE water level

for best permanent press results.

Select wash and rinse water tem-

peratures by pushing a button

- This drawing shows a warm wash

(top temperature] and cold rinse

(bottom temperature) selectlon

Recommended wash temperatures

can be found in your “Laundry Guide.”

LOAD SIZES AND WATER LEVELS

For best cleaning results, the

load must be able to move freely

in the water Too brg a load or too

Ill-Hewater can cause wear or

tearing of load items. 0

DO NOT

OVERLOAD WASHER.

(17.3 galsJ65.5 L)’

‘Approximate (14.7 gals./557 L)’

fill with load. (12.1gals./45.8 L]*

(9.5 galsJ36.0 L)’

3. Start the washer

Push in the Control Knob and

turn it to the right. It must be

pushed In and turned only

clockwlse

Stop on a number in the cycle

you want. The numbers are min-

utes of wash time. The drawing

shows 10 minutes of agitation in

the REGULAR Cycle

Start the washer by pulling out

the Control Knob. The washer

will fill to the level you set wrth

wash water of the selected

temperature After filling, the

washer will agitate for the

selected number of minutes

To stop the washer at any time

push in the Control Knob. To

restart the washer, pull out the

Control Knob

What happens in each cycle*

Each cycle has different agitation and spin speeds designed for different

kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH

agitation time.

When the Cycle Control Knob is set to a number and pulled out, the washer

fills before agitation and timing starts. After agitation starts, the knob turns clock-

wise until it points to OFF and the cycle ends.

REGULAR HEAVY Cycle

REGULAR Cycle

A cycle for sturdily con-

structed fabncs that are

heavily soiled

A cycle for regular loads of

fabrics that are moderately

FILL WASH

soiled

Se$zd 1 f’Ai;E )

PERMANENT PRESS Cycle

A special cycle with the

necessary cool down rinse

which helps keep wrinkles

from setting into Permanent

Press and some synthetic

fabrics.

FILL WASH

rlrl

Se$~d 1 ‘;g )

NOTE: You may hear the sound of water spraying during the spin parts of

same cycles. In some cycles, cold water

sprayed on the spinning load to help

with the rinsing

NOTE: Always use cold rinse water for

permanent press fabrics

KNITS/GENTLE c’s de

A cycle that gently washes

and spins delicate items

and washable knits.

Brief periods of agitation

and soak time help remove FILL

heavy soils and certain to

stains that need extra

pretreatment. Use reco”m-

mended amount of

Selected

Level

detergent or pre-soak

additive. The SOAK Cycle

should always be fol-

lowed by a Wash Cycle.

SL‘PER N:WH CJde

Use for washing heavrly

sotled loads that require FILL

maximum soil removal to

Selected

Double the amount of de- Level

tergent recommended

when using the SUPERWASH

Cycle

WASH

Minutes

High

Speed

WASH

, Minutes

High

Speed

1 1 WASH 1 1 SOAK 1 1

1Agitation 1’

Minutes 1 Minutes

High

Speed ‘r IAgitation ’ I !

fq,~,~

+ Pre-wash setting begins here, (see pagelO).

Special care is needed when soaking or pre-washing laundry.

See your “Laundry Guide” for proper use of this cycle.

The washer will proceed to

the Regular/Heavy Cycle. If

you want a different cycle to

follow Super Wash, push in

the cycle control knob, turn

to the cycle and time you

want, pull knobout to start.

Other operating instructions

For a rinse and spin

You may need on extra rinse and

spin for heavily solled loads which

need more detergent [Extra de-

tergent con require on extra rrnse ]

. Push Control Knob in

Turn clockwlse to any

on the

dial

See above drawing.

Pull Control Knob out

The washer WIII fill to selected

level; agitate 2 minutes; drain

and spin

For a drain and spin

Your flasher con be set to drain

and spin out water

Push Control Knob In

. Turn clockwlse to the bar just before

OFF In any cycle See above

drawing.

Pull Control Knob out

The washer

will

darn and sprn

For agitation and spin speeds in each cycle, see pages 6-9

For a snak nr nre-wash

For best results. use warm water

for soaking or pre-washing stained

laundry Hot water can set stains.

. Use recommended amount of

detergent or presoak product.

Push Control Knob in

Turn clockwise to point at a number

in the SOAK Cycle. .use the 6-minutes

mark for a pre-wash.’

Pull Control Knob out to start washer.

When the cycle

over, odd de-

tergent for the next selected wash

cycle The SOAK Cycle should

always be followed by a Wash

Cycle.

Important: See additional care

information on page 7 of your

“Laundry Guide!’

‘To start soak or pre-wash with agrtation, the Cycle Control Knob

must point to a number in the SOAK Cycle.
