Whirlpool LA5700XS Manuel utilisateur

AUTOMATIC

WASHER

p&CaPacity

LA57ooxs

len. Clothes Dryers. Freezen. Relrigeralor-Freezer, Ice Makers. Dishwashers. Buill-In Ovens and Surlace Unils. Ranges. Microwave Ovens. Trash Compacll

Contents

Page

PARTS AND FEATURES . 2

IMPORTANT SAFETY

INSTRUCTIONS. . 3

OPERATING INSTRUCTIONS. . 4

Starting Your Washer . . . . 4

What Happens in Each Cycle 6

OTHER OPERATING

INSTRUCTIONS. 12

For a Rinse and Spin 12

Page

For a Drain and Spin 12

For a Soak . . 12

Liquid Bleach Dispenser 13

MAGIC CLEAN@ Lint Filter . 13

CARING FOR YOUR WASHER . 14

Winterizing.. . . . . . . 15

IF YOU NEED SERVICE OR

ASSISTANCE . . 16

WASHER WARRANTY . 20

01988 Whirlpool Corporation

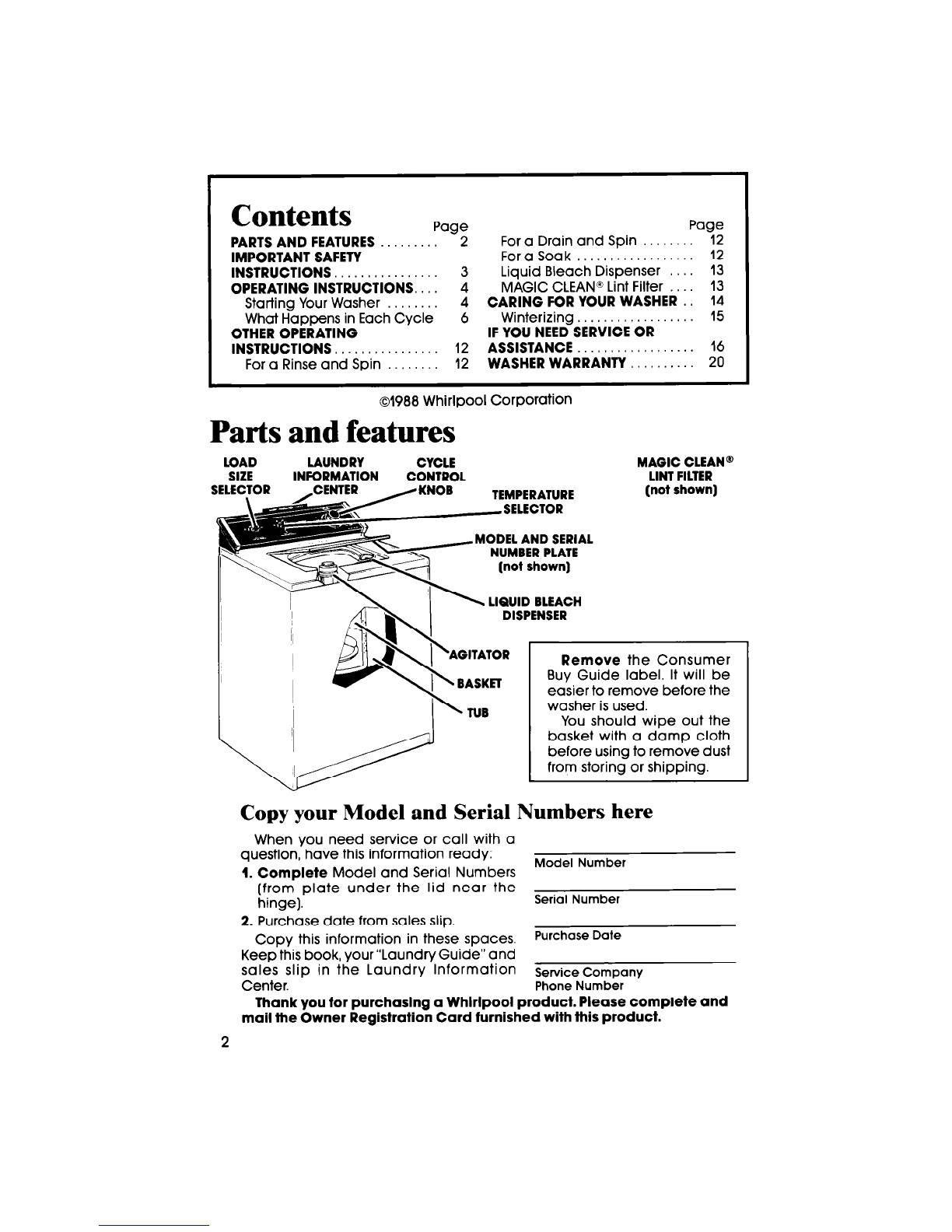

Parts and features

LOAD

SIZE LAUNDRY

INFORMATION CYCLE

CONTROL TEMPERATURE

MAGIC CLEAN@

LINT FILTER

(not shown)

MODEL AND SERIAL

NUMBER PLATE

\ LIQUID BLEACH

DISPENSER

Remove the Consumer

Buy Guide label. It will be

easier to remove before the

washer is used.

You should wipe out the

basket with a damp cloth

before using to remove dust

from storing or shipping.

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this information ready:

1. Complete Model and Serial Numbers

Model Number

(from plate under the lid near the

hinge). serial Number

2. Purchase date from sales slip.

Copy this information in these spaces. Purchase Date

Keepthis book, your “Laundry Guide” and

sales slip in the Laundry Information

Service Company

Center.

Phone Number

Thank you for purchasing a Whirlpool product. Please complete and

mail the Owner Registration Card furnished with this product.

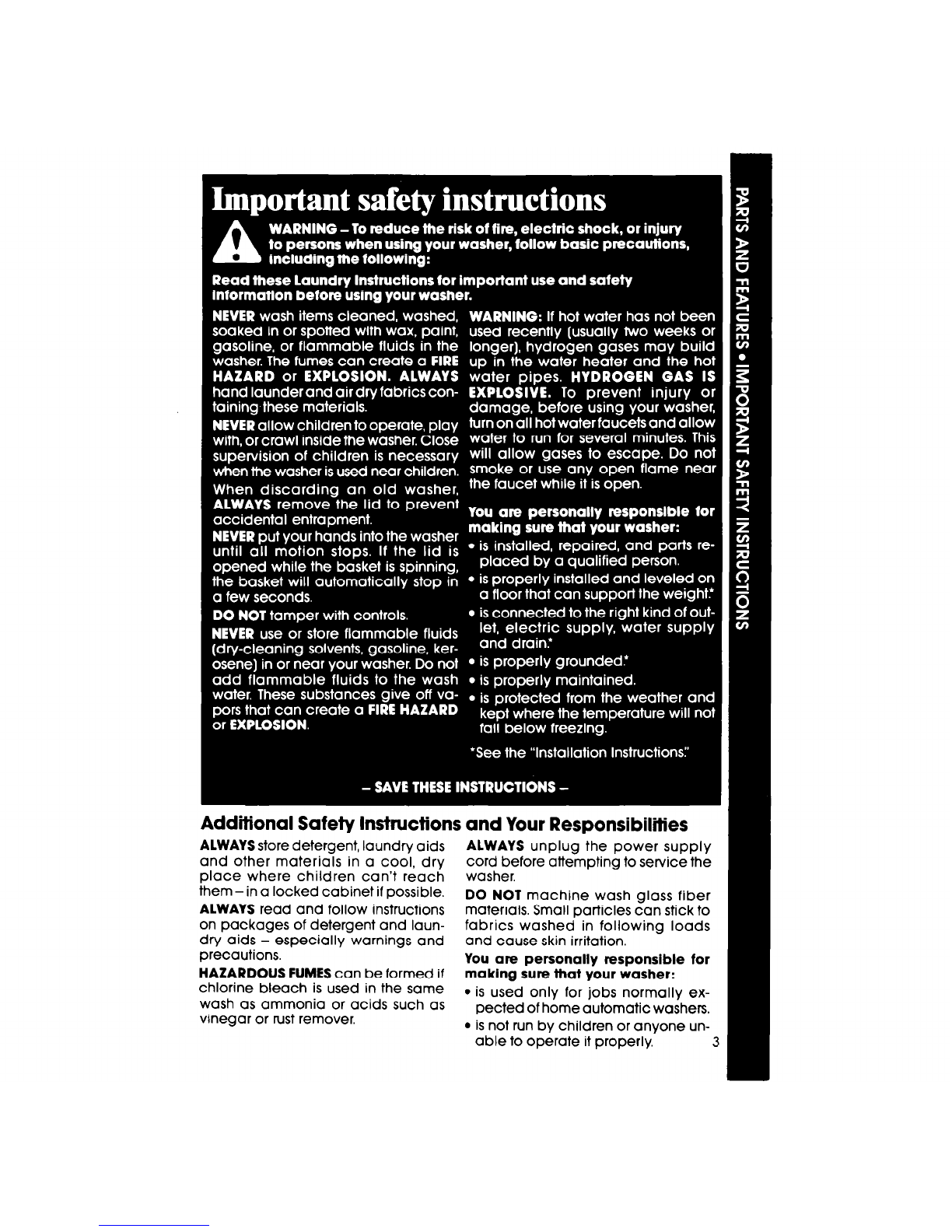

Additional Safety lnsfrucfions and Your Responsibilities

ALWAYS store detergent, laundry aids ALWAYS unplug the power supply

and other materials in a cool, dry cord before attempting to service the

place where children can’t reach washer.

them - in a locked cabinet if possible. DO NOT machine wash glass fiber

ALWAYS read and follow instructions materials. Small particles can stick to

on packages of detergent and laun- fabrics washed in following loads

dry aids - especially warnings and and cause skin irritation.

precautions. You are personally responsible for

HAZARDOUS FUMES can be formed if making sure that your washer:

chlorine bleach is used in the same

is used only for jobs normally ex-

wash as ammonia or acids such as petted of home automatic washers.

vinegar or rust remover.

is not run by children or anyone un-

able to operate it properly. 3

Operating instructions

Starting Your Washer

Be sure to measure and add detergent, then place

a soried load in the washer before starting it.

Select a LOAD SIZE

Select

. WATER TEMPERATURES

Turn the knob to point at a setting

that describes the size of load you

want to wash.

Set the knob on or between EX

SMALL (a few items] and EX LARGE

(a full load).

Match the wash and rinse water

temperature to the type of fabrics and

soils being washed.

This drawing shows a warm wash

(top temperature) and cold rinse

(bottom temperature] selection.

Recommended wash temperatures

can be found in your “Laundry Guide:’

LOAD SIZES AND WATER LEVELS

For best cleaning results, the

load must be able to move freely

CAUTION:

in the water. Too big a load or too -DO NOT

little water can cause wear or OVERLOAD WASHER.

tearing of load items.

‘Approximate , LARGE

fill with load.

(17.3 gal./655 L)*

(14.7 gal./557 L)’

I (12.1gal./45.8 L)’

E~SMALL (9.5 gal.136.0 L)’

Select CYCLE and WASH TIME;

. Start the washer

Push in the Control Knob and turn

it to the right. It must be pushed in

and turned only clockwise.

Stop on a number in the cycle

you want. The numbers are min-

utes of wash time. The drawing

shows 10 minutes of agitation in

the REGULAR NORMAL Cycle.

Start the washer by pulling out

the Control Knob. The washer will

fill to the level you set with wash

water of the selected temper-

ature. After filling, the washer will

agitate for the selected number

of minutes.

To stop the washer at any time,

push in the Control Knob. To

restart the washer, pull out the

Control Knob.

What Happens in Each Cycle*

Each cycle has different agitation and spin speeds designed for different

kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH

agitation time.

When the Cycle Control Knob is set to a number and pulled out, the washer fills

before agitation and timing starts. After aaitation starts, the knob turns clock-wise

until it points to OFF and thecycle ends. -

REGULAR HEAVY Cycle

A cycle for sturdily con-

structed fabrics that are

heavily soiled.

REGULAR NORMAL Cycle

A cycle for regular loads

of fabrics that are moder-

ately soiled.

PERMANENT PRESS NORMAL Cycle

A cycle designed for mod-

erately soiled permanent

press and some synthetic

fabrics. The cool-down

rinse helps keep wrinkles

from setting into these

fabrics.

NOTE: You may hear the sound of water spraying during the spin parts of some

cycles. In some cycles, cold water is sprayed on the spinning load to help with

the rinsing. I

Gentle Wash System

For better fabric care in the REGULAR and PERMANENT PRESScycles, the

agitation speed is reduced during the last few minutes of wash time. I

SPIN

High

I Speed

1 Spray

Rinse

nnnnnnnl

PERMANENT PRESS LIGHT Cycle

A cycle designed for

lightly soiled permanent

press and some synthetic

fabrics. The cool-down

rinse helps keep wrinkles

from setting into these fabrics.

KNITS/GENTLE NORMAL Cycle

REFILL

COOL

DOWN

A cycle that gently

washes and spins moder-

ately soiled delicate items

and washable knits.

period.

KNITS/GENTLE LIGHT Cycle

A cycle that gently

washes and spins lightly

soiled delicate items and

washable knits.

A Indicates fhe machine is

pausing for a brlef soak

period.

DRAIN

Agitation

DRAtN

Agitation

SPtN

Low

I Speed

1 Spray

Rinse

FllL

for

Deep

Rinse

-----

SOAK Cycle

SUPER WASH Cycle

Brief periods of agitation

and soak time help remove

heavy soils and certain

stains that need extra

pretreatment. Use recom-

mended amount of

detergent or pre-soak

additive. The SOAK Cycle

should always be fol-

lowed by a Wash Cycle.

Use for washing heavily

soiled loads that require

maximum soil removal.

Double the amount of

detergent recommended

when using the SUPER

WASH Cycle.

WASH

I Minutes

High

Speed
