Whirlpool LA5330XS Manuel utilisateur

AUTOMATIC

WASHER

Large Capacity

Model

LA533oxs

krowave Ovens. Trash Compactors. Room Air Condllloners. Dehumldlflers, Aulomatlc Washers, Clothes Dryers. Freezers, Refrigerator-Ft

Contents

Page

PARTS AND FEATURES 2

IMPORTANT SAFETY

INSTRUCTIONS. . , 3

OPERATING INSTRUCTIONS.. 4

Starting Your Washer 4

What Happens in Each Cycle 6

OTHER OPERATING

INSTRUCTIONS 10

For a Rinse and Spin . 10

Page

For a Drain and Spin 10

For a Soak 10

Liquid Bleach Dispenser 11

MAGIC CLEANE Lint Filter 11

CARING FOR YOUR WASHER 12

Winterizing.. 13

IF YOU NEED SERVICE OR

ASSISTANCE . 14

WASHER WARRANTY.. 16

01987 Whirlpool Corporation

Parts and features

LOAD

SIZE LAUNDRY

INFORMATION CYCLE

CONTROL MAGIC CLEAN@

LINT FILTER

(not shown)

MODEL AND SERIAL

NUMBER PLATE

LIQUID BLEACH

DISPENSER

Remove the Consumer

Buy Guide label. It will be

easier to remove before the

washer is used.

You should wipe out the

basket with

damp cloth

before using to remove dust

from storing or shipping.

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this information ready:

1. Complete Model and Serial Numbers Model Number

(from plate under the lid near the

hinge). Serial Number

2. Purchase date from sales slip.

Copy this information in these spaces. Purchase Date

Keep this book,your”LaundryGuide”and

sales slip in the Laundry Information Service Company

Center. Phone Number

Please complete and mall the Owner Registration Card turnished with

thls product.

Additional Safety Instructions and Your Responsibilities

ALWAYS store detergent, laundry aids ALWAYS unplug the power supply

and other materials in a cool, dry cord before attempting to service the

place where children can’t reach washer.

them - in a locked cabinet if possible. DO NOT machine wash glass fiber

ALWAYS read and follow instructions materials. Small particles can stick to

on packages of detergent and laun- fabrics washed in following loads

dry aids - especially warnings and and cause skin irritation,

precautions. You are personally responsible for

HAZARDOUS FUMES can be formed if making sure that your washer:

chlorine bleach is used in the same

is used only for jobs normally ex-

wash as ammonia or acids such as petted of home automatic washers.

vinegar or rust remover,

is not run by children or anyone un-

able to operate it properly. 3

Operating instructions

Starting Your Washer

Be sure to measure and add detergent, then place

a sorted load in the washer before starting it.

. Select a LOAD SIZE

Select

. WATER TEMPERATURES

Turn the knob to point at a setting

that describes the size of load you

want to wash.

The water level can be set for

EX SMALL (a few items], MED or

LARGE (a full load).

NOTE: Use the LARGE water level

tor best permanent

press

resutts.

Match the wash and rinse water

temperature to the type of fabrics and

soils being washed.

All rinses are cold. Cold rinses save

energy and help prevent wrinkles from

setting into fabrics.

Recommended wash temperatures

can be found in your “Laundrv Guide:’

LOAD SIZES AND WATER LEVELS

For best cleaning results, the

load must be able to move freely

in the water. Too big a load or too

little water can cause wear or 0

CAUTION:

DO NOT

OVERLOAD WASHER.

tearing of load items.

‘Approximate

fill with load.

LARGE (17.3 gals./655 L)’

MED (13.4 gals./50.8 L)*

EX SMALL (9.5 galsJ36.0 L)’

3. Start the washer

Push in the Control Knob and turn

it to the right.

It must be pushed in

and turned only clockwise.

Stop on

number in the cycle

you want. The numbers are min-

utes of wash time. The drawing

shows 6 minutes of agitation in

the

REGULARNORMAL

Cycle.

Start the washer by pulling out

the Control Knob.

The washer will

fill to the level you set with wash

water of the selected temper-

ature. After filling, the washer will

agitate for the selected number

of minutes.

Tostop the washer at any time,

push in the Control Knob. To

restart the washer, pull out the

Control Knob.

What Happens in Each Cycle*

Each cycle has different agitation and spin speeds designed for different

kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH

agitation time.

When the Cycle Control Knob is set to a number and pulled out, the washer fills

before agitation and timing starts. After agitation starts, the knob turns clock-wise

until it points to OFF and thecycle ends. -

REGULAR HEAVY Cycle

/ z :.“;LT FILL

REGULAR

w0lY.L5;

10;

“LA””14.

Selected

Level

A cycle for sturdily con-

structed fabrics that are

heavily soiled.

REGULAR NORMAL Cycle

l+c+lYAL6;

10;

“LAW II l

OFF i @

A cycle for regular loads

of fabrics that are moder-

ately soiled.

PERMANENT PRESS NORMAL Cycle

A cycle designed for mod-

erately soiled permanent

press and some synthetic

fabrics. The

cool-down

REFILL

COOL

DOWN

rinse helps keep wrinkles

from setting into these

items.

NOTE: You may hear the sound of water spraying during the spin parts of some

Cydes.

In some cycles, cold water is sprayed on the spinning

lOad

to help with

the rinsing.

cycle designed for

lightly soiled permanent

press and some synthetic

fabrics. The cool-down

rinse helps keep wrinkles

from setting into these items.

SHORT Cycle

Use

for delicate items that

need a short wash and spin

time. Wash nylon hose or

panty hose in a net laundry

bag.

SOAK Cycles

Brief periods of agitation

and soak time help remove

heavy soils and certain

stains that need extra

pretreatment. Use recom-

mended amount of

detergent or pre-soak

additive. The SOAK Cycle

should always be fol-

lowed by a Wash Cycle.

Alndlcates the machine is

pausing for a brief soak

period.

WASH

Minutes

High

Speed

1 1

DRAIN

1 1 SPIN

Special care is needed when soaking or pre-washing laundry.

See your “Laundry Guide” for proper use of this cycle. I I

Other operating instructions

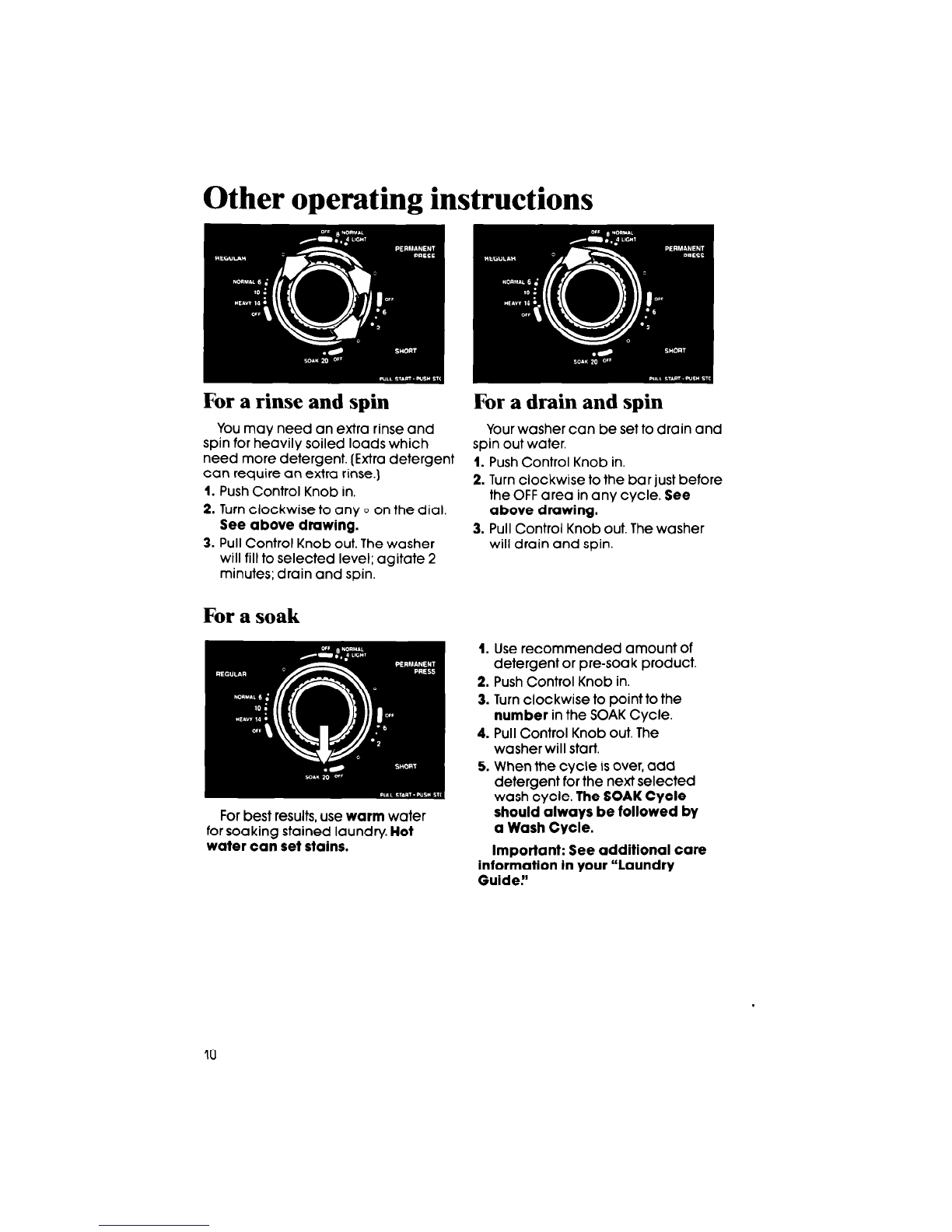

For a rinse and spin

You may need an extra rinse and

spin for heavily soiled loads which

need more detergent. (Extra detergent

can require an extra rinse.)

1. Push Control Knob in.

2. Turn clockwise to any o on the dial.

See above drawing.

3. Pull Control Knob out. The washer

will fill to selected level; agitate 2

minutes; drain and spin.

For a soak

For a drain and spin

Your washer can be set to drain and

spin out water.

1. Push Control Knob in.

2. Turn clockwise to the bar just before

the OFF area in any cycle. See

above drawing.

3. Pull Control Knob out. The washer

will drain and spin.

For best results, use warm water

for soaking stained laundry. Hot

water can set stains.

1. Use recommended amount of

detergent or presoak product

2. Push Control Knob in.

3. Turn clockwise to point to the

number in the SOAK Cycle.

4. Pull Control Knob out The

washer will start.

5. When the cycle is over, add

detergent for the next selected

wash cycle. The SOAK Cycle

should always be followed by

a Wash Cycle.

Important: See additional care

information In your “laundry

Guide!’
