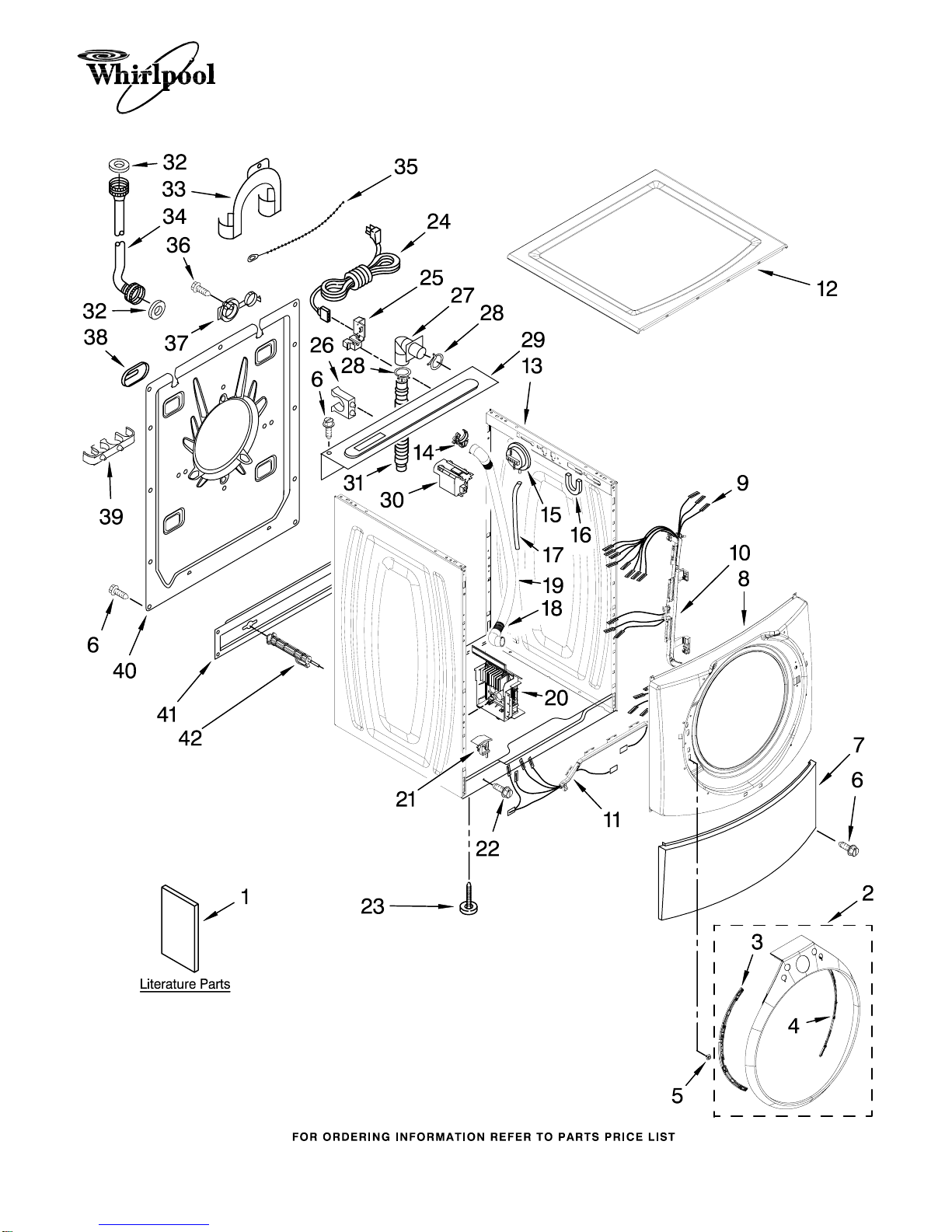

TOP AND CABINET PARTS

For Model: WFW9200SQA12

(White)

8−08 Printed in U.S.A. (drd) (psw)(bay) Part No. W10188972 Rev. A

AUTOMATIC WASHER

TOP AND CABINET PARTS

For Model: WFW9200SQA12

(White)

W10188972

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8183011 Use & Care Guide

8183018 Tech Sheet

W10171156

Energy Guide

8183017 Quick Start Guide

W10159209

Trim Ring,

Teardrop Assembly

W10015770

Bracket, Trim

Fixation (Left)

W10015780

Bracket, Trim

Fixation (Right)

W10029650

Clip, Trim

W10015090

Screw, 8−18 x 5/8

W10003640

Toe Panel

W10015580

Panel, Front

W10066990

Harness, Wiring

(Lower Main)

(Includes Items

10 & 11)

W10003460

Channel, Harness

(Side)

W10131757

Channel, Harness

(Bottom)

W10003900

Top

W10002880

Cabinet

W10003290

Retainer,

Drain Hose

W10163982

Switch, Pressure

W10008890

Bracket, Spring

W10004260

Hose,

Pressure Switch

W10003250

Hose, Drain−Inner

(Includes Item 19)

W10004320

Sleeve, Drain Hose

W10015480

Motor Control Unit

21 8540210 Microswitch (2)

22 8540479 Screw, Gounding

W10064810

Foot, Leveling (4)

W10110674

Cord, Power

W10110676

Strain Relief,

Power Cord

W10022290

Clip, Outer

Hose Holder

W10003260

Connector,

Drain Hose

28 356138 Clamp, Hose

W10110677

Brace, Rear

30 8540230 Filter,

Interference

W10003280

Hose, Drain−Outer

32 16123 Washer, Water

Inlet Hose (4)

1−1/16 x 5/8

33 8540021 U−Bend,

Drain Hose

34 Hose, Water Inlet

8571377 Blue Coupler

8571378 Red Coupler

35 3347868 Cable Tie

36 8540727 Screw, 3 x 8 mm

37 8540728 Sleeve,

Cord Support (2)

38 8540268 Cover, Transport

W10003270

Clip, Outer

Hose Holder

W10003030

Panel, Rear

W10003040

Brace, Transport

42 Bolt, Shipping

W10003340

Upper (2)

W10003350

Lower (2)

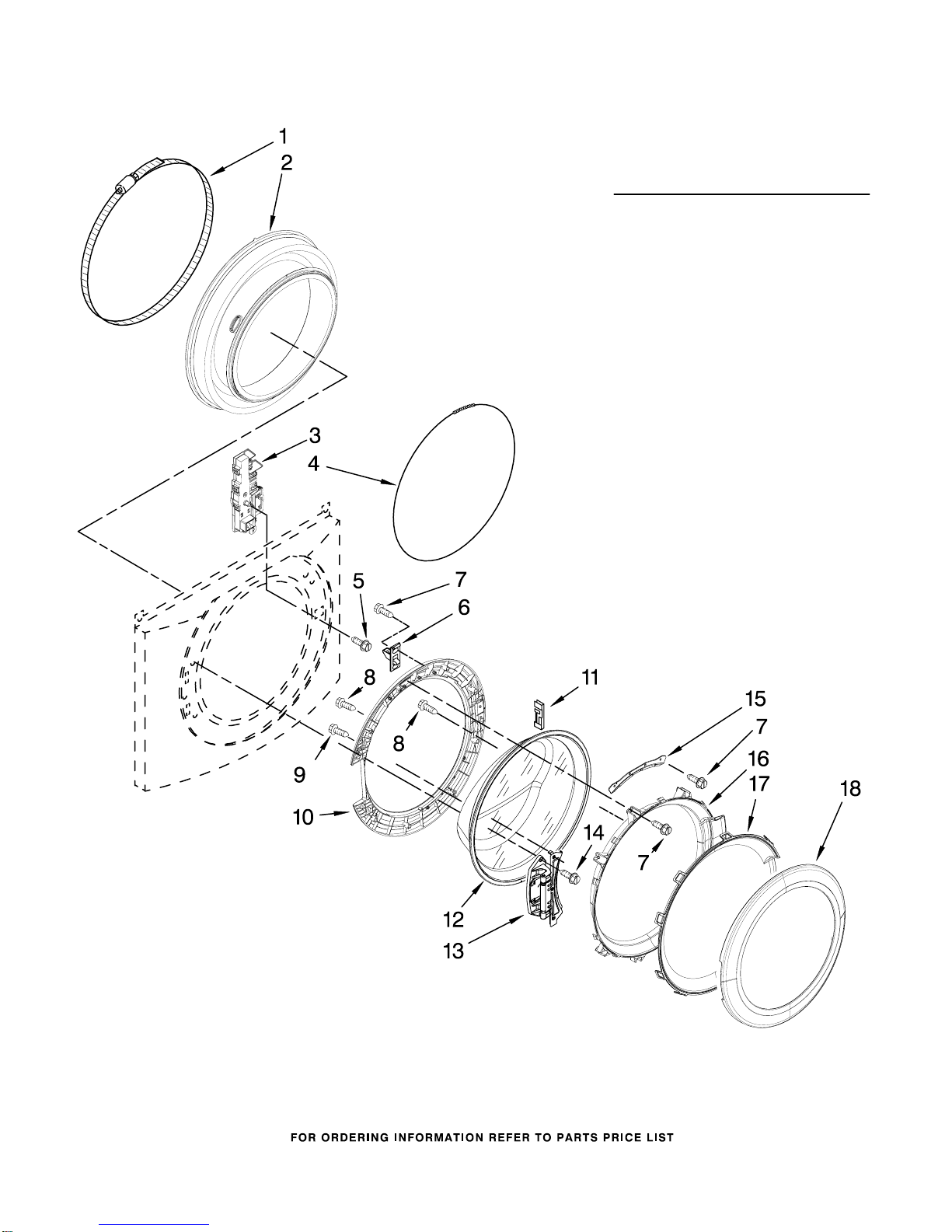

DOOR AND LATCH PARTS

For Model: WFW9200SQA12

(White)

W10188972

Illus. Part

No. No. DESCRIPTION

1 8182210 Clamp, Bellow

To Tub

W10003800

Bellow

3 8540772 Lock, Door

W10003490

Clamp, Bellow

To Front Panel

5 8540725 Screw

W10003390

Hook, Door

7 8540513 Screw

8 8540282 Screw

9 8540284 Screw

W10003370

Frame, Door

Back Support

W10003430

Clamp, Support

W10003520

Glass, Door

W10005090

Hinge, Door

W10015090

Screw

W10003440

Clamp, Glass (2)

W10005220

Frame, Door

Front Support

W10008990

Screen, Door

W10015740

Trim Ring,

Outer Door

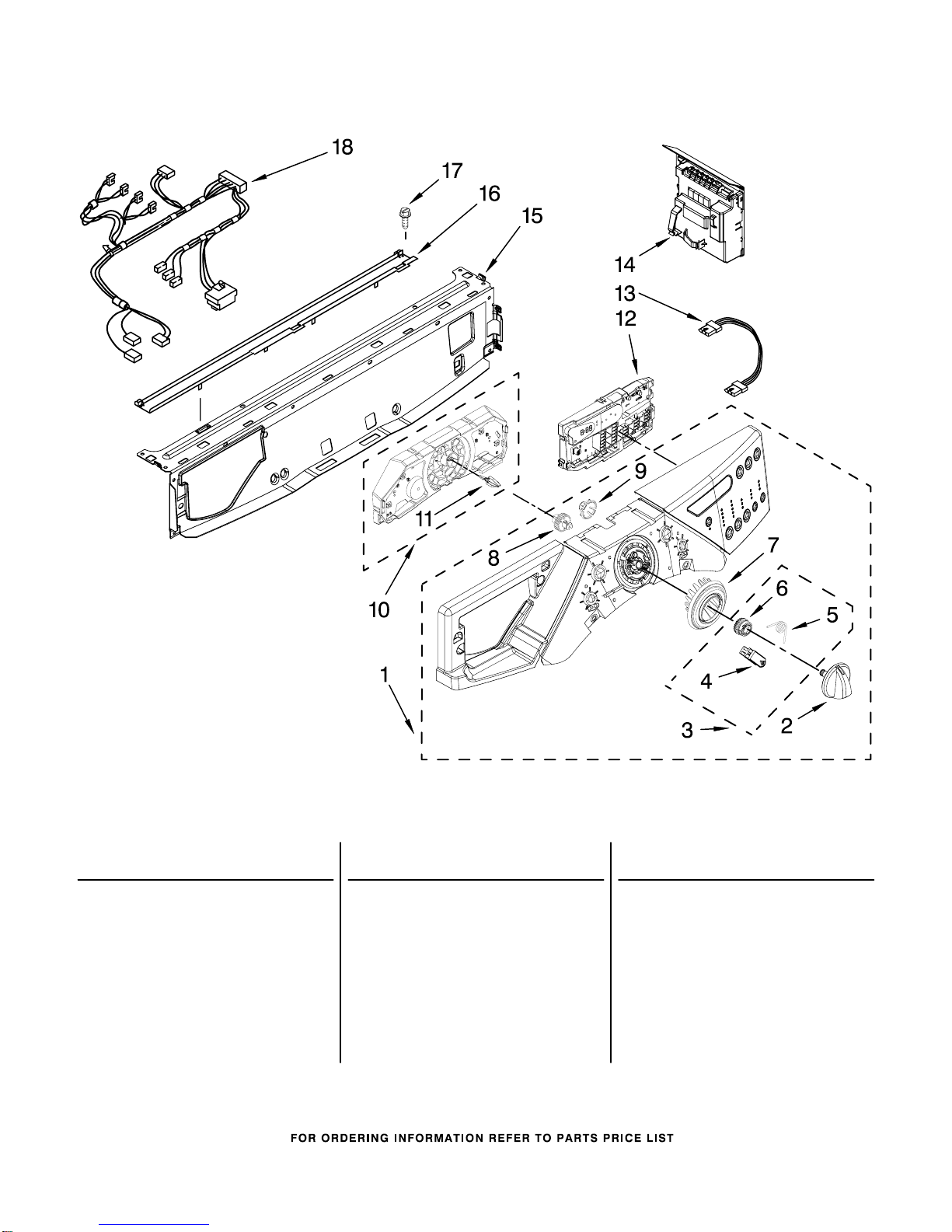

CONTROL PANEL PARTS

For Model: WFW9200SQA12

(White)

W10188972

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8183228 Panel, Control

W10131368

Knob, Control

(Includes Item 9)

W10133927

Wheel, Detent Kit

(Includes Item 9)

W10131661

Wheel, Rast (2)

(Service In

Kit Only)

W10131377

Spring, Knob (2)

(Service In

Kit Only)

W10131378

Wheel, Detent

(Service In

Kit Only)

W10131376

Ring, Knob Light

(Includes Item 9)

W10131381

Wheel, Encoder

W10131382

Retainer, Snap

W10168596

User Interface,

Center

11 8183177 Adapter,

Encoder Wheel

W10168597

User Interface,

Right

W10203273

Harness, Wiring

(User Interface)

W10161727

Microcomputer,

Machine Control

W10059240

Brace, Front Top

W10003700

Channel, Water

W10015090

Screw, 8−18 x 5/8

W10159723

Harness, Wiring

(Upper Main)

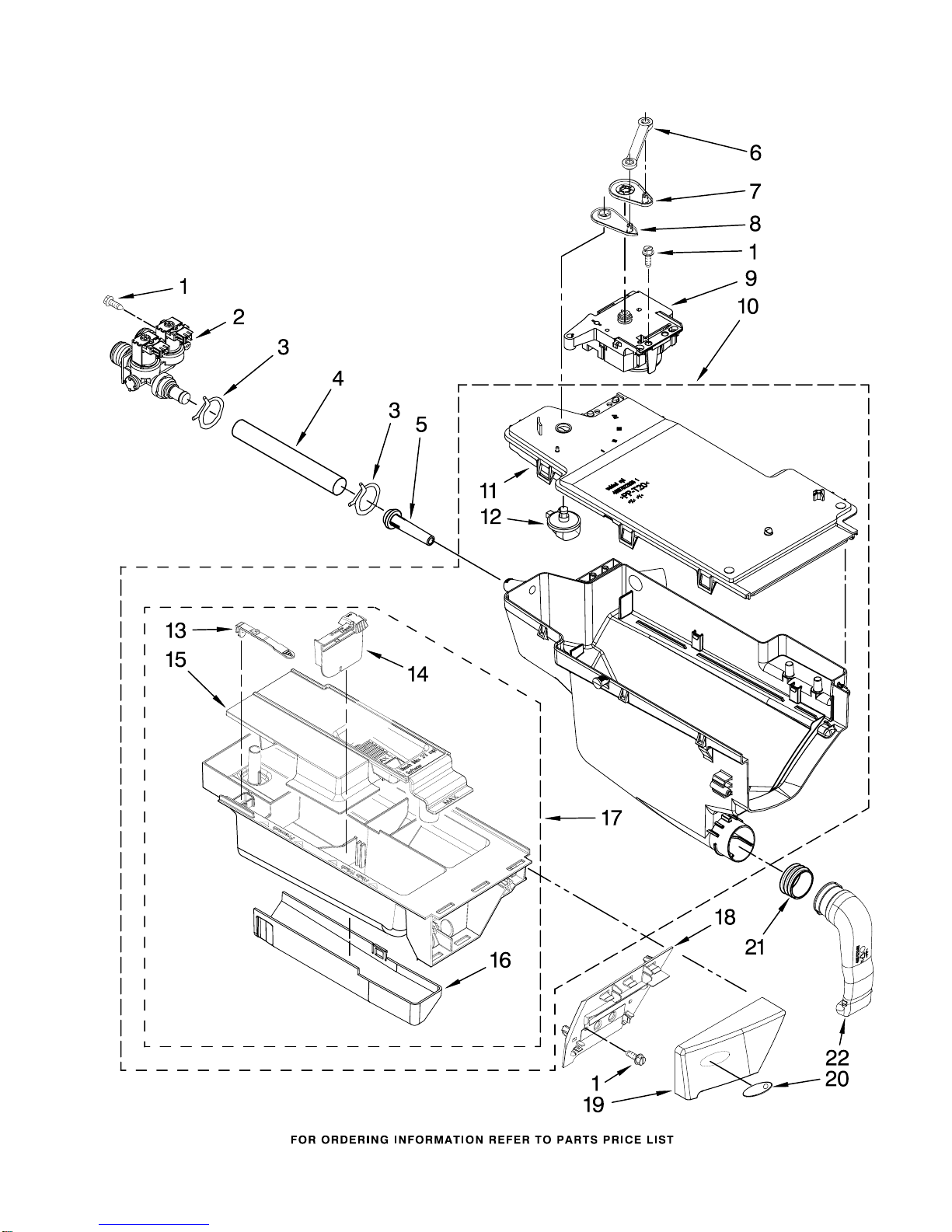

DISPENSER PARTS

For Model: WFW9200SQA12

(White)

W10188972

DISPENSER PARTS

For Model: WFW9200SQA12

(White)

W10188972

Illus. Part

No. No. DESCRIPTION

1 8540282 Screw

2 8540751 Valve, Water Inlet

3 370450 Clamp, Hose

4 8540065 Hose − Valve/

Dispenser

5 8540042 Nozzle, Inlet

W10003830

Lever, Connection

W10003190

Cam, Actuator

W10003180

Lever, Water

Distribution

W10163975

Actuator

W10074160

Dispenser,

Complete

(Includes Item 8)

W10005080

Plate,

Distribution

W10003110

Nozzle,

Distribution

W10003170

Hook, Drawer

W10015200

Separator, With

Selection Slider

W10003150

Syphon,

Bleach/Softener

W10003140

Cover,

Detergent Drawer

W10015190

Drawer, Detergent

(Complete)

W10156617

Bracket, Handle

Fixation

19 8183234 Handle, Drawer

(Includes Items

18 & 20)

20 8183253 Medallion

W10003360

Seal

W10005300

Tube, Dispenser

To Bellow

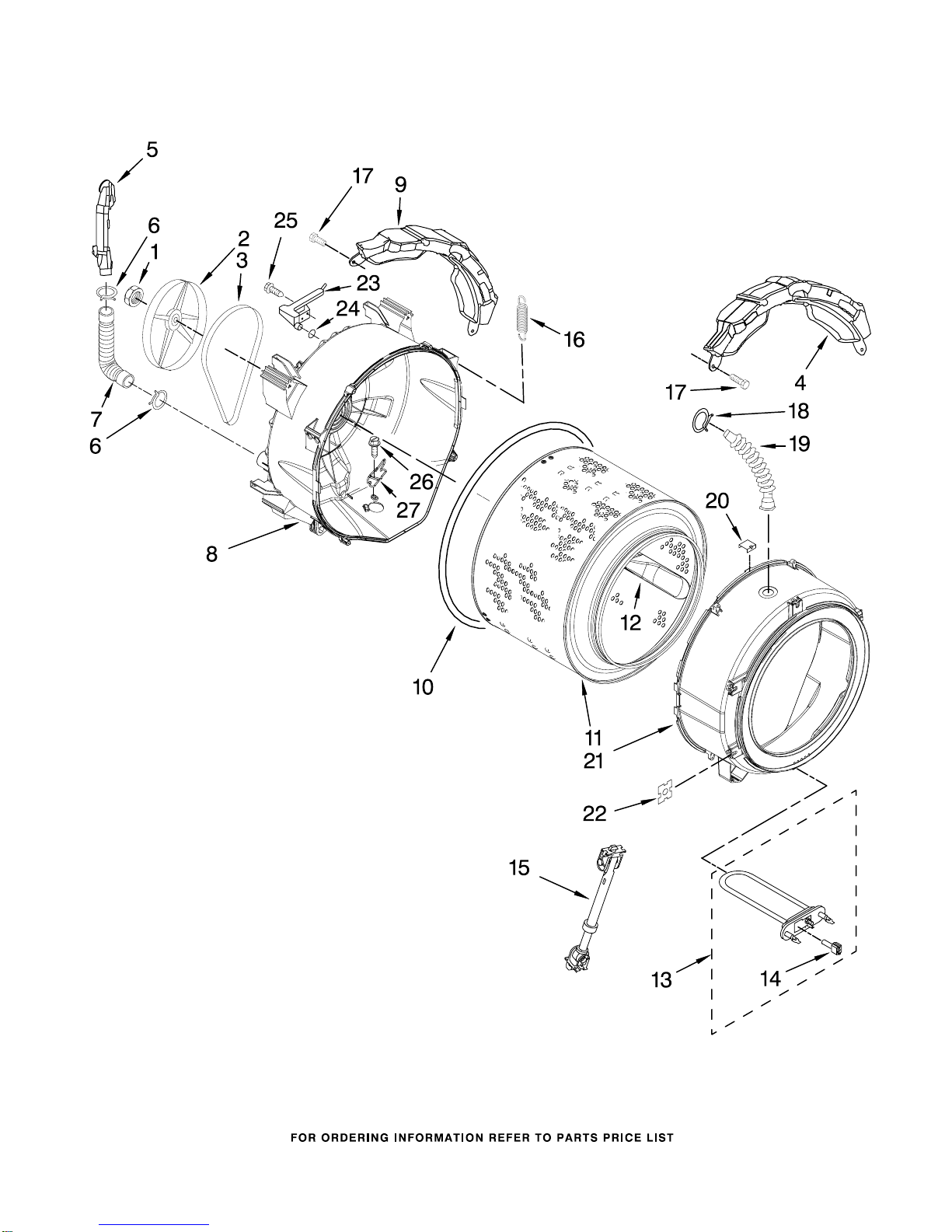

TUB AND BASKET PARTS

For Model: WFW9200SQA12

(White)

W10188972

TUB AND BASKET PARTS

For Model: WFW9200SQA12

(White)

W10188972

Illus. Part

No. No. DESCRIPTION

1 8533999 Nut, Pulley

W10003730

Pulley

W10116915

Belt, Drive

W10008880

Counterweight,

Front (2)

W10003500

Pipe, Ventilation

6 8540010 Clamp, Vent Hose

W10004330

Hose, Exhaust

W10004170

Tub, Rear

(Includes Items

10, 22, 26 & 27)

W10008870

Counterweight,

Rear

W10036350

Gasket, Tub

W10040480

Basket, Complete

W10002770

Baffle, Tub

W10155115

Element, Heating

14 8540226 Negative

Thermistor Control

W10015830

Shock Absorber

W10127411

Spring,

Suspension

(Set Of 2)

W10094780

Bolt,

Counterweight Mtg.

18 3363365 Clamp, Hose

19 8540015 Hose, Exhaust

20 8540092 Clamp, Tub

W10004180

Tub, Front

(Includes Items

10 & 22)

22 8540072 Nut, Push−In

W10003600

Air Trap

W10004270

O−Ring, Air Trap

25 8540513 Screw

26 8540880 Screw

W10015240

Bracket,

Heating Element

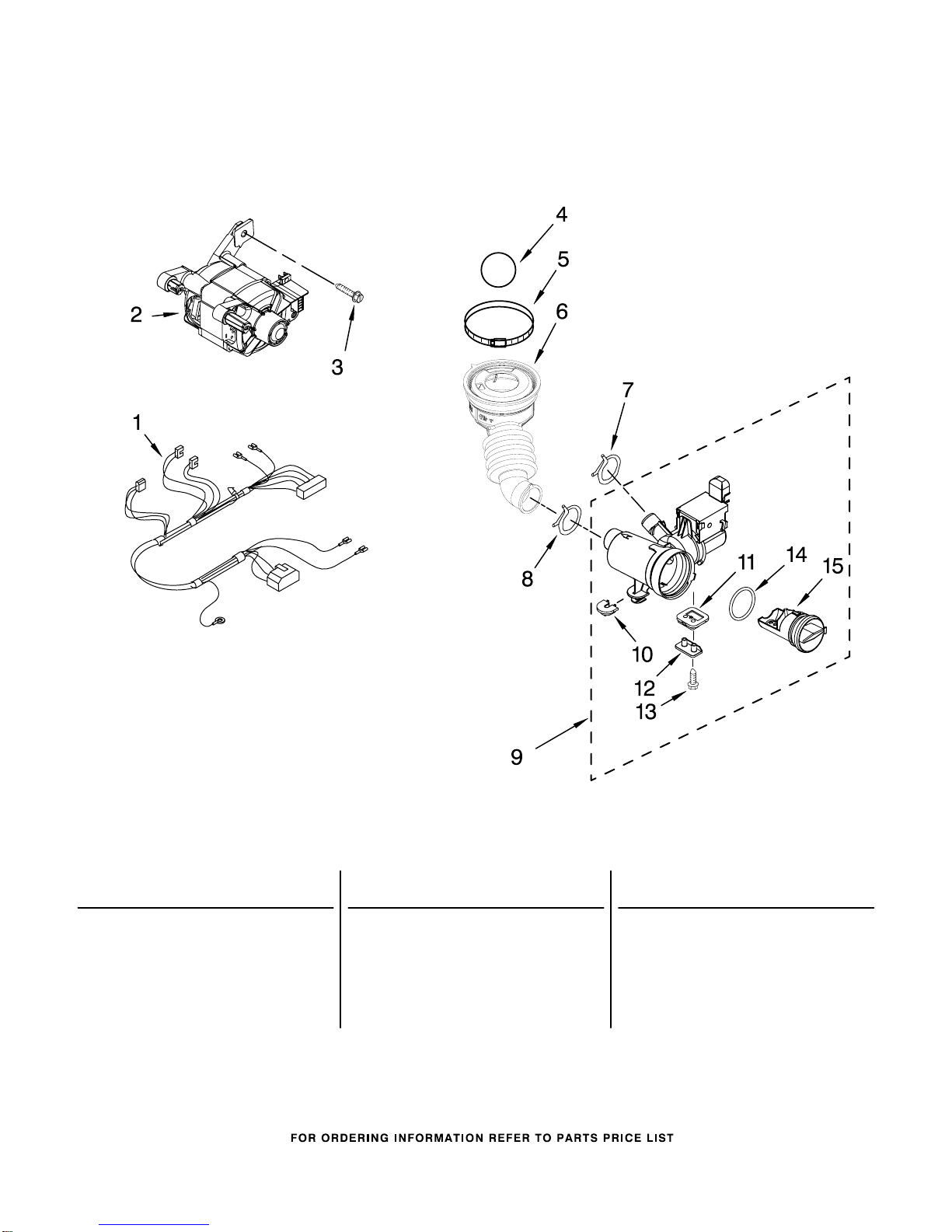

PUMP AND MOTOR PARTS

For Model: WFW9200SQA12

(White)

W10188972

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10004420

Harness, Motor

W10140583

Motor, Drive

3 8540134 Bolt, Motor

W10003330

Ball

5 8540008 Clamp

W10003240

Hose,

Tub to Pump

7 356138 Clamp, Drain Hose

8 370448 Clamp, Hose

W10130913

Pump (Complete)

W10034820

Foot, Rubber

(Slider)

W10034830

Foot, Rubber

(Lock)

12 8540033 Cap, Lock Foot

13 8533964 Screw,

10−16 x 1.25 (2)

14 8540025 Seal, Filter Cap

15 8540996 Filter Assembly

(Includes Item 14)

OPTIONAL PARTS (NOT INCLUDED)

For Model: WFW9200SQA12

(White)

W10188972

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350938 Primer, Gray

350930 White

PAINT, BULK (1 qt.)

799344 White (Uncut)

ACCESSORY PARTS

285863 Drain Extension

W10135699

Affresh

Odor Remover
