Whirlpool Design 2000 LA6300XP Manuel utilisateur

AUTOMATIC

WASHER

Design 2000”

goW~,CaP=W

LA6300XP

aye Ovens. Trash Compactors. Room AN Condltwners. Dehumldlflers. Automatic Washers, Clothes Dryers. Freezers. Refrigerator-Freezer

& NUMBER PLATE

CONTROL

KNOB MODEL

AND SERIAL

(not shown)

Parts and features

LAUNDRY TEMPERATURE

LOAD INFORMATION

SELECTOR

SIZE CENTER

SELECTOR / CYCLE

QUID BLEACH

LIQUID FABRIC

OFTENER DISP‘ENSER

Remove the Consumer

Buy Guide label. It will be

easier to remove before

the washer is used.

You should wipe out the

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this information ready:

Model Number

1. Complete Model and Serial Num-

bers (from plate underthe lid nearthe

hinge). Serial Number

2. Purchase date from sales slip

Copy this information in these spaces. Purchase Date

Keep this book in the Laundry Informa-

tion Center with your”Laundry Guide,”

sales slip and warranty. Service

Company/

Phone Number

Your responsibilitie

Read this “Use and Care Guide”

and your “Laundry Guide” care-

fully for important use and safety

information.

You are personally responsible

for making sure that your

washer..

is installed by a qualified installel

is properly installed and

leveled on a floor that can

support the weight.*

is connected to the right kind

of outlet, electric supply, water

supply and drain?

is properly grounded?

0 is used only for jobs normally

expected of home automatic

washers.

is properly maintained.

is protected from the weather

and kept where the tempera-

ture will not fall below freezing.

is not run by children or anyone

unable to operate it properly.

*See the “Installation Instructions”

for complete information.

Contents

Page

PARTS AND FEATURES. 2

YOUR RESPONSIBILITIES. 3

SAFETY FIRST 3

STARTING YOUR WASHER 4

WHAT HAPPENS IN EACH

CYCLE. . . . 6

OTHER OPERATING

INSTRUCTIONS . . . 10

For a Rinse and Spin . . 10

For a Drain and Spin . . 10

For a Soak or Pre-Wash 10

Liquid Bleach Dispenser 11

Fabric Softener Dispenser. 11

Cleaning the Lint Filter 11

CARING FOR YOUR WASHER 12

Winterizing , . 13

IF YOU NEED SERVICE OR

ASSISTANCE.. . 14

1. Before Calling for

Assistance . 14

2. If You Need Assistance 15

3. If You Need Service 15

4. If You Have a Problem . . 15

01986 Whirlpool Corporation

-SAVE THESEINSTRUCTIONS -

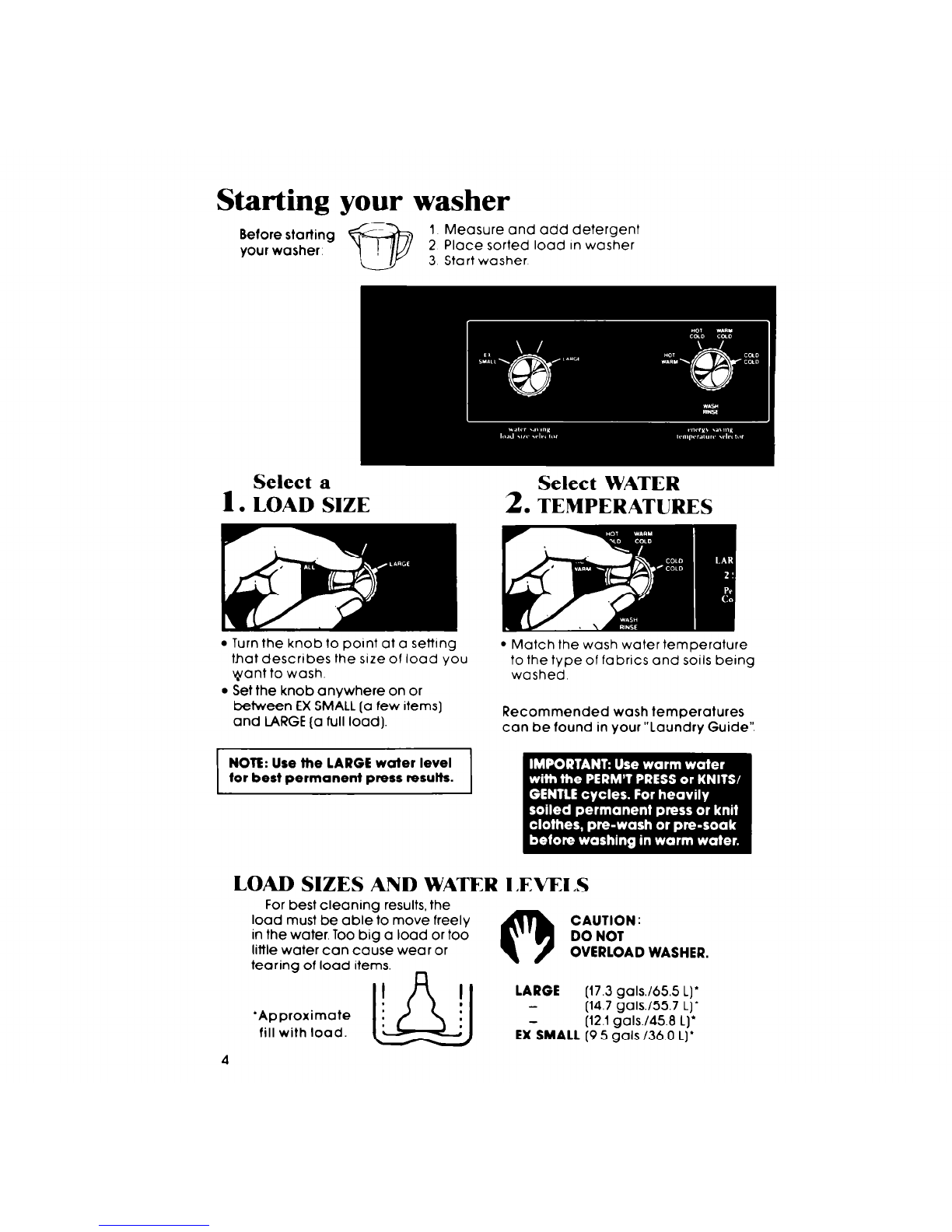

Starting your washer

Before starting

your washer: 1 Measure and add detergent

2 Place sorted load In washer

3 Start washer

Select a

1. LOAD SIZE Select WATER

TEMPERATURES

Turn the knob to point at a setting

Match the wash water temperature

that describes the size of load you to the type of fabrics and soils being

want to wash. washed.

Set the knob anywhere on or

between EX SMALL [a few items]

and LARGE [a full load). Recommended wash temperatures

can be found in your “Laundry Guide’:

NOTE: Use the LARGE water level

for best permanent press results.

LOAD SIZES AND WATER LEVELS

For best cleaning results, the

load must be able to move freely

CAUTION :

in the water. Too big a load or too DO NOT

little water can cause wear or OVERLOAD WASHER.

tearing of load items.

*Approximate

fill with load.

(17.3 gals./655 L)’

(14.7 gals./557 L]’

(12.1galsI45.B L)’

EX SMALL (9.5 galsJ36.0 L)’

3. Start the washer

Push in the Control Knob and

turn it to the right. It must be

pushed in and turned only

clockwise.

Stop on a number in the cycle

you want. The numbers are min-

utes of wash time. The drawing

shows 10 minutes of agitation in

the REGULAR Cycle.

C. Start the washer by pulling out

the Control Knob. The washer

will fill to the level you set with

wash water of the selected

temperature. After filling, the

washer will agitate for the

selected number of minutes.

To stop the washer at any tlme

push in the Control Knob. To

restart the washer, pull out the

Control Knob.

What happens in each cycle*

Each cycle has different agitation and spin speeds designed for different

kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH

agitation time.

When the Cycle Control Knob is set to a number and pulled out, the washer

fills before agitation and timing starts. Atter agitation starts, the knob turns clock-

wise until it points to OFF and the cycle ends.

REGULAR HEAVY Cycle

A cycle for sturdily con-

structed fabrics that are

heavily soiled.

REGULAR Cycle A cycle for regular loads of

fabrics that are moderately

1 soiled.

PERMANENT PRESS Cycle

A special cycle with the

necessary cool down rinse

which helps keep wrinkles

from setting into Permanent

Press and some synthetic

fabrics.

r REFllfl

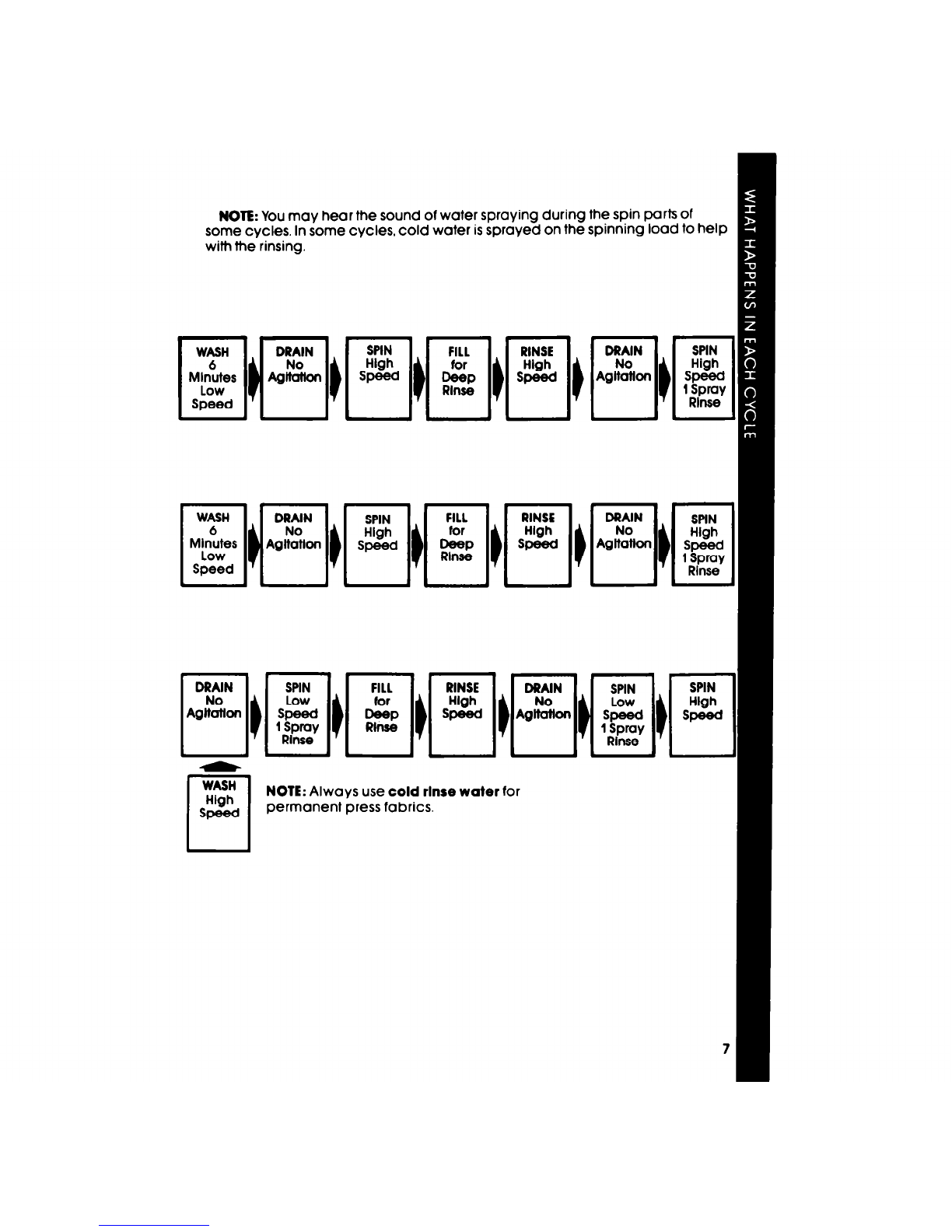

NOTE: You may hear the sound of water spraying during the spin parts of

some cycles. In some cycles, cold water is sprayed on the spinning load to help

with the rinsing. I

WASH

Minutes

Low

1II

DRAIN

A!$%

1 Speed 1’1 1’ 1 1’1 1’1 1’ 1 1’1 Rinse 1

DRAIN

Agl%on

DRAIN

Agl%lon 1

WASH

Hlgh

NOTE: Always use cold rinse water for

speed permanent press fabrics.

KNITS/GENTLE Cycle

A cycle that gently washes

and spins delicate items

and washable knits.

SOAK AND PRE-WASH Cycles

should always be fol:

lowed by a Wash Cycle.

SOAK

Minutes

_ .. Mln4utes

I Agltanon J r 1 speed 1r 11r I Agl&on, r I Speea 1I 1 WC

+ Pre-wash setting begins here, (see page 10).

Special care is needed when soaking or pre-washing laundry

See your “Laundry

Guide” for proper use ot this cycle. I

Other operating instructions

For a rinse and spin For a drain and spin

You may need an extra rinse and

spin for heavily soiled loads which

need more detergent. (Extra de-

tergent can require on extra rinse.)

Push Control Knob in.

Turn clockwise to anyeon the dial

See above drawing.

Pull Control Knob out.

The washer will fill to selected

level; agitate 2 minutes; drain

and spin.

Your washer can be set to drain

and spin out water.

Push Control Knob In.

Turn clockwise to the bar just before

OFF in any cycle. See above

drawing.

Pull Control Knob out.

The washer will drain and spin.

For agitation and spin speeds in each cycle. see pages 6-9.

For a soak

or pre-wash

pull s1ar1

pre-wash

For best results, use warm water

for soaking or pre-washing stained

laundry. Hot water can set stalns.

Use recommended amount of

detergent or pre-soak product.

Push Control Knob in.

Turn clockwise to point at a number

In the SOAK Cycle...use the bminutes

mark for a pre-wash.*

Pull Control Knob out to start washer.

When the cycle is over, add de-

tergent for the next selected wash

cycle. The SOAK Cycle should

always be tollowed by a Wash

Cycle.

Set the washer and start the next

selected wash cycle.

Important: See addlttonal care lntormatton on page 7 of your

“Laundry Qulde!’

r0 start soak or pie-wash with agltatlon, the Cycle Control

Knob must point to

a number In the SOAK Cycle, as lndlcated by the atxws.
