COMPACT TWO SPEED AUTOMATIC WASHERS

PART NO. 3935706

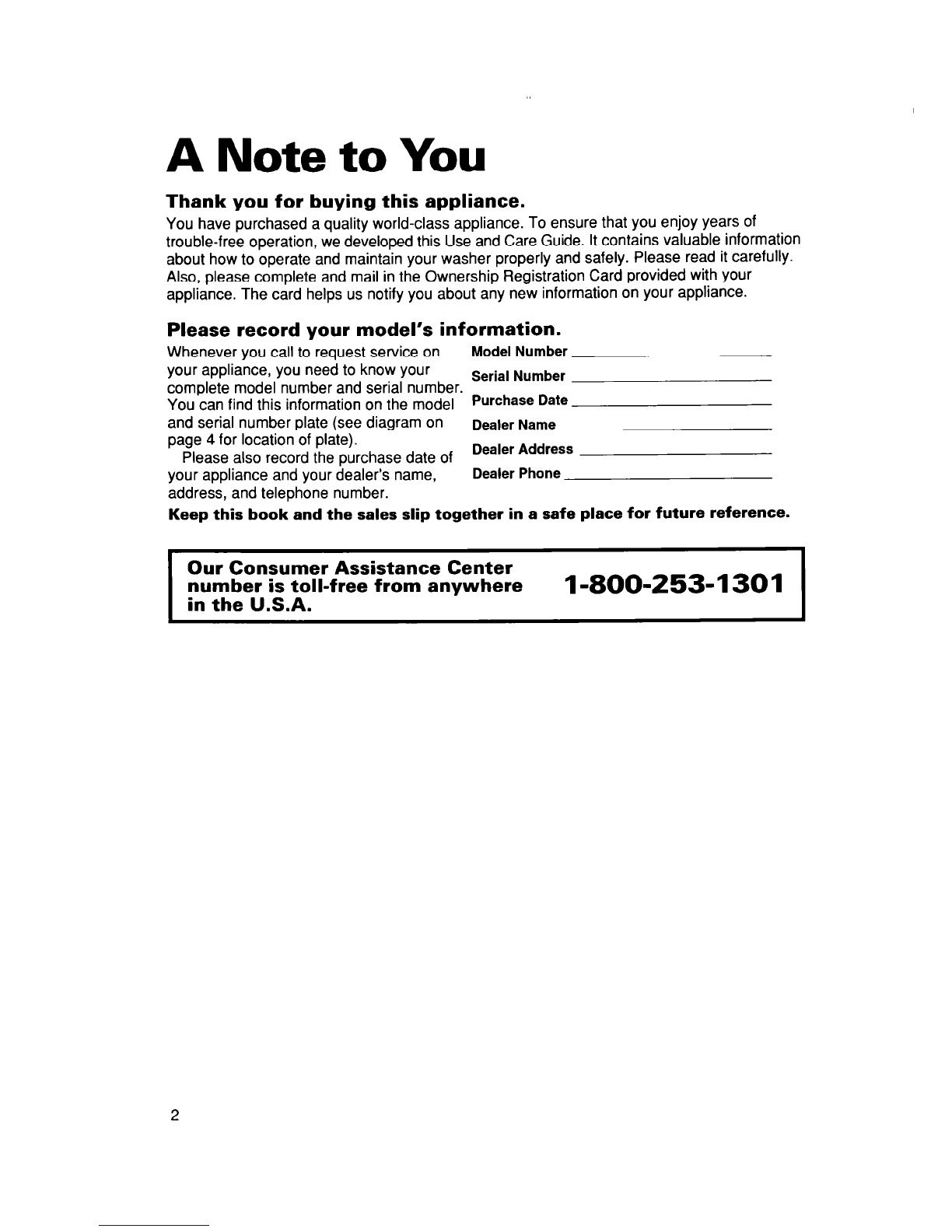

A Note to You

Thank you for buying this appliance.

You have purchased a quality world-class appliance. To ensure that you enjoy years of

trouble-free operation, we developed this Use and Care Guide. It contains valuable information

about how to operate and maintain your washer properly and safely. Please read it carefully.

Also, please complete and mail in the Ownership Registration Card provided with your

appliance. The card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service on

Model Number

your appliance, you need to know your

complete model number and serial number.

Serial Number

You can find this information on the model Purchase Date

and serial number plate (see diagram on

Dealer Name

page 4 for location of plate).

Please also record the purchase date of Dea’er Address

your appliance and your dealer’s name,

address, and telephone number.

Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

Our Consumer Assistance Center

number is toll-free from anywhere

1-800-253-1301

in the U.S.A.

Washer Safety

Your safety is important to us.

This guide contains safety statements under

warning symbols. Please pay special

attention to these symbols and follow any

instructions given. Here is a brief explana-

tion of the symbol.

This symbol alerts you

to hazards such as fire,

electrical shock, or

other injuries.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the

risk

of fire, electric shock, or injury to

persons when using the washer, follow basic precautrons, including the

following:

@Read all instructions before using

the washer.

.Do not wash articles that have

been previously cleaned in,

washed in, soaked in, or spotted

with gasoline, dry-cleaning

solvents, other flammable, or

explosive substances as they

give off vapors that could ignite

or explode.

ADO not add gasoline, dry-cleaning

solvents, or other flammable, or

explosive substances to the wash

water. These substances give

off vapors that could ignite or

explode.

aUnder certain conditions, hydro-

gen gas may be produced in a

hot water system that has not

been used for 2 weeks or more.

HYDROGEN GAS IS EXPLO-

SIVE. If the hot water system has

not been used for such a period,

before using the washing machine,

turn on all hot water faucets and

let the water flow from each for

several minutes. This will release

any accumulated hydrogen gas.

As the gas is flammable, do not

smoke or use an open flame

during this time.

@Do not allow children to play on

or in the washer. Close super-

vision of children is necessary

when the washer is used near

children.

@Before the washer is removed

from service or discarded,

remove the door.

aDo not reach into the washer

if the tub or agitator is moving.

@Do not install or store the washer

where it will be exposed to the

weather.

@Do not tamper with controls.

*Do not repair or replace any part

of the washer or attempt any

servicing unless specifically

recommended in this Use and

Care Guide or in published

user-repair instructions that you

understand and have the skills to

carry out.

@See Installation Instructions for

grounding requirements.

-SAVE THESE INSTRUCTIONS -

Parts and Features

The parts and features of your washer are illustrated on this page. Become familiar with all

parts and features before using your washer. Page references are included next to some

features. Refer to those pages for more information about the features.

Liquid chlorine Liquid fabric Model and serial Water level selector

bleach dispenser

(P.

14) \s$$er diy nser nuTr plate

To order Stand Kits:

l Washer Stand Kit for permanent installation,

secured to the wall:

- #49971, White

- #49978, Almond

NOTE: The wall must be strong enough to support

the washer’s weight. (Do not use in mobile homes.)

/ Basket

ATUb

Manual clean

lint filter

(attached

bottom of fabric

softener dispenser

- not shown)

(P. 12)

Washer Installation

Use this section to help you install your compact washer. If you need assistance, call our

Consumer Assistance Center,

l-800-253-1301,

from anywhere in the U.S.A.

Portable one-faucet connection

NOTE: Make sure the lid is closed before

moving the washer.

l Use the hose connector provided with the

Faucet adapter

washer for a one-faucet connection.

. Set the Temperature Selector to

Warm/Warm or to Warm/Cold.

l Attach the hose connector to the faucet

adapter by pulling down on the locking

collar while lifting up on the connector until

it snaps into place.

Slowly

turn the water faucet on all the way.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions

can result in death, fire, or

electrical shock.

l Pull the electrical power cord from the

storage area in the back of the washer.

Plug the power cord into a 3-prong

grounded outlet.

Water temperature adjustment:

Adjust water temperature as follows:

Wash Water:

Adjust faucets for wash

water temperature prior to the fill for wash.

Hose connector

continued on next page

Rinse Water:

Adjust faucets for tempera-

ture prior to fill for rinse.

NOTE:

Always use cold rinse water for

permanent press fabrics.

To disconnect washer:

l Unplug the electrical power cord and put it

back in its storage area.

l Turn the water faucet off.

l Press the red water flow button to release

the water pressure.

l Move the locking collar down and pull the

hose connector down to disengage from

the faucet adapter.

l Drain water from the hoses through the

hose connector.

Hoseconnector

l Hang the hoses on the storage rack.

Portable two-faucet connections

IMPORTANT:

Service Kit #3430190 must

be purchased when using portable model

on two-faucet connection.

NOTE: Make sure the Ild Is closed before

moving the washer.

If you have two separate water connections,

your washer can be connected to both the

hot and cold water faucets. For more

information about a service kit, contact

your authorized dealer.

To connect the washer:

l Connect the hot and cold water inlet hoses

to the hot and cold faucets.

l Secure the drain hose to the sink or

standpipe.

l Slowly turn the water faucets on all

the way.

l Plug the power cord into a 3-prong

grounded outlet.

To disconnect the washer:

l Unplug power cord and return it to the

storage area.

l Turn water faucets off.

l Disconnect the drain and water supply

hoses. Hang them on the storage rack.

Operating Your Washer

To obtain the best washing results, you must operate your washer properly. This section

gives you this important information. Page references are included for more information.

Explosion Hazard

Never place items fn the washer

that are dampened with gasoline

or other flammable fluids.

Do not wash or dry items soiled with

vegetable or cooking oils because

they may contain some oil after

laundering.

Doing so can result in death,

explosion, or fire.

Starting your washer

1. Add measured detergent to the

washer. Then place a sorted load of

clothes in the washer.

l Load a few items in the washer, or fill

laundry to the top row of basket holes.

l Sort and load clothes as described on

pages 16-l 7.

9 If desired, you may also add color safe

bleach to the wash load.

2. (OPTIONAL STEP) If desired, add

measured lfquld chlorine bleach to the

liquid bleach dlspenser (see

page 14).

l Use only liquid chlorine bleach in the

bleach dispenser.

3. (OPTIONAL STEP) If desired, add

measured liquid fabric softener to the

fabric softener dispenser (see

page 14).

4. Close the washer lid.

- - .. ..n . . . . . . ..

Iurn me water Level selector fo me

setting that corresponds with the size

of your wash load.

l To change the Water Level setting after

the washer has started to fill, turn the

selector to the desired new setting.

Select a wash-rinse temperature with

the Temperature selector. Match the

water temperature with the type of

fabric and soils being washed.

l See page 18 for water temperature

guidelines.

Set the Temperature Selector to

Warm/Warm or to Warm/Cold.

Water temperature adjustment:

Adjust water temperature as follows:

Wash water:

Adjust faucets for wash

temperature prior to the fill for wash.

Rinse water:

Adjust faucets for rinse

temperature prior to the fill for rinse.

Turn Cycle Selector Knob to the

desired setting. See

page 10.

Push the Start/Pause button to start

washer.

l The Cycle Selector Knob will

NOT

rotate as the cycle progresses.

l The Cycle Status lights indicate the

operation being performed within

the cycle.

l When the cycle is complete, all Cycle

Status lights will be Off.

NOTE:

Once a cycle has been started, the

Cycle Selector Knob

MUST

be turned to Off

before a new cycle can be selected.

Stopping/restarting your washer

l To

pause

the washer at any time, push

the Start/Pause button. The Cycle Status

Lights will flash while the washer cycle is

paused. If left in pause, the cycle will

terminate after 2 hours.

l To

restart

the washer, close the lid

l To

cancel

cycle, turn Cycle Selector Knob

to Off. Cycle Status Lights will turn off.

NOTE:

When lid is opened during

cycle,

all machine operation will stop. Cycle will

resume when lid is closed.

(if open) and push the Star-t/Pause button.

Selecting a cycle and time

This section illustrates and describes the

NOTES:

wash cycles you can select with the Cycle l At the beginning of all spin-cycles, the

Selector Knob. Use this information to help washer will cycle on and off. This is

you make the best cycle selections for your normal.

wash loads. Each cycle is designed for

different types of fabrics and soil levels. l During agitation, the washer basket will

move. This is normal.

l Refer to page 13 to help you understand

what happens during a wash cycle.

Normal Regular cycle

The Normal Regular cycle features high

agitation and longer spin speeds to shorten

drying time. Use this 1O-minute cycle for

cleaning sturdily-constructed cotton and

linen fabrics.

Permanent Press

Delicates Cycle

The Permanent Press Delicates cycle

features a reduced agitation speed for

gentle soil removal, and low spin speeds to

reduce wrinkling. Use this 8-minute cycle to

Permanent Press

Regular Cycle

clean delicate items and washable knits that

are lightly to moderately soiled.

The Permanent Press Regular cycle fea-

tures high agitation, a cool-down rinse and

low spin speeds to reduce wrinkling. Use

this 1O-minute cycle to clean permanent

press and some synthetic fabrics that are

moderately soiled.

Table des matières

Autres manuels Whirlpool Rondelle

Whirlpool

Whirlpool LSW9245EQ0 Manuel utilisateur

Whirlpool

Whirlpool LA6300XS Manuel utilisateur

Whirlpool

Whirlpool 8524742 Manuel utilisateur

Whirlpool

Whirlpool AWM 040 Manuel utilisateur

Whirlpool

Whirlpool 7MWTW7120LC Manuel utilisateur

Whirlpool

Whirlpool AWO/D 43115 Instructions d'utilisation et d'installation

Whirlpool

Whirlpool LA6090XT Manuel utilisateur

Whirlpool

Whirlpool WFW88HEAW1 Manuel utilisateur

Whirlpool

Whirlpool LSN2000LW0 Manuel utilisateur

Whirlpool

Whirlpool CABRIO W10373816B Manuel utilisateur

Whirlpool

Whirlpool LHW0050P Manuel utilisateur

Whirlpool

Whirlpool WWDC 8420/1 Manuel d'instructions et de sécurité

Whirlpool

Whirlpool 6LA58OOXT Manuel utilisateur

Whirlpool

Whirlpool AWG812/PRO Guide d'installation

Whirlpool

Whirlpool CABRIO W10280477B Manuel utilisateur

Whirlpool

Whirlpool LA6700XK Manuel utilisateur

Whirlpool

Whirlpool Cabrio WTW8800YC0 Manuel utilisateur

Whirlpool

Whirlpool W10559096B Manuel utilisateur

Whirlpool

Whirlpool W10454247 Manuel utilisateur

Whirlpool

Whirlpool LCR5244A Manuel utilisateur

Whirlpool

Whirlpool CAE2745FQ0 Manuel utilisateur

Whirlpool

Whirlpool FWMD10502G Series Guide d'installation

Whirlpool

Whirlpool LA9800XS Manuel utilisateur

Whirlpool

Whirlpool Design 2000 LA5591XP Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Beko

Beko WKB 51231 PTMA Manuel utilisateur
