Whirlpool AWV6200 Manuel utilisateur

ALVA B

SERVICE MANUAL

AWV6200

Service Manual

TABLE OF CONTENTS

PAGE

1. Specifications 3

1.1. Product Specifications 3

1.2. Name Plate 3

2. Installation Instructions 4

2.1. Moving and Installing 4

2.2. Detergent Box Group 5

3. Operating Instructions 6

5.1. LCD Screen, Function Buttons & Knobs 6

5.2. Program List 6

5.3. Program Details 7

5.5. Child Lock 8

4. Test Mode 9

6.1. Autotest 9

5. Service Mode 11

5.1. Service Autotest 11

5.2. Failure Codes 12

6. Troubleshooting Guide 12

7. Disassembly and Assembly Instructions 14

7.1. Top Plate 14

7.2. Door 14

7.3. Tub Bellows Seal 16

7.4. Detergent Drawer 16

7.5. Control Panel 16

7.6. Kick Plate 18

7.7. Front Panel 18

7.8. Upper Support Bracket 20

7.9. Detergent Drawer Housing 20

7.10. Power Cable Group and Parazit Filter 21

7.11. Electronic Pressure Switch (EPS) 22

7.12. Door Lock 22

7.13. Pump Motor 22

7.14. Front Counterweight 23

7.15. Heater 23

7.16. Tub Bellows Seal 24

7.17. Transport Screw 24

7.18. Upper Counterweight 25

7.19. Washing Group 25

7.20. Shock Absorber PIN 26

7.21. Belt 26

7.22. Driven Pulley 26

7.23. Motor 26

7.24. Tub Entrance with Bellow Hose 27

7.25. Pressure Switch Hose Group 27

7.26. Tub 27

7.27. Drum 27

8. Component Specifications 28

8.1. Drain Pump 28

8.3. Resistance 30

8.4. NTC 32

8.5. Valve 34

8.6. Electronic Pressure Switch (EPS) 36

8.7. Motor 37

8.8. Door Lock 40

9. Wiring Diagram 42

9.1. Wiring Diagram NA-127VB3 and NA-147VB3 42

1. Specifications

1.1. Product Specifications

42 lt

Product Type

Front Loader

Capacity

5 kg

Max Spin Speed (r/min)

400 –500 –600 –800 –1000

Energy Consumption

A+

Water Consumption

43 L/cycle

Wash Programs

15 settings

Dimensions

Height

84,5 cm

Width

59,7 cm

Depth

49,7 cm

Other Features

Child Lock

Pre-wash/Easy Ironing/No spin/Cold Wash/Extra Rinse

(Two of those options)

1.2. Name Plate

0000

SERVICE INDEX

NUMBER

2. Installation Instructions

2.1. Moving and Installing

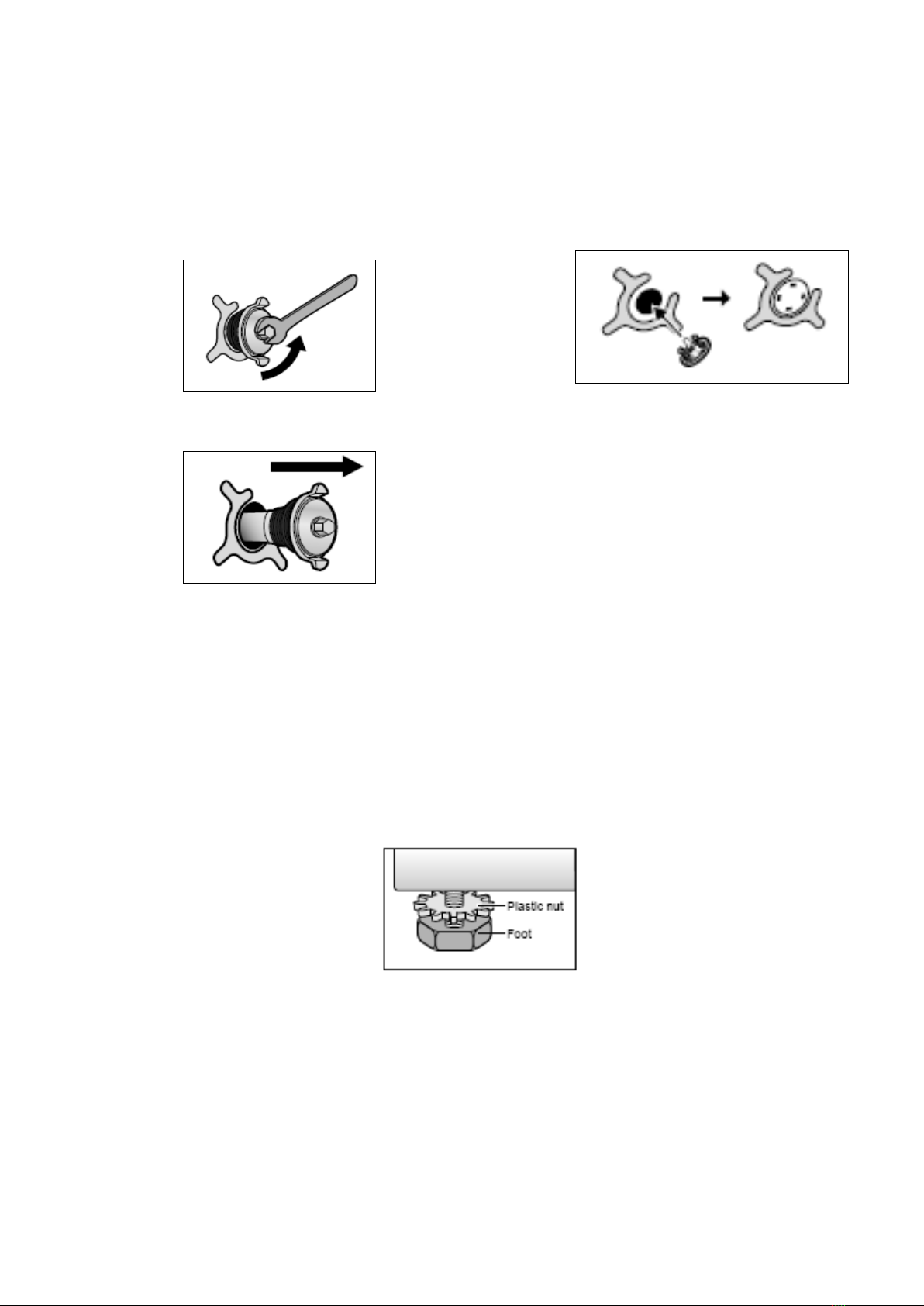

2.1.1. Removal of Transportation Screw

1. Transportation screws, which are located at the back

side of the machine, must be removed before running

the machine.

2. Loosen the screws by turning them anticlockwise with a

suitable spanner.

3. Pull out the screws and rubber washers.

2.1.2. Foot Adjustment

1. Do not install machine on rugs or similar surfaces.

2. For machine to work silently and without any vibration, it

should be installed on a flat, non-slippery firm surface.

Any suspended floor must be suitably strengthened.

3. You can adjust the level of machine using its feet.

4. First, loosen the plastic adjustment nut away from the

cabinet base.

2.1.3. Electrical Connection

1. Washing machine requires a 50Hz supply of 220-

240Volts.

2. A special earthed plug has been attached to the supply

cord of washing machine. This plug must be fitted to an

earthed socket. The fuse value fitted to this plug should

be 13 amps. If you have any doubts about electrical

supply, consult a qualified electrician.

4. The holes where the transport screws have been

removed should be covered with the plastic transport

caps found in the accessories bag.

5. The transportation screws that have been removed from

the machine must be re-used in any future transporting

of the machine.

5. Change the level by adjusting the feet upwards or

downwards.

6. After level has been reached, tighten the plastic

adjustment nut again by rotating it upwards

against the base of the cabinet.

7. Never put cartons, wooden blocks or similar

materials under the machine to balance

irregularities of the floor.

THIS APPLIANCE MUST BE EARTHED.

Insert the machine’s plug to a grounded

socket which you can easily reach.

2.1.4. Water Supply Connection

1. Washing machine is supplied with a single (cold) water

inlet.

2. To prevent leakage from the connection joints, a rubber

washer is included in the hose packing. Fit this washer

at the end of water inlet hose on the tap side.

3. Connect the hose to the water inlet valve. Tighten the

plastic connector by hand. Please call a qualified

plumber if you are unsure about this.

4. Water pressure of 0,1-1 MPa from tap will enable

machine to work more efficiently.(0,1 MPa pressure

means water flow of more than 8 litres in 1 minute from

a fully opened tap)

2.1.5. Drain Connection

1. Make sure that water inlet hoses are not folded, twisted,

crushed or stretched.

2. The drain hose should be mounted at a minimum height

of 60 cm, and a maximum height of 100 cm from the

floor.

2.2. Detergent Box Group

PREWASH = WATER ENTRY VALVE 1

MAIN = WATER ENTRY VALVE 2

SOFTENER = WATER ENTRY VALVE 1 + VALVE 2

5. After connection is complete, check for leakage by

turning on tap completely.

6. Make sure that water inlet hoses can not become folded,

damaged, stretched or crushed when the washing

machine is in its final position.

7. Mount the water inlet hose to a ¾” threaded water tap.

3. The end of the drain hose can be connected directly to a

drainage stand-pipe or alternatively to a specific

connection point designed for that purpose on the waste

outlet of a sink unit.

4. Do not extend the drain hose or guarantee will be

invalidated.

MAIN

SOFTENER

PREWASH

VALVE1

VALVE2

3. Operating Instructions

3.1. LCD Screen, Function Buttons & Knobs

Program selector 16 programs with ON/OFF.

SW1

Switch 1, Start / Pause

SW2

Switch 2, Function 1 Selection

SW3

Switch 3, Function 2 Selection

SW4

Switch 4, Function 3 Selection

PT speed potentiometer

SW1

SW2

SW3

SW4

3.5. Child Lock

Activation

1. Press the 1. and 3. function button for 4-5 seconds.

Deactivation

1. Press the 1. and 3. function button for 4-5 seconds.

Child lock during the programme

1. During the program run if you press any button when

child lock active, all the option LEDs will flash for 2 seconds

indicating child lock is active

In end condition

1. When cycle is finished child lock is automatically

deactivated.

2. Option LEDs will flash for two seconds indicating Child

Lock is active.

2. Start/Pause LED will flash

indicating Child Lock is now deactivated

In Error Mode

1. Child lock will be automatically deactivated when error is

detected except NTC (E05) and Voltage (E09) errors.

When E05 and E09 is detected, the child lock will be

deactivated at the end of the program or the user will be able to

deactivate it. On other hand, if the user brings the programme

knob to zero and then any position during these two error

modes, firstly it will show child lock active indication and then

the error indication and it will continue the cycle.

Whirlpool

4. Test Mode

4.1. Autotest

* This test is for quick checking of the product. You can not see the

failure codes.

1. After bringing secondary knob to maximum, select the

program 3

2. Press 1. function button

3. While pressing 1. function button, change position of the

knob from third to second

4. Release 1. function button

5. Press 1. Function button again.

6. While pressing 1. function button, change position of the

knob from second to first.

Whirlpool

Time in seconds (to be adjusted)

Entering autotest

Changing power to 220 50Hz

Main Voltage 50 Hz

Door Lock Powered (Depends on door lock)

Motor Ramp to max spin

Time until motor is stopped (Depends on the motor stop time)

Motor Preferred Run (Direction to Right)

Motor Inverse Run (Direction to Left)

EV1 0.16 l/s(flowrate dependent of washer)

EV2 0.16 l/s(flowrate dependent of washer)

Test stopped until option 1 is pressed (led blinking)

PW+W valves up to pressure switch level (Depends on the water level)

NTC check

Heather resistance

Pump

Ready Led (Activated with motor ramp to max spin)

End Led (Activated with motor ramp to max spin)

Option 1 Led (Depends on the motor stop time)

Option 2 Led (Activated with motor preferred run)

Ntc detection : Software will detect NTC's resistance value and will check if the temperature is between 5°C < Tdetected < 40°C. If it is inside the range, heating step will be done.

If temperature value is outside the range, then it means NTC is detecting the temperature in a wrong way and heating step will be skipped.

AUTOTEST
