Whirlpool WET4024E Instructions d'utilisation

24" (61 cm) and 27" (69 cm)

Electric Washer/Dryer

PRODUCT MODEL NUMBERS

WET4024E, WET4027E

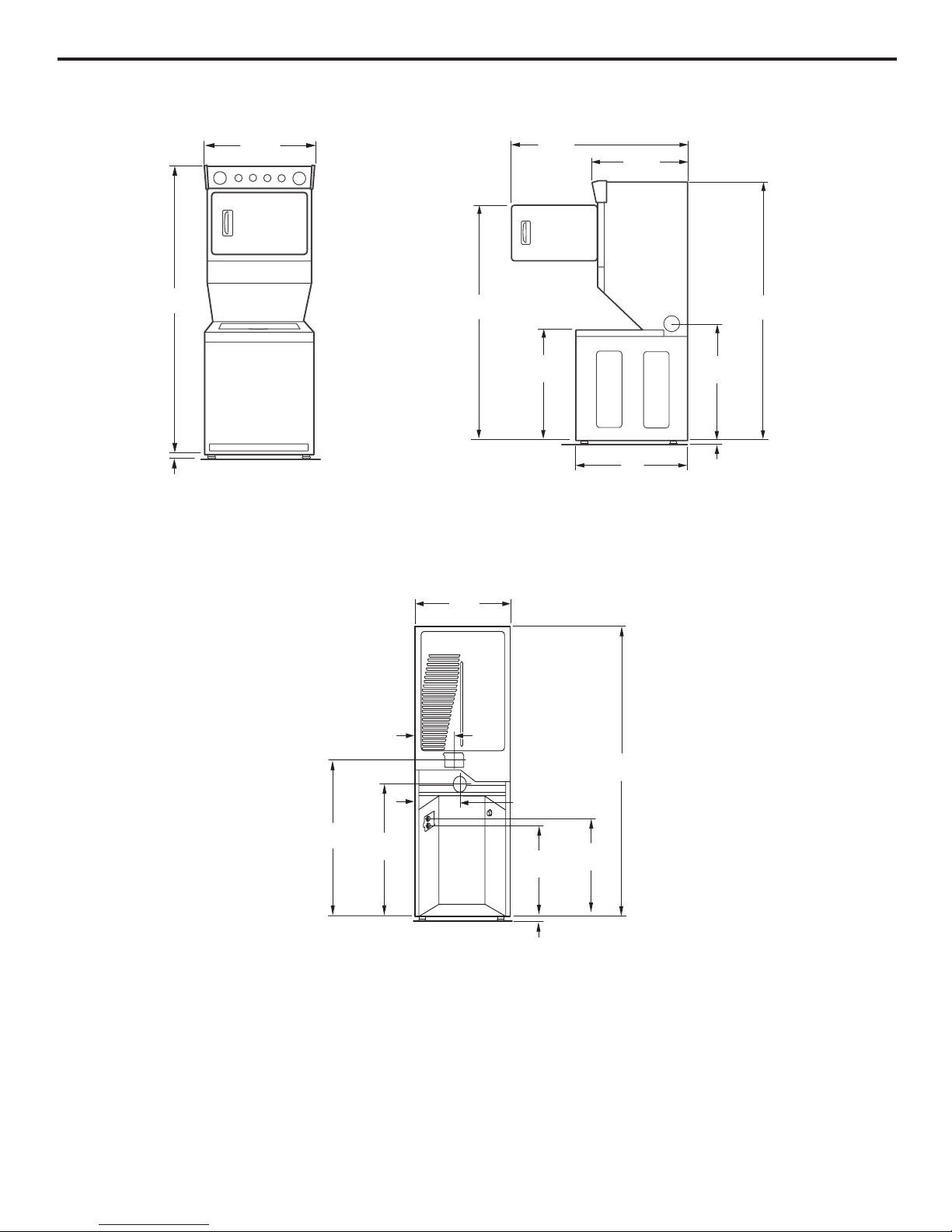

Dimensions/Clearances - 24" (61 cm)

W10761048A

05/2015

Front View Side View

237/8"

(606 mm)

703/4"

(1797 mm)

341/4"

(870 mm)

431/2"

(1105 mm)

111/2"

(292 mm)

14"

(356 mm)

(25 mm)

26"

(660 mm)

271/2"

(699 mm)

(1797 mm)

(911 mm) 20

(521 mm)

(25 mm)

(683 mm)

(781 mm)

(1670 mm)

37"

(940 mm)

(1797 mm)

(606 mm)

(25 mm)

Back View

Front View Side View

(1822 mm)

(692 mm)

(25 mm)

271/4"

(692 mm)

713/4"

(1822 mm)

351/4"

(895 mm)

411/4"

(1,048 mm)

11"

(279 mm)

14"

(356 mm)

(25 mm)

25"

(635 mm)

261/2"

(673 mm)

Dimensions/Clearances - 27" ( 69 cm)

(1822 mm)

(1495 mm) 26"

(660 mm)

(25 mm)

32"

(813 mm)

(816 mm)

(1670 mm)

34"

(864 mm)

Back View

To supply the required 3 or 4 wire, single phase, 120/240 volt, 60 Hz., AC only electrical supply (or 3 or 4 wire, 120/208 volt electrical

supply, if speciﬁed on the serial/rating plate) on a separate 30-amp circuit, fused on both sides of the line. A time-delay fuse or circuit

breaker is recommended. Connect to an individual branch circuit.

ELECTRICAL REQUIREMENTS

VENTING REQUIREMENTS

Recommended Styles: Acceptable Style:

Louvered hood Box hood Angled hood

Exhaust venting: Exhaust your dryer to the outside. 4" (102 mm)

diameter vent is required. Rigid or ﬂexible metal exhaust vent

must be used. Do not use plastic or metal foil vet. Exhaust hood

must be at least 12" (305 mm) from the ground or any object that

may be in the path of the exhaust.

Clearances

Side Clearances Front/Back/Top

(recommended/minimum) (recommended/minimum)

24 in.2

(155 cm2)

48 in.2

(310 cm2)3"

(76 mm)

Closet

door

Front

View

Recessed area or closet installation

Vent System Chart, 27" Models

Number of

90° turns

or elbows

Type

of vent

Box/louvered

hoods

Angled

hoods

0Rigid metal

Rigid metal

37 ft. (11.3 m)

32 ft. (9.7 m)

23 ft. (7.0 m)

35 ft. (10.7 m)

27 ft. (8.2 m)

19 ft. (5.8 m)

The “Vent System Chart” provides venting requirements that

will help achieve best drying performance.

NOTE: Side exhaust installations have a 90º turn inside the

dryer. To determine maximum exhaust length, add one 90º

turn to the chart.

Vent System Chart, 24" Models

Number of

90° turns

or elbows

Type

of vent

Box/louvered

hoods

Angled

hoods

0 Rigid metal

Rigid metal

43 ft. (13.1 m)

33 ft. (10.1 m)

23 ft. (7.0 m)

36 ft. (11.0 m)

26 ft. (7.9 m)

16 ft. (4.9 m)

1"/0"

(25 mm/0 mm

)

1"/0"

(25 mm/0 mm)

(127 mm)

12"

(305 mm)

(25 mm)

(Closet)

DRAIN SYSTEM

Drain system can be installed using a ﬂoor drain, wall standpipe,

ﬂoor standpipe, or laundry tub. Select method you need.

Floor standpipe drain system

Minimum diameter for a standpipe drain: 2" (51 mm). Minimum

carry-away capacity: 17 gal. (64 L) per minute. Top of standpipe

must be at least 39" (990 mm) high; install no higher than 96"

(2.4 m) from bottom of washer/dryer. If you must install higher

than 96" (2.4 m), you will need a sump pump system.

Wall standpipe drain system

See requirements for ﬂoor standpipe drain system.

Floor drain system

Floor drain system requires a Siphon Break Kit (Part Number

285834), 2 Connector Kits (Part Number 285385), and an

Extension Drain Hose (Part Number 285863) that may be

purchased separately. See “Use and Care Guide” for ordering

details. Minimum siphon break: 28" (710 mm) from bottom of

washer/dryer. (Additional hoses may be needed.)

Laundry tub drain system

Minimum capacity: 20 gal. (76 L). Top of laundry tub must be

at least 39" (990 mm) above ﬂoor; install no higher than 96"

(2.4 m) from bottom of washer/dryer.

IMPORTANT: To avoid siphoning, no more than 4.5" (113 mm)

of drain hose should be inside standpipe or below the top of

wash tub. Secure drain hose with shipping strap.

Because Whirlpool Corporation policy includes a continuous commitment to improve Dimensions are for planning purposes only. For complete details, see Installation

our products, we reserve the right to change materials and speciﬁcations without notice. Instructions packed with product. Speciﬁcations subject to change without notice.
