Whi,fl ol

Use&CareGuide

Washer controls

Model and serial

number plate

Air inlet

Electronic

DRY.MISER ®

Dryer

controls

Dryer

drum

!1/1uo,

screen

sensor

(not shown)

Optional

exhaust

outlet

Basket

Agitator (not shown)

Tub

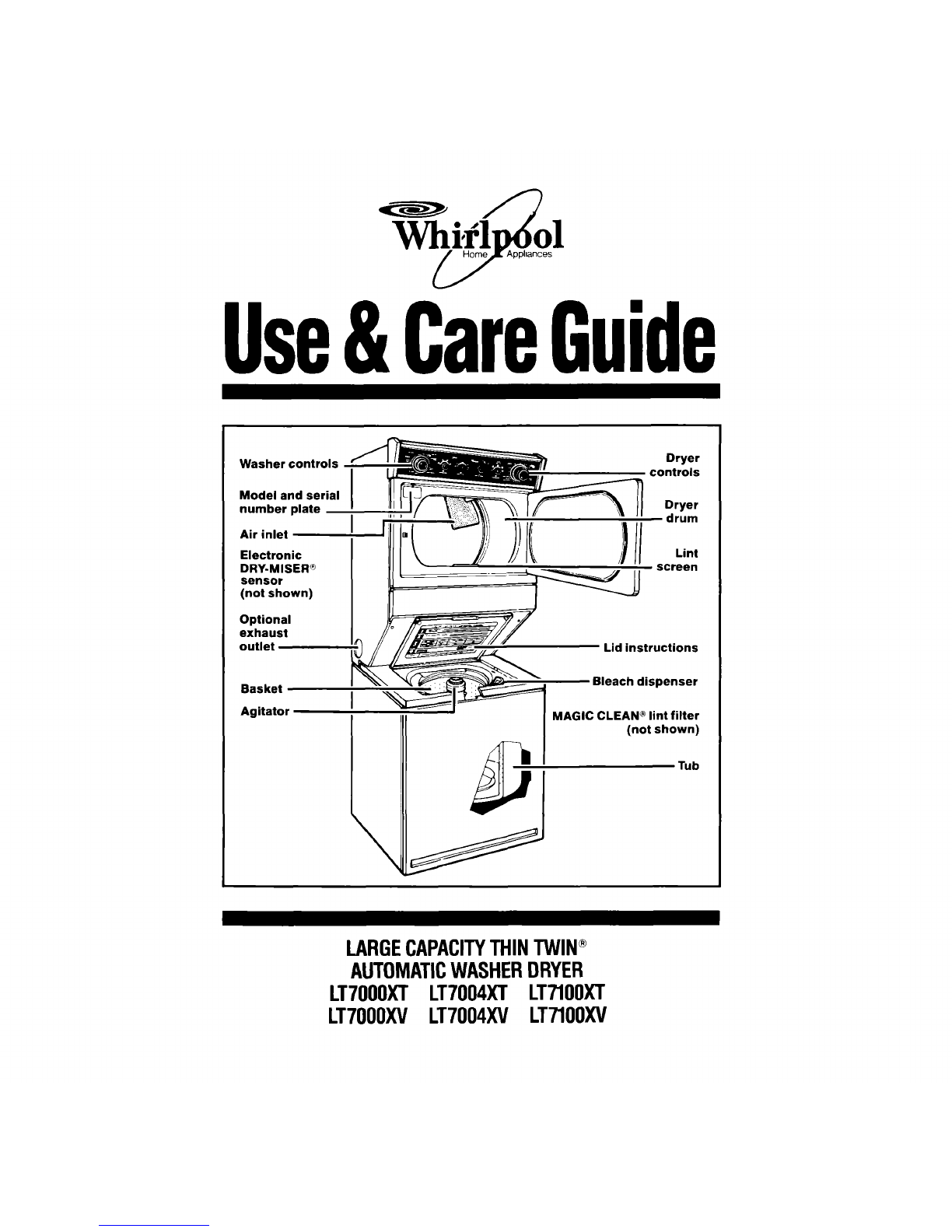

LARGECAPACITYTHINTWIN®

AUTOMATICWASHERDRYER

LT7OOOXTLT7OO4XT LT7100XT

LT7OOOXVLT7OO4XV LT7100XV

Contents

Page

Important Safety

Instructions ................. 3

Additional safety instructions

and your responsibilities ... 4

Loading Suggestions

Loading ................... 5

Load sizes and water levels .. 5

Washer Operating

Instructions

Starting your washer ........ 6-7

What happens in each cycle.. 7-10

Other Operating Instructions

Rinse and spin ............. 11

Drain and spin .............. 11

Soak cycle ................. 11

Pre-wash cycle ............. 11-12

Liquid bleach dispenser ...... 12

Liquid fabric softener

dispenser ................ 12

MAGIC CLEAN _ lint filter .... 12

Dryer Operating Instructions

Starting your dryer .......... 13

The automatic cycles ........ 14

Timed drying cycle .......... 15

Using damp dry ............. 15

Using TUMBLE PRESS _"_.... 15

Fluff air cycle ............... 15

End-of-cycle signal .......... 15

Gentle heat ................ 15

Lint Red.oval ................ 16-17

If You Need Service or

Assistance .................. 18-19

Whirlpool Thin Twin "_

Warranty .................... 20

Ifyour Thin Twin has a Consumer Buy

Guide label, remove it. It will be easier

to remove before the washer is used. To

remove any remaining glue:

• Rub briskly with thumb to make a ball,

then remove.

•Soak area with liquid hand dishwash-

ing detergent before removing glue as

described above.

Do not use sharp instruments,

rubbing alcohol, flammable fluids or

abrasive cleaners. These can damage

the finish. See "Important Safety

Instructions" on page 3.

NOTE: Do not remove any permanent

instruction labels inside the dryer.

You should wipe out the dryer drum

with a damp cloth before using to re-

move dust from storing or shipping.

Thank you for buying a Whirlpool ap-

pliance. Please complete and mail the

Owner Registration Card provided with

this product. Then complete the form

below. Have this information ready if

you need service or call with a question.

• Copy model and serial numbers from

plate (next to dryer drum opening)

and the purchase date from the sales

slip.

• Keep this book, the Laundry Guide

and the sales slip in a handy place.

Model Number

Serial Number

Purchase Date

Service Company Phone Number

FOR YOUR SAFETY

If you smell gas:

1. Open windows.

2. Don't touch electrical

switches.

3. Extinguish any open

flame.

4. Immediately call your

gas supplier.

FOR YOUR SAFETY

Do not store or use gas-

oline or other flammable

vapors and liquids in the

vicinity of this or any

other appliance. The

fumes can create a fire

hazard or explosion.

ImportantSafetyInstructions

• Read all instructions before

using the Thin Twin.

•NEVER wash or dry items cleaned,

washed, soaked in or spotted with

wax, paint, gasoline or flammable

fluids in the Thin Twin. The fumes

can create a FIRE HAZARD or EX-

PLOSION. ALWAYS hand launder

and air dry fabrics containing these

materials.

•NEVER allow children tooperate,

play with, or crawl inside the Thin

Twin.Close supervision ofchildren is

necessary when the Thin Twinis

used near children.

•When discarding an old Thin Twin,

ALWAYS remove the lidand door to

prevent accidental entrapment.

•NEVER reach intothe Thin Twin

untilall the motionstops. If the lidis

opened while the washer basket is

spinning,the basket willautomati-

cally stop in a few seconds.

•DO NOT install or store Thin Twin

where itwill be exposed to the

weather.

•DO NOT tamper with the controls.

•You are responsible for making

sure that your Thin Twin is

installed, repaired and parts

replaced by a qualified person.

•NEVER use or store flammable

fluids (dry-cleaning solvents,

gasoline, kerosene) in or near your

Thin Twin.Do not add flammable

fluids to the wash water. These

substances give off vapors that

can create a FIRE HAZARD or

EXPLOSION.

•Use only dryer fabric softeners

specifically labeled as notbeing

harmful to the dryer.

•FIRE HAZARD and DAMAGE to

materials can result from:

-drying rubber, rubber-like and

heat sensitive materials with heat.

- allowing lint to build-up inside

the dryer or exhaust system -

cleaning should be done by a

qualified person.

• Clean lint screen before or after

each load.

• Ifhot water has not been used

recently (usually 2 weeks or longer),

hydrogen gases may build up in

the water heater and the hot water

pipes. HYDROGEN GAS IS

EXPLOSIVE. To prevent injuryor

damage, before using your washer,

turn on all hot water faucets and al-

low water to run for several minutes.

This will allow gases to escape. DO

NOT smoke or use any open flame

near the faucet while it is open.

•DO NOT let dust, paper, rags, lint,

chemicals, etc. pile up, around or

under the Thin Twin.

• The Thin Twin must be electrically

grounded. See the Installation

Instructions.

- SAVE THESE INSTRUCTIONS -

ImportantSafetyInstructions

Continued

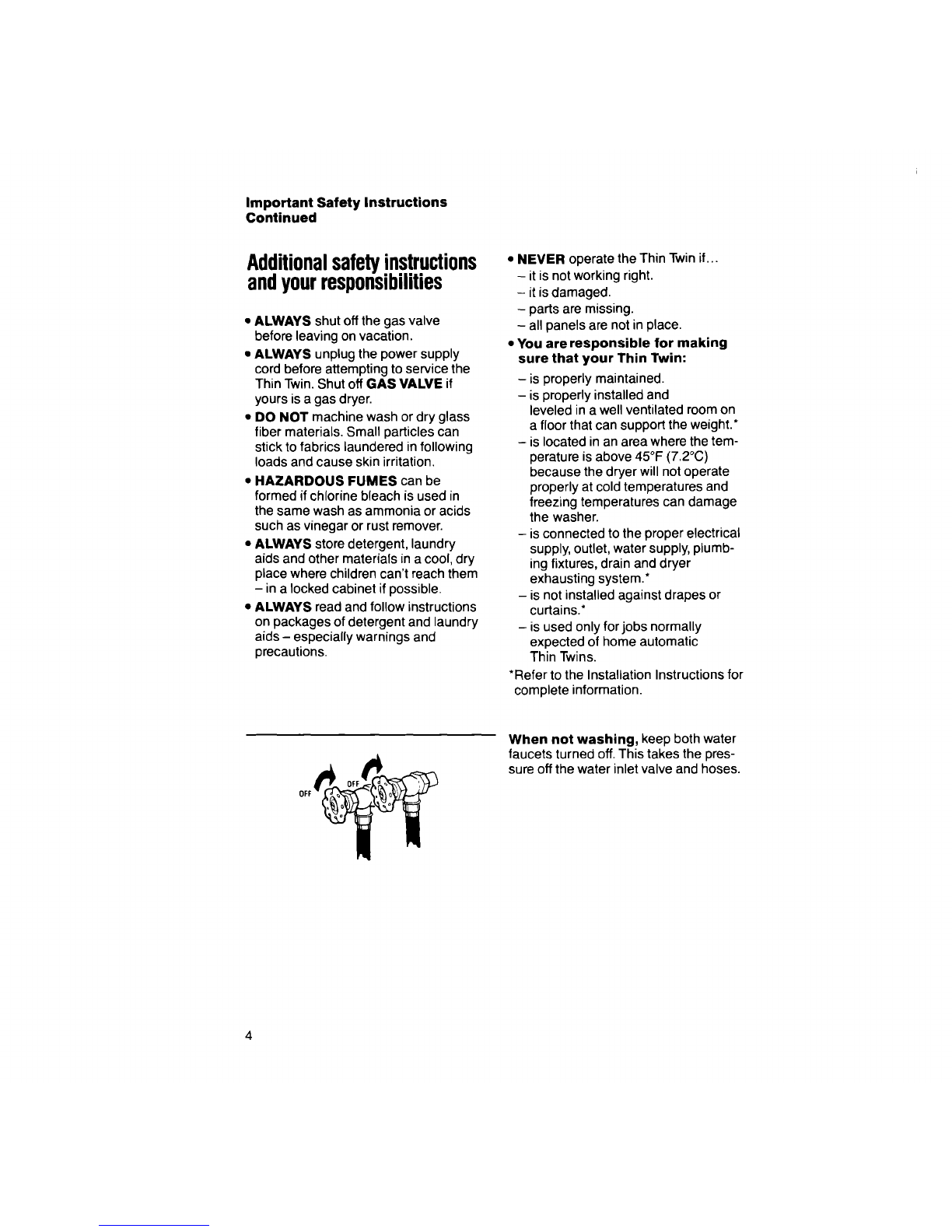

Additionalsafetyinstructions

andyourresponsibilities

• ALWAYS shut off the gas valve

before leaving on vacation.

•ALWAYS unplug the power supply

cord before attempting to service the

Thin Twin. Shut off GAS VALVE if

yours is a gas dryer.

•DO NOT machine wash or dry glass

fiber materials. Small particles can

stick to fabrics laundered in following

loads and cause skin irritation.

•HAZARDOUS FUMES can be

formed if chlorine bleach is used in

the same wash as ammonia or acids

such as vinegar or rust remover.

• ALWAYS store detergent, laundry

aids and other materials in a cool, dry

place where children can't reach them

- in a locked cabinet if possible.

•ALWAYS read and follow instructions

on packages of detergent and laundry

aids - especially warnings and

precautions.

•NEVER operate the Thin Twin if...

-it is not working right.

- it is damaged.

- parts are missing.

- all panels are not in place.

•You are responsible for making

sure that your Thin Twin:

- is properly maintained.

- is properly installed and

leveled in a well ventilated room on

a floor that can support the weight.*

- is located in an area where the tem-

perature is above 45°F (7.2°C)

because the dryer will not operate

properly at cold temperatures and

freezing temperatures can damage

the washer.

- is connected to the proper electrical

supply, outlet, water supply, plumb-

ing fixtures, drain and dryer

exhausting system.*

- is not installed against drapes or

curtains.*

- is used only for jobs normally

expected of home automatic

Thin Twins.

*Refer to the Installation Instructions for

complete information.

When not washing, keep both water

faucets turned off. This takes the pres-

sure off the water inlet valve and hoses.

LoadingSuggestions

MIXED LOAD PERMANENT

2 double or 1 PRESS

king size sheet 1double sheet

4 pillowcases 1tablecloth

6 T-shirts 1 dress

6 pair shorts 1 blouse

2 shirts 2 slacks

2 blouses 3 shirts

6 handkerchiefs 2 pillowcases

HEAVY WORK KNITS

CLOTHES 2 slacks

2 pair pants 2 tops

3 shirts 4 blouses

1 coverall 4 shirts

3 pair jeans 2 dresses

TOWELS DELICATES

8 bath towels 2 camisoles

8 hand towels 4 slips

10 wash cloths 4 panties

1 bathmat 2 bras

2 nighties

•.[] • •

I! /\'I

I" •% "I

Loadsizesandwaterlevels

For best cleaning results, the load must

be able to move freely in the water. Too

big a load or too little water can cause

wear or tearing of load items.

EX LARGE

(17.3 gals./65.5 L)*

MEDIUM

(13.4 gals./50.8 L)*

EX SMALL

(9.5 gals./36.0 L)*

*Approximate fill with load.

NOTE: Do not overload washer.

WasherOperatingInstructions

The drawings in this book may vary slightly from your Thin Twin model. They are

designed to show the different features of all the models covered by this book.

NOTE: Your model may not include all the features shown.

Startingyourwasher

Be sure to measure and add detergent, then place a sorted load in the washer before

starting it.

1. Select aload size

• Position the Load Size Selector at the

setting that describes the size of load

you want to wash.

• The selector can be set anywhere on

or between EX SMALL (a few small

items) and EX LARGE (a full load).

• To change the water level after the

washer has started to fill, turn the

selector to RESET, then to the desired

water level.

NOTE: For best washing results, items

should move freely in the washer. Do

not overload the washer or choose a

water level that is too low for your wash

load.

For best results with permanent

press clothes, use the EX LARGE water

level.

Reduce wash time when using EX

SMALL or SMALL water level settings.

Loads with only a few small items need

less wash time for best results.

2. Select water temperature

,,Match the water temperature to

the type of fabric and soils being

washed.

• The top temperature is the wash

selection and the bottom tempera-

ture is the rinse selection,

NOTE: Use warm wash water with

the PERMANENT PRESS or KNITS

GENTLE Cycles.

For heavily soiled permanent press

or knit clothes, pre-wash or pre-soak

before washing in warm water.

ALWAYS use cold rinse water for

permanent press fabrics.

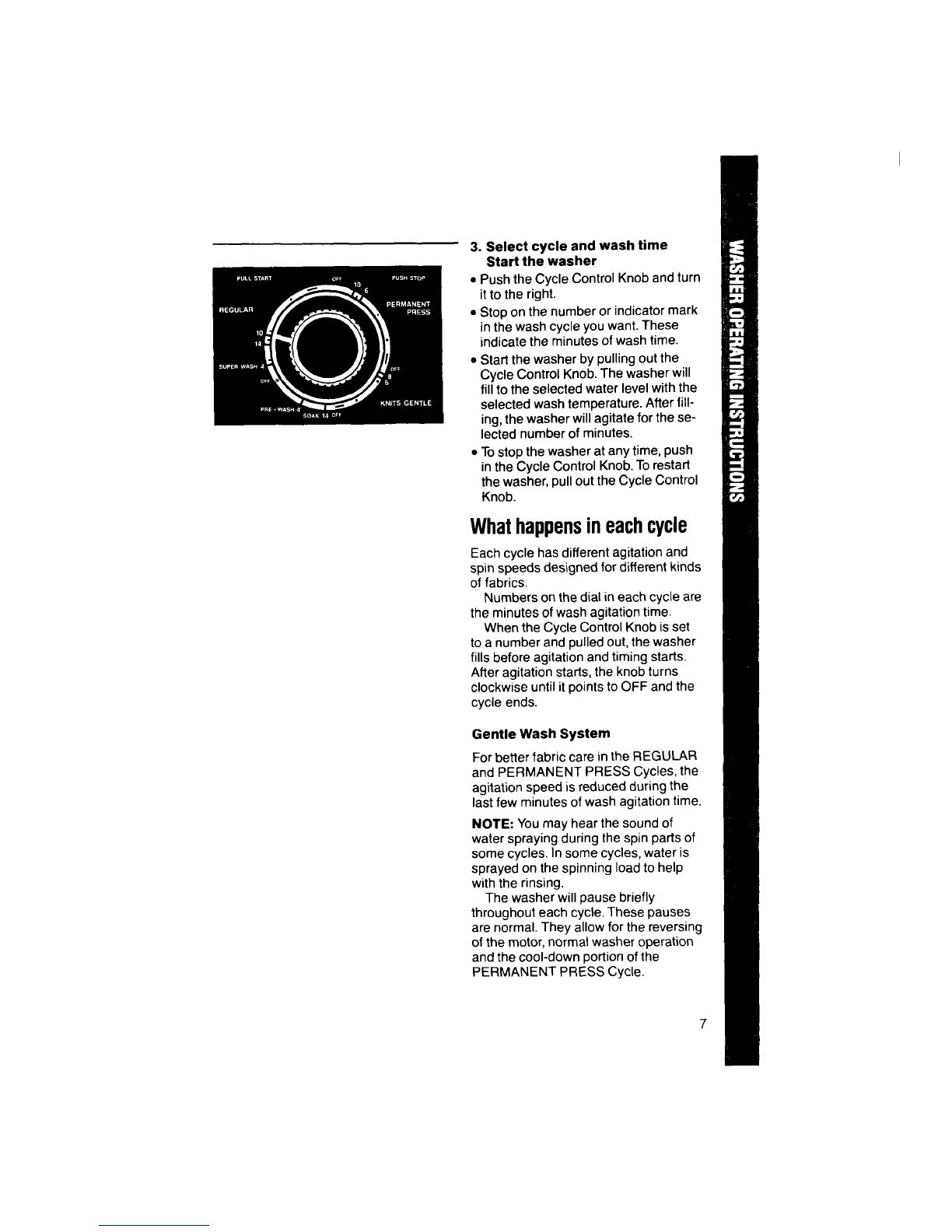

3. Select cycle and wash time

Start the washer

•Push the Cycle Control Knob and turn

itto the right.

• Stop on the number or indicatormark

inthe wash cycle you want. These

indicate the minutes of wash time.

• Start the washer by pulling out the

Cycle Control Knob. The washer will

fillto the selected water level with the

selected wash temperature. After fill-

ing, the washer will agitate for the se-

lected number of minutes.

• Tostop the washer at any time, push

in the Cycle Control Knob. To restart

the washer, pull out the Cycle Control

Knob.

Whathappensineachcycle

Each cycle has different agitation and

spin speeds designed for different kinds

of fabrics.

Numbers on the dial in each cycle are

the minutes of wash agitation time.

When the Cycle Control Knob isset

to a number and pulled out, the washer

fills before agitation and timing starts.

After agitation starts, the knob turns

clockwise until it points to OFF and the

cycle ends.

Gentle Wash System

For better fabric care in the REGULAR

and PERMANENT PRESS Cycles, the

agitation speed is reduced during the

last few minutes of wash agitation time.

NOTE: You may hear the sound of

water spraying during the spin parts of

some cycles. In some cycles, water is

sprayed on the spinning load to help

with the rinsing.

The washer will pause briefly

throughout each cycle. These pauses

are normal. They allow for the reversing

of the motor, normal washer operation

and the cool-down portion of the

PERMANENT PRESS Cycle.

Washer Operating instructions

Continued

Regular Cycle

A cycle for SturdilyCOnstructed

that are moderately to fabrics

heavily soiled.

Permanent Press Cycle

A cycle designed for lightlyto moder.

ately soiled permanent press and SOme

synthetic fabrics. The cool-down rinse

helps keep wrinkles from setting into

these items.

_elect, ed Level 1 _ected L v

._ -IL_ASH 6-2 MinutesHighSpeed

DRAr_'_IN_._,_._ __.ASH 4 MinutesLow Speed

" '_ _ PARTIAL DRAIN (Paus

NOTE: Always use COld rinse Water

for permanent press fabrics.

Knits Gentle Cycle

A cycle that gently washes and spins

moderately to lightlysoiled delicate

items and washable knits.

Soak and Pre-Wash Cycles

Brief periods of agitation and soak time

help remove heavy soils and certain

stains that need extra pretreatment.

Use recommended amount of detergent

or pre-soak additive. The SOAK Cycle

should always be followed by a wash

cycle.

FILL to Selected Level

___

WASH 4-2Minutes LowSpeed

ASOAK 2 Minutes No Agitation

WASH 2Minutes Low Speed

DRAIN No Agitation

SPIN Low Speed

FILL for DeepRinse

RINSE Low Speed

DRAIN No Agitation

SPIN Low Speed, Spray Rinses.....-

&Indicates that machine is pausing

for a brief soak period.

FILLL__ to Selected

LWASH 2 Minutes High Speed _

LSOAK 8 Minutes N_

LPRI='WASH setting beg,ins here,._._,_

L,W.__Minutes High Speed _1__

LDRAIN N°Ag `tati°n _J

LSPIN High Speed S

L_w,,,..s,o,.sSe,ec,C c'j

NOTE: The pre-wash setting starts the

washer at the second wash period.

Special care is needed when soaking

or pre-washing laundry See the Laun-

dry Guide for proper use of this cycle.

Washer Operating Instructions

Continued

Super Wash Cycle

Use for washing heavily soiled loads

that require maximum soil removal.

Double the amount of detergent recom-

mended when using the SUPER WASH

Cycle.

FILL to Selected Level ._

WASH 4 Minutes High Speed_

PARTIAL DRAIN No Agitation._.._

._REFILL to Selected Level .._J

After the partial drain, the washer

automatically refills and goes into the

REGULAR Cycle. Be sure to use

enough detergent for the double wash.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Whirlpool Laveuse-sécheuse

Whirlpool

Whirlpool THIN TWIN Manuel utilisateur

Whirlpool

Whirlpool Thin Twin LT4905XM Manuel utilisateur

Whirlpool

Whirlpool AWZ 475 Manuel utilisateur

Whirlpool

Whirlpool AWG336/2 Manuel utilisateur

Whirlpool

Whirlpool 7MWFC9822HC Manuel utilisateur

Whirlpool

Whirlpool THIN TWIN LTE5243D Manuel de la liste des pièces

Whirlpool

Whirlpool AWI75140 Manuel utilisateur

Whirlpool

Whirlpool 3366869 Instructions d'installation

Whirlpool

Whirlpool 3396315 Manuel utilisateur

Whirlpool

Whirlpool ADG 957 Manuel utilisateur

Whirlpool

Whirlpool Thin Twin LT5000XL Manuel utilisateur

Whirlpool

Whirlpool WFC682CLW Manuel utilisateur

Whirlpool

Whirlpool LTE5243DQ6 Manuel utilisateur

Whirlpool

Whirlpool Thin Twin LT4900XM Manuel utilisateur

Whirlpool

Whirlpool 8578179 Manuel utilisateur

Whirlpool

Whirlpool FreshCare WFWDC96 Manuel utilisateur

Whirlpool

Whirlpool 27" ELECTRIC WASHER/DRYER Manuel utilisateur

Whirlpool

Whirlpool LTG5243DQ0 Manuel d'utilisation et d'entretien

Whirlpool

Whirlpool THIN TWIN YLTE5243DQ2 Manuel utilisateur

Whirlpool

Whirlpool YLTE6234DQ6 Manuel utilisateur

Whirlpool

Whirlpool WFC8090GX Manuel utilisateur

Whirlpool

Whirlpool 27" ELECTRIC WASHER/DRYER Manuel utilisateur

Whirlpool

Whirlpool FWDD117168W Manuel d'installation et d'exploitation

Whirlpool

Whirlpool THIN TWIN LTG6234D Manuel de service

Manuels Laveuse-sécheuse populaires d'autres marques

Bosch

Bosch XQG100-WDU285H00W Manuel utilisateur

montpellier

montpellier MWD7512S Manuel utilisateur

LG FHD0905 T Series Manuel utilisateur

Midea

Midea MF200D85B Manuel utilisateur

Maytag

Maytag MGT3800XW Manuel utilisateur

Siemens

Siemens WD15G440TR Fiche technique

Equator

Equator Clothes Processor EZ1500 Manuel utilisateur

Splendide

Splendide WDC7100XCP Manuel utilisateur

John Lewis

John Lewis JLWD 1408 Manuel utilisateur

Ariston

Ariston A1200WD Manuel utilisateur

ATT

ATT Hammer Jet v1 Manuel utilisateur

AEG

AEG LAVAMAT 63742 VI Manuel utilisateur

Electrolux

Electrolux EWW8024P5WB Manuel utilisateur

GE GTD42EASJWH Manuel utilisateur

LG F2721HVRB Manuel utilisateur

Indesit

Indesit XWDE 751480 Manuel utilisateur

AEG

AEG LWR7195M4B Manuel utilisateur

Beko

Beko WMI 61241 Manuel utilisateur
