Whirlpool GX900QPPB1 Manuel utilisateur
1
MOTOR AND DRIVE PARTS
For Model:GX900QPPB1, GX900QPPQ1, GX900QPPT1, GX900QPPS1
(Black) (White) (Biscuit) (Stainless Steel)
3−05 LITHO IN U.S.A. (ebk) Part No. 882774
TRASH
COMPACTOR
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
9871676 Use & Care Guide
9871765 Sheet, Tech
8052029 Label, 1−800
Number
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
677821 Do−It−Yourself
Manual
2 9870343 Motor, Drive
(Includes Item 13)
3 9871067 Screw,
4 776327 Plate, Motor
5 776338 Locknut, 10−32 (4)
6 4149667 Gear, Drive
7 454512 Pin, Slotted
Spring
8 776035 Washer, Wave
9 297462 Washer, Thrust
10 777124 Gear, Driven
11 776036 Clip, Ring
12 780477 Chain, Drive
13 777971 Switch, Motor
Parts Not Illustrated and
Optional Parts (Not Included)
9870118 Undercounter
Conversion Kit
FRAME PARTS
2
For Model:GX900QPPB1, GX900QPPQ1, GX900QPPT1, GX900QPPS1
(Black) (White) (Biscuit) (Stainless Steel)
882774
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Frame (Not A
Serviceable Part)
2 4152204 Screw, 8−18 x 5/16
3 9872115 Cord, Power
4 777035 Clamp, Wire
5 780034 Screw,
10−24 x 3/8
6 777180 Spring,
Container
7 4149377 Switch, Drawer
Safety
8 780437 Pan, Bottom
9 4153788 Bearing, Roller (2)
10 775526 Bolt, Leveler
11 776356 Locknut, 3/8−24
12 9870867 Shield, Slide
Track(2)
13 9870585 Wheel,
Leveler (2)
15 489478 Screw,
8−18 x 1/2
16 9870444 Panel, Inner
17 777458 Screw, 6−32 x 3/8
18 9870976 Frame, Slide
(R.H.)
9870975 Frame, Slide
(L.H.)
19 780434 Cover, Motor
20 4149659 Shield, Harness
21 777850 Nut, Plate
22 777849 Screw, 6−20 x 1
23 777811 Switch, Top Limit
& Directional
24 776118 Grommet,
Motor Cover
25 608009 Plate, Cover
26 775668 Angle, Frame Plate
3
PANEL AND CONTROL PARTS
For Model:GX900QPPB1, GX900QPPQ1, GX900QPPT1, GX900QPPS1
(Black) (White) (Biscuit) (Stainless Steel)
882774
4
PANEL AND CONTROL PARTS
For Model:GX900QPPB1, GX900QPPQ1, GX900QPPT1, GX900QPPS1
(Black) (White) (Biscuit) (Stainless Steel)
882774
Illus. Part
No. No. DESCRIPTION
1 Panel, Front
9871073 White
9871575 Biscuit
9871072 Black
2 489478 Screw, 8−18 x 1/2
3 9870125 Bracket, Protector
4 777070 Screw 8−32 X 5/16
7 777380 Switch, Rotary
8 4155141 Knob, Switch
9 Plate, Switch
9870356 White
9871642 Biscuit
9871161 Black
11 9871825 Cover, Top
(Recessed)
13 Switch,
Drawer Tilt
4152058 White
9871829 Black
14 9871824 Assembly, Switch
15 246131 Screw,
6−20 x 3/8
16 Escutcheon, Control
9872039W White
9872039T Biscuit
9872039B Black
19 Insert, Console
9872017W White
9872017T Biscuit
9872017B Black
21 9871993 Bracket, Retainer
24 777383 Nut, Rotary Switch
25 3400888 Screw
28 780239 Bracket,
Mounting (2)
(Alternate)
5

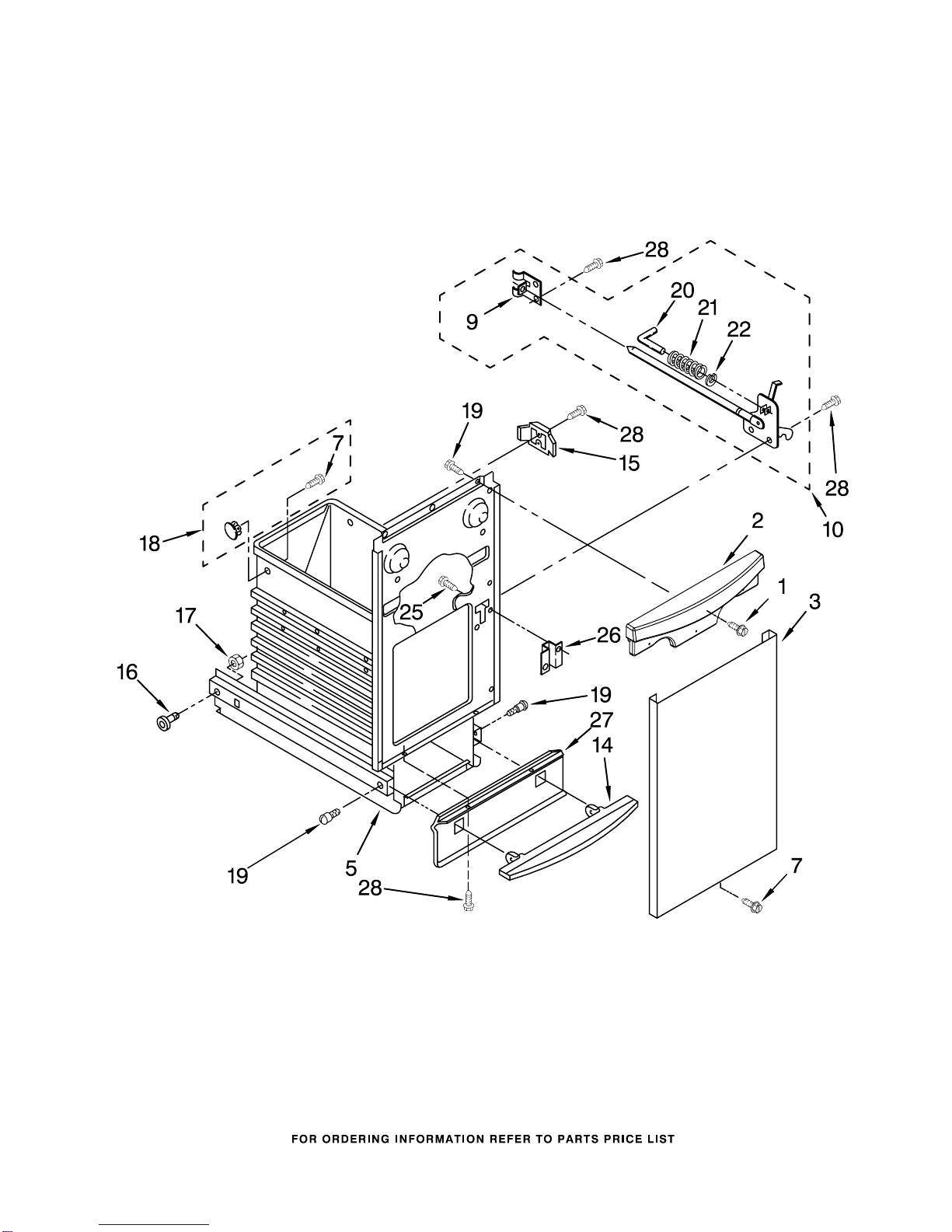

CONTAINER PARTS
For Model:GX900QPPB1, GX900QPPQ1, GX900QPPT1, GX900QPPS1
(Black) (White) (Biscuit) (Stainless Steel)
882774
CONTAINER PARTS
6
For Model:GX900QPPB1, GX900QPPQ1, GX900QPPT1, GX900QPPS1
(Black) (White) (Biscuit) (Stainless Steel)
882774
Illus. Part
No. No. DESCRIPTION
1 3400888 Screw 8−18 X 1/2
2 Handle, Container
9872040W White
9872040T Biscuit
9872040B Black
3 Panel, Container
Front
9871309 White
9871574 Biscuit
9871311 Black
9871770 Stainless
5 884573 Container
Assembly
7 3196175 Screw 8−18 X 1/2
9 776395 Guide, Rear
Latch
10 9870066 Latch Assembly
14 Pedal, Foot
9871031 White
9871577 Biscuit
4149672 Black
15 9871125 Actuator,
Safety Switch
16 9871602 Bearing Roller
Container (2)
17 776356 Locknut,
3/8−24 (2)
18 4147703 Retainer, Bag
(Contains 4 Each)
19 780263 Screw, Shoulder
8−16 x 7/16 (2)
20 776654 Pin
21 775736 Spring
22 775735 "E" Ring
25 4152204 Screw 8−18 X 5/16
26 775665 Plate, Latch
27 Guard, Toeplate
9871030 White
9871578 Biscuit
777328 Black
28 489478 Screw 8−18 X 1/2
7
POWERSCREW AND RAM PARTS
For Model:GX900QPPB1, GX900QPPQ1, GX900QPPT1, GX900QPPS1
(Black) (White) (Biscuit) (Stainless Steel)
882774
Illus. Part
No. No. DESCRIPTION
1 9870500 Screw, Power
Complete
Assembly (2)
2 Screw, Power
(Available Only
As Complete
Assembly)
3 779121 Plate, Bearing (2)
4 775482 Bearing, Needle (2)
5 776941 Hub, Power
Screw (2)
6 775481 Race, Thrust (4)
7 777385 Sprocket,
Washer (2)
8 4154842 Nut, Power
Screw (2)
9 777332 Washer, Cone (2)
10 9871067 Screw,
11 9871251 Ram Assembly
12 9870163 Nut, Power
13 90296 Clip
14 9870187 Stud
16 9870037 Stop, Ram
Powerscrew (2)
17 9870498 Bracket, Top Limit
Switch
18 489399 Screw, (2)
8−32 x 5/16
19 9870775 Cap, Stop
20 9870169 Slide, Ram (4)
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
ACCESSORY PARTS
The Accessory Parts Listed Below
May or May Not Be Included With
Your Compactor.
1 Panel, Container
Front
777762 Almond &
Harvest Gold
777941 Black & White
675378 Brushed Chrome
780334 Almond & Black
2 Bag, Trash
675186 12 Pack
882652 48 Pack
3 777635 Deodorizer,
Solid Stick−Ups
(2−Pack)
5 13030 Carrier, Bag
(Includes No. 6)
6 777108 Handle, Bag
Carrier
7 675351 Grease, 4 Oz.
(Use on Power
Screw & Ram
Pressure Pads
8 Wire, 25’ Roll
10875 Blue 16 Ga.
242820 Black 14 Ga.
242825 Red 14 Ga.
242826 White 14 Ga.
47261 Black 12 Ga.
299885 Red 12 Ga.
47263 White 12 Ga.
9 279368 Adhesive,
Insulation
(2oz Tube)
10 Paint,
Touch−Up 1/2 Oz.
72107 Almond
72109 Avocado
72032 Black
72108 Coffee
72110 Harvest Gold
72113 Platinum
72112 Toast
72017 White
11 Paint,
Spray 13 Oz.
350956 Almond
261888 Avocado
285006 Black
261886 Coffee
261890 Harvest Gold
285366 Platinum
978726 Stanford Brown
285365 Toast
350930 White
CPW−3−D
8
For Model:GX900QPPB1, GX900QPPQ1, GX900QPPT1, GX900QPPS1
(Black) (White) (Biscuit) (Stainless Steel)
882774
