Whirlpool W8TXEWFV Instructions d'utilisation

Top Mount Refrigerator

®

PRODUCT MODEL NUMBERS PRODUCT DIMENSIONS

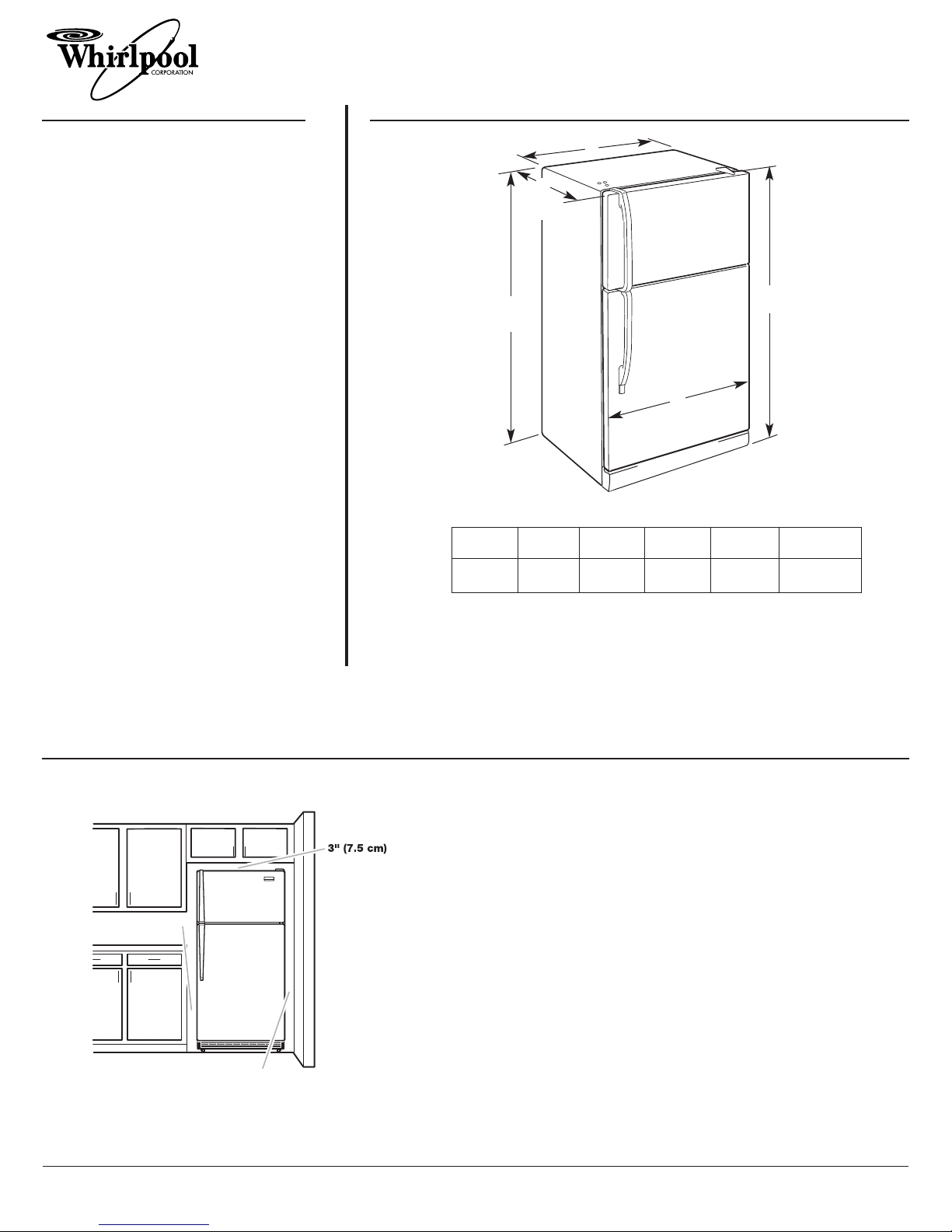

LOCATION REQUIREMENTS

W8TXEWFV

Electrical: A 115-Volt, 60-Hz, AC-only 15- or

20- amp fused, grounded electrical supply is

required. It is recommended that a separate circuit

serving only your refrigerator be provided. Use an

outlet that cannot be turned off by a switch. Do not

use an extension cord.

Water: Connect the ice maker to a cold water line

with water pressure between 30 and 120 psi

(207 and 827 kPa).

If a reverse osmosis water filtration system is

connected to your cold water supply, the water

pressure to the system needs to be a minimum of

40 to 60 psi (276 to 414 kPa).

IMPORTANT: The pressure of the water coming

out of a reverse osmosis system going to the

water inlet valve of the refrigerator needs to be

between 30 and 120 psi (207 and 827 kPa).

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. W8TXEWFV

10-22-08

1

/

2" (1.25 cm)

2" (5.08 cm)

To ensure proper ventilation for your refrigerator, allow for a 1⁄2" (12.70 mm) space

on each side. Allow 3" (7.5 cm) of space between overhead cabinets and refrigerator

top. Allow at least 1" (25.40 mm) between back of cabinet and the wall. If your

refrigerator has an ice maker, make sure you leave some extra space at the back for

the water line connections.

If you are installing your refrigerator next to a fixed wall, leave 2" (5.08 cm)

minimum on the hinge side (depending on your model) to allow for the door to

swing open.

NOTE: Do not install the refrigerator near an oven, radiator, or other heat source, nor

in a location where the temperature will fall below 55°F (13°C).

Depth Cab. Width Door Width Cab. Height Overall Height

Model size "A" "B" "C" "D" "E"

18 cu.ft. 30-7/8" 28" 28" 67-3/8" 67-7/8"

(78.4 cm) (71.1 cm) (71.1 cm) (171.1 cm) (172.4 cm)

4

1

E

overall

D

top of

cabinet

C

B

not incl.

handle

A
