Whirlpool GSS30C7EYB Guide de dépannage

CABINET PARTS REFRIGERATOR

For Models: GSS30C7EYW00, GSS30C7EYB00, GSS30C7EYF00, GSS30C7EYY00

(White) (Black) (Monochromatic Satina) (Monochromatic Stainless)

3−12 Litho In U.S.A. (wam) (psw) Part No. W10422331 Rev. B

CABINET PARTS

2W10422331

For Models: GSS30C7EYW00, GSS30C7EYB00, GSS30C7EYF00, GSS30C7EYY00

(White) (Black) (Monochromatic Satina) (Monochromatic Stainless)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10407369

Use & Care Guide

W10329864

Service & Wiring

Sheet

W10337128

Energy Label

2 2150304 Front Roller

W10297485

Screw

4 12477102 Roller (Rear)

5 12477202 Axle, Roller

W10285005

Rivet, Roller

W10379525

Drain Tube Assy

W10257186

Bracket, Foot

W10141622

Foot, Brake

W10308750

Screw

W10238100

Valve, Inlet

12 Hinge, Top (FC)

W10247899

White

W10249920

Black

W10249922

Apollo Grey

13 Hinge, Top (RC)

W10247901

White

W10249923

Black

W10249925

Apollo Grey

14 Screw

W10142283

White

W10308487

Black

W10308489

Midnight Grey

15 Bottom Hinge (FC)

W10249940

White

W10249941

Black

W10249943

Apollo Grey

16 Bottom Hinge (RC)

W10257188

White

W10257207

Black

W10257209

Apollo Grey

17 Door Closer (RC)

W10247905

White

W10257195

Black

W10257197

Apollo Grey

W10141645

Screw

19 549193 Clamp, Service

Cord

W10333887

Cover, Unit

21 Filler, Wrapper

12587703W

White

12587703B

Black

12587703AP

Apollo Grey

22 Grille

W10257231

White

W10257232

Black

W10257234

Midnight Grey

W10142234

Screw

24 Door Closer (FC)

W10247903

White

W10257198

Black

W10257200

Midnight Grey

W10001250

Screw

W10277956

Tube, Filter

Inlet

W10277957

Tube, Filter

Outlet

W10370680

Drain Fitting

29 12957702 Cover

W10235414

Elec. Control

W10120821

Elec. Control−15W

Power Supply

32 Cabinet (Not A

Serviceable Part)

REFRIGERATOR LINER PARTS

W10422331

For Models: GSS30C7EYW00, GSS30C7EYB00, GSS30C7EYF00, GSS30C7EYY00

(White) (Black) (Monochromatic Satina) (Monochromatic Stainless)

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

W10260988

Escutcheon, Meat

Pan Control

W10260989

Slide, Meat

Pan Control

W10251495

Air Diffuser

Assembly

W10310320

Air Diffuser

Cover

6 C3680314 Switch

Rocker Arm

W10366790

Reservoir

W10279030

LED Light Assy

W10280385

Thermistor

W10342986

Air Filter Housing

W10315189

Air Filter

W10340015

Air Filter Cover

W10238123

Housing, Water

Filter

W10425251

Cover, Thermistor

W10271543

Connector,

1/4 x 5/16

W10260405

Cover, Water

Filter

W10295370

Water Filter

REFRIGERATOR SHELF PARTS

4W10422331

Illus. Part

No. No. DESCRIPTION

W10290493

Shelf, Snack Pan

W10282541

Cover, Assy

W10256800

Snack Pan

Includes 4 & 5

W10278139

Roller

W10257246

Axle, Roller

W10256801

Crisper Pan

Includes 4 & 5

W10256802

Meat Pan

Includes 4 & 5

W10257332

Housing, Humidity

W10257334

Slide, Humidity

W10276662

Shelf Assy

For Models: GSS30C7EYW00, GSS30C7EYB00, GSS30C7EYF00, GSS30C7EYY00

(White) (Black) (Monochromatic Satina) (Monochromatic Stainless)

FREEZER LINER PARTS

W10422331

For Models: GSS30C7EYW00, GSS30C7EYB00, GSS30C7EYF00, GSS30C7EYY00

(White) (Black) (Monochromatic Satina) (Monochromatic Stainless)

FREEZER LINER PARTS

W10422331

For Models: GSS30C7EYW00, GSS30C7EYB00, GSS30C7EYF00, GSS30C7EYY00

(White) (Black) (Monochromatic Satina) (Monochromatic Stainless)

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

W10290894

Cover Assy

W10322802

Shelf, Glass

Upper

W10280386

Thermistor

W10322804

Shelf, Glass

Lower

W10322653

Pan, Freezer

Upper

Includes 7 & 8

W10278139

Roller

W10257246

Axle, Roller

W10322649

Pan, Freezer

Lower

Includes 7 & 8

W10419177

Switch, Rocker Arm

Ice Maker

W10425253

Cover, Thermistor

W10279030

LED Light Assy

13 12466114 Switch, Rocker Arm

Light

MOTOR AND ICE CONTAINER PARTS

W10422331

For Models: GSS30C7EYW00, GSS30C7EYB00, GSS30C7EYF00, GSS30C7EYY00

(White) (Black) (Monochromatic Satina) (Monochromatic Stainless)

MOTOR AND ICE CONTAINER PARTS

8W10422331

Illus. Part

No. No. DESCRIPTION

W10353207

Ice Bin Assy

W10258552

Latch, Assy

3 2220458 Coupling, Lower

W10258544

Drive Shaft

5 2198607 Spring, Coupling

W10293211

Mounting Plate

Assembly

7 2198628 Seal

W10291905

Gasket

9 2212370 Washer

10 2323603 Dispenser, Motor

W10238131

Motor Box Assy

W10166854

Gasket

W10287594

Cover, Container

100

W10353207

Ice Container

(Complete)

For Models: GSS30C7EYW00, GSS30C7EYB00, GSS30C7EYF00, GSS30C7EYY00

(White) (Black) (Monochromatic Satina) (Monochromatic Stainless)

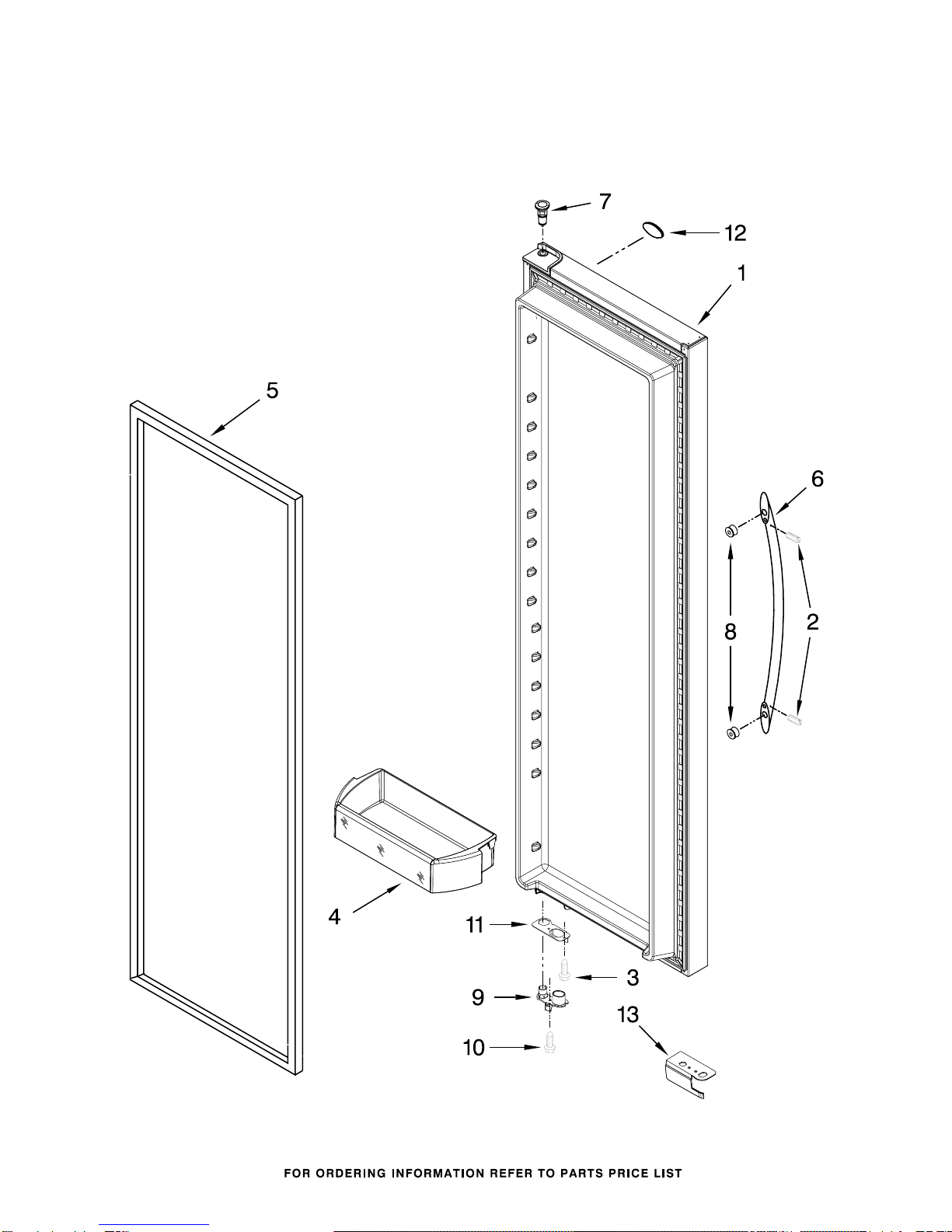

REFRIGERATOR DOOR PARTS

W10422331

For Models: GSS30C7EYW00, GSS30C7EYB00, GSS30C7EYF00, GSS30C7EYY00

(White) (Black) (Monochromatic Satina) (Monochromatic Stainless)

REFRIGERATOR DOOR PARTS

10 W10422331

For Models: GSS30C7EYW00, GSS30C7EYB00, GSS30C7EYF00, GSS30C7EYY00

(White) (Black) (Monochromatic Satina) (Monochromatic Stainless)

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes Item 5)

W10261181

White

W10372830

Black

W10372831

Mono Satina

W10372832

Mono Stainless

2 Set Screw

W10010140

Chrome

W10010150

Black

W10296816

Screw

W10335219

Door Bin, Gallon

5 Door Gasket,

Magnetic

W10247884

Mist Beige

W10249912

Black

W10249916

Apollo Grey

6 Handle

W10268056

White

W10268057

Black

W10274730

Satina Model

W10311213

Stainless

7 2200086 Thimble−Top

W10170540

Stud, Handle

9 Door Closer,

Upper Cam

W10248011

White

W10257201

Black

W10257203

Apollo Grey

W10296804

Screw

W10367462

Bracket, Door Stop

12 Nameplate

2220214 Gold

13 Cover, Door Stop

W10248013

White

W10257216

Black

W10257218

Midnight Grey
