Whirlpool GB9SHDXPB01 Manuel utilisateur
1

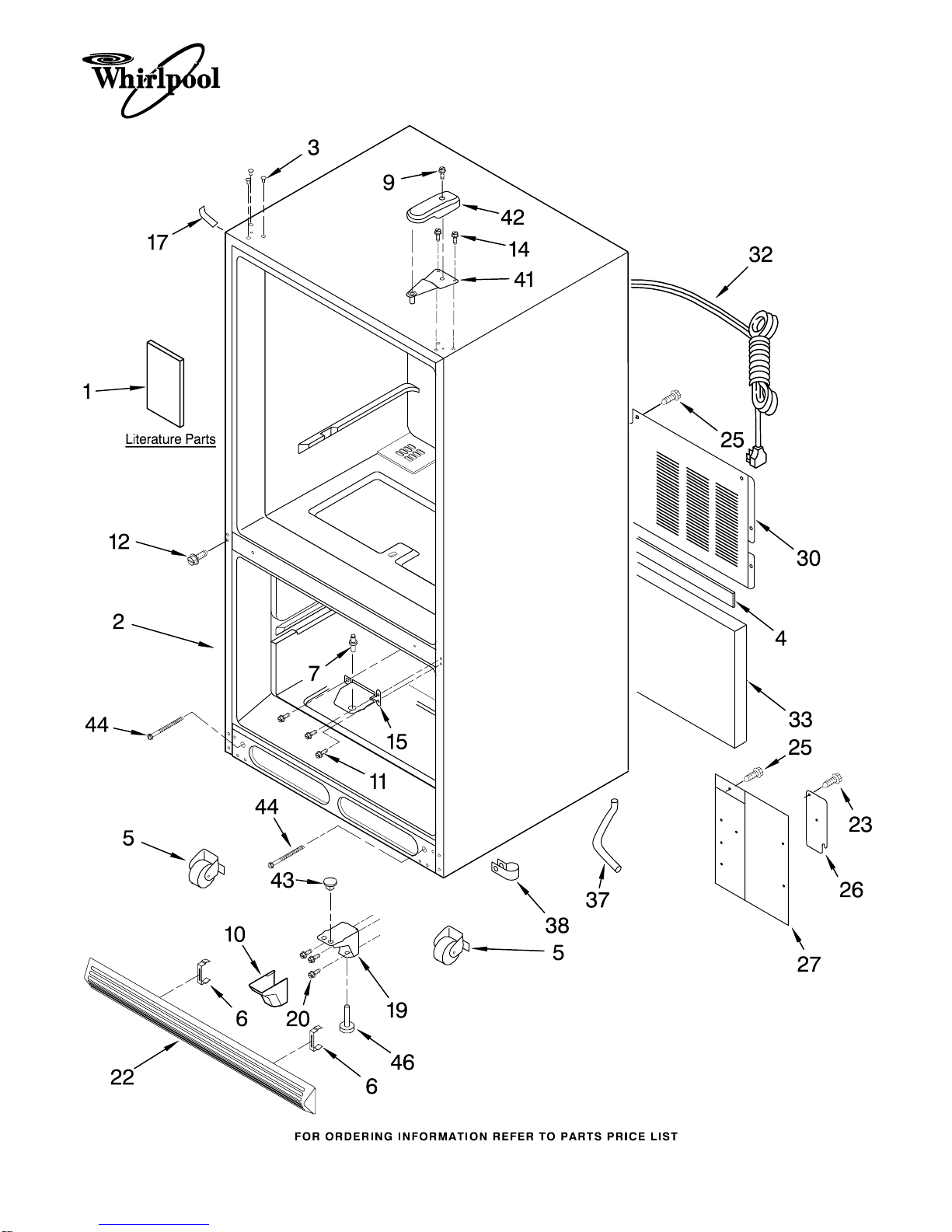

CABINET PARTS
For Models: GB9SHDXPQ01, GB9SHDXPB01, GB9SHDXPS01
(White) (Black) (Stainless Steel)
10−06 Litho In U.S.A. (awm) Part No. W10024330
REFRIGERATOR
CABINET PARTS
2
For Models: GB9SHDXPQ01, GB9SHDXPB01, GB9SHDXPS01
(White) (Black) (Stainless Steel)
W10024330
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
2300261 Use & Care Guide
W10024320
Energy Tag
8208183 Tech Sheet
2 Cabinet (Not a
Servicable Part)
3 Plug, Button (3)
4344209 White
4344208 Black
4 8170924 Gasket
5 8170886 Roller Assembly
6 8170869 Clip, Grille
7 4344177 Pin, Center Hinge
9 8171215 Screw
10 Hinge Cover, Bottom
8171004 White
8171002 Black
11 4344186 Screw
12 8170373 Screw
14 4344198 Screw
15 Hinge, Center
8170980 Black
8170981 White
17 Cover, Corner
8170858 Black
8170860 White
19 Hinge, Bottom
8171067 White
8171066 Black
20 8171202 Screw
22 Grille Assembly
(Includes Clips)
8170996 White
8171224 Black
23 4343694 Screw
25 4344167 Screw
26 8170921 Plate, Cover
27 8170898 Cover, Water Valve
30 8170910 Cover, Unit
32 8170925 Power Cord
33 8171247 Insulation, Sound
37 8170861 Tube, Drain
38 8170862 Clip, Drain Tube
41 8170974 Hinge, Top
42 Cover, Hinge
8170977 White
8170975 Black
43 8170878 Plug, Button
44 8170972 Screw
46 8171272 Foot Brake

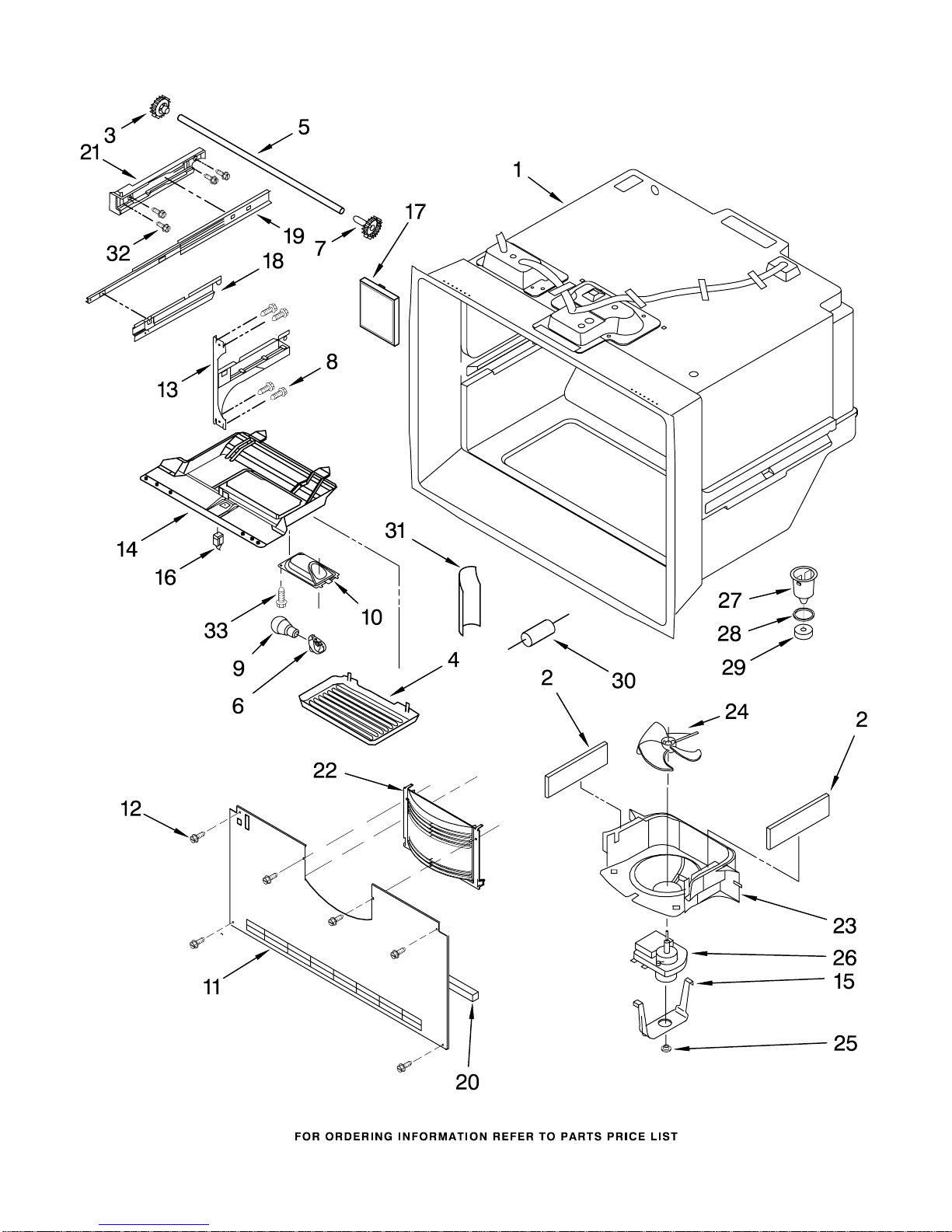

FREEZER LINER PARTS
3
For Models: GB9SHDXPQ01, GB9SHDXPB01, GB9SHDXPS01
(White) (Black) (Stainless Steel)
W10024330
FREEZER LINER PARTS
4
For Models: GB9SHDXPQ01, GB9SHDXPB01, GB9SHDXPS01
(White) (Black) (Stainless Steel)
W10024330
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 8170897 Gasket, Foam
3 8171237 Gear
4 8208205 Cover, Light
5 8208200 Shaft
6 8170839 Socket, Light
7 8171236 Gear
8 4343675 Screw
9 8208190 Bulb, Light
10 8170838 Housing, Frz. Light
11 8208201 Cover, Evaporator
12 4344167 Screw
13 Bracket, Door
8171232 Left
8171233 Right
14 8208206 Housing, Lighting
15 8171238 Clip, Evap. Motor
16 8170842 Switch, Light
17 8170922 Cover, Plug
18 Bracket, Basket
8171234 Left
8171235 Right
19 8208214 Slide, Drawer (2)
20 8208203 Gasket, Bottom
21 Bracket, Slide
8208215 Left
8208216 Right
22 8170881 Cover, Fan Shroud
23 8171153 Shroud, Evap.Fan
24 8170544 Fan, Evaporator
25 8171086 Grommet (2)
26 8170894 Motor, Evaporator
27 4344385 Funnel, Drain
(Incl. # 28 & 29)
28 4344311 Seal
29 4344310 Gasket
30 8208196 Thermistor
31 8208202 Cover, Thermistor
32 8208217 Screw
33 4343670 Screw
Following Parts Not Illustrated
8208199 Harness, Lights
(Freezer)

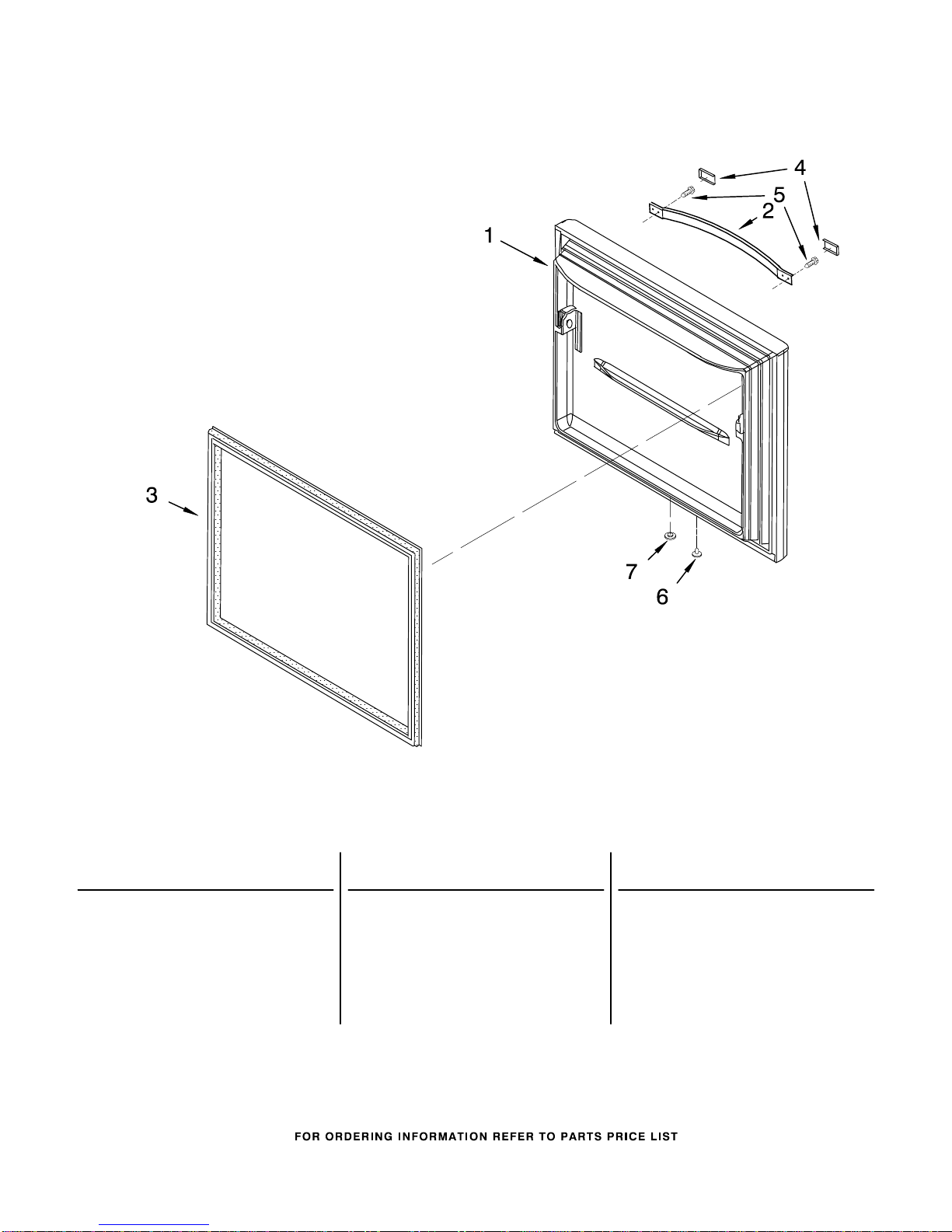

FREEZER DOOR PARTS
5
For Models: GB9SHDXPQ01, GB9SHDXPB01, GB9SHDXPS01
(White) (Black) (Stainless Steel)
W10024330
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(w/ Insulation)
8208209 White
8208210 Black
8208211 Stainless Steel
2 Handle
8170776 White
8170961 Black
3 Door Gasket,
Magnetic
8171262 White
8171261 Black
4 Trim, Handle
8170752 White
8170785 Black
5 8170499 Screw
6 Plug, Button (2)
8208212 White
8208213 Black
7 Plug, Button (1)
8170953 White
4343926 Black
REFRIGERATOR LINER PARTS
6
For Models: GB9SHDXPQ01, GB9SHDXPB01, GB9SHDXPS01
(White) (Black) (Stainless Steel)
W10024330
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 8208184 Bracket, Control
and Lights
3 8208185 Overlay
4 8208186 Housing,
Electronic Control
5 8208187 Electronic Control
6 4344571 Switch, Light
7 8208188 Cover, Light
8 8208189 Housing, Light
9 8208190 Bulb, Light (2)
10 8170839 Socket, Light (2)
11 8208191 Insert,
Damper Cover
12 8208192 Screw
13 8208193 Cover, Damper
14 8208194 Insulation
15 8208195 Control, Damper
16 8208196 Thermistor
Following Parts Not Illustrated
8208197 Harness,
Damper Control
8208198 Harness, Controls
(Refrigerator)
(Includes # 16)

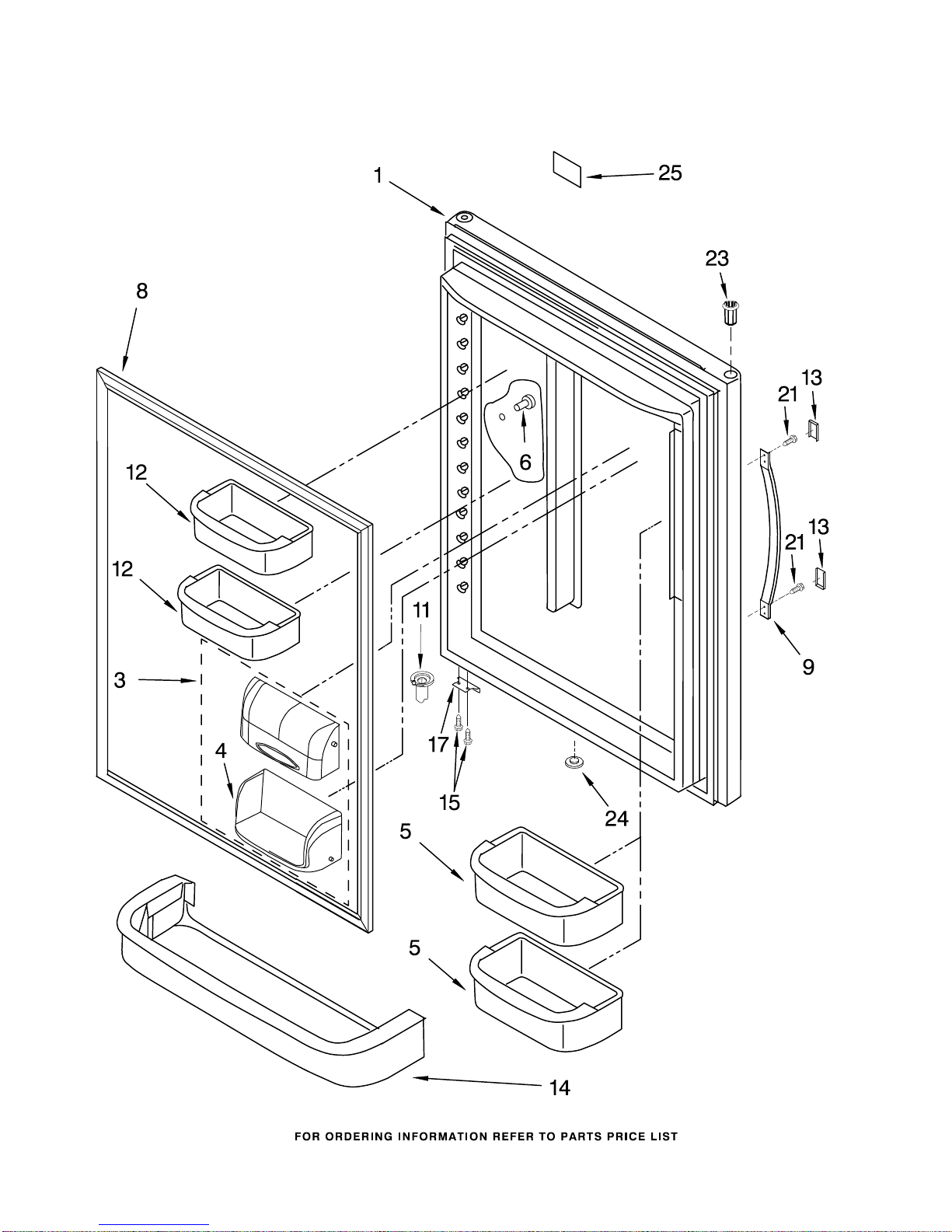

REFRIGERATOR DOOR PARTS
7
For Models: GB9SHDXPQ01, GB9SHDXPB01, GB9SHDXPS01
(White) (Black) (Stainless Steel)
W10024330
REFRIGERATOR DOOR PARTS
8
For Models: GB9SHDXPQ01, GB9SHDXPB01, GB9SHDXPS01
(White) (Black) (Stainless Steel)
W10024330
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(w/ Insulation)
8170959 White
8170935 Black
8208207 Stainless Steel
3 8171204 Door, Compartment
4 8170793 Tray, Dairy
5 8171166 Shelf Bin
(Medium)
6 Plug, Handle Hole
4344535 White
4344533 Black
8 Door Gasket,
Magnetic
8171256 White
8171257 Black
9 Door Handle
8170776 White
8170961 Black
11 8171246 Door Closure
12 8171251 Shelf Bin
(Small)
13 Trim, Handle
8170752 White
8170785 Black
14 8170984 Trim, Door Shelf
15 8208166 Screw
17 Stop, Door
8171205 White
8171214 Black
21 8170499 Screw
23 Bushing
8208208 White
8171213 Black
24 Plug, Button
8170953 White
4343926 Black
25 8170797 Nameplate
UNIT PARTS
9
For Models: GB9SHDXPQ01, GB9SHDXPB01, GB9SHDXPS01
(White) (Black) (Stainless Steel)
W10024330
UNIT PARTS
10
For Models: GB9SHDXPQ01, GB9SHDXPB01, GB9SHDXPS01
(White) (Black) (Stainless Steel)
W10024330
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 4343865 Screw
2 8208223 Blade, Fan
3 8171252 Base
4 4344167 Screw
7 8208204 Harness, Evap.
Heater
8 8170911 Drain Pan
9 8171209 Grommet (3)
10 8171009 Evaporator Heater
11 8170724 Strap
12 8171210 Overload
(Includes Relay)
13 8170914 Gasket
14 8170904 Bi−Metal
15 8170912 Grommet (7)
17 8170462 Capacitor
18 8171255 Condenser
20 8171005 Tray, Drip
22 8171161 Evaporator
23 Dam
8171155 Right Side
8171154 Left Side
24 8208221 Motor, Fan
25 4343918 Clip, Heater
26 8171241 Harness, Unit
27 4344268 Drier
28 8171208 Compressor
(Includes Items
11, 12, 15,
17 & 27)
31 8170906 Shroud
32 8208222 Bracket, Fan Motor
34 8170901 Clip, Drier
36 8170916 Roller
39 4343845 Grommet (4)
40 4344562 Screw
41 8170917 Axle, Roller
42 4344219 Clip, Evaporator
43 8170902 Screw
44 8171253 Screw
53 4344292 Screw
55 8171254 Tube, Drain
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.00 Ozs.
(R−134A)
