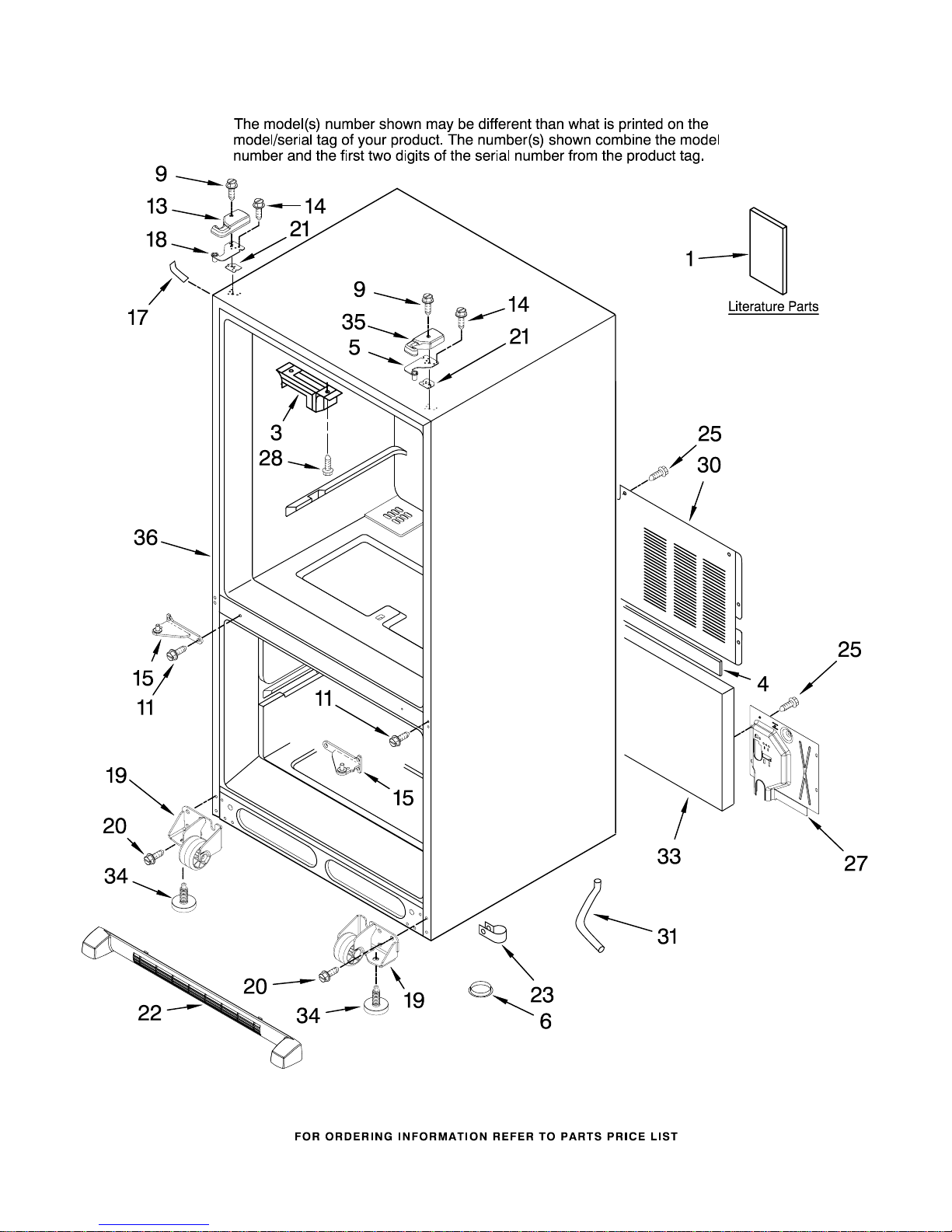

CABINET PARTS

For Models: G32026PELB12

(Black)

2−09 Litho In U.S.A. (mat) (psw) Part No. W10247058 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: G32026PELB12

(Black)

W10247058

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

12827959 Tech Sheet

12828189 Owners Manual

3 67003405 Block, Pivot

4 B5759649 Gasket

12626907ED

Hinge, Top Right

6 A3076901 Plug, Button

9 67006521 Screw

11 67006380 Screw (6)

13 Cover, Left Hinge

W10175447

Black

14 67006303 Screw (6)

12655102ED

Center Hinge

17 Cover, Corner

67003485 Black

12626908ED

Hinge, Top Left

19 Bracket, Foot (2)

W10137532

Left

W10137533

Right

20 67006564 Screw

21 8208257 Shim, Hinge

22 Grille, Toe

W10131134

Black

23 67001067 Clip, Drain Tube

25 67006425 Screw (10)

27 12479808 Cover, Water Valve

28 67006669 Screw (2)

30 67002230 Cover, Unit

31 67001066 Tube, Drain

33 67003796 Insulation, Sound

W10141622

Foot Brake

35 Cover, Right Hinge

8170765 Black

36 Cabinet (Not a

Servicable Part)

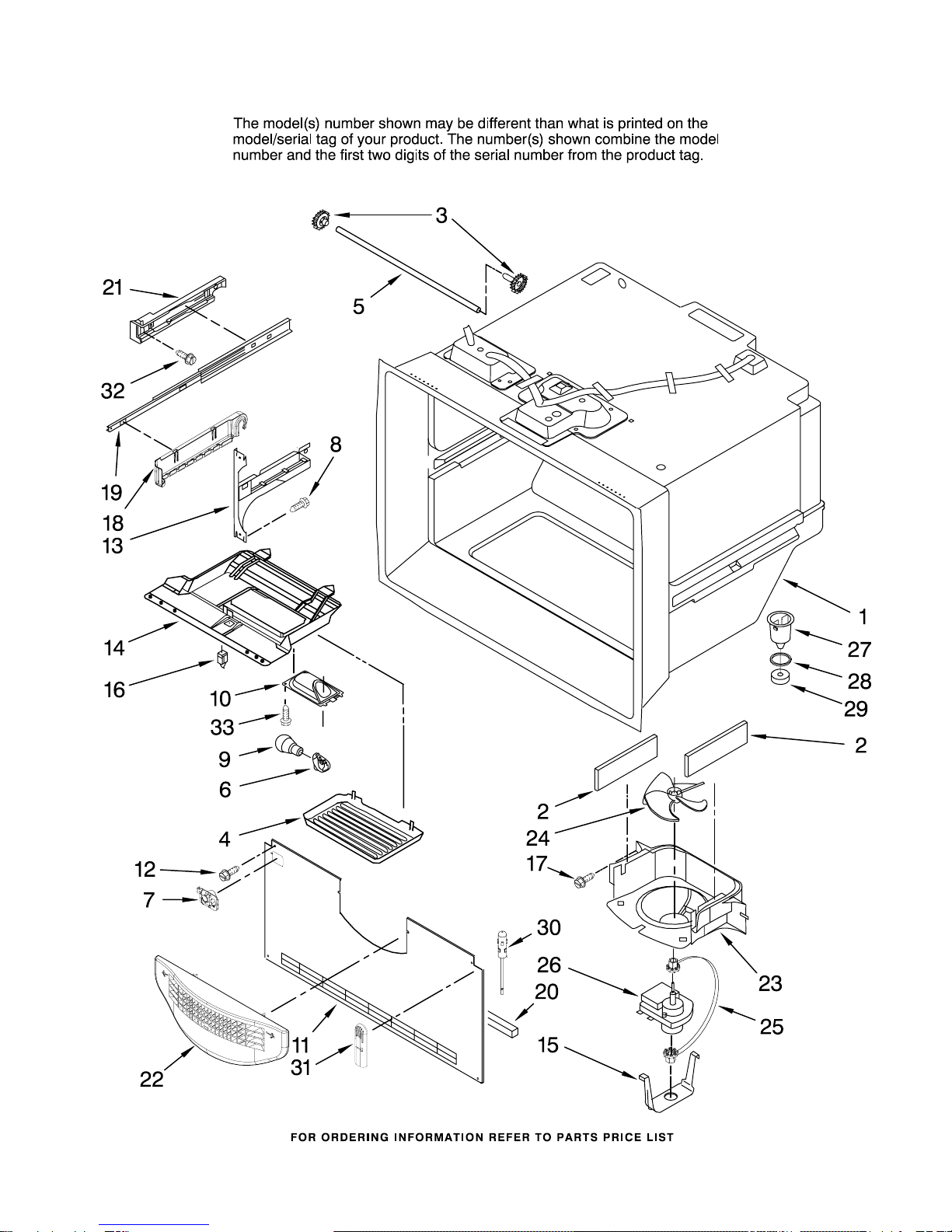

FREEZER LINER PARTS

For Models: G32026PELB12

(Black)

W10247058

FREEZER LINER PARTS

For Models: G32026PELB12

(Black)

W10247058

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 A3189392 Gasket, Foam

3 12002497 Gear

(Includes LH & RH)

4 67003905 Cover, Light

5 67004017 Shaft

W10134763

Socket, Light

7 67005874 Guide, Fill Tube

8 67006473 Screw (8)

9 67002552 Bulb, Light

10 67001035 Housing, Light

11 12226114 Cover, Evaporator

12 67006425 Screw (4)

13 Bracket, Door

W10119064

Left

W10119295

Right

14 67003906 Module, Light

15 10623002 Clip, Evap Motor

16 67005653 Switch, Light

17 67006287 Screw (2)

18 Cradle, Basket

67004728 Left

67004729 Right

W10180420

Slide, Drawer (2)

20 67003731 Gasket, Bottom

21 Adapter, Slide

67004971 Left

67004972 Right

W10175909

Grille, Fz Air

W10167023

Shroud, Evap Fan

24 2169142 Blade, Fan

(Evaporator)

W10121318

Grommet

26 67005023 Motor, Evaporator

27 D7753903 Funnel, Drain

28 M0500703 Seal

29 B8381501 Gasket

30 12002355 Thermistor

31 67003924 Cover, Thermistor

32 67006406 Screw (6)

33 67006530 Screw

Following Parts Not Illustrated

13065802 Harness, Fz Module

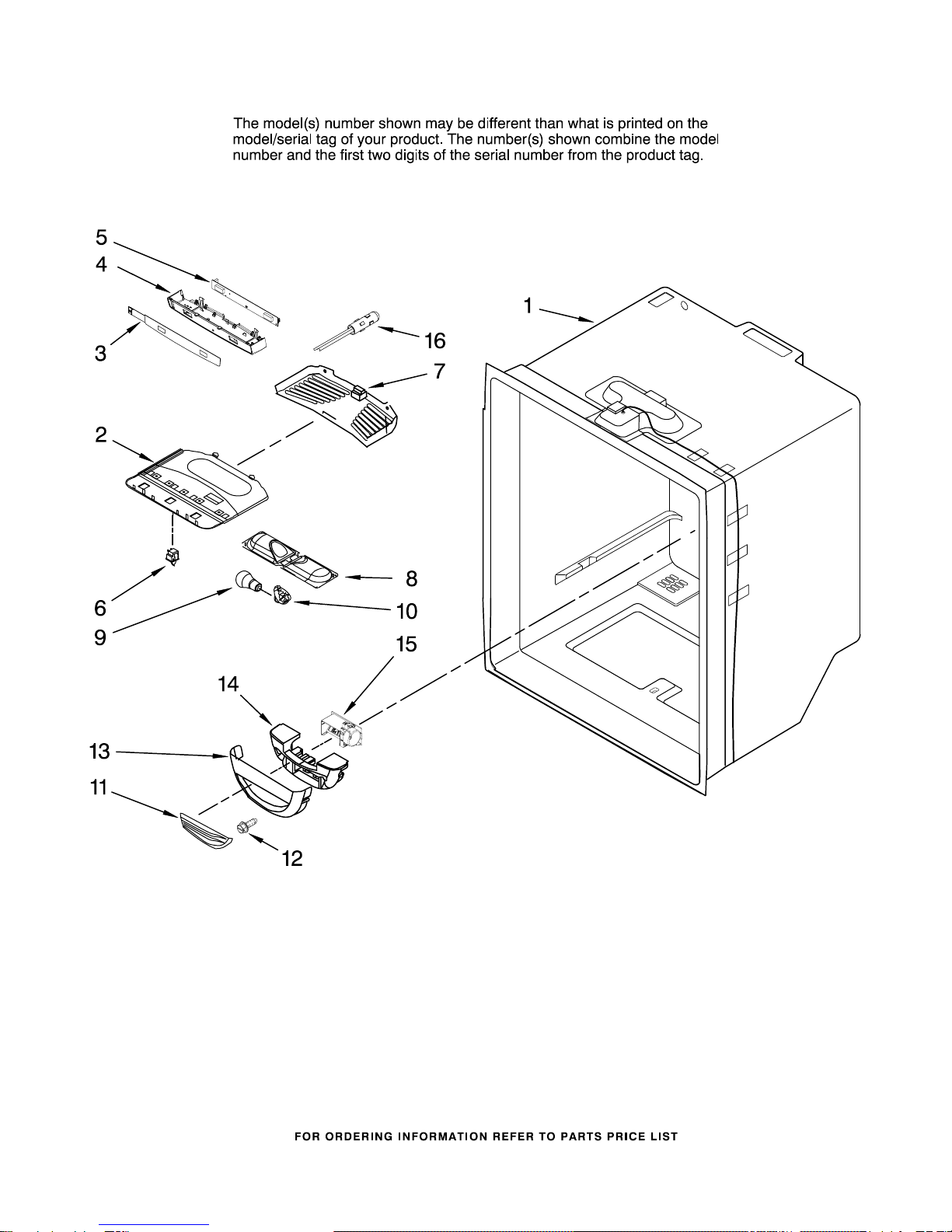

REFRIGERATOR LINER PARTS

For Models: G32026PELB12

(Black)

W10247058

REFRIGERATOR LINER PARTS

For Models: G32026PELB12

(Black)

W10247058

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 67004078 Bracket, Control

and Lights

3 67005055 Keyboard

4 67003898 Housing, Control

5 12784416 Board, Control

6 C3680310 Switch, Light (2)

7 67003897 Cover, Light

8 67003901 Housing, Light

9 67002552 Bulb, Light (2)

W10134763

Socket, Light (2)

11 67003900 Insert,

Damper Cover

12 67006602 Screw (2)

13 67003899 Cover, Damper

14 67006604 Insulation

W10127430

Control, Damper

(Incl. Harness)

16 12002355 Thermistor

Following Parts Not Illustrated

12973603 Harness, Control

(Refrigerator)

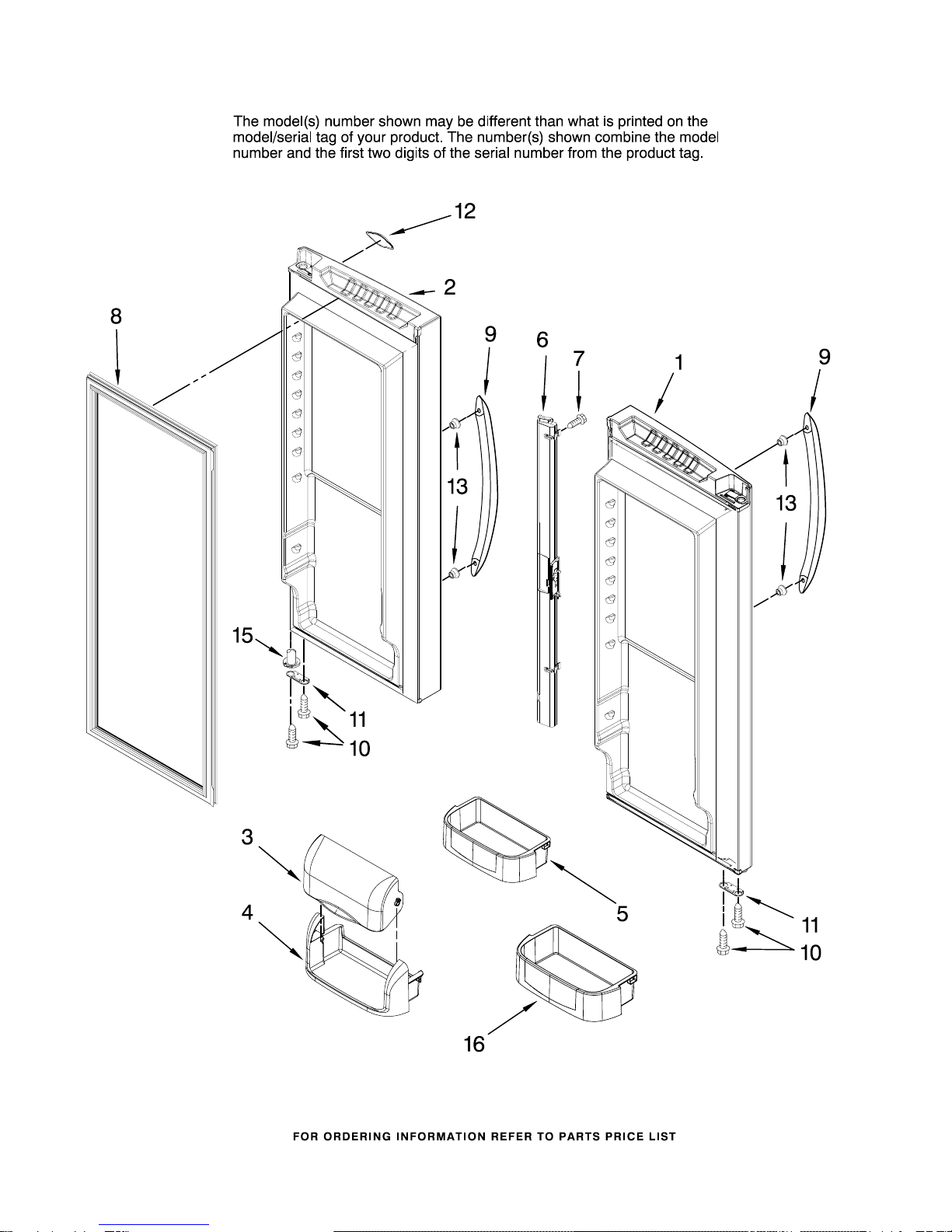

REFRIGERATOR DOOR PARTS

For Models: G32026PELB12

(Black)

W10247058

REFRIGERATOR DOOR PARTS

For Models: G32026PELB12

(Black)

W10247058

Illus. Part

No. No. DESCRIPTION

1 Door, Left

12732428BQ

Black

2 Door, Right

12732422BQ

Black

3 67003637 Door, Dairy

4 67001279 Tray, Dairy

5 67003766 Bin, Shelf (3)

(Medium)

6 Mullion, Door

12722811B

Black

7 67006786 Screw

8 Gasket, Door (2)

12723206B

Black

9 Handle, Door

W10119668

Left Door

W10119665

Right Door

10 67006287 Screw

11 Stop, Door

67003780 Black

12 61002504 Nameplate

13 12992902 Mount, Handle

15 Closure, Door

67003639 Black

16 67005054 Bin, Shelf (2)

(Gallon)

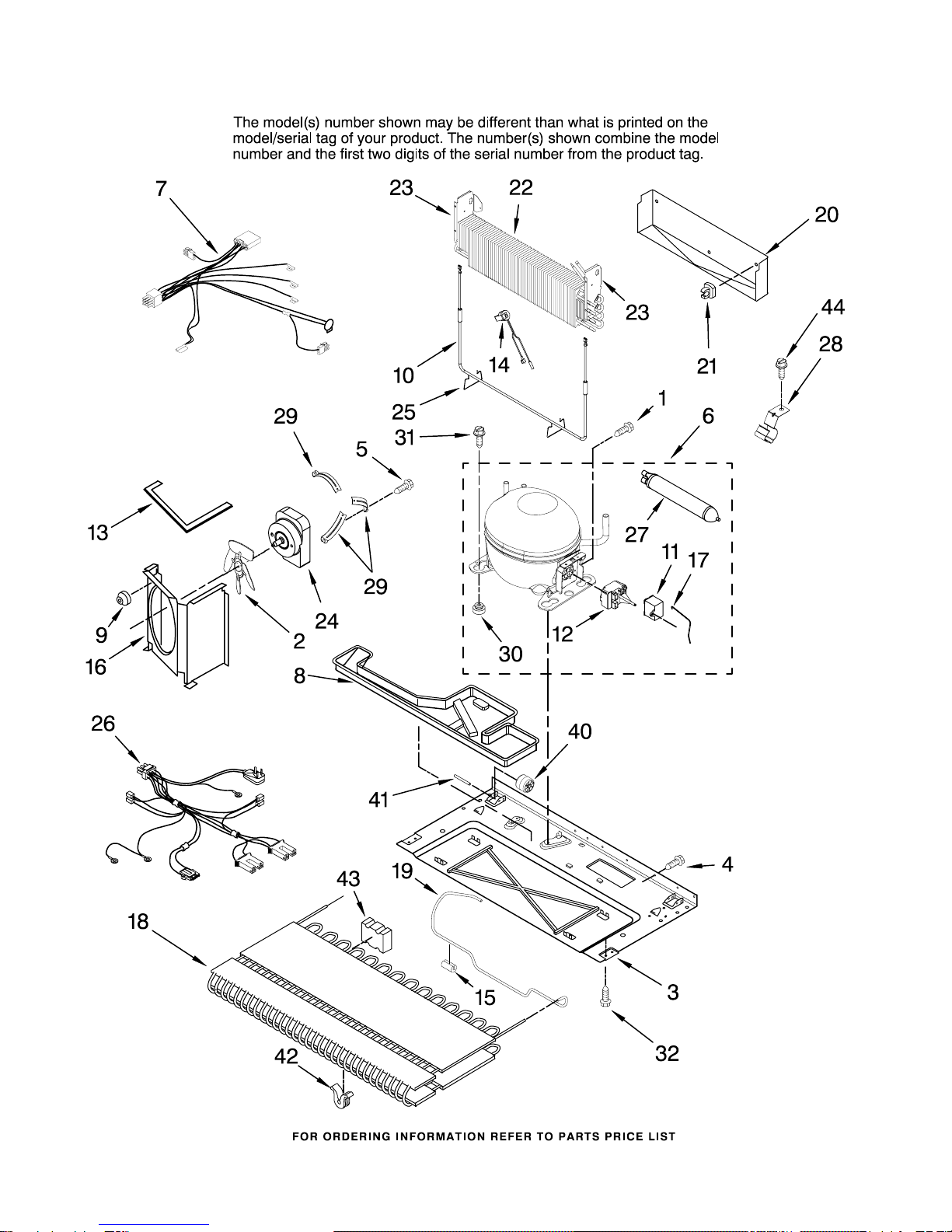

UNIT PARTS

For Models: G32026PELB12

(Black)

W10247058

UNIT PARTS

For Models: G32026PELB12

(Black)

W10247058

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 67006433 Screw

W10162928

Blade, Fan

3 67005889 Basepan

4 67006425 Screw (2)

5 67004954 Screw (3)

6 12049773 Compressor

(Includes items

11,12,17,27, &

30)

W10169651

Harness, Evap

Heater

8 67007176 Pan, Drain

9 61004743 Grommet (3)

10 12729120 Heater, Defrost

11 67007162 Capacitor

12 Overload/Relay

67006453 (Production)

2303344 (Service)

13 61003210 Gasket

12639322SP

Thermostat, Def.

15 67005680 Grommet (2)

16 67006661 Shroud

17 67007052 Clip, Capacitor

18 67006131 Condenser

19 12866903 Tube, Discharge

20 67002490 Tray, Drip

21 10623002 Clip, Evaporator

22 12002041 Evaporator Kit

(Inc. Evap., Heat

Shield, & Instr.

Sheet)

23 Dam

67001084 Right Side

67001083 Left Side

W10211284

Motor, Fan

25 10428101 Clip, Heater

W10169658

Harness, MC

W10143759

Drier

28 10547003 Clip, Drier

29 67004953 Bracket, Fan Motor

30 67003493 Grommet (4)

31 67006432 Screw (3)

32 67006573 Screw (4)

40 67006118 Roller (2)

41 M1205302 Axle (2)

W10137529

Grommet (4)

43 67002235 Block, Condenser

44 67006737 Screw

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.25 Ozs.

(R−134A)
