Whirlpool G32026PEKS5 Manuel utilisateur

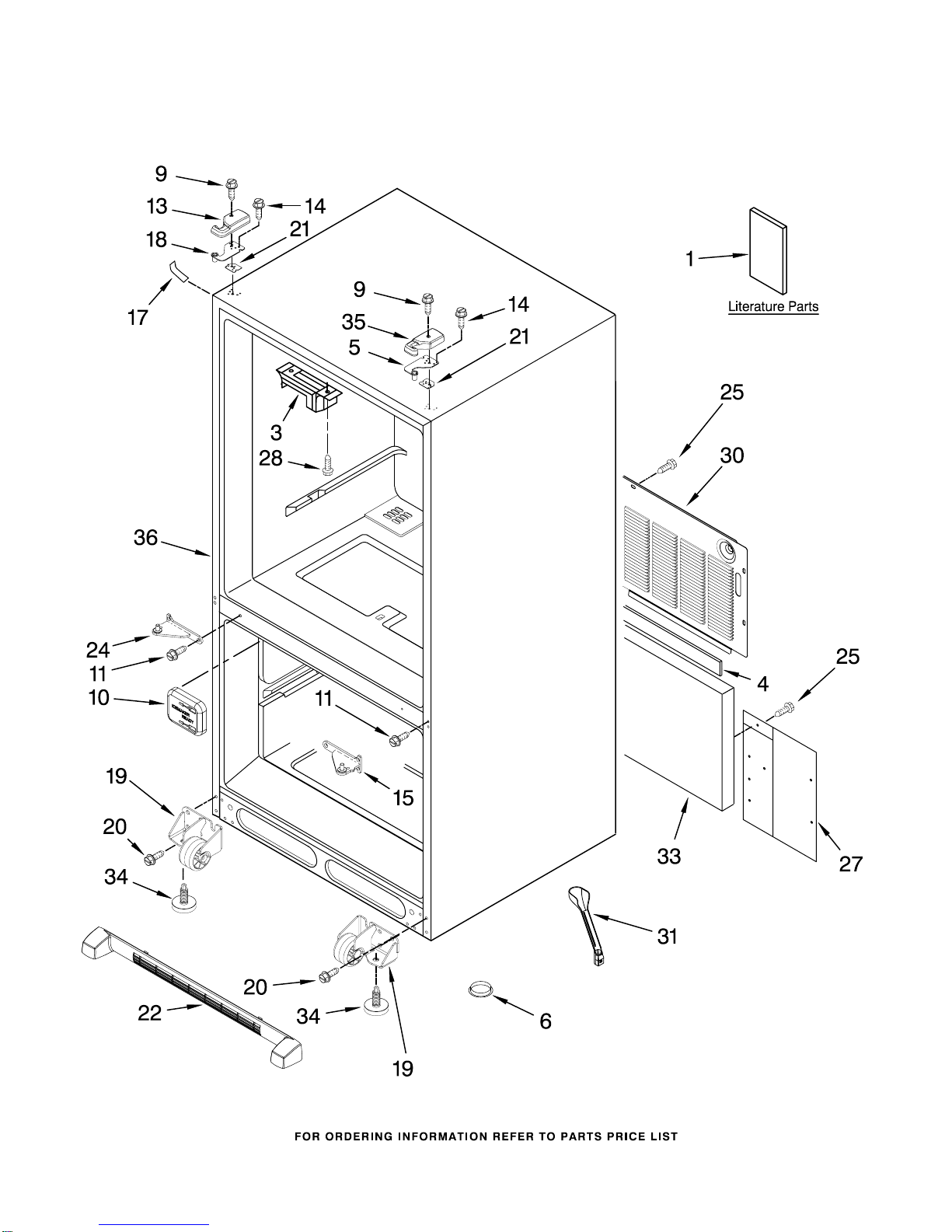

CABINET PARTS

For Models: G32026PEKS5

(Stainless Steel)

10−09 Litho In U.S.A. (rrm)(bay) Part No. W10297576 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: G32026PEKS5

(Stainless Steel)

W10297576

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10239995

Tech Sheet

12828189SP

Owners Manual

3 12698403 Block, Pivot

4 B5759655 Gasket

12566604ED

Hinge, Top Right

6 A3076901 Plug, Button

9 12992602 Screw

10 12477501 Cover−Fill Tube

11 12992201 Screw (6)

13 Cover, Left Hinge

12684201B

Black

14 12992403 Screw (6)

15 Hinge, Center (RT)

13000008ED

Black

17 Cover, Corner

12587703B

Black

12566605ED

Hinge, Top Left

19 Roller, Foot (2)

W10275850

Left

W10275849

Right

20 12991302 Screw

21 12579702 Shim, Hinge

22 Grille, Toe

W10244561

Black

24 Hinge, Center (LT)

13000007ED

Black

25 12990511 Screw (10)

W10217701

Cover, Water Valve

28 12990303 Screw (2)

W10212203

Cover, Unit

W10210988

Tube, Drain

33 12820505 Insulation, Sound

W10141622

Foot Brake

35 Cover, Right Hinge

12684202B

Black

36 Cabinet (Not a

Servicable Part)

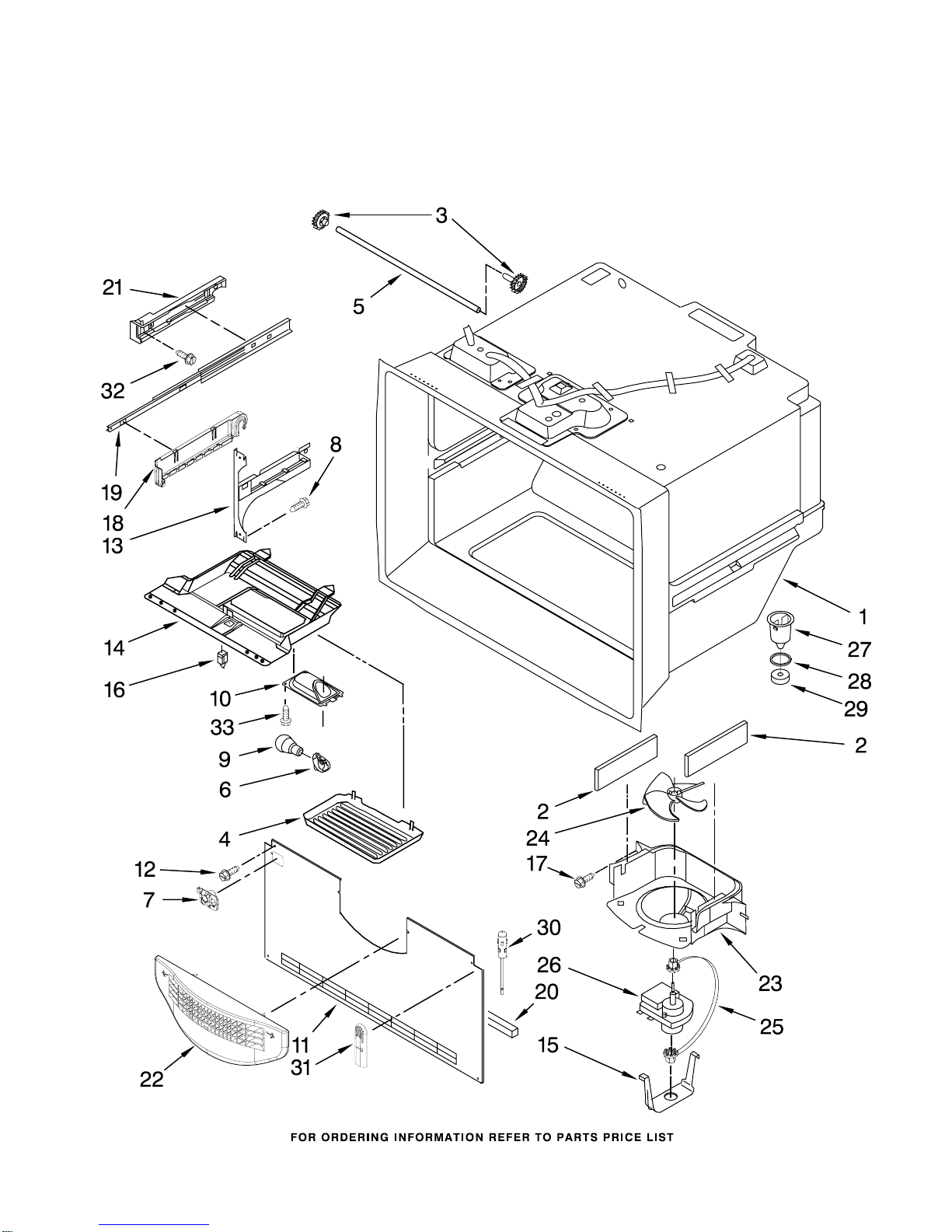

FREEZER LINER PARTS

For Models: G32026PEKS5

(Stainless Steel)

W10297576

FREEZER LINER PARTS

For Models: G32026PEKS5

(Stainless Steel)

W10297576

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 A3189392 Gasket, Foam

3 12002497 Gear

(Includes LH & RH)

4 12804901 Cover, Light

12812903WD

Shaft

W10134764V

Socket, Light

7 12932103 Guide, Fill Tube

8 12990521 Screw (8)

A0282808V

Bulb, Light

12476401V

Housing, Light

11 12226114 Cover, Evaporator

12 12990511 Screw (4)

13 Bracket, Door

W10119064

Left

W10119295

Right

14 12805001 Module, Light

15 10623002 Clip, Evap Motor

16 12466105 Switch, Light

17 12990504 Screw (2)

18 Cradle, Basket

W10281115

Left

W10281116

Right

19 13055901 Slide, Drawer (2)

20 A3189397 Gasket, Bottom

21 Adapter, Slide

12846605 Left

12846606 Right

22 13024803 Grille, Fz Air

23 13057901 Shroud, Evap Fan

24 2169142 Blade, Fan

(Evaporator)

W10121318

Grommet

26 10449516 Motor, Evaporator

27 D7753903 Funnel, Drain

28 M0500703 Seal

29 B8381501 Gasket

30 12002355 Thermistor

31 12815301 Cover, Thermistor

32 12990501 Screw (6)

12991603V

Screw

Following Parts Not Illustrated

13065802 Harness, Fz Module

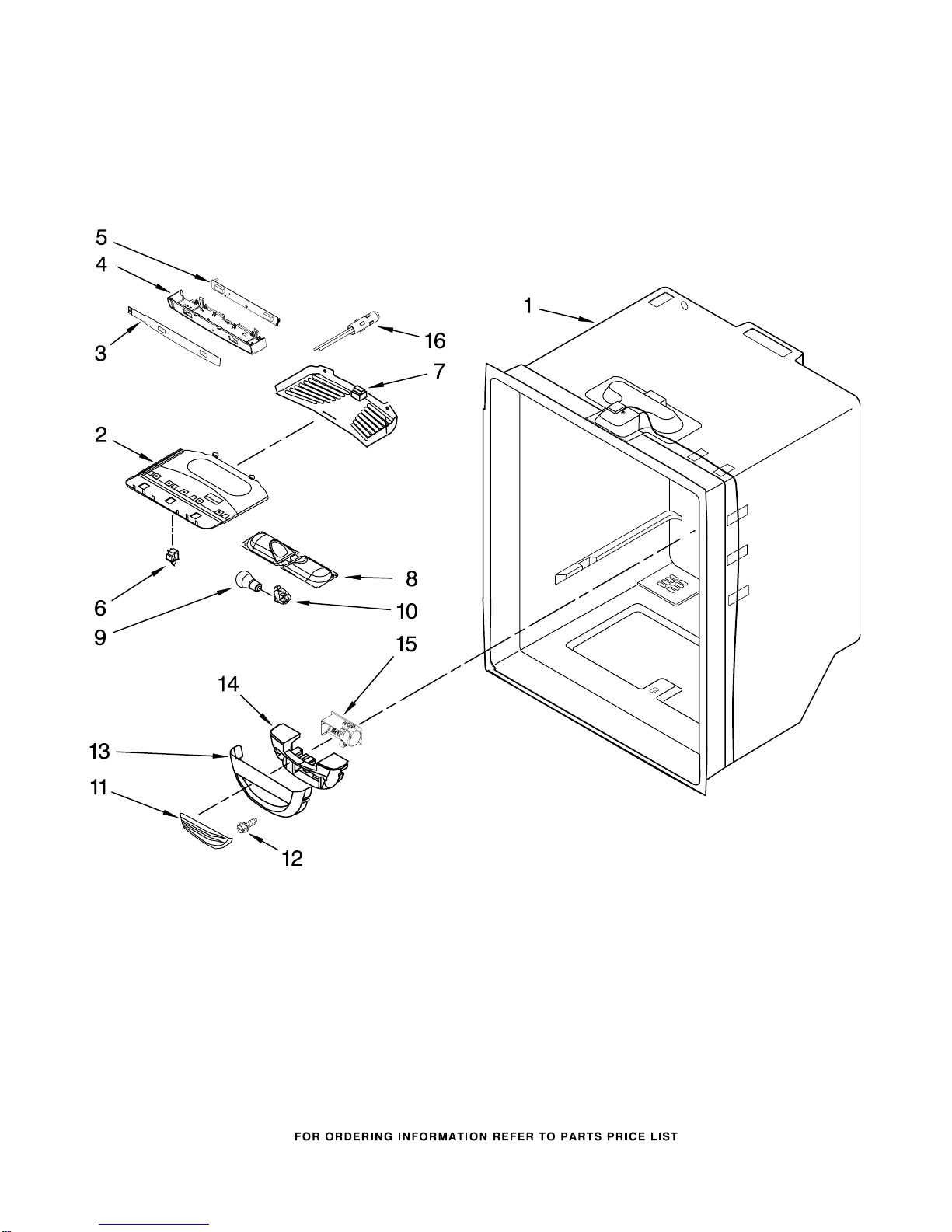

REFRIGERATOR LINER PARTS

For Models: G32026PEKS5

(Stainless Steel)

W10297576

REFRIGERATOR LINER PARTS

For Models: G32026PEKS5

(Stainless Steel)

W10297576

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 12806302 Bracket, Control

and Lights

3 12816517 Keyboard

4 12806406 Housing, Control

5 12868515 Board, Control

C3680310V

Switch, Light (2)

7 12806501 Cover, Light

12806601V

Housing, Light

A0282808V

Bulb, Light (2)

W10134764V

Socket, Light (2)

11 12806801 Insert,

Damper Cover

12 12990604 Screw (2)

13 12806701 Cover, Damper

14 13012402 Insulation

W10177399

Control, Damper

(Incl. Harness)

16 12002355 Thermistor

Following Parts Not Illustrated

12973603 Harness, Control

(Refrigerator)

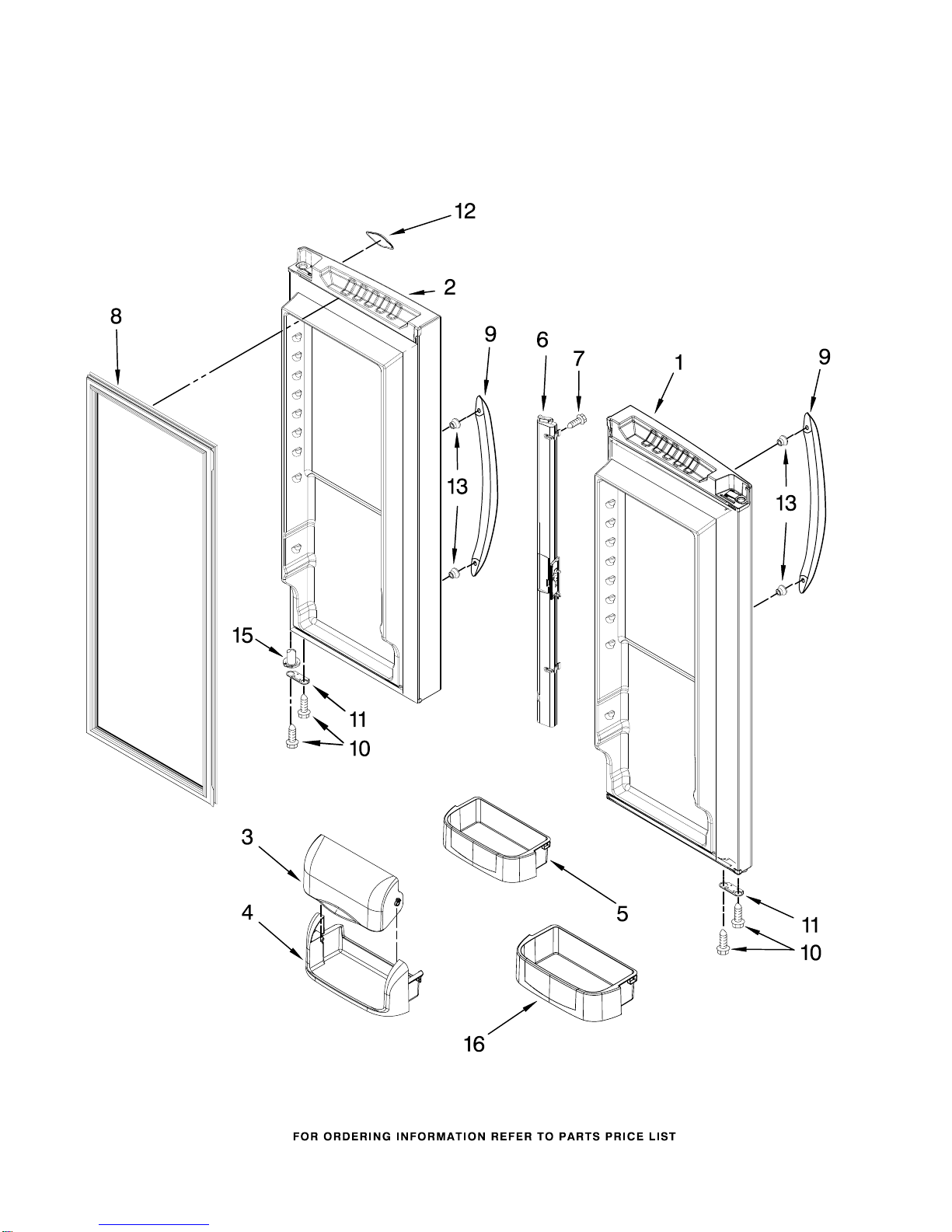

REFRIGERATOR DOOR PARTS

For Models: G32026PEKS5

(Stainless Steel)

W10297576

REFRIGERATOR DOOR PARTS

For Models: G32026PEKS5

(Stainless Steel)

W10297576

Illus. Part

No. No. DESCRIPTION

1 Door, Left

13024077SQ

Stainless

2 Door, Right

13024075SQ

Stainless

12804701SP

Door, Dairy

12369502SP

Tray, Dairy

5 12557214 Bin, Shelf (3)

(Medium)

6 Mullion, Door

12722811BKV

Black

7 12990204 Screw

8 Gasket, Door (2)

W10163895

Black

9 Handle, Door

12850919 Stainless

10 12990504 Screw

11 Stop, Door

12968202B

Black

12 61002504 Nameplate

13 12945201 Mount, Handle

15 Closure, Door

12028505B

Black

16 12699004 Bin, Shelf (2)

(Gallon)

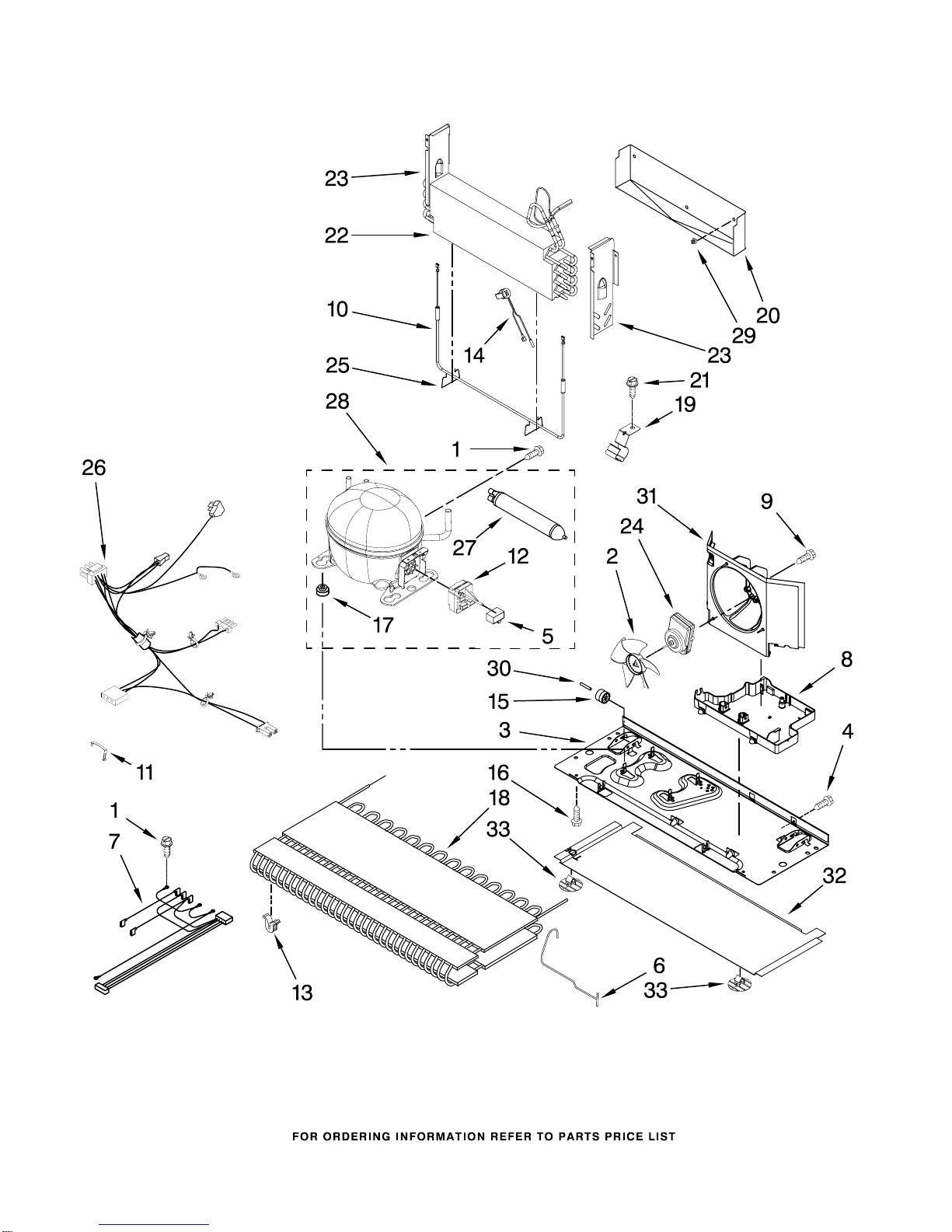

UNIT PARTS

For Models: G32026PEKS5

(Stainless Steel)

W10297576

UNIT PARTS

For Models: G32026PEKS5

(Stainless Steel)

W10297576

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 12992301 Screw

2 12825803 Blade, Fan

W10210985

Basepan

4 12990511 Screw

5 2321245 Capacitor

W10286438

Tube, Discharge

W10280429

Harness, Evap.

Heater

W10215085

Pan, Drain

9 12991001 Screw

10 12729132 Heater, Defrost

11 2302129 Strap, Bale

12 2312007 Start Device

W10137529

Grommet, Cond (4)

12639322SP

Thermostat,

Defrost

15 12477102 Roller (2)

16 12992101 Screw

10835903SP

Grommet (4)

W10135027

Condenser

19 10547003 Clip, Drier

12225403WD

Tray, Drip

21 12990701 Screw

22 12726403 Evaporator

23 Dam

12225702 Right Side

12225602 Left Side

24 12825102 Motor, Fan

25 10428101 Clip, Heater

W10234312

Harness, Unit

with Power Cord

W10143759

Drier

W10223234

Compressor

(Includes items

11,12,17,27)

29 10623002 Clip, Evaporator

30 12477202 Axle, Roller (2)

W10189187

Shroud

W10225121

Extension−Basepan

W10206339

Fastener−Basepan

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.25 Ozs.

(R−134A)
