Whirlpool EDZOZK Manuel utilisateur

A Note To You

Before Using Your

Refrigerator

Caring For Your

Refrigerator

1 ] Food StorageGuide 22

If You Need

tF%izi: . 24

Warranty 28

1400-253-1301

Call us with questions or comments.

NO-FROST REFRIGERATOR-FREEZER

MODELS EDZOZK EDZZZR

A Note To You

Thank you for buying a Whirlpool@ appliance.

You have purchased a quality, worMclass home appliance. Years of engineering experience

went into its manufacturing. To ensure that you enjoy many years of trouble-free operation,

we developed this Use and Care Guide. It is full of valuable information on how to operate

and maintain your appliance properfy and safely. Please read it carefully. Also, please com-

plete and mail the Ownership Registration Card provided with your appliance. This will help

us notify you about any new information on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these

symbols and follow any instructions given. Here is a brief explanation of the use of each

symbol.

Our Consumer Assistance Center number, l-800-253-1301,

is toll-free, 24 hours a day.

If you ever have a question concerning your appliance’s operation, or if you need service, first

see “If You Need Assistance Or Service” on page 24. If you need further help, feel free to call

our Consumer Assistance Center. When calling, you will need to know your appliance’s

complete model number and serial number. You can find this information on the model and

serial number label (see diagram on page 4). For your convenience, we have included a

handy place below for you to record these numbers, the purchase date from the sales slip

and your dealer’s name and telephone number. Keep this book and the sales slip together in

a safe place for future reference.

Model Number Dealer Name

Serial Number Dealer

Phone

Purchase Date

Important Safety Instructions

l Read all instructions before using the l Never clean refrigerator parts with

refrigerator. flammable fluicls. The fumes can create a

@Child entrapment and suffocation are fire hazard or explosion.

not problems of the past. Junked or l FOR YOUR SAFETY l

abandoned refrigerators are still danger-

ous ... even if they will “just sit in the DO NOT STORE OR USE GASOLINE OR

garage a few days.” OTHER FLAMMABLE VAPORS AND

If you are getting rid of your old refrig- LIQUIDS IN THE VlClNlTY OF THIS OR

erator, do it safely. ANY OTHER APPLIANCE. THE FUMES

CAN CREATE A FIRE HAZARD OR

eNever allow children to operate, play

with, or crawl inside the refrigerator. EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

l Install and level the refrigerator on a floor

that will hold the weight and in an area

suitable for its size and use.

l Do not install the refrigerator near an oven,

radiator or other heat source.

l Do not use the refrigerator in an area

where the room temperature will fall below

55°F (13°C).

l Keep the refrigerator out of the weather.

l Connect the refrigerator only to the proper

kind of outlet, with the correct electrical

supply and grounding.

l Do not load the refrigerator with food

before it has time to get properly cold.

l Use the refrigerator only for the uses

described in this manual.

l Properly maintain the refrigerator.

l Be sure the refrigerator is not used by

anyone unable to operate it properly.

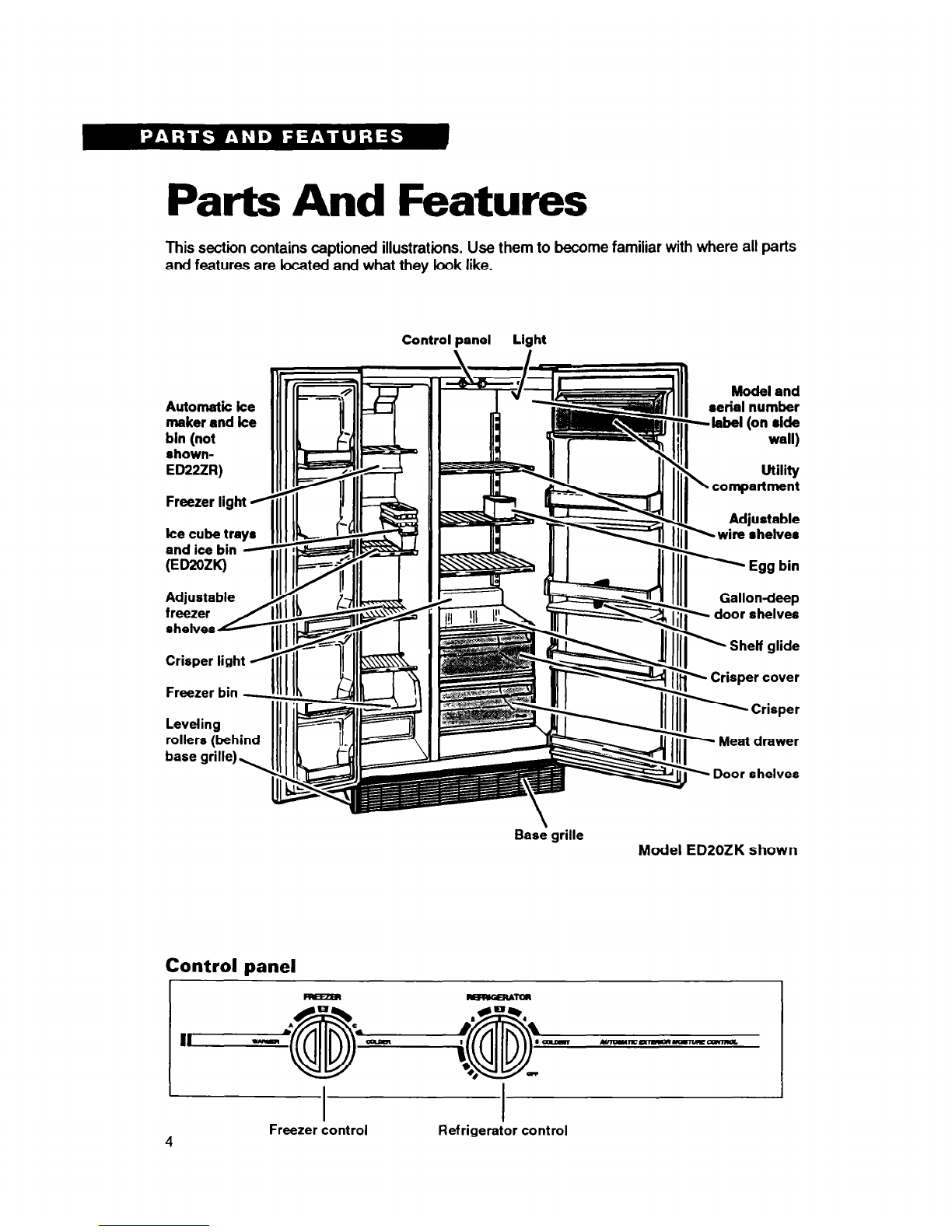

Parts And Features

This section contains captioned illustrations. Use them to become familiar with where all parts

and features are located and what they look like.

Control

panel Llght

Automatic ke

maker and ke

Door shelves

Base‘ grille

Model

EDSOZK

shown

Control panel

I I

Freezer control Refrigerator control

Before Using Your

Refrigerator

In This Section

Page Page

Cleaning it ...........................................5 Installing It properly ...........................6

Plugging it In .......................................

Leveling it ............................................

It is important

prepare your refrigerator for use. This section tells you how to clean it,

connect it to a power source, install it and level it.

Cleaning it

Removing packaging materials

NOTE:

Do not remove any permanent

instruction labels inside your refrigerator. Do

Remove tape and any inside labels (except

the model and serial number label) before

using the refrigerator.

To remove any remaining glue:

l Rub briskly with thumb to make a ball, then

remove.

l Soak area with liquid handdishwashing

detergent before removing glue as

described above. Do not use sharp

instruments, rubbing alcohol, flammable

fluids or abrasive cleaners. These can

damage the material. See “Important

Safety Instructions” on page 3.

not remove the Tech Sheet fastened under

the refrigerator at the front

Cleaning it before use

After removing all packaging materials,

clean your refrigerator before using it, if

necessary. See cleaning instructions on

pages 19-20.

Plugging it in

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15 or 20 ampere

fused and properly grounded electriil

supply is required. ll is recommended that a

separate circuit serving only this appliance

be provided. Use a receptacle which cannot

be turned off with a switch or pull chain. Do

not use an extension cord.

See Electriil Requirements and Ground-

ing Instructions Sheet in your Literature

Package.

&prong grounding

type wall receptacle \

Refrigerator

power cord 3-prong

grounding

PlW3

Installing it properly

Allow ‘$5inch (1.25 cm) space on each

side and at the top of the refrigerator for

ease of installation.

2. If the refrigerator is to be against a wall,

you might want to

leave extra space on

the hinge side closest to the wall so the

door can be opened wider.

3. The refrigerator can be flush against the

wall.

Leveling it

Your refrigerator has 2 front leveling

screws-one on the right and one on the left.

To adjust one or both of these, follow the

directions below.

Right to raise;

left to lower

Use 8 screw-

1. Remove base grille. (See page 16.)

2. To raise front, turn screw clockwise.

3. To lower front, turn screw counterclock-

wise.

Check with level.

5. Replace base grille. (See page 16.)

Using Your Refrigerator

In This Section

Page

Setting the controls ............................

Changing the control settings ...........8

Adjustlng the shelf glide ....................9

Adjusting the refrigerator shelves ....Q

Using the egg bin ...............................9

Removing the crisper and

crisper cover .....................................10

Removing the meat drawer

and cover ...........................................10

Removing the freezer shelves .........11

Removing the freezer bin .................11

Removing the freezer door shelves ...ll

Page

Using the ice cubs trays ..................12

Uslng the Ice dispenser (ED22ZR) ..12

Using the automatic ke maker ........13

Removing the ice maker

storage bin ........................................14

Solving common Ice maker/

dispenser problems .........................15

Removing the base grille .................16

Changing the light bulbs .................16

Understanding the sounds you

may hear ............................................18

Saving energy ...................................18

To obtain the best possible results from your refrigerator, it is important that you operate it

properly. This section tells you how to set the controls, remove and adjust some of the fea-

tures in your refrigerator, and how to save energy.

Setting the controls

Controls for the refrigerator and freezer are in

the refrigerator. When you plug in the refrigerator

for the first time:

1. Set the Refrigerator Control to 3.

Refrigerator Control adjustments range from

1 (warmest) to 5 (coldest).

2. Set the Freezer Control to B.

Freezer Control adjustments range from

A (warmest) to C (coldest).

3. Give the refrigerator time to cool down

completely before adding food. This may

take several hours.

The settings indicated above should be

correct for normal, household refrigerator

usage. The controls are set correctly

when milk or juice is as cold as you like

and when ice cream is firm. lf you need to

adjust these settings, see “Changing the

control settings” below.

NOTE:

The Automatic Exterior Moisture

control continuously guards against moisture

build-up on the outside of your refrigerator

cabinet. This control does not have to be set

or adjusted.

Changing the control settings

If you need to adjust temperatures in

refrigerator or freezer, use the settings listed

in the chart below as a guide. If you have

questions, call our Consumer Assistance

Center number. (See page 25.)

l Adjust the Refrigerator Control first.

l Wait at least 24 hours between adjustments.

l Then adjust the Freezer Control if needed.

RECOMMENDED

CONDITION: REASON: CONTROL SETTINGS:

Refrigerator

section

too warm

Freezer

section

too warm

Refrigerator

section

too cold

l Door opened often

l Large amount of food added

l Room temperature too warm

l Door opened often

l Large amount of food added

l Very cokf room temperature

(can’t cycle often enough)

l Controls not set correctly

for

your conditions

Refrigerator 4

Freezer A

Refrigerstor 3

Freezer C

Refrigerator

Freezer I3

Ice not

made fast

enough

Both

sections

too warm

l Heavy ice usage

l Very cold room temperature

(can’t cycle often enough)

l Door opened often

l Large amount of food added

l Very warm or very cold rcom

temperatures

Refrigerator 3

Freezer C

Refrigerator 4

Freezer I3

Adjusting the shelf glide

Use the shelf glide to secure odd-shaped

items or to separate

other items.

Grasp glide.

Slide glide

along

track.

NOTE: Shelf glide cannot be removed.

Adjusting the refrigerator shelves

Adjust shelves to match the way you use

your refrigerator.

To remove the shelves:

Remove items from the shelf.

2. Tilt shelf up

front.

3. Lift shelf up at back.

4. Pull shelf straight out.

To replace the shelves:

Guide the rear shelf hooks into the slots

in the shelf supports on the back liner

wall.

2. Tilt front of shelf up until hooks drop into

slots.

3. Lower front of shelf to a level position.

Using the egg bin

The egg bin has two pieces - the lid and

the bin. Use the egg bin to hold one, two or

three dozen eggs.

To hold one dozen eggs:

Place a dozen eggs (in or out of carton) in

the bin and cover with the lid.

To hold two dozen eggs:

Place two dozen eggs loose in the bin and

cover with the lid.

To hold three dozen eggs:

Place two dozen eggs loose in the bin.

Invert the lid and place it on the bin. Put a

dozen eggs, in their carton, on top of the lid.

Lid

Bin

Removing the crisper and crisper cover

To remove the crisper:

Slide the crisper straight out to the stop.

Pull out to the

stop, lift

the front

Lii the front slightly.

Slide out the rest of the way.

4. Replace in reverse order.

and pull again.

To remove the cover:

Hold cover firmly with both hands

and

lifl

front of cover off supports.

2. Lift cover out by pulling up and out.

To replace the cover:

Fit back of cover into notch supports on

walls of refrigerator.

2. Lower front into place.

Lift the cover

front, then

the back

Removing the meat drawer and cover

To remove the meat drawer:

Slide the meat drawer straight out to the

stop.

2. Lift the front slightly.

3. Slide out the rest of the way.

4. Replace in reverse order.

To remove the cover:

Remove the crisper, the crisper cover and

the meat drawer.

2. Tilt front of cover up.

3. Lift cover at back and pull straight out.

4. Replace in reverse order.

Pull

out to the stop, lift

the

front and pull again.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Whirlpool Réfrigérateur

Whirlpool

Whirlpool 8VET8WPKLQ00 Manuel utilisateur

Whirlpool

Whirlpool WRF991BOOM Manuel utilisateur

Whirlpool

Whirlpool ET22DQ Manuel utilisateur

Whirlpool

Whirlpool ET18DK Manuel utilisateur

Whirlpool

Whirlpool ED5FHAXVY - 25.3 cu. ft. Refrigerator Manuel utilisateur

Whirlpool

Whirlpool ET20PK Manuel utilisateur

Whirlpool

Whirlpool WF1D061RXG Series Manuel utilisateur

Whirlpool

Whirlpool WRT318FZDW Manuel utilisateur

Whirlpool

Whirlpool GR2FHMXVB00 Manuel utilisateur

Whirlpool

Whirlpool W8TXEWFVB Manuel utilisateur

Whirlpool

Whirlpool WRT318FMD Guide de démarrage rapide

Whirlpool

Whirlpool GB2SHDXPB00 Manuel utilisateur

Whirlpool

Whirlpool W8CRNGMXQ Manuel utilisateur

Whirlpool

Whirlpool ED5NTGXMQ00 Manuel utilisateur

Whirlpool

Whirlpool ET22MK Manuel utilisateur

Whirlpool

Whirlpool ETl7HK Manuel utilisateur

Whirlpool

Whirlpool 8S21FNI GD Manuel utilisateur

Whirlpool

Whirlpool Gold GB2SHDXP Instructions d'utilisation

Whirlpool

Whirlpool WRF736SDAB Instructions de montage

Whirlpool

Whirlpool ET22PKXDN00 Manuel utilisateur

Whirlpool

Whirlpool ED2VHEXVQ Instructions de montage

Whirlpool

Whirlpool WRT779REYB Instructions de montage

Whirlpool

Whirlpool 22' TO 25' NO-FROST DESIGNERSTYLE TOP FREEZER REFRIGERATOR WITH THIRSTCRUSHERDISPENSING... Manuel utilisateur

Whirlpool

Whirlpool ED2FHEXS Instructions d'utilisation

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
