1

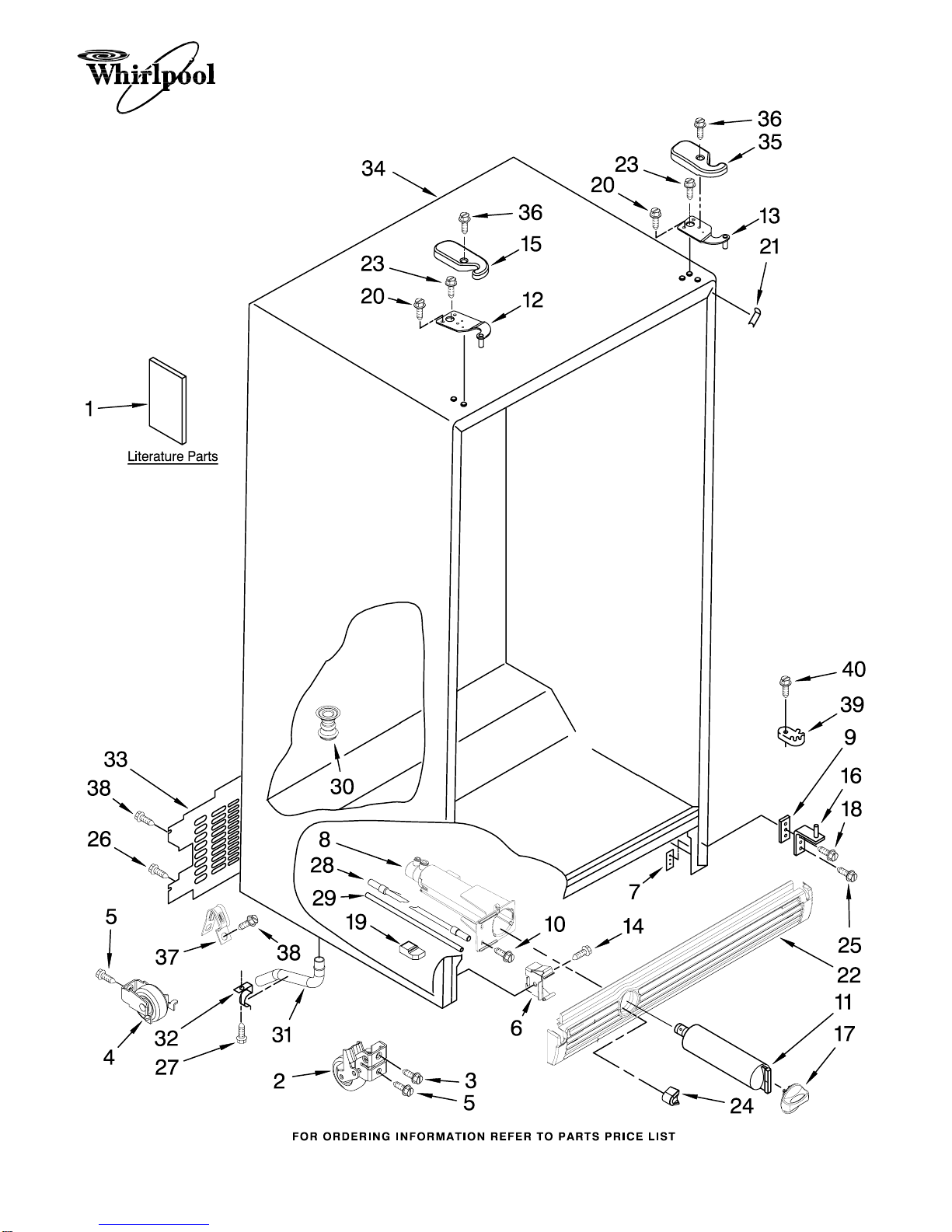

CABINET PARTS
For Models: ED5LHEXTD00
(Universal Silver)
06−07 Litho In U.S.A. (mat) Part No. W10142735 Rev. A
REFRIGERATOR
CABINET PARTS
2
For Models: ED5LHEXTD00
(Universal Silver)
W10142735
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
2309541 Use & Care Guide
2311815 Service & Wiring
Sheet
2325842 Energy Label
2261037 Instruction Sheet,
Door Removal
628370 Modular Icemaker
Service Sheet
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 2304249 Screw Plate (2)
8 2260507 Housing, Water
Filter
9 2209697 Shim (2)
10 489500 Screw (2)
11 4396841 Water Filter
12 2203770 Hinge Top (FC)
13 2203771 Hinge, Top (RC)
14 488500 Screw
15 Hinge Cover
2203407B Black
16 2217075 Hinge Bottom (2)
17 Cap, Water
Filter
2260518B Black
18 3400113 Screw (4)
19 2260519 Block, Housing
Support
20 3400858 Screw
21 Filler, Wrapper
2201017 Black
22 Grille
2260500B Black
23 489497 Screw
24 Button, Water
Filter
2260503B Black
25 3400103 Screw (2)
26 489290 Screw
27 489464 Screw
28 2319867 Tube, Filter
Inlet
29 2304708 Tube, Filter
Outlet
30 2304888 Drain Fitting
31 1108438 Extension Tube
32 1108439 Clip, Drain Tube
33 2252035 Cover, Unit
34 Cabinet (Not A
Serviceable Part)
35 Hinge Cover
2203408B Black
36 8281227 Screw
37 549193 Clamp, Service
Cord
38 489084 Screw
39 2155311 Door Closer,
Lower Cam (2)
40 489483 Screw (2)
REFRIGERATOR LINER PARTS
3
For Models: ED5LHEXTD00
(Universal Silver)
W10142735
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2257741 Louver
3 2256035 Bracket, Dual
Crisper Light
4 489084 Screw
5 2311637 Wire Harness,
Crisper Light
6 2311612 Clip, Control
Box (2)
7 2209753 Air Diffuser
Assembly
8 2152019 Air Diffuser
Cover
9 2150331 Cover, Conduit
10 486298 Screw
11 2162085 Socket
12 2217199 Reservoir
13 2311792 Light Bulb
14 2209769 Light Lens
15 488280 Screw (2)
REFRIGERATOR SHELF PARTS
4
For Models: ED5LHEXTD00
(Universal Silver)
W10142735
Illus. Part
No. No. DESCRIPTION
1 2311980 Glass, Cover
2 2209698 Cover, Crisper
3 2255593 Trim, Pan
4 2179259 Glass, Cover
5 2179234 Trim, Meat Pan
6 2179342 Slide, Humidity
Control
7 2188652 Crisper Pan
8 2188654 Meat Pan
9 2196485 Stud Assembly
10 3400894 Screw
11 2179343 Housing, Humidity
Control
12 2196483 Stud Assembly
13 8281158 Screw
14 2309561 Shelf Assembly,
Spillguard
5
FREEZER LINER PARTS
For Models: ED5LHEXTD00
(Universal Silver)
W10142735
6
FREEZER LINER PARTS
For Models: ED5LHEXTD00
(Universal Silver)
W10142735
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2163762 Cup, Shelf
Mounting (12)
3 2171713 Door, Ice
Compartment
4 2309597 Shelf, Wire
5 842534 Clip, Air Duct (2)
6 2196206 Support, Stud (4)
7 2309757 Freezer Bin
8 1115373 Switch, Rocker Arm
9 8281158 Screw (4)
10 2196483 Stud Assembly (4)
11 2309596 Shelf, Wire
12 2171714 Shelf, Top
Compartment
13 2171705 Light Lens
14 2311792 Light Bulb
15 2162085 Light Socket
16 Slide, Container
1119237 Left Side
1119293 Right Side
17 489100 Screw (4)
18 3400893 Screw
19 2309522 Shelf, Wire

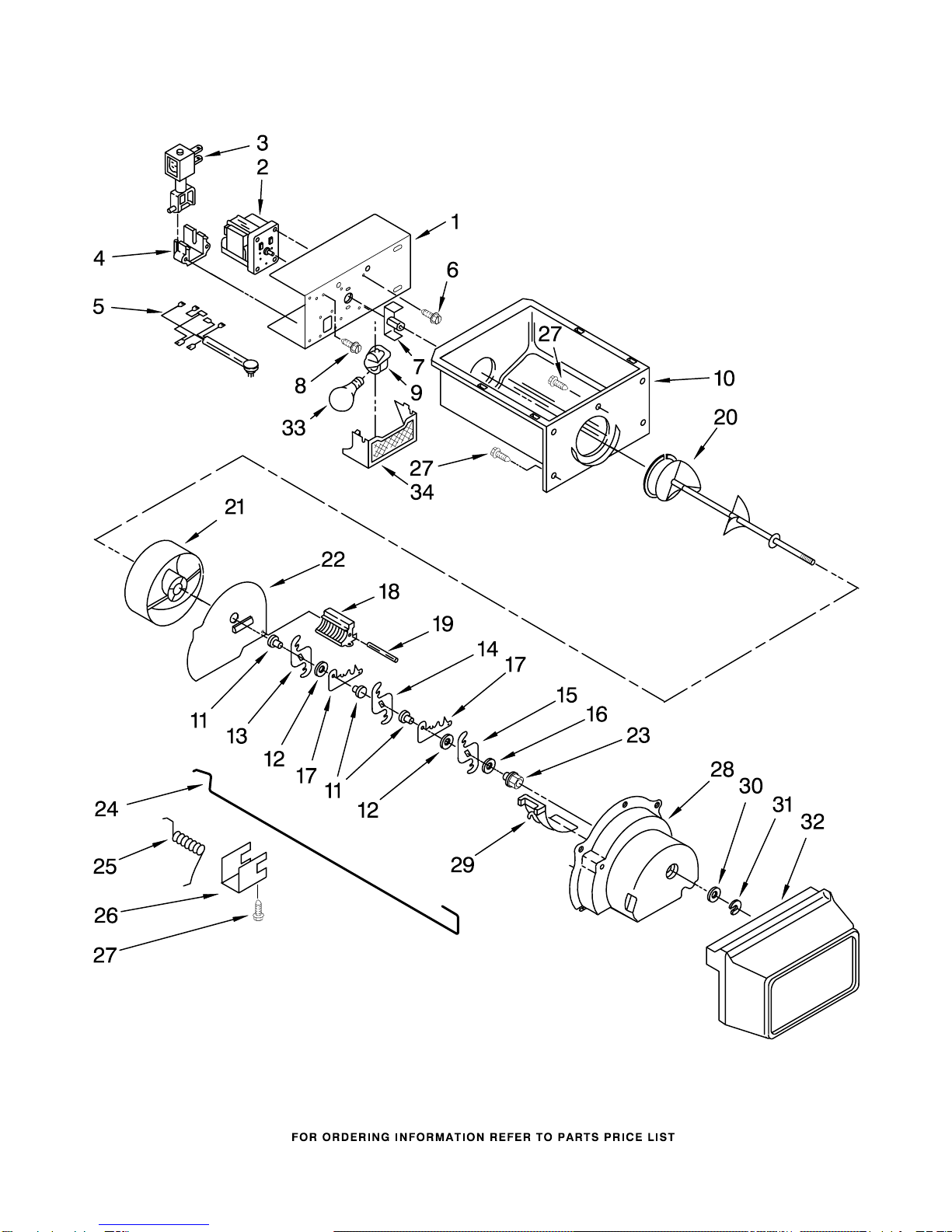

MOTOR AND ICE CONTAINER PARTS
7
For Models: ED5LHEXTD00
(Universal Silver)
W10142735
MOTOR AND ICE CONTAINER PARTS
8
For Models: ED5LHEXTD00
(Universal Silver)
W10142735
Illus. Part
No. No. DESCRIPTION
1 2183726 Bracket, Motor
2 2188385 Motor, Dispenser
3 2152713 Soleniod Assembly
4 2149100 Guide, Solenoid
5 2325303 Wiring Assembly,
Ice Dispenser
6 489399 Screw (6)
7 2205716 Coupling, Motor
8 489478 Screw
9 2162085 Socket, Light
10 2196091 Ice Container
11 1119005 Spacer, Step (3)
12 1119007 Spacer, Flat (2)
13 2257022 Blade, Rotary
14 2257023 Blade, Rotary
15 2257024 Blade, Rotary
16 489235 Washer, Plain
17 1119009 Blade, Fixed (2)
18 2157405 Block, Blade
19 489229 Roll Pin
20 2196295 Auger
21 2305377 Drum
22 2171682 Floating Baffle
23 1119018 Nut, Bearing
24 2155231 Control Arm
25 1119020 Spring, Return
26 1119021 Retainer Clip, Rod
27 488886 Screw
28 2180348 Housing, Crusher
29 1119017 Deflector, Ice
30 489234 Washer, Plain
31 489236 Retainer Ring
32 2204321 Front Cover,
Ice Container
33 2311792 Light Bulb
34 2171706 Light Lens,
Dispenser
100 2209780 Ice Container
(Complete)
9
REFRIGERATOR DOOR PARTS
For Models: ED5LHEXTD00
(Universal Silver)
W10142735
REFRIGERATOR DOOR PARTS
10
For Models: ED5LHEXTD00
(Universal Silver)
W10142735
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item 6)
2311658US
Universal Silver
2 2256101 Door, Compartment
3 489491 Screw
4 2187172 Door Bin (3)
5 2255411 Clip, Mounting
6 Door Gasket,
Magnetic
2309529 Black
7 Handle
2313345B Black
8 2308091 Thimble−Top
9 8533920 Screw
10 2182178 Door Closer,
Upper Cam
11 489420 Screw
12 Bracket, Door Stop
2206629B Black
13 2255121 Nameplate
14 2177962 Trivet, Shelf
15 3400012 Screw
