WHIRLPOOL OF INDIA LTD

Service Manual

Top Mount

No Frost Refrigerator

INDEX

Sno. Detail Page No.

1. MODEL RANGE 3

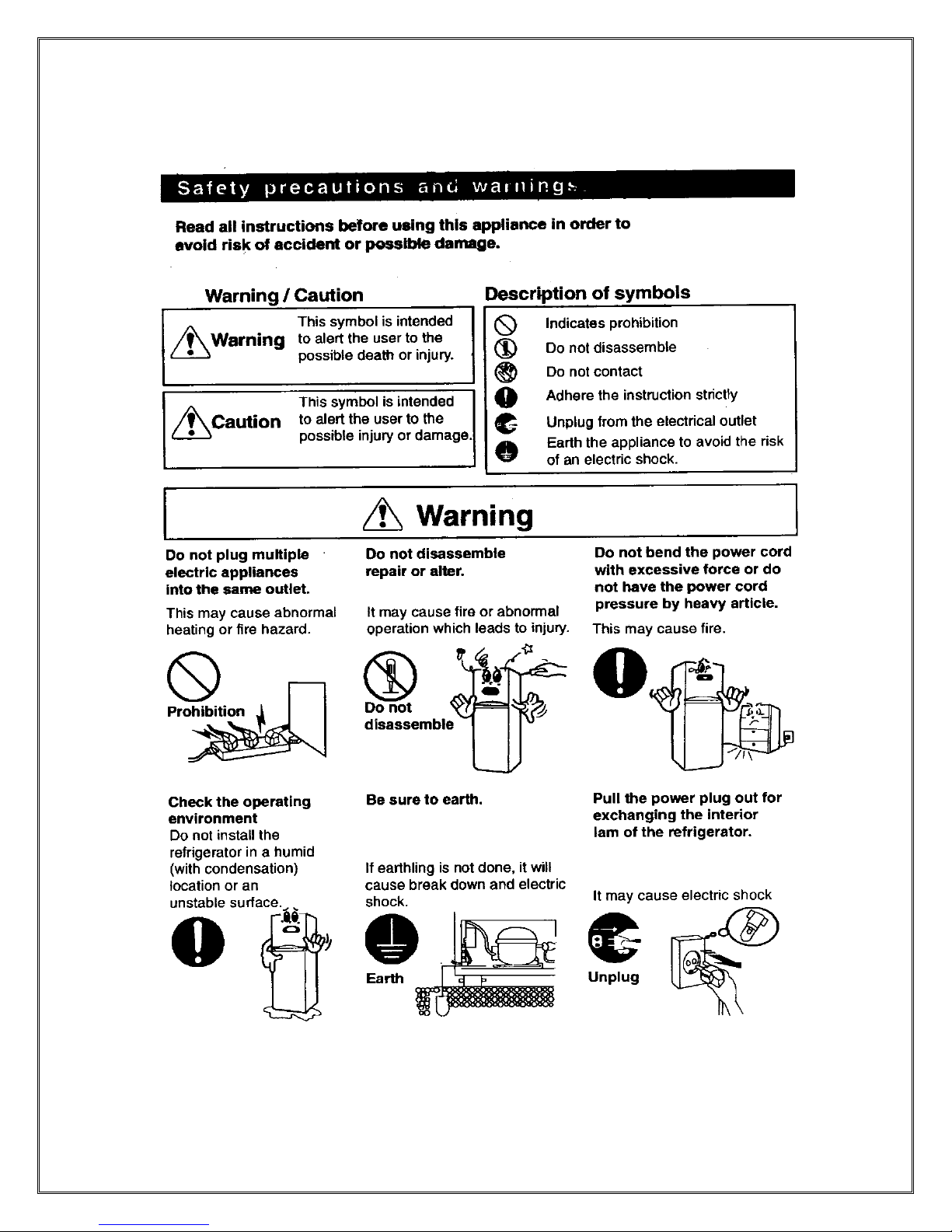

2. SAFETY PRECAUTIONS 4

3. FEATURE/ TECHNICAL SPECIFICATION 6

4. ELECTRONIC CONFIGURATION AND TROUBLESHOOTING 7

5. COOLING CONTROL 8

6. WIRING DIAGRAM 9

7. EXPLODED VIEWS 10

8. SERVICE PART LIST 14

NO FROST REFRIGERATOR MODEL RANGE:

240L TITANIUM - WIE90 SV

240L SUSLITE- WIE90 SS

260L TITANIUM- WIE100 SV

260L SUSLITE- WIE100 SS

TECHNICAL /FEATURE SPECIFICATION:

MODEL

240L

260L

Type

Frost free

Capacities (L) total net

240L

260L

Product Dimensions (mm)

Width

569

Height

1493

1587

Depth

662

Gross Weight (kg)

62 KG

65 KG

Voltage / Hz

220-240V/60Hz

Compressor

ASD65

Oil Capacity

180 cu.cm

Comp. Run Capacitor

PTC Relay

QP2-15G

Motor Protector

BT60-120Y

Fan motor

MI AC MOTOR FOR DUO

Split Diffuser

Deodorizer

CHARCOAL

Number of Shelves

Type of Shelves

GLASS

Humidity Control

YES

RC Illumination

BULB

FC Illumination

Bottle Retainer

Can Rack

Egg tray

12 EGGS

Removable Ice twister

YES

Puff pastry

Freezer Door Bins

Refrigerator Door Bins

Door lock

YES

Handle

BREATHE

Electromechanical Control

in RC compartment

YES

Fast Forward Cool

Operation

Door Alarm

Auto Power save mode

Electronic Configuration, Logic & Troubleshooting

GENX Controls & Electronics Configuration

DELUXE: - In this type of refrigerator, there is no user Interface on freezer compartment door for

setting cooling .There is a thermostat in RC compartment to set temp settings.

Product Configuration

240/260L dlx

Product Control

RC Controlled

Software

User interface

Auto cool mode

Quick Chill/Fast Forward Ice

Auto Power save mode

Door Alarm

RC Illumination

Yes(Lamp)

Control Board

Defrost heater

Yes (Radiant Heater 165 W)

Fan motor

FAN MOTOR MI

(160-260V)

Compressor

ASD65

Run Capacitor

Door Reversibility

Cooling control:

Adaptive Defrost Control

The defrost cycle shall be started after the Defrost timer has expired. According to the following defrost procedure:

Defrost must be executed every time one of the following event occurs:

1. After 8 hours (+/-10 minutes) of compressor running, calculated considering just the thermostat function.

2. When the product goes into defrost (in thermostatic mode) a time period of 20 min (+/-1 minute) is allowed

to complete the time to defrost.

3. If the door open time > 10 min, within first 5 hrs of cumulative compressor run time, defrost is initiated at

5hrs.

4. If the door open time < 10 min or If there is at least one door opening up to 8 hrs of compressor running then

defrost time is as per point 1.

5. If there is no door opening up to 8 hrs of compressor running than defrost time will be 18hrs

6. If there is no door opening for 8 hrs, & there is door opening between 8 to 18 hrs of compressor running,

defrost will take place immediately.

The 5th, 8th or 18th hr of compressor running (defrost timer) consist of the sum of all the compressor’s ON time,

independently of the number of compressor cycles and how many time the compressor was ON.

To control the temperature of your refrigerator, turn the knob

according to your requirement. This control is provided inside the

refrigerator section. Turn knob to the left to reduce the cooling and to

the right to increase the cooling. It is preset to the middle position.

WIRING DIAGRAM:

EXPLODED VIEWS:
