Whirlpool MAX 18/AW Manuel utilisateur

SERVICE Whirlpool Europe

Customer Services

Model M AX 18/AW

Version 8538 018 99261 Page

Introduction safety 2

Technical data 3

Spare part list 4

Exploded view 5

Wiring diagram 6 - 7

Service Manual

M icrow ave oven

M AX 18/AW

This documentation is only intended for qualiﬁed technicians w ho are aw are of the respec-

tive safety regulations.

Date: 01.09.2003 (M od. 01) Subject to modiﬁ cation

Document-No.: 4812 714 14499

https://appliancetechmanuals.com

SERVICE

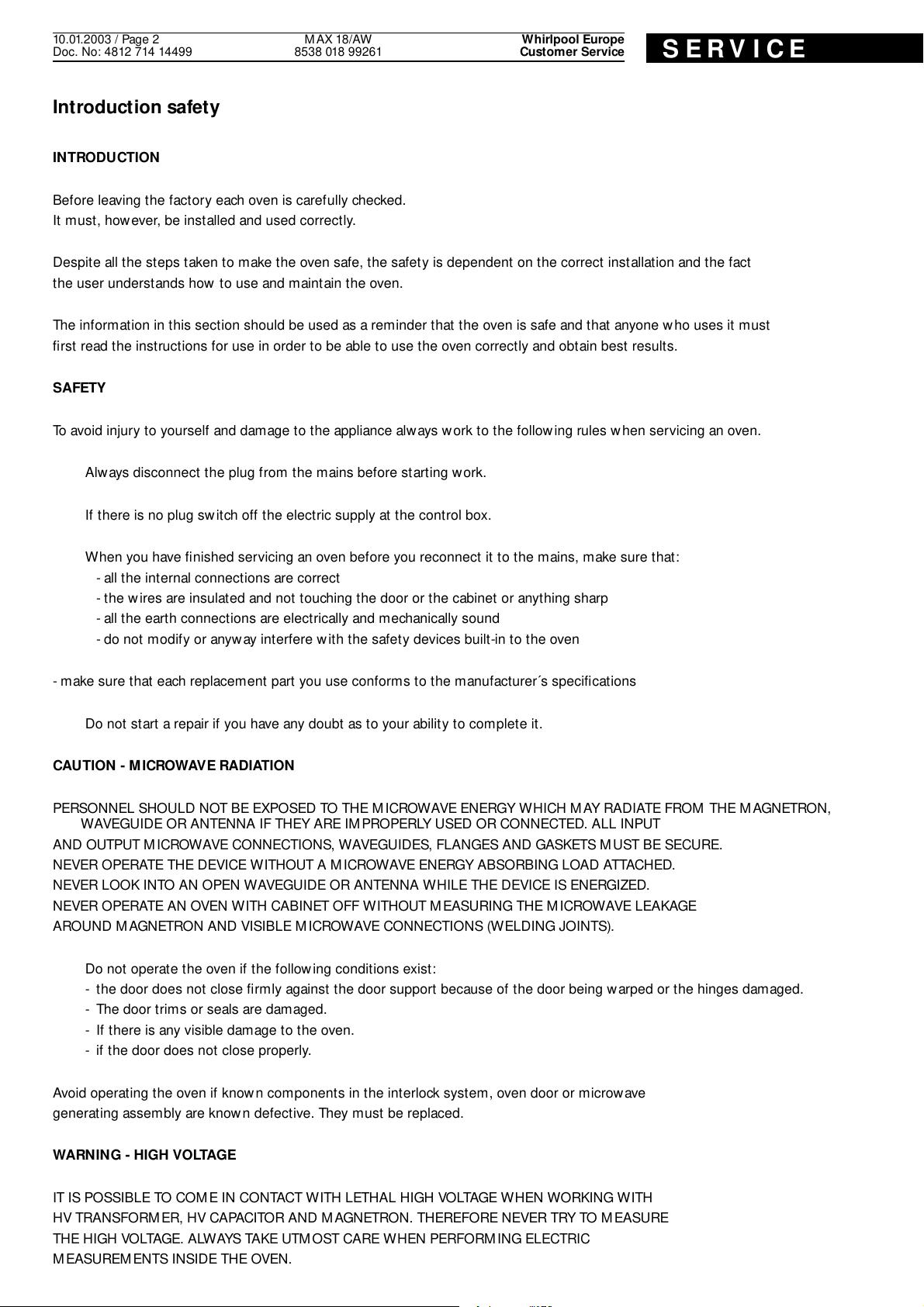

10.01.2003 / Page 2 M AX 18/AW Whirlpool Europe

Doc. No: 4812 714 14499 8538 018 99261 Customer Service

Introduction safety

INTRODUCTION

Before leaving the factory each oven is carefully checked.

It must, however, be installed and used correctly.

Despite all the steps taken to make the oven safe, the safety is dependent on the correct installation and the fact

the user understands how to use and maintain the oven.

The information in this section should be used as a reminder that the oven is safe and that anyone who uses it must

ﬁrst read the instructions for use in order to be able to use the oven correctly and obtain best results.

SAFETY

To avoid injury to yourself and damage to the appliance alw ays w ork to the follow ing rules w hen servicing an oven.

Alw ays disconnect the plug from the mains before starting work.

If there is no plug switch off the electric supply at the control box.

When you have ﬁnished servicing an oven before you reconnect it to the mains, make sure that:

- all the internal connections are correct

- the w ires are insulated and not touching the door or the cabinet or anything sharp

- all the earth connections are electrically and mechanically sound

- do not modify or anyway interfere with the safety devices built-in to the oven

- make sure that each replacement part you use conforms to the manufacturer´s speciﬁcations

Do not start a repair if you have any doubt as to your ability to complete it.

CAUTION - M ICROWAVE RADIATION

PERSONNEL SHOULD NOT BE EXPOSED TO THE M ICROWAVE ENERGY WHICH M AY RADIATE FROM THE M AGNETRON,

WAVEGUIDE OR ANTENNA IF THEY ARE IM PROPERLY USED OR CONNECTED. ALL INPUT

AND OUTPUT MICROWAVE CONNECTIONS, WAVEGUIDES, FLANGES AND GASKETS M UST BE SECURE.

NEVER OPERATE THE DEVICE WITHOUT A M ICROWAVE ENERGY ABSORBING LOAD ATTACHED.

NEVER LOOK INTO AN OPEN WAVEGUIDE OR ANTENNA WHILE THE DEVICE IS ENERGIZED.

NEVER OPERATE AN OVEN WITH CABINET OFF WITHOUT MEASURING THE M ICROWAVE LEAKAGE

AROUND M AGNETRON AND VISIBLE M ICROWAVE CONNECTIONS (WELDING JOINTS).

Do not operate the oven if the following conditions exist:

- the door does not close ﬁrmly against the door support because of the door being warped or the hinges damaged.

- The door trims or seals are damaged.

- If there is any visible damage to the oven.

- if the door does not close properly.

Avoid operating the oven if know n components in the interlock system, oven door or microw ave

generating assembly are know n defective. They must be replaced.

WARNING - HIGH VOLTAGE

IT IS POSSIBLE TO COM E IN CONTACT WITH LETHAL HIGH VOLTAGE WHEN WORKING WITH

HV TRANSFORMER, HV CAPACITOR AND M AGNETRON. THEREFORE NEVER TRY TO M EASURE

THE HIGH VOLTAGE. ALWAYS TAKE UTM OST CARE WHEN PERFORM ING ELECTRIC

M EASUREMENTS INSIDE THE OVEN.

https://appliancetechmanuals.com

SERVICE Whirlpool Europe M AX 18/AW 01.09.2003 (Mod. 01) / Page 3

Customer Service 8538 018 99261 Doc. No: 4812 714 14499

Technical data

Product dimensions

Height 356 mm

Width 392 mm

Depth 350 mm

Cavity dimensions

Height 149 mm

Width 290 mm

Depth 290 mm

Cavity volume 13 l

Turntable diameter 280 mm

Weight

Net 12 kg

Gross 13 kg

Electrical

Voltage 230 V

Frequency 50 Hz

Fuse 10 A

Current consumption 6 A

Power

Power consumption 1300 W

Output power M W 750 W

Grill 600 W

M aximum input pow er 1750 W

Timer

electronic 30 min.

5 power levels

Error codes

Certain fault conditions are indicated by an error code.

The following codes are implemented:

ERR 0 Convection temperature sensor fault.

Not connected or short circuit.

ERR 1 Short circuit in the M W relay.

ERR 6 Weight sensor calibration has not been performed.

ERR 7 Humidity sensor is defect or has not been connected.

ERR 8 Impossible to write to E2PROM .

ERR 9 Options have not been set.

ERR A No w heel detected on weight sensor.

ERR B No pulses from the weight sensor or <4267 Hz.

ERR C Fuzzy temperature sensor fault. Not 19-41 ˚C.

https://appliancetechmanuals.com

SERVICE

10.01.2003 / Page 4 M AX 18/AW Whirlpool Europe

Doc. No: 4812 714 14499 8538 018 99261 Customer Service

Spare part list

Model MAX 18/ AW

Service No. 853801899261

Version 853801899261

Pos. No. 12NC Code Description

001 0 4812 440 10447 Cabinet outer WH

001 5 4812 462 79788 Plate, bottom

001 6 4812 462 79849 Frame distance piece right

001 7 4812 462 79851 Frame distance piece left

002 0 4812 325 58002 Frame top WH

002 1 4812 325 58003 Frame top plate AL

002 2 4812 325 58004 Frame heat shield top

005 0 4812 440 89022 Panel bottom

047 0 4812 492 48178 Hinge pin, top

100 0 4812 442 69289 Door complete Alu/White

117 0 4819 498 78366 Handle for crisp plate

130 0 4812 492 58039 Lever

130 1 4812 460 38114 Cam plate

130 2 4812 492 58041 Clutch

130 3 4812 492 58038 Pin

130 5 4812 492 68172 Spring, tension

245 0 4812 458 19141 Grid

246 0 4812 418 79782 Crisp plate AM W 001

255 0 4812 466 78407 Glass plate turntable

264 0 4812 539 28001 Crosspiece

264 1 4812 539 28002 Spider

404 0 4819 131 58019 M agnetron

406 0 4812 361 58156 M otor Turnt able

406 1 4812 492 58037 Tube M W

412 0 4812 145 38032 Transformer HT

420 0 4812 121 58137 Capacitor 1.01µF

426 0 4819 218 38038 Diode HV

440 0 4812 361 18317 M otor blow er

452 0 4812 259 28845 Heating element 115V

452 1 4812 259 28846 Heat shield

490 0 4812 321 18195 Cable, mains 3X1, 0 EU

500 0 4812 214 78952 Control board assembly

505 0 4812 256 98038 Bracket PCB holder

505 1 4812 256 98037 Holder multi

506 0 4812 270 18026 Sw itch holder

554 0 4812 282 08613 Thermostat M agnetron

554 1 4812 256 98036 Bracket Thermostat

561 0 4812 282 48271 Thermostat waveguide

564 0 4812 282 08625 Thermostat overheat

617 0 4812 280 68349 Relay

633 0 4812 271 38427 M icrosw itch door

651 0 4819 134 28051 Lamp

774 0 4812 462 28268 M ica plate

774 2 4812 442 69274 Heat shield waveguide

900 2 4812 491 48016 Pin for micaplate

910 0 4812 502 38354 Screw safety

993 0 4812 462 18208 Holder baby bottle

https://appliancetechmanuals.com

SERVICE Whirlpool Europe MAX 18/AW 10.01.2003 / Page 5

Customer Service 8538 018 99261 Doc. No: 4812 714 14499

Exploded view

https://appliancetechmanuals.com

SERVICE

10.01.2003 / Page 6 M AX 18/AW Whirlpool Europe

Doc. No: 4812 714 14499 8538 018 99261 Customer Service

Wiring diagram

OVEN IN OFF POSITION

WITH DOOR CLOSED

1010 M agnetron

1020 Thermostat M agnetron

1040 Secondary doorsw itch

1050 M onitor doorsw itch

1060 Primary doorsw itch

1070 M otor fan

1080 M otor turntable

1120 Cavity lamp

1130 Thermostat cavity

1135 Thermostat waveguide

1800 Heating element grill

2000 HT capacitor

4030 Power board

4040 Control system

4120 Fuse T 10 A

4121 Fuse T 250 mA

5000 HT transformer

6000 HT diode

BL Blue

BLK Black

BR Brow n

GY Grey

RD Red

WT White

YW Yellow

Y/G Yellow - green

https://appliancetechmanuals.com

SERVICE Whirlpool Europe MAX 18/AW 10.01.2003 / Page 7

Customer Service 8538 018 99261 Doc. No: 4812 714 14499

Wiring diagram
