Whirlpool GH4155XP Manuel

2₈⁄⁷ )m

c9.5

7("

51 ₈

⁄

³"

)mc

1.9

(

16¹⁄₄"

(41.3 cm)

15"

(38.1 cm)

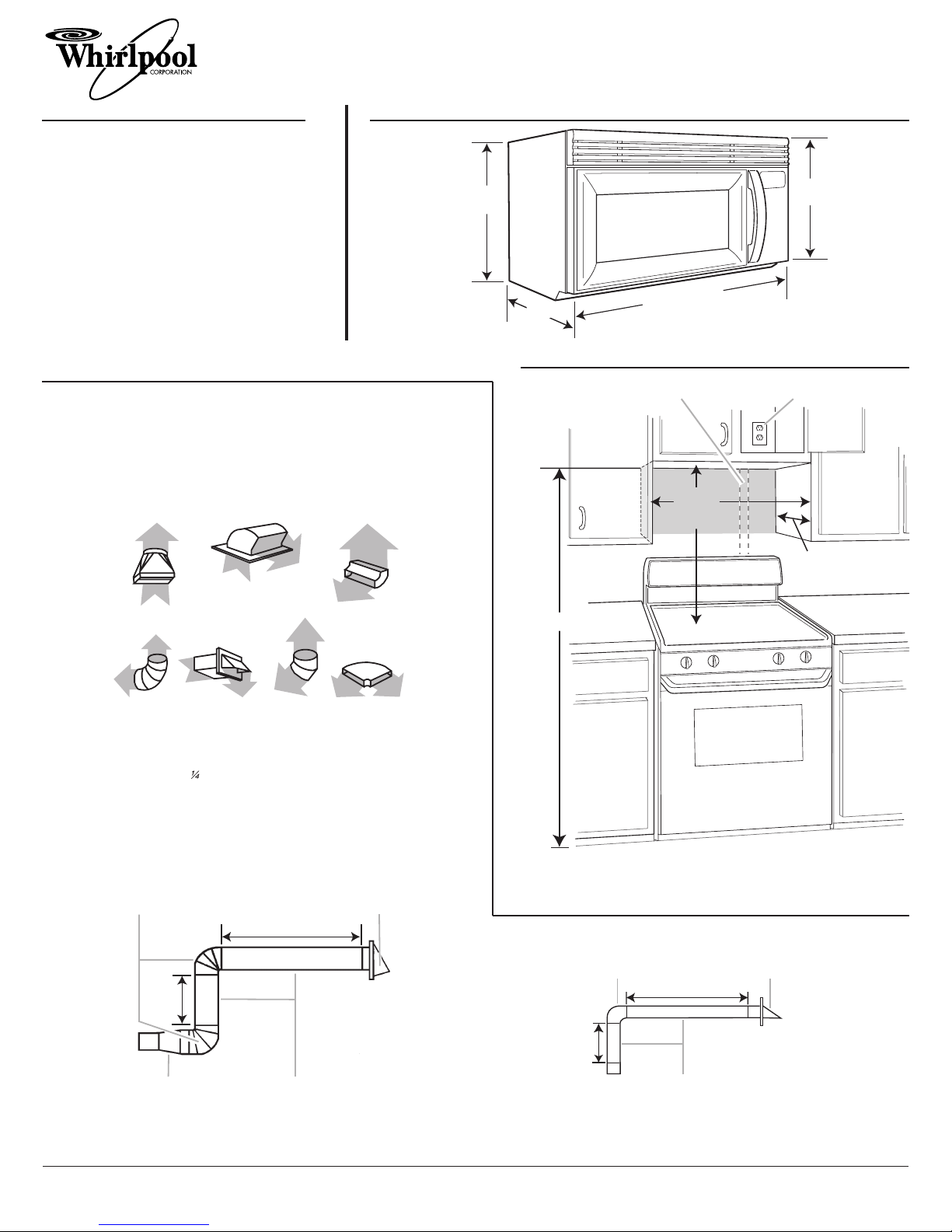

PRODUCT MODEL NUMBERS OVERALL DIMENSIONS

VENTING REQUIREMENTS

GH4155XP

MH2155XP

Electrical: A 120 Volt, 60 Hz, AC only, 15- or

20-amp fused electrical supply (or circuit breaker)

is required. (A time-delay fuse or circuit breaker is

recommended.) It is recommended that a separate

circuit serving only this appliance be provided.

Microwave Hood Combination

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. 8183878

08-22-05

CABINET OPENING DIMENSIONS

A 3¹⁄₄" x 10" (8.3 x 25.4 cm) rectangular or 6" (15.2 cm) round vent should be used.

The total length of the vent system including straight vent, elbow(s), transitions and wall

or roof caps must not exceed the equivalent of 140 ft (42.7 m) for either type of vent.

For best performance, use no more than three 90° elbows.

To calculate the length of the system you need, add the equivalent length for each vent

piece used in the system. See the following examples:

A. 2" x 4" wall stud

B. Grounded 3 prong outlet

66" (167.6 cm) min.

30"

(76.2 cm)

min.

12" (30.5 cm) min.

14" (35.6 cm) max.

A B

A. Rectangular to round transition piece: 3

¹⁄₄

" x 10" to 6" = 5 ft

(8.3 x 25.4 cm to 15.2 cm = 1.5 m)

B. Roof cap: 3

¹⁄₄

" x 10" = 24 ft (8.3 x 25.4 cm = 7.3 m)

C. 90° elbow: 3 " x 10" = 25 ft (8.3 x 25.4 cm = 7.6 m)

D. 90° elbow: 6" = 10 ft (15.2 cm = 3 m)

E. Wall cap: 3

¹⁄₄

" x 10" = 40 ft (8.3 x 25.4 cm = 12.2 m)

F. 45° elbow: 6" = 5 ft (15.2 cm = 1.5 m)

G. 90° flat elbow: 3

¹⁄₄

" x 10" = 10 ft (8.3 x 25.4 cm = 3 m)

A B C

D E F G

3¹⁄₄" x 10" (8.3 x 25.4 cm) vent system = 73 ft (22.2 m) total

A. One 3

¹⁄₄

" x 10" (8.3 x 25.4 cm) 90° elbow = 25 ft (7.6 m)

B. 1 wall cap = 40 ft (12.2 m)

C. 2 ft (0.6 m) + 6 ft (1.8 m) straight = 8 ft (2.4 m)

A B

6 ft (1.8 m)

2 ft

(0.6 m)

6" (15.2 cm) vent system = 73 ft (22.2 m) total

A. Two 90° elbows = 20 ft (6.1 m)

B. 1 wall cap = 40 ft (12.2 m)

C. 1 rectangular to round transition piece = 5 ft (1.5 m)

D. 2 ft (0.6 m) + 6 ft (1.8 m) straight = 8 ft (2.4 m)

A B

C D

6 ft (1.8 m)

2 ft

(0.6 m)
