AMW 520

INSTALLATION

PRIOR TO CONNECTING

CHECK THAT THE VOLTAGE on the rating plate

corresponds to the voltage in your home.

AFTER CONNECTING

DONOT REMOVE THE MICROWAVE INLET PROTECTION

PLATES located on the side of the oven cavity

wall. They prevent grease & food particles from

entering the microwave inlet channels.

ENSURE THAT THE APPLIANCE IS NOT DAMAGED.Check

that the oven door closes rmly against the

door support and that the internal door seal is

not damaged. Empty the oven and clean the

interior with a soft, damp cloth.

IMPORTANT!

A PERMANENT CONNECTION REQUIRES the installation

of a separating device. The separating device

must have an omnipolar contact opening of

more than 3 mm including LS switches, safety

valves and relays. The separating device must

be connected directly to the terminal.

The manufacturers are not liable for any

problems caused by the user’s failure to

observe these instructions.

THE EARTHING OF THIS APPLIANCE is compulsory.

The manufacturer will accept no responsibility

for injury to persons, animals or damage to

objects arising from the non-observance of this

requirement.

INTHE CASE OF APERMANENT CONNECTION,the

appliance should be installed by a qualied

technician.

ENSURE the oven cavity is empty before

mounting.

DONOT OPERATE THIS APPLIANCE if it has a damaged

mains cord or plug, if it is not working properly,

or if it has been damaged or dropped. Do not

immerse the mains cord or plug in water. Keep

the cord away from hot surfaces. Electrical

shock, re or other hazards may result.

Follow the supplied separate mounting instructions

when installing the appliance.

THE OVEN CAN BE OPERATED ONLY if the oven door is

rmly closed.

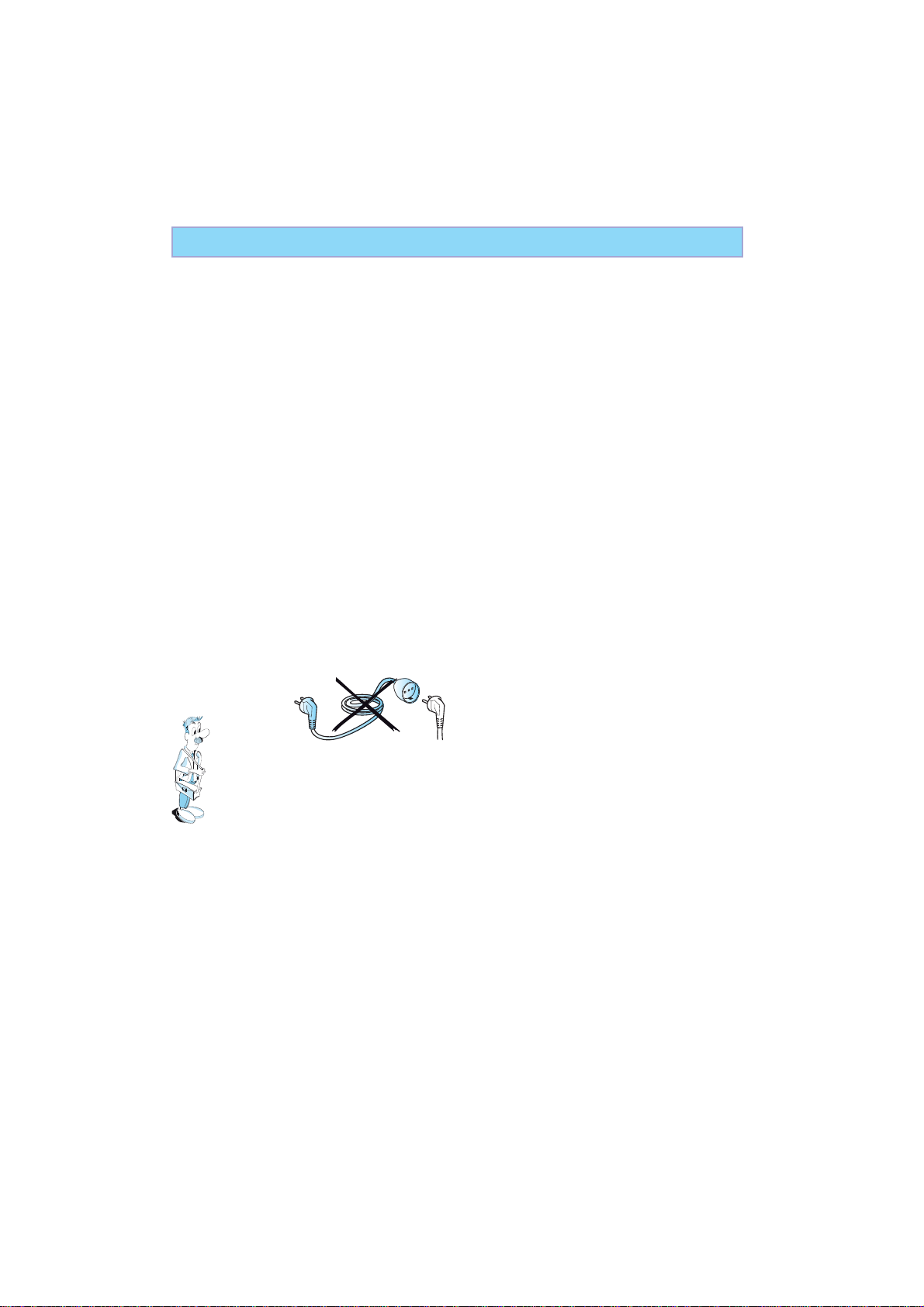

DONOT USE EXTENSION CORD:

IFTHE POWER SUPPLY CORD IS TOO SHORT, have a

qualied electrician or serviceman install

an outlet near the appliance.

WARNING!

ONLY ALLOW CHILDREN to use the appliance under

adult supervision and after adequate instructions

have been given, so that the child is able to use

the appliance in a safe way and understands the

hazards of improper use.

THIS APPLIANCE IS NOT INTENDED FOR use by persons

(including children) with reduced physical,

sensory or mental capabilities, unless used under

the supervision of a person responsible for their

safety.

WARNING!

ACCESSIBLE PARTS MAY BECOME HOT during use, young

children should be kept away.

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

DONOT HEAT, OR USE FLAMMABLE MATERIALS in or near

the oven. Fumes can create a re hazard or

explosion.

DONOT USE corrosive chemicals or vapors in

this appliance. This type of oven is specically

designed to heat or cook food. It is not

designed for industrial or laboratory use.

DONOT USE YOUR MICROWAVE oven for drying

textiles, paper, spices, herbs, wood, owers,

fruit or other combustible materials. Fire could

result.

IFMATERIAL INSIDE / OUTSIDE THE OVEN SHOULD IGNITE,

keep oven door closed and turn the oven o.

Disconnect the power cord or shut o power at

the fuse or circuit breaker panel.

DONOT OVER-COOK FOOD.Fire could result.

DONOT LEAVE THE OVEN UNATTENDED,especially

when using paper, plastic or other combustible

materials in the cooking process. Paper can

char or burn and some plastics can melt if used

when heating food.

WARNING!

DONOT USE YOUR MICROWAVE oven for heating

anything in airtight sealed

containers. The pressure increases

and may cause damage when

opening or may explode.

WARNING!

THE DOOR SEALS AND THE DOOR SEAL AREAS must be

regularly inspected for damage. If these areas are

damaged the appliance should not be operated

until it has been repaired by a trained service

technician.

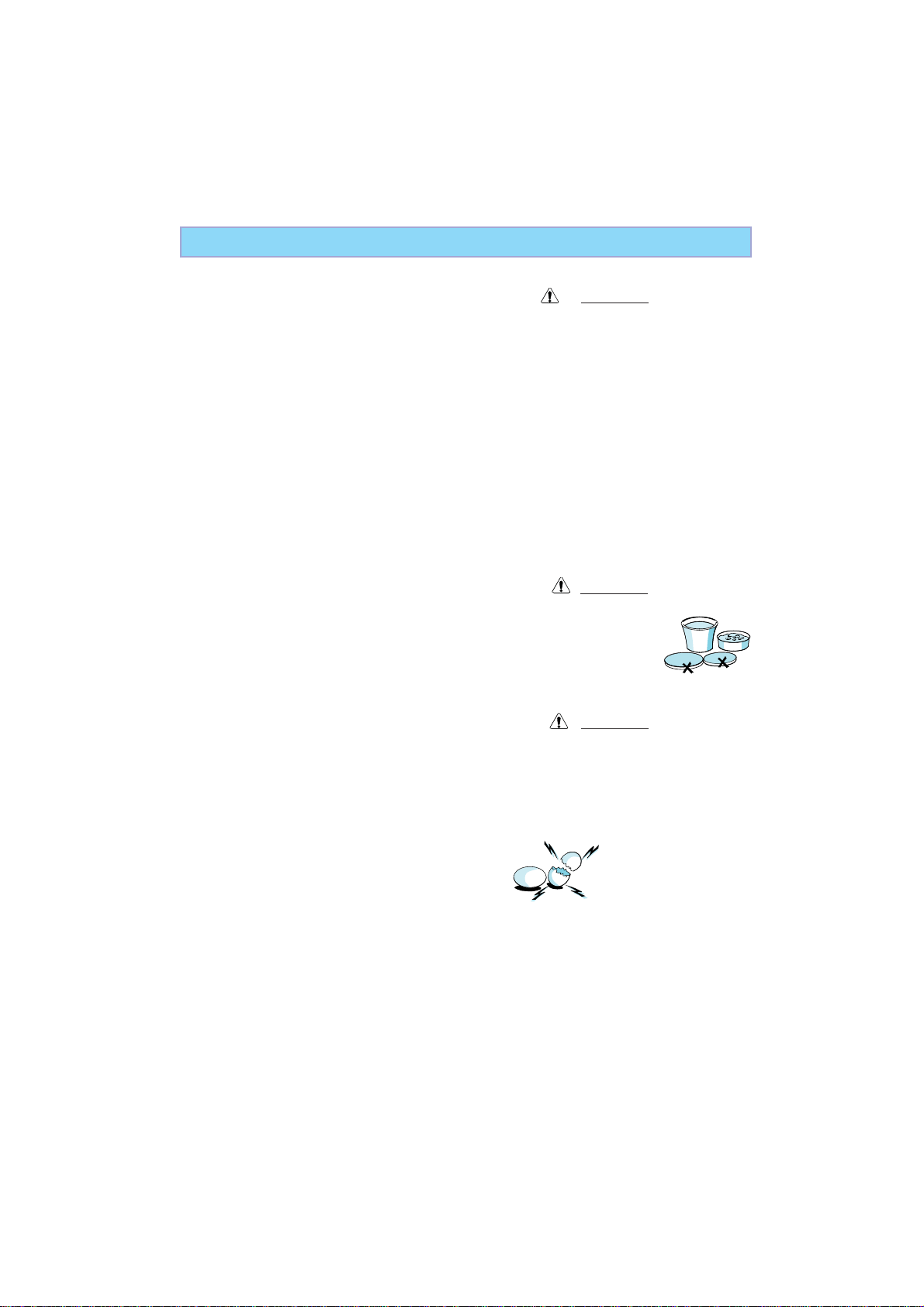

EGGS

DONOT USE YOUR MICROWAVE oven

for cooking or reheating whole

eggs with or without shell since

they may explode even after

microwave heating has ended.

PRECAUTIONS

GENERAL

THIS APPLIANCE IS DESIGNED FOR DOMESTIC USE ONLY!

LIQUIDS

E.G. BEVERAGES OR WATER in your

microwave oven, overheating

the liquid beyond boiling point

can occur without evidence

of bubbling. This could result in a sudden boil

over of the hot liquid.

To prevent this possibility the following steps

should be taken:

1. Avoid using straight-sided containers with

narrow necks.

2. Stir the liquid before placing the container

in the oven and let the teaspoon remain

in the container.

3. After heating, allow standing for a short

time, stirring again before carefully

removing the container from the oven.

THE APPLIANCE SHOULD NOT BE OPERATED without food

in the oven when using microwaves. Operation in

this manner is likely to damage the appliance.

IFYOU PRACTICE OPERATING the oven, put a glass

of water inside. The water will absorb the

microwave energy and the oven will not be

damaged.

REMOVE WIRE TWIST-TIES from paper or

plastic bags before placing bag in

the oven.

DEEP-FRYING

DONOT USE YOUR MICROWAVE oven

for deep-frying, because the

oil temperature cannot be

controlled.

USE HOT PADS OR OVEN MITTS to prevent burns,

when touching containers, oven parts, and pan

after cooking.

CAREFUL

ALWAYS REFER to a microwave cookbook (not

included) for details. Especially, if cooking or

reheating food that contains alcohol.

After heating baby food or

liquids in a baby bottle or in

a baby food jar, always stir

and check the temperature

before serving. This will ensure that the heat

is evenly distributed and the risk of scalding

or burns can be avoided.

Ensure the Lid and the Teat are removed

before heating!

DONOT USE THE CAVITY for any storage purposes.

DONOT REMOVE THE MICROWAVE INLET PROTECTION

PLATES located on the side of the oven cavity

wall. They prevent grease & food particles from

entering the microwave inlet channels.

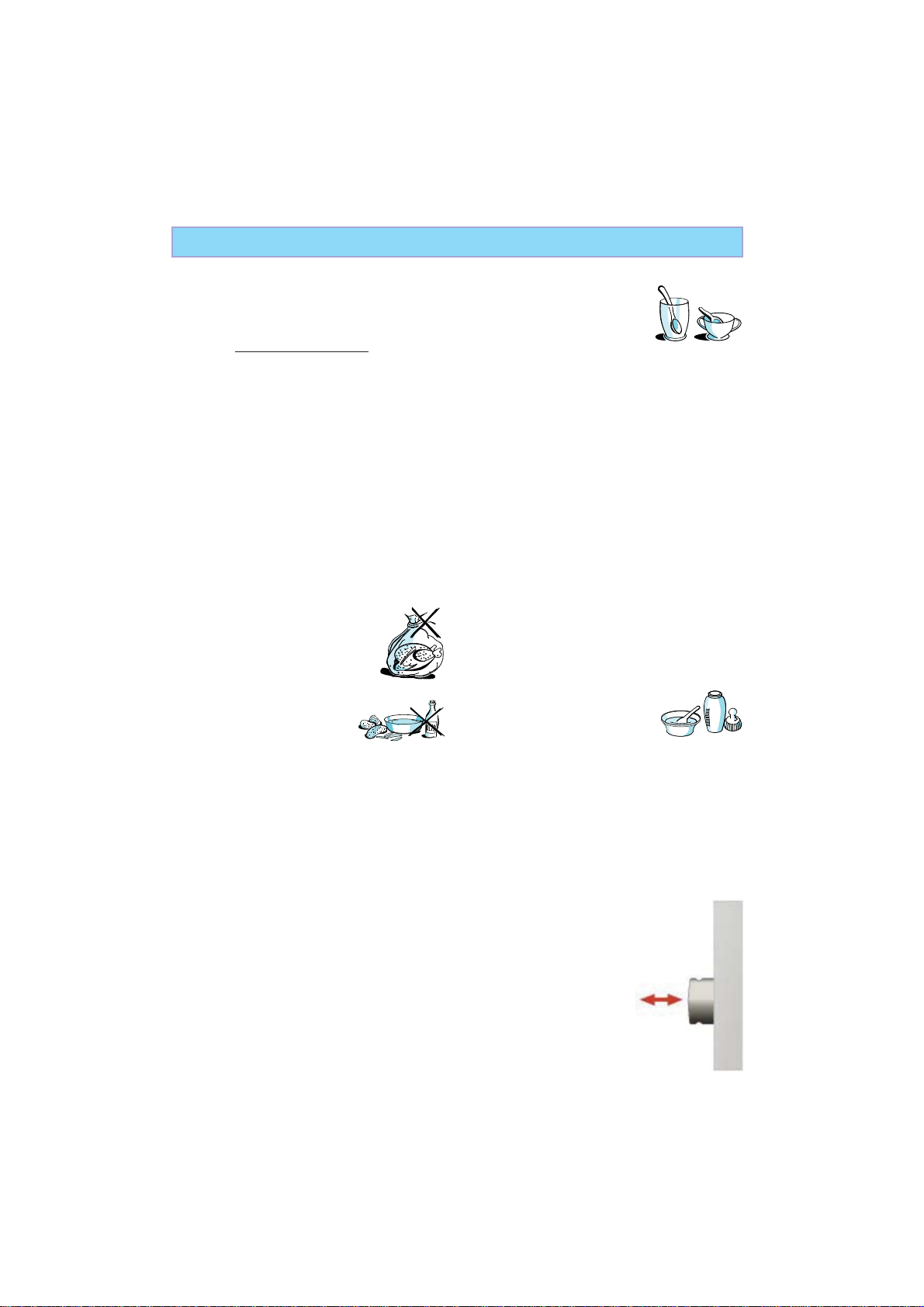

PUSH - PUSH KNOBS

The knobs of this oven are aligned with the

buttons on the panel, at delivery. The

knobs will slide out if pushed and their

various functions can be accessed. It is

not necessary to have them petruding

from the panel during operation.

Simply push them back into the

panel when you are done

with the setting and

continue to operate the oven.

GLASS TURNTABLE

USE THE GLASS TURNTABLE with all

cooking methods. It collects

the dripping juices and food

particles that otherwise would

stain and soil the interior of the oven.

* Place the Glass turntable on the turntable

support.

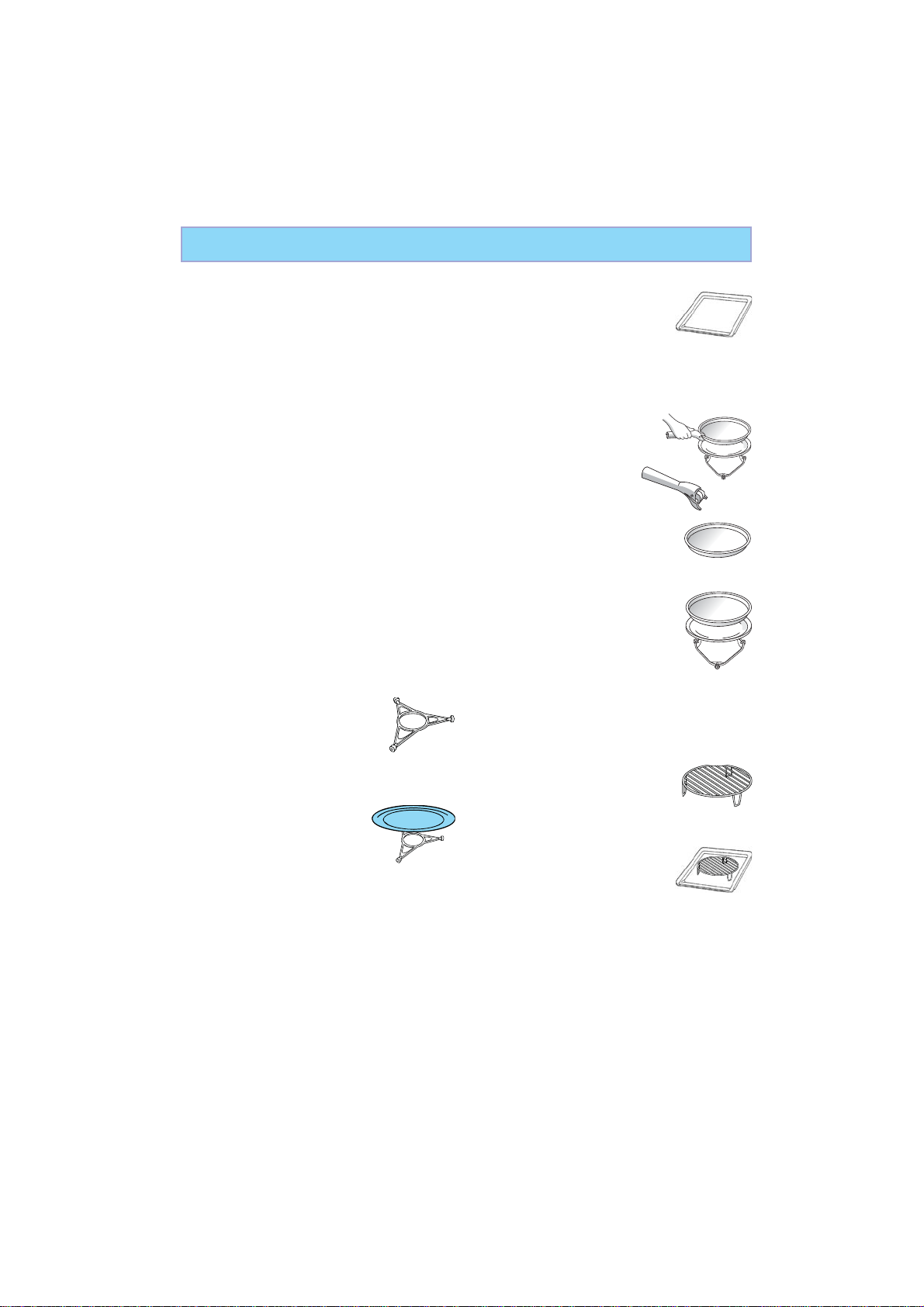

ACCESSORIES

GENERAL

THERE ARE a number of accessories available on

the market. Before you buy, ensure they are

suitable for microwave use.

WHEN YOU PUT FOOD AND ACCESSORIES in the

microwave oven, ensure that they do not come

in contact with the interior of the oven. This is

especially important with accessories made

of metal or metal parts.

IFACCESSORIES CONTAINING METAL comes in contact

with the oven interior, while the oven is in

operation, sparking can occur and the oven

could be damaged.

ALWAYS ENSURE that the turntable is able to turn

freely before starting the oven.

ENSURE THAT THE UTENSILS YOU USE are oven proof

and allow microwaves to pass through them

before cooking.

TURNTABLE SUPPORT

USE THE TURNTABLE SUPPORT under the

Glass turntable. Never put any other

utensils on the turntable support.

* Fit the turntable support in the

oven.

CRISP-PLATE

PLACE THE FOOD DIRECTLY ON THE

CRISP-PLATE. Always use the Glass

turntable as support when using

THE CRISP-PLATE.

DONOT PLACE ANY UTENSILS on the

Crisp-plate since it will quickly

become very hot and is likely to

cause damage to the utensil.

THE CRISP-PLATE may be preheated

before use (max. 3 min). Always use the Crisp

function when preheating the crisp-plate.

WIRE RACK

USE THE WIRE RACK when cooking

and baking with Forced air, Grill,

Forced air & microwaves, Auto

Forced Air Combi or Turbo grill Combi.

WHEN GRILLING WITHOUT MICROWAVES,place the wire

rack on the baking plate in order to

elevate the food closer to the grill

element in the ceiling.

ENSURE THAT THE UTENSILS YOU USE are oven proof

and allow microwaves to pass through them

before cooking.

BAKING PLATE

USE THE BAKINGPLATE when cooking

in forced air only or when grilling.

Never use it in combination with

microwaves.

CRISP HANDLE

USE THE SUPPLIED SPECIAL CRISP

HANDLE to remove the hot Crisp plate

from the oven.

CLOCK

KEEP THE DOOR OPEN while setting the Clock.

This gives you 10 minutes to complete the

setting of the Clock. Otherwise, each step

must be accomplished within 60 seconds.

1(a). Turn the multifunction knob to the

zero position.

2(b). Press the Select button (3 seconds) until

the left-hand digit (hour’s) icker.

3. Turn the +/- knob to set the hours.

4. Press the Select button again. (The two right

hand digits (minutes) icker).

5. Turn the +/- knob to set the minutes.

6. Press the Select button again.

The Clock is set and in operation.

NOTE: When the appliance is rst plugged in or

after a power failure, the display is blank. If the

clock is not set, the display will remain blank

until the cooking time is set.

START PROTECTION / CHILD LOCK

THIS AUTOMATIC SAFETY FUNCTION IS ACTIVATED ONE

MINUTE AFTER the oven has returned to “stand by

mode“.

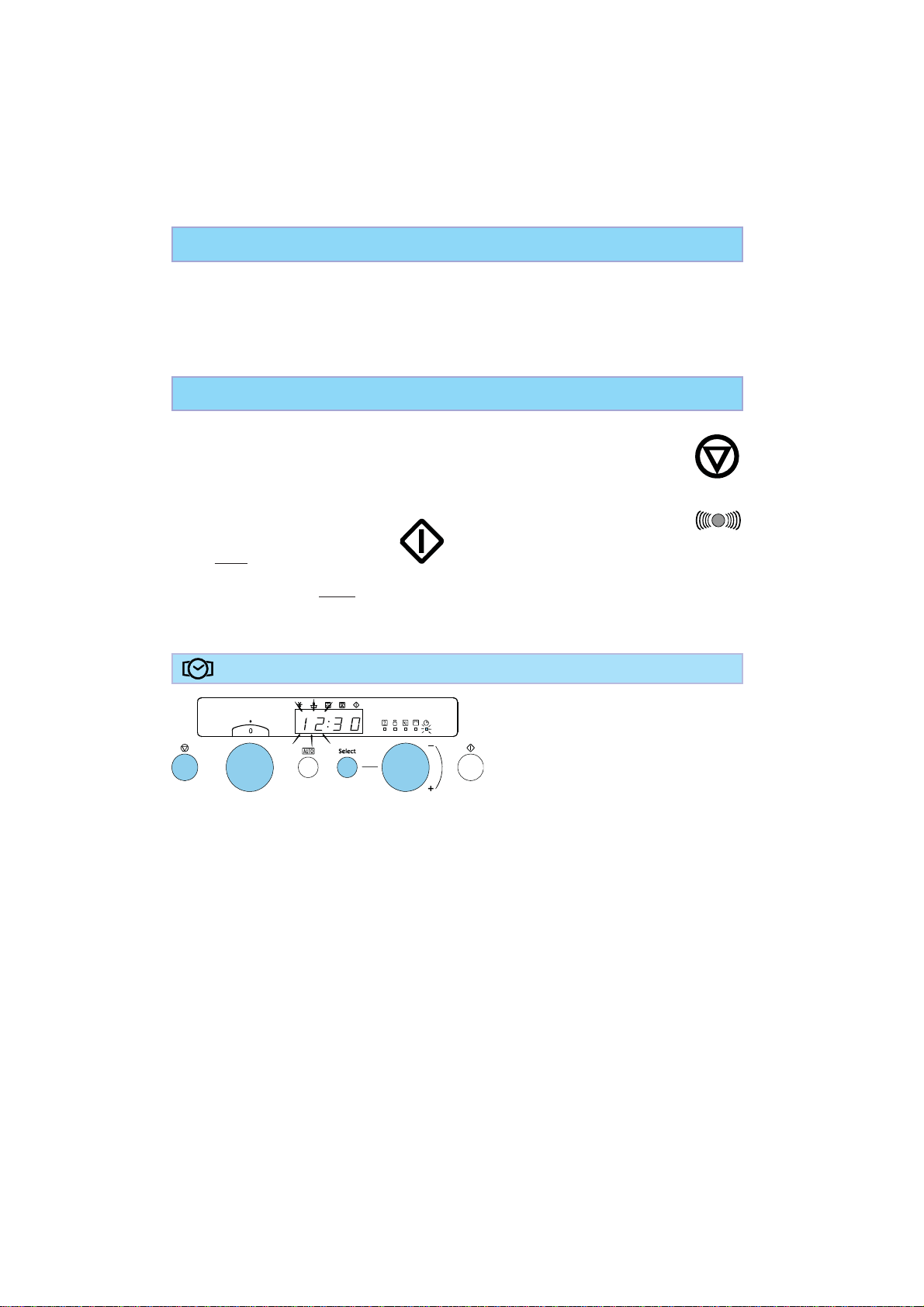

PAUSE OR STOP COOKING

TOPAUSE COOKING:

The cooking can be paused to check, turn or

stir the food by opening the door. The setting

will be maintained for 10 minutes.

TOCONTINUE COOKING:

Close the door and press the Start

button ONCE. The cooking is resumed

from where it was paused.

Pressing the Start button TWICE will increase

the time by 30 seconds.

IFYOU DON’TWANT TO CONTINUE COOKING:

Remove the food, close the door and

press the STOP button

A BEEP WILL SIGNAL once a minute for 10

minutes when the cooking is nished.

Press the STOP button or open the door to

cancel the signal.

NOTE:The oven will only hold the settings for 60

seconds if the door is opened and then closed

after the cooking is nished.

THE DOOR MUST BE OPENED AND CLOSED e.g. putting

food into it, before the safety lock is released.

Else the display will show “door“.

1(a) 35

IFYOU WISH TO REMOVE THE CLOCK from the display

once it has been set,

follow steps (a) & (b) and press the Stop button

(c).

(c)

TOREINSTATE THE CLOCK,follow the above

procedure.

(b)

1. Turn the multifunction knob to the zero

position.

2. Turn the +/- knob to set the time to measure.

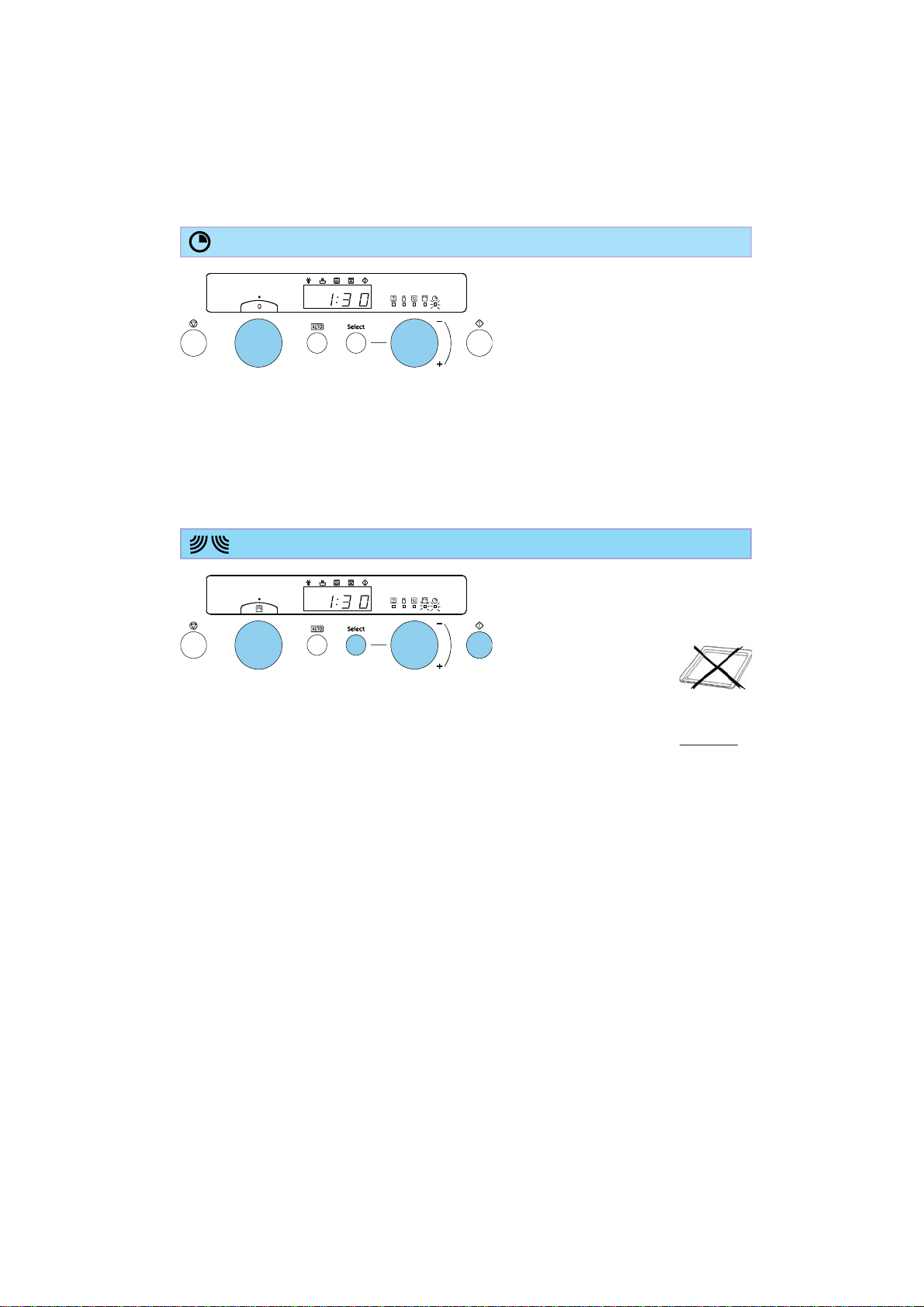

KITCHEN TIMER

USE THIS FUNCTION when you need a kitchen

timer to measure exact time for various

purposes such as cooking eggs, pasta or

letting the dough rise before baking etc.

THE TIMER AUTOSTARTS the countdown after 1

second.

1. Turn the multifunction knob to the

microwave position.

2. Turn the +/- knob to set the cooking time.

3. Press the Select button to select power level.

4. Turn the +/- knob to set the preferred power

level.

5. Press the Start button.

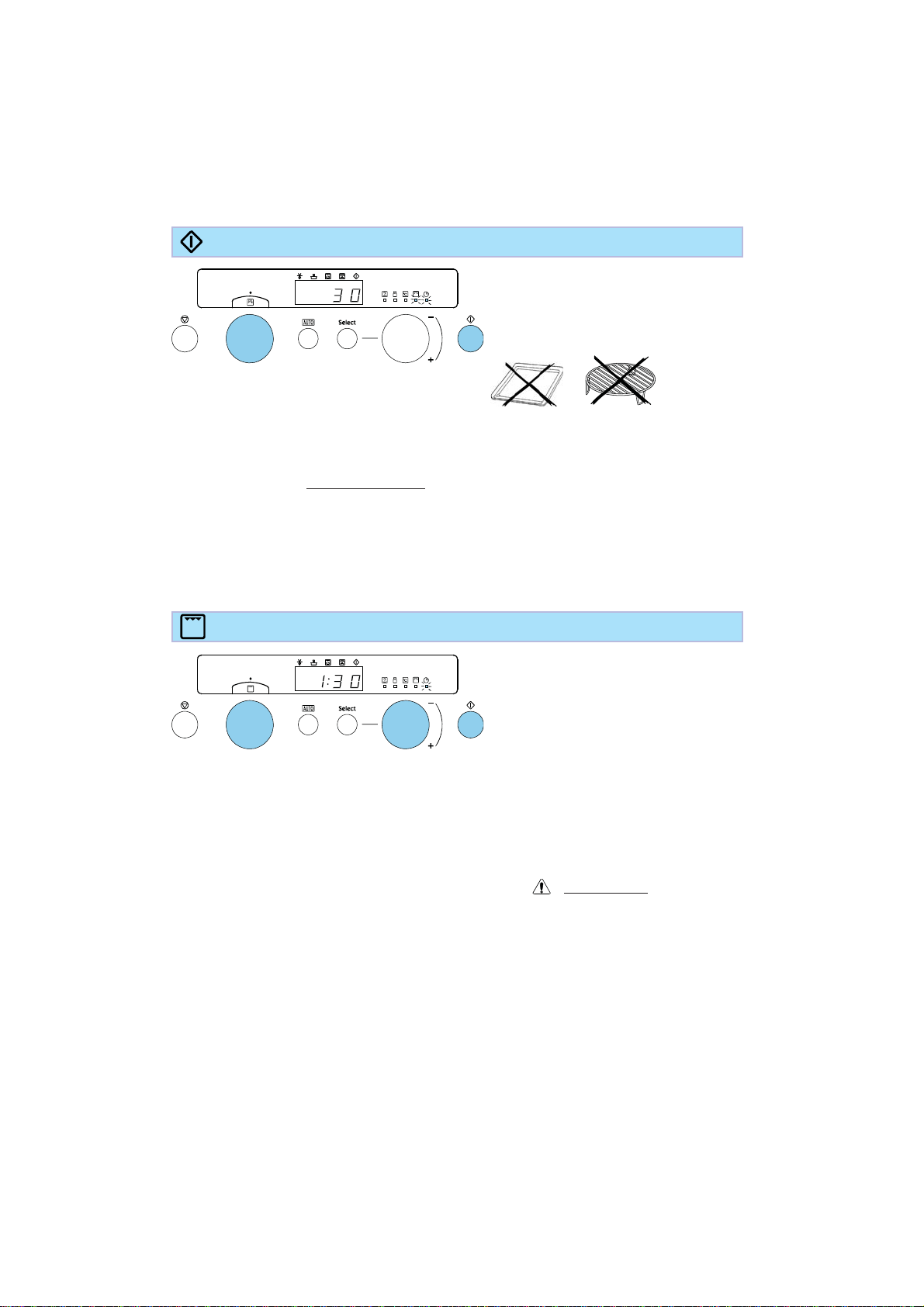

COOK & REHEAT WITH MICROWAVES

USE THIS FUNCTION for normal cooking

and reheating, such as vegetables, sh,

potatoes and meat.

ONCE THE COOKING PROCESS HAS BEEN STARTED:

The time can easily be increased in 30-second

steps by pressing the Start button. Each press

increases the time with 30 seconds. You may

also alter the time by turning the +/- knob to

increase or decrease the time.

By pressing the Select button you may switch

between cooking time and power level. Both

can be altered during cooking by turning the

+/- knob after selection.

13245

ANACOUSTIC SIGNAL will be heard when the timer

has nished to count down.

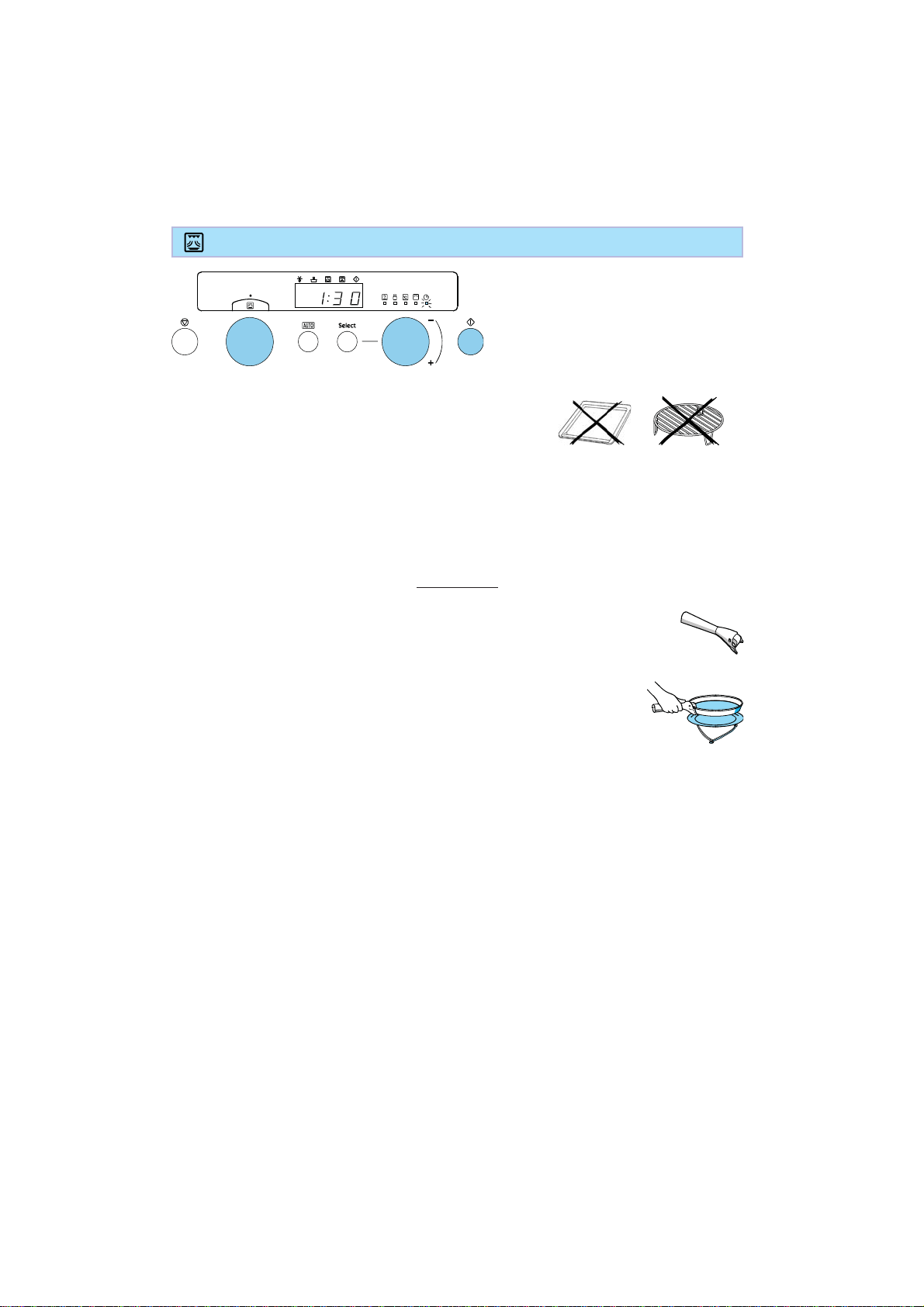

GRILL

USE THIS FUNCTION TO quickly give a pleasant

brown surface to the food.

1. Turn the multifunction knob to the grill

position.

2. Turn the +/- knob to set the cooking time.

3. Press the Start button.

DONOT LEAVE THE OVEN door open for long

periods when the Grill is in operation, as this

will cause a drop in temperature.

123

JET START

This function is used for quick reheating

of food with a high water content such as;

clear soups, coee or tea.

This function automatically starts with

full microwave power level and the cooking

time set to 30 seconds. Each additional press

increases the time with 30 seconds. You may

also alter the time by turning the +/- knob to

increase or decrease the time after the function

has started.

1. Turn the multifunction knob to the

microwave position.

2. Press the Start button.

IMPORTANT!

ENSURE that the utensils used are heat resistant

and ovenproof before grilling with them.

DONOT use plastic utensils when grilling. They

will melt. Items of wood or paper are not suitable

either.

Do not use with this function.

FOR FOOD LIKE cheese, toast, steaks and sausages,

place the wire grid on top of the baking plate.

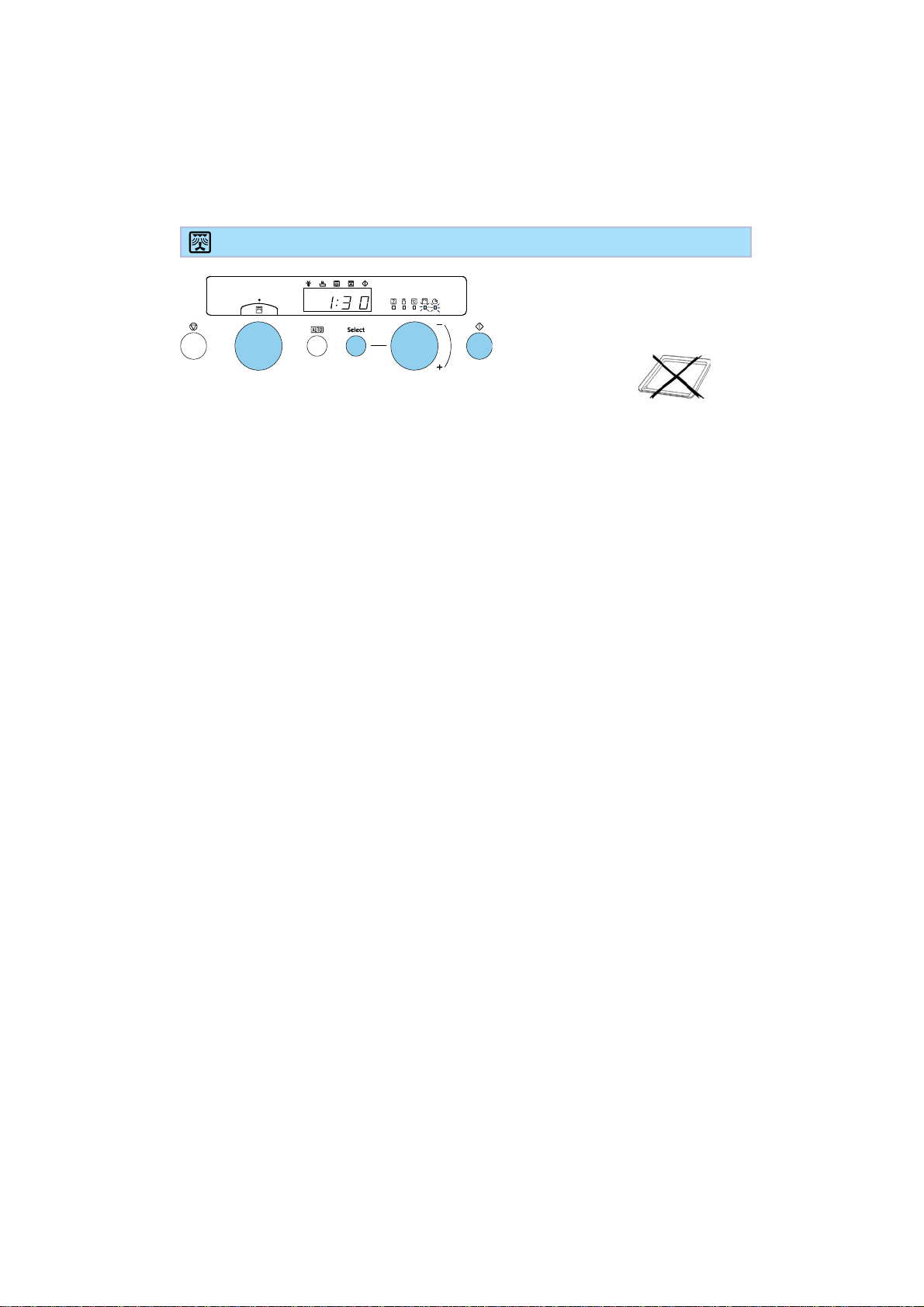

TURBO GRILL COMBI

1. Turn the multifunction knob to the Turbo

Grill position.

2. Turn the +/- knob to set the power level.

3. Press the Select button to select cooking

time.

4. Turn the +/- knob to set the cooking time.

5. Press the Start button.

The Max. possible microwave power level

when using the Turbo Grill is limited to a

factory-preset level.

USE THIS FUNCTION TO cook such food as

Gratin’s, Lasagne, Poultry and Baked

potatoes.

345

Do not use with this function.

PLACE FOOD on the wire rack or on the glass

turntable when cooking with this function.

CRISP

USE THIS FUNCTION TO reheat and cook pizzas

and other dough based food. It is also

good for frying bacon and eggs, sausages,

hamburgers etc.

1. Turn the multifunction knob to the crisp

position.

2. Turn the +/- knob to set the cooking time.

3. Press the Start button.

THE OVEN AUTOMATICALLY works with Microwaves

and Grill in order to heat the Crisp-plate.

This way the Crisp-plate will rapidly reach its

working temperature and begin to brown and

crisp the food.

IMPORTANT!

123

Do not use with this function.

ITIS NOT POSSIBLE to change or switch, the Power

level or Grill, on/o, when using the Crisp

function.

ENSURE that the Crisp-plate is correctly placed in

the middle of the Glass turntable.

THE OVEN AND THE CRISP-PLATE become very hot when

using this function.

DONOT PLACE THE HOT CRISP-PLATE on any surface

susceptible to heat.

BECAREFUL, NOT TO TOUCH the ceiling beneath the

Grill element.

USE OVEN MITTENS or THE SPECIAL CRISP

HANDLE supplied when removing the

hot Crisp-plate.

ONLY USE the supplied Crisp plate

with this function. Other

available Crisp plate on the

market will not give the

correct result when using this

function.

Table des matières

Autres manuels Whirlpool Four à micro-ondes

Whirlpool

Whirlpool AMW 585 IX Manuel utilisateur

Whirlpool

Whirlpool MH6700XM Manuel utilisateur

Whirlpool

Whirlpool AMW 160 IX Manuel utilisateur

Whirlpool

Whirlpool WMHA9019EN Manuel utilisateur

Whirlpool

Whirlpool Roper MHE14XMB0 Manuel utilisateur

Whirlpool

Whirlpool MW3500XM Manuel utilisateur

Whirlpool

Whirlpool MH7lOOXY Manuel utilisateur

Whirlpool

Whirlpool AMW 831 Manuel utilisateur

Whirlpool

Whirlpool MH6140XF Manuel utilisateur

Whirlpool

Whirlpool REDACU2S519 Manuel utilisateur

Whirlpool

Whirlpool MT3185SH Manuel utilisateur

Whirlpool

Whirlpool GSC309PVS - 30in Built-in Microwave Combination Double Wall... Manuel utilisateur

Whirlpool

Whirlpool WOC75EC7H Manuel utilisateur

Whirlpool

Whirlpool YMT4155SP Manuel utilisateur

Whirlpool

Whirlpool MH1160XSB3 Manuel utilisateur

Whirlpool

Whirlpool MW8300XP Manuel utilisateur

Whirlpool

Whirlpool MT1071SG Manuel utilisateur

Whirlpool

Whirlpool 8206588 Manuel utilisateur

Whirlpool

Whirlpool MH3184XPS Manuel utilisateur

Whirlpool

Whirlpool AVM585/IX Manuel utilisateur

Whirlpool

Whirlpool AMW 761 Manuel d'utilisation et d'entretien

Whirlpool

Whirlpool AMW 599 Manuel d'utilisation et d'entretien

Whirlpool

Whirlpool MH1170XSB2 Manuel utilisateur

Whirlpool

Whirlpool AMW 735 IX Manuel utilisateur

Manuels Four à micro-ondes populaires d'autres marques

Daewoo

Daewoo KOG-574R0S Manuel utilisateur

LG MH7040SS Manuel utilisateur

Sharp

Sharp R-895(AL)M Manuel utilisateur

Dometic

Dometic DOTRM13W Manuel utilisateur

Sanyo

Sanyo EM-X680 Manuel utilisateur

Sharp

Sharp R-393M Manuel utilisateur

KitchenAid

KitchenAid KMCX4510 Instructions d'installation

Smeg

Smeg S45MCX1 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHM2044 Manuel utilisateur

Sunbeam

Sunbeam SMW759 Manuel utilisateur

Gallet

Gallet FMOE230S Manuel utilisateur

Bosch

Bosch CEG732X.1B Manuel utilisateur

Dometic

Dometic Roadmate 230 Manuel utilisateur

Samsung

Samsung SJ0396W Manuel utilisateur

Sanyo

Sanyo EM-P494WS Manuel utilisateur

Sharp

Sharp R-240 Manuel utilisateur

Electrolux

Electrolux EMS2840 Manuel utilisateur

Daewoo

Daewoo KOC-984T2S13 Manuel utilisateur
