UseAndCare

A Note to You ................. 2

- Ice Maker Safety ............ 3

Parts and Features ........ 4

Using Your Ice Maker .... 5

T Cleaning Your

Ice Maker ........................ 9

q Vacation and

‘/I Warrantv ....................... 22

Index ............................. 21

In the U.S.A. for assistance or service,

call the Consumer Assistance Center:

1-800-253-I 301

AUTOMATIC ICE MAKER

A Note to You

Thank you for buying a WHIRLPOOL* appliance.

Because your life is getting busier and more complicated, WHIRLPOOL appliances are easy

to use, save time, and help you manage your home better. To ensure that you enjoy years of

trouble-free operation, we developed this Use and Care Guide. It is full of valuable informa-

tion about how to operate and maintain your appliance properly and safely. Please read it

carefully.

Also, please complete and mail the Product Registration Card provided with your appli-

ance. The card helps us notify you about any new information for your appliance.

Please record your model’s information.

Whenever you call to request service on

Model Number

your appliance, you need to know your

complete model number and serial number.

Serial Number

You can find this information on the model

Purchase Date

and serial number label/plate (see diagram

Dealer Name

on page 4 for location of plate).

Please also record the purchase date of

your appliance and your dealer’s name,

address, and telephone number.

Dealer Address

Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

In the U.S.A., call our Consumer

Assistance Center toll free.

1-800-253-1301 1

In Canada, for assistance or service, see the “Requesting

Assistance or Service” section. I

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your

appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to hazards that can kill or hurt you and others.

All safety messages will be preceded by the safety alert symbol and

the word “DANGER” or “WARNING.” These words mean:

You will be killed or seriously injured

if you don’t follow instructions.

You can be killed or seriously injured

if you don’t follow instructions.

All safety messages will identify the hazard, tell you how to reduce the chance of

injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

- To reduce the risk of fire, electric shock, or injury when using your

ice maker, follow these basic precautions:

l Plug into grounded 3 prong outlet. l Disconnect power before servicing.

l Do not remove ground prong. l Replace all panels before operating.

l Do not use an adapter. l Use two or more people to move or install

l Do not use an extension cord. ice maker.

l Disconnect power before cleaning.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please be sure your ice maker:

l Is installed where it is protected from l Is connected only to the proper kind of

the elements. outlet, with the correct electric supply and

l Is located so that the front is not blocked to grounding. A 120 Volt, 60 Hz., 15 Amp

restrict incoming or discharged air flow. fused electrical supply is required.

. Is properly leveled. NOTE: Time delay fuse or circuit breaker

l Is located in a well ventilated area with is recommended.

temperatures above 55°F (13°C) and . Is not used by anyone unable to operate

below 110°F (43°C). Best results are it properly.

obtained at temperatures between 70°F l Is used only to do what ice makers are

(21°C) and 90°F (32°C). designed to do.

l Is properly connected to a water supply l Is properly maintained.

and drain.

Parts and Features

This section contains captioned illustrations of your appliance. Use them to become familiar

with the location and appearance of all parts and features.

Model and serial

number plate

(located on leti

cabinet wall)

Ice retainer baffle -

b 13)

Lower access

panel

(P.

(P.6)

Cycle control

- knob

(P.

Ice bin

Using Your Ice Maker

In order to obtain the best possible results from your ice maker, you must operate it properly.

This section will tell you how to do just that.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or

electrical shock.

Understanding how your ice maker works

1. Water is constantly circulated over a

freezing plate. As the water freezes into

ice, the minerals in the water are rejected.

This produces a sheet of ice with a low

mineral content.

NOTE: The ice maker is designed to

make clear ice from the majority of water

sources on a daily basis. If your results

are unsatisfactory, water may need to be

filtered or treated. See “Filtering and

treating water” on page 15.

2. When the desired thickness is reached,

the ice sheet is released and slides onto

a cutter grid. The grid divides the sheet

into individual cubes.

3. The water containing the rejected miner-

als is drained after each freezing cycle.

4. Fresh water enters the machine for the

next ice making cycle.

5. Cubes fall into the storage bin. When the

bin is full, the ice maker shuts off auto-

matically and restarts when more ice is

needed.

Setting the controls

1. Select ice thickness. The ice maker has

been preset to produce ice approximately

l/2” (13 mm) thick, while operating in a

room temperature of 70°F (21 “C).

Operation in different room tempera-

tures may require readjusting the Ice

Thickness Control Knob toward “THICK”

or “THIN.”

Best operation will be obtained with ice

%” (13 mm) to ,h” (16 mm) thick.

If operating in a warm room (above 90°F

[32”C]) do not set control to maximum

thickness or the unit may malfunction.

2. To start the normal ice making cycle, turn

the Cycle Control Knob to “ON.”

3. To stop ice maker operation, turn Cycle

Control Knob to “OFF.”

The “CLEAN” setting is used whenever solu-

tions are circulated through the ice maker for

cleaning. Only the water pump operates at

this setting. See “Cleaning the ice maker

system” on page 11 for specific instructions.

Changing the bin door panel

You can easily change the color of the front

panel on the storage bin door. Two colors

are available: Black and White.

To change bin door panel:

1. Open the storage bin door. Remove the

2 screws on the top of the door, which

hold the handle.

2. Loosen the screws in both of the side trim

pieces.

3. Remove the handle and the handle insert.

Screws

(both

sides)

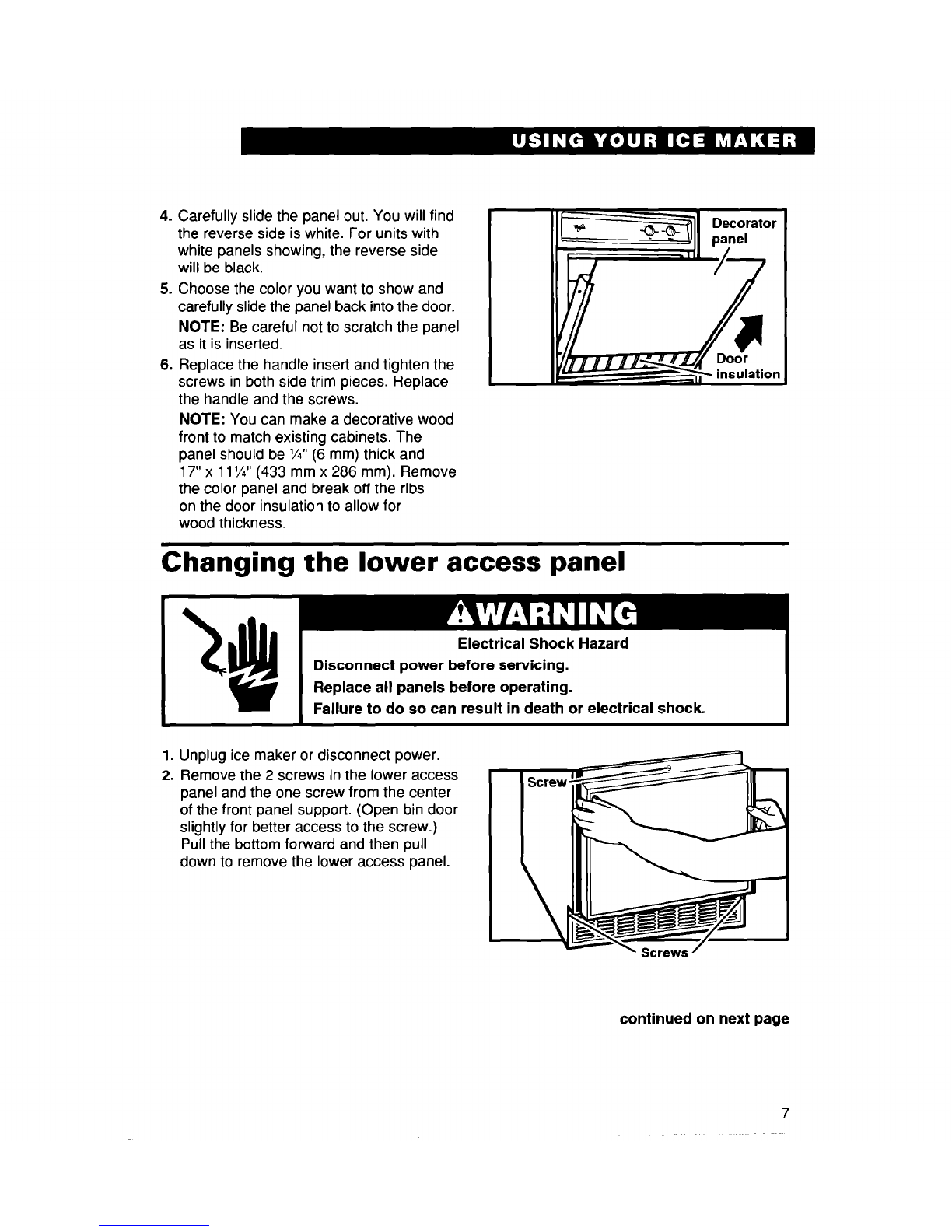

4. Carefully slide the panel out. You will find

the reverse side is white. For units with

white panels showing, the reverse side

will be black.

5. Choose the color you want to show and

carefully slide the panel back into the door.

NOTE: Be careful not to scratch the panel

as it is inserted.

6. Replace the handle insert and tighten the

screws in both side trim pieces. Replace

the handle and the screws.

NOTE: You can make a decorative wood

front to match existing cabinets. The

panel should be 97’ (6 mm) thick and

17” x 11%” (433 mm x 286 mm). Remove

the color panel and break off the ribs

on the door insulation to allow for

wood thickness.

Changing the lower access panel

Electrical Shock Hazard

Disconnect power before servicing.

Replace all panels before operating.

Failure to do so can result in death or electrical shock.

1. Unplug ice maker or disconnect power.

2. Remove the 2 screws in the lower access

panel and the one screw from the center

of the front panel support. (Open bin door

slightly for better access to the screw.)

Pull the bottom forward and then pull

down to remove the lower access panel.

continued on next page

3. Remove the 2 screws from the top panel

trim and remove the top trim.

4. Carefully slide the panel out.

5. Choose the color you want to show and

carefully slide the panel back into the

lower access panel.

NOTE: Be careful not to scratch the panel

as it is inserted.

6. Replace the top trim and screws. Replace

the lower access panel assembly and

screws.

NOTE: You can make a decorative wood

front to match existing cabinets. The

panel should be W’ (6 mm) thick and

17” x 11%” (433 mm x 303 mm).

Remove the color panel and spacers

to allow for wood thickness.

7. Plug in ice maker or reconnect power.

Cleaning Your Ice Maker

Periodically inspect and clean the ice maker

to keep it operating at peak efficiency and

to prevent premature failure of system

components.

Both the ice making system and the air

cooled condenser need to be cleaned

regularly.

The minerals rejected from the circulating

water during the freezing cycle will eventu-

ally form a hard scaly deposit in the water

system which prevents a rapid release of

the ice from the freezing plate.

Clean the ice and water system periodi-

cally to remove mineral scale buildup.

Frequency of cleaning depends on water

hardness. With hard water (15 to 20 grains/

gal. [4 to 5 grains/liter]), cleaning may be

required as frequently as every 6 months.

Cleaning exterior surfaces

Wash the exterior enamel surfaces and

gaskets with warm water and mild soap or

detergent. Wipe and dry. Regular use of a

good household appliance cleaner and wax

will help protect the finish.

Do not use abrasive cleaners on

enamel surfaces as they may scratch

the finish.

Cleaning the condenser

Electrical Shock Hazard

Disconnect power before cleaning.

Replace all panels before operating.

Failure to do so can result in death or electrical shock.

A dirty or clogged condenser:

l Prevents proper airflow.

l Reduces ice making capacity.

l Causes higher than recommended oper-

ating temperatures which may lead to

component failure.

1. Unplug ice maker or disconnect power.

2. Remove the 2 screws in the lower access

panel area and the one screw from the

center of the front panel support. (Open

bin door slightly for better access to the

screw.)

3. Pull the bottom forward and then pull

down to remove the lower access panel.

4. Remove dirt and lint from the condenser

fins and the unit compartment with a

brush attachment attached to a vacuum

cleaner.

5. Replace the lower access panel and

screws. The top of the access panel

needs to be secured under the 2 metal

tabs before replacing the screws,

6. Plug in ice maker or reconnect power.

Table des matières

Langues :

Autres manuels Whirlpool Machine à glaçons

Whirlpool

Whirlpool AGB 473/WP Manuel utilisateur

Whirlpool

Whirlpool Ice Maker Manuel utilisateur

Whirlpool

Whirlpool EC5100XP Manuel utilisateur

Whirlpool

Whirlpool 50 Manuel utilisateur

Whirlpool

Whirlpool ICE CUBES MAKERS Series Manuel utilisateur

Whirlpool

Whirlpool GI15NFRTB0 Manuel utilisateur

Whirlpool

Whirlpool 2180633 Manuel utilisateur

Whirlpool

Whirlpool GI15NDXTB4 Manuel utilisateur

Whirlpool

Whirlpool ECKMF94 - Automatic Ice Maker Manuel utilisateur

Whirlpool

Whirlpool 50 Manuel utilisateur

Whirlpool

Whirlpool GI15NFRT Manuel utilisateur

Whirlpool

Whirlpool ECKMF-28 Manuel utilisateur

Whirlpool

Whirlpool IC13B Manuel utilisateur

Whirlpool

Whirlpool W11390949A Manuel utilisateur

Whirlpool

Whirlpool GI15NDXZQ0 Manuel utilisateur

Whirlpool

Whirlpool Cornelius JEACS50SLF1 Manuel utilisateur

Whirlpool

Whirlpool CHE-12RC Manuel utilisateur

Whirlpool

Whirlpool GI1500XH Instructions d'utilisation

Whirlpool

Whirlpool GI15NFRXB0 Manuel utilisateur

Whirlpool

Whirlpool EC510 Manuel utilisateur

Whirlpool

Whirlpool GI15NDXX Manuel de la liste des pièces

Whirlpool

Whirlpool GI15NFRTS - INSTALLATION REV A Manuel utilisateur

Whirlpool

Whirlpool ECKMF-831 Manuel utilisateur

Whirlpool

Whirlpool AGB836/WP Manuel utilisateur

Manuels Machine à glaçons populaires d'autres marques

Hoshizaki

Hoshizaki KMD-460MWJ Manuel utilisateur

Sub-Zero

Sub-Zero 315I Instructions d'utilisation

Unold

Unold 48945 Manuel utilisateur

Kenmore

Kenmore 2217402A Manuel utilisateur

Cornelius

Cornelius WM600 Mode d'emploi

GE XPIO43SCSS Manuel utilisateur

Hoshizaki

Hoshizaki KMD-901MAH Manuel utilisateur

Whynter

Whynter FIM-450HA Manuel utilisateur

U-Line

U-Line UMCR014-SC01A Manuel d'installation

Andrew James

Andrew James AJ000522 Manuel utilisateur

Scotsman

Scotsman CME1356 Manuel utilisateur

Scotsman

Scotsman ACM 25 Manuel utilisateur

Kärcher

Kärcher IP 120 Manuel utilisateur

U-Line

U-Line SS1095 Manuel utilisateur

Maytag

Maytag MIM1554WRS - Ice Maker Manuel utilisateur

Hoshizaki

Hoshizaki KM-630MAH Manuel utilisateur

Princess

Princess Yonanas Manuel utilisateur

Unold

Unold 48946 Manuel utilisateur
