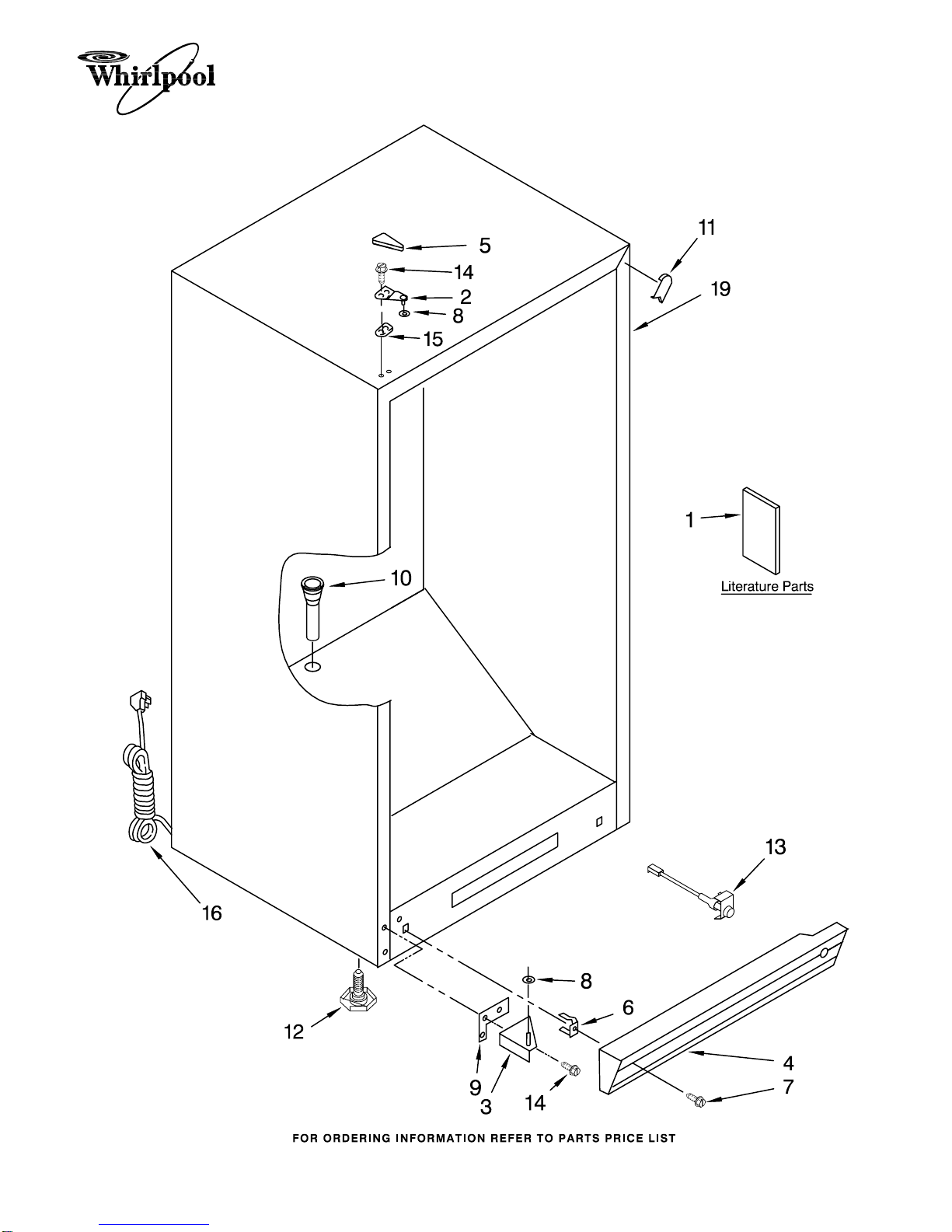

CABINET PARTS

For Model: EV120NXRQ00

(White)

3−06 Litho In U.S.A. (tpm) Part No. 8214787

VERTICAL FREEZER

CABINET PARTS

For Model: EV120NXRQ00

(White)

8214787

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8210432 Owners Manual

8210387 Energy Guide/Tag

2 8210222 Hinge, Top

3 8210238 Hinge, Bottom

4 4357271 Grille

(Includes 6 & 7)

5 Cover, Hinge

4357279 White

6 4356803 Clip, Grille

7 4357243 Screw

8 4390520 Washer

9 4390489 Shim, Bottom

10 4357268 Grommet, Drain

11 Filler, Corner

8210227 White

12 4390866 Leg, Leveller

13 4390905 Power Light

Assembly

14 4356830 Screw

15 4390489 Shim, Hinge

16 8210403 Cord, Power

19 Cabinet (Not A

Serviceable Part)

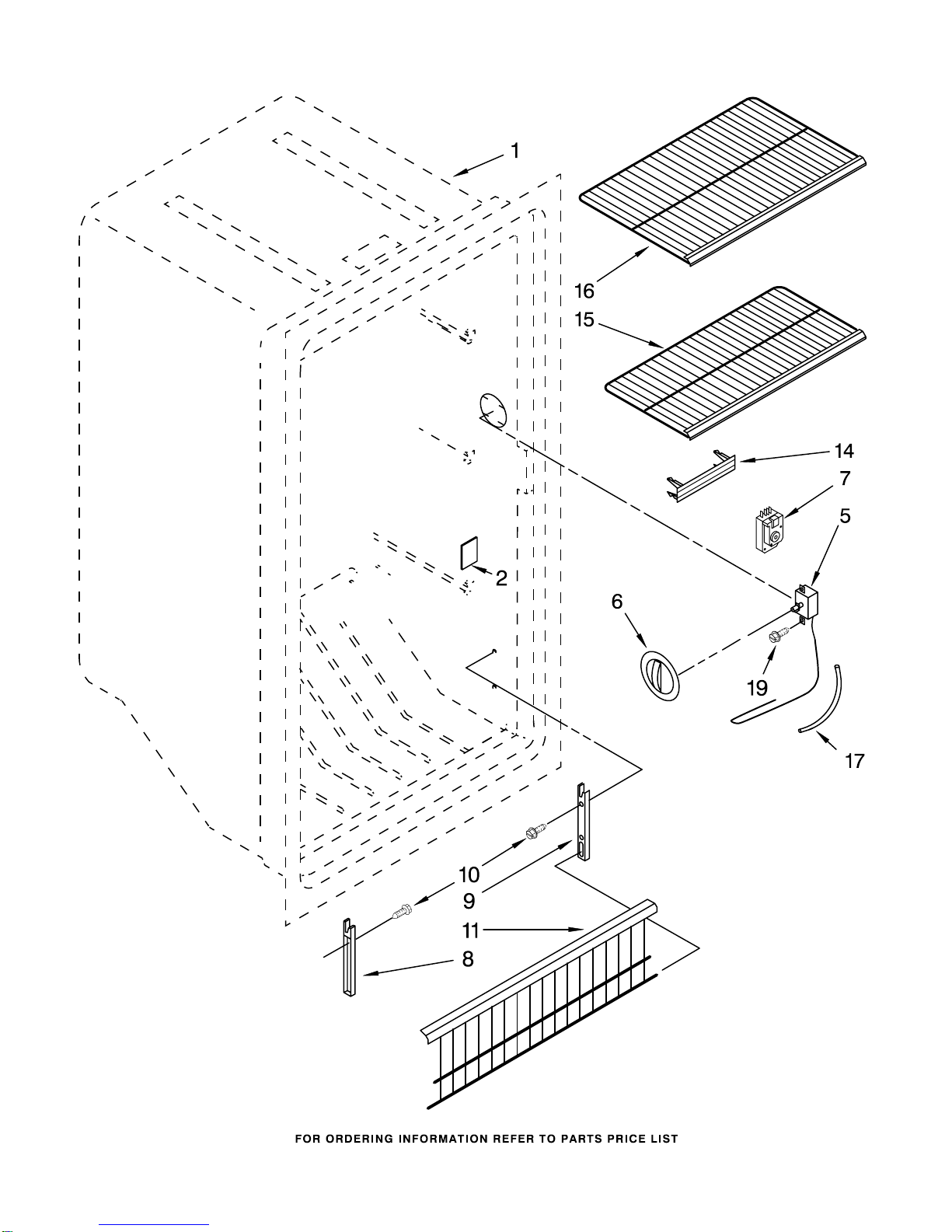

LINER PARTS

For Model: EV120NXRQ00

(White)

8214787

LINER PARTS

For Model: EV120NXRQ00

(White)

8214787

Illus. Part

No. No. DESCRIPTION

1 Liner ( Not A

Serviceable Part)

2 4390649 Cover,

Icemaker Hole

5 8210344 Thermostat

6 8210348 Knob, Thermostat

7 8210253 Timer, Defrost

8 4357294 Support,

Fence (L.H.)

9 4357293 Support

Fence (R.H.)

10 4356891 Screw

11 4357179 Gate

14 4357295 Vent

15 8210337 Shelf, Middle (1)

16 8210336 Shelf, Top (2)

17 8210246 Tubing, Thermostat

19 4390798 Screw

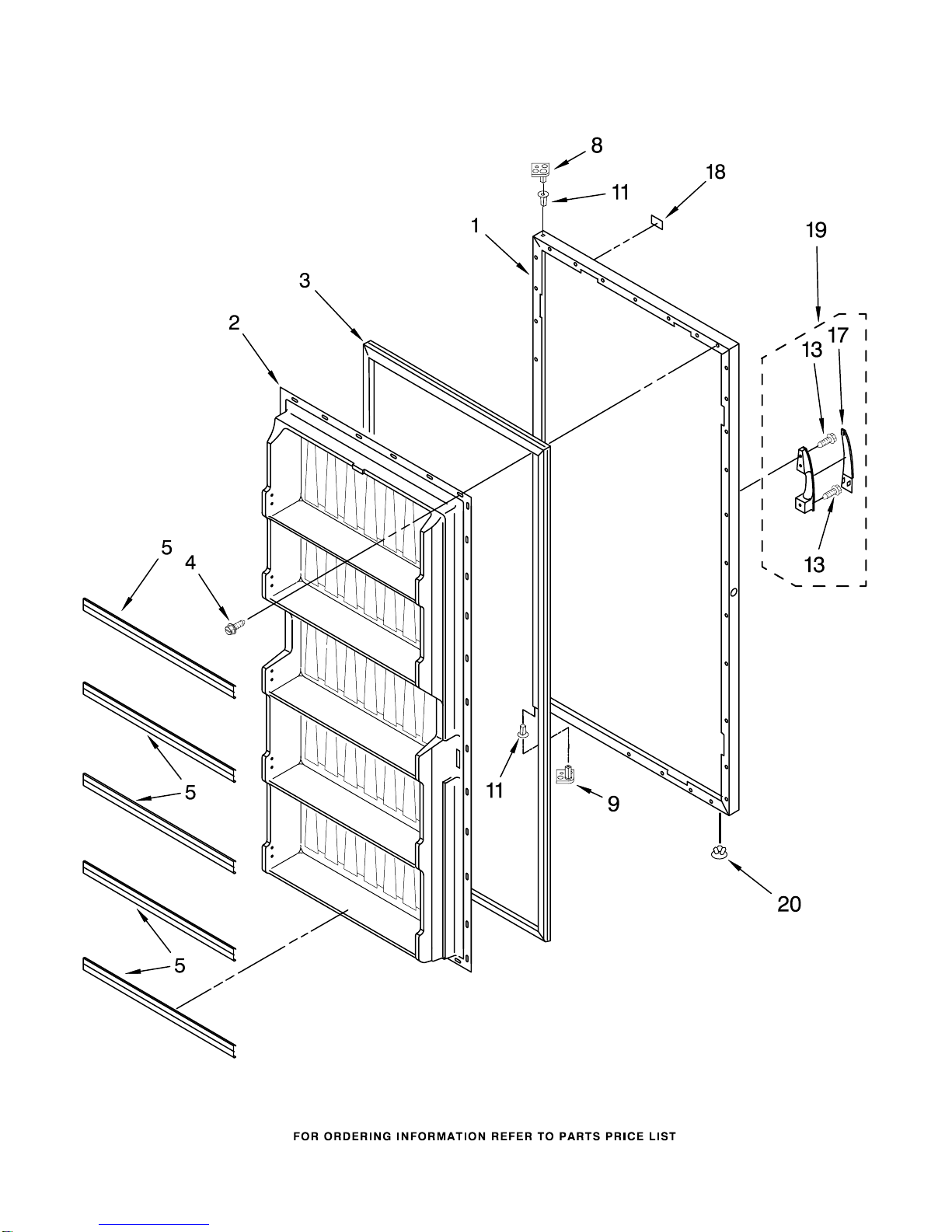

DOOR PARTS

For Model: EV120NXRQ00

(White)

8214787

DOOR PARTS

For Model: EV120NXRQ00

(White)

8214787

Illus. Part

No. No. DESCRIPTION

1 Exterior Door

8210365 White

(Includes

Insulation)

2 8210393 Panel, Interior

3 Gasket

4357136 White

4 4357290 Screw Kit

(Quantity 50)

5 4390606 Trim, Shelf (5)

8 8210401 Stop, Top

Door (White)

9 8210400 Stop, Bottom

Door (Natural)

11 4390731 Bushing

13 4390669 Screw

17 4390668 Trim, Handle

18 Nameplate

4390656 White

19 Handle Kit

4390667 White

20 4357067 Vent Plug

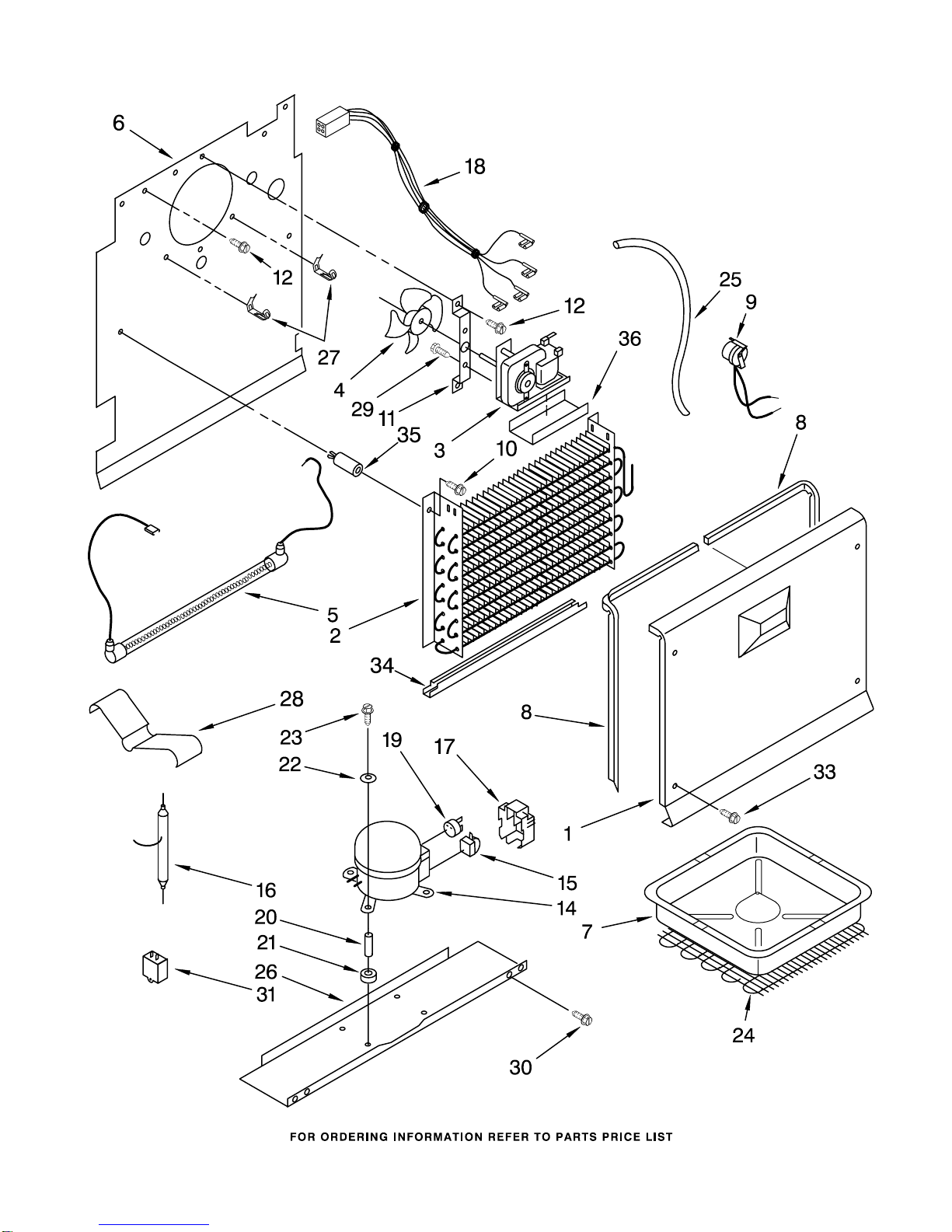

UNIT PARTS

For Model: EV120NXRQ00

(White)

8214787

UNIT PARTS

For Model: EV120NXRQ00

(White)

8214787

Illus. Part

No. No. DESCRIPTION

1 4390662 Cover, Evaporator

2 8210391 Evaporator

3 4357004 Motor, Fan

4 4356920 Blade, Fan

5 8210389 Heater, Defrost

6 8210388 Plate, Evaporator

Mounting

7 4390675 Pan, Drain

8 Gasket, Evaporator

Cover

4390663 Right

4390664 Left

9 8210253 Bi−Metal Defrost

10 4357110 Screw

11 4357129 Bracket, Motor

12 4356943 Screw, Motor

14 4390734 Compressor

(Includes Items

15,16,17,19 & 21)

15 4356738 Relay

16 4357299 Drier

17 4356777 Cover

18 8210376 Harness, Fan

19 4390624 Overload

20 4356846 Sleeve

21 4356335 Compressor,

Grommet

22 4356847 Washer

23 8210220 Screw, Compressor

24 8210248 Condenser

25 4357263 Exchanger, Heat

26 4357056 Pan, Compressor

27 4356952 Thermostat, Clip

28 8210390 Clip, Heater

29 4356970 Screw

30 4357277 Screw

31 8210273 Capacitor

33 4357110 Screw

34 4356924 Shield, Heater

35 4357020 Grommet

36 4357128 Shield, Motor

REFRIGERANT CHARGE

5.8 oz.

(R−134A)

OPTIONAL PARTS (NOT INCLUDED)

For Model: EV120NXRQ00

(White)

8214787

Illus. Part

No. No. DESCRIPTION

Customer Touch−Up Material

350930 Enamel, White

(13 Oz. Spray Can)

350939 Enamel, Black

(13 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

72032 Brush Touch−Up Kit

(Black)

Important: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

Refinishing Material

799344 Enamel, White

(1 Qt. Uncut)

Miscellaneous

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4 x 108")

978941 Insulation

Fiberglass

(63−1/2" x 35−1/2

x 2−5/8")

505587 Sealer Mastic

(1 Qt.)

503695 Cork Sealer

(1/4 Pound)
