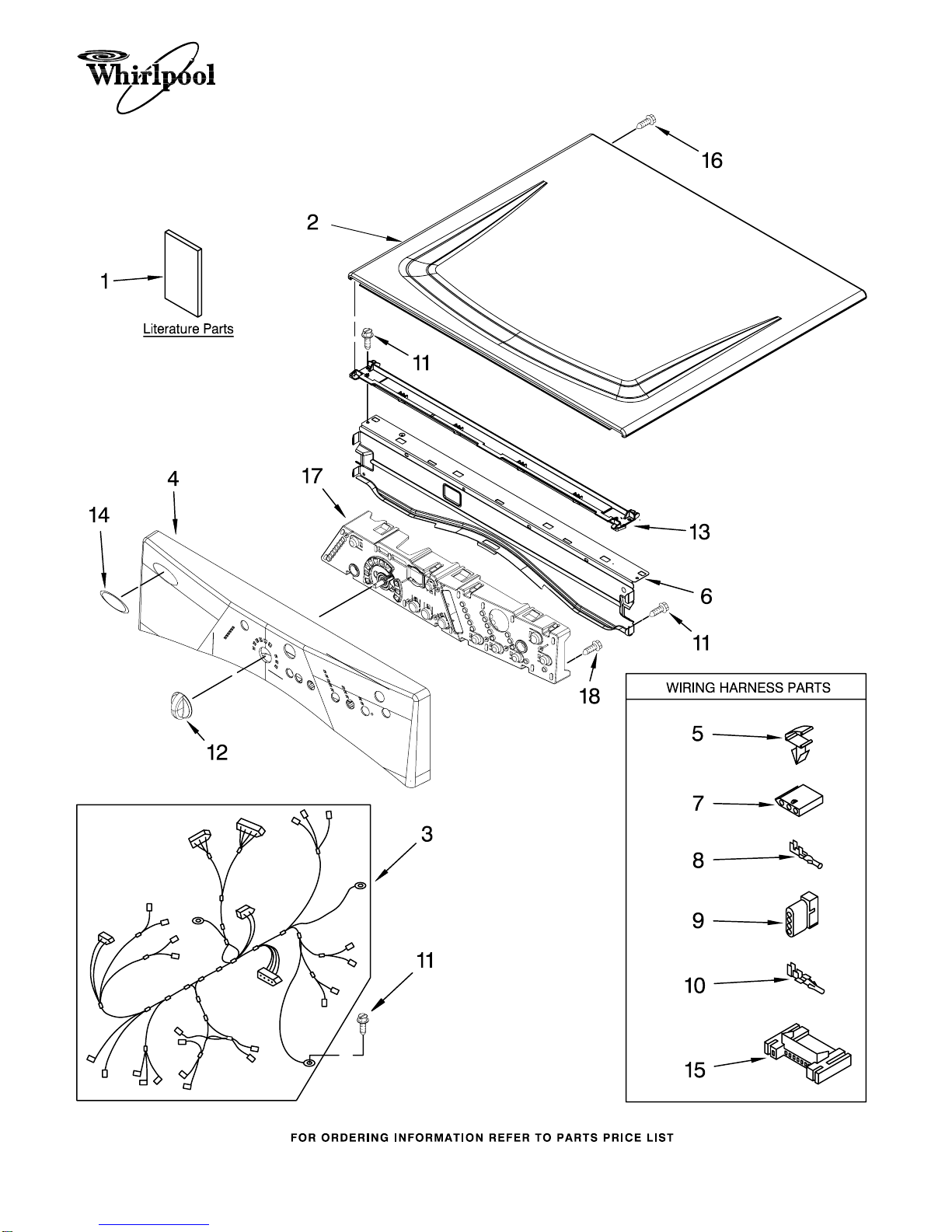

TOP AND CONSOLE PARTS

For Model: WGD8300SW1, WGD8300SB1

(White) (Black)

4−08 Printed in U.S.A. (LT) Part No. W10159012 Rev. A

27" GAS DRYER

TOP AND CONSOLE PARTS

For Model: WGD8300SW1, WGD8300SB1

(White) (Black)

W10159012

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8578902 Use & Care Guide

8578904 Guide,

Quick Start

8578834 Tech Sheet

2 Top

8563730 White

W10129703

Black

W10110973

Harness, Main

4 Panel, Console

W10099598

White

W10099631

Black

5 3394427 Clip, Harness

6 8565237 Bracket, Console

7 353424 Connector, Sensor

8 94614 Terminal

9 3936144 Plug, Terminal

10 94613 Terminal

11 3390647 Screw, 8−18 x 1/2

12 Knob

8574963 White

W10129067

Black

13 8574968 Channel, Water

W10117943

Badge, Assembly

15 3395683 Connector,

(Motor)

16 3400238 Screw, 2−28 x 1/2

17 8571955 Assembly,

User Interface

18 3400238 Screw, 2−28 x 1/2

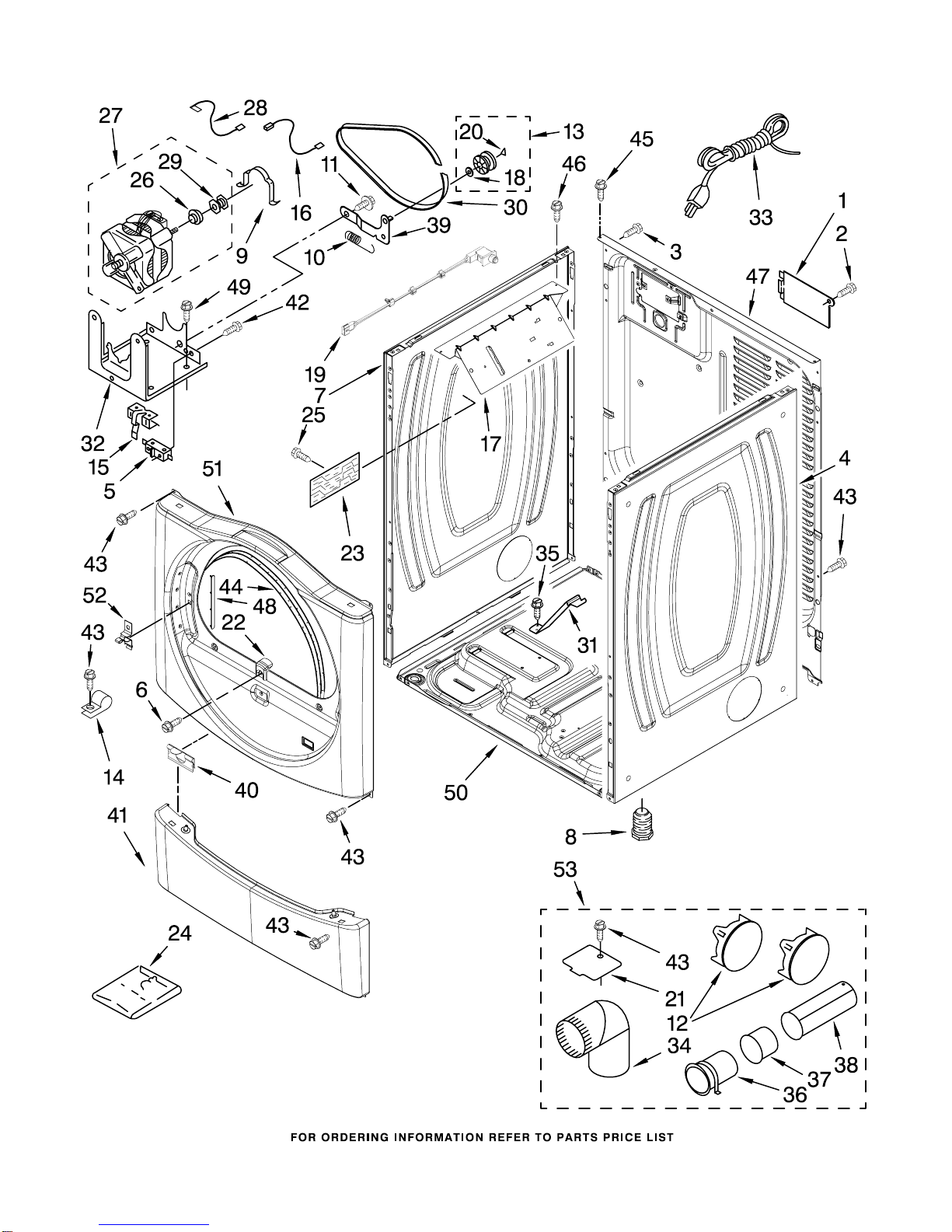

CABINET PARTS

For Model: WGD8300SW1, WGD8300SB1

(White) (Black)

W10159012

CABINET PARTS

For Model: WGD8300SW1, WGD8300SB1

(White) (Black)

W10159012

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8317340 Cover,

Terminal Block

2 3390814 Screw, 8−18 x 3/8

3 8533974 Screw Ground

4 Panel, Side (R.H.)

8565048 White

W10112963

Black

5 3394881 Switch, Broken

Belt

6 3357011 Screw, 10−16 x 1/2

7 Panel, Side (L.H.)

8565054 White

W10112962

Black

8 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

9 660658 Clamp, Motor (2)

10 3387374 Spring, Idler

11 3389420 Retainer, Idler

12 Plug, Multivent

697750 White

3388309 Black

13 3388672 Pulley Assembly

14 3978776 Bracket,

Gas Pipe

15 8066120 Lever, Snap

Switch

16 3394081 Wire, Belt Switch

17 8563727 Bracket, Control

W10121334

Washer, Thrust

19 8574875 Switch, Assembly

Door

20 690997 Tri Ring

21 8066115 Cover−Plate

22 8580015 Ramp, Door

W10111606

Control Board

24 8572546 Kit,

Stack Assembly

25 8533971 Screw, 8−18 x 5/16

26 3393657 Restrainer, Belt

27 8538263 Motor Assembly

60 HZ.

28 3398948 Wire, Jumper

(Broken Belt

Switch)

29 3389729 Pulley 60 HZ.

30 3387610 Belt, Drive

31 8529757 Bracket, Burner

32 3387118 Bracket, Motor

33 3401401 Cord, Power

34 49026 4" − 90 Elbow

35 693995 Screw, 8−18 x 3/8

36 3395532 Exhaust Pipe

& Bracket

37 3395534 Exhaust Pipe

(Short)

38 3395535 Exhaust Pipe

(Long)

39 3388674 Idler Bracket

40 8519459 Clip, Toe Panel

41 Toe, Panel

8540621 White

W10112964

Black

42 98129 Screw,

6−20 x 1 1/16

43 3390647 Screw, 8−18 x 1/2

44 3387242 Seal, Front Panel

45 3393008 Screw, 10−16 x 1/2

46 688983 Screw,8−18 x 1/16

47 8565059 Panel, Rear

48 8565043 Plug, Strip

Front Panel

49 343641 Screw, 10−16 x 1/2

50 8565046 Base, Cabinet

51 Front Panel

(Includes Illus. 44)

8580257 White

W10129648

Black

52 8565122 Strike, Door (1)

Optional Parts Not Included

Dryer Exhaust Kit

(For Side & Bottom Venting)

53 279818 White

279820 Black

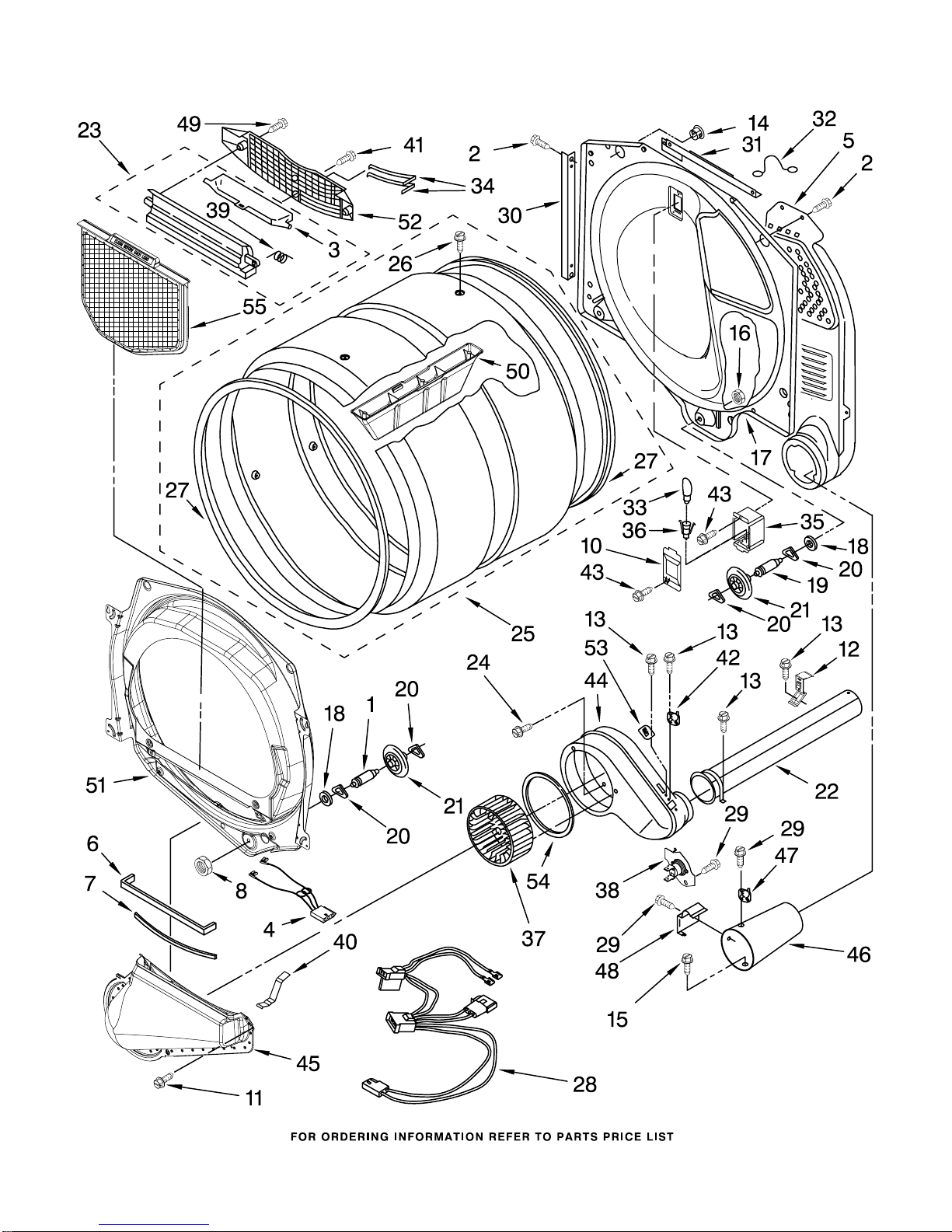

BULKHEAD PARTS

For Model: WGD8300SW1, WGD8300SB1

(White) (Black)

W10159012

BULKHEAD PARTS

For Model: WGD8300SW1, WGD8300SB1

(White) (Black)

W10159012

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8575325 Shaft, R.H. Thread

2 3390647 Screw, 8−18 x 1/2

W10153413

Door, Lint

Screen

4 3406653 Harness, Sensor

5 3394346 Air Duct Assembly

6 697813 Seal, Outlet

Housing

7 697814 Seal, Drum Front

8 3934666 Nut,3/8 x 16(R.H.)

10 3402841 Lens,

Drum Light

11 359625 Screw, 8−18 x 1/2

12 8572105 Clip, Exhaust

Pipe

13 8533971 Screw, 8−18 x 5/16

14 8529007 Plug,

Rear Bulkhead

15 693995 Screw, 8−18 x 3/8

W10001120

Nut, 3/8−16 (L.H.)

17 8520836 Bulkhead, Rear

18 3387459 Washer, Support

19 8575324 Shaft, L.H. Thread

20 690997 Ring, Tri

21 8536973 Roller, Support

22 8563728 Exhaust Pipe

W10153423

Housing, Outlet

Assembly

24 489463 Screw, 8−18 x 5/8

W10153420

Complete Drum

Assembly

W10109200

Screw, 11−16 x 3/4

27 697694 Seal, Drum

28 3401850 Harness−Gas

29 90767 Screw, 8−18 x 3/8

30 8519221 Channel Bracket,

Rear Bulkhead (2)

31 8571651 Bracket, Upper

Rear Bulkhead

32 3401707 Wire Jumper

33 3406124 Bulb, Light

34 3387223 Electrode, Sensor

35 8578825 Bracket,

Drum Light

36 3403634 Socket Assembly

37 697772 Wheel, Blower

38 8573713 Thermal Cut−Off

39 3394986 Spring, Lint

Screen Door

40 8066208 Clip−Spring

41 695240 Screw, 8−18 x 1/2

42 8577274 Thermistor

43 487909 Screw, 8−15 x 1/2

44 8544362 Housing, Blower

45 8066168 Lint Duct Assembly

46 8573824 Funnel, Burner

47 8573028 Thermostat,

High−Limit 205 F

(96 C)

48 338906 Sensor, Radiant

49 3387230 Screw, 10−16 x 1

W10153409

Baffle, Drum

51 8565061 Bulkhead, Front

W10153412

Grill, Outlet

53 3392519 Thermal Fuse

54 697770 Seal, Cover Plate

W10049370

Lint, Screen

USE WITH TYPE 1 − NATURAL

AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES

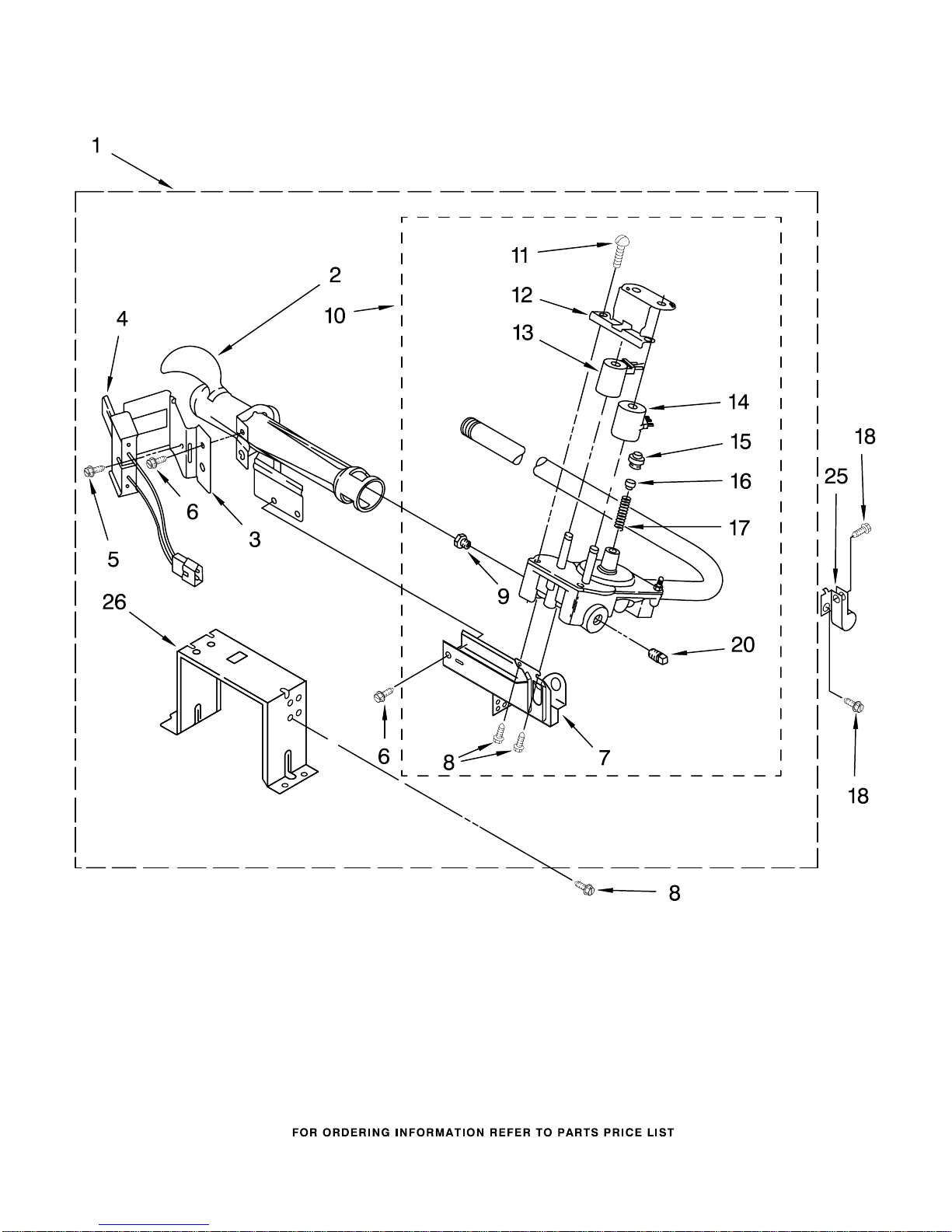

8576353 BURNER ASSEMBLY

BA−153A

For Model: WGD8300SW1, WGD8300SB1

(White) (Black)

W10159012

Illus. Part

No. No. DESCRIPTION

BA−153A

8576353 BURNER ASSEMBLY

USE WITH TYPE 1 − NATURAL

AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES

1 8576353 Burner Assembly

60 Hz.

(Type 1)

(White Rodgers)

2 688617 Tube, Burner

3 694298 Bracket, Ignitor

4 686590 Ignitor

5 3393909 Screw & Washer

(8−32 x 7/8)

6 343641 Screw, 10−16 x 1/2

7 3389871 Base, Burner

8 3387057 Screw,

8−18 x 3/8

9 Orifice, Burner

15418 Type 1

15422 Type 4 (Butane)

234867 Type 4 (Propane)

W10118347

Valve, Gas

60 Hz. (Complete)

(Includes Pipe &

Illus. #7).

11 694421 Screw,

8−32 x 1/2 (2)

12 694538 Bracket, Coil

13 694540 Coil, 60 Hz.

(2 Terminal)

(Main)

14 694539 Coil, 60 Hz.

(Split)

(3 Terminal)

(Pilot Position)

15 694424 Leak, Limiter

16 694423 Screw, Regulator

Adjustment

17 694422 Spring, Regulator

18 3390647 Screw, 8−18 x 1/2

20 239822 Plug, Pipe

25 3387561 Clamp, Pipe

26 3389889 Bracket, Support

Following Parts Not Illustrated

8576846 Conversion Kit

(Type (1)

to Type (4) LPG).

For Model: WGD8300SW1, WGD8300SB1

(White) (Black)

W10159012

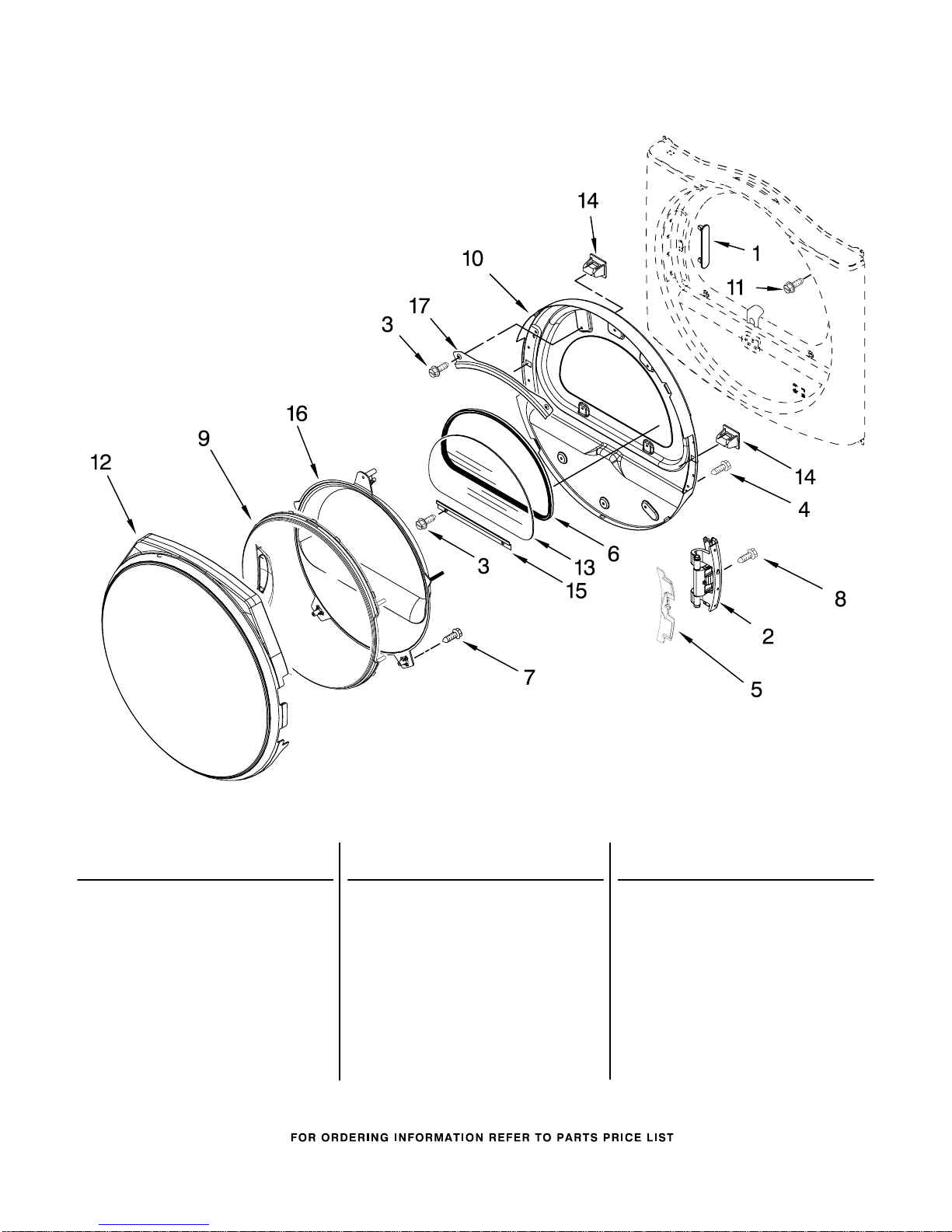

DOOR PARTS

For Model: WGD8300SW1, WGD8300SB1

(White) (Black)

W10159012

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8565119 Plug Strip

2 8578887 Door Hinge

Assembly

3 3393258 Screw,

10−16 x 3/64

4 8534044 Screw, 8−18 x 1/2

5 Cover, Hinge

8571839 White

W10129722

Black

6 8579663 Seal, Window

7 8534022 Screw, 8−18 x 1/16

W10017850

Screw,

10−24 x 3/64

W10044180

Door Intermediate

(Outer)

10 8578933 Door Assembly

(Inner)

(Includes Illus.

1 & 14 )

11 355515 Screw,

8−18 x 11/16

12 Door, Outer Ring

8571836 White

W10129706

Black

13 8565117 Window

14 690081 Door Catch

Assembly

15 8519354 Retainer−Lower

16 Door,

Intermediate

W10108900

White

W10129704

Gray

17 8519356 Retainer−Upper

OPTIONAL PARTS (NOT INCLUDED)

For Model: WGD8300SW1, WGD8300SB1

(White) (Black)

W10159012

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

72302 Black

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

786020 Black

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

786302 Black (Uncut)

ACCESSORY PARTS

8529894 Hold Down Kit

8563738 Dry Rack

8522199 Kit, Dryer

Vent Testing

80047 Kit,

Dryer Repair
