Whirlpool WED9400SB0 Manuel utilisateur
TOP AND CONSOLE PARTS
1
For Models: WED9400SW0, WED9400SB0, WED9400ST0, (WED9400SZ0) (WED9400SU0)
(White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) (Ultimate Silver)
2−08 Litho in U.S.A.(LT) Part No. W10116356 Rev. B
ELECTRIC DRYER
TOP AND CONSOLE PARTS
2
For Models: WED9400SW0, WED9400SB0, WED9400ST0, (WED9400SZ0) (WED9400SU0)
(White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) (Ultimate Silver)
W10116356
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10110850
Use & Care Guide
W10110638
Tech Sheet
W10111226
Guide,
Quick Start
2 Top
8565021 White
8579997 Black
8519252 Biscuit
W10114785
Ultimate Silver
3 8579739 Harness, Main
4 Panel, Console
(Includes Items:
4,20,21,22,27,28)
W10116695
White
W10116698
Black
W10116696
Biscuit
W10116699
White/Blue
W10116697
Ultimate Silver
5 3394427 Clip, Harness
6
W10006840
Bracket, Console
(Includes No.12)
7 353424 Connector, Sensor
8 94614 Terminal
9 3936144 Plug, Terminal
10 94613 Terminal
11 3390647 Screw, 8−18 x 1/2
12
W10112267
Foam−Seal
13
W10030070
Array, Power
14 3936150 Connector,
7−Circuit
15 3395683 Connector,
(Motor)
16 8281225 Screw, 8−18 x 1/2
17 2203186 Connector,
5−Circuit
18
W10031430
User Interface
(Right)
19
W10121375
User Interface
(Center)
(Includes:
Illus. 13 )
20
W10012430
Encoder−Wheel
21
W10012440
Retainer−Snap
22
W10012410
Knob, Light Ring
(Includes:
Illus. 21 )
24
W10012460
Detent Wheel
(Service Only
With Illus. 28 )
25
W10095960
Harness,
Communication
26
W10012820
Knob, Spring (2)
(Service Only
With Illus. 28 )
27 Knob, Control
(Includes:
Illus. 21 )
W10116702
White
W10116705
Black
W10116703
Biscuit
W10116706
Blue
W10116704
Ultimate Silver
28 280230 Encoder, Wheel
Kit.
(Includes Item:
23, 24, & 26 )
29
W10112268
Clip−Harness (4)
30 3391018 Tie, Cable
31
W10117943
Badge
32
W10110976
Cube−Cable
23
W10012810
Rast, Wheel Holder
(Service Only
With Illus. 28 )

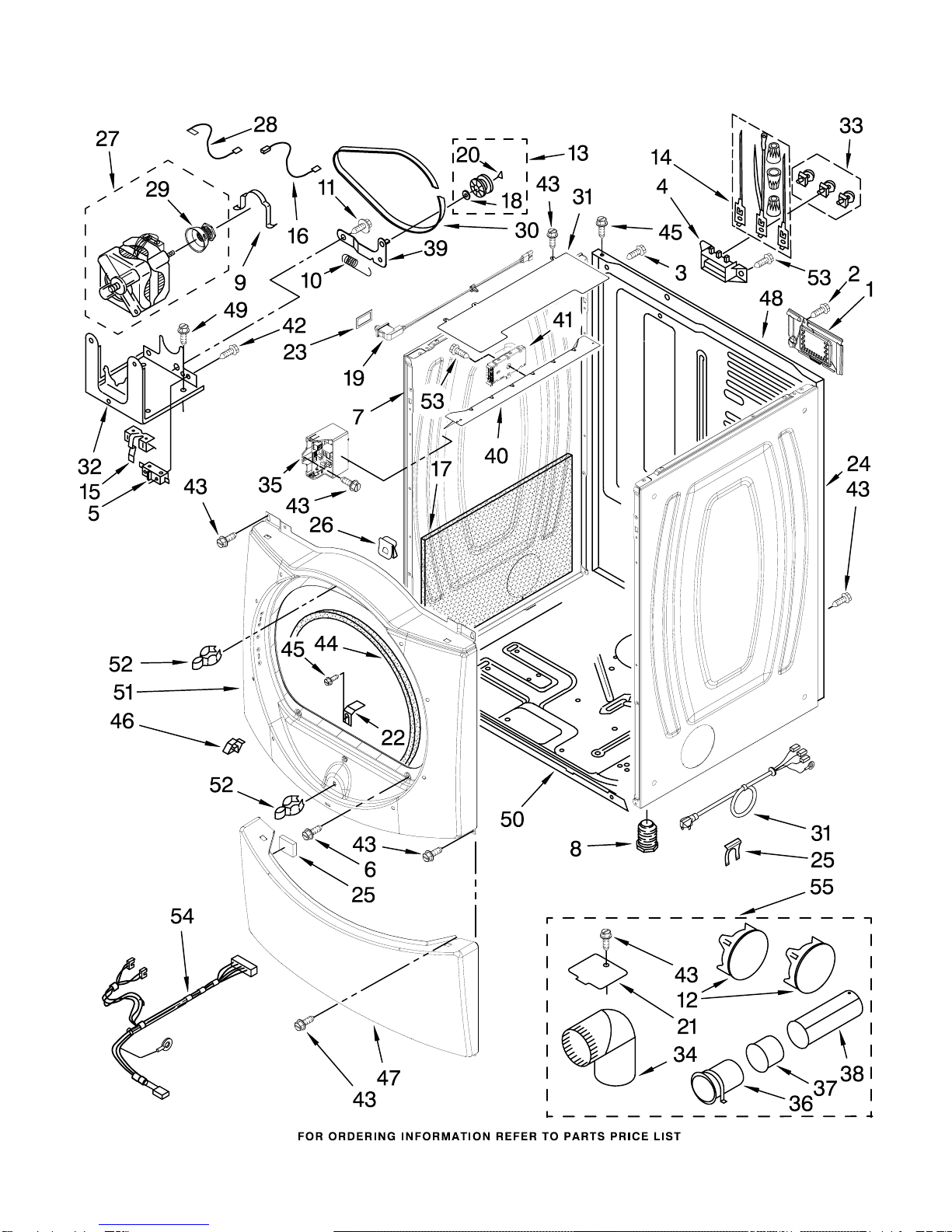

CABINET PARTS
3
For Models: WED9400SW0, WED9400SB0, WED9400ST0, (WED9400SZ0) (WED9400SU0)
(White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) (Ultimate Silver)
W10116356
CABINET PARTS
4
For Models: WED9400SW0, WED9400SB0, WED9400ST0, (WED9400SZ0) (WED9400SU0)
(White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) (Ultimate Silver)
W10116356
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8576583 Cover,
Terminal Block
2 3390814 Screw, 8−18 x 3/8
3 697776 Screw, 10−32 x 5/8
(Ground)
4 3397659 Block, Terminal
5 3394881 Switch, Broken
Belt
6 3357011 Screw, 10−16 x 1/2
7 Panel, Side (L.H.)
W10138989
White
W10138996
Black
W10138990
Biscuit
W10138995
Silver
8 3392100 Foot, Dryer
279810 Foot − Optional
(Extended Length
Package Of 2)
(Not Included)
9 660658 Clamp, Motor (2)
10 3387374 Spring, Idler
11 3389420 Retainer, Idler
12 Plug, Multivent
697750 White
3388309 Black
3388311 Biscuit
8579115 Silver
13 3388672 Pulley Assembly
14 279318 Terminal, Brass
& Tinned (3)
(Includes Illus. 33)
15 8066120 Lever, Snap
Switch
16 3394081 Wire, Belt Switch
17
W10128772
Sound Panel
18 233520 Washer, Thrust
19 8574875 Assembly,
Door Switch
20 690997 Tri Ring
21 8066115 Cover−Plate
22 8529053 Ramp, Door
23
W10118614
Seal, Door Switch
24 Panel, Side (R.H.)
W10139003
White
W10139010
Black
W10139004
Biscuit
W10139009
Silver
25 3389682 Space−Toe Panel
26 62825 Clip−S Type
27 8538263 Motor, Assembly
60 HZ.
28 3398948 Wire, Jumper
(Broken Belt
Switch)
29 8578220 Pulley 60 HZ.
30 3387610 Belt, Drive
31
W10118470
Cover,
Control Bracket
32 3387118 Bracket, Motor
33 279393 Terminal Block
Screw Kit (For
Terminal Block)
34 49026 4" − 90 Elbow
35 3407228 Power Cube
36 8563747 Exhaust Pipe
& Bracket
37 8563750 Exhaust Pipe
(Short)
38 8563749 Exhaust Pipe
(Long)
39 3388674 Idler Bracket
40 8563727 Bracket, Control
41
W10110641
Board, Control
42 98129 Screw,
6−20 x 1 1/16
43 3390647 Screw, 8−18 x 1/2
44 3387242 Seal, Front Panel
45 3393008 Screw, 10−16 x 1/2
46 8519459 Clip, Toe Panel
47 Toe−Panel
W10116271
White
W10116273
Black
W10116272
Biscuit
W10116277
Silver
48
W10133207
Panel, Rear
49 343641 Screw, 10−16 x 1/2
50 8519207 Base, Cabinet
51 Front Panel
8578388 White
8578936 Black
8577910 Biscuit
8578940 Silver
52 696144 Strike, Door (2)
53 90767 Screw, 8−18 x 3/8
54
W10110990
Harness,
Digital Interface
Optional Parts Not Included
Dryer Exhaust Kit
(For Side & Bottom Venting)
55 279818 White
279820 Black
279925 Biscuit
280171 Ultimate Silver

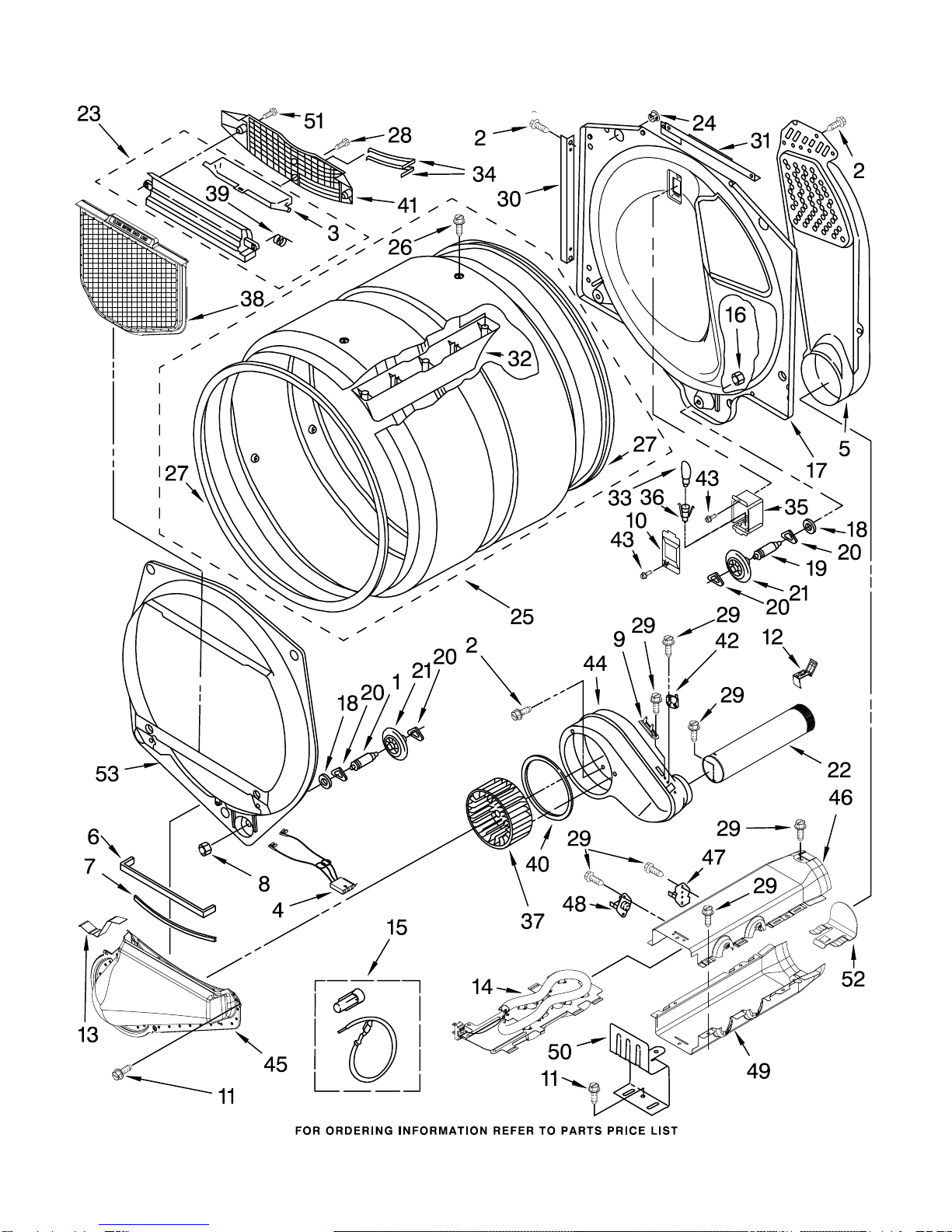

BULKHEAD PARTS
5
For Models: WED9400SW0, WED9400SB0, WED9400ST0, (WED9400SZ0) (WED9400SU0)
(White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) (Ultimate Silver)
W10116356
BULKHEAD PARTS
6
For Models: WED9400SW0, WED9400SB0, WED9400ST0, (WED9400SZ0) (WED9400SU0)
(White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) (Ultimate Silver)
W10116356
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8575324 Shaft, R.H. Thread
2 3390647 Screw, 8−18 x 1/2
3 3394984 Door, Lint
Screen
4 3406653 Harness, Sensor
5 697354 Air Duct Assembly
6 697813 Seal, Outlet
Housing
7 697814 Seal, Drum Front
8 3934666 Nut,3/8 x 16(R.H.)
9 3392519 Thermal−Fuse
(91 C)
10 3402841 Lens,
Drum Light
11 489463 Screw, 8−18 x 3/8
12 8572105 Clip, Exhaust
Pipe
13 8066208 Clip−Spring
14 8544771 Heater Element
15 279457 Terminal Wire
Kit (For Heater
Element Wiring
Harness Repair)
16
W10001120
Nut, 3/8−16 (L.H.)
17 8520836 Bulkhead, Rear
18 3387459 Washer, Support
19 8575325 Shaft, L.H. Thread
20
W10121334
Washer
21 8536973 Roller, Support
22 8563745 Exhaust Pipe
23 3394985 Housing, Outlet
24 8529007 Plug,
Rear Bulkhead
25
W10113138
Complete Drum
Assembly
26
W10109200
Screw, 11−16 x 3/4
27 697694 Seal, Drum
28 695240 Screw, 8−18 x 1/2
29 8533971 Screw, 8−18 x 3/8
30 8519221 Channel Bracket,
Rear Bulkhead (2)
31 8571651 Bracket, Upper
Rear Bulkhead
32
W10113136
Baffle, Drum
33 3406124 Bulb, Light
34 3387223 Electrode, Sensor
35 3977373 Bracket,
Drum Light
36
W10136369
Socket Assembly
37 697772 Wheel, Blower
38
W10049370
Screen, Lint
39 3394986 Spring, Lint
Screen Door
40 697770 Seal, Cover Plate
41 8299979 Grille, Outlet
42 8577274 Thermistor
43 487909 Screw, 8−15 x 1/2
44 8544362 Housing, Blower
45 8066168 Lint Duct Assembly
46 8544769 Housing−Slot
Heater Box
47 280148 Thermal Cut−Off
(Includes
Illus. 48)
48 8557403 Thermostat 295 F
(146 C) (Hi−Limit)
49 8544770 Housing−Tab
Heater Box
50 8066099 Bracket,
Heater Box
51 3387230 Screw, 10−16 x 1
52 8544776 Flange−Heater Box
53 8519245 Bulkhead, Front

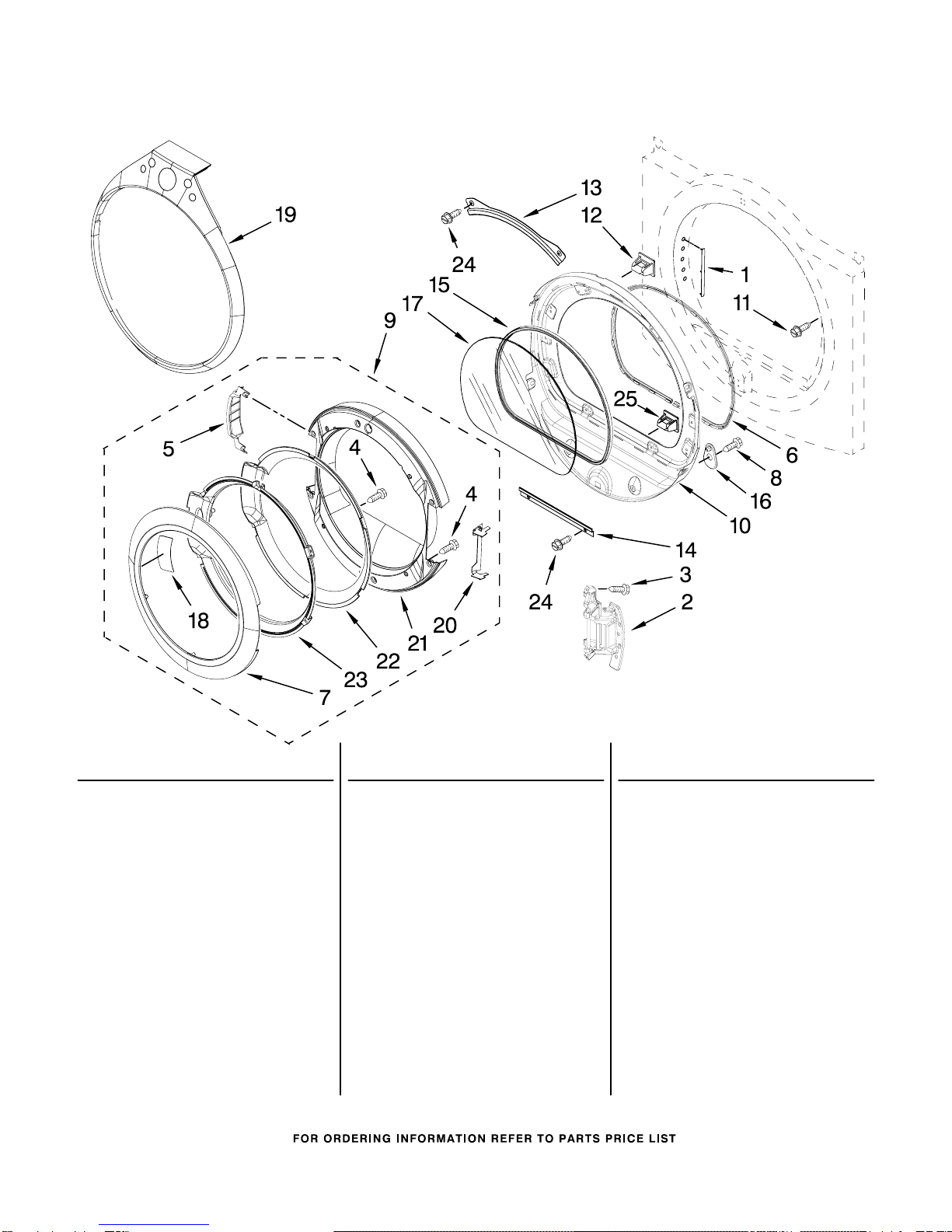

DOOR PARTS
7
For Models: WED9400SW0, WED9400SB0, WED9400ST0, (WED9400SZ0) (WED9400SU0)
(White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) (Ultimate Silver)
W10116356
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Label−Hinge
Hole Cover
W10085210
White
W10085230
Silver
2
W10139920
Door Hinge
Assembly
3
W10017850
Screw,
10−24 x 3/64
4 9742177 Screw, 8−18 x 5/8
5 8578153 Cover−Hinge (L.H.)
(Following Parts
Not Included)
8578152 Cover−Hinge (R.H.)
6
W10139457
Seal−Door
7 Handle−Ring
& Pad Assembly
W10048070
Chrome
W10048080
Gold
W10048010
Blue
8 3393008 Screw, 10−16 x 1/2
9 Door Assembly
(Outer)
8579520 Chrome
8579521 Gold
8579514 Blue
10 8578229 Door Assembly
(Inner)
(Includes
Illus. 12 & 25 )
11 355515 Screw,
8−18 x 11/16
12 3398175 Door Catch
Assembly (Upper)
13 8519356 Retainer−Window
(Upper)
14 8519354 Retainer−Window
(Lower)
15 8579662 Seal, Window
16
W10048910
Screw−Plug
17 8566254 Window
18 8580116 Pad−Handle
19 Tear−Drop Trim
& Clip Assembly
W10099270
White
W10099310
Black
W10099320
Biscuit
W10099280
White/Blue
W10099330
Silver
20
W10074630
Door−Shield
21 8578157 Door Intermediate
22 8578156 Door Mask
23 8578155 Door Screen
24 3393258 Screw, 10−16 x 1/2
25 690081 Door Catch
Assembly
OPTIONAL PARTS (NOT INCLUDED)
8
For Models: WED9400SW0, WED9400SB0, WED9400ST0, (WED9400SZ0) (WED9400SU0)
(White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) (Ultimate Silver)
W10116356
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
72302 Black
4392899 Biscuit
8212605 Ultimate Silver
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
786020 Black
4392901 Biscuit
350938 Primer, Gray
PAINT, BULK (1 qt.)
799344 White (Uncut)
4392900 Biscuit (Uncut)
786302 Black (Uncut)
ACCESSORY PARTS
8529894 Kit, Hold Down
8541503 Kit,
Stack Assembly
8579666A Kit,
Door Reversing
80047 Kit,
Dryer Repair
8521957 Dry Rack
