Whirlpool LEV6634BW0 Manuel utilisateur

1 3397545 Panel, Rear Console

2 3396028 Wire-Jumper Assembly

3 3390647 Screw, 8-18 x 1/2

4 Cap, End (L.H.)

3358531 White

3358532 Almond

6 357213 Stop, Push-In

7 3388706 Resistor

8 693994 Screw, Hex Head

9 Cap, End (R.H.)

3358516 White

3358517 Almond

10 339392 Screen, Lint

11 Cover, Lint Screen

688150 White

689310 Almond

12 339229 Hinge, R.H.

339230 Hinge, L.H.

13 688983 Screw, 8-18 x 5/8

14 3353145 Screw, Console

15 3354281 Switch, Temperature

16 Top

3396022 White

3396023 Almond

17 693995 Screw, Hex Washer Head

18 3358434 Knob, Temperature Control

3358435 FOR MODEL LEV6634BQ0

19 689180 Clip, Retainer

20 3397269 Connector, Timer

21 3392250 Timer 60 Hz.

29 3390646 Screw, 8-18 x 5/16

31 3396223 Harness, Wiring

39 660936 Switch, Push-To-Start

692021 (Alt.)

48 3396148 Timer Knob & Dial Assembly

3396146 FOR MODEL LEV6634BQ0

53 3396293 Bracket, Control

54 Panel, Control

3397208 LEV6634BW0

3397209 LEV6634BN0

3397207 LEV6634BQ0

62 688805 Clip

72 690853 Wire, Ground

81 3396163 Knob, Push To Start

3396161 FOR MODEL LEV6634BQ0

LITERATURE AND OPTIONAL PARTS

LITERATURE PARTS

LIT3396303 Guide, Use & Care

LIT3397597 Instructions, Installation

LIT3399125 Label, Wiring Diagram

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH-UP (1/2oz.)

72017 White

72107 Almond

PAINT, PRESSURIZED SPRAY (13 oz.)

350930 White

350956 Almond

350938 Primer, Gray

350941 Leveler (Thinner)

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

Following May Be Purchased

DO-IT-YOURSELF REPAIR MANUALS

LIT677818 Dryer

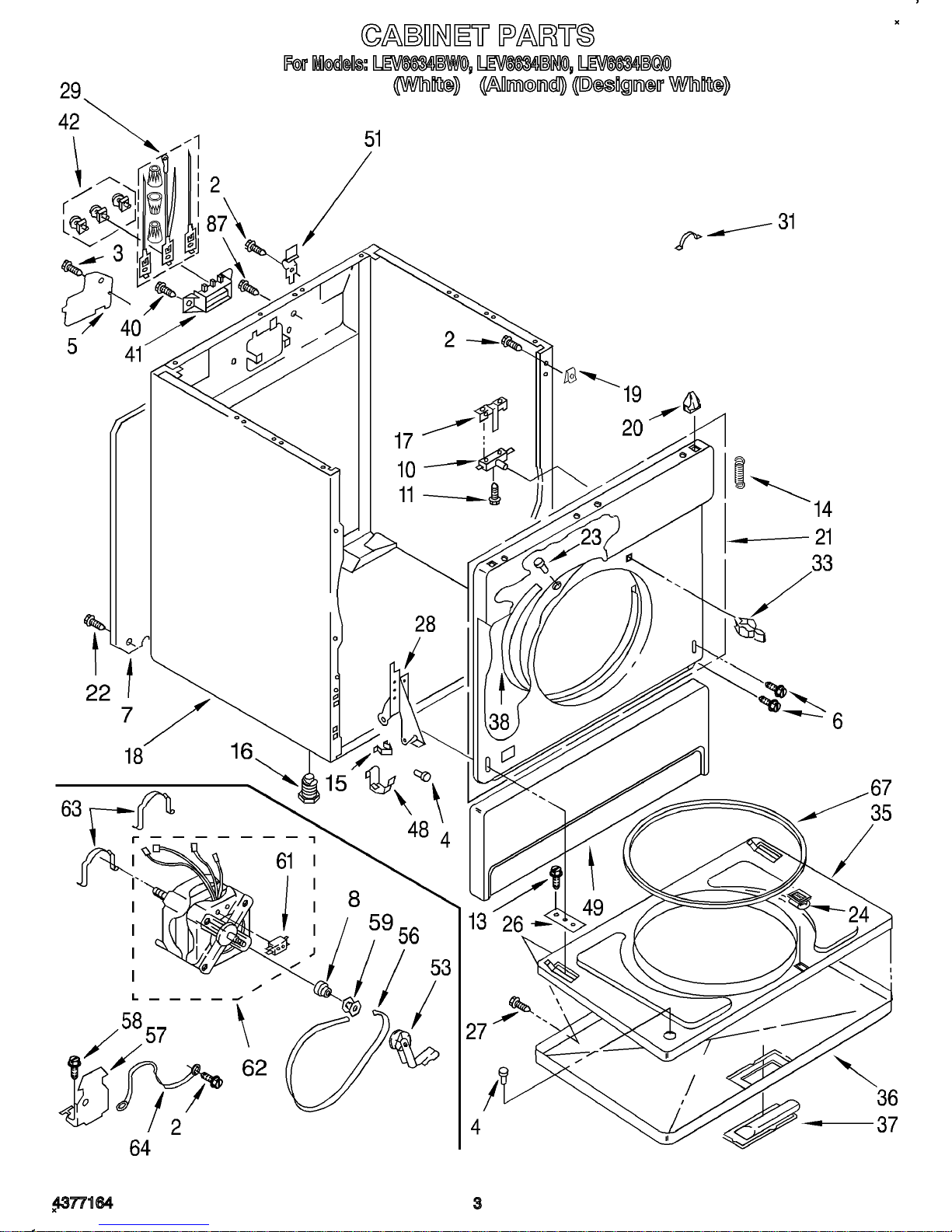

2 343641 Screw, 10-16 x 1/2

3 693995 Screw, Hex Washer Head

4 238614 Bumper

5 690893 Cover, Terminal Block

6 342043 Screw, 10-32 x 1/2

7 346368 Panel, Rear

8 3393657 Restrainer, Belt

10 347207 Switch, Door

11 98129 Screw, 6-20 x 7/8 (2)

13 3357011 Screw, 10-16 x 1/2

14 237979 Spring, Door (2)

15 3388229 Clip, Toe Panel (2)

16 3392100 Foot (4)

17 691581 Lever, Door Switch

18 Cabinet

3394109 White

3394110 Almond

19 98234 Clip, Ground (2)

20 690363 Lock, Front Top (2)

21 Panel Assembly, Upper Front

338012 White

689533 Almond

22 693994 Screw, Hex Washer Head (7)

23 685203 Clip, Felt Pad (2)

24 690081 Catch, Door

26 337189 Clip, Hinge (2)

27 694091 Screw (6)

28 687905 Hinge, R.H.

687906 Hinge, L.H.

29 279318 Terminal, Tinned & Brass (3) (Includes Illus. 42)

31 98997 Clip, Harness

33 696144 Strike, Door

35 695954 Door, Rear

36 Door, Front

348728 White

689330 Almond

37 Handle, Door

690270 White

690271 Almond

38 349464 Seal & Bearing Assembly

40 3393008 Screw

41 690261 Block, Terminal

42 279393 Terminal Block Kit For Terminal Block

48 297092 Clip, Hinge (2)

49 Panel, Toe

692427 White

692428 Almond

51 238088 Hinge, Top (2)

53 691366 Idler & Pulley Assembly

56 660996 Belt, Drive

57 348780 Base, Motor

58 172455 Bolt, 5/16-18 x 3/4

59 3389627 Pulley, 60 Hz.

61 3388235 Switch (Use W/3391886 Motor)

62 3391886 Motor Assembly, 60 Hz.

63 660658 Clip, Motor (2)

343481 (Alt.)

685441 (Alt.)

64 690236 Wire, Ground

67 3390733 Seal, Door

87 697776 Screw, 10-32 x 1/2 (Grounding)

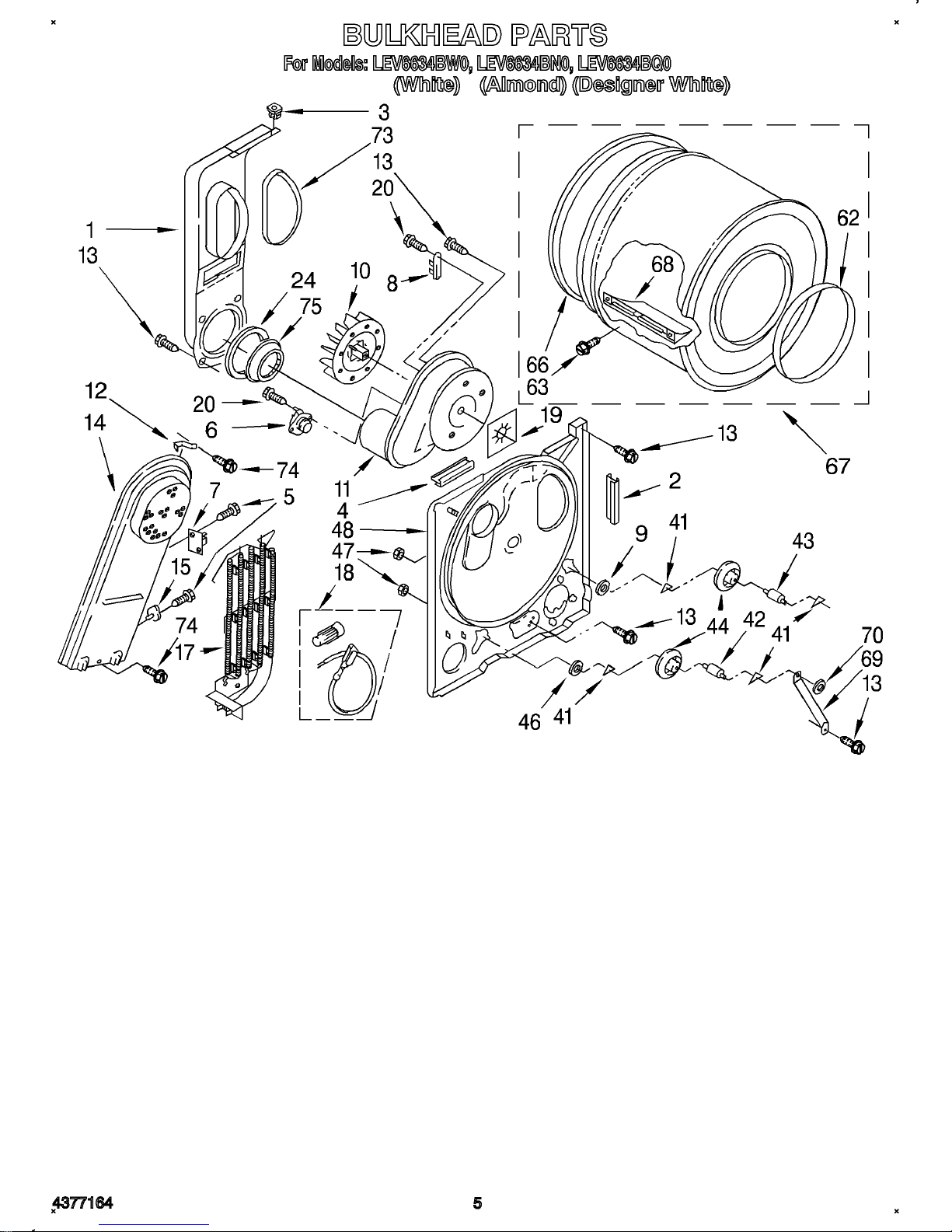

1 694283 Lint Chute Assembly

2 686889 Pad, Cabinet

3 98460 Nut, Push-In (2)

4 3392247 Pad, Cabinet (Blower Housing)

5 90767 Screw,8x3/8

6 3387134 Thermostat, Internal-Bias

7 3398671 Thermal Cut-Off (Hi-Limit Thermostat Illus. No. 15 Included)

8 3392519 Thermal Fuse

9 3388703 Washer, Support

10 694089 Wheel, Blower (Includes Illus. No. 19)

11 695081 Housing, Blower

12 337272 Clip

13 343641 Screw, 10-16 x 1/2

14 695547 Box, Heater

15 3390291 Thermostat, (High Limit) 250~F (121.1~c)

17 660982 Element, Heater (For 240 Volt Installation)

18 279457 Wire Kit (For Heater Element Wiring Harness Repair)

19 3392123 Seal, Blower

20 695239 Screw, 8-18 x 3/8

24 347139 Seal, Lint Chute

41 690997 Ring, Tri

42 347364 Shaft, L.H.

43 339489 Shaft, R.H.

44 3397588 Roller, Support

46 348197 Washer Support

47 3359452 Nut, 3/8-16

48 685775 Bulkhead

62 3394509 Ring, Bearing

63 97787 Screw, 11-16 x 7/8

66 337449 Seal, Rear Drum

67 3396777 Drum Assembly

68 342847 Baffle, Drum

69 348945 Bracket, Support

70 90296 Clip

73 339956 Seal

74 687128 Screw, 10-16 x 1/2

75 696302 Shield, Exhaust
