Whirlpool LET5436AW0 Manuel utilisateur

1 3397545 Panel, Rear Console

2 688805 Clip

4 Cap, End (L.H.)

3358531 White

3358532 Almond

6 3353145 Screw, Console

7 689180 Clip, Retainer

8 Cap, End (R.H.)

3358516 White

3358517 Almond

10 349639 Screen, Lint

11 Cover, Lint Screen

688150 White

689310 Almond

12 339229 Hinge, R.H.

339230 Hinge, L.H.

13 688983 Screw, 8-18 x 5/8

14 693994 Screw (4)

15 693995 Screw (2)

16 Top

3396022 White

3396023 Almond

21 3396216 Timer, 60 Hz.

30 357213 Nut, Push-In (2)

31 3396221 Harness, Wiring

690261 Includes Terminal Block

32 3390646 Screw, 8-18 x 5/16

39 660936 Switch, Push-To-Start

48 3396148 Timer Knob Assembly

53 3396293 Bracket, Control

54 Panel, Control

3397155 White

3397156 Almond

72 690853 Wire, Ground

81 3396163 Knob, Push To Start

LITERATURE AND OPTIONAL PARTS

LITERATURE PARTS

LIT3396296 Use & Care Guide

LIT3397597 Instructions, Installation

LIT4377090 List, Service Parts

OPTIONAL PARTS NOT INCLUDED

PAINTS

PAINT,TOUCH UP (1/2 oz.)

72017 White

72107 Almond

PAINT PRESSURIZED SPRAY (13 oz.)

350930 White

350956 Almond

350938 Primer, Gray

350941 Leveler (Thinner)

PAINT,BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

Following May Be Purchased: DO-IT-YOURSELF-REPAIR-MANUALS

LIT677818 Dryer

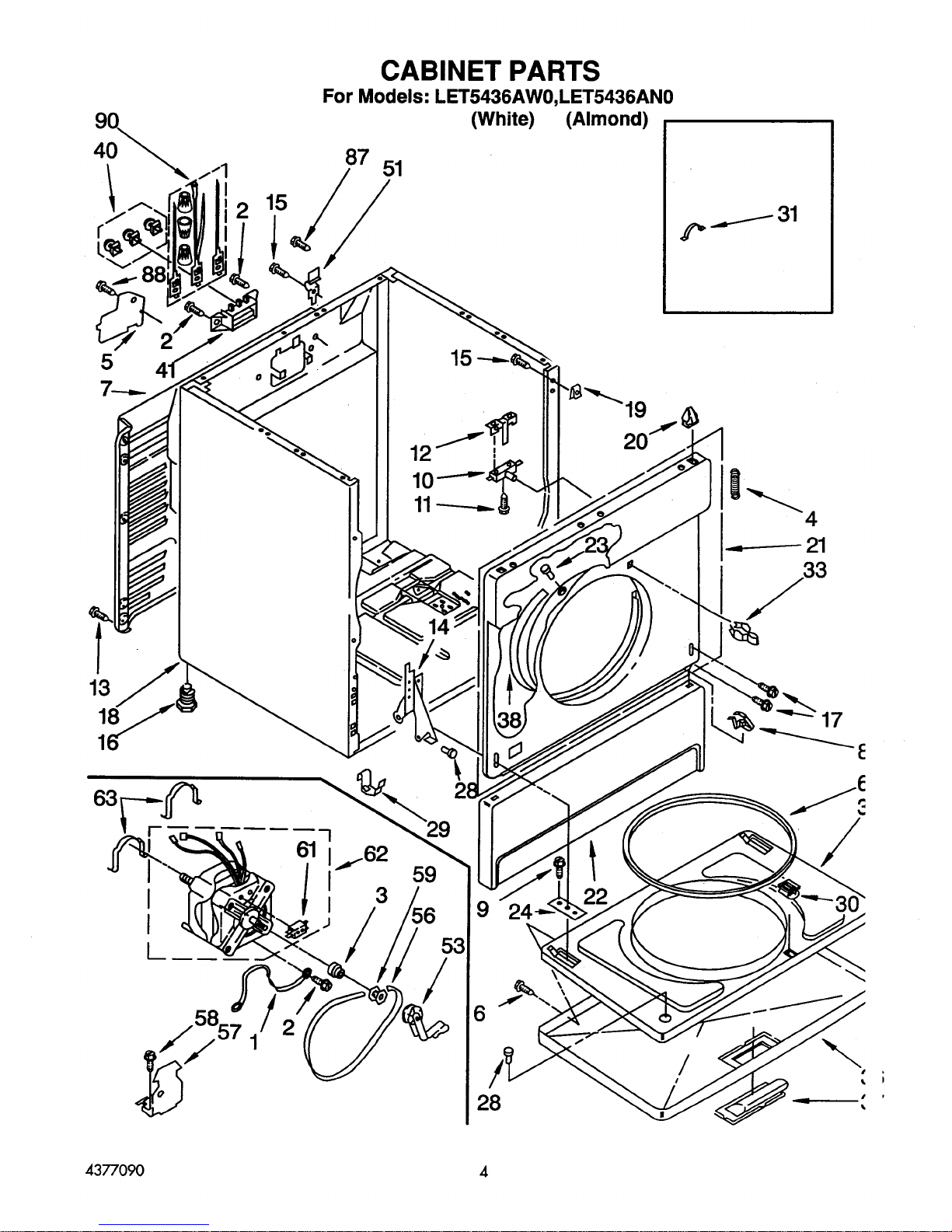

1 690236 Wire, Ground (Motor)

2 3393008 Screw, 10-16 x 1/2

3 3393657 Restrainer, Belt

4 237979 Spring, Door (2)

5 690893 Cover, Terminal Block

6 694091 Screw

7 348365 Panel, Rear

8 3388229 Clip, Toe Panel (2)

9 3357011 Screw, 10-16 x 1/2

10 347207 Switch, Door

11 98129 Screw, 6-20 x 1-3/8 (2)

12 691581 Lever, Door Switch

13 693994 Screw, Rear Panel Mounting

14 687905 Hinge, R.H.

687906 Hinge, L.H.

15 343641 Screw, 10-16 x 1/2

16 3392100 Foot, Dryer (4)

17 342043 Screw, 10-32 x 1/2

18 Cabinet

3394118 White

3394119 Almond

19 98234 Clip, Ground

20 690363 Lock, Front Top (2)

21 Upper Front Panel

338012 White

689533 Almond

22 Panel, Toe

692427 White

692428 Almond

23 685203 Clip, Felt Pad

24 337189 Clip, Hinge (2)

28 238614 Bumper

29 297092 Clip, Hinge (2)

30 690081 Catch, Door

31 98997 Clip, Harness

33 696144 Strike, Door

35 695954 Door, Rear

36 Door Front

348728 White

689330 Almond

37 Handle, Door

690270 White

690271 Almond

38 349464 Seal & Bearing Assembly

40 279393 Terminal Block Kit For Terminal Block

41 690261 Block, Terminal

51 238088 Hinge, Top (2)

53 691366 Idler & Pulley Assembly

56 660996 Belt, Drive

57 348780 Base, Motor

58 172455 Bolt, 5/16-18 x 3/4

59 3389627 Pulley, 60 Hz.

61 3388235 Switch, Motor

62 3391886 Motor Assembly 60 Hz. (Pulley Not Included With Motor)

63 660658 Clamp, Motor

343481 (Alt.)

685441 (Alt.)

67 3390733 Seal, Door

87 697776 Screw, 10-32 x 1/2 (External Ground)

88 693995 Screw, 10-16 x 1/2

90 279318 Terminal, Tinned & Brass (3) (Includes Illus. 40)

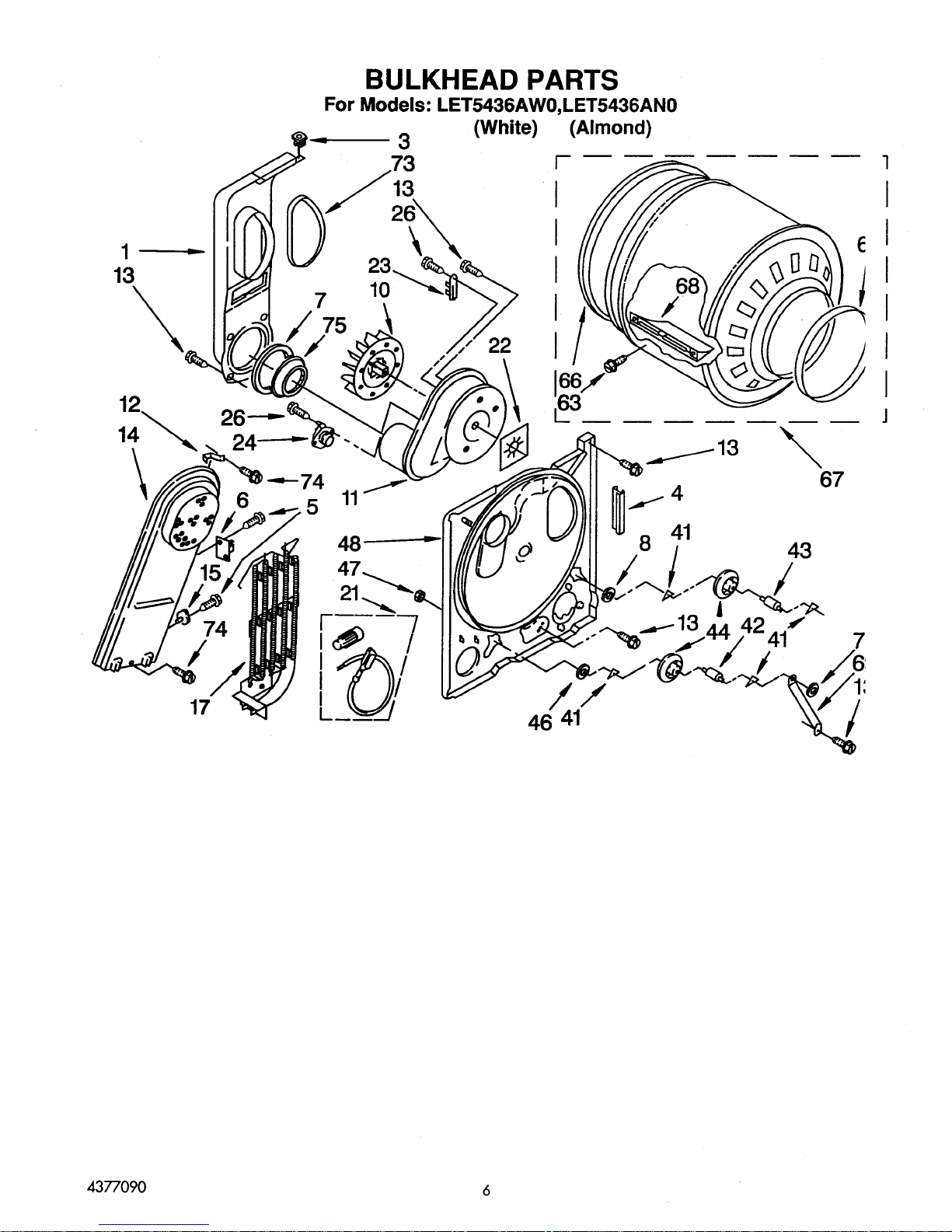

1 3396352 Lint Chute Assembly

3 98460 Nut, Push-In (2)

4 686889 Pad, Cabinet

5 90767 Screw,8x3/8

6 3389946 Thermal, Cut-Off (Hi-Limit Thermostat Illus. No.15 Included)

7 347139 Seal, Lint Chute

8 3388703 Washer, Support

10 694089 Wheel, Blower

11 695081 Housing, Blower

12 337272 Clip

13 343641 Screw, 10-16 x 1/2

14 695547 Box, Heater

15 3390291 Thermostat, High Limit 250~F (121.1~C) (60 Hz.)

17 660982 Element, Heater (For 240 Volt Installation)

693300 (Alt.)

696579 (Alt.)

693062 (Alt.)

21 279457 Wire Kit (For Heater Element Wiring Harness Repair)

22 3392123 Seal, Blower

23 3392519 Fuse, Thermal

24 3387139 Thermostat, Internal Bias

26 695239 Screw, 8-18 x 1/2

41 690997 Ring, Tri

42 347364 Shaft, L.H.

43 339489 Shaft, R.H.

44 3389901 Roller, Support

46 348197 Washer, Support

47 3359452 Nut, 3/8-16

48 3396446 Bulkhead

62 3394509 Ring, Bearing

63 97787 Screw, 11-16 x 7/8

66 3397509 Seal, Rear Drum

67 3396778 Drum Assembly

68 342847 Baffle, Drum

69 348945 Bracket, Support

70 90296 Clip

73 3396466 Seal

74 687128 Screw, 10-16 x 1/2

75 696302 Shield, Exhaust
