TOP AND CONSOLE PARTS

For Models: LER4634EQ2, LER4634EZ2

(Designer White) (Designer Almond)

3−98 Litho in U.S.A. (djc) Part No. 4377806

ELECTRIC DRYER

TOP AND CONSOLE PARTS

LITERATURE AND OPTIONAL PARTS

For Models: LER4634EQ2, LER4634EZ2

(Designer White) (Designer Almond)

4377806

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3397545 Panel, Rear

Console

3 3390646 Screw,

8−18 x 5/16

4 Cap, End (L.H.)

3358528 White

3358529 Almond

5 3936144 Connector

6 388326 Screw, Console

7 3395683 Housing, Connector

(Motor)

8 Cap, End (R.H.)

3358513 White

3358514 Almond

9 3400859 Screw, Grounding

10 339392 Screen, Lint

11 Cover, Lint Screen

688150 White

689310 Almond

12 339229 Hinge, R.H.

339230 Hinge, L.H.

13 688983 Screw, 8−18 x 5/8

15 693995 Screw, Hex Head

16 Top

3396022 White

3396023 Almond

17 3394427 Clip, Harness

19 94614 Terminal

20 3401076 Resistor Assembly

21 3976569 Timer, 60 Hz.

30 357213 Nut, Push−In (2)

31 3394290 Harness, Wiring

39 3395382 Switch,

Push−To−Start

48 Timer Knob

Assembly

3406143 White

3406144 Almond

53 8054298 Bracket, Control

54 Panel, Control

3976748 White

3976749 Almond

81 Knob, Push

To Start

3406133 White

3406134 Almond

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LITERATURE PARTS

LIT3406071

Use & Care Guide

LIT3397618

Instructions,

Installation

LIT3406688

Label, Wiring

Diagram

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

PAINT, PRESSURIZED SPRAY

(13 oz.)

350930 White

350956 Almond

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677818

Dryer

CABINET PARTS

For Models: LER4634EQ2, LER4634EZ2

(Designer White) (Designer Almond)

4377806

CABINET PARTS

For Models: LER4634EQ2, LER4634EZ2

(Designer White) (Designer Almond)

4377806

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 3393008 Screw, 10−16 x 1/2

3 Plug, Strike

Hole

3403630 White

3403631 Almond

4 238614 Bumper

5 3396795 Cover, Terminal

Block

7 3396807 Panel, Rear

8 Plug, Hinge

Hole (4)

3404413 White

3404414 Almond

9 342055 Screw, 8−18 x 1/2

10 3406104 Door Switch

Assembly

11 697773 Screw,

6−20 x 7/8 (2)

13 693995 Screw, Rear Panel

Mounting

16 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

17 343641 Screw,

10−16 x 1/2

18 Cabinet

(Includes Illus.

Nos. 5, 7, 16,

29, 41 & 57)

3399580 White

3399581 Almond

19 98234 Clip, Ground

20 690363 Lock, Front

Top (2)

21 Front Panel

Assembly

3403571 White

3403572 Almond

23 685203 Clip, Felt Pad

24 690081 Catch, Door

28 3405514 Hinge & Pin

Assembly

29 3394083 Clip, Front

Panel (2)

33 3403431 Strike, Door

35 3403371 Door, Rear

36 Door Front

3403361 White

3403362 Almond

37 Handle, Door

3405184 White

3405185 Almond

38 349464 Seal & Bearing

Assembly

40 279393 Terminal Block

Kit For

Terminal Block

41 3397659 Block, Terminal

51 238088 Hinge, Top (2)

53 691366 Idler & Pulley

Assembly

56 660996 Belt, Drive

57 348780 Base, Motor

58 3400500 Bolt,

5/16−18 x 3/4

59 3401143 Pulley, 60 Hz.

62 3395652 Motor Assembly

60 Hz.

63 660658 Clamp, Motor

64 3404162 Clamp, Motor

(W/Shield)

67 3405245 Seal, Door

87 697776 Screw, 10−32 x 1/2

(External Ground)

90 279318 Terminal, Tinned

& Brass (3)

(Includes Illus. 40)

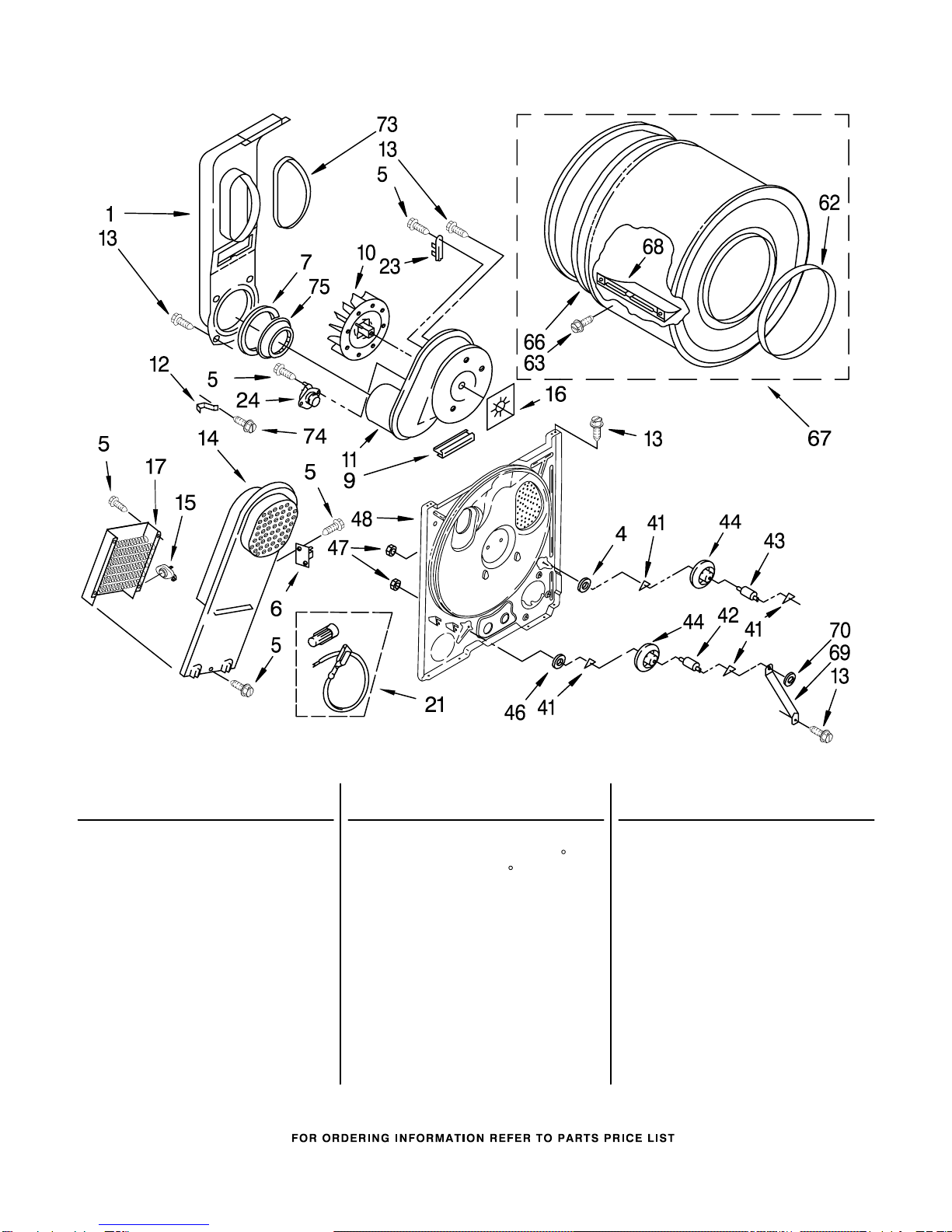

BULKHEAD PARTS

For Models: LER4634EQ2, LER4634EZ2

(Designer White) (Designer Almond)

4377806

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 694283 Lint Chute Assembly

4 3388703 Washer, Support

5 90767 Screw, 8 x 3/8

6 3399848 Thermal Cut−Off

(Hi−Limit

Thermostat Illus.

No.15 Included)

7 347139 Seal, Lint

Chute

9 3392247 Pad, Blower

Housing

10 694089 Wheel, Blower

11 3405016 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 3397566 Box, Heater

15 3399693 Thermostat,

High Limit 250 F

(121.1 C) (60 Hz.)

16 3394196 Seal, Blower

Shaft

17 3403585 Element, Heater

(For 240 Volt

Installation)

21 279457 Wire Kit (For

Heater Element

Wiring Harness

Repair)

23 3392519 Fuse, Thermal

24 3387134 Thermostat,

Internal−Bias

41 690997 Ring, Tri

42 3399506 Shaft, L.H.

43 3399507 Shaft, R.H.

44 3397588 Roller, Support

46 348197 Washer, Support

47 3359452 Nut, 3/8−16

48 3397264 Bulkhead

62 3394509 Ring, Bearing

63 97787 Screw, 11−16 x 7/8

66 337449 Seal, Rear Drum

67 3396777 Drum Assembly

68 342847 Baffle, Drum

69 3976435 Bracket, Support

70 90296 Clip

73 339956 Seal

74 489463 Screw

75 696302 Shield, Exhaust
