TOP AND CONSOLE PARTS

For Model: LER3634JW0

(White)

6−00 Litho in U.S.A. (djc) Part No. 4320161

29" ELECTRIC DRYER

TOP AND CONSOLE PARTS

For Model: LER3634JW0

(White)

4320161

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT8314844

Guide, Use & Care

LIT3397618

Instructions,

Installation

LIT3406688

Label, Wiring

Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677818

Dryer

2 3399638 Switch,

Temperature

3 3390646 Screw, 8−18 x 5/16

4 8271367 Cap, End (L.H.)

5 3936144 Connector

6 388326 Screw, Console

7 693995 Screw, Hex Head

8 8271361 Cap, End (R.H.)

9 297535 Bumper, Lint Lid

10 339392 Screen, Lint

11 8283378 Cover, Lint Screen

12 3978605 Hinge, R.H.

3978606 Hinge, L.H.

13 688983 Screw, 8−18 x 5/8

14 3400859 Screw, Grounding

15 8274261 Panel, Rear

Console

16 8271390 Top

18 3395683 Connector

(Motor)

19 3394427 Clip−Harness

20 8283286 Wire−Jumper

Assembly

21 3976575 Timer, 60 Hz.

22 94614 Terminal

23 3401076 Resistor Assembly

25 3347243 Connector

6−Circuit

30 357213 Nut, Push−In (2)

31 3394290 Harness, Wiring

32 8271338 Knob, Control

39 3395382 Switch,

Push−To−Start

48 8312690 Timer Knob

Assembly

53 8271418 Bracket, Control

54 3977814 Panel, Control

81 8271343 Knob, Push

To Start

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350956 Almond

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

OPTIONAL PARTS (NOT INCLUDED)

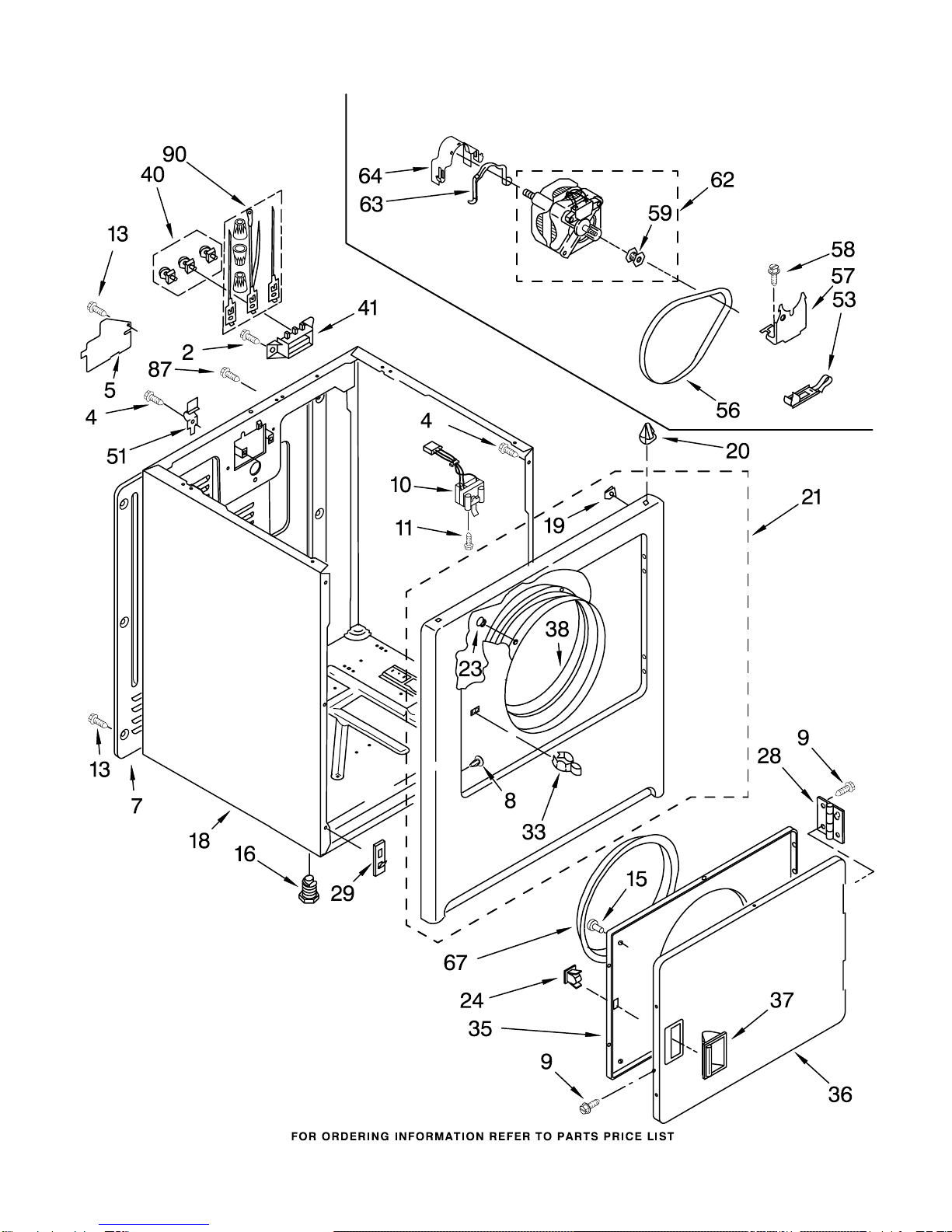

CABINET PARTS

For Model: LER3634JW0

(White)

4320161

CABINET PARTS

For Model: LER3634JW0

(White)

4320161

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 3393008 Screw, 10−16 x 1/2

4 343641 Screw, 10−16 x 1/2

5 3396795 Cover, Terminal

Block

7 3396807 Panel, Rear

8 3404413 Plug, Hinge

Hole (4)

9 342055 Screw, 8−18 x 1/2

10 3406104 Door Switch

Assembly

11 697773 Screw, 6−20 x 7/8

13 693995 Screw, Rear Panel

Mounting

15 238614 Bumper

16 3392100 Foot, Dryer

279810 Foot−Optional

(Extended Length

Package Of 2)

(Not Included)

18 3399580 Cabinet

(Includes Illus.

Nos. 5,7,16,29

41 And 57.)

19 98234 Clip, Ground

20 690363 Lock, Front

Top (2)

21 3403571 Front Panel

Assembly

23 685203 Clip, Felt Pad

24 690081 Catch, Door

28 3405514 Hinge and Pin

Assembly (2)

29 3394083 Clip, Front

Panel (2)

33 696144 Strike, Door

35 3403371 Door, Rear

36 3403361 Door Front

37 3405184 Handle, Door

38 349464 Seal & Bearing

Assembly

40 279393 Terminal Block

Kit For

Terminal Block

41 3397659 Block, Terminal

51 238088 Hinge, Top (2)

53 3394332 Idler & Slide

Assembly

56 8066065 Belt, Drive

57 348780 Base, Motor

58 3400500 Bolt,

5/16−18 x 3/4

59 3394341 Pulley, 60 Hz.

62 3976707 Motor Assembly

60 Hz.

63 660658 Clamp, Motor

64 3404162 Clamp, Motor

(W/Shield)

67 3405245 Seal, Door

87 697776 Screw, 10−32 x 1/2

(External Ground)

90 279318 Terminal, Tinned

& Brass (3)

(Includes Illus. 40)

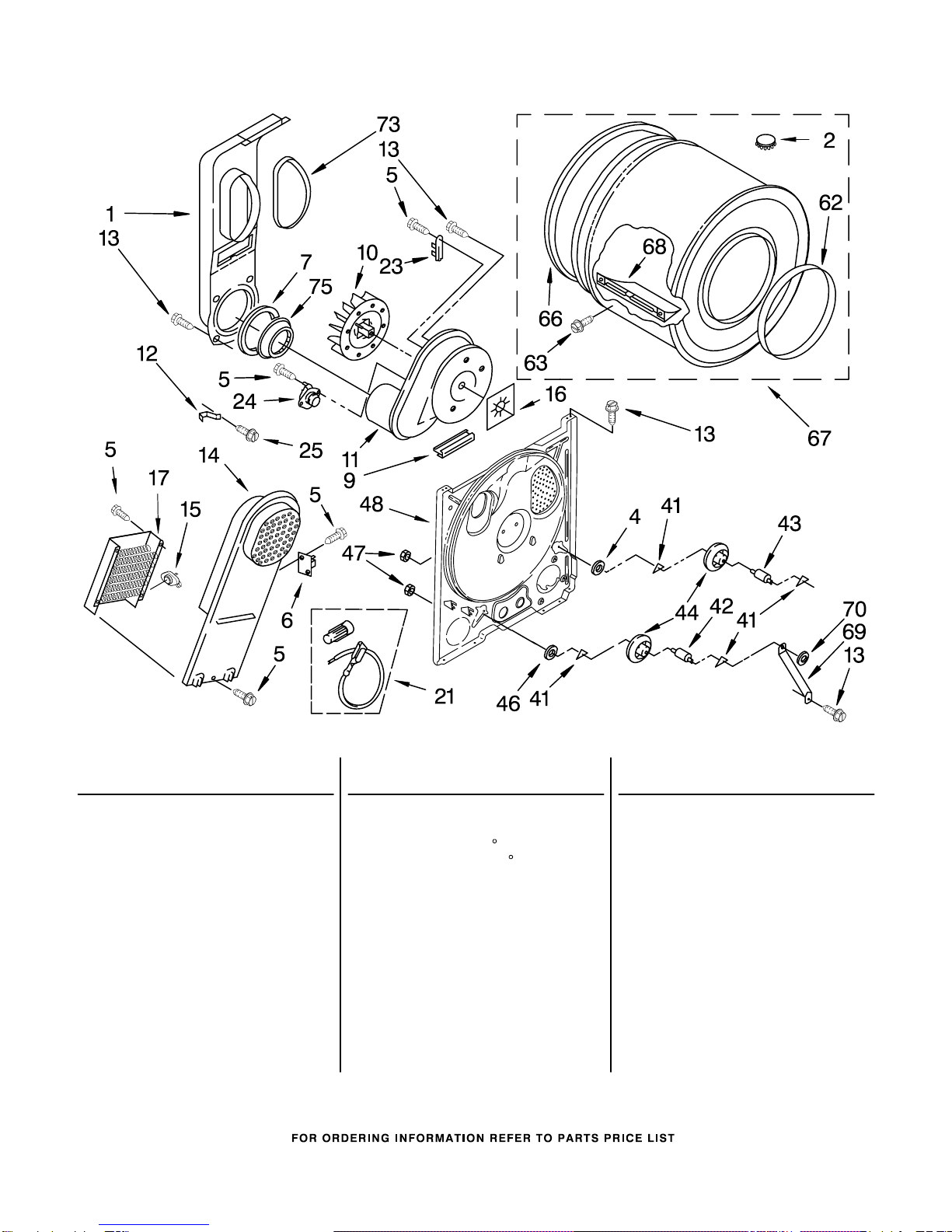

BULKHEAD PARTS

For Model: LER3634JW0

(White)

4320161

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 694283 Lint Chute Assembly

2 3977358 Drum Hole

Plug

4 3388703 Washer, Support

5 90767 Screw, 8−18 x 3/8

6 3977393 Thermal Cut−Off

(Hi−Limit

Thermostat Illus.

No.15 Included)

7 347139 Seal, Lint

Chute

9 3392247 Pad, Blower

Housing

10 694089 Wheel, Blower

11 3405016 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 3397566 Box, Heater

15 3399693 Thermostat,

250 F

(121.1 C) (60 Hz.)

16 3394196 Seal, Blower

Shaft

17 3403585 Element, Heater

(For 240 Volt

Installation)

21 279457 Wire Kit (For

Heater Element

Wiring Harness

Repair)

23 3392519 Fuse, Thermal

24 3387134 Thermostat,

Internal Bias

25 489463 Screw, 8−18 x 5/8

41 690997 Ring, Tri

42 3399506 Shaft, L.H.

43 3399507 Shaft, R.H.

44 3397588 Roller, Support

46 348197 Washer, Support

47 3359452 Nut, 3/8−16

48 3397264 Bulkhead

62 3394509 Ring, Bearing

63 97787 Screw, 11−16 x 3/4

66 8066085 Seal, Rear Drum

67 3396777 Drum Assembly

68 342847 Baffle, Drum

69 3976435 Bracket, Support

70 90296 Clip

73 339956 Seal

75 696302 Shield, Exhaust
