Whirlpool LE6090XTW0 Manuel utilisateur

1 688412 Clip, Harness

2 343641 Screw, 10-16 x 1/2

3 693995 Screw, Hex Washer Head

4 238614 Bumper

5 690893 Cover, Terminal Block

6 342043 Screw, 10-32 x 1/2

7 346368 Panel, Rear

8 3393657 Restrainer, Belt

10 3391839 Switch, Door

11 98129 Screw, 6-20 x 7/8 (2)

13 98518 Screw, 10-12 x 1/2

14 237979 Spring, Door (2)

16 688222 Foot (4)

17 295998 Lever, Door Switch

18 Cabinet

690847 White

690848 Almond

690851 Golden Harvest

19 98234 Clip, Ground (2)

20 690363 Lock, Front Top (2)

21 Panel Assembly, Upper Front

338012 White

689533 Almond

689535 Golden Harvest

22 693994 Screw, Hex Washer Head (7)

23 685203 Clip, Felt Pad (2)

24 690081 Catch, Door

26 337189 Clip, Hinge (2)

27 694091 Screw (6)

28 687905 Hinge, R.H.

687906 Hinge, L.H.

29 279318 Terminal, Tinned & Brass (3) (Includes Illus. 42)

31 98997 Clip, Harness

33 696144 Strike, Door

35 695954 Door, Rear

36 Door, Front

348728 White

689330 Almond

689333 Golden Harvest

37 Handle, Door

690270 White

690271 Almond

690274 Golden Harvest

38 349464 Seal & Bearing Assembly

39 689180 Clip, Harness (Door Switch Leads)

40 3393008 Screw

41 690261 Block, Terminal

42 279393 Terminal Block Kit For Terminal Block

46 3388229 Clip, Toe Panel Lock

48 297092 Clip, Hinge (2)

49 Panel, Toe

692427 White

692428 Almond

692431 Golden Harvest

51 238088 Hinge, Top (2)

53 691366 Idler & Pulley Assembly

56 660996 Belt, Drive

57 348780 Base, Motor

58 172455 Bolt, 5/16-18 x 3/4

59 3389627 Pulley, 60 Hz.

61 3388235 Switch (Use W/3391888 Motor)

62 3391888 Motor Assembly, 60 Hz.

63 660658 Clip, Motor (2)

343481 (Alt.)

685441 (Alt.)

64 690236 Wire, Ground

67 685762 Seal, Door

87 697776 Screw, 10-32 x 1/2 (Grounding)

1 386367 Panel, Rear Console

3 355326 Screw, 13-16 x 5/8

4 63789 Cap, End (L.H.)

5 3388706 Resistor, Timer

6 358473 Stop, Push-In

8 358472 Nut, Push-In (2)

9 63795 Cap, End (R.H.)

10 339392 Screen, Lint

11 Cover, Lint Screen

688150 White

689310 Almond

689313 Golden Harvest

12 339229 Hinge, R.H.

339230 Hinge, L.H.

13 688983 Screw, 8-18 x 5/8

14 64211 Screw, End Cap

16 Top

3393385 White

3393386 Almond

3393387 Golden Harvest

18 386638 Knob, Temperature Selector

21 3391661 Timer, 60 Hz.

29 343641 Screw, 10-16 x 1/2

31 3391666 Harness, Wiring

39 348314 Relay, Push-To-Start

48 3387901 Timer Knob & Dial Assembly

53 386627 Bracket, Control

54 3388008 Panel, Control

67 689559 Nut, Push-In (4)

72 690853 Wire, Ground

76 694419 Buzzer

79 696321 Switch, Rotary (Temperature Selector)

81 3387976 Knob, Push To Start

LITERATURE AND OPTIONAL PARTS

LITERATURE PARTS

LIT3391427 Guide, Dryer

LIT3391366 Use & Care Guide

LIT696234 Instructions, Installation

LIT3393037 List, Service Parts

OPTIONAL PARTS NOT INCLUDED

PAINTS

PAINT,TOUCH UP (1/2 oz.)

72017 White

72107 Almond

72110 Golden Harvest

PAINT PRESSURIZED SPRAY (13 oz.)

350930 White

350956 Almond

261890 Golden Harvest

350938 Primer, Gray

350941 Leveler (Thinner)

PAINT,BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

261891 Golden Harvest (Uncut)

Following May Be Purchased: DO-IT-YOURSELF-REPAIR-MANUALS

LITERATURE PARTS

LIT677813 Automatic Washer (Belt Drive)

LIT677818 Dryer

LIT677821 Compactor

LIT677967 Dishwasher

LIT677971 Ice Maker (In Refrigerator)

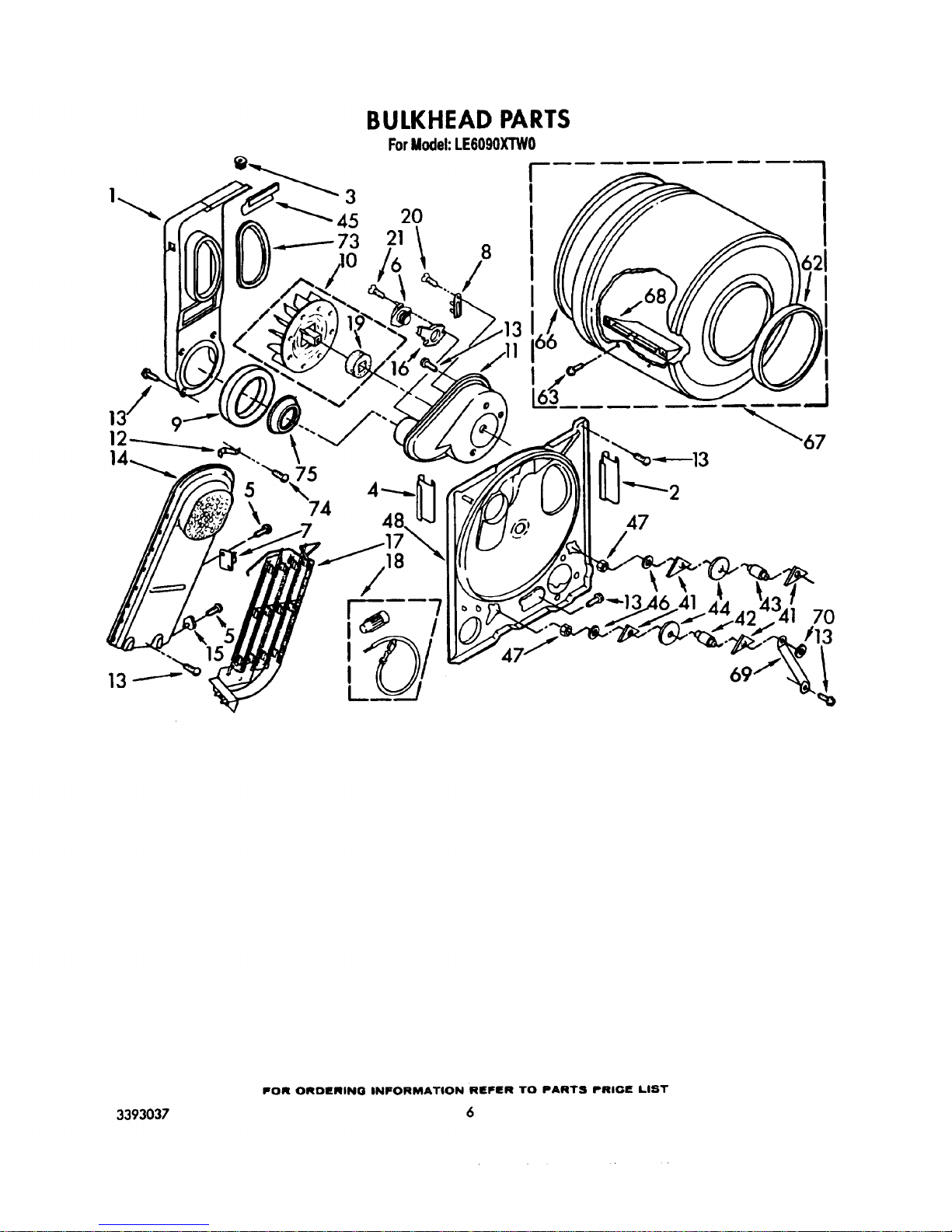

1 694283 Lint Chute Assembly

2 686889 Pad, Cabinet

3 98460 Nut, Push-In (2)

4 3392247 Pad, Blower Housing

5 90767 Screw, 8 x 3/8

6 660039 Operating Thermostat, 150~F (66~C) (341146) (Alt.)

7 3389946 Thermal Cut-Off (Hi-Limit Thermostat Illus. No. 15 Included)

8 3392519 Thermal Fuse

9 347139 Seal, Lint Chute

10 694089 Wheel, Blower

11 695081 Housing, Blower

12 337272 Clip

13 343641 Screw, 10-16 x 1/2

14 695547 Box, Heater

15 3390291 Thermostat, (High Limit) 250~F (121.1~C)

16 61894 Heater, Thermostat

17 660982 Element, Heater (For 240 Volt Installation)

693300 (Alt.)

693062 (Alt.)

18 279457 Wire Kit (For Heater Element Wiring Harness Repair)

19 3392123 Seal, Blower

20 695239 Screw, 8-18 x 3/8

21 695240 Screw, 8-18 x 1/2

41 690997 Ring, Tri

42 347364 Shaft, L.H.

43 339489 Shaft, R.H.

44 349241 Roller, Support

45 686770 Sup\port Pr\otector

46 348197 Washer Support

47 120377 Nut, 3/8-16

48 685775 Bulkhead

62 337651 Ring, Bearing

63 690372 Screw, 11-16 x 7/8

66 337449 Seal, Rear Drum

67 697093 Drum Assembly

68 342847 Baffle, Drum

69 348945 Bracket, Support

70 90296 Clip

73 339956 Seal

74 687128 Screw, 10-16 x 1/2

75 696302 Shield, Exhaust
