LARGECAPACITYAUTOMATICDRYERS

LE6090XT LE6800XT LE7000XT

LG6091XT LG6801XT LG7001XT

Contents

Page

Important Safety Instructions

Additional safety instructions

and your responsibilities ................3

Operating Instructions

Starting your dryer .........................4

The automatic cycles ............... .....6

Timed drying ,....,............................ 7

Using fluff air ..__.............................. 7

Using TUMBLE PRESS@ ...............7

End-of-cycle signal .........................8

Additional Dryer Features

Gentle heat system ............. .... . ...9

FINISH GUARD@ setting ... ...... .....9

Caring For Your Dryer

Cleaning the lint screen ........... ...10

Cleaning the dryer interior ... ...... .10

Lint removal .................................11

If You Need Service Or

Assistance ._._.__._............................ 12

Whirlpool Automatic Dryer

Warranty ... .._.____............................ 16

Thank you for buying a Whirlpool

appliance. Please complete and mail

the Owner Registration Card provided

with this product. Then complete the

form below. Have this information

ready if you need service or call with a

question.

Copy model and serial numbers from

plate (on the frame behind the door)

and purchase date from sales slip.

Keep this book, the Dryer Guide and

the sales slip together in a handy

place.

Model Number

Serial Number

01990 Whirlpool Corporation

Purchase Date

If your dryer has a Consumer Buy

Guide label, remove it. It will be easier

to remove before the dryer is used. To

remove any remaining glue:

Rub briskly with thumb to make a

ball, then remove.

Service Company Phone Number

Soak area with liquid hand

dishwashing detergent before

removing glue as described above.

Do not use sharp instruments, rubbing

alcohol, flammable fluids or abrasive

cleaners. These can damage the

finish. See “Important Safety

Instructions” on page 3.

NOTE: Do not remove any permanent

instruction labels inside the dryer.

You should wipe out the dryer drum

with a damp cloth before using to

remove dust from storing or shipping.

FOR YOUR SAFETY

If you smell gas:

1. Open windows.

2. Don’t touch electrical

switches.

3. Extinguish any open

flame.

4. Immediately call your

gas supplier.

FOR YOUR SAFETY

Do not store or use gas-

oline or other flammable

vapors and liquids in the

vicinity of this or any other

appliance. The fumes can

create a fire hazard or

explosion.

ImportantSafetyInstructions

To reduce the risk of fire, electrical shock, or

injury to persons when using your dryer, follow

basic precautions, including the following:

Read all instructions before using

You are responsible for making

the dryer. sure that your dryer is installed,

NEVER dry items cleaned, washed, repaired and has parts replaced by a

soaked in or spotted with wax, paint, qualified person.

gasoline or flammable fluids in the

Use only fabric softeners specifically

dryer. The fumes can create a FIRE labeled as not being harmful to the

HAZARD or EXPLOSION. ALWAYS dryer.

hand launder and air dry fabrics

FIRE HAZARD and DAMAGE to

containing these materials. materials can result from:

NEVER allow children to operate,

play with or crawl inside the dryer. -drying rubber, rubber-like and heat

sensitive materials with heat.

Close supervision of children is

necessary when the dryer is used -allowing lint build-up inside the

near children. dryer or exhaust system. Cleaning

DO NOT reach into a dryer if the should be done periodically by a

drum is moving. qualified person.

Clean lint screen before or after each

When discarding an old dryer, load.

ALWAYS remove the door to

prevent accidental entrapment.

DO NOT let dust, lint, paper, rags,

DO NOT install or store dryer where chemicals, etc. pile up around or

it will be exposed to the weather. under the dryer.

DO NOT tamper with the controls.

Dryer must be electrically grounded.

See the Installation Instructions.

- SAVE THESE INSTRUCTIONS -

Additional safety instructions and your responsibilities

NEVER operate the dryer if:

-it is not working right (i.e. noisy, too

hot).

-it is damaged.

-parts are missing (i.e. door latch).

-all panels are not in place.

-the lint screen is loose, damaged or

missing.

ALWAYS shut off the gas valve before

leaving on vacation if you have a gas

dryer.

ALWAYS unplug the power supply

cord or turn off electrical power before

attempting to service the dryer. Shut

off

GAS VALVE if you have a gas

dryer.

You are responsible for making

sure that your dryer:

- is properly maintained.

- is properly installed and leveled on

a floor that can support the weight

in a well ventilated room.’

- is located in an area where the

temperature is above 45°F (7.2%).

- is connected to the proper outlet

and electrical supply.’

- is properly connected to fuel and

exhaust systems.*

- is not installed against drapes or

curtains.*

- is used only for jobs normally

expected of home clothes dryers.

- is not used by anyone unable to

operate it properly.

‘See the Installation Instructions for

complete information. 3

OperatingInstructions

The drawings in this book may vary slightly from your dryer model. They are

designed to show the different features of all the models covered by this book.

Starting your dryer

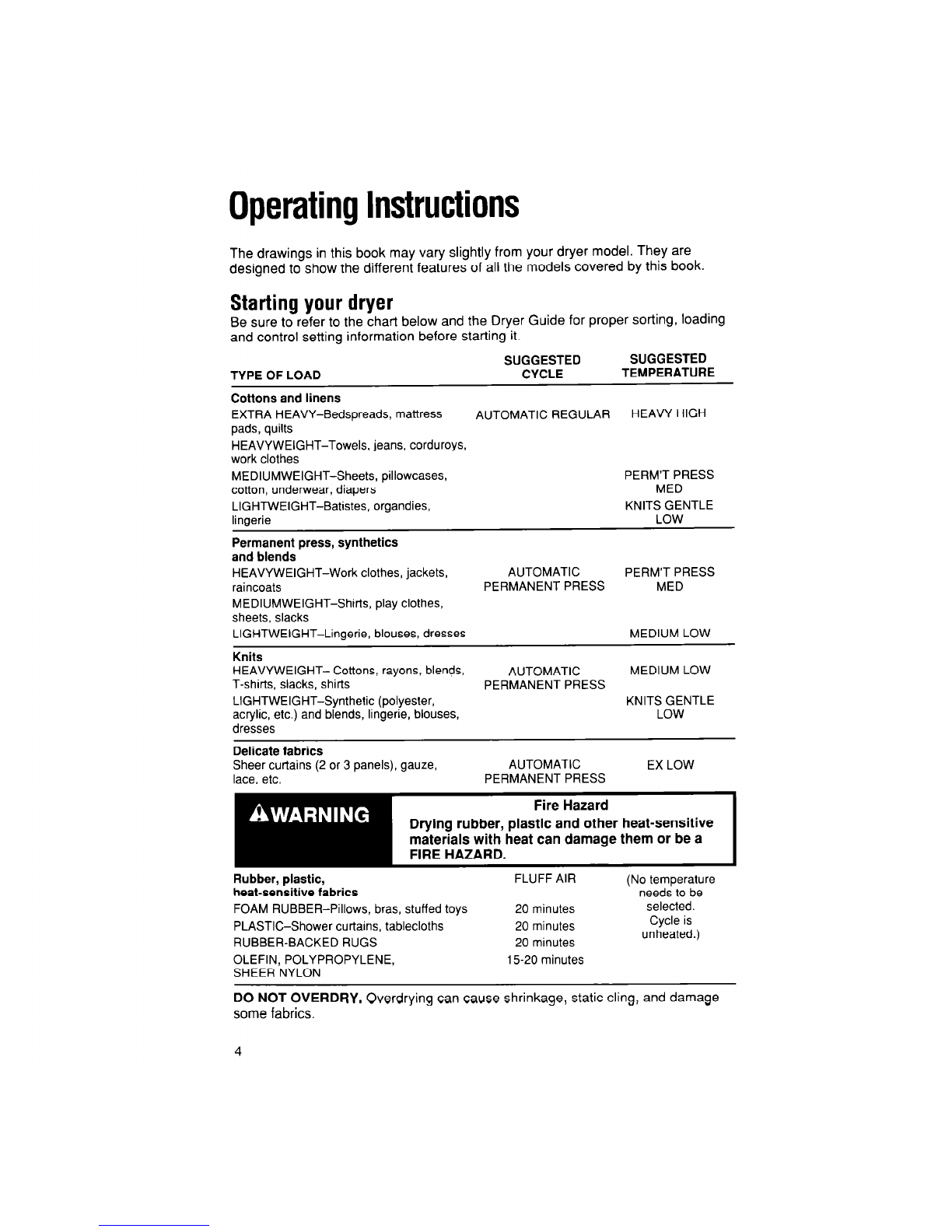

Be sure to refer to the chart below and the Dryer Guide for proper sorting, loading

and control setting information before starting it.

SUGGESTED SUGGESTED

TYPE OF LOAD CYCLE TEMPERATURE

Cottons and linens

EXTRA HEAVY-Bedspreads, mattress AUTOMATIC REGULAR HEAVY HIGH

pads, quilts

HEAVYWEIGHT-Towels, jeans, corduroys,

work clothes

MEDIUMWEIGHT-Sheets, pillowcases, PERM’T PRESS

cotton, underwear, diapers MED

LIGHTWEIGHT-Batistes, organdies, KNITS GENTLE

lingerie LOW

Permanent press, synthetics

and blends

HEAVYWEIGHT-Work clothes, jackets, AUTOMATIC PERM’T PRESS

raincoats PERMANENT PRESS MED

MEDIUMWEIGHT-Shirts, play clothes,

sheets, slacks

LIGHTWEIGHT-Linaerie. blouses, dresses MEDIUM LOW

Knits

HEAVYWEIGHT- Cottons, rayons, blends, AUTOMATIC MEDIUM LOW

T-shirts, slacks, shirts PERMANENT PRESS

LIGHTWEIGHT-Synthetic (polyester, KNITS GENTLE

acrylic, etc.) and blends, lingerie, blouses, LOW

dresses

Delicate fabrics

Sheer curtains (2 or 3 panels), gauze,

lace, etc. AUTOMATIC EX LOW

PERMANENT PRESS

Rubber, plastic,

heat-sensitive fabrics

FOAM RUBBER-Pillows, bras, stuffed toys

PLASTIC-Shower curtains, tablecloths

RUBBER-BACKED RUGS

OLEFIN, POLYPROPYLENE,

SHEER NYLON

FLUFF AIR

20 minutes

15-20 minutes

(No temperature

needs to be

selected.

Cycle is

unheated.)

DO NOT OVERDRY. Overdrying can cause shrinkage, static cling, and damage

some fabrics.

3. Push the Start Button to start the

4. To stop and restart the dryer:

. Open the door or turn the Cycle

Control Knob to OFF to stop the

dryer.

9 Close the door, select a cycle (if

necessary) and push the Start

Button to restart the dryer.

The Cycle Control Knob should point

to an OFF area when the dryer is not

in use, If the dryer is stopped before

the cycle is finished, turn the Cycle

Control Knob to an OFF area. 5

Operating Instructions

Continued

The automatic cycles

The automatic cycles allow you to

select the degree of dryness you prefer

for the clothes being dried.

The automatic DRY-MISER@ control

is a thermostat that senses the dryer

air temperature. The dryer automati-

cally shuts off when the selected

dryness is reached.

The Cycle Control Knob will not

move until the clothes load is almost

dry, or the Cool-Down portion of the

cycle has been reached. After the

Cool-Down portion is complete, the

Cycle Control Knob automatically

moves to an OFF area and tumbling

stops.

NOTE: Overdrying can cause shrink-

age, static cling and damage to some

fabrics.

TIMED DRYING

Use the TIMED DRYING cycle for any

load you want to dry by time.

Turn the Cycle Control Knob to the

number of minutes you want from

10 to 70.

The last 5 minutes of this cycle are

without heat to help make the load

easier to handle.

Using FLUFFAIR

Fire Hazard

Do not dry plastic or rubber items

with heat. Use FLUFF AIR setting,

or line dry. Failure to do so could

result in fire or damaged items.

The dryer does not heat when the Cycle

Control Knob is set in FLUFF AIR. This

cycle can be used to fluff or air dry

bedding, plastic tablecloths, foam rubber

pillows, stuffed toys, sneakers, etc.

1. Turn the Cycle Control Knob to the

number of minutes you want in

FLUFF AIR.

2. Push the Start Button.

Using TUMBLE PRESS@

The TUMBLE PRESS setting removes

wrinkles from clothing that has been

packed in a suitcase or closet, and from

items not removed from the dryer at the

end of a cycle.

Set the Cycle Control Knob on

TUMBLE PRESS.

2. Set the Temperature Selector on

PERM’T PRESS MED.

3. Push the Start Button.

The load will tumble in heated air for 15

minutes. Then the dryer will tumble the

clothes for 5 more minutes without heat,

For best results, put only a few items

at a time in this cycle. As soon as the

dryer stops, put the items on hangers or

fold them.

Operating Instructions

Continued

‘/

P-

/ ’

End-of-cycle signal

The dryer sounds a signal to let you

know when the cycle is finished. The

signal cannot be turned ofi and is not

adjustable.

The signal is helpful when you are

drying permanent press, synthetic and

other items that should be taken out as

soon as the dryer stops.

AdditionalDryerFeatures

Gentle Heat System

The dryer automatically reduces the

heat settings in HEAVY HIGH and

PERM’T PRESS MED. During the last

few minutes of each of these tempera-

ture settings the dryer temperature

gradually reduces to a lower heat

setting. This helps prevent overdrying.

FINISH GUARD@setting

When you are unable to remove a load

from the dryer as soon as it stops,

wrinkles can form.

FINISH GUARD tumbles the load,

without heat, every 5 minutes for up to

40 minutes. This tumbling rearranges

and fluffs the load to help avoid

wrinkles that set in when the load

remains in the drum.

You don’t have to set the Cycle

Control Knob for FINISH GUARD.

FINISH GUARD takes over automati-

cally to protect the load if you don’t

open the door within 5 minutes after

the PERMANENT PRESS cycle stops.

A signal will sound every 5 minutes

during FINISH GUARD, for up to 40

minutes. The signal will stop when the

dryer door is opened.

CaringForYourDryer

Cleaning the lint screen

The lint screen is located under a lid on top of the dryer. Clean it before each

load. A screen blocked by lint can increase drying time.

1. Open the lid and pull the lint screen

straight out.

2. Roll lint off the screen with your

fingers. Do not rinse or wash the

screen. Wet lint is hard to remove.

3. Push the lint screen firmly back into

place and close the lid.

Cleaning the dryer interior

Electrical Shock and

Personal Injury Hazard

Unplug the power supply cord

or turn off the electrical power

before cleaning the interior.

Make sure the dryer is cool.

Failure to do so could result in

electrical shock or injury.

Fire Hazard

Shut off gas valves on gas

dryers.

Use non-flammable cleaner.

Failure to do so could result in

gas leak or explosion.

Garments which contain unstable

dyes, such as denim blue jeans or

brightly colored cotton items, may

discolor the dryer interior. If the interior

is discolored, clean with one of the

following methods to avoid staining

later load items.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Whirlpool Séchoir

Whirlpool

Whirlpool LE7805XP Manuel utilisateur

Whirlpool

Whirlpool WED4616FW Manuel utilisateur

Whirlpool

Whirlpool WGD8300SE Guide de l'utilisateur

Whirlpool

Whirlpool TRAK 6450 Manuel utilisateur

Whirlpool

Whirlpool LET5436AW0 Manuel utilisateur

Whirlpool

Whirlpool 8528095 REV A Manuel utilisateur

Whirlpool

Whirlpool 8578901 Manuel utilisateur

Whirlpool

Whirlpool WHP80250 Manuel utilisateur

Whirlpool

Whirlpool LE5770XW Manuel utilisateur

Whirlpool

Whirlpool WCD5090JW Manuel utilisateur

Whirlpool

Whirlpool LER5848EQ2 Manuel utilisateur

Whirlpool

Whirlpool Duet Steam WED 9750W 0 Series Manuel utilisateur

Whirlpool

Whirlpool WED94HEXW0 Manuel utilisateur

Whirlpool

Whirlpool LE5721XS Manuel utilisateur

Whirlpool

Whirlpool LER3624BW0 Manuel utilisateur

Whirlpool

Whirlpool WGD8300SB1 Manuel utilisateur

Whirlpool

Whirlpool YCEM2765FQ Manuel utilisateur

Whirlpool

Whirlpool 8314840B Manuel utilisateur

Whirlpool

Whirlpool 1W10287573A Manuel utilisateur

Whirlpool

Whirlpool WGD9400S Manuel

Whirlpool

Whirlpool WHD5090GW0 Manuel utilisateur

Whirlpool

Whirlpool CEM2750TQ - COMMCL E DRYR 3CYC 3TMP WHIRLP Manuel utilisateur

Whirlpool

Whirlpool GEW9250PT Manuel utilisateur

Whirlpool

Whirlpool 8528324 Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
