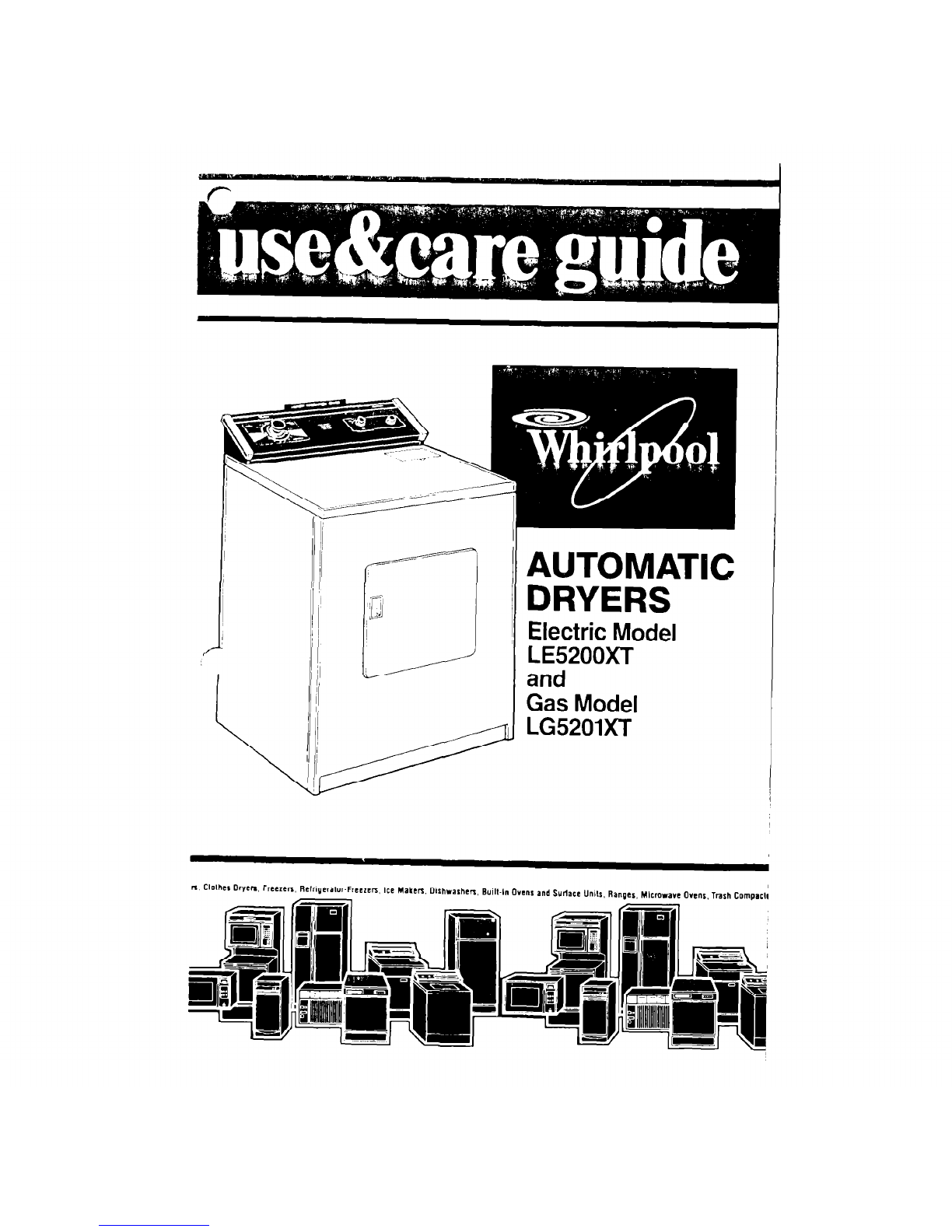

Whirlpool LE5200XT Manuel utilisateur

AUTOMATIC

DRYERS

Electric Model

LE5200XT

and

Gas Model

LG5201XT

Parts and features

CYCLE CONTROL KNOB m

LbUNDRY INFORMATION CENTER

TEMPERATURE SELECTOR

START BUTTON

LINT SCREEN

DRYER DRUM

DOOR

MODEL

AND SERIAL

NUMBER PLATE

Remove the Con-

sumer Buy Guide label

before using your

dryer. It will be easier

to remove.

Wipe out the dryer

drum with a damp

cloth to remove dust

from storing or ship-

ping.

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this information ready:

1. Complete Model and Serial Numbers

Model Number

(from plate localed as shown).

2. Purchase date from sales slip.

Serial Number

Copy this information in these spaces. #-

Keep this book in the Laundry !nformation .-

Purchase Date

Center with your “Dryer Guide” and sales

SIIP.

Thank you for purchasing a Whirlpool

Service Company Phone Number

product. Please complete and mail the Owner Registration Card fur-

nished with this product.

Contents

PARTS AND FEATURES

IMPORTANT SAFETY

INSTRUCTIONS

OPERATING INSTRUCTIONS.

Selecting a Cycle and

Starting Your Dryer

Automatic Cycles.

Timed Drying

DRYING TIPS

FLUFFAIR Setting

Automatic DRY-MISER”

Control

Page

-I

Drying Times

Mixed Loads..

LINT SCREEN

LINT REMOVAL..

CARING FOR YOUR DRYER.,

Cleaning Dryer Interior,,

Vacation Care

IF YOU NEED SERVICE OR

ASSISTANCE

WWIRLPOOL DRYER

WARRANTY

Page

2 c1988 WhIrlpool Corporatron

missing.

FOR YOUR SAFETY

If you smell gas:

1. Open windows.

2. Don’t touch electrical

switches.

3. ;;tteguish any open

4. Immediately call your

gas supplier.

FOR YOUR SAFETY

Do not store or use gas-

oline or other flammable

vapors and liquids in the

vicinity of this or any other

appliance.

You are personally responsible for making

sure that Your dryer...

is properly maintained.

is properly installed and leveled in a well

ventilated room’ on a floor that can sup-

port the weight

is located in an area where the tempera-

ture ISabove 45 F (7.2‘C).

is connected to the proper outlet and

electrical surely.’

is properly :YC:.‘S.-~i.t-;f-! to fuel and ex-

haust systen-:,-

is not insi, ‘lm~_ m

,-I

1st drapes or

curtains.’

is used or,;’ I:. ..!t>: .’ golly expected

of her. ,,-,: 5.~.:g: ..

is not I ;:I:’ Jr anyone unable

to operc. ’ ~::,,erly.

*See “lnslr-l!rrtion Instructions” for com-

plete Inlormation.

TYPE OF LOAD SUGGESTED SUGGESTED

CYCLE TEMPERATURE

COTTONS-LINENS

EXTRA HEAVY - Bedspreads,

mattress pads, quills

HEAVYWEIGHT FABRICS-Towels,

jeans, corduroys, work clothes PERMIT

MEDIUMWEIGHT COTTONS - AUTOMATIC PRESS

Sheets, pillowcases, cotton REGULAR HEAVY

underwear, diapers HIGH

LIGHTWEIGHT COTTONS - Batistes,

organdies, lingerie

PERMANENT PRESS, SYNTHETICS

AND BLENDS

HEAVYWEIGHT FABRICS-Work clothes,

jackets, raincoats

MEDIUMWEIGHT FABRICS-Shirts, play

clothessheets, slacks..

LIGHTWEIGHT FABRICS - Lingerie,

blouses, dresses

KNITS

AUTOMATIC

PERMANENT

PRESS

PERMIT

PRESS

HEAVY

HIGH /

HEAVYWEIGHT-Cottons, rayons,

blend&T-shirts, slacks, shirts

LIGHTWEIGHT - Synthetics (polyester,

acrylic, etc.) and blends, lingerie,

blouses, dresses

PERMIT PRESS

AUTOMATIC HEAVY HIGH

PERFR;;sENT KNITS GENTLE

LOW

LIGHTWEIGHT AND DELICATE FABRICS

Sheer Curtains (2 or 3 panels)

Gauze, lace, etc.

RUBBER, PLASTIC, HEAT-SENSITIVE

FABRICS

FOAM RUBBER- Pillows, bras,

stuffedtoys ..,

PLASTIC-Shower curtains,

tablecloths............................

RUBBER-BACKED RUGS

OLEFIN, POLYPROPYLENE, SHEERNYLON

AUTOMATIC KNITS GENTLE

PERMANENT LOW

PRESS

TIMED

DRYING

20-30 MINS. FLUFF

20-30 MINS. AIR

40-50 MINS.

15-20 MINS.

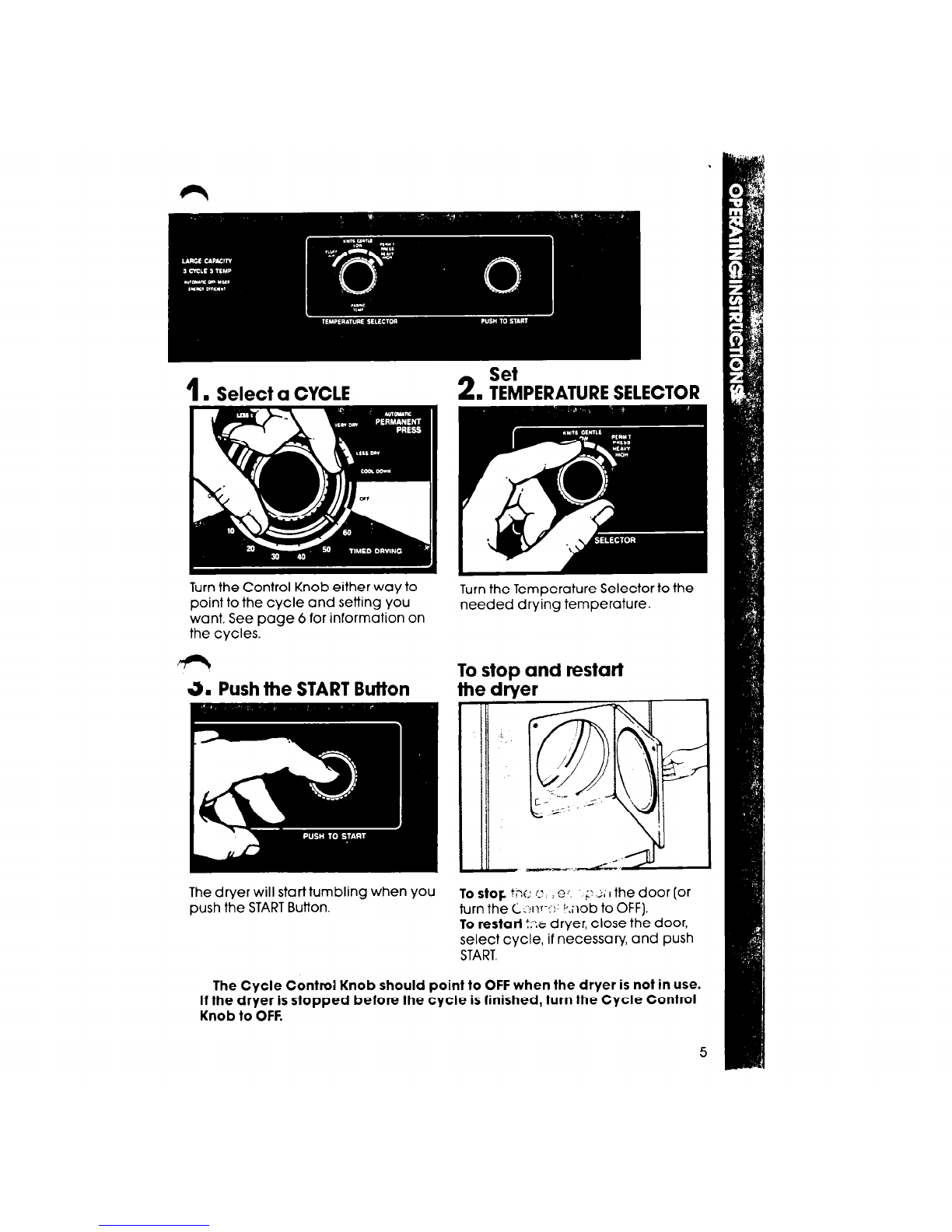

. Select a CYCLE

Set

TEMPERATURE SELECTOR

Turn the Control Knob either way to

point to the cycle and setting you

want. See page 6 for information on

the cycles.

3. Push the START Button

The dryer will start tumbling when you

push the STARTButton.

Turn the Temperature Selector to the

needed drying temperature.

To stop and restart

the dryer

To stop w; c : n*, ;.s I

the door [or

turn the C;;;nr-:~: +.;lob to OFF).

To restari t::e dryer, close the door,

select cycle, if necessary, and push

START.

The Cycle Control Knob should point to OFF when the dryer is not in use.

If the dryer is stopped before the cycle is finished, turn the Cycle Control

Knob to OFF.

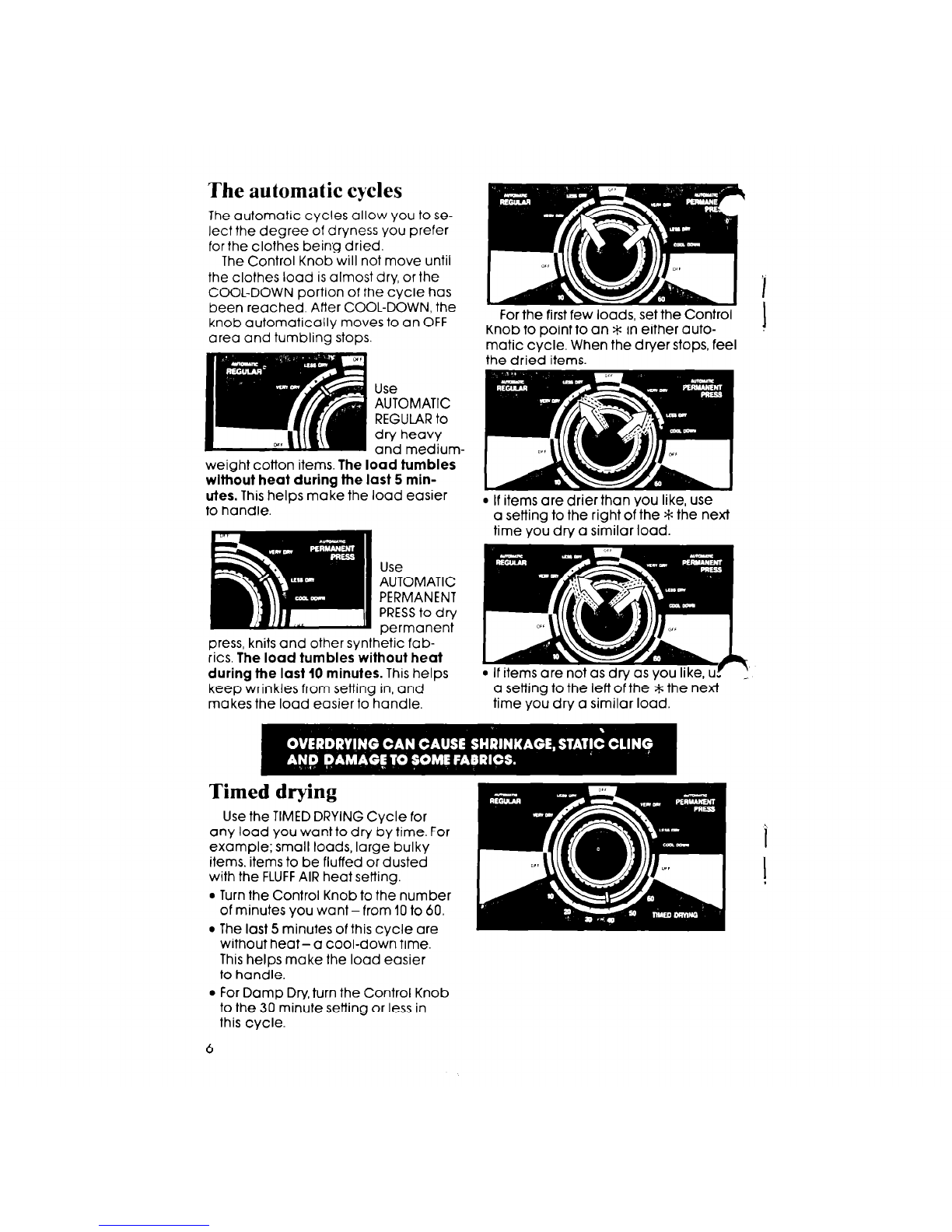

The automatic cycles

The automatic cycles allow you to se-

lect the degree of dryness you prefer

for the clothes being dried.

The Control Knob will not move until

the clothes load is almost dry, or the

COOL-DOWN portion of the cycle has

been reached. AHer COOL-DOWN, the

knob automatically moves to an OFF

area and tumbling stops.

weight cotton items. The load tumbles

without heat during the last 5 min-

utes. This helps make the load easier

to handle.

Use

AUTOMATIC

PERMANENT

PRESSto dry

permanent

press, knits and other synthetic fab-

rics. The load tumbles without heat

during the last 10 minutes. This helps

keep wrinkles from setting in, and

makes the load easier to handle.

For the first few loads, set the Control

Knob to point to an * in either auto-

matic cycle. When the dryer stops, feel

the dried items.

If items are drier than you like, use

a setting to the right of the * the next

time you dry a similar load.

a setting to the left of the * the next

time you dry a similar load.

Timed drying

Use the TIMED DRYING Cycle for

any load you want to dry by time. For

example; small loads, large bulky

items, items to be fluffed or dusted

with the FLUFFAIR heat setting.

Turn the Control Knob to the number

of minutes you want-from IO to 60.

The last 5 minutes of this cycle are

without heat- a cool-down time.

This helps make the load easier

to handle.

For Damp Dry, turn the Control Knob

to the 30 minute setting or less in

this cycle.

@hying tips

The dryer does not heat when the

Temperature Selector is set on FLUFF

AIR. This setting can be used to fluff

bedding, plastic tablecloths, foam

rubber pillows, stuffed toys, sneakers,

etc.

Automat . ;if< g-MISER”

Control

The ther:xt:-.!c’ ‘.,;.’ ,J:. ne air

tempera+ .:I- .:. -:r-:. automatically

shuts c. ./<-i+:r>*j., ;*’ ? ied dryness

is reach-- -$

1. Turn the Temperature Selector to

FLUFF AIR.

-. Turn the Control Knob to the number

of minutes you want in the TIMED

DRYING Cycle.

3. Push the STARTButton.

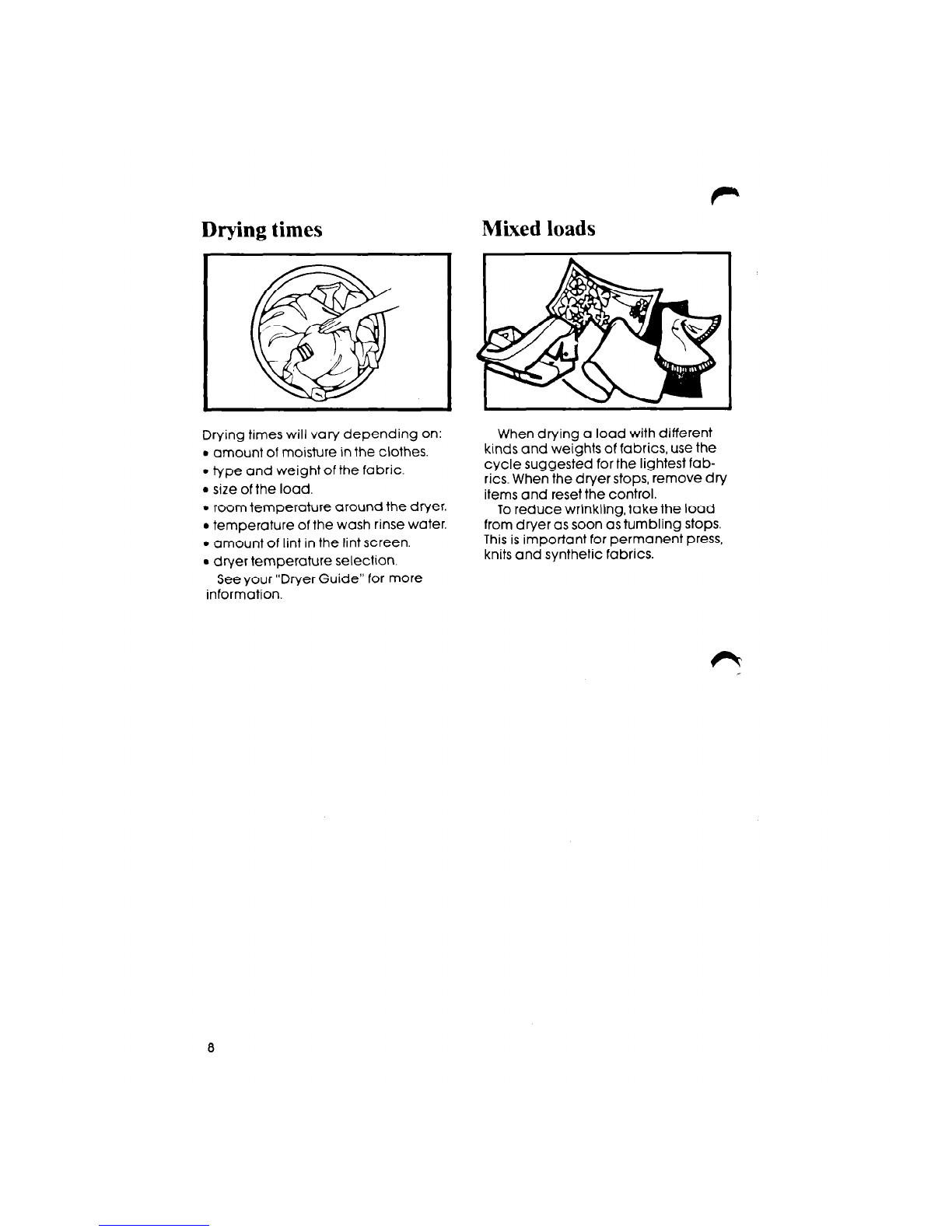

Drying times Mixed loads

Drying times will vary depending on:

amount of moisture in the clothes.

type and weight of the fabric.

size of the load.

room temperature around the dryer.

temperature of the wash rinse water.

amount of lint in the lint screen.

dryer temperature selection.

See your “Dryer Guide” for more

information.

When drying a load with different

kinds and weights of fabrics, use the

cycle suggested for the lightest fab-

rics. When the dryer stops, remove dry

items and reset the control.

To reduce wrinkling, take the load

from dryer as soon as tumbling stops.

This is important for permanent press,

knits and synthetic fabrics.

?nt screen

Clean the lint screen before each load. A screen blocked by lint can

increase drying time and may be a FIREHAZARD.

Open the lid and pull the lint screen

straight out. ROLL the lint off the screen with

your fingers.

DO NOT rinse or wash the screen.

Push the screen firmly back into place

Lint removal

Lint can gather inside the dryer and create a FIRE HAZARD. This lint

should be removed at least every 2 to 3 years, or more often, depending

on dryer usage.

ELECTRIC DRYERS GAS DRYERS

Cleaning should be done only by a qualified person.

1. Remove back panel (electric]

or lower access panel (gas).

2. Avoid damaging wires,

thermostats, funnel or igniter.

3. Remove lint from shaded area -

see art-with a soft brush or

vacuum cleaner.

4. Replace panel; reconnect and

re-level dryer. 9

Caring for your dryer

Remove loose and sharp objects

from pockets and cuffs before drying -

pins, buckles, etc. Close metal

zippers.

Wipe off all spills with a damp, soft

cloth. Spills allowed to remain may

dull or damage the finish.

Never leave wet or damp laundry

in vour drver.

Sharp or heavy objects should

never be put on or in the dryer

Check pockets for bolts, nuts etc

Some pretreatment products can

damage dials, consoles and finish.

Do not use these products on or near

your dryer.

Cleaning dryer interior

Garments which contain unstable

dyes, such as denim blue jeans om

brightly colored cotton items, ma\

discolor the dryer interior. Ifthe

interior is discolored, clean with

one of the following methods to

avoid staining later load items.

Powdered laundry detergent and

very warm water

Make a paste with detergent and

very warm water. Apply paste to

a soH cloth and scrub area until

all excess dye is removed. Wipe

thoroughly with a damp cloth.

Tumble a load of rags. -OR-

liquid spray household cleaner

Spray on stained area. Rub with

a cloth until all excess dye is

removed. Tumble a load of rags.

Vacation care

9 Unplug power cord or turn off

electrical power.

For gas dryers, close gas valve.

Clean lint screen.

Autres manuels pour LE5200XT

Ce manuel convient aux modèles suivants

Autres manuels Whirlpool Séchoir

Whirlpool

Whirlpool WGD5700V - 7.0 Cu Ft Manuel

Whirlpool

Whirlpool REC3622D Instructions d'installation

Whirlpool

Whirlpool WGD5700V - 7.0 Cu Ft Manuel

Whirlpool

Whirlpool LER56000 Manuel utilisateur

Whirlpool

Whirlpool LE6685XP Manuel utilisateur

Whirlpool

Whirlpool duet GEW9260PL1 Manuel utilisateur

Whirlpool

Whirlpool WEL98HEBU Manuel utilisateur

Whirlpool

Whirlpool Gold GGQ9800PW3 Manuel utilisateur

Whirlpool

Whirlpool WGD72HED Manuel utilisateur

Whirlpool

Whirlpool GCGM2991TQ Manuel utilisateur

Whirlpool

Whirlpool YLEQ5000KQ1 Manuel utilisateur

Whirlpool

Whirlpool LEQ8000JQ0 Manuel utilisateur

Whirlpool

Whirlpool Duet YGEW9200LQ2 Manuel utilisateur

Whirlpool

Whirlpool LDR3822D Manuel utilisateur

Whirlpool

Whirlpool 240-VOLT ELECTRIC DRYER Manuel utilisateur

Whirlpool

Whirlpool YCEM2765FQ Manuel utilisateur

Whirlpool

Whirlpool DUET SPORT W10260035A Manuel utilisateur

Whirlpool

Whirlpool WED99HED Instructions d'utilisation

Whirlpool

Whirlpool WED6200SW1 Manuel utilisateur

Whirlpool

Whirlpool Gold YGEQ9800PW2 Manuel utilisateur

Whirlpool

Whirlpool LE4900XS, LE4930XS, LG4931XS Manuel utilisateur

Whirlpool

Whirlpool LE5530XP Manuel utilisateur

Whirlpool

Whirlpool WGD7500GW Manuel utilisateur

Whirlpool

Whirlpool LER5644EQ0 Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
