Whirlpool LDR3422AW0 Manuel utilisateur

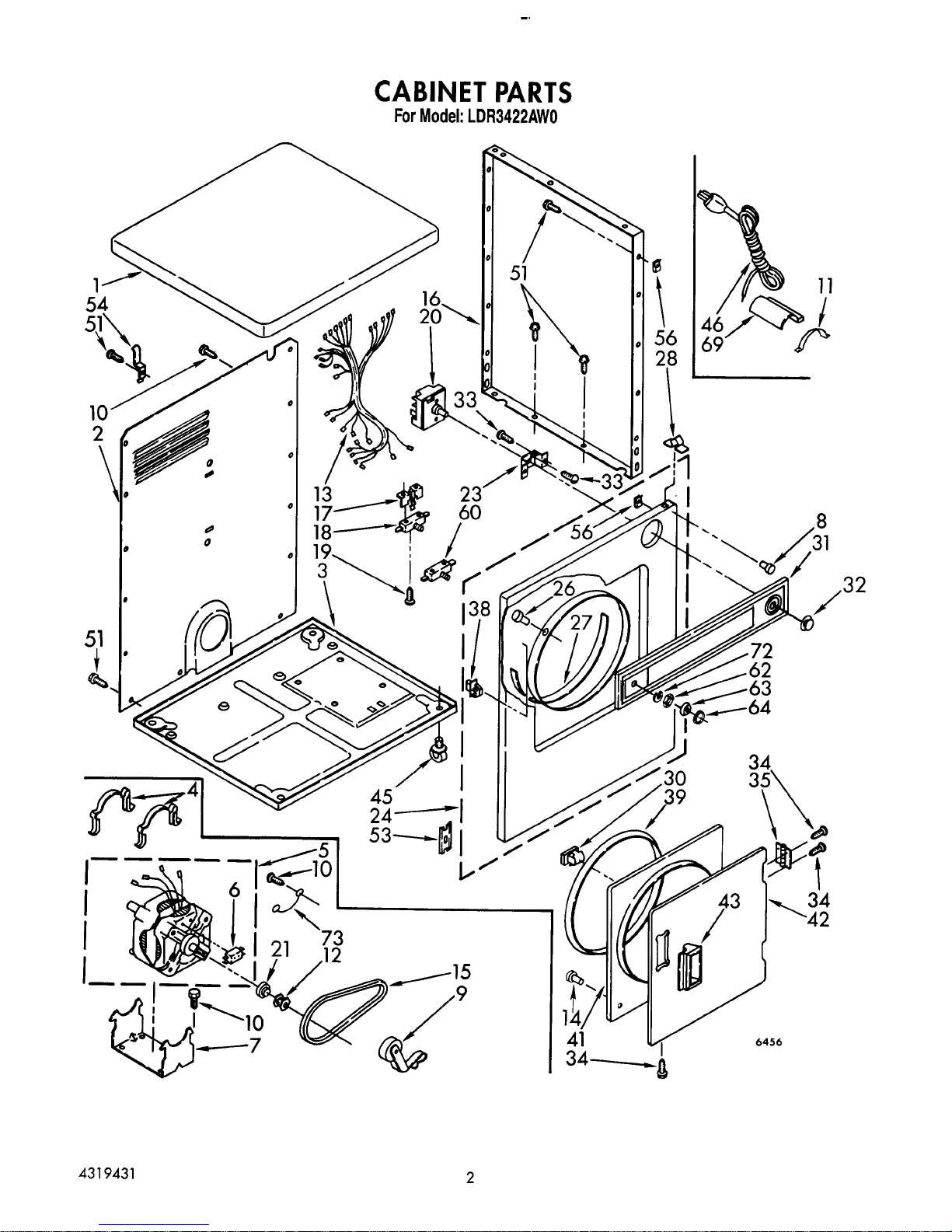

1 Top

4319377 White

4319405 Almond

2 Panel, Rear

4319439 White

4319440 Almond

3 4319418 Base Assembly

4 4319313 Clip, Motor

5 3391887 Motor, 60 Hz.

6 3388235 Switch (Use W/3391887 Motor)

7 696541 Base, Motor

8 307563 Rivet

9 691366 Idler & Pulley Assembly

10 62863 Screw, 10-16 X 3/8

11 98997 Clip

12 3389729 Pulley, 60 Hz.

13 4319414 Harness, Wiring

14 238614 Bumper

15 3394652 Belt, Drive

16 Panel, Side

4319382 White

4319406 Almond

17 295998 Lever, Door Switch

18 347207 Switch, Door

19 98129 Screw, 6-20 x 1-3/8

20 690621 Timer, 60 Hz.

21 3393657 Restrainer, Belt

23 4319376 Bracket, Timer

24 Front Panel Assembly

4319385 *White

4319408 *Almond

*When Ordering Any Of The Above Front Panels, Key No. 31 Must Also Be Ordered.

26 685203 Clip, Felt Pad (2)

27 349462 Seal & Bearing Assembly

28 345670 Lock, Top (2)

30 3389441 Catch, Door Assembly

31 Panel, Control

9830469 White

9830470 Almond

32 Knob Assembly

9830451 White

9830452 Almond

33 98139 Screw, 8-32 x 5/16 (2)

34 694091 Screw (4)

35 4319328 Hinge & Pin Assembly (2)

38 696144 Strike, Panel

39 685763 Seal, Door

41 4319442 Door, Rear

42 Door, Front

4319327 White

4319333 Almond

43 Handle, Door

4319329 White

4319334 Almond

45 660719 Caster (4)

349999 (Alt.)

688055 (Alt.)

46 4319443 Cord, Power

51 343641 Screw, 10-16 x 1/2

53 3394083 Clip (2)

54 345790 Bracket, Power Cord (2)

56 98234 Clip, Ground (2)

60 689038 Switch, Push-To-Start

62 90891 Nut, Hex

63 345530 Ring Trim

64 688041 Nut, Knurled

69 686769 Protector, Support

72 688193 Lockwasher

73 4319390 Wire, Ground (Motor)

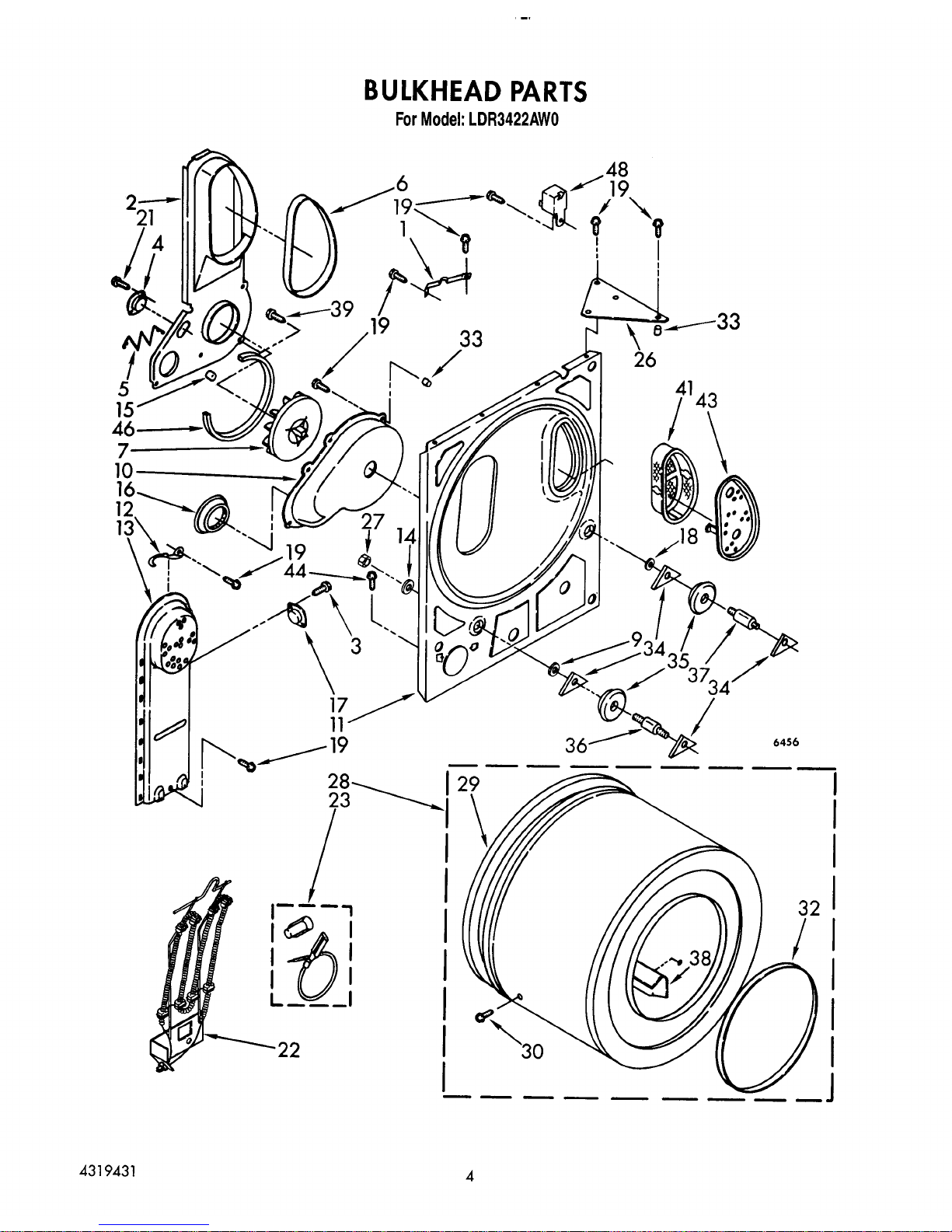

1 9830393 Clip

2 9830483 Air Duct Assembly

3 90767 Screw, 8A x 3/8

4 660074 Thermostat, 145~F (63~C)

5 345965 Guard, Exhaust

6 339956 Seal

7 696426 Wheel, Blower

9 3388703 Washer, Support

10 696419 Scroll, Fan

11 4319387 Bulkhead

12 4319315 Clip

13 4319438 Box, Heater

14 4319307 Washer, Support

15 359702 Cap, Screw

16 696302 Shield, Exhaust

17 660368 Thermostat, 180~F (82~C)

341197 (Alt.)

295432 (Alt.)

18 339492 Washer, Support

19 343641 Screw, 10-16 x 1/2

21 695239 Screw 8-18 x 3/8

22 4319393 Heater Element

23 279457 Wire Kit (For Heater Element Wiring Harness Repair)

26 4319441 Gusset (2)

27 120377 Nut, 3/8-16

28 4319388 Drum Assembly

29 9830197 Seal, Rear Drum

30 690372 Screw, 11-16 x 7/8

32 3394508 Ring, Bearing

33 359702 Cap, Screw

34 690997 Ring, Tri

35 3389901 Roller, Support

36 4319306 Shaft, L.H.

37 4319304 Shaft, R.H.

38 4319389 Baffle, Drum Short (3)

39 342202 Screw

41 348399 Lint Screen

43 685273 Cover, Lint Screen

44 342202 Screw, Tapping

46 9830394 Seal

48 694419 Buzzer, Mini

LITERATURE AND OPTIONAL PARTS

LITERATURE PARTS

LIT3390354 Instructions, Installation

LIT3393571 Label, Operating Instruction

LIT3391427 Guide, Dryer

LIT9830485 Use & Care Guide

LIT677818 Do-It-Yourself Manual

LIT4319431 List, Service Parts

OPTIONAL PARTS NOT INCLUDED

PAINTS

PAINT,TOUCH UP (1/2 oz.)

72017 White

72107 Almond

PAINT PRESSURIZED SPRAY (13 oz.)

350930 White

350956 Almond

350938 Primer, Gray

350941 Leveler (Thinner)

PAINT,BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)
