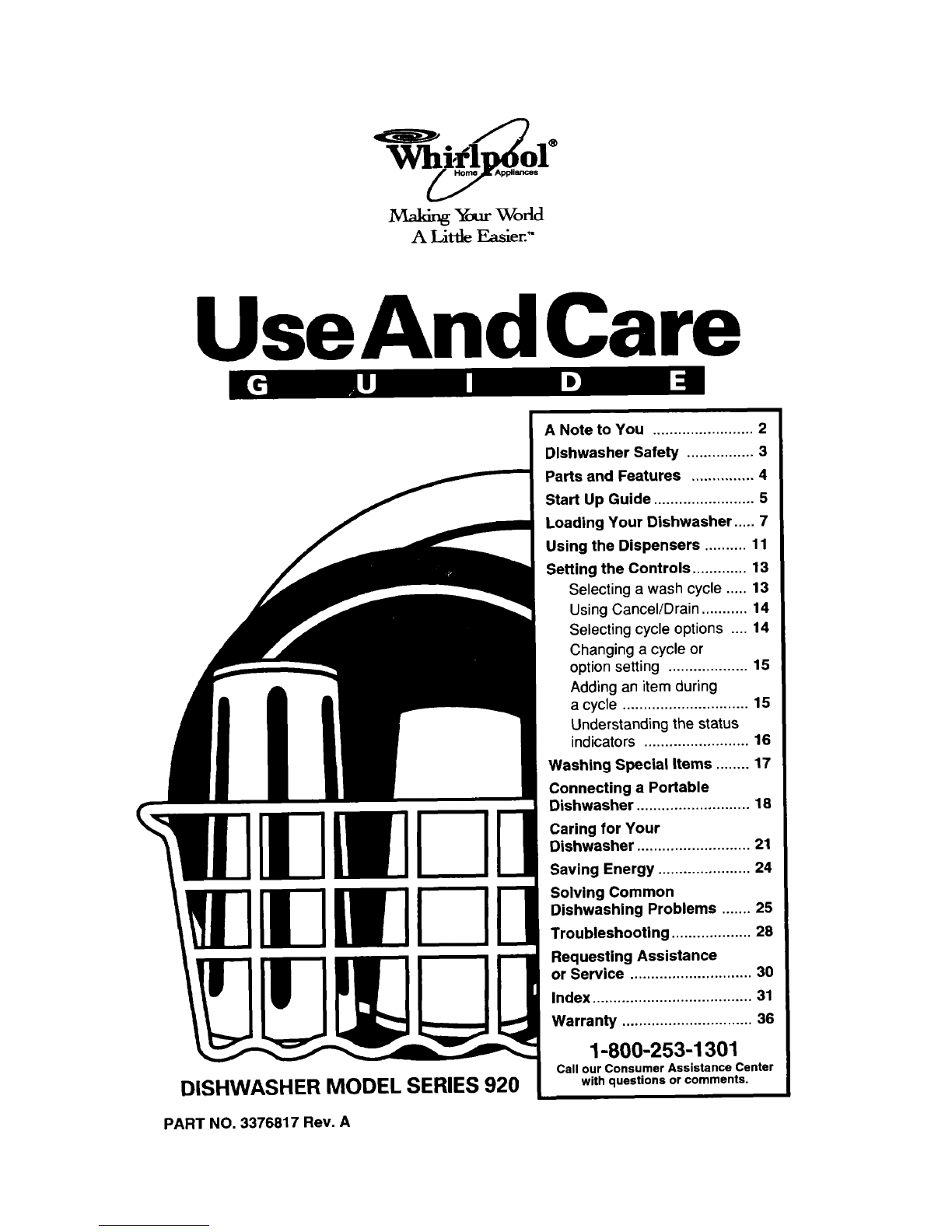

Making Yaur World

A Little Easier."

UseAndCare

DISHWASHER MODEL SERIES 920

A Note to You ........................ 2

Dishwasher Safety ................ 3

Parts and Features ............... 4

Start Up Guide ........................ 5

Loading Your Dishwasher ..... 7

Using the Dispensers .......... 11

Setting the Controls ............. 13

Selecting awash cycle ..... 13

Using Cancel/Drain ........... 14

Selecting cycle options .... 14

Changing a cycle or

option setting ................... 15

Adding an item during

acycle .............................. 15

Understanding the status

indicators ......................... 16

Washing Special Items ........ 17

Connecting a Portable

Dishwasher ........................... 18

Caring for Your

Dishwasher ........................... 21

Saving Energy ...................... 24

Solving Common

Dishwashing Problems ....... 25

Troubleshooting ................... 28

Requesting Assistance

or Service ............................. 30

Index ...................................... 31

Warranty ............................... 36

1-800-253-1301

Call our Consumer Assistance Center

with questions or comments.

PART NO. 3376817 Rev. A

A Note to You

Thank you for buying a WHIRLPOOL ®appliance.

Because your life is getting busier and more complicated, WHIRLPOOL dishwashers are

easy to use, save time, and help you manage your home better. To ensure you enjoy years

of trouble-free operation, we developed this Use and Care Guide. It contains valuable

information about how to operate and maintain your appliance properly and safely. Please

read it carefully.

Also, please complete and mail the Ownership Registration Card provided with your

appliance. This card helps us notify you about any new information on your appliance.

Please record your model's information.

Whenever you call to request service for

your appliance, you need to know your

complete model number and serial number.

You can find this information on the model

and serial number label (see the "Parts and

Features" section for location of label).

Please also record the purchase date of

your appliance and your dealer's name,

address, and telephone number.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Address

Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

I ur Consumer Assistance Center

number is toll-free. 1-800-253-1301 I

Help us help you

Please:

•Have your dishwasher installed by a

qualified installer.

• Install where dishwasher is protected from

the elements.

• Install and level dishwasher on a floor that

will hold the weight, and in an area suitable

for its size and use.

• Properly connect dishwasher to electricity,

water, and drain.*

* See Installation Instructions for complete

information.

• Remove all shipping plugs from hoses

and connectors (such as the cap on the

drain outlet) before installing.*

• Remove all hang tags and temporary

labels.

• Make sure dishwasher is not used by

anyone unable to operate it properly.

• Properly maintain dishwasher. See the

"Caring for Your Dishwasher" section.

Dishwasher Safety

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your

appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to hazards that can kill or hurt you and others.

All safety messages will be preceded by the safety alert symbol and the

word "DANGER" or "WARNING." These words mean:

You will be killed or seriously injured

if you don't follow instructions.

You can be killed or seriously injured

if you don't follow instructions.

All safety messages will identify the hazard, tell you how to reduce the chance of injury,

and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING -When using the

dishwasher, follow basic precautions,

including the following:

•Read all instructions before using the

dishwasher.

• Use the dishwasher only for its

intended function.

•Use only detergents or rinse agents

recommended for use in a dishwasher

and keep them out of the reach of

children.

• When loading items to be washed:

1) Locate sharp items so that they

are not likely to damage the door

seal; and

2) Load sharp knives with the handles

up to reduce the risk of cut-type

injuries.

• Do not wash plastic items unless they

are marked "dishwasher safe" or the

equivalent. For plastic items not so

marked, check the manufacturer's

recommendations.

• Do not touch the heating element

during or immediately after use.

• Do not operate the dishwasher unless

all enclosure panels are properly in

place.

• Do not tamper with controls.

• Do not abuse, sit on, or stand on the

door or dish racks of the dishwasher.

• To reduce the risk of injury, do not

allow children to play in or on the

dishwasher.

• Under certain conditions, hydrogen gas

may be produced in a hot water system

that has not been used for two weeks

or more. HYDROGEN GAS IS EXPLO-

SIVE. If the hot water system has not

been used for such a period, before

using the dishwasher turn on all hot

water faucets and let the water flow

from each for several minutes. This will

release any accumulated hydrogen gas.

As the gas is flammable, do not smoke

or use an open flame during this time.

• Remove the door to the washing

compartment when removing an old

dishwasher from service or discarding it.

- SAVE THESE INSTRUCTIONS -

Parts and Features

Your dishwasher is illustrated below with the parts and features called out. To help you find

information on specific parts or features quickly, page references are included.

Third level

(p. 9)

Adjustable top rack

(p. 10)

rack adjuster

(p. 10)

spray arm

(p. 9)

Water inlet opening 'tower

(p. 9) (p. 9)

Model and

Rack bumper ,serial number label

(p. 9) (on right side)

Bottom rack POWER CLEAN TM

module

(p. 9) (p. 32)

Heating element ILower spray arm

(p. 9)

Silverware Overfill protector

(p. 22)

(p. 8) Detergent

dispensers

(p. 11)

Door latch

Rinse agent

dispenser

(p. 12)

Access panel*

Door color panel * Sea Installation Instructions

for more Information.

Control panel

Your dishwasher has a row of push pads to select cycles and options. You must select a

cycle to start your dishwasher. You may select one or more options.

Status

indicators

Start Up Guide

Before using your dishwasher

Tip Over Hazard

Do not use dishwasher until

completely installed.

Do not push down on open door.

Doing so can result in serious injury

or cuts.

Electrical Shock Hazard

Electrically ground dishwasher.

Connect ground wire to green ground

connector in terminal box.

Do not use an extension cord.

Failure to do so can result in death,

fire, or electrical shock.

GROUNDING INSTRUCTIONS

•For a grounded, cord connected

dishwasher:

The dishwasher must be grounded. In

the event of a malfunction or breakdown,

grounding will reduce the risk of electric

shock by providing a path of least

resistance for electric current. The

dishwasher is equipped with a cord

having an equipment-grounding conduc-

tor and a grounding plug. The plug must

be plugged into an appropriate outlet that

is installed and grounded in accordance

with all local codes and ordinances.

WARNING - Improper connection of

the equipment-grounding conductor can

result in a risk of electric shock.

Check with a qualified electrician or

service representative if you are in

doubt whether the dishwasher is

properly grounded. Do not modify the

plug provided with the dishwasher; if it

will not fit the outlet, have a proper

outlet installed by a qualified electrician.

For a permanently connected

dishwasher:

The dishwasher must be connected to a

grounded metal, permanent wiring

system, or an equipment-grounding

conductor must be run with the circuit

conductors and connected to the

equipment-grounding terminal or lead

on the dishwasher.

- SAVE THESE INSTRUCTIONS -

Starting a wash cycle

1. Load the dishwasher. See the "Loading

Your Dishwasher" section.

2. Spin the spray arms. They should

turn freely.

3. Add detergent. See the "Using the

Dispensers" section.

4. Add rinse agent, if needed.

5. Close door firmly until it latches.

6. Run hot water at the sink nearest the

_ dishwasher until water is hot.

Turn water off.

7. Press a Cycle pad. If desired, press one

I1__1_1_ or more Opti°n pads" See the

"Setting the Controls" section.

The dishwasher starts filling

once you press a cycle pad

unless you select the delay

wash cycle. You may press Option pads

as the machine is filling.

The pad indicator glows red when a cycle

or an option is selected.

_,.;j

Stopping the dishwasher

You can stop your dishwasher anytime

during a cycle. All you have to do is:

•Open the door slightly. Wait for any filling

or spraying action to stop before opening

the door all the way. Close door to

continue cycle.

• Press Cancel/Drain. Once pressed, a

2-minute drain starts. See the "Setting the

Controls" section.

Loading Your Dishwasher

This section tells how to properly load your dishwasher for best washing and rinsing results.

Preparing to load the dishwasher

• To save water and energy, do not rinse

dishes before putting them into the

dishwasher.

• Remove large pieces of food, bones, and

other hard items. The POWER CLEAN TM

module removes food particles from the

water. The module contains a chopping

device which reduces the size of food items.

NOTE- If hard items such as fruit seeds,

nuts, and egg shells enter the POWER

CLEAN module, you might hear chopping,

grinding, crunching, or buzzing sounds.

Those sounds are normal when hard items

enter the module. Do not let metallic items

(such as pot handle screws) get into the

POWER CLEAN module. Damage can

occur.

•Foods like eggs, rice, pasta, and cooked

cereals may be hard to remove if leftto dry

over a period of time. Run a Rinse/Wash

Later cycle to keep dishes moist ifyou do

not plan to wash them soon.

•Load dishes so soiled surfaces face the

rotating spray arm.

•Load dishes so they are not stacked or

overlapping. It is important for the water

spray to reach all soiled surfaces for best

washing. For best drying, water must be

able to drain from all surfaces.

Loading for quiet operation

• Secure lightweight load items in the racks.

• Pot lids and handles, pizza pans, cookie

sheets, etc., should not touch interior

walls, interfere with the spray arm's

rotation, or cover the spray tower.

• Load dishes so they do not touch one

another.

NOTE: Keep sink drain plugs inserted

during dishwasher operation to prevent

noise transfer through drains.

Loading the silverware basket

• Load the silverware basket while it is in the

door or take the basket out for loading on a

counter or table.

• Mix items in each section of the basket

with some pointing up and some down to

avoid nesting. Spray cannot reach nested

items.

IMPORTANT: Always load sharp items

(knives, skewers, forks, etc.) pointing

down.

• Put small items (baby bottle caps, jar lids,

etc.) in any section.

• You can also remove the basket for easy

unloading. Always unload or remove the

basket before unloading the racks to avoid

spilling water on the silverware.

To remove the basket:

1. Grab the basket by the handle and slide

it toward the top of the door.

2. Lift the basket off the holding buttons.

To replace the basket:

1. Set the basket on the holding buttons.

2. Slide the basket towards the bottom of

the door until it locks in place.

To open the basket:

• Unhook the latch as shown.

NOTE: Be sure the cover is completely

latched before pulling out the bottom rack

and before closing the dishwasher door.

Loading the bottom rack

Load items with cooked-on or dried-on food

in the bottom rack, with soiled surfaces

facing inward to the spray.

Mixed load

•Load plates, soup bowls, etc., between

prongs and facing inward to the spray.

•Make sure pot handles and other items do

not stop rotation of the spray arms. Spray

arms must move freely.

• Load items so they do not block or cover

the spray tower.

• Load heavily soiled cookware face down

in the rack.

• Do not stack or overlap dishes. Water

spray must reach all soiled surfaces for

best results.

Mixed load

Do not cover spray tower

Utensil load

• Load cookie sheets, cake pans, and other

large items at sides and back. Loading

such items in front may keep water spray

from reaching detergent dispenser and

silverware basket.

Utensil load

NOTES:

•Do not load glasses, cups, or plastic items

in the bottom rack.

• Do not load items between the bottom rack

and the side of the dishwasher tub. This Bumpers must

face dishwasher door

can block the water inletopening.

•If you have removed the bottom rack for

unloading or cleaning, replace itwith

bumpers in front.

Loading the top rack

Load the top rack with cups, glasses, and Cup and

smaller items. Do not cover the third level glass load

wash when loading the top rack.

Cup and glass load

•Load so open ends face down for cleaning

and draining.

• Load glasses in top rack only - bottom

rack is not designed for glasses. Damage

can occur. Do not cover third level wash

continued on next page 9

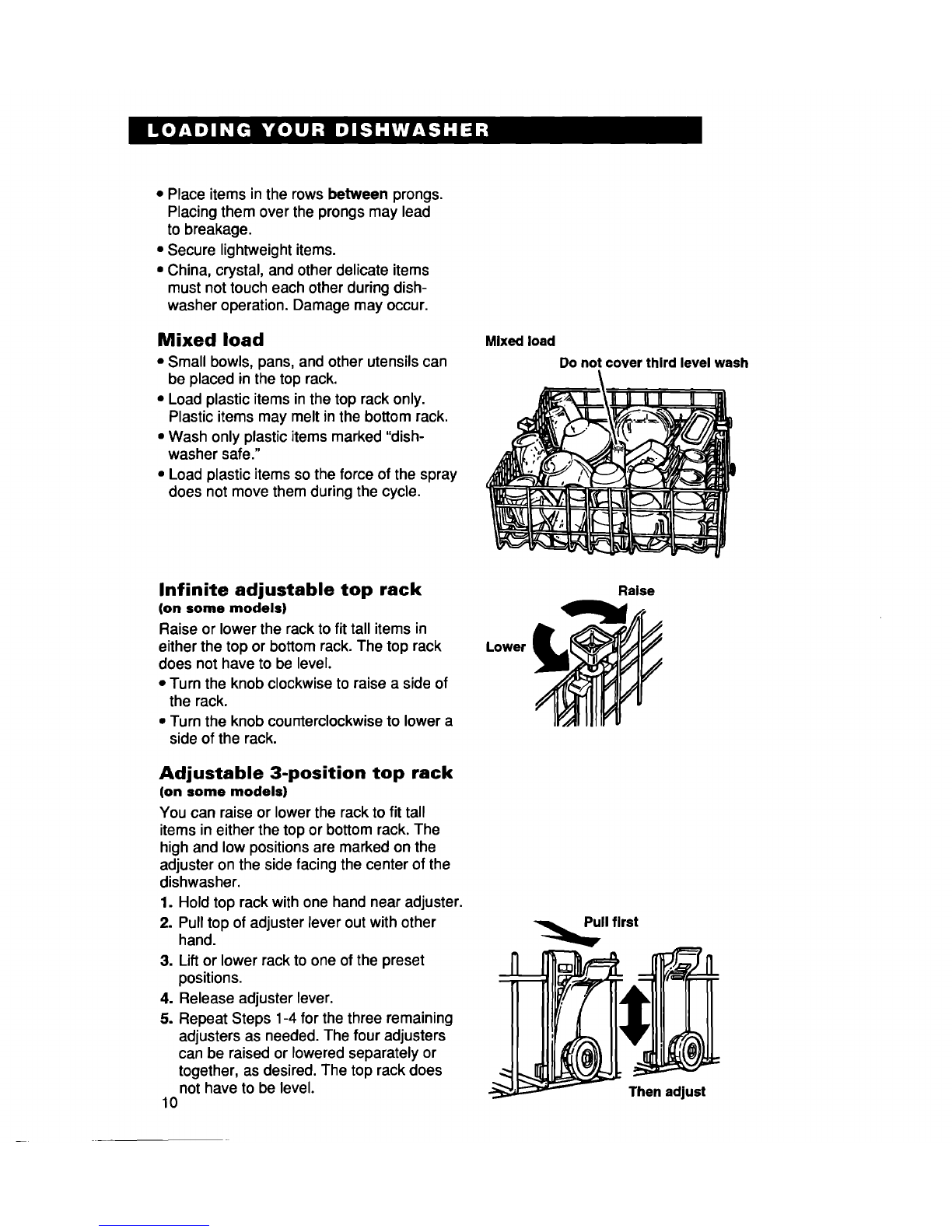

• Place items in the rows between prongs.

Placing them over the prongs may lead

to breakage.

• Secure lightweight items.

•China, crystal, and other delicate items

must not touch each other during dish-

washer operation. Damage may occur.

Mixed load

• Small bowls, pans, and other utensils can

be placed in the top rack.

• Load plastic items in the top rack only.

Plastic items may melt in the bottom rack.

• Wash only plastic items marked "dish-

washer safe."

• Load plastic items so the force of the spray

does not move them during the cycle.

Mixed load

Do not cover third level wash

Infinite adjustable top rack

(on some models)

Raise or lower the rack to fit tall items in

either the top or bottom rack. The top rack

does not have to be level.

• Turn the knob clockwise to raise a side of

the rack.

• Turn the knob counterclockwise to lower a

side of the rack.

Adjustable 3-position top rack

(on some models)

You can raise or lower the rack to fit tall

items in either the top or bottom rack. The

high and low positions are marked on the

adjuster on the side facing the center of the

dishwasher.

1. Hold top rack with one hand near adjuster.

2. Pull top of adjuster lever out with other

hand.

3. Lift or lower rack to one of the preset

positions.

4. Release adjuster lever.

5. Repeat Steps 1-4 for the three remaining

adjusters as needed. The four adjusters

can be raised or lowered separately or

together, as desired. The top rack does

not have to be level.

Lower

Raise

Then adjust

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Whirlpool Lave-vaisselle

Whirlpool

Whirlpool DU1100XTPB3 Manuel utilisateur

Whirlpool

Whirlpool ADG 7340 Manuel utilisateur

Whirlpool

Whirlpool DU900PCDB0 Manuel utilisateur

Whirlpool

Whirlpool ADP 5556 Manuel utilisateur

Whirlpool

Whirlpool 9200 SERIES Manuel utilisateur

Whirlpool

Whirlpool 24-Inch - Built-In Dishwasher (Color: Silver)... Guide de configuration

Whirlpool

Whirlpool ADG 301 Manuel utilisateur

Whirlpool

Whirlpool ADG 7500 1 Manuel utilisateur

Whirlpool

Whirlpool WDP370PAHB Manuel utilisateur

Whirlpool

Whirlpool WDL785SAAM Instructions de montage

Whirlpool

Whirlpool GU3200XTXB4 Manuel utilisateur

Whirlpool

Whirlpool DWH B80 W Instructions d'utilisation et d'installation

Whirlpool

Whirlpool WDTA75SAHN Manuel utilisateur

Whirlpool

Whirlpool W10667785B Manuel utilisateur

Whirlpool

Whirlpool W10741197A Manuel utilisateur

Whirlpool

Whirlpool ADG 993 Manuel utilisateur

Whirlpool

Whirlpool DU1055XTVB - 24" Tall Tub Dishwasher Instructions de montage

Whirlpool

Whirlpool 810 series Manuel utilisateur

Whirlpool

Whirlpool GU3100XTVB - 24" Dishwasher Instructions de montage

Whirlpool

Whirlpool WDF750SAYM Manuel utilisateur

Whirlpool

Whirlpool ADP 422 Manuel utilisateur

Whirlpool

Whirlpool 900 SERIES Manuel utilisateur

Whirlpool

Whirlpool DWF 405 S Manuel utilisateur

Whirlpool

Whirlpool WDT790SLYM Manuel de la liste des pièces

Manuels Lave-vaisselle populaires d'autres marques

Electrolux

Electrolux ESI5211LOX Manuel utilisateur

KitchenAid

KitchenAid KUDB230B Manuel utilisateur

Brandt

Brandt BDJ424DB Manuel utilisateur

Asko

Asko DSD767UXXL.AU Manuel utilisateur

Beko

Beko DFN26210W Manuel utilisateur

NEFF

NEFF S153ITX00E Fiche technique

Midea

Midea SV 4.45 wi Manuel utilisateur

LG LDF7932 Manuel utilisateur

Gorenje

Gorenje GV63214 Manuel utilisateur

Hotpoint

Hotpoint HDA1100ZWH Manuel de service

Blomberg

Blomberg LDFN2240W Manuel utilisateur

AEG

AEG FFB83836PM Manuel utilisateur

Cylinda

Cylinda DM3220RFD Manuel utilisateur

Atag

Atag DW8214MB Manuel utilisateur

GE GLD8000 Series Manuel utilisateur

Siemens

Siemens SN23HI02KE Fiche technique

Omega

Omega ODW717X Manuel utilisateur

BORETTI

BORETTI BVW-683 Manuel utilisateur
