Contents

Page Page

BEFORE YOU USE YOUR DISHWASHER 2 HI-TEMP WASHING Option 8

IMPORTANT SAFETY INSTRUCTIONS 2 Selecting a Cycle 9

PARTS AND FEATURES 3 The AIR DRY Optron 9

POWER CLEAN’ WASHING SYSTEM 4 The RESETOPTIONS Button. : : : : 9

PROPER LOADING 5 ENERGY SAVING TIPS 10

lop Rack Loading

Bottom Rack Loading : : 5 SPECIAL TIPS

6 COMMON DISHWASHING PROBl&lS : : 12

Silverware Basket Loadrng

ADDING DISHWASHER DETERGENT 6 CONNECTING YOUR PORTABLE

7 DISHWASHER 14

RINSE AID DISPENSER 7 IF YOU NEED SERVICE OR ASSISTANCE 15

BEFORE STARTING YOUR DISHWASHER 8 1. Before Calling for Assistance 15

STARTING YOUR DISHWASHER

2. If You Need Assistance 15

Changing a Setting : :

3 If You Need Service 15

To Add a Dish After Starting 8 4. If You Have a Problem 15

-Tmk

0 1985 Whirlpool Corporation

Before you use your dishwasher

It is your-personal responsibility and obligation to be sure your dishwasher:

Is installed by a qualified installer.

Has been installed where it is protected from the elements.

Has been installed on a floor strong enough to support its weight

Has been properly connected to electricity, water and drain.

Has been properly electrically grounded.

Is not used by children or anyone unable to operate it properly

Is properly maintained.

See installation Instructions for complete information.

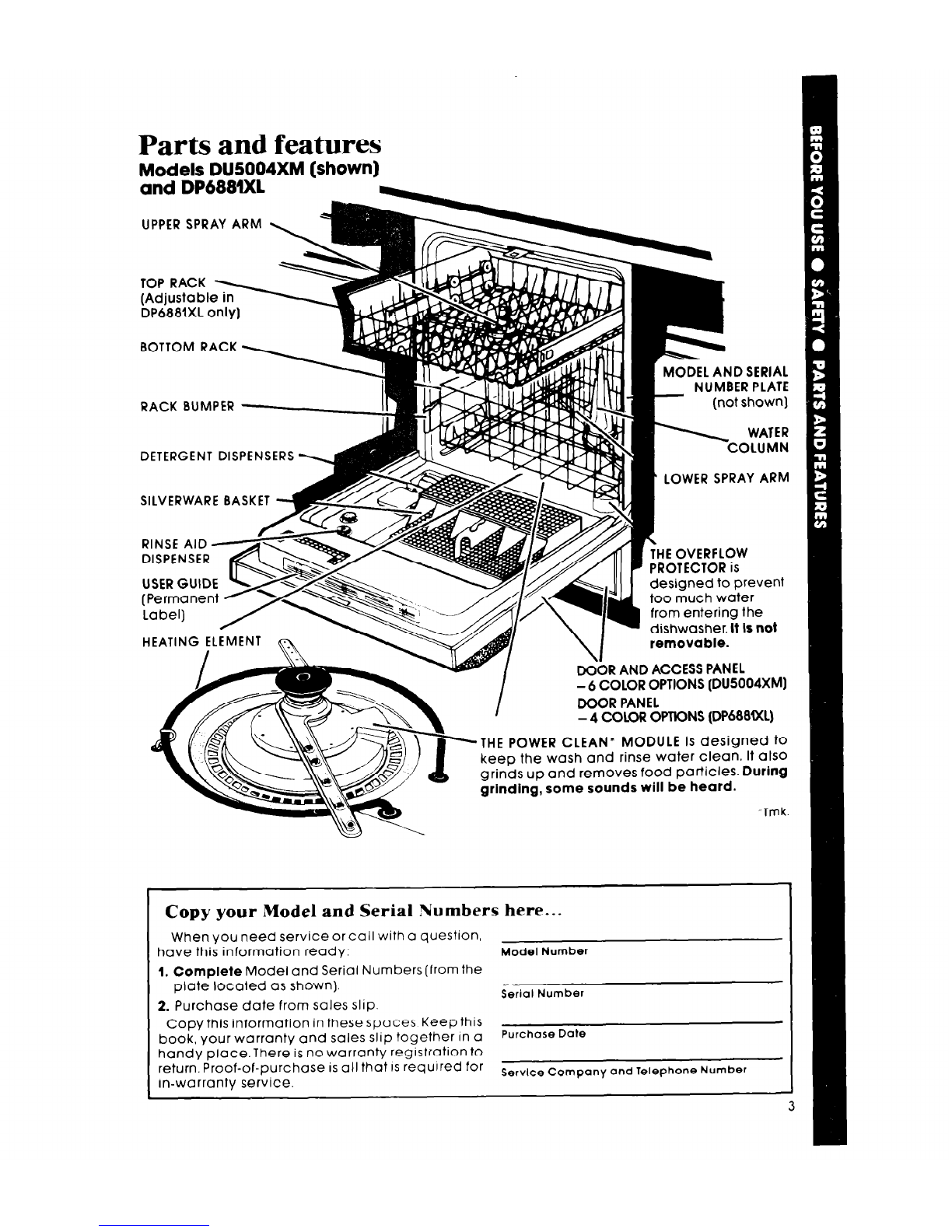

Parts and features

Models DU5004XM (shown)

and DP688lXL

UPPER SPRAY ARM

BOTTOM RACK

RACK BUMPER - 1

DETERGENT DISPENSERS \

SILVERWARE BASKET - _

ND SERIAL

BER PLATE

(not shown)

WATER

-COLUMN

LOWER SPRAY ARM

THE OVERFLOW

PROTECTOR is

designed to prevent

too much water

from entering the

dishwasher. It Is not

removable.

OPTIONS (DU5004XMI

THE POWER CLEAN* MODULE is designed to

keep the wash and rinse water clean. It also

grinds up and removes food particles. During

grinding, some sounds will be heard. -Tmk.

Copy your Model and Serial Numbers here...

When you need service or call with a question,

have this information ready:

Model Number

1. Complete Model and Serial Numbers(from the

plate located as shown).

Serial Number

2. Purchase date from sales slip.

Copy this information in these spaces Keep this

book, your warranty and sales slip together in a

Purchase Date

handy place.There is no warranty registration to

return. Proof-of-purchase is all that

required for

in-warranty service.

Servlce Company and Telephone Number

POWER CLEAN* Washing System

Your dishwasher cleans by spraying a mixture of hot, clean water and detergent

against soiled surfaces of dishes. When a cycle is started,the dishwasher fills with water

to about the level of the heating element. This water is pumped through the rotating

spray arms, through the POWER CLEAN Module which removes food particles, and back

through the rotating spray arms. Soiled water is pumped out and replaced with clean

water during a cycle - the number of times depends on the cycle being used.

The POWER CLEAN* Module removes food

particles from the water, stores them, then

washes them down the drain.

Load dishes so soiled surfaces face pow-

erful spray from rotating arms.

Step-sstig preparation for washing

It Is not necessary

to rinse dishes before

putting them Into the

dishwasher.

Just re-

move large pieces,

bones, and other hard

items. The POWER

CLEAN* Module will

remove food Darticles

from the water. It con-

Hot water is a must

Hot water dissolves

and activates the

dishwashing deter-

h gent. Hot water dis-

solves grease on

dishes and helps dry

z glasses spot-free.

Make certain loads

. are washed in hot

h water fat IeastlPOF -

60°C): Two ways to

have a reliable hot

water supply...

“‘I

Check Water

Temperature

1. Maintain 140°F water supply at central

water heater. To check water temperature,

tains a chopping device which will reduce the

size of food items.

If hard items such as fruit seeds, nuts and egg

shells enterthe POWER CLEAN’ Module, you might

hear chopping, grinding, crunching or buzzing

sounds. Those sounds are normal when hard

items enter the module.

DO NOT LETMETALLIC

ITEMS (I.E. POT HANDLE SCREWS) GET INTO THE

POWERCLEAN’ MODULE. THIS COULD RESULTIN

DAMAGE TO THEPOWERCLEAN* MODULE.

turn on hot water faucet nearest the dish-

washer. Let water run until it is as hot as pos-

sible, then check with a candy or meat

thermometer. If the temperature is too low,

have a qualified person raise the water

heater thermostat setting.

Use HI-TEMP WASHING Option. If water heat-

ing is needed, a thermostat will delay the

cycle until temperature reaches 145°F

(63‘C). If water is hot enough, the cycle will

proceed with no delay. This lets you turn

down your water heater, if you choose,

without cutting back on hot water needed

for good dishwashing.

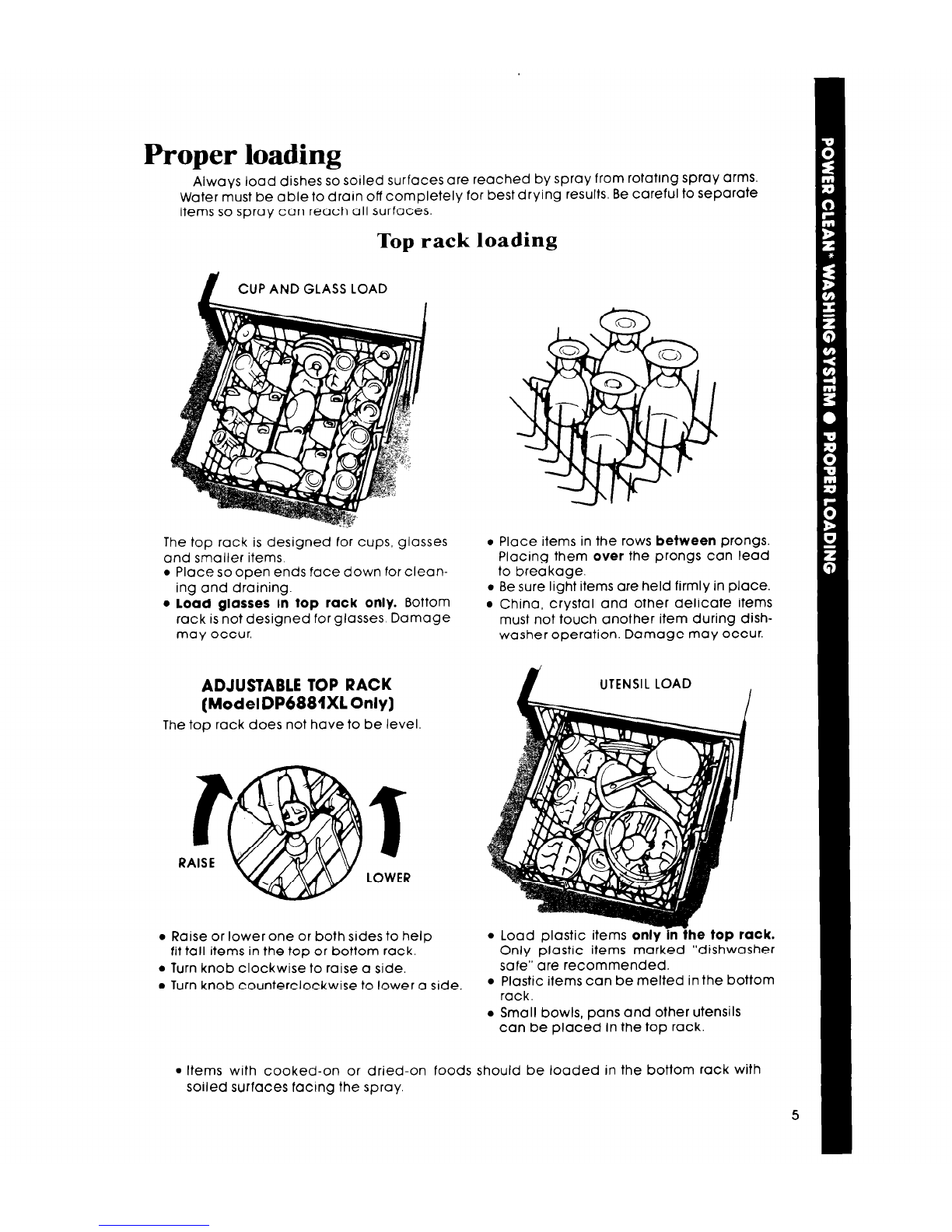

Proper loading

Always load dishes so soiled surfaces are reached by spray from rotating spray arms.

Water must be able to drain off completely for best drying results. Be careful to separate

items so spray can reach all surfaces.

Top rack loading

CUP AND GLASS LOAD

The top rack is designed for cups, glasses

and smaller items.

Place so open ends face down for clean-

ing and draining.

load glasses in top rack only. Bottom

rack is not designed for glasses Damage

may occur.

Place items in the rows between prongs.

Placing them over the prongs can lead

to breakage.

Be sure light items are held firmly in place.

China, crystal and other delicate

itemS

must not touch another item during dish-

washer operation. Damage may occur.

ADJUSTABLE TOP RACK

(ModelDP688lXLOnly)

The top rack does not have to be level.

LOWER

UTENSIL LOAD

Raise or lower one or both sides to help

fit tall items in the top or bottom rack.

Turn knob clockwise to raise a side.

Turn knob counterclockwise to lower a side

Load plastic items

only Tn ihe top rack.

Only plastic items marked “dishwasher

safe” are recommended.

Plastic items can be melted in the bottom

rack.

Small bowls, pans and other utensils

can be placed in the top rack.

Items with cooked-on or dried-on foods should be loaded in the bottom rack with

soiled surfaces facing the spray.

Bottom rack loading

Make sure pot handles and other items

do not stop rotation ot either the upper or

lower spray arm. Spray arms must move

freely.

Securely place heavily soiled cookware

face down in rack.

Place plates, soup bowls. etc., between

prongs and facing the spray.

Load cookie sheets, cake pans and other

large items at sides or back. Loading

such items in front may keep water spray

from reaching detergent dispenser and

silverware basket.

NOTE:

Do not load glasses, cups or plastic items

in the bottom rack.

When lower rack is removed, replace

with bumpers in front.

Silverware basket loading

Load forks and spoons so they don’t

nest together. Spray can’t reach nested

items.

NO YES

Mix items in each section of the bas-

ket. Small items -baby bottle caps, jar

lids, etc. -can be put in any section.

Make sure sharp items (knives, forks,

skewers, etc.) are put in point down.

The silverware basket can be loaded

while it’s in place on the door, or it can

be taken out for loading on the counter

or table.

It con also be removed for easy un-

loading. Always unload or remove the

basket before unloading the racks to

avoid spilling water droplets on the

To remove the basket, slide it toward

the top of the door - by the handle. Lift

it off the holding buttons. Replace it in

reverse order.

To open the basket, unhook the latch

as shown. Be sure the

cover is completely

latched before Lx

pulling out the

bottom rack and

before closing

the dishwasher

door.

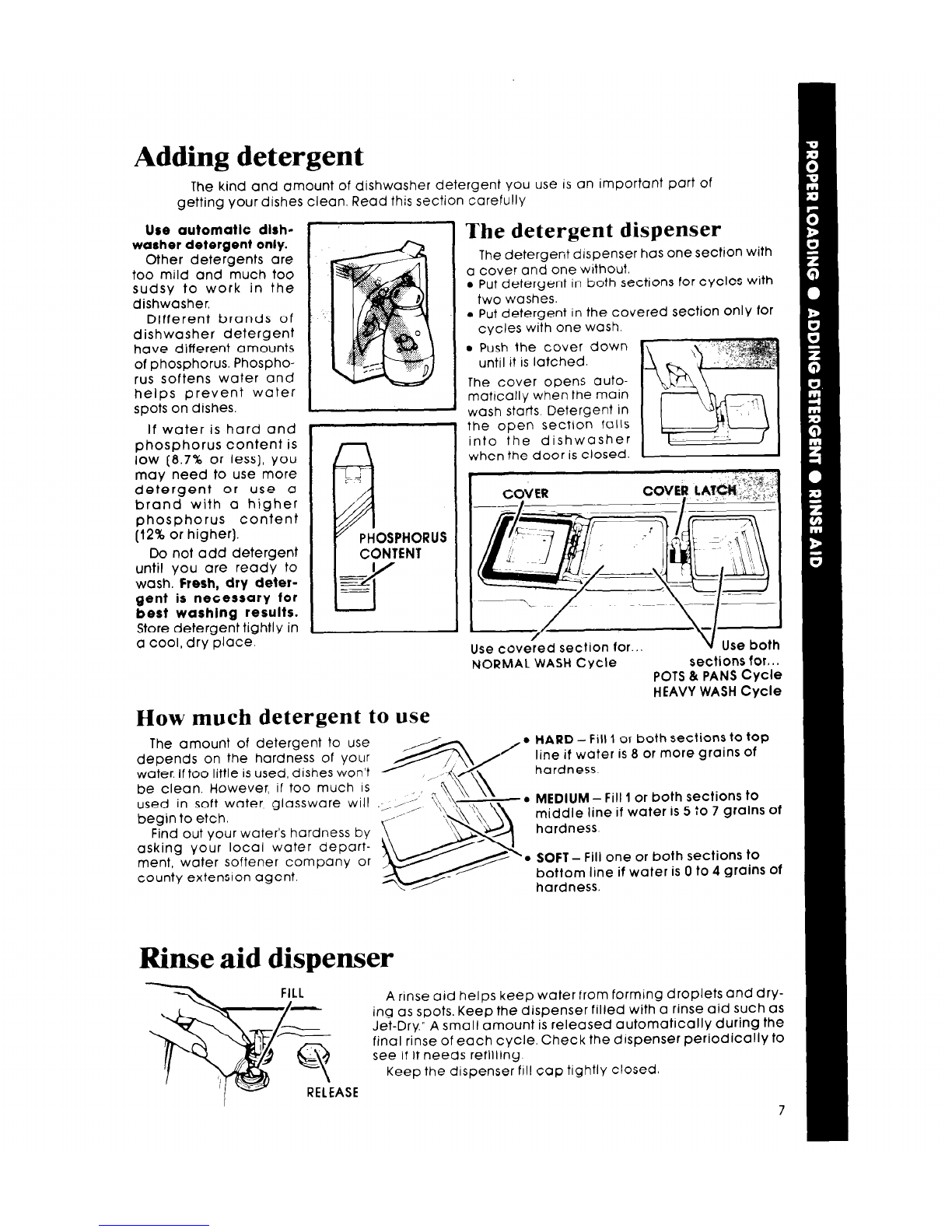

Adding detergent

The kind and amount of dishwasher detergent you use IS an important part of

getting your dishes clean. Read this section carefully

Use automatlo dlsh-

washer detergent only.

Other detergents are

too mild and much too

sudsy to work in the

dishwasher.

Different brands of

dishwasher detergent

have different amounts

of phosphorus. Phospho-

rus softens water and

helps prevent water

spots on dishes.

If water is hard and

phosphorus content is

low (8.7% or less], you

may need to use more

detergent or use a

brand with a higher

phosphorus content

(12% or higher).

Do not add detergent

until you are ready to

wash. Fresh, dry deter-

gent is necessary for

best washing results.

Store detergent tightly in

a cool, dry place.

..-I

The detergent dispenser

The detergent dispenser has one section with

a cover and one without.

Put detergent in both sections for cycles with

two washes.

Put detergent in the covered section Only for

cycles with one wash.

Push the cover down

until it is latched.

The cover opens auto-

mattcally when the main

wash starts. Detergent in

the open section falls

into the dishwasher

when the door is closed.

COVER

Use coveied section for... V Use both

NORMAL WASH Cycle sections for.. .

POTS & PANS Cycle

HEAVY WASH Cycle

How much detergent to use

The amount of detergent to use

HARD - Fill 1 or both sections to top

depends on the hardness of your m/ hardness.

line if water is 8 or more grains Of

water. If too little is used, dishes won’t

be clean. However, if too much is

used in soft water, glassware will

begin to etch.

Find out your water’s hardness by

asking your local water depart-

ment, water softener company or

county extension agent.

‘0

MEDIUM - Fill 1 or both sections to

middle line if water iS 5 to 7 grains Of

hardness.

SOFT- Fill one or both sections to

bottom line if water is 0 to 4 grains Of

hardness.

Rinse aid dispenser

A rinse aid helps keep water from forming droplets and dry-

ing as spots. Keep the dispenser filled with a rinse aid such as

Jet-Dry.” A small amount is released automatlcally during the

final rinse of each cycle. Check the dispenser periodically to

see if it needs refilling.

Keep the dispenser fill cap tightly closed.

ASE 7

Before starting

your dishwasher

Spin the Upper Spray Arm to make

sure nothing will stop it from turning

freely.

Close and latch the door.

Run hot water at sink nearest dish-

washer until it is hot. Turn it off. (If yours

is a portable dishwasher, see page 14

for connecting instructions.)

Starting your dishwasher

Clean

Selector Buttons

POTS &PANS Cycle...

1. Make sure Cycle Control Knob points

to dot marked POTS & PANS.

2. Push POTS & PANS Clean Selector

Button.

3. Push button for option desired.

4. Without turning it, pull out the Cycle

Control Knob to start the cycle.

NORMAL WASH Cycle.. .

1. Turn Cycle Control Knob clockwise

until It stops at dot marked NORMAL

WASH.

2. Push NORMAL WASHbutton.

3. Push button for option desired.

4. Without turning it, pull out the Cycle

Control Knob to start the cycle.

HEAVY WASH Cycle.. .

1. Make sure Cycle Control Knob points

to dot marked HEAVY WASH.

2. Push HEAVYWASHbutton.

3. Push button for option desired.

4. Wlthout turning it, pull out the Cycle

Control Knob to start the cycle.

RINSE & HOLD Cycle...

1. Select AIR DRYOption only.

2. Turn Cycle Control Knob clockwise to

dot marked RINSE& HOLD.

3. Close and latch the door to start the

cycle.

Changing a setting

You can change a setting anytime during

any cycle.

1. Unlatch the door to stop the cycle.

2. With the Cycle Control Knob pulled out,

3. Be sure the detergent dispensers are filled

turn clockwise to the cycle You want.

properly for the new cycle.

4. Latch the door to start the cycle.

To add a dish after starting

4. Close the door. Do not latch It. Wait 30 sec-

1. To be sure the added item is washed and onds for air in the dishwasher to warm up.

rinsed, make sure the Cycle Control Knob This helps reduce the amount of moisture

has not passed NORMAL WASH. that can come from the vent when restart-

2. Unlatch the doorto stop the cycle, but don’t ing the cycle.

open it until the spray arms stop spinning. 5. Latch the door. The dishwasher will start

3. Open the door and add the dish. from where it stopped.

HI-TEMP WASHING Option

When this option is selected, water for the

main wash and the final rinse is heated (except

in RINSE & HOLD) to 145°F (63°C). Washing and

rinsing action in those parts of the cycle will

be longer if the water is heated. HI-TEMP wash-

ing is automatic in POTS & PANS.

Optlon Selector Buttons

Cycle Control Knob

Selecting a cycle

POTS 81PANS Cycle

Maximum cleaning for cooked- or

baked-on foods. Timer delays while

the dishwasher automatically heats

the water to 145°F (63°C) in both

washes and the last rinse (marked

Cycle time will be about IYz to 2

hours, depending on time needed

to heat water.

HEAVY WASH Cycle

A double wash for heavily soiled

loads. Cycle time is about 70

minutes.

NORMAL WASH Cycle

For normal, everyday soiled loads.

(The Energy Guide Label data is

based on this cycle.) Cycle time is

about 60 minutes.

RINSE & HOLD Cycle

For rinsing a few items to be

washed one or more days later.

Cycle time is about 10 minutes.

Use AIR DRY only. Do not use HI-TEMP

WASHING Option.

The AIR DRY Option

Air in the dishwasher is automatically heated

during the “dry” part of all cycles. save energy, but dishes take longer to dry (over-

If the

AIR DRY Option

is selected, air in the night] and some water spotting may

reStAt.

dishwasher is not heated. Using this option helps Some items (such as plastics) may need towel

drying.

The RESET OPTIONS Button

If you want to change a selected optioqpush the RESET OPTIONS

Button. Re-select an option, if desired.

Energy saving tips

You can help save energy if you:

1. Wash full loads. Running a half-filled dish-

washer uses the same amount of electricity

and hot water as a fully loaded machine.

3. Air dry dishes when you don’t need a rapid

drying cycle. Allow longer drying times

(overnight).

5. Don’t pre-rinse normally soiled dishes. Se-

lect the correct cycle for the load and use

the recommended amount of detergent for

good washing results wltnout hand rtnslng.

Use the NORMAL WASH Cycle for normally

soiled loads. It uses less hot water and en-

ergy than other wash cycles.

Load correctly for best washing results In-

correct loading may cause poor washing

and the need to rewash all or part of the

load

Use your dishwasher during off-peak hours.

Local utllltles recommend this to avoid

heavy usage of energy at certain times of

dav

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Whirlpool Lave-vaisselle

Whirlpool

Whirlpool WDT710PAYE Instructions de montage

Whirlpool

Whirlpool DP3000XR Series Manuel utilisateur

Whirlpool

Whirlpool WDT780SAEM Manuel utilisateur

Whirlpool

Whirlpool DU5000XW Manuel utilisateur

Whirlpool

Whirlpool Gold GU2275XTV Manuel utilisateur

Whirlpool

Whirlpool DISHWASHER Manuel utilisateur

Whirlpool

Whirlpool ADG 758 Manuel utilisateur

Whirlpool

Whirlpool WIC 3C34 PFE S Manuel utilisateur

Whirlpool

Whirlpool WSIP 4O23 PFE Manuel utilisateur

Whirlpool

Whirlpool ADG 522 Manuel utilisateur

Whirlpool

Whirlpool DU7400XS series Manuel utilisateur

Whirlpool

Whirlpool GU2275XTVY - 24" Wide Energy ST Instructions de montage

Whirlpool

Whirlpool 810 series Manuel utilisateur

Whirlpool

Whirlpool TUD1000R Manuel utilisateur

Whirlpool

Whirlpool 925 series Manuel utilisateur

Whirlpool

Whirlpool WIO 3T123 6P Manuel d'installation et d'exploitation

Whirlpool

Whirlpool WIO3033PELAUS Manuel d'installation et d'exploitation

Whirlpool

Whirlpool 3369671 Guide de démarrage rapide

Whirlpool

Whirlpool WDF530PAYB Instructions de montage

Whirlpool

Whirlpool 925 series Manuel utilisateur

Whirlpool

Whirlpool Gold GU3200XTXY Instructions de montage

Whirlpool

Whirlpool 3374369 Manuel utilisateur

Whirlpool

Whirlpool W10667785B Manuel utilisateur

Whirlpool

Whirlpool ADP 5341 Manuel utilisateur

Manuels Lave-vaisselle populaires d'autres marques

Electrolux

Electrolux ESI5211LOX Manuel utilisateur

KitchenAid

KitchenAid KUDB230B Manuel utilisateur

Brandt

Brandt BDJ424DB Manuel utilisateur

Asko

Asko DSD767UXXL.AU Manuel utilisateur

Beko

Beko DFN26210W Manuel utilisateur

NEFF

NEFF S153ITX00E Fiche technique

Midea

Midea SV 4.45 wi Manuel utilisateur

LG LDF7932 Manuel utilisateur

Gorenje

Gorenje GV63214 Manuel utilisateur

Hotpoint

Hotpoint HDA1100ZWH Manuel de service

Blomberg

Blomberg LDFN2240W Manuel utilisateur

AEG

AEG FFB83836PM Manuel utilisateur

Cylinda

Cylinda DM3220RFD Manuel utilisateur

Atag

Atag DW8214MB Manuel utilisateur

GE GLD8000 Series Manuel utilisateur

Siemens

Siemens SN23HI02KE Fiche technique

Omega

Omega ODW717X Manuel utilisateur

BORETTI

BORETTI BVW-683 Manuel utilisateur
