WH/II/FD/GB

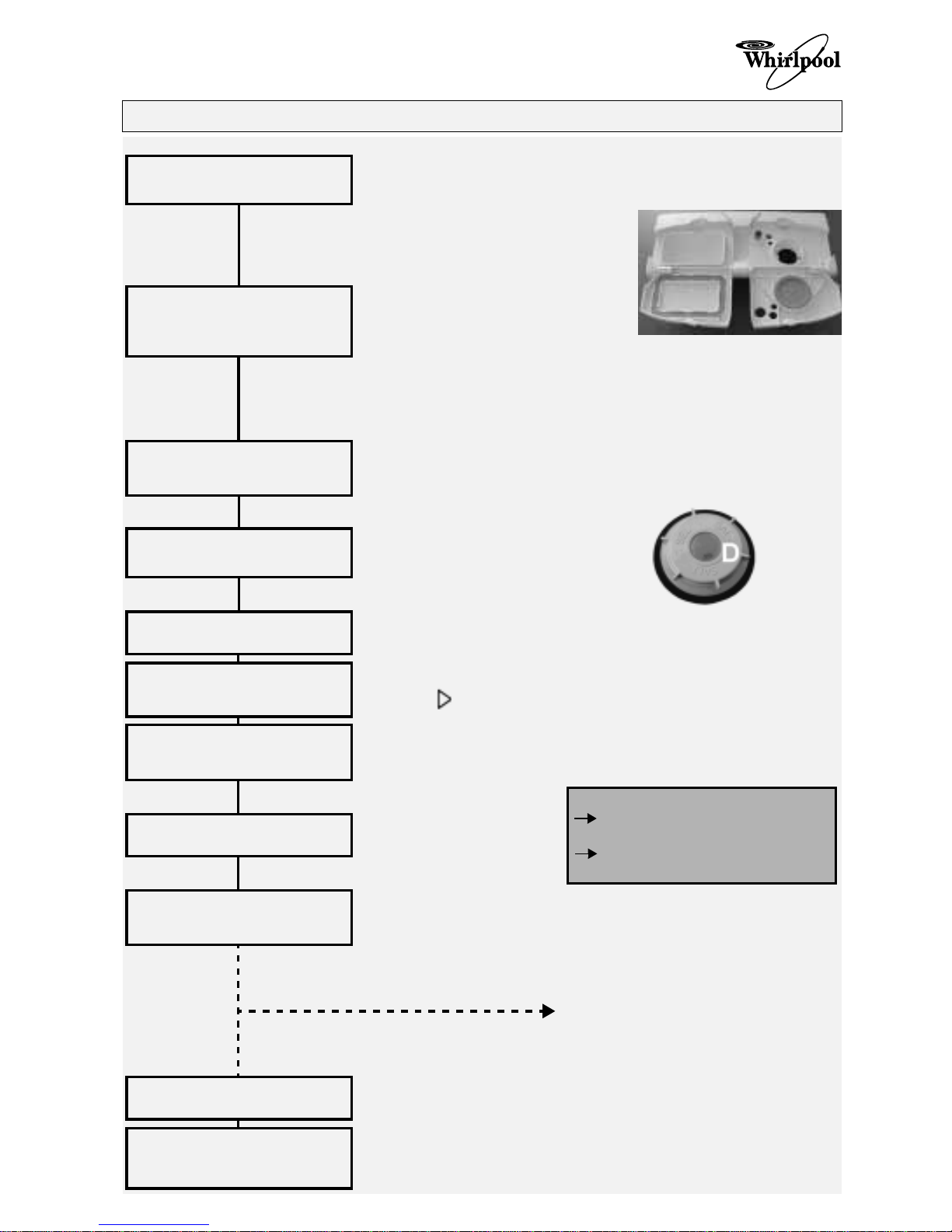

How to use the appliance

Further indications are given in the single chapters and in the user instructions.

Press the ON button.

(The first time you use the appliance

and when using a different type of

detergent)

1. Select the third programme from the

top in the relative table.

2. Press the Start button for about 7

seconds until the display changes.

3. Select the required detergent with the

Start button: “3h” = 2in1, “6h” = 3in1, “9h” = All in 1, all three LEDs

on = soap powder (factory setting).

4. Switch the appliance off and then switch it on again. The type of detergent

selected is shown by the relative LED for approximately three seconds.

For dosage of powder detergent in compartment Aand Brefer to the

programmes table.

Mechanical indicator C.

Electric indicator on control panel (if provided).

On models with water softener

system only.

Mechanical indicator D. Electric

indicator on control panel (if provided).

Refer to the dishwasher loading instructions.

The last programme selected will light up.

Press Por until the selected programme lights up.

If necessary the corresponding indicator lights up.

The selected programme is

then memorised (even in the

event of power failure).

- Only open the dishwasher if necessary

(Warning: beware of hot steam).

- If the appliance is switched off during a

wash cycle, when switched on again it

will resume the cycle from where it was

interrupted.

At the end of the programme an acoustic signal will sound.

Only after the START button has switched off: press the OFF button.

All the indicator lamps switch off.

Warning: When the door is opened steam comes out!

Unload the appliance, starting from the lower rack.

Open the door,

switch on the appliance

Select, save, and

supply the detergent

ABC

Check the rinse aid level

Check the

regeneration salt level

Load the racks

Select a programme

Select additional options

Press the Start button

“Change programme in progress”

Press the START button for 2 sec. until the

Start indicator lamp switches off.

Select another programme and press the

START button again.

Turn on the water tap,

close the dishwasher door

Wash cycle

Switch off the appliance

Turn off the water tap,

unload the racks

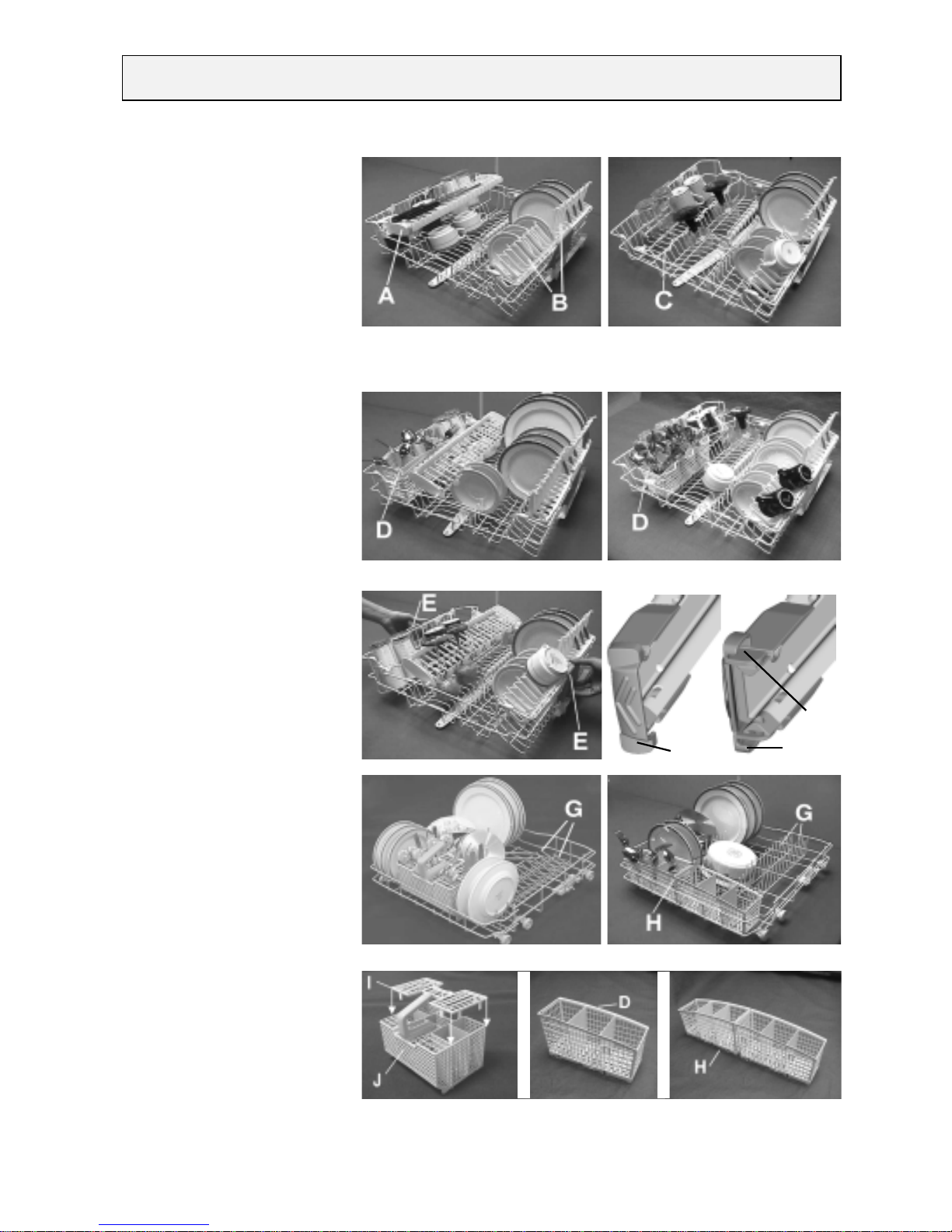

Dishwasher loading instructions and racks provided

Upper rack: depending on the model

Multi-purpose support (A): 1)

Depending on the position, for long-

handles utensils, cups and glasses. May

be used in three different positions.

Crockery holders (B):

Dependingontheposition,forexample

plates, cups and long-stemmed glasses.

Revolving glass support (C): 2)

Dependingontheposition,forexample

small or long-stemmed glasses.

Long-handled utensils (e.g.

carving forks, knives) must be

arranged with the sharp end

facing in towards the appliance.

Half Load:

Load the upper rack (see description

of Options).

Place the cutlery basket (D) in the

upper rack.

Rack height adjustment

(also when loaded):

•Lower adjustment: pull out the

two rack handles outwards (E)

and lower the rack.

•Upper adjustment: pull the two

handles (E) upwards until the rack

clicks into place (Factory setting).

The rack must be level on both

sides.

Removing the top rack to provide

clearance for large items of

crockery in the bottom rack:

Open the rack guide retainers (F) on

the right and left and remove the top

rack.

When the upper rack is in place the

retainers must always be closed.

Lower rack:

Dependingonthemodelwith fixed or

tilting plate holders (G).

Half Load:

Load the lower rack (see description

of Options).

Greater washing power, particularly

for plates and saucepans.

Cutlery basket (J) or (H):

Some models are provided with a grid

(I) that can be fitted onto the cutlery

basket to keep items separated.

Cutlery basket (D), if provided, for

appliances with half load only.

Sharp knives and forks that might

cause injury must be placed in the

cutlery basket with the sharp end

facing downwards.

Only use dishwasher-proof crockery and dishes. Do not use the appliance for items not suitable for washing in a

dishwasher, for example wooden items, aluminium, plastic utensils, tin, hand-decorated crockery (unglazed), silver cutlery.

Spare parts which are sold separately:

1) Multi-purpose support (A) - N. AMH 369 series.

2) Revolving glass support (C) - N. WGH 1000 series.

Retainer

closed Retainer

open

WH/IV/GB

What to do if...

If a fault occurs, before contacting our After-Sales Service, make the following checks to try and remedy the problem (* see

also the corresponding chapter in the user instructions).

Problem Cause Remedy

The appliance is not

working • No water supply. • Open the tap.

• The appliance does not load sufficient

water. • Clean the water supply tap filter.

• Ensure there are no kinks in the water hose.

• There is a power failure. • Insert the plug into the mains socket.

• Press the Start button.

• Close the door.

• Check the safety circuit breaker.

• Starting the selected programme. • The programme can be set to “0” to start.

If crockery is not

perfectly dry • Insufficient rinse aid. •Increasedosage*.

• Residual water in cavities. • Load crockery at an angle.

If crockery is not

perfectly clean • The water jet does not reach the

crockery. • Arrange crockery so that items do not touch each

other. Load crockery upside down.

• Insufficient detergent. • Follow recommended detergent dosage.

• Unsuitable programme. • Select a more intense wash cycle.

• Spray arms blocked. • The spray arms must be able to turn freely.

• Spray arm nozzles clogged. • Remove any impurities obstructing the water flow *.

• Incorrect detergent/detergent too old. • Use a good quality detergent.

Sandy or grainy

residues • Clogged filters. • Check filters regularly/if necessary clean *.

• Filters incorrectly assembled. • Insert the filter correctly *.

Colour of plastic parts

faded • Tomato/carrot juice, ... • Depending on the material, if necessary use a

detergent with a greater whitening power.

Deposits on crockery

•Removable • Streaks on the crockery/glasses. • Increase the rinse aid dosage *.

• Streaks on glasses. • Reduce the rinse aid dosage *.

• Layer of salt on crockery/glasses. • Close the salt container lid properly *.

• Not removable • Insufficient water softening, calcium

deposits. • Change water hardness setting, if necessary add salt *.

Opaque glasses/ glasses

not sparkling • Cannot be washed in the dishwasher. • Use suitable glasses.

Rust on cutlery • Not made of stainless steel. •Usesuitablecutlery.

Identifying appliance

faults • The START indicator lamp flashes.

• Indicator F... (if provided). • Ensure the filter assembly is not clogged and that

there is no interruption to the water supply

(if necessary, clean the filters *). Start the programme

again. Press the START button for 2 seconds, until the

START indicator lamp switches off. Select a new

programme and press the Start button again.

If after carrying out the above checks the malfunction persists or appears again, turn the appliance off and turn off the water

supply tap, then call our After-Sales Service (see guarantee).

Before contacting our After-Sales Service, take note of the following:

• The nature of the fault

• The appliance type and model

• The service code (the number indicated on the adhesive rating plate)

inside the door on the right-hand side.

Whirlpool is a registered trademark of Whirlpool USA 5019 396 01682

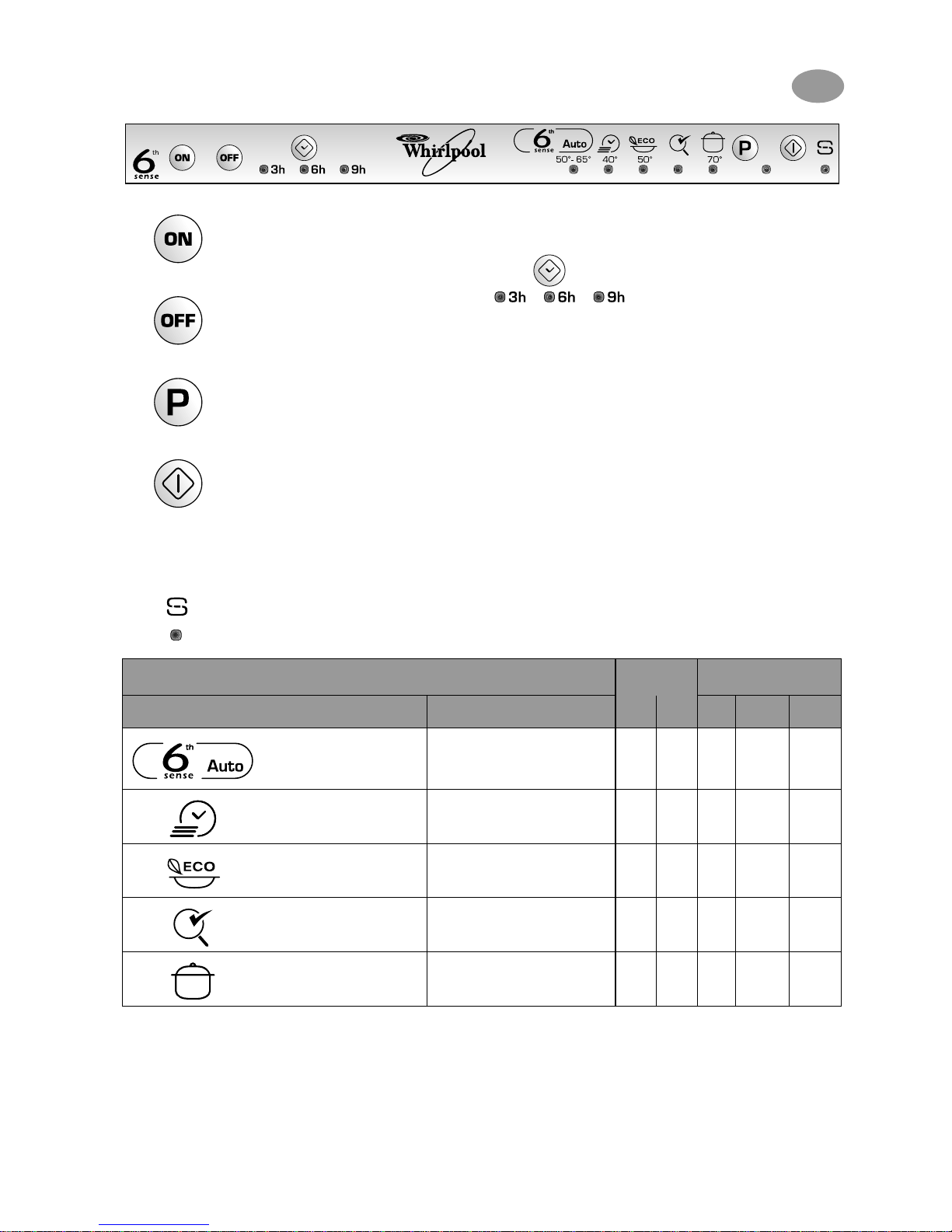

ADG 9190 Quick Reference Guide

Before using the dishwasher, read the user instructions!

WH/I/FD/GB

(We reserve the right to make technical modifications)

Add regeneration salt

Only add regeneration salt immediately

before starting a wash programme.

“Delayed start” button

The wash cycle can be programmed

to start after 3-6-9 hours.

Then press the Start button.

The wash programme will start at

the set time.

1) Reference programme for energy label in compliance with

EN 50242 regulations.

2) Refer to “User instructions”.

3) The data relevant to programmes are values obtained in

the laboratory in conformity with Standard EN 50242. In

practice there may be time variations or leaps depending

on different loads, function options, sensor calibration (only

for sensor-controlled programmes) water temperatures or

hardness and different power supply voltages.

4) The bacteria removal efficiency has been tested by the

Institut Pasteur de Lille (France), based on the NF EN

13697 standard of November 2001.

5) Programme interruption (e.g. the door being opened) may

compromise the result of the antibacterial rinse.

On button

Off button

Programme selection button

Start button

Switches “on” when the dishwasher is

operating. Flashes when a fault occurs.

Switches off at the end of the programme.

Indicators

Options 3)

Programme chart Detergent 2) Consumption 3)

Programmes Loading instructions A B Litres kWh Minutes

AutoSensor 50-65°C Automatic programme

recommended for routine washes,

with dried-on food (for example for

EN 50242). X X 13-19 1.15-1.50 100-130

Quickwash 40°C Lightly soiled crockery, with no

dried-on food. X - 13.0 0.70 30

Eco 1) 50°C Normally soiled crockery.

Energy-saving programme. X X 15.0 1.05 165

Antibacterial 4) 5) Normally or heavily soiled crockery,

with additional antibacterial action. X X 16.0 1.75 120

Intensive 70°C Recommended programme for

heavily soiled crockery, especially

suitable for pans and saucepans. X X 17.0 1.65 145

Important information for Test Laboratories:

For detailed information on the EN/Standard loading comparison test, contact the following address: “[email protected]”.
