COOKTOP

Model

RC8200XV

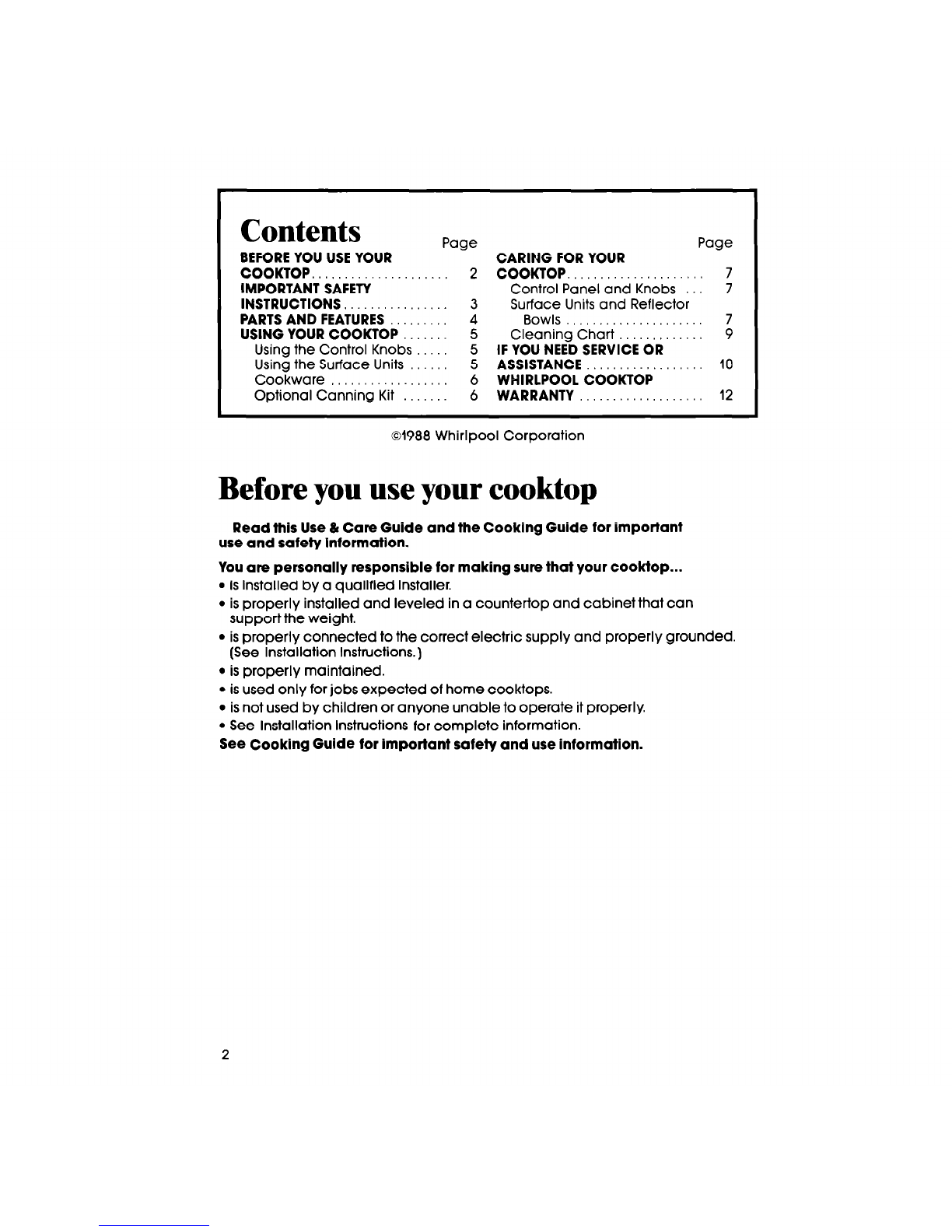

Contents

BEFORE YOU USE YOUR

COOKTOP.

IMPORTANT SAFETY

INSTRUCTIONS

PARTS AND FEATURES

USING YOUR COOKTOP

Using the Control Knobs

Using the Surface Units

Cookware ,..........._

Optional Canning Kit

Page

2 CARING FOR YOUR

COOKTOP.

Control Panel and Knobs

Surface Units and Reflector

Bowls

Cleaning Chart

IF YOU NEED SERVICE OR

ASSISTANCE

WHIRLPOOL COOKTOP

WARRANTY

Page

01988 Whirlpool Corporation

Before you useyour cooktop

Read this Use & Care Guide and the Cooking Guide for important

use and safety Information.

You are personally responsible for making sure that your cooktop...

is installed by a qualified installer.

is properly installed and leveled in a countertop and cabinet that can

support the weight.

is properly connected to the correct electric supply and properly grounded.

(See Installation Instructions.)

is properly maintained.

is used only for jobs expected of home cooktops.

is not used by children or anyone unable to operate it properly.

See Installation Instructions for complete information.

See Cooking Guide for important safety and use information.

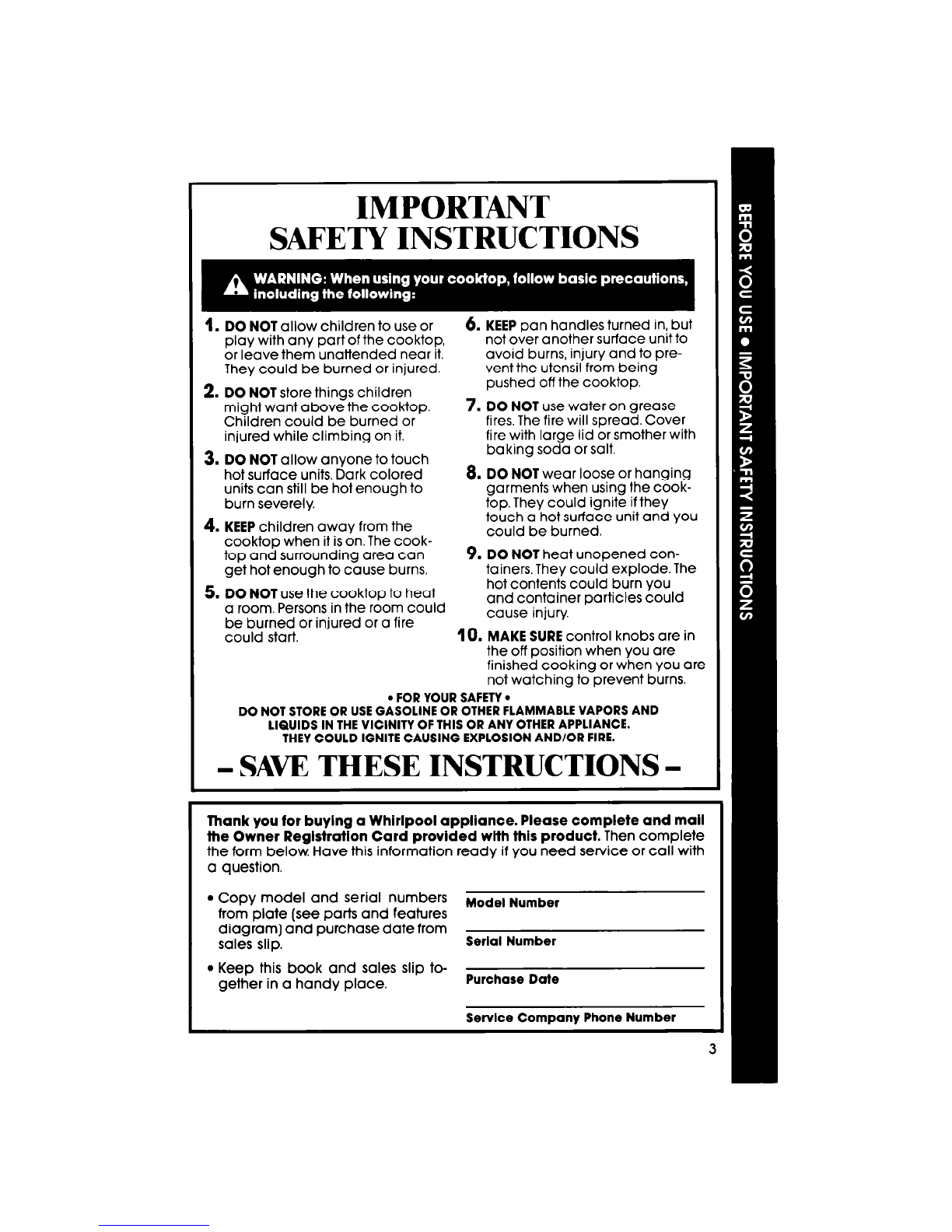

IMPORTANT

SAFETY INSTRUCTIONS

1. DO NOT allow children to use or

ploy with any port of the cooktop,

or leave them unattended near it.

They could be burned or injured.

DO NOT

store things children

might wont above the cooktop

Children could be burned or

injured while climbing on it.

3. DO NOT allow anyone to touch

hot surface units. Dark colored

units con still be hot enough to

burn severely.

4. KEEP children away from the

cooktop when it is on. The cook-

top and surrounding area con

get hot enough to cause burns.

5. DO NOT use the cooktop to heat

a room. Persons in the room could

be burned or injured or a fire

could start.

6. KEEP pan handles turned in, but

not over another surface unit to

ovoid burns, injury and to pre-

vent the utensil from being

pushed off the cooktop.

DO NOT use water on grease

fires. The fire will spread. Cover

fire with large lid or smother with

baking soda or salt.

8. DO NOT wear loose or hanging

garments when using the cook-

top. They could ignite if they

touch CIhot surface unit and you

could be burned.

9. DO NOT heat unopened con-

tainers. They could explode. The

hot contents could burn you

and container particles could

cause injury.

10. MAKE SURE control knobs ore in

the off position when you ore

finished cooking or when you ore

not watching to prevent burns.

. FOR YOUR SAFETY.

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.

THEY COULD IGNITE CAUSING EXPLOSION AND/OR FIRE.

- SAW THESE INSTRUCTIONS -

Thank you for buylng a Whirlpool appliance. Please complete and mall

the Owner Reglstratlon Card provided wlth this product. Then complete

the form below. Hove this information ready if you need service or call with

a question.

Copy model and serial numbers

from plate (see ports and features

Model Number

diagram) and purchase dote from

soles slip.

Serial Number

Keep this book and soles slip to-

gether in a handy place.

Purchase Date

Service Company Phone Number

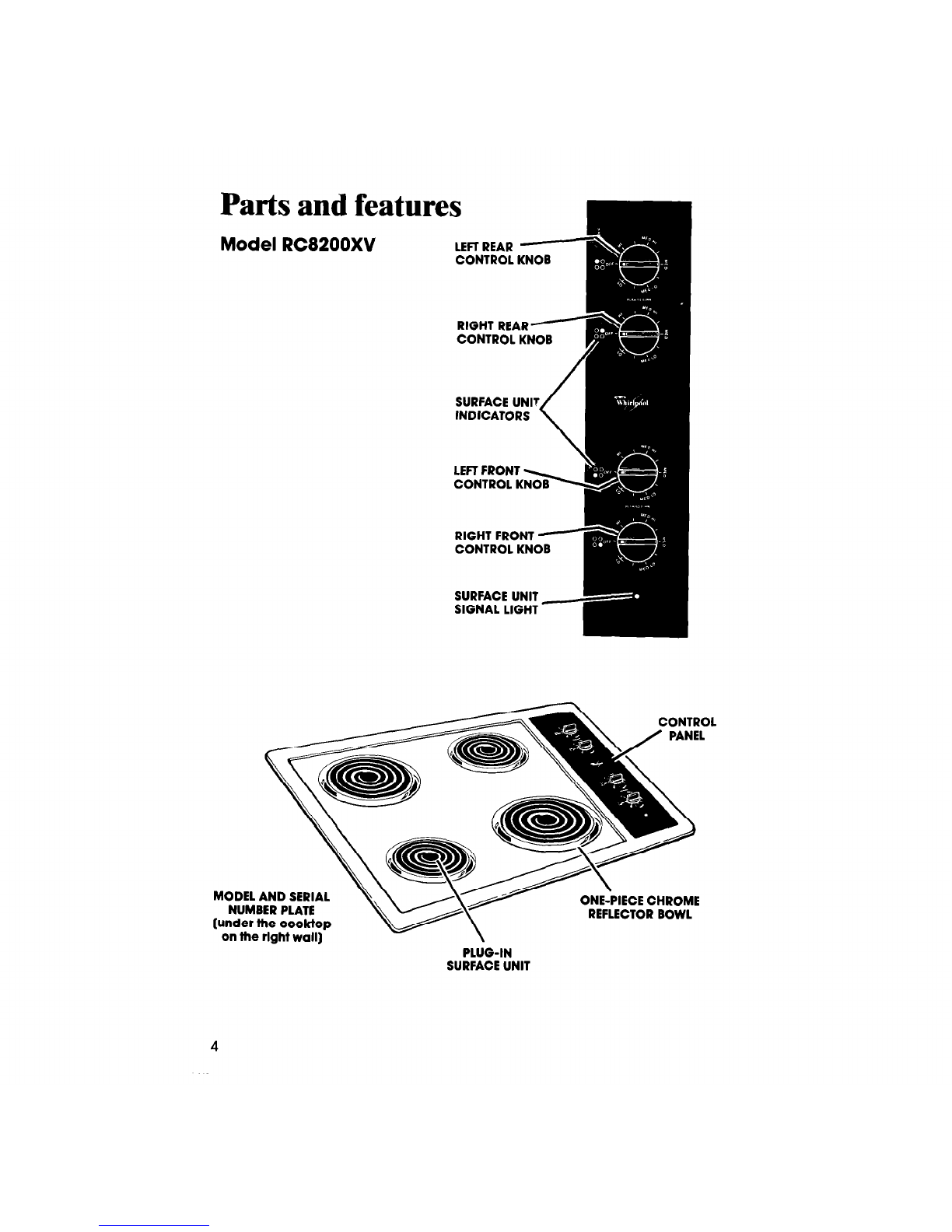

Parts and

Model R

!C8200

feature

IXV

s I

LEFTREAR -

CONTROL KNOB

RIGHT REAR - I

CONTROL K

SURFACE UNIT/

INDICATORS

RIGHT FRONT -

CONTROL KNOB

SURFACE UNIT

SIGNAL LIGHT I

CONTROL

\ / PANEL

MODEL AND SERIAL

NUMBER PLATE

(under the cook’

on the rlght

ONE-PIECE CHROME

REFLECTOR BOWL

PLUG-IN

SURFACE UNIT

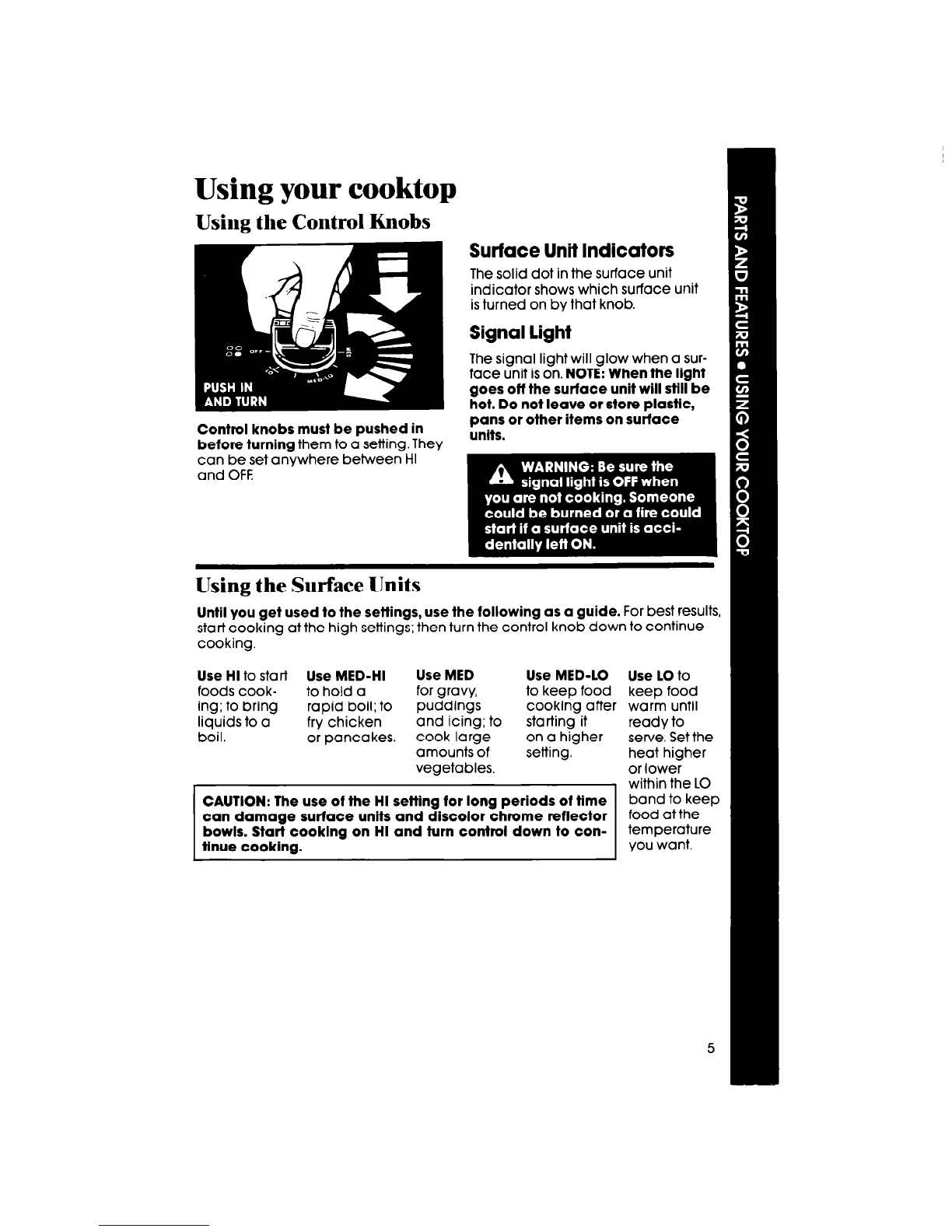

Using your cooktop

Using the Control Knobs

Control knobs must be pushed in

betore turning them to a setting. They

can be set anywhere between HI

and OFF.

Surface Unit Indicators

The solid dot in the surface unit

indicator shows which surface Unit

is turned on by that knob.

Signal light

The signal light will glow when a sur-

face unit is on. NOTE: When the light

goes off the surface unit will still be

hot. Do not leave or store plastic,

pans or other items on surface

units.

Using the Surface Units

Until you get used to the settings, use the following as a guide. For best results,

start cooking at the high settings; then turn the control knob down to continue

cooking.

Use HI to star-l Use MED-HI Use MED Use MED-LO Use LO to

foods cook- to hold a for gravy, to keep food keep food

ing; to bring rapid boil; to puddings cooking after warm until

liquids to a fry chicken and icing; to starting it ready to

boil. or pancakes. cook large on a higher serve. Set the

amounts of setting. heat higher

vegetables. or lower

within the LO

CAUTION: The use of the HI setting for long periods of time band to keep

can damage surface unlts and discolor chrome reflector food at the

bowls. Start cooklng on HI and turn control down to con- temperature

tlnue cooking. you want.

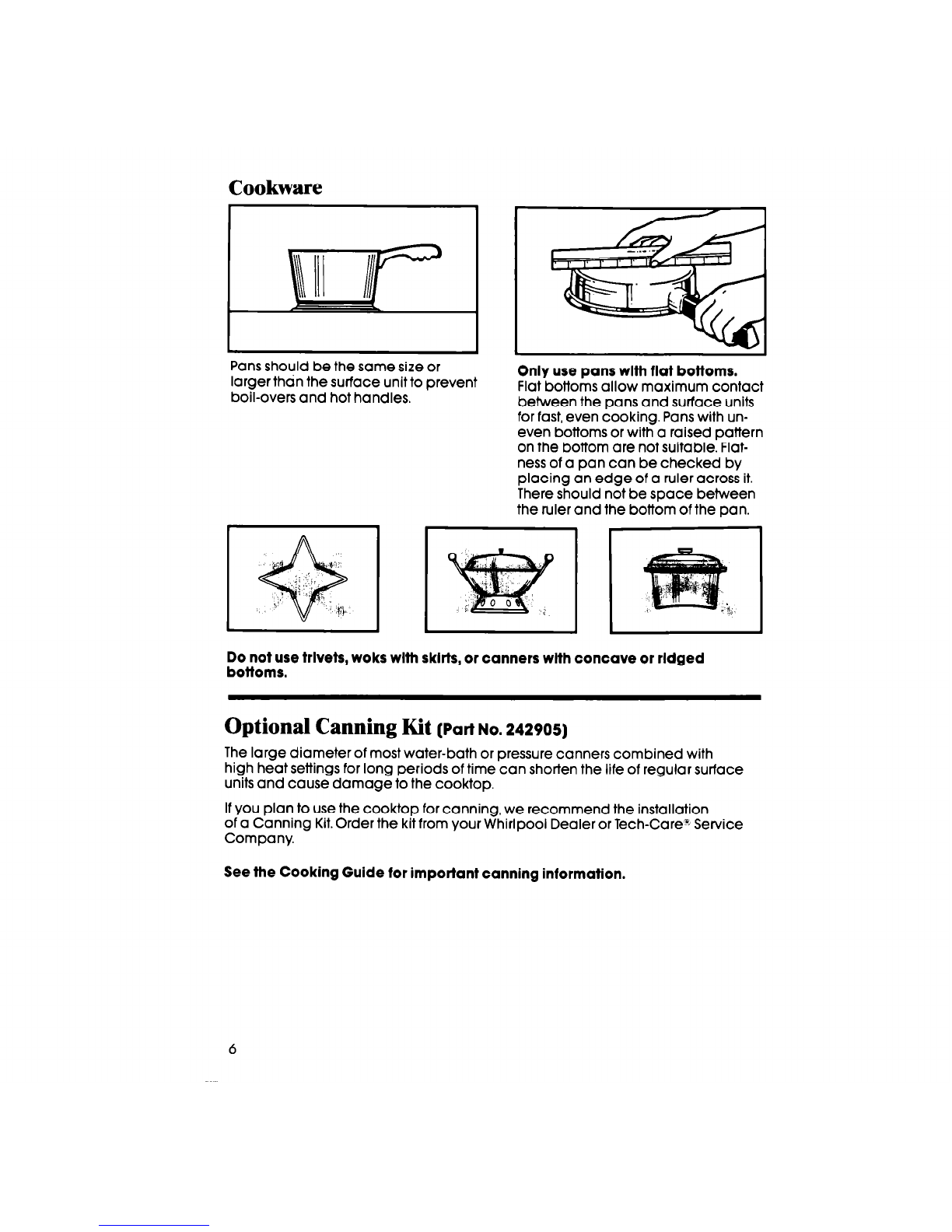

Cookware

I I

Pans should be the same size or

larger than the surface unit to prevent

boil-overs and hot handles.

Only use pans wlth flat bottoms.

Flat bottoms allow maximum contact

between the pans and surface units

for fast, even cooking. Pans with un-

even bottoms or with a raised battern

on the bottom are not suItable: Flat-

ness of a pan can be checked by

placing an edge of a ruler across it.

There should not be space between

the ruler and the bottom of the pan.

Do not use trlvets, woks with skirts, or canners wlth concave or rldged

bottoms.

Optional Canning Kit

(Part

NO.

242905)

The large diameter of most water-bath or pressure canners combined with

high heat settings for long periods of time can shorten the life of regular surface

units and cause damage to the cooktop.

If you plan to use the cooktop for canning, we recommend the installation

of a Canning Kit. Order the kit from your Whirlpool Dealer or Tech-Care” Service

Company.

See the Cooking Guide for important canning information.

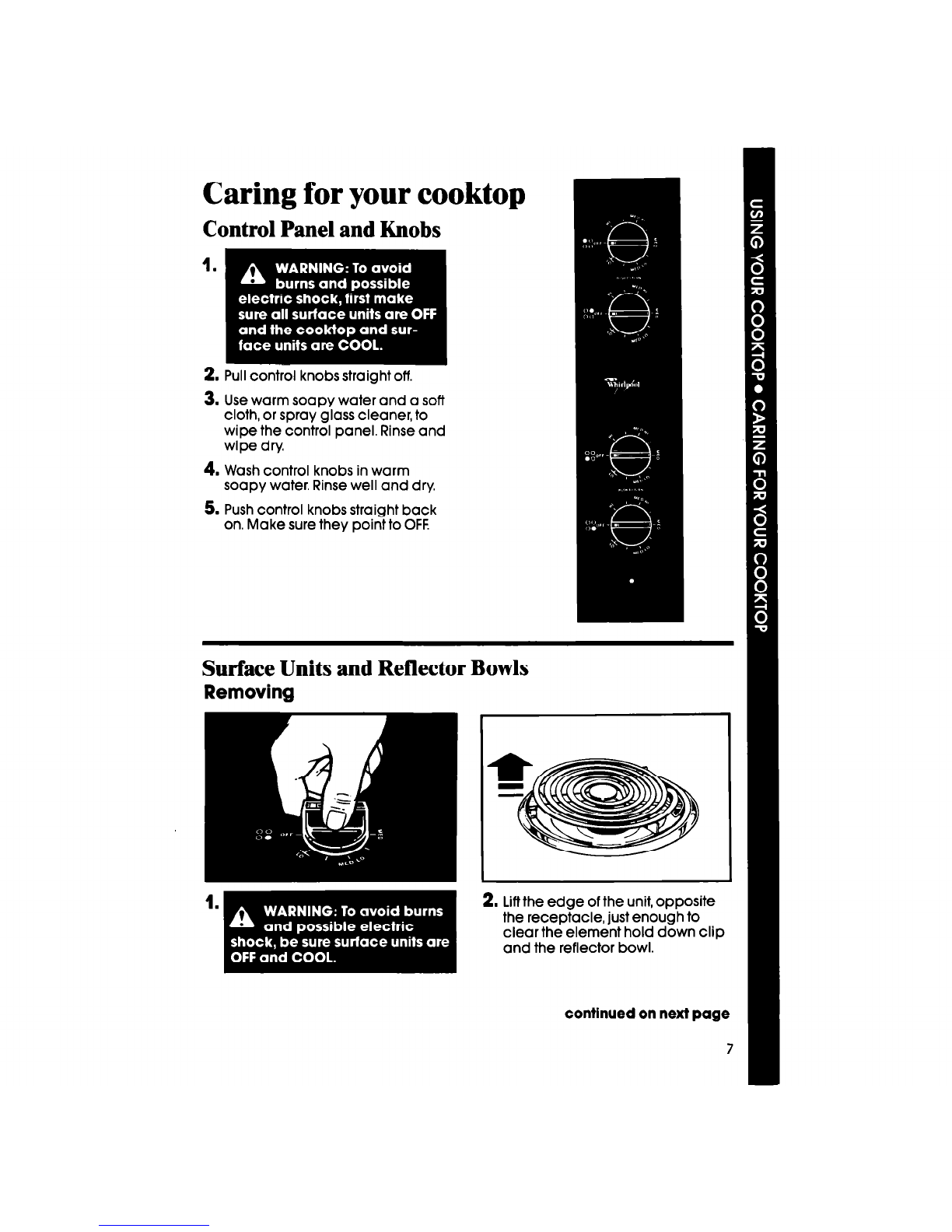

Caring for your cooktop

Control Panel and Knobs

2. Pull control knobs straight off.

3. Use warm soapy water and a soft

cloth, or spray glass cleaner, to

wipe the control panel. Rinse and

wipe dry.

4. Wash control knobs in warm

soapy water. Rinse well and dry.

5. Push control knobs straight back

on. Make sure they point to OFF.

Surface Units and Reflector Bowls

Removing

2. Lift the edge of the unit, opposite

the receptacle, just enough to

clear the element hold down clip

and the reflector bowl.

continued on next page

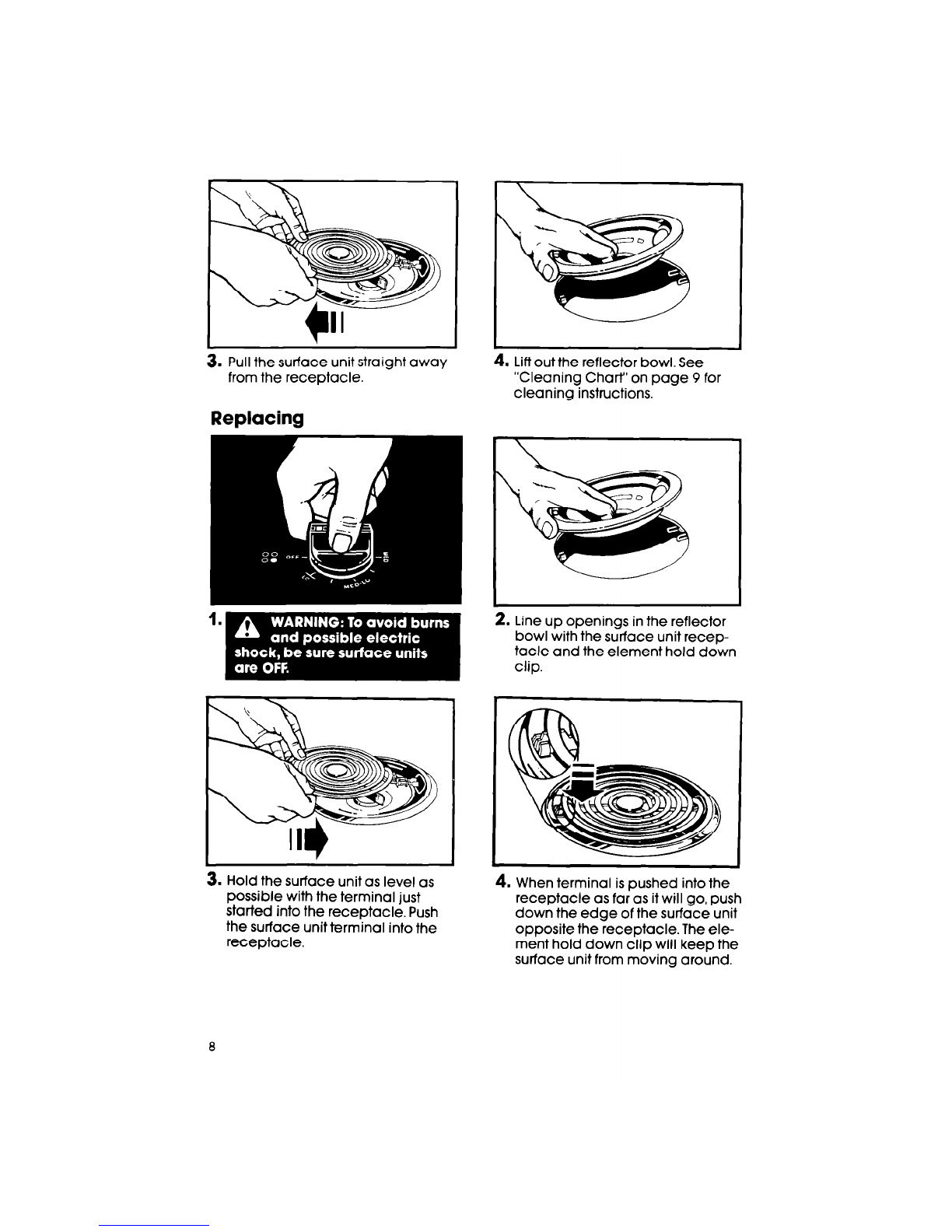

3. Pull the surface unit straight away

from the receptacle. 4. Lift out the reflector bowl. See

“Cleaning Char-t” on page 9 for

cleaning instructions.

Replacing

3. Hold the surface unit as level as

possible with the terminal just

started into the receptacle. Push

the surface unit terminal into the

receptacle.

2. Line up openings in the reflector

bowl with the surface unit recep-

tacle and the element hold down

clip.

4. When terminal is pushed into the

receptacle as far as it will go, push

down the edge of the surface unit

opposite the receptacle. The ele-

ment hold down clip will keep the

surface unit from moving around.

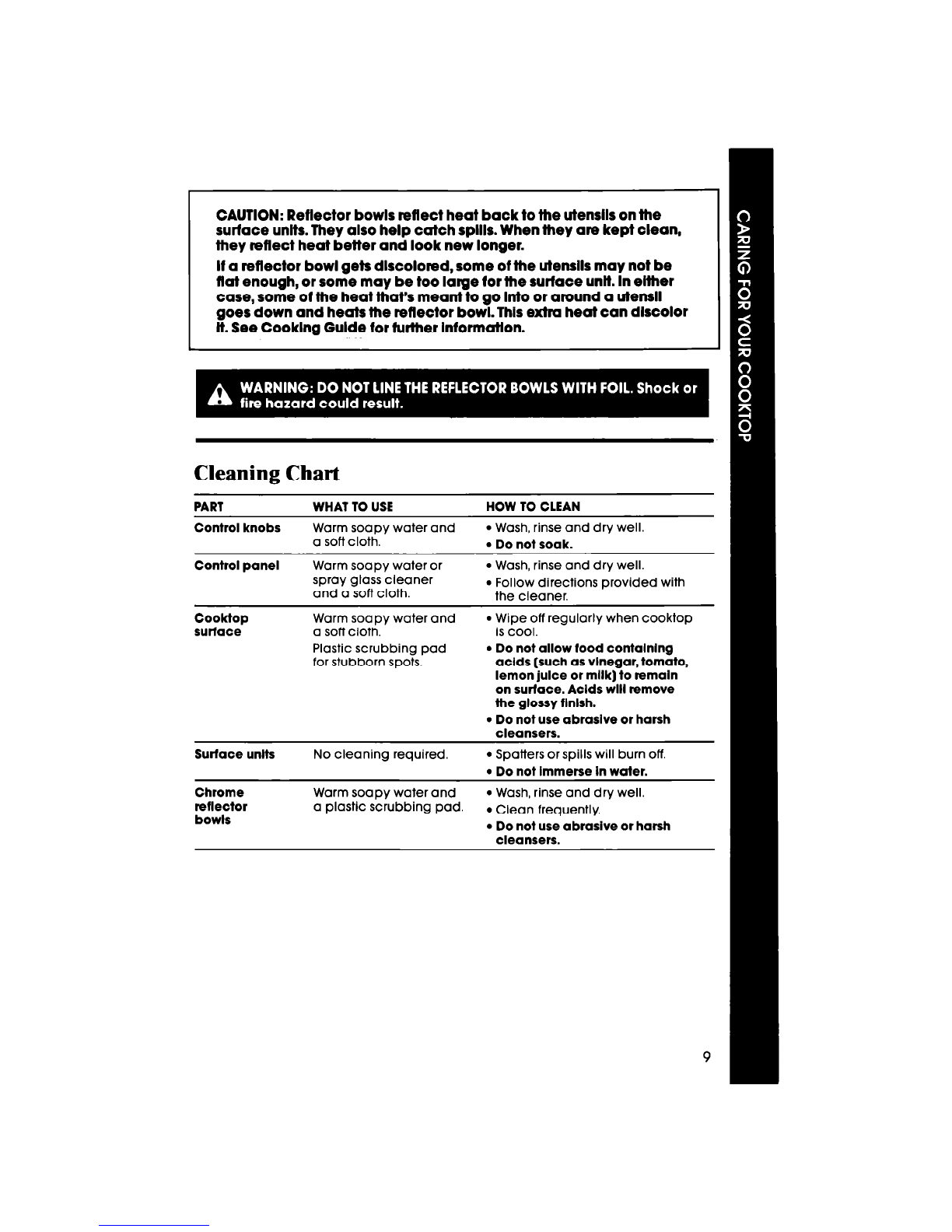

CAUTION:

Reflector

bowls reflect heat back to the utensils on the

surface unlts. They also help catch spills. When they are kept clean,

they reflect heat better and look new longer.

If a reflector bowl gets dlscolored, some of the utensils may not be

flat enough, or some may be too large for the surface unit. In efther

case, some of the heat that’s meant to go Into or around a utensil

goes down and heats the reflector bowl. This extra heat can discolor

It. See Cooklng Gulde for further Intormatfon.

Cleaning Chart

PART WHAT TO USE HOW TO CLEAN

Control knobs Warm soapy water and

a soft cloth.

Wash, rinse and dry well.

Do not soak.

Control panel Warm soapy water or

spray glass cleaner

and a soft cloth.

Wash, rinse and dry well.

Follow directions provided with

the cleaner.

cooktop

surface Warm soapy water and

a soft cloth.

Plastic scrubbing pad

for stubborn spots.

Wipe off regularly when cooktop

is cool.

Do not allow food contalnlng

acids (such as vlnegar, tomato,

lemon juice or milk) to remain

on surface. Acids will remove

the glossy flnlsh.

Do not use abraslve or harsh

cleansers.

Surface units No cleaning required.

Spatters or spills will burn off.

Do not Immerse in water.

Chrome

reflector

bowls

Warm soapy water and

Wash, rinse and dry well.

a plastic scrubbing pad.

Clean frequently.

Do not use abrasive or harsh

cleansers.

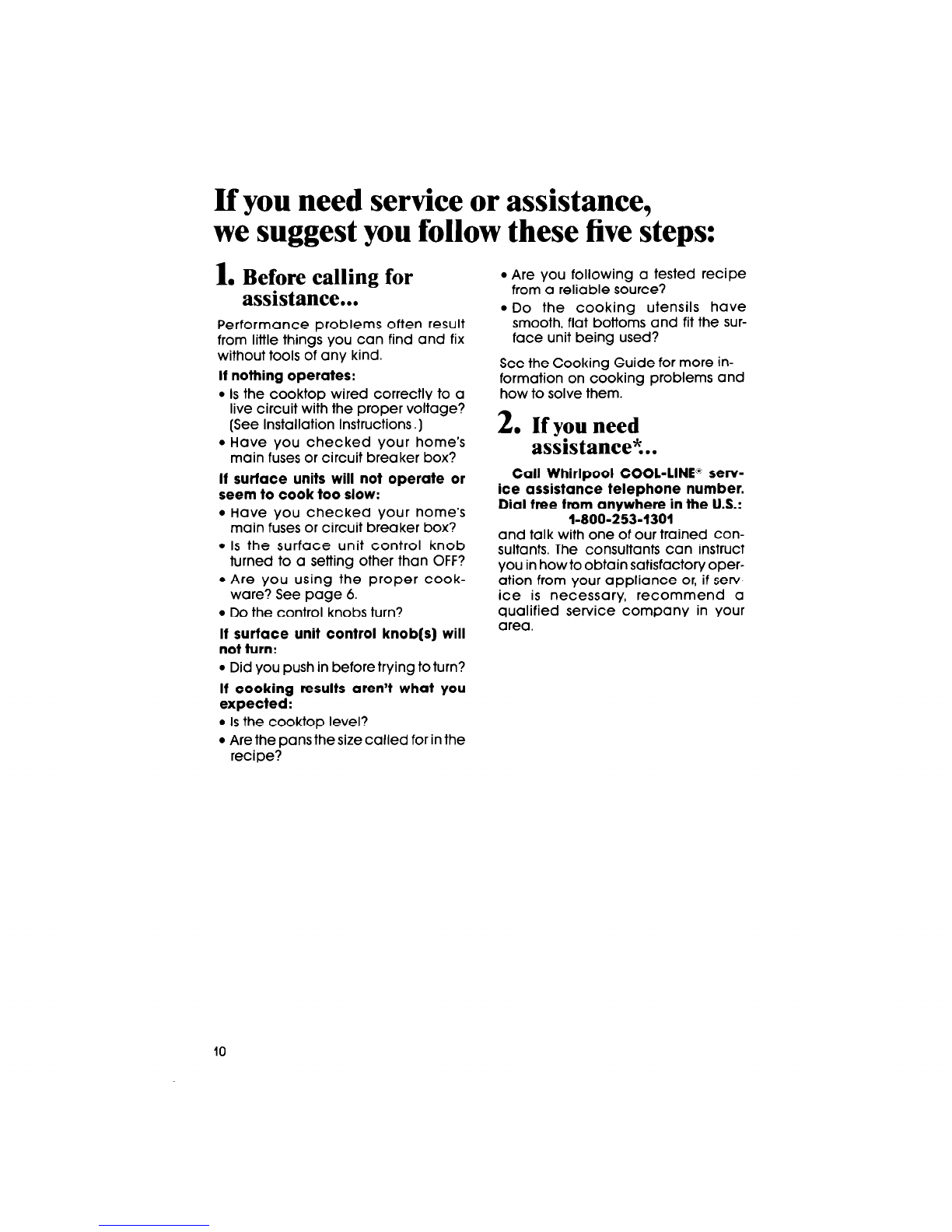

If you need service or assistance,

we suggest you follow these five steps:

Before calling for

assistance...

Performance problems often result

from little things you can find and fix

without tools of any kind.

If nothing operates:

Is the cooktop wired correctly to a

live circuit with the proper voltage?

(See Installation Instructions .)

Have you checked your home’s

main fuses or circuit breaker box?

If surface units will not operate or

seem to cook too slow:

Have you checked your home’s

main fuses or circuit breaker box?

Is the surface unit control knob

turned to a setting other than OFF?

Are you using the proper cook-

ware? See page 6.

Do the control knobs turn?

If surface unit control knob(s) will

not turn:

Did you push in before trying to turn?

If cooking results aren’t what you

expected:

Is the cooktop level?

Are the pans the size called for in the

recipe?

Are you following a tested recipe

from a reliable source?

Do the cooking utensils have

smooth, flat bottoms and fit the sur-

face unit being used?

See the Cooking Guide for more in-

formation on cooking problems and

how to solve them.

If you need

assistance%.

Call Whirlpool COOL-LINE@ serv-

ice assistance telephone number.

Dial free trom anywhere in the U.S.:

l-800-253-1301

and talk with one of our trained con-

sultants The consultants can instruct

you in how to obtain satisfactory oper-

ation from your appliance or, if serv-

ice is necessary, recommend a

qualified service company in your

area.

Table des matières

Autres manuels Whirlpool plaque de cuisson

Whirlpool

Whirlpool WCE52424AB Manuel utilisateur

Whirlpool

Whirlpool ACM795BA Manuel utilisateur

Whirlpool

Whirlpool G7CG3064X - DIMENSIONS GUIDE Manuel de la liste des pièces

Whirlpool

Whirlpool RCS2002GS1 Manuel utilisateur

Whirlpool

Whirlpool GLS3665RS0 Manuel utilisateur

Whirlpool

Whirlpool GLS3665RS0 Manuel utilisateur

Whirlpool

Whirlpool RC8600xv Manuel utilisateur

Whirlpool

Whirlpool GLS3064RS0 Manuel utilisateur

Whirlpool

Whirlpool GJ8640XB Manuel utilisateur

Whirlpool

Whirlpool WCE97US0H Manuel utilisateur

Whirlpool

Whirlpool SC6536W Manuel utilisateur

Whirlpool

Whirlpool IBC310 Manuel utilisateur

Whirlpool

Whirlpool SCS3617RS - Gas Cooktop Manuel utilisateur

Whirlpool

Whirlpool 8185726 Manuel utilisateur

Whirlpool

Whirlpool 30" (76.2 cm) Cooktop Manuel utilisateur

Whirlpool

Whirlpool IBC430 Manuel utilisateur

Whirlpool

Whirlpool GJC3634RB02 Manuel utilisateur

Whirlpool

Whirlpool WCE97US0K Manuel utilisateur

Whirlpool

Whirlpool GLT3057RB03 Manuel utilisateur

Whirlpool

Whirlpool RC8700ED Manuel utilisateur

Whirlpool

Whirlpool Build-in 30 inch Guide de configuration

Whirlpool

Whirlpool ICS300RQ00 Manuel utilisateur

Whirlpool

Whirlpool GLT3057RB00 Manuel utilisateur

Whirlpool

Whirlpool WCG52424AS Manuel utilisateur

Manuels plaque de cuisson populaires d'autres marques

Bonnet

Bonnet OPTIMUM 700 Manuel du propriétaire

Jenn-Air

Jenn-Air JGCP430 Manuel utilisateur

Frigidaire

Frigidaire FES367FCC Guide de démarrage rapide

Ztove

Ztove EZ2 DUO Manuel utilisateur

Kleenmaid

Kleenmaid cooking GCTK9011 Guide d'installation

Casselin

Casselin CSASRE24 Manuel utilisateur

Jenn-Air

Jenn-Air JGC2536EB00 Manuel utilisateur

Waldorf

Waldorf RN8603E-B Mode d’emploi

Wolf

Wolf CI243C/B Manuel utilisateur

Fulgor Milano

Fulgor Milano F5PGK305S1 Manuel utilisateur

GE JP389 Manuel utilisateur

Wells

Wells WV-2HFG Manuel utilisateur

IKEA

IKEA Lagan HGA4K Manuel utilisateur

Samsung

Samsung NA36N9755 Manuel utilisateur

Miele

Miele KM 404 Manuel utilisateur

Lacor

Lacor 69562 Fiche technique

Keating Of Chicago

Keating Of Chicago MG-2 Manuel utilisateur

Jenn-Air

Jenn-Air CCE1400 Manuel utilisateur
