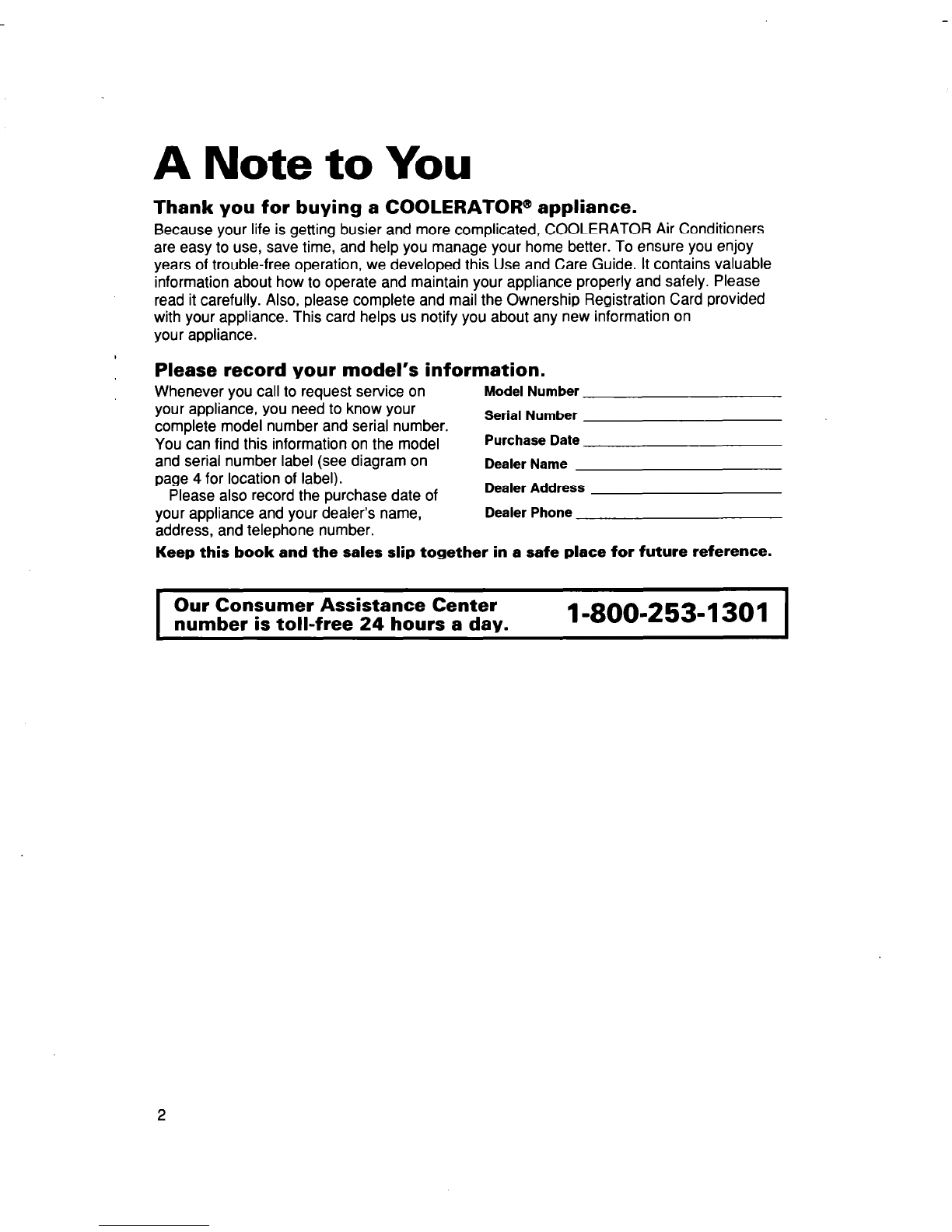

A Note to You

Thank you for buying a COOLERATOR@ appliance.

Because your life is getting busier and more complicated, COOLERATOR Air Conditioners

are easy to use, save time, and help you manage your home better. To ensure you enjoy

years of trouble-free operation, we developed this Use and Care Guide. It contains valuable

information about how to operate and maintain your appliance properly and safely. Please

read it carefully. Also, please complete and mail the Ownership Registration Card provided

with your appliance. This card helps us notify you about any new information on

your appliance.

Please record your model’s information.

Whenever you call to request service on

Model Number

your appliance, you need to know your

complete model number and serial number.

Serial Number

You can find this information on the model

Purchase Date

and serial number label (see diagram on

page 4 for location of label).

Please also record the ourchase date of

Dealer Name

Dealer Address

your appliance and your dealer’s name,

address, and telephone number.

Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

Our Consumer Assistance Center

number is toll-free 24 hours a dav.

1-800-253-1301 1

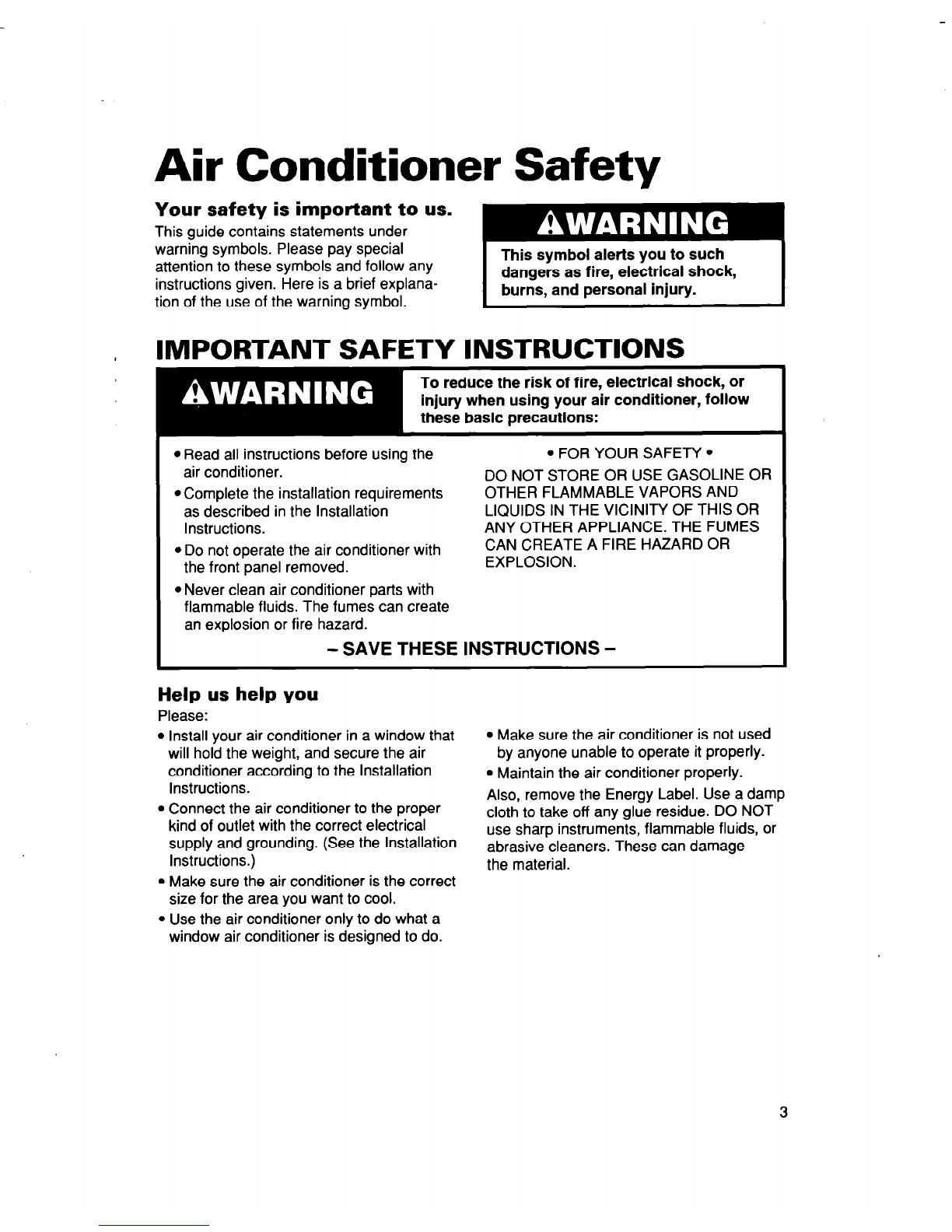

Air Conditioner Safety

Your safety is important to us.

This guide contains statements under

warning symbols. Please pay special

attention to these symbols and follow any

instructions given. Here is a brief explana-

tion of the use of the warning symbol.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using the

air conditioner.

Complete the installation requirements

as described in the Installation

Instructions.

Do not operate the air conditioner with

the front panel removed.

Never clean air conditioner parts with

. FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS OR

ANY OTHER APPLIANCE. THE FUMES

CAN CREATE A FIRE HAZARD OR

EXPLOSION.

flammable fluids. The fumes can create

an explosion or fire hazard.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

Install your air conditioner in a window that

will hold the weight, and secure the air

conditioner according to the Installation

Instructions.

Connect the air conditioner to the proper

kind of outlet with the correct electrical

supply and grounding. (See the Installation

Instructions.)

Make sure the air conditioner is the correct

size for the area you want to cool.

Use the air conditioner only to do what a

window air conditioner is designed to do.

Make sure the air conditioner is not used

by anyone unable to operate it properly.

Maintain the air conditioner properly.

Also, remove the Energy Label. Use a damp

cloth to take off any glue residue. DO NOT

use sharp instruments, flammable fluids, or

abrasive cleaners. These can damage

the material.

Parts and Features

This section contains captioned illustrations of your appliance. Use them to become familiar

with where all parts and features are located and what they look like. To help you find infor-

mation on specific parts or features quickly, page references are included.

Air direction

louvers and tab

(P.6)

Air filter

(behind front panel)

(P.7)

Model and

serial

number

label

(not shown)

Control

panel

(P.5)

Removable

front panel

(P.7)

Operating Your Air

Conditioner

In order to obtain the best possible results from your air conditioner, it is important that you

operate it properly. This section will tell you how to do just that.

, Starting your air conditioner

Fire Hazard

Do not use an extension cord.

Doing so can result in death, fire, or

electrical shock.

NOTE: Make sure air conditioner System

Control is set to Off before plugging in

the unit.

1. Set the Exhaust Control to Closed for

best cooling results.

2. Set the System Control to the

desired setting.

LO COOL ...........for sleeping comfort

MED COOL ..........for normal cooling

HI COOL ..........for maximum cooling

FAN ONLY......for air circulation only

3. Turn the Thermostat Control to the mid

(number 6) setting. You can adjust the air

conditioner’s cooling performance by

resetting the Thermostat Control to a

higher number for maximum cooling.

Lower the thermostat for less cooling.

You will need to experiment to find the

setting which suits you best.

When lowering the Thermostat Control

setting, the compressor (motor) may

shut off.

NOTE: If you turn your air conditioner off or

if the compressor shuts off, wait at least two

minutes before turning it back on or you may

blow a fuse or trip a circuit breaker.

Electrical Shock Hazard

Plug into a grounded 3-prong outlet.

Do not remove ground prong.

Failure to follow these instructions

can result in death or electrical shock.

Using the Exhaust Control

The Exhaust Control draws stale or smoky

air from the room or circulates existing

room air.

NOTE: Make sure the Exhaust Control is

returned to the Closed setting when cooling

or room air circulation is desired. Energy

efficiency is decreased when operating in

exhaust and cooling at the same time.

To exhaust room air:

1. Set Exhaust Control to Open

2. If cooling is desired, set System Control

to desired Cool setting.

3. If cooling is not required, set System

Control to Fan Only.

To circulate room air:

1. Set Exhaust Control to Closed.

2. If cooling is desired, set System Control

to desired Cool setting.

3. If cooling is not required, set System

Control to Fan Only.

Changing air direction

The louvers, in the top grille area of the air

conditioner, control the direction of the

cooled air. Move the tab, at the top of the

grille, in the direction in which you want the

air to go (right, left, or straight ahead).

Tab

Caring for Your Air

Conditioner

Proper maintenance of your air conditioner will help ensure longer life and lower operating

costs. This section will tell you how to clean your air conditioner and perform annual

maintenance. You can always call your authorized Whirlpool service dealer for an annual checkup.

l Cleaning the front panel and air filter

Explosion Hazard

Unplug power cord from outlet before cleaning air

conditioner.

Use only nonflammable cleaners.

Failure to follow these instructions can result In death,

explosion, fire, or electrical shock.

1. Remove the front panel from air condi-

tioner for cleaning. Press down at top

edge of front panel to release it from

the cabinet.

2. Pull the top of the front panel toward you.

3. Lift up and away from the bottom

spring clips.

4. Remove filter from the front panel by

removing the elastic band which holds it

in place.

5. Clean filter by using a vacuum cleaner.

If very dirty, wash filter with warm water

and a mild detergent. Air dry thoroughly

before replacing. Do not use a hot

air dryer.

6. Clean front panel using a soft cloth with

warm water and a mild detergent. Rinse

and dry.

7. Replace filter and hold it with elastic band.

8. Wipe control panel clean with a soft dry cloth.

9. Replace front panel. Locate bottom of

panel on the spring clips. Press down on

top edge of the front panel and push front

toward air conditioner to secure upper tabs.

Tabs

Performing annual maintenance

Your air conditioner needs annual mainte-

nance to help ensure steady, top performance

throughout the year.

Call the service company recommended

by your dealer to:

l Inspect and clean the coils and conden-

sate water passages.

l Check fan.

The compressor and fan motor are sealed

and need no oiling. The expense of an

annual inspection is the customer’s

responsibility.

If you are familiar with electrical appliances,

you can do the cleaning and maintenance

yourself. If you choose to do so, follow

these steps.

NOTE: Do not lift, push, or pull any white

beaded foam (expanded polystyrene) parts.

1. Unplug the power cord.

2. Remove air conditioner from window.

3. Remove the front panel. (See “Cleaning

the front panel and air filter” on page 7.)

Electrical Shock Hazard

Unplug power cord from outlet

before servicing.

Be sure no liquid gets into the motor,

electrical control box, or compressor

terminals.

Failure to follow these instructions

can result in death, electrical shock,

or serious injury.

Excessive Weight Hazard

Use 2 or more people to move and

install air conditioner.

Failure to do so can result in back or

other injury.

10.

Remove the side curtains. Slide curtains

out to their fullest width. From the back

side, remove the Phillips-head screws

which attach the curtains to the cabinet.

(See A in illustration.)

Remove the slotted, hex-head screws

holding the top channel. (See B in

illustration.)

Remove slotted, hex-head screws on

sides of cabinet. (See C in illustration.)

Holding the cabinet on both sides,

carefully lift cabinet off base. Watch out

for the sharp metal fins on the front and

rear coils.

Wrap the motor, electrical control box,

and compressor terminal box in plastic

film to make sure no water or other liquids

get inside. Water or other liquids could

damage the insulation and cause serious

mechanical problems.

Clean and hose out the base, coils, and

condensate pans. Clean air conditioner

at least once a year or more often if the

condenser coils and pans collect dirt,

sand, leaves, insects, or algae. Also,

clean the air conditioner if you detect an NOTE: It is a good idea to wait 24 hours

odor coming from it. before starting the air conditioner again.

Remove plastic film from the motor and Doing so allows time for all areas to

electrical parts. dry thoroughly.

The water from rainfall or from normal

11. Heplace arr conditioner in cabinet.

12. Replace the front panel.

Saving energy

operation does not harm the motor or

electrical parts.

You can help save energy by following the

Try not to use heat-producing appliances

tips below. during the hottest part of the day.

Improve your home’s insulation. Seal all

Turn off lights and appliances when they

doors and windows. Close the fireplace flue. are not needed.

Close all blinds and drapes on sunny sides

of the house. Add window awnings.

Keep heat registers and cool-air returns

closed.

Keep the air filter clean.

Use exhaust venting fans when cooking,

Do not block the airflow with drapes or doing laundry, or bathing.

furniture.

Ventilate the attic. High temperatures in

the attic add to the air conditioner’s cooling

load.

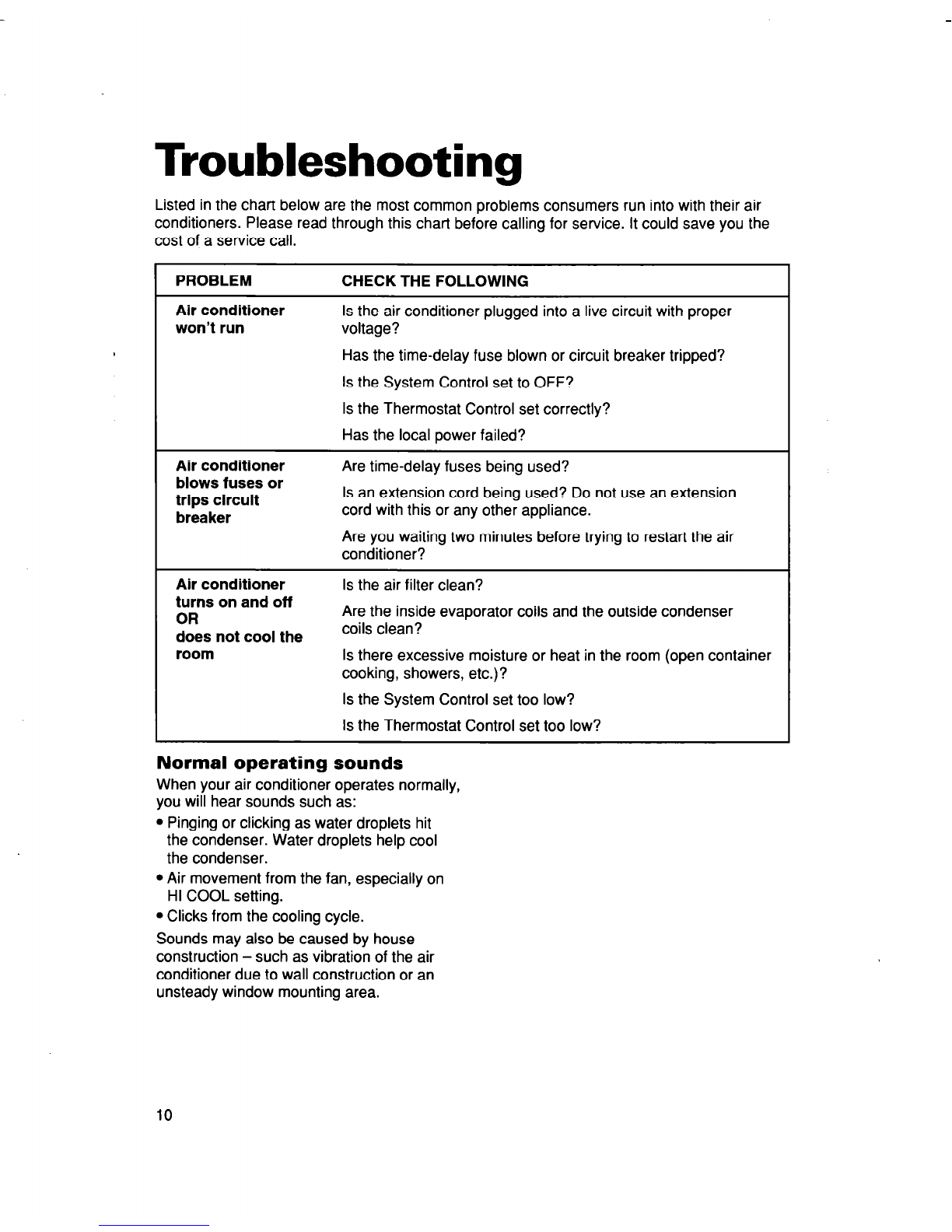

Troubleshooting

Listed in the chart below are the most common problems consumers run into with their air

conditioners. Please read through this chart before calling for service. It could save you the

cost of a service call.

PROBLEM CHECK THE FOLLOWING

Air conditioner

won’t run Is the air conditioner plugged into a live circuit with proper

voltage?

Has the time-delay fuse blown or circuit breaker tripped?

Is the System Control set to OFF?

Is the Thermostat Control set correctly?

Has the local power failed?

Air conditioner

blows fuses or

trips circuit

breaker

Are time-delay fuses being used?

Is an extension cord being used? Do not use an extension

cord with this or any other appliance.

Are you waiting two minutes before trying to restart the air

conditioner?

Air conditioner

turns on and off

does not cool the

Is the air filter clean?

Are the inside evaporator coils and the outside condenser

coils clean?

room Is there excessive moisture or heat in the room (open container

cooking, showers, etc.)?

Is the System Control set too low?

Is the Thermostat Control set too low?

Normal operating sounds

When your air conditioner operates normally,

you will hear sounds such as:

l Pinging or clicking as water droplets hit

the condenser. Water droplets help cool

the condenser.

l Air movement from the fan, especially on

HI COOL setting.

l Clicks from the cooling cycle.

Sounds may also be caused by house

construction - such as vibration of the air

conditioner due to wall construction or an

unsteady window mounting area.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Whirlpool Climatiseur

Whirlpool

Whirlpool 1188177 Manuel utilisateur

Whirlpool

Whirlpool ACM052 Manuel utilisateur

Whirlpool

Whirlpool WA5059Q Manuel utilisateur

Whirlpool

Whirlpool AMAP101AB Manuel utilisateur

Whirlpool

Whirlpool R-WHAW050BW Manuel utilisateur

Whirlpool

Whirlpool AMD 093 Manuel utilisateur

Whirlpool

Whirlpool 1157672 Manuel utilisateur

Whirlpool

Whirlpool ACE082XR0 Manuel utilisateur

Whirlpool

Whirlpool 63851343 Instructions de montage

Whirlpool

Whirlpool SPIW409A2WF Manuel utilisateur

Whirlpool

Whirlpool ACQ102PV Manuel utilisateur

Whirlpool

Whirlpool ACU124XD0 Manuel utilisateur

Whirlpool

Whirlpool 3QACM07XD2 Manuel utilisateur

Whirlpool

Whirlpool ACC602 Manuel utilisateur

Whirlpool

Whirlpool PORTABLE AIR CONDITIONER Manuel utilisateur

Whirlpool

Whirlpool ACQ058MM0 Manuel utilisateur

Whirlpool

Whirlpool W5WCE065XW0 Manuel utilisateur

Whirlpool

Whirlpool ACM082PS7 Manuel utilisateur

Whirlpool

Whirlpool ACS072XG Manuel utilisateur

Whirlpool

Whirlpool ACQ254XF0 Manuel utilisateur

Whirlpool

Whirlpool 819052092 Instructions de montage

Whirlpool

Whirlpool SPIW309A3WF.1 Manuel utilisateur

Whirlpool

Whirlpool AMD 081/1 Manuel utilisateur

Whirlpool

Whirlpool Through-The-Wall Air Conditioner Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
