UNIT PARTS

For Model: ACE244PT3

05−07 Litho In U.S.A. (dmm) Part No. W10139906 Rev. A

AIR CONDITIONER

UNIT PARTS

For Model: ACE244PT3

W10139906

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10121866

Wiring Diagram

8215279 Use & Care Guide

W10122493

Energy Guide

2 8215290 Nut w/washer

3 8209771 Support, Tube

Sensor

4 8215148 Clip

5 8215344 Drain Plug

6 8215353 Tube, Restrictor

7 8215104 Blade, Fan

8 8215107 Bracket, Fan Motor

9 8215130 Relay

10 8215150 Motor, Fan

11 8215123 Overload

12 8215291 Washer

13 8215316 Evaporator

14 8209688 Screw (5)

15 8215154 Gasket

16 8215307 Cover, Evaporator

17 8215297 Nut w/washer

18 8215343 Base

19 8215327 Support

20 8215331 Heater

21 8215069 Condenser

22 8215332 Compressor Assy.

23 8215329 Wheel, Blower

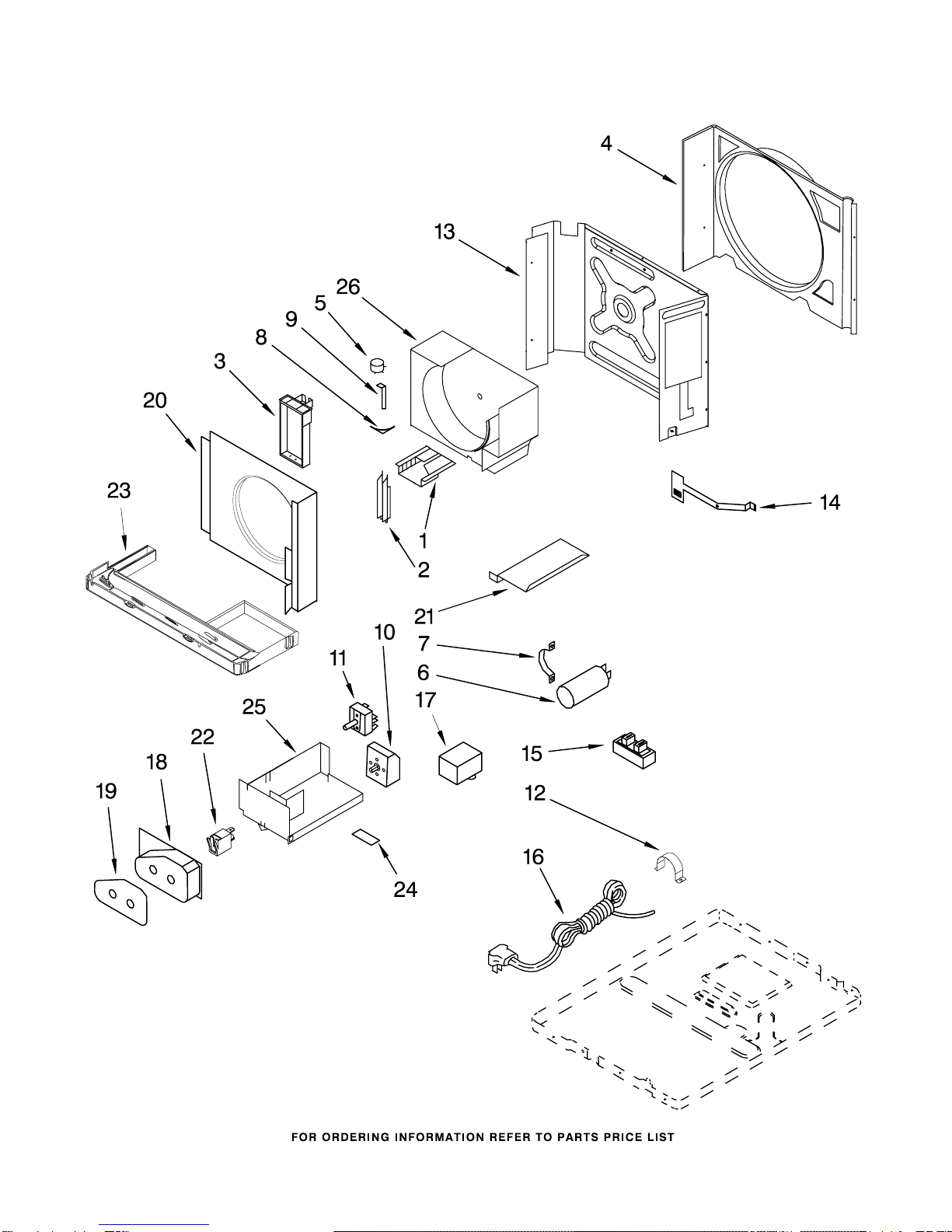

AIR FLOW AND CONTROL PARTS

For Model: ACE244PT3

W10139906

AIR FLOW AND CONTROL PARTS

For Model: ACE244PT3

W10139906

Illus. Part

No. No. DESCRIPTION

1 8215111 Housing, Air

2 8215112 Louver

3 8215116 Cartridge, Louver

4 8215071 Shroud, Condenser

5 8215114 Motor, Louver

6 8215299 Capacitor,

Running

7 8215301 Bracket, Capacitor

8 8215113 Linkage, Louver

9 8215115 Linkage, Louver

10 8215335 Thermostat

11 8215336 Switch

12 8215135 Wire Clamp

13 8215328 Wall, Dividing

14 8215117 Door, Exhaust

15 8215089 Terminal Block

16 8215337 Cord, Appliance

17 8215313 Capacitor

18 8215322 Cover, Control

19 8215138 Escutcheon

20 8215330 Shroud,

Evaporator

21 8215120 Cover, Air Duct

22 8215321 Switch

23 8215127 Pan, Evaporator

24 8215320 Washer

25 8215319 Box, Control

26 8215110 Housing, Air

CABINET PARTS

Illus. Part

No. No. DESCRIPTION

For Model: ACE244PT3

W10139906

1 8215307 Cabinet

2 8215282 Screw

3 8215139 Membrane

4 8215287 Channel, Top

5 8215283 Screw

6 8215305 Front, Cabinet

7 8215284 Screw

8 8215099 Curtain Assembly

Right & Left Side

9 8215141 Guide, Linkage

10 8215101 Ground Wire

11 8215342 Filter

12 8215285 Washer

13 8209777 Screw

14 8215140 Front, Cabinet

Assembly

15 8215286 Screw

16 8215288 Screw

17 8215143 Guide, Louver

18 Guide, Filter

8215145 Up

8215146 Down

19 8215144 Guide, Louver

20 8215325 Spring

21 8215326 Button

22 Knob

8215340 Right

8215339 Left

OPTIONAL PARTS (NOT INCLUDED)

For Model: ACE244PT3

W10139906

Illus. Part

No. No. DESCRIPTION

2 505168 Tape, No Drip 30’

3 479502 Tape, Vinyl 36’

4 10943 Oil, Turbine 1 Oz.

5 99243 Oil, Turbine 8 Oz.

6 Valve, Access

876764 3/16" Tube O.D.

978025 1/4" Tube O.D.

978026 5/16" Tube O.D.

978027 3/8" Tube O.D.

978028 1/2" Tube O.D.

978029 5/8" Tube O.D.

978030 3/4" Tube O.D.

978865Bulk

Seal, Ring

Access Valve

(20−Pack)

8 Wire, 25’Roll

242820 Black 14 Ga.

242825 Red 14 Ga.

47261 Black 12 Ga.

299885 Red 12 Ga.

47263 White 12 Ga.

9 813684 Adhesive,

Insulation

(24 Oz. Spray)

10 279368 Adhesive,

Insulation

(2 Oz. Tube)

12 212643 Sealer, Permagum

4−1" Strips

13 99344 Sealer, Permagum

1 Lb. Bar

14 Cover, Winter

484066 28"x19"x31"

484067 19"x12"x14"

484069 27"x19"x6 to 27"

484184 22"x15"x3 to 18"

15 813610 Retainer, Cord

(Winter Cover)

16 Return Bend

Replacement Kit

4388784 (5/16 Inch Tube)

4388785 (3/8 Inch Tube)

INSTALLATION PARTS

For Model: ACE244PT3

W10139906

Illus. Part

No. No. DESCRIPTION

1 8215271 Screw

2 8209931 Seal, Strip (Wide)

3 8209932 Seal, Strip

(Narrow)

4 8215098 Support,

Cabinet

5 8209930 Bracket

6 8215272 Screw (Window

Lock Bracket)
