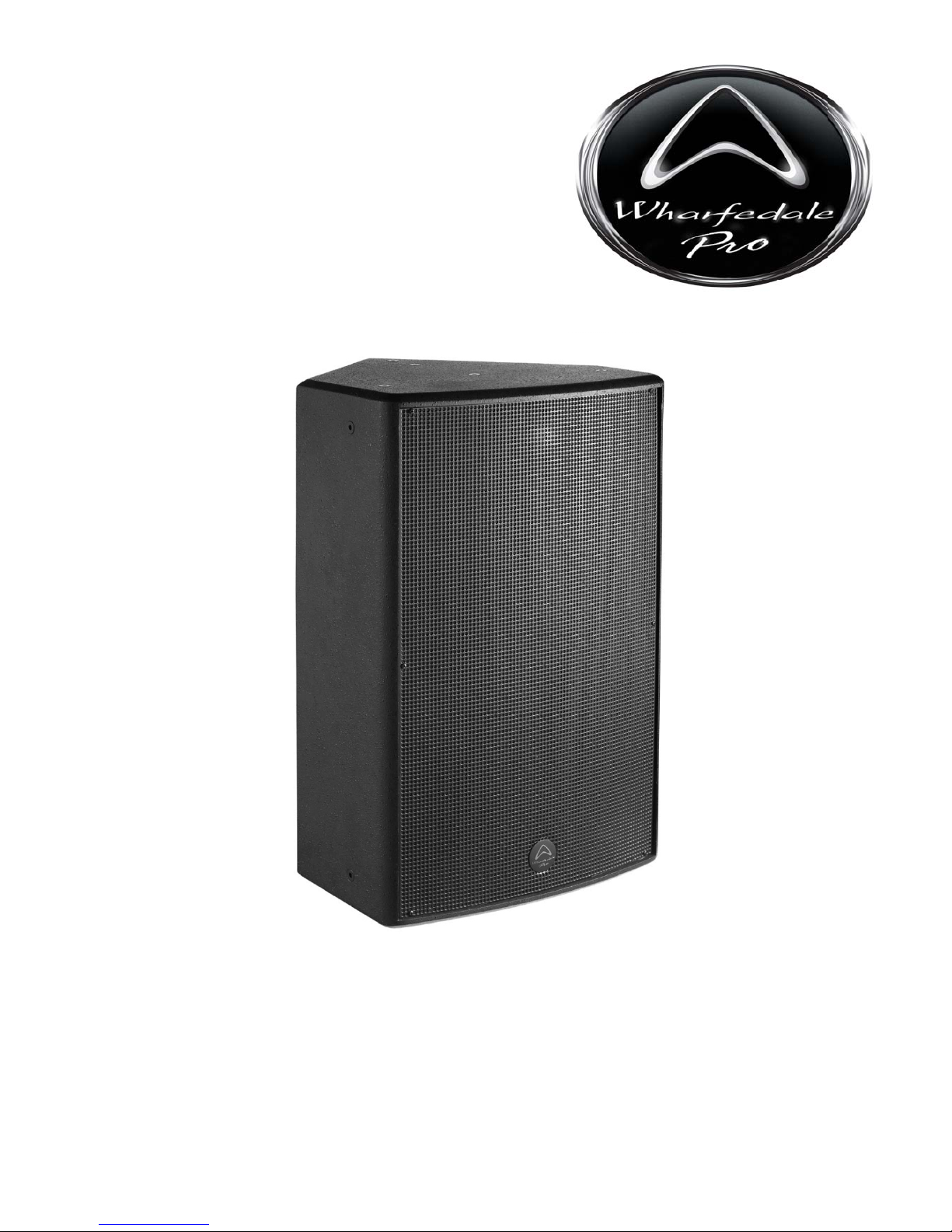

Wharfedale Pro SI-10X Manuel utilisateur

SI-X

SI-X Series

SI-10X

SI-12X

SI-15X

SI-28X

SI-12BX

SI-15BX

SI-18BX

SI-X™Series

TABLE OF CONTENTS

Page

Important Warnings & Safety Instructions

2……………………….………Introduction/ Overview

2……………………………….What about the SI-X™ Series?

3…………………………….…Features

4……………………………….Setting up/ Speaker Placement

5……………….………………Connections/ Wiring

6…………..……………..…….Specifications

7…………………………….…Dimensional Drawings - SI-10X

8…………………………….…Dimensional Drawings - SI-12X

9…………………………….…Dimensional Drawings - SI-15X

10……………………………. Dimensional Drawings - SI-28X

11…………..………………….Dimensional Drawings - SI-12BX/ 15BX

12…………..………………….Dimensional Drawings - SI-18BX

13..………………………….. Warranty

SI-X™Series

IMPORTANT WARNINGS & SAFETY INSTRUCTIONS

1. READ ALL INSTRUCTIONS carefully and become familiar with the features and

functions of these products before operating them.

2. RETAIN THESE INSTRUCTIONS for future reference.

3. COMPLY WITH ALL WARNINGS – All warnings and instructions for this product

should be adhered to.

4. USE WITH AMPLIFIERS – In order to avoid damage to drivers and other equipment, it

is advisable to establish and follow a routine for powering up and powering down a sound

system. With all system components connected, turn on source equipment (mixers, signal

processors, record and playback units, etc.) BEFORE powering up amplifiers. Transient

voltages from powering up source equipment can damage speakers if amplifiers are

already turned on. Make sure that amplifier volumes are set to their minimum settings and

power up any system amplifiers LAST. It is recommended that all system components be

allowed to stabilize for several seconds before any source signals are introduced or level

setting adjustments are made. Similarly, when shutting systems down, turn all amplifiers

off first, before powering down any other system components.

5. CABLES – Do not use shielded or microphone cables for connection between

amplifiers and speakers. Use only approved speaker cables with proper connectors.

6. RIGGING – SUSPENDING – MOUNTING – Rigging, suspending and mounting of

these speaker systems can expose members of the public to serious health risks and

even death. UNDER NO CIRCUMSTANCES ATTEMPT TO RIG, SUSPEND OR

OTHERWISE MOUNT THESE SPEAKERS UNLESS YOU ARE FULLY QUALIFIED

AND CERTIFIED TO DO SO BY RELEVANT LOCAL, STATE AND NATIONAL

AUTHORITIES. ALL RELEVANT SAFETY REGULATIONS MUST BE FOLLOWED. IF

YOU ARE NOT PROPERLY QUALIFIED OR DO NOT KNOW OF PERTINENT

REGULATIONS, CONSULT QUALIFIED PERSONNEL FOR ADVICE.

7. CAUTION – These professional loudspeaker systems are capable of generating very

high sound pressure levels. Use care with placement and operation to avoid exposure to

excessive volume levels. Permanent hearing damage can result when operated to

extreme levels.

8. SERVICE – There are no user serviceable parts inside this product. Users should not

attempt to service this product. Warranty nullification could result if this is attempted.

SI-X™Series

INTRODUCTION

Thank You

Wharfedale SI-X™Series loudspeakers are the result of many years of experience in the use, design and

manufacturing of professional loudspeaker products. We take great pride in engineering and building every

Wharfedale Pro loudspeaker and wish to thank you for entrusting us with your sound.

From the time Gilbert Briggs built his first loudspeaker in 1932, to the present, Wharfedale Loudspeakers

have maintained the same standard of quality in components, workmanship and performance. Actually,

Wharfedale is one of a few present day manufacturers that design, engineer and build all of their own

transducers.

Please take a few minutes to read this manual completely in order to ensure that you get the most out of

your SI-X™Series Loudspeaker system.

SI-X™SERIES OVERVIEW:

The SI-X™Series are powerful, accurate, high quality loudspeaker systems with low distortion that were

designed to deliver high quality sound for the best value. From the SI-10X to the SI-15X plus three high

power subs, you have what it takes to assemble the system that your music deserves.

An important factor in loudspeakers is the smoothness of the sound coverage. Many speakers that may

sound acceptable in the horizontal plane have problems in the vertical plane. The SI-X™speakers exhibit

very smooth and well-behaved sound dispersion characteristics in both the horizontal and vertical planes

making positioning and set-up less critical. Everyone in the room will hear the same quality sound. Because

of the multi-faceted cabinet design, the SI-X speakers can be positioned on the floor as a stage monitor or

mounted on a wall or ceiling (using the U-shaped brackets included with the speaker).

The SI-X™Series rugged cabinets feature 20 x M8 threaded inserts to facilitate the safe installation of the

loudspeaker. See pages 7 and 8 for details on the configuration of the M8 inserts.

WHAT ABOUT THE SI-X SERIES?

Wharfedale SI-X™Series foreground/back-ground music and sound reinforcement speakers are designed

for demanding professional installations, i.e. venues as diverse as live performance halls, airports, houses

of worship, schools, retail shops, restaurants and public houses.

The SI-X™Series loudspeakers are high quality speaker systems designed to provide the best sound in a

powerful, feature laden, easy to use package. They are designed to provide transparent and accurate

sound reproduction or reinforcement. The 25.4mm (1”) Titanium high frequency drivers project crystal clear

high frequencies. A proprietary 70° x 70° High Frequency Horn delivers the high frequencies in a well

defined, even coverage pattern. Dynamic passages, such as the crack of a snare drum or the report of a

cannon, come through just like the real thing.

SI-X™Series

FEATURES

2-way reflex systems

25.4mm Titanium high frequency compression drivers

Low distortion, high power woofers

70º x 70º High Frequency Horn

durable MDF enclosure

Twenty (20) M8 hanging points to facilitate safe rigging

NL4 & Barrier Strip speaker inputs for flexibility

U-shaped steel mounting bracket included

Folded horn and Direct Radiating subwoofers

SI-X™Series

SETTING UP/ SPEAKER PLACEMENT

The uniform dispersion of the SI-X™Series makes it easy to position the speakers where you need them,

rather than trying to rearrange the room to accommodate the sound system. And the multi-faceted cabinet

with mounting hardware makes the job of installing the speakers that much easier. For the best coverage

and highest quality sound, the speakers should be located above head level.

You don’t think you are getting all the bass you need? The SI-X series has three (3) subs can help: SI-12BX

& SI-15BX are folded horns that give you the lowest frequencies and the punch you need. The SI-18BX is a

straight forward, no nonsense 18-inch bass reflex subwoofer with exceptional low frequency response.

CONNECTIONS/ WIRING

Connecting the SI-X™ Series to your system is easy. The rear panel includes two (2) parallel NL4 and a

barrier strip connector. Run your speaker wires from your amplifier to the speaker; you can use either input

connector. Use the correct gauge of stranded insulated speaker cable according to the power handling

ability of your SI-X™ Series cabinet. It is always advisable to use heavier gauge (lower number) cables on

longer runs. Be sure to connect your speakers in proper polarity (what many refer to erroneously, as

phase). This means that in normal operation, connect one end of the same wire to the + or Red terminal on

the amplifier and the other end to the +1 or ‘+’ terminal of the barrier strip on the speaker. The other wire is

connected to the –1 pin on the NL4 or the ‘–’ (negative) terminal on the barrier strip.

If you are using the SI-12BX, SI-15BX or the SI-18BX subwoofers, you must use an external crossover;

passive or active. See the frequency response data for each model in the SPECIFICATIONS section of this

manual on the following page. You will need to use another amplifier – one channel for the mid/high

speaker (high pass) and another channel for the low pass (subwoofer).

Generally speaking, electronic crossovers using 24 db/octave Linkwitz Riley filters is a good beginning. For

example: to use the SI-15BX with the SI-15X, set the low pass output to 250 Hz and the High Pass to

250Hz. Consult the Crossover manual (such as Wharfedale WPG-202) for details on setting the crossover

parameters.

Connections to Subwoofers

Your Si-X™ Subwoofers are intended to be used with full electronic crossovers.

Note - There are No Low Pass or Hi-Out crossovers in the subwoofers.

We recommend the use of our electronic crossover WPG-202 or similar as required.

SI-X™Series

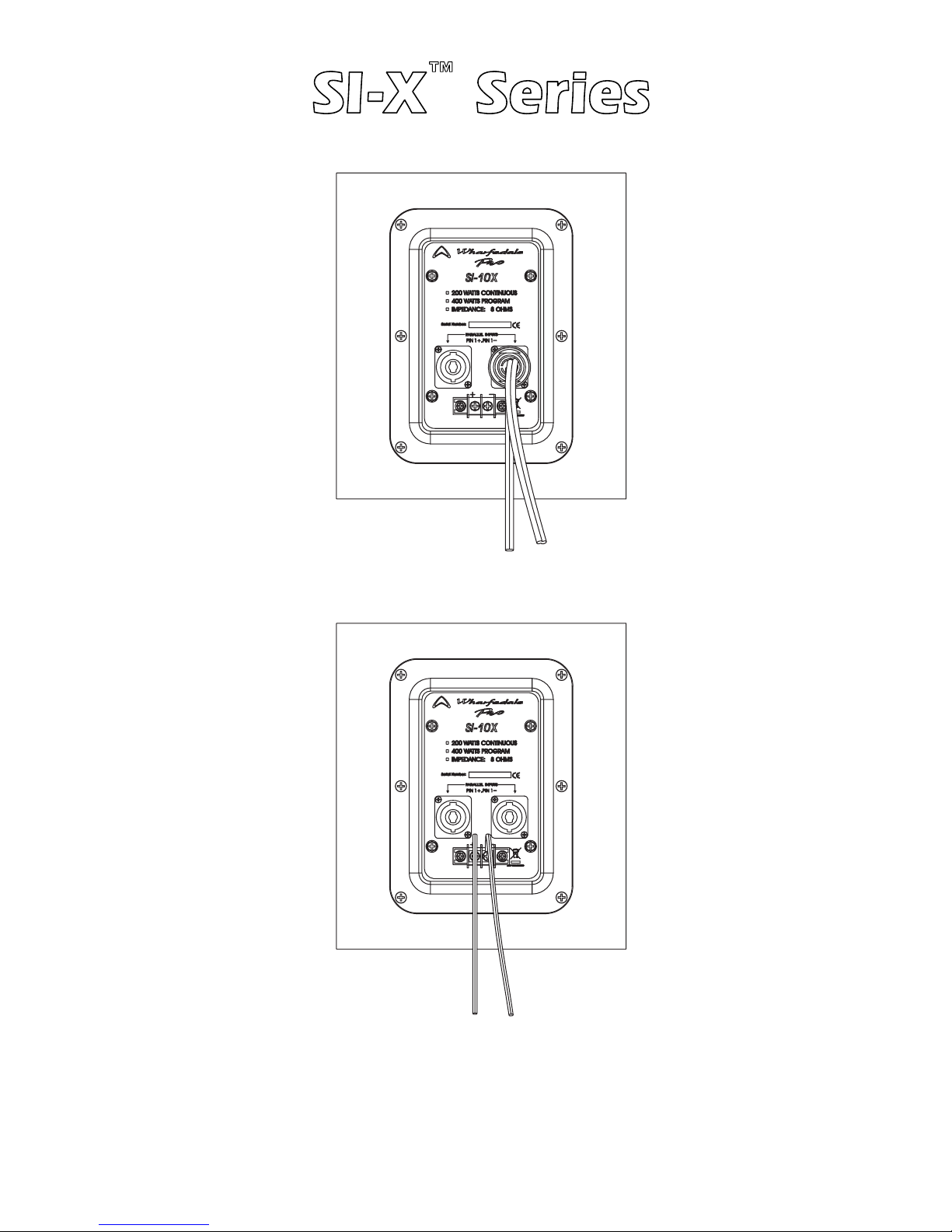

BARRIER STRIP CONNECTION

SPEAKON CONNECTION

SPECIFICATIONS SI-10X SI-12X SI-15X SI-28X SI-12BX SI-15BX SI-18BX

Loudspeaker Type: 10" 2-way 12" 2-way 15" 2-way 2 x 8" quasi 3-way 12" horn loaded

subwoofer

15" horn loaded

subwoofer 18" Subwoofer

Frequency Response (+/–3dB): 60 - 20kHz 60 - 20kHz 50 - 20kHz 60 - 20kHz 40 - 250Hz 38 - 220Hz 35 - 200Hz

Sensitivity (1W@1M): 93 dB 96dB 97dB 91dB 101dB 105dB 99dB

Bd431Bd831Bd231Bd121Bd92

HF Coverage (H x V): 70Ûx70Û70Ûx70Û70Ûx70Û70Ûx70Û

POWER (WATTS)

008W054W003W052

04W052

06W005W00

W005

004:cisu

23W008

0021W0001

006

1W0

001

008

LF DRIVER

2.302"51/mm183

21/mm8.403

"01/mm

452

:ez

Sm/ 8" 304.8mm/12" 381mm/ 15" 457mm/ 18"

"0.3

7"5.2

.46"

/mm9.

C51.6mm/ 2.0 102mm / 4.0" 102mm / 4.0" 102mm / 4.0"

HF DRIVER/ HORN

Driver Type: Compression Driver Compression Driver Compression Driver Compression Driver

.1/m

44"57.

/mm

m44"57.

/mm

:ez

"1/

m52

/mm5

m52"1/m

Diaphragm Material: Titanium Titanium Titanium Titanium

HF Driver Protection: Bulb Bulb Bulb Bulb

dnuoR

nuoRd

epy

mm52"

1/m

m52"

1/m

m52

"1/m

m52:

ezi

CROSSOVER

HK6.

HK5.

zHK

5.2

cne

ENCLOSURE

Shape/ Material: 40Û/50Ûmonitor/ MDF 40Û/50Ûmonitor/ MDF 40Û/50Ûmonitor/ MDF 40Û/50Ûmonitor/ MDF Rectangle/ MDF Rectangle/ MDF Cube/ MDF

pgnig

M)0

(

gnigg

R (20) M8 rigging points (20) M8 rigging points (20) M8 rigging points

tekc

-llaw+tekc

btnu

om-

aw+

btnu

m-l

aw+tekc

-ll

aw+

oNoNoN

NoNsel

naH

INPUT PANEL

Input Connectors: 2 x NL4 /Barrier Strip 2 x NL4 /Barrier Strip 2 x NL4 /Barrier Strip 2 x NL4 /Barrier Strip 2 x NL4 /Barrier Strip 2 x NL4 /Barrier Strip 2 x NL4 /Barrier Strip

DIMENSIONS/WEIGHT

Dimensions (H x W x D)/MM: 512 x 294 x 310mm

20.2" x 11.6" x 12.2"

562 x 344 x 333mm

22.1" x 13.5" x 13.1"

640 x 422 x 396mm

25.2" x 16.6" x 15.6"

675 x 250 x 300mm

26.6" x 9.8" x 11.8"

302 x 650 x 545mm

11.9" x 25.6" x 21.5"

266 x 850 x 670mm

10.5" x 33.5" x 26.4"

620 x 537 x 508mm

24.4" x 21.1" x 20.0"

Net Weight: 13.6kg / 29.9lbs 16.7kg / 36.7lbs 22kg / 48.4lbs 17.8kg / 39.2lbs 37.7kg / 82.9lbs 44.6kg / 98.1lbs 35.5kg / 78.1lbs

Gross Weight: 17kg / 37.4lbs 20kg / 44lbs 25kg / 55lbs 21kg / 46.24lbs 44kg / 96.8lbs 53kg / 116.6lbs 44kg / 96.8lbs

*Features, details and specifications subject to change without notice

IXOOUDQJHȍȍIXOOUDQJHȍȍIXOOUDQJHȍȍIXOOUDQJHȍIXOOUDQJHȍIXOOUDQJHȍIXOOUDQJHȍ

System Impedance:

Lou

(+/

–

Sen

(

)

overag

V):

(

WATTS

)

DRIVER

RIVER

OSSO

INP

PANEL

DIMEN

WEI

Dim

(

)

/MM:

eight:

IFI

ATI

I-1

I-12X

I-1

I-2

I-12BX

I-1

SI-X™Series

Dimensions

SI-10X

294.00

512.00

301.50

222.00

185.00

134.00

275.00

524.00

SI-X™Series

Dimensions

324.50

187.50

217.00

261.00

127.50

300.00

576.00

344.00

562.00

SI-12X

Autres manuels pour SI-10X

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Wharfedale Pro Intervenants

Wharfedale Pro

Wharfedale Pro SHO Lite SH1264L Mode d’emploi

Wharfedale Pro

Wharfedale Pro SVP-X Series Mode d’emploi

Wharfedale Pro

Wharfedale Pro WLA ACTIVE Series Manuel utilisateur

Wharfedale Pro

Wharfedale Pro DIAMOND 210 Manuel utilisateur

Wharfedale Pro

Wharfedale Pro Programme-X Series Manuel utilisateur

Wharfedale Pro

Wharfedale Pro TITAN-AX12 Manuel utilisateur

Wharfedale Pro

Wharfedale Pro Achromatic WA-W4 Manuel utilisateur

Wharfedale Pro

Wharfedale Pro SVP-12PM Manuel utilisateur

Wharfedale Pro

Wharfedale Pro GPL Series Manuel utilisateur

Wharfedale Pro

Wharfedale Pro EVP-12 Neo Mode d’emploi

Wharfedale Pro

Wharfedale Pro GPL Series Manuel utilisateur

Wharfedale Pro

Wharfedale Pro Airedale Heritage Manuel utilisateur

Wharfedale Pro

Wharfedale Pro 105T Manuel utilisateur

Wharfedale Pro

Wharfedale Pro EVO SIGNATURE EVO 10 Manuel utilisateur

Wharfedale Pro

Wharfedale Pro PROGRAMME 35 Manuel utilisateur

Wharfedale Pro

Wharfedale Pro IMPACT-X Series Manuel utilisateur

Wharfedale Pro

Wharfedale Pro DIAMOND ACTIVE SERIES Manuel utilisateur

Wharfedale Pro

Wharfedale Pro DIAMOND 8 Series Manuel utilisateur

Wharfedale Pro

Wharfedale Pro PDM-100 Series Manuel utilisateur

Wharfedale Pro

Wharfedale Pro Titan 8 Passive Manuel utilisateur

Wharfedale Pro

Wharfedale Pro Zaldek 300 Manuel utilisateur

Wharfedale Pro

Wharfedale Pro WH 2.1 SYSTEM Manuel utilisateur

Wharfedale Pro

Wharfedale Pro TYPHON-AX15 Manuel utilisateur

Wharfedale Pro

Wharfedale Pro SH1294M Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
