Wharfedale Pro XR SERIES Mode d’emploi

OPERATING MANUAL AND USER GUIDE

www.wharfedalepro.com

Professional Power Amplifier

XR SERIES

P O W E R

FAULT

C L IP

S IG NA L

0100

FAULT

C LI P

S IG NA L

C H 1 C H 2

P O W E R

A MP L I F I E R XR SERIES

All manuals and user guides at all-guides.com

all-guides.com

ABOUT THE XR SERIES

WARRANTY

All manuals and user guides at all-guides.com

FEATURES

230

400

690

1080

350

550

1550

530

780

1050

1460 1020 2800

2050

ABOUT THE XR SERIES

5 350W

1460

XRyour XR amplifiers are

XR power

features

XR series

*Power ratings at THD 1%

19"

All manuals and user guides at all-guides.com

XR SERIES

CH 2 CH 1

BRI DGE

CAU TION: TO REDU CE TH E RISK OF E LECTR IC SHOC K,

GRO UNDIN G OF THE CE NTER PI N OF THE PL UG MUST B E

MAINTAINED.

SENSITI VI TY MODE

0.775V/1.4V

BRIDGE

PARALLEL STEREO

INPU T

CH2

INPUT

CH 1

LOCK LO CK

Serial No. OUTPUT

P O W E R

A MP L I F I E R

RESET

AC INPUT

XXXX

CH 2 CH 1(CH1)

POS NEG NEG POS POS NEG

1.When using the amplifier, you should check whether the selected voltage is correct. If the voltage is wrong it could

damage the amplifier. Please ensure that the device is connected to a power supply with a ground connection.

2. The CH1 and CH2 input connectors are for direct connection from a mixer. The link connection allows the input

signals to be daisy-chained to other amplifiers.

6. Sensitivity mode : This adjusts the input sensitivity.

4. When an amplifier is overloaded, the button of the circuit breaker will immediately become unsprung and will power

off automatically to protect the amplifier. You must consider the reason for this overload condition and make suitable

adjustments to the system. After that, press the button of the circuit breaker and the amplifier can resume its normal

operation.

5. STEREO mode makes the two channels work independently. CH1 input signal goes to CH1 output and CH2 signal

goes to CH2 output. BRIDGE mode makes CH1 input signal go to the BRIDGE output socket. This is controlled by

using the CH1 volume control. PARALLEL mode makes CH1 input signal go to both CH1 and CH2 output sockets.

The input socket of CH2 has no effect. The channel volumes can be adjusted independently.

Power switch. To power the amplifier ON or OFF.

All manuals and user guides at all-guides.com

STEREO/

PARALLEL BRIDGE

CH 1 +=Positive

-=Negative

+=Positive

2+=Negative

CH 2 +=Positive

-=Negative No use

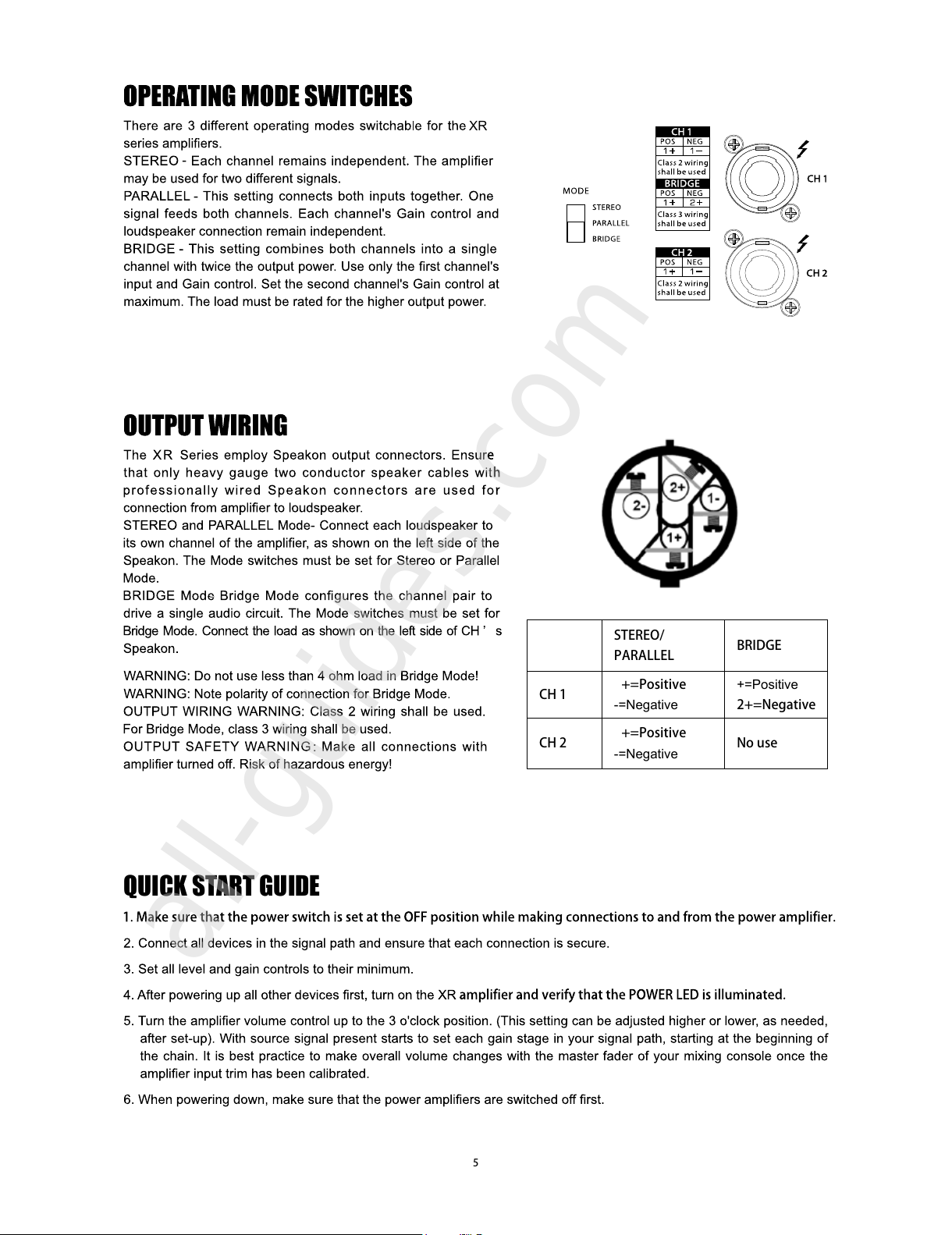

QUICK START GUIDE

All manuals and user guides at all-guides.com

all-guides.com

XR800, XR1500, XR2500, XR3000

XR3500

All manuals and user guides at all-guides.com

CAU TION: TO REDU CE TH E RISK OF E LECTR IC SHOC K,

GRO UNDIN G OF THE CE NTER PI N OF THE PL UG MUST B E

MAINTAINED.

Serial No.

RESET

AC INPUT

CH 2 CH 1(CH1)

POS NEG NEG POS POS NEG

All manuals and user guides at all-guides.com

XR800 XR1500 XR2500 XR3000

29dB 31dB 33dB 34dB

2x350W 2x550W 2x780W 2x1050W

2x230W 2x400W 2x530W 2x700W

690W 1080W 1550W 2050W

XR3500

37dB

2x1460W

2x1020W

2800W

482*390*88482*325*88

<0.05%,20Hz-20KHz( THD@1W )

THD 1%

12.00kg 13.30 kg 14.00 kg 16.00kg14.10 kg

Gross weight 15.20 kg 16.35 kg 17.20 kg 17.30 kg 21.30 kg

All manuals and user guides at all-guides.com
