WeTech DP669USB Manuel utilisateur

USER MANUAL

DP669USB

Thank you for purchasing a WeTech® product. This user manual contains important safety

and operating instructions for your desk programming station (DP). Before using your DP, read

this manual and all warning instructions with care in order to avoid possible danger.

This product is suitable for charging and programming MOTOROLA MTP3250 and MTP6750

radios with a MOTOROLA NNTN8023 rechargeable batteries.

Safety instructions

1. Installation and the first start of the system should only be done by qualified technicians.

2. Using rechargeable batteries not explicitly listed in this document may lead to fire.

3. The contacts of the product should be cleaned at regular intervals with a dry cloth. Do not

use water or other liquids.

4. The ventilation slots must not be covered.

Scope of delivery

The following items are included in the scope of delivery:

1x DP669USB

1x Power cable

1x USB cable

1x User manual

Start of the system

1. Place the DP at a suitable place. Ensure a safe stand!

2. Connect the delivered power cable to the power connection (F) at the device and a

socket.

3. Connect USB port (D) of the DP with a suitable PC.

4. Press the main switch (G).

5. You can now use your DP relating to the specifications of your programming software.

Advice

Each charger is protected by a 1.5A fuse inside of the DP on a separate board. More

information about surrogate fuses are in the technical data.

Functions

The DP is used for quick charging, maintaining charge and programming of radios. The table

below provides information about the function of the displays and the connections of the unit.

Pos.

Designation

Status

Description

Green LED

Battery detected.

off

Battery not detected. Contact with the radio

unit may not have been established properly.

Red LED

Quick charging active. Battery capacity under

80%

off

Quick charging inactive. Battery capacity over

80%

Green LED

Electricity supply is given

USB-B

Connection to PC

USB-A

Programming port for MRT over USB-cable

EURO-Buchse

Power supply

Main switch

For power supply

12V / 1A

Power supply for MRT

I / J

Not in use

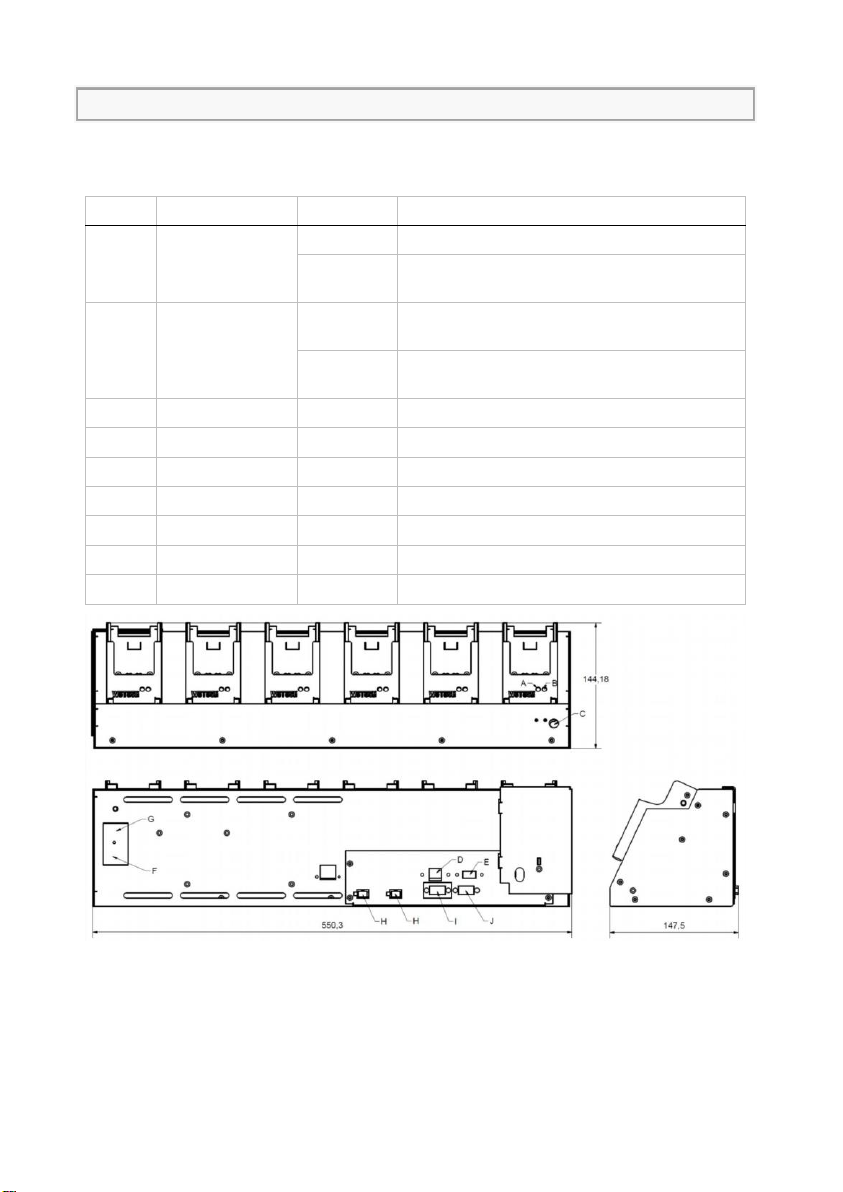

Schematic drawing similar DP669USB

Technical data

Designation

Value

Working voltage

110V … 240V (AC)

Output voltage

5.1V

Output current

max. 880mA each charger

Fuse

6.3 x 32 mm² or 5 x 20 mm² / 1.5A / Inert

Degree of

protection

IP20

Measurements

550 x 145 x 146 mm³

Weight

3,8 kg

Additional instructions

CE conformity declaration

For this product, we confirm that it meets the requirements set forth in the Directive of the Council for Conformity

of Legal Regulations of Member States regarding Electromagnetic Compatibility. This declaration applies to all

units manufactured in accordance with the production drawings included as a component of this declaration.

WEEE (this symbol applies only in the European Union)

This symbol indicates that the product so labelled may not be disposed of with normal household waste. If you

want to dispose of this product, obey the corresponding national laws and regulations in your country or

community. The correct disposal of this product supports environmental protection and prevents possible

damage to the environment and human health.

Contact

This product was manufactured in Germany by:

WEMPE Elektronic GmbH phone: +49 6621 9240-0

Leinenweberstr. 6 fax: +49 6621 9240-44

DE-36251 Bad Hersfeld website: www.wetech.de

e-mail: [email protected]
