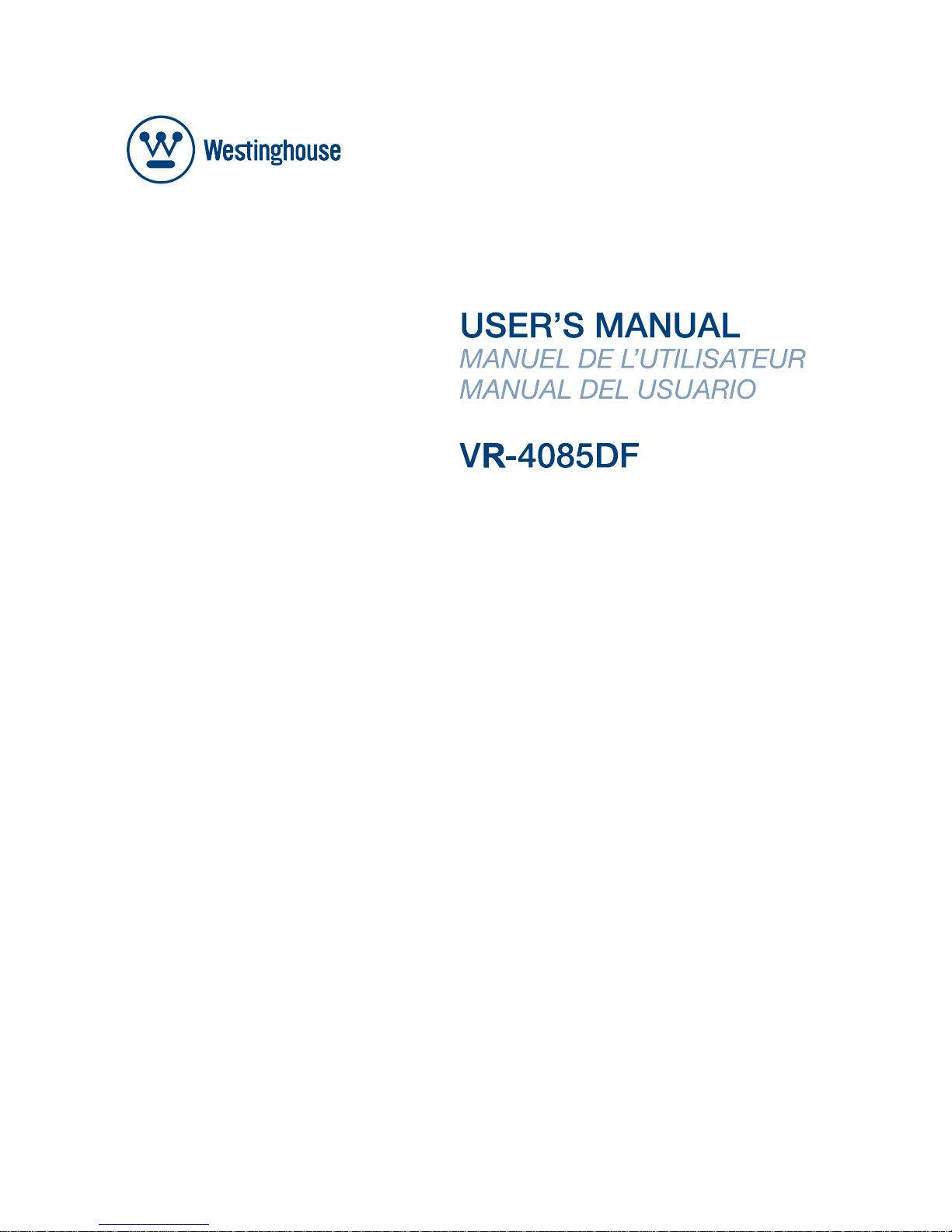

Westinghouse VR-4085DF Manuel utilisateur

Power Cord Connection

COAX Connection

AV Connection

YPbPr(component) Connection

VGA(PC) Connection

Antenna Connection

HDMI Connection

Service Port Function

Remote control instructions in TV mode

Remote control setup 14

Select Input Source

Setup Menu

Basic Operation

Picture Menu

Sound Menu

Channel Menu

Parental Control

Other Menu

Picture Menu

Setup Wizard

TABLE OF CONTENTS

English

I M P O R TA N T

INFORMATION

SPECIFICATIONS

2HOW TO INSTALL

THE STAND

3PREFACE

Troubleshooting

SAFETY

PRECAUTIONS

FRONT/BACK

CONNECTIONS

OF LCD TV

REMOTE CONTROL

TV INSTALLATION

DRAWINGS

IN THE CARTON

Menu Operation

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to

alert the user to the presence of un-insulated dangerous voltage within the products

enclosure that may be of sufficient magnitude to constitute a risk of electric to persons.

The exclamation point within an equilateral triangle is interded to aler the user to the

presence of important operating and maintenance (servicing) instruction the literature

accompanying the appliance.

CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN

THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce

the risk of electric shock, do not perform any servicing other than that contained in the operating

instructions unless you are qualified to do so.

Refer to service manual for servicing instructions.

Important Safety Instructions

Note:

1.Read these instructions.

2.Keep these instructions.

3.Heed all warnings.

4.Follow all instructions.

5.Do not use near water.

6.Clean only with dry cloth.

7.Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9.Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has

two blades with one wider than the other. A grounding type plug has two blades and a third

grounding prong. The wide blade or the third prong are provided for your safety. If the provided

plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

IMPORTANT INFORMATION

English

10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point

where they exit from the apparatus.

11.Only use attachments / accessories specified by the manufacturer.

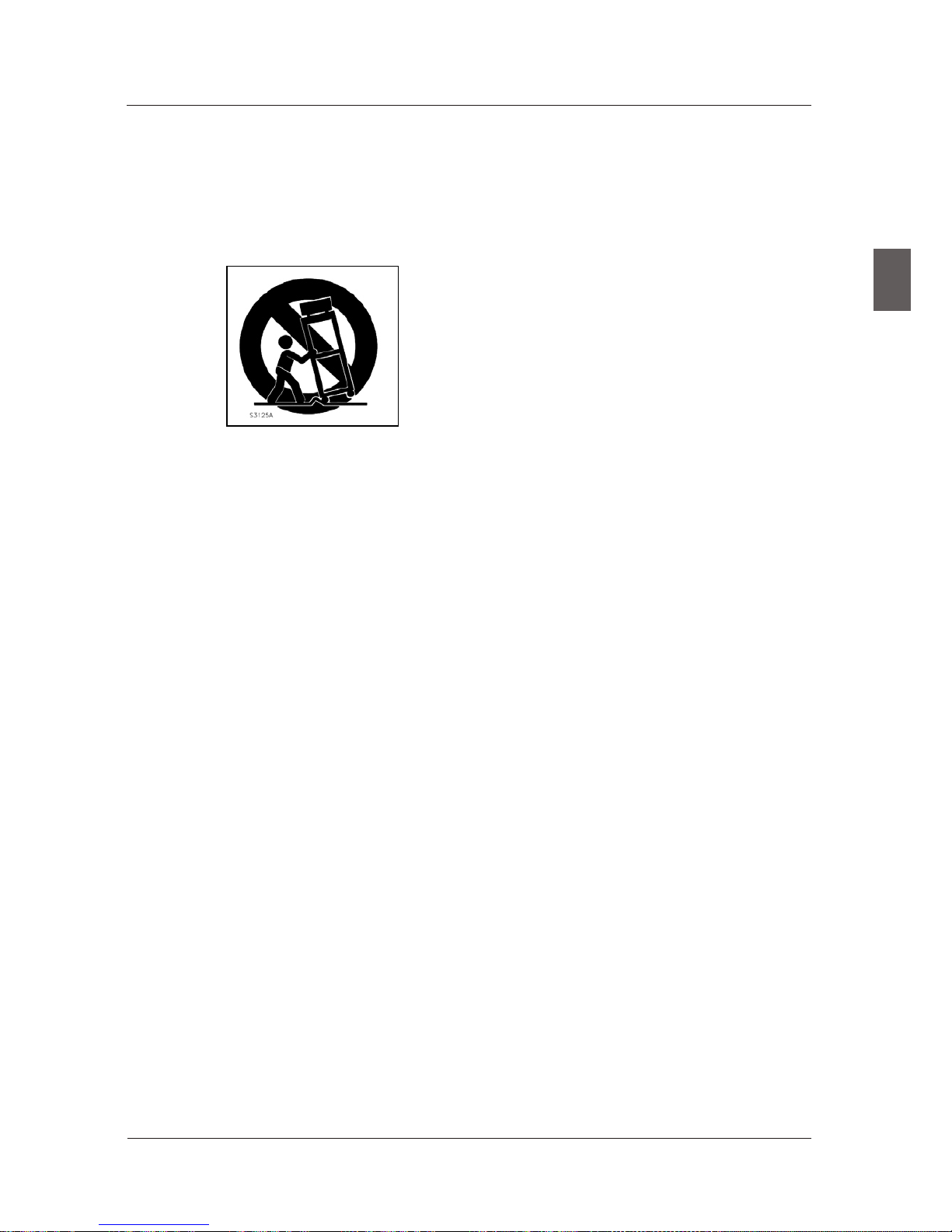

12.Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

13.Unplug this apparatus during lightning storms or when unused for long periods of time.

14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any

way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,

the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15.Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, suchas vases, shall be

placed on the apparatus.

16.WARNING:To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

17.Mains plug or appliance coupler is used as the disconnect device, shall be readily operable.

IMPORTANT INFORMATION

English

Fixed-ring base

Rotating base fixed plate

Screw holes

Base cover

Limit

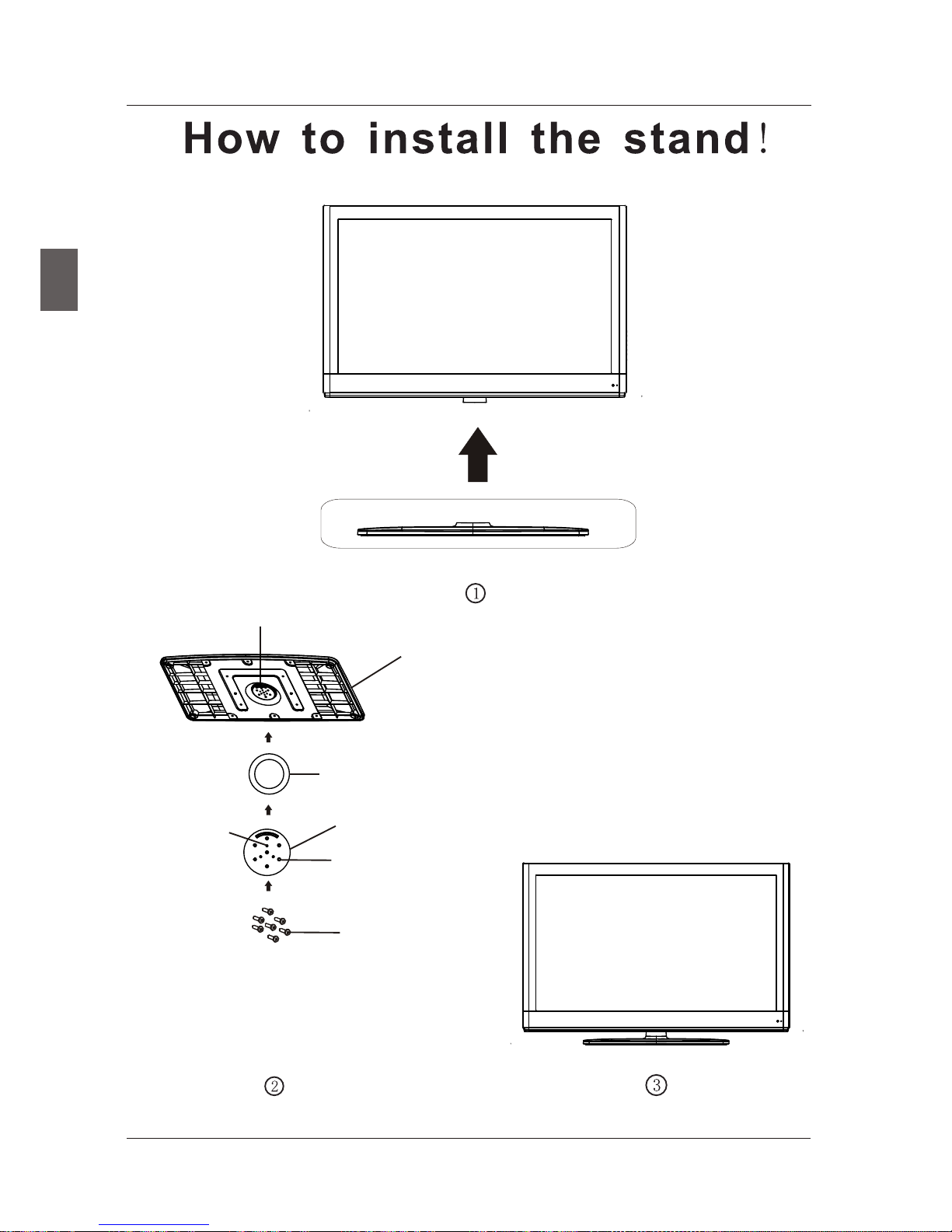

First, fix the base cover to the fixed-ring base;

then, let the rotating base fixed plate align the

three limit pillar; Last, fix it with the screws.

Hole spacing

Screws

HOW TO INSTALL THE STAND

English

3. PREFACE

Thank you for buying this Please read this manual thoroughly before operating the TV.

Make sure the TV was not damaged in transit. Should the TV be damaged, do not install it and

contact your dealer. Check that you have all the accessories according to the model.

TV!

4. SAFETY PRECAUTIONS

Power cord and cables must be properly routed and protected to prevent

people from stepping on them and causing the TV to fall.

Minimum distances

10cm

20cm

10cm 5cm

Put the TV on a stable surface.

Do not place any material on the TV.

Do not block or cover the ventilation openings on the TV.

If you have a wall mount, check that it is steady.

Do not use the TV with fixtures other than those provided or

suggested by the manufacturer.

English

PREFACE

Keep the TV dry and away from humidity.

Keep the TV away from heat sources.

Unplug the TV before cleaning it. Do not use solvent or liquid to clean

the TV.

Only clean the TV with a soft and dry cloth.

In case of troubleshooting, do not use spare parts other than those

suggested by the manufacturer. Using inadequate spare parts can

lead to electric shocks, short-circuits, fire or other incidents.

Unplug the TV during lightning storms or when unused for long periods

of time.

English

SAFETY PRECAUTIONS

DISP LAYDISP LAY

ENTE R

ASPE CTASPE CT

MENUMENU EXITEXIT

SLEEPSLEEP SO URCESOURCE

POWE RPOWE R MUTEMUTE

MTSMTS

FAVFAVCCCC

LISTLIST

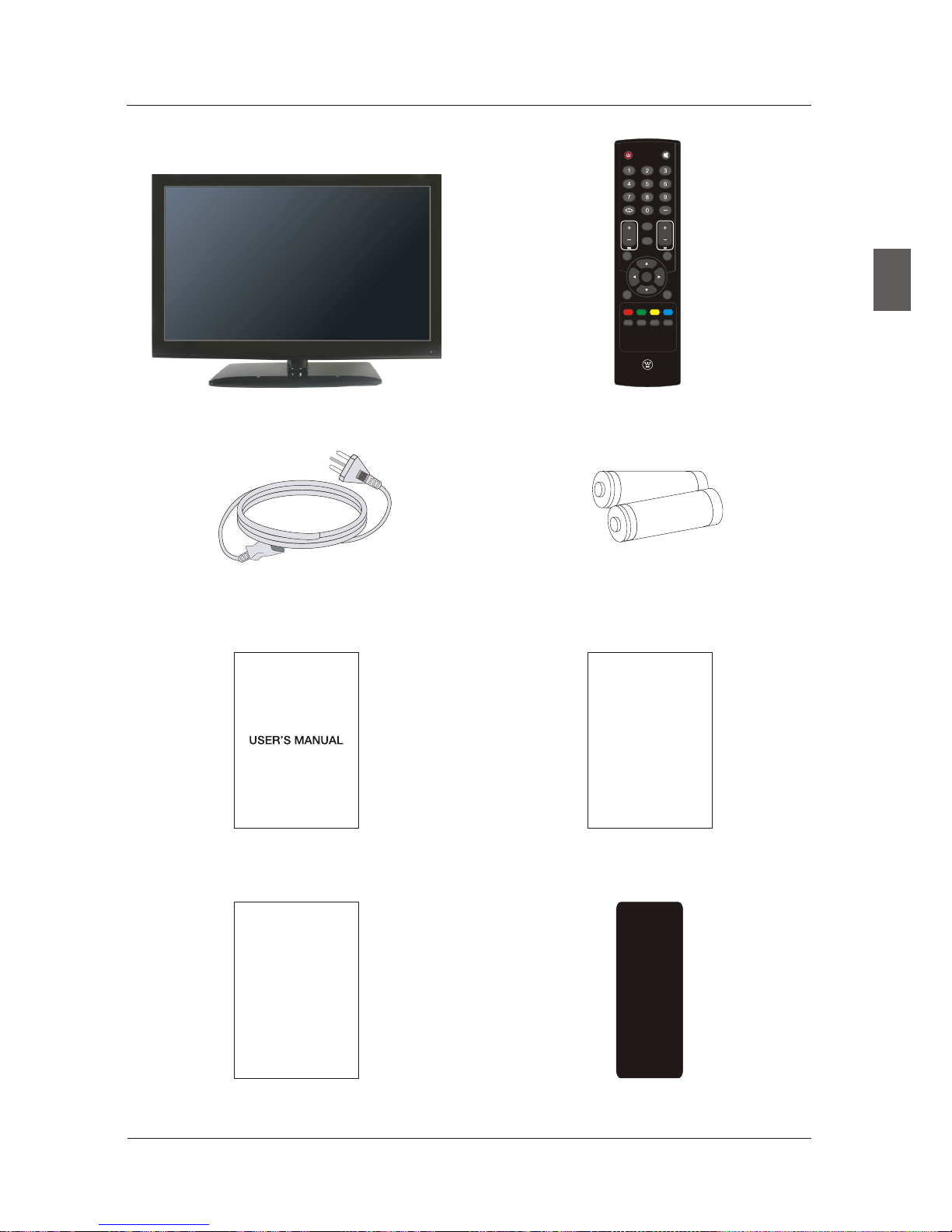

5. IN THE CARTON

Remote Control

1.5V

AAA Batteries

LCD TV SET

Power Cable

USER'S MANUAL

English

IN THE CARTON

Quick Connect Guide

Warranty Card Small cover for back cover

Warranty Card

Front View

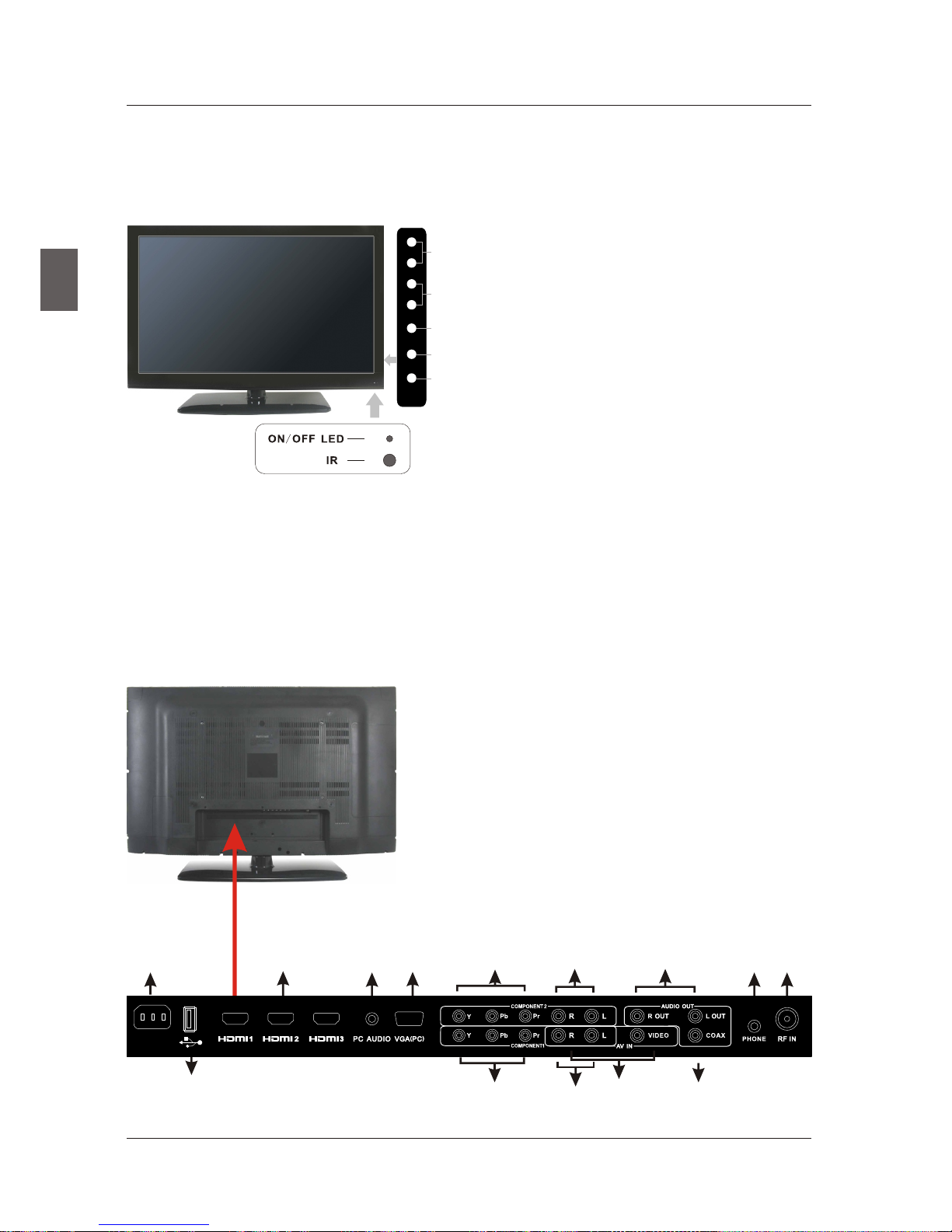

6. FRONT/BACK CONNECTIONS OF LCD TV

Back View and Control Connections

7. VIDEO: Connect the Video input jack of DVD or VCR.

8. AUDIO OUT: Connect to the audio equipment.

9. PHONE: Connect the headphone.

10.RF IN: Connect the antenna.

12. COAX out: Connect the COAX receiver.

11. USB SERVICE: USB Port for Factory Use Only.

2. HDMI1/HDMI2/DMI3: Connect the HDMI output

jack of DVD.

5. YPbPr1/YPbPr2: Connect the YPbPr output jack of DVD or VCR.

6. Y-L/R1,Y-L/R2: For YPbPr audio.

1. AC IN: Main power input.

3. PC AUDIO: Connect the Audio output jack of PC.

Y1 Pr1

VIDEO

4 95

L/R: For VIDEO audio.

Pb1

COAX

Y-R1 Y-L1

4. VGA(PC): Connect the PC-RGB output jack of PC.

1. Press“SOURCE”to select the input source.

2. Press “MENU”to bring up the main menu on

the screen.

3. Press“CH+”or “CH-”to scan through channels.

4. Press“VOL+”or “VOL-”to increase or decrease

the volume.

5. Press“POWER” button to turn the TV on or off.

6. POWER INDICATOR: amber in standby mode.

amber or blue when your TV is switched on.

7. REMOTE SENSOR: infrared sensor for the

remote control.

Shows

SOURCESOURCE

MENUMENU

CH-CH-

CH+CH+

VOL-VOL-

VOL+VOL+

POWERPOWER

English

FRONT/BACK CONNECTIONS OF LCD TV

AC IN
