Bar Fridges with Ice Box,

All Refrigerators

and Upright Freezers

Important safety instructions . . . . . . . . . . . . . 3

Bar refrigerator with ice box features . . . . . . . . . 4

Bar refrigerator without ice box features . . . . . . . 5

Single door all refrigerator features . . . . . . . . . 6

Bar freezer features . . . . . . . . . . . . . . . . 7

Single door all freezer features . . . . . . . . . . . 8

Installing your new appliance . . . . . . . . . . . . 9

Ventilation around your appliance. . . . . . . . . 9

Installing your refrigerator . . . . . . . . . . . 9-10

Initial start-up . . . . . . . . . . . . . . . . . . . 10

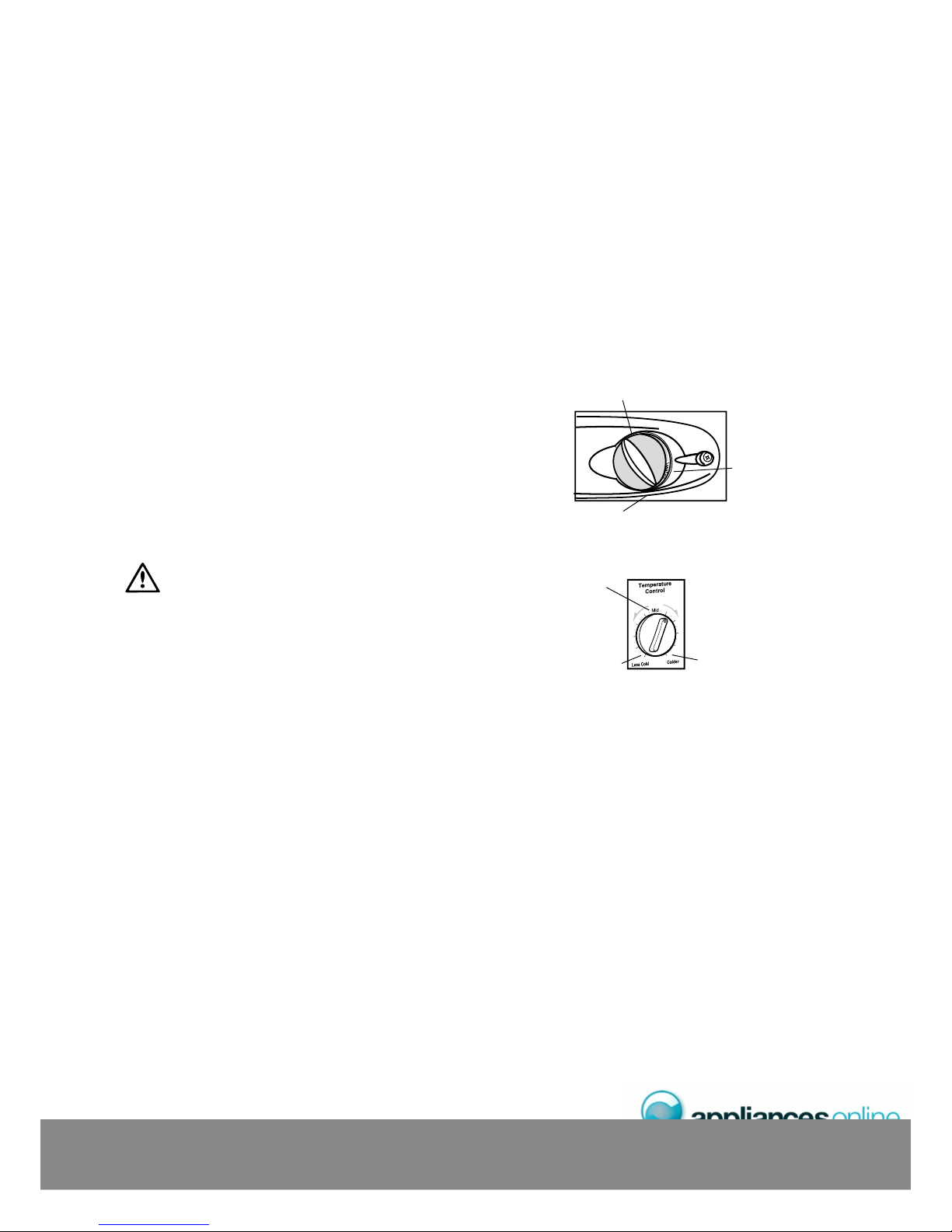

Manual controls . . . . . . . . . . . . . . . . . . 10

Controlling the temperature. . . . . . . . . . . . 10

Using your appliance – Ice box models . . . . . . . . 11

Making ice . . . . . . . . . . . . . . . . . . 11

De-icing the ice box . . . . . . . . . . . . . . . 11

Freezer operation . . . . . . . . . . . . . . . . . 12

Reversing the ice box door opening direction . . . . . 13

Reversing the door opening direction WIM1000 &

WFM0700 . . . . . . . . . . . . . . . . . . . . 14

Reversing the door opening direction WIM1200,

WRM1300, WRM2400, WFM0900 & WFM1800 . 15

Care and maintenance . . . . . . . . . . . . . . . .

Changing the light bulb . . . . . . . . . . . . . 16

General information . . . . . . . . . . . . . . . . 17

Cleaning the appliance . . . . . . . . . . . . . 17

Safety . . . . . . . . . . . . . . . . . . . . . 17

Switching off your appliance . . . . . . . . . . . 17

Troubleshooting . . . . . . . . . . . . . . . . . . 18

Warranty . . . . . . . . . . . . . . . . . . . . . 19

Congratulations and thank you for choosing our

refrigerator/freezer. We are sure you will ﬁnd your new

appliance a pleasure to use. Before you use the appliance,

we recommend that you read through the relevant sections

of this manual, which provides a description of your

appliance and its functions.

To avoid the risks that are always present when you use

an electric appliance, it is important that the appliance is

installed correctly and that you read the safety instructions

carefully to avoid misuse and hazards.

We recommend that you keep this instruction booklet

for future reference and pass it on to any future owners.

After unpacking the appliance, please check it is not

damaged. If in doubt, do not use the appliance but contact

your local customer care centre.

TIPS & INFORMATION

 If you ﬁnd

the refrigerator is damaged or marked, you must report it

within 7 days if you wish to claim for damage/marks

under the manufacturers warranty. This does not affect

your statutory rights.

ENVIRONMENTAL TIPS



• Most of the packing materials are recyclable. Please

dispose of those materials through your local recycling

depot or by placing them in appropriate collection

containers.

• If you wish to discard this product, please contact

your local authorities and ask for the correct method

of disposal.







Please read the user manual carefully and store in a handy

place for later reference.

The symbols you will see in this booklet have these meanings:

WARNING



CAUTION





TIPS & INFORMATION



ENVIRONMENTAL TIPS





Meanings of symbols used in this manual are shown below:





WARNING

• If pressurised aerosol containers bear the word

‘ﬂammable’ and/or a small ﬂame symbol,

do not store them inside any refrigerator or

freezer. If you do so you may cause an explosion.

• When you dispose of your old refrigerators and freezers,

remove any doors. Children can suffocate if they get

trapped inside.

• This appliance contains insulation formed with ammable

blowing gases. Avoid safety hazards by carefully

disposing of this appliance.

WARNING

The refrigerator must be plugged into its own

dedicated 220-240V, 50Hz AC electrical outlet.

The plug must be accessible when the refrigerator is

in position.

It is essential the power point is properly earthed to

ground. Consult a qualiﬁed electrician if you are unsure.

Don’t use extension cords or adapter plugs with this

refrigerator.

If the power cord is damaged, have it replaced by a

qualiﬁed service technician.

Unplug the refrigerator before cleaning it, or changing

the light bulb to avoid electric shock.

Never unplug the refrigerator by pulling the electrical

cord as this may damage it. Grip the plug ﬁrmly and

pull straight out.

Choose a location for your refrigerator that isn’t too cold.

The ambient room temperature should be above 10°C.

Stand your refrigerator in a dry place – avoid areas

of high moisture or humidity.

Don’t put the refrigerator in frosty or unprotected areas

like a garage or on the verandah.

Keep the refrigerator out of direct sunlight.

Don’t locate the refrigerator near stoves, ﬁres or heaters.

When installed correctly, your refrigerator should:

– Have adequate space at the back and sides

for air circulation (refer to page 9).

– Be aligned to the surrounding cupboards.

– Have doors that will self-close from a partially

open position.

WARNING



This appliance may contain a small quantity of environmentally

friendly, but flammable, non-synthetic R600a refrigerant:

• Ensure that the tubing of the refrigerant circuit is not

damaged during transportation and installation.

• The room for installing appliance must be at least 1m3 per

8g of refrigerant. The amount of refrigerant charged in the

appliance can be found on the rating plate on the appliance.

• Keep ventilation openings in the appliance enclosure or

in the built-in structure, clear of obstruction.

• Do not use mechanical devices or other means to

accelerate the defrosting process, other than those

recommended by the manufacturer.

• The room for installing appliance must be at least 1m3

per 8g of refrigerant. The amount of refrigerant charged

in the appliance can be found on the rating plate on

the appliance.







1 Ice box door

2 Light switch

3 Ice box

4 Ice bin

5 Drain plug

6 Drip tray

7 Ice tray

8 Light housing

9 Light lens

10 Control knob

11 Glass shelf

12 Wine rack

13 Glass crisper cover

14 Crisper

15 Adjustable levelling leg

16 Door bin cover/lid

17 Door bin

18 Plastic door strap

19 Metal door strap

20 Door gasket/seal

21 Door bin bottom



WIM1200SC has grey outer cabinet. Refrigerator door is stainless steel. WIM1200WC has white cabinet and door.

WIM1000 illustrated

WIM1200 illustrated

Features may vary depending on model. Not all models will have features listed.





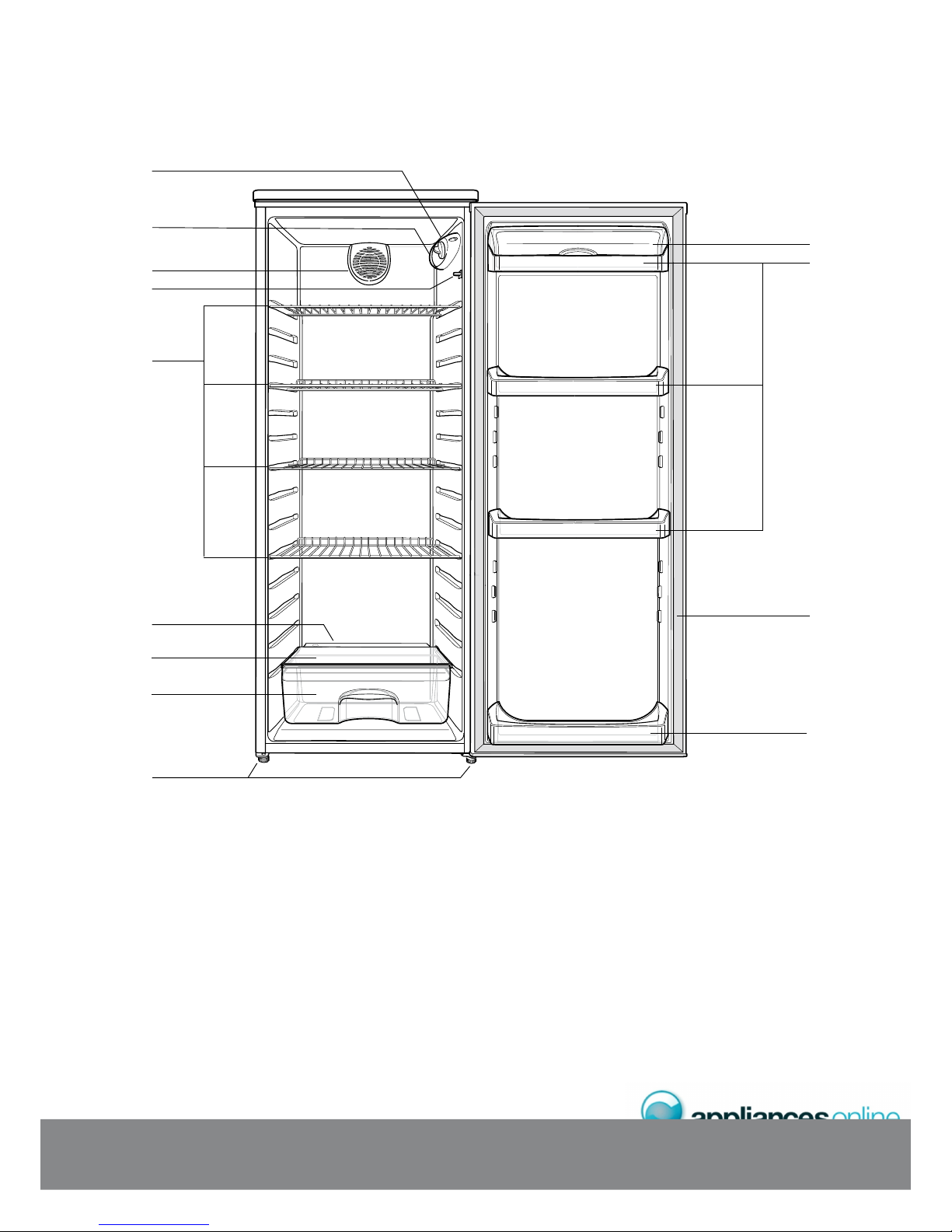

1 Control knob

2 Light lens

3 Wire shelf

4 Light switch

5 Drain hole

6 Glass crisper cover

7 Crisper

8 Levelling leg

9 Door bin cover/lid

10 Door bin

11 Door gasket/seal

12 Door bin bottom

Features may vary depending on model. Not all models will have features listed.

WRM1300 illustrated



1 Control knob

2 Light lens

3 Fan and housing

4 Light switch

5 Wire shelf

6 Drain hole

7 Glass crisper cover

8 Crisper

9 Levelling leg

10 Door bin cover/lid

11 Door bin

12 Door gasket/seal

13 Door bin bottom



WRM2400SC has grey outer cabinet. Refrigerator door is stainless steel. WRM2400WC has white cabinet and door.

Features may vary depending on model. Not all models will have features listed.

WRM2400 illustrated



1 Temperature control

2 Freezer bin

3 Bottom freezer bin

4 Levelling legs

5 Door gasket/seal

6 Ice tray

7 Ice bin

MXIN

NO MAL



Features may vary depending on model. Not all models will have features listed.

WFM0700 illustrated

WFM0900 illustrated



1 Control knob

2 Freezer bin

3 Freezer bin bottom

4 Levelling leg

5 Ice tray

6 Ice bin

7 Door gasket



WFM1800SC has grey outer cabinet. Refrigerator door is stainless steel. WFM1800WC has white cabinet and door.

Features may vary depending on model. Not all models will have features listed.

WFM1800 illustrated





Before you move your appliance into the place where it

will operate, check that it will have adequate clearance.

Clearance is required for air circulation and too little

clearance may affect the performance of your appliance.

We recommend minimum clearances of:

• 30mm on each side.

• 25mm above the refrigerator.

• 50mm minimum/75mm maximum behind the refrigerator

NOTE:

Doors are designed to sit proud of cabinetry (not ﬂush).

The clearances shown above are the recommended

minimum clearances. The clearance at the rear must not

exceed 75mm.



The appliance should arrive with the front levelling feet

wound up. The appliance may need to be tilted backward

at the top by about 10-15mm from vertical (see diagram

below). This will allow the door to gravitate to the closed

position. The complete closure of the door seal is reliant on

manually pushing the door closed to provide a consistent

door seal.

CAUTION

The rollers are designed for forward or backward movement

only. They are not castors. Moving the refrigerator sideways

may damage your ﬂoor and the rollers.



1. Move the appliance into its ﬁnal position.

2. If the appliance is not tilting back as described earlier,

minor adjustments can be made to the two front

levelling legs by turning the feet in an anticlockwise

direction (below). This will increase the height of

the feet. If you have difﬁculty turning the foot, have

someone tilt the appliance back to gain better access.

If it is not tilted back enough and the levelling legs are

fully extended, additional packing might be required

(see note 4 for appropriate materials).

3. Compare the alignment of the appliance to the

surrounding cupboard. The top of the appliance should

be level from side to side (see diagram below). If

you need to adjust the level, use the levelling feet as

detailed in step 2.

4. If the appliance now rocks from one corner to the

opposite rear corner, this means that the ﬂoor is uneven.

You may need to put some packing under the ridge to

the rear of the appliance. You could use thin pieces of

solid material such as thin board, vinyl ﬂoor tiles

or laminate.

5. You may now need to ﬁne tune the installation by

repeating steps 2, 3 and 4.

6. Wipe off any dust that has accumulated during shipping

and clean following the directions on page 17.

7. Plug the appliance into the power point. Don’t use a

double adaptor or extension cord.

8. It is recommended that you let the appliance for an hour

or two (three hours for a freezer) before you put any

food in it. This will conﬁrm that it is operating correctly

and make the conditions appropriate for food storage.

Congratulations! You have successfully installed your

refrigerator/freezer.

10 –15mm

Height adjustable

front rollers



50mm (75mm max)

30mm

Recommended

airspace

CABINET

DOOR



This series of refrigerators has been ﬁtted with a ‘wet wall’

evaporator which is positioned behind the rear liner. The

rear liner will, at times be wet or appear frosted. This is

normal and demonstrates that the refrigerator is functioning

correctly. This product is designed to operate on a power

supply of 220/240 volts 50Hz. Connect to a separate

power point with a correctly earthed three pin socket. Do

not use double adaptors.



Refrigerators work by transferring heat from the food inside

to the outside air. This operation makes the back and sides

of the refrigerator (particularly at start-up) feel warm – which

is normal. Make sure you fully close the refrigerator door

after loading or removing food. If the door is left partially

open, a heavy frost will coat the inside of the ice box.

Ensure shelves are pushed back completely to prevent them

holding the door open. If the unit is unplugged, power lost

or turned off, you must wait 3 to 5 minutes before restarting

the unit. If you attempt to restart the unit before this time

delay, the refrigerator will not start.

When the thermostat is turned to it’s lowest setting and past

the point of resistance, the appliance will not operate.

WARNING

Power is still supplied to the appliance

To make the appliance operate you must turn the knob

clockwise.

For all models, ‘Less Cold’ corresponds to the warmest

temperature while ‘Colder’ the coldest.

The temperatures in the 2 compartments of the refrigerator

cannot be adjusted separately (this refers to WIM1000,

WIM1200).

When the ambient room temperature is 16°C, a setting

of half way between ‘Less Cold’ and ‘Mid’ would be

appropriate.

When the ambient room temperature is 25°C, a setting of

half way between ‘Mid’ and ‘Colder’ could be selected.

When you change temperature settings, make small

adjustments and wait 24 hours before assessing whether

you need to make further changes.



Mid

Models WIM1200, WRM1300

and WRM2400

Model WIM1000

Colder

Less Cold

Mid

Colder

Autres manuels pour WIM1000

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Westinghouse Réfrigérateur

Westinghouse

Westinghouse WHE6874 Manuel utilisateur

Westinghouse

Westinghouse TWO DOOR FROST FREE REFRIGERATOR-FREEZER Manuel utilisateur

Westinghouse

Westinghouse WIM1200WD Manuel utilisateur

Westinghouse

Westinghouse WSE7000S Manuel utilisateur

Westinghouse

Westinghouse WRM1400WD Manuel utilisateur

Westinghouse

Westinghouse WHE7670SA Manuel utilisateur

Westinghouse

Westinghouse Ice + Water French Door Manuel utilisateur

Westinghouse

Westinghouse refrigerator Manuel utilisateur

Westinghouse

Westinghouse French Door Manuel utilisateur

Westinghouse

Westinghouse WRB3504AB Manuel utilisateur

Westinghouse

Westinghouse WQE6870BA Manuel utilisateur

Westinghouse

Westinghouse WIM1000 Manuel utilisateur

Westinghouse

Westinghouse WFB2804S Manuel utilisateur

Westinghouse

Westinghouse WWSS2601KS Manuel utilisateur

Westinghouse

Westinghouse WQE5600 Manuel utilisateur

Westinghouse

Westinghouse WHE6200S Manuel utilisateur

Westinghouse

Westinghouse WWTR1802KW - 18 Cubic Foot Top-Freezer... Manuel utilisateur

Westinghouse

Westinghouse WFM3600WB Manuel utilisateur

Westinghouse

Westinghouse WIM1000 Manuel utilisateur

Westinghouse

Westinghouse WBB3400PA Manuel utilisateur

Westinghouse

Westinghouse WTB2300 Manuel utilisateur

Westinghouse

Westinghouse FJ302 Manuel utilisateur

Westinghouse

Westinghouse WSE7000S, WSE7000P, WSE7000W,WSE6970S, WSE6970P,... Manuel utilisateur

Westinghouse

Westinghouse WHE5200SA Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
