Westinghouse LVM-37W1 Instructions de montage

Westinghouse Digital Electronics

POWER INDICATOR

KEYPAD

CONGRATULATIONS on

purchasing a HD-ready LCD

Video Monitor! This Quick

Connect Guide will help you

get started in 3 easy steps.

On the back you will find

information to maximize your

LCD Video Monitor experience.

For complete installation,

usage instructions, and safety

precautions please refer to the

User’s Manual.

37”

QUICK

CONNECT

GUIDE

CONNECT THE

POWER

Use the enclosed A/C

power cable to connect

the A/C power to the

power input on the HD

Video Monitor.

CONNECT THE HD

VIDEO SOURCE

Connect a HD digital cable,

HD satellite receiver, ATSC

tuner or DVD player to the

corresponding video input

on the connector panel.

CONNECT A

COMPUTER

Connect a computer to

the VGA or DVI inputs

and the corresponding

audio inputs.

Press the power button

on the keypad to turn on

the Video Monitor.

GO!

LVM-37w1

LCD Video Monitor

www.westinghousedigital.com

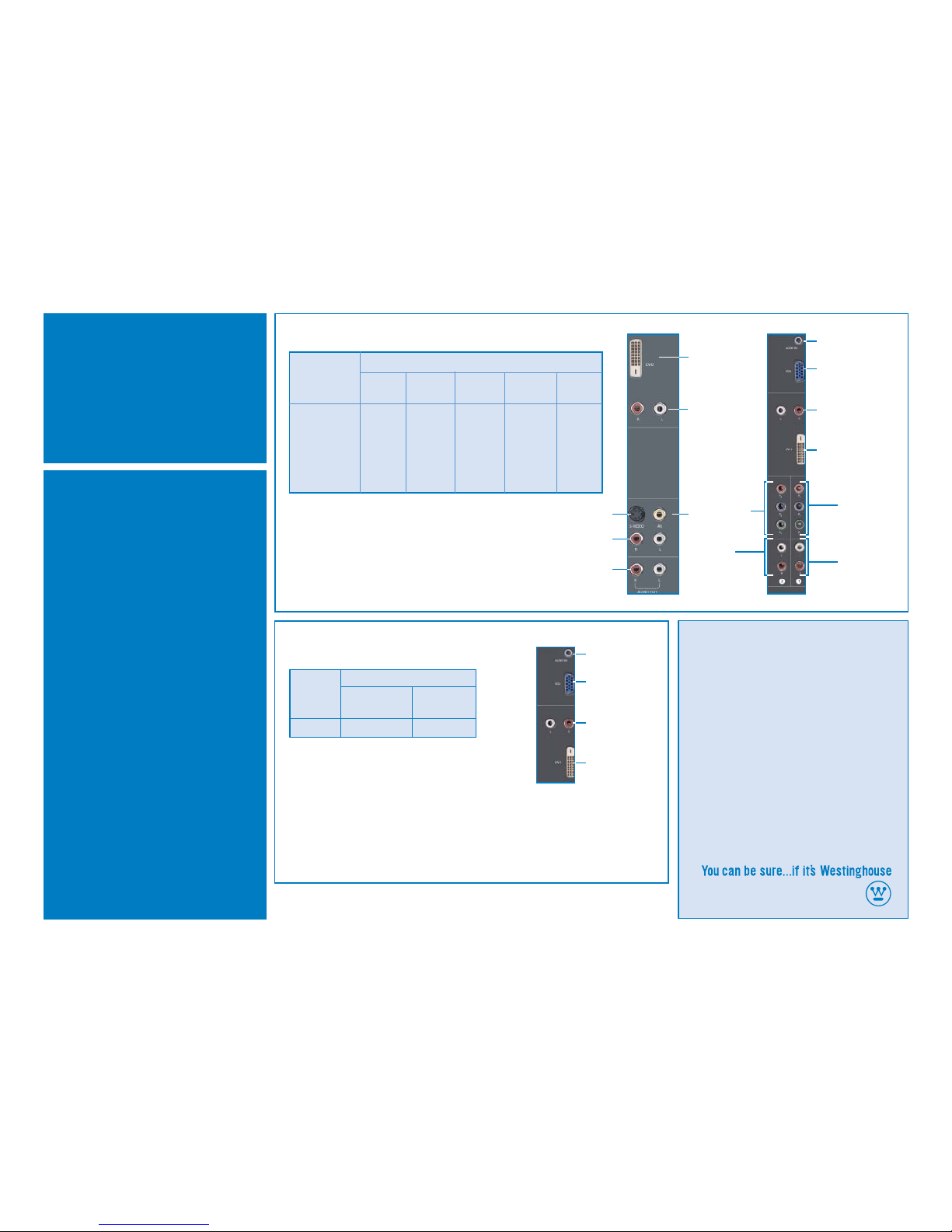

DVI/AV/S-Video Inputs VGA/DVI/YPbPr Inputs

MAXIMIZE

YOUR HD

VIDEO MONITOR

EXPERIENCE

You can attach your HD Video

Monitor to a variety of electronic

devices including a digital cable

or satellite set top box, a game

console, a VCR, or a computer. The

chart shows our recommendations

for the best quality picture for

these commonly used devices.

If you have trouble connecting

these or other devices, please

refer to the User’s Manual.

VGA Audio Input

YPbPr 2 Input

YPbPr 2

Audio Input

TYPICAL SETUP

• Progressive scan DVD players with YPbPr

• Game console system with AV

• VCR viewing and editing with S-Video

PC INPUTS

VGA

(RGB)

Monitor Good Best

DID YOU KNOW THAT YOUR

HD VIDEO MONITOR ALSO HAS:

• Integrated 20 W Stereo Speakers

• Progressive Scan

• Inverse 3:2 Pull Down

CHECK OUT

www.westinghousedigital.com for our:

• Versatile Décor Wall Mounting options

• Décor Frames for LCD TVs with

Acoustical Mattes

reserved. Specifications subject to change without notice.

¼, Westinghouse and You can be sure... if it's Westinghouse are

trademarks of Westinghouse Electric Corporation and are

used under license.

MA-PS-0601-0501 Customer Service: 866.287.5555 • www.westinghousedigital.com

Use the input button on the remote control or keypad to navigate between the

TV, S-Video, AV, YPbPr, DVI-HDCP or VGA inputs.

Digital Cable/

Satellite Receiver Good Better Best

DVD Player Good Good Better Best

Game Console Good Better Best

VCR Good Better Best

YPbPr

AV S-VideoTV Tuner

VIDEO INPUTS

Note: The audio input is shared between AV and S-Video.

DVI-HDCP

• Remember to adjust the resolution of your

computer or HD MediaPC to 1920 x 1080 for

best performace.

VGA

DVI 1 Audio Input

YPbPr 1 Input

YPbPr 1

Audio Input

DVI 2

(up to 1080i)

DVI 2 Audio Input

S-Video

AV & S-Video

Audio Input

Audio Output

DVI 1

(up to 1080p)

VGA Audio Input

VGA

DVI 1 Audio Input

DVI 1
