Westin Pro Series Manuel utilisateur

Westin Automotive Products, Inc.

320 W. Covina Blvd

San Dimas, Ca. 91773

Thank you for choosing Westin products

for additional installation assistance please call

Customer Service (800) 793-7846

www.westinautomotive.com

P.N.: 75-58421005-RevA ECO #: W19-0139 DATE: 03/23/2020

INSTALLATION INSTRUCTIONS

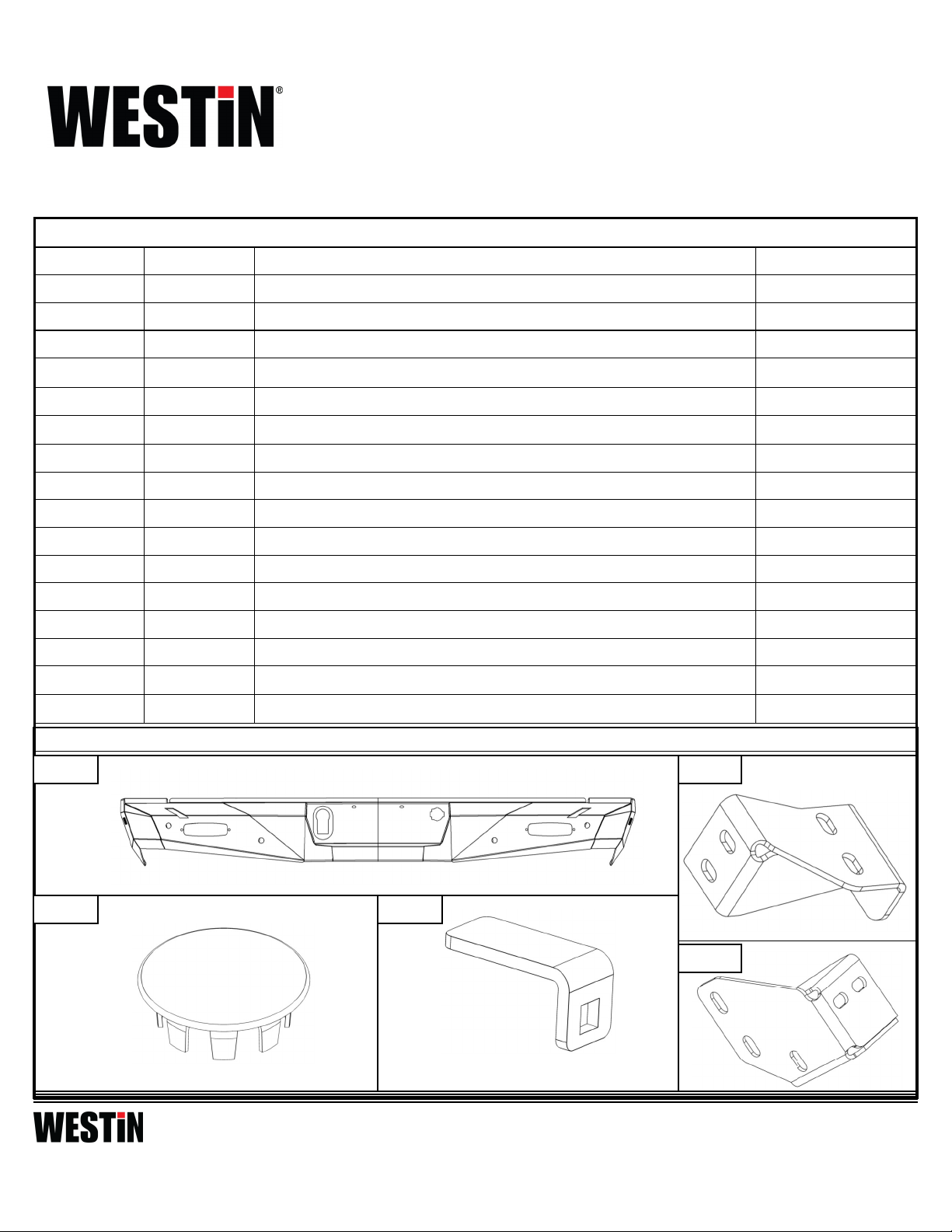

ITEM QUANTITY DESCRIPTION TOOLS NEEDED

1 1 REAR BUMPER 10MM SOCKET

2 2 FRAME MOUNTING BRACKET (1 DRIVER, 1 PASSENGER) 10MM WRENCH

3 2 BUMPER MOUNTING BRACKET (1 DRIVER, 1 PASSENGER) 19MM SOCKET

4 4 SENSOR L-TAB 19MM WRENCH

5 4 SENSOR HOLE PLUG RATCHET

6 14 M12 SPLIT LOCK WASHER (YELLOW ZINC) TORQUE WRENCH

7 14 M12 SERRATED FLANGE BOLT (YELLOW ZINC)

8 28 M12 FLAT WASHER (YELLOW ZINC)

9 14 M12 HEX NUT (YELLOW ZINC)

10 4 M6 FLAT WASHER (YELLOW ZINC)

11 4 M6 HEX NUT (YELLOW ZINC)

12 4 M6 CARRIAGE BOLT (YELLOW ZINC)

13 4 M6 SPLIT LOCK WASHER (YELLOW ZINC)

14 6 M6 BUTTON HEAD BOLT (BLACK ZINC)

15 6 M6 SERRATED FLANGE NUT (BLACK ZINC)

16 6 M6 FLAT WASHER (BLACK ZINC)

ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING

CONTENT

PRO SERIES REAR BUMPER

APPLICATION: Silverado/Sierra 1500 2014-2018; Silverado LD/Sierra

1500 Limited 2019, Silverado/Sierra 2500/3500 2015-2019

PART NUMBER:

58-421005

ITEM 1 ITEM 2

ITEM 5 ITEM 4

ITEM 3

Westin Automotive Products, Inc.

320 W. Covina Blvd

San Dimas, Ca. 91773

Thank you for choosing Westin products

for additional installation assistance please call

Customer Service (800) 793-7846

www.westinautomotive.com

P.N.: 75-58421005-RevA ECO #: W19-0139 DATE: 03/23/2020

PROCEDURE

1. Remove contents from box, verify if all parts listed are present and free from damage.

Carefully read and understand all instructions before attempting installation.

Failure to identify damage before installation could lead to a rejection of any claim.

Fig. 1 Driver’s Side

2. Disconnect license plate lights, trailer

connector and park assist sensors so that

bumper assembly can be removed.

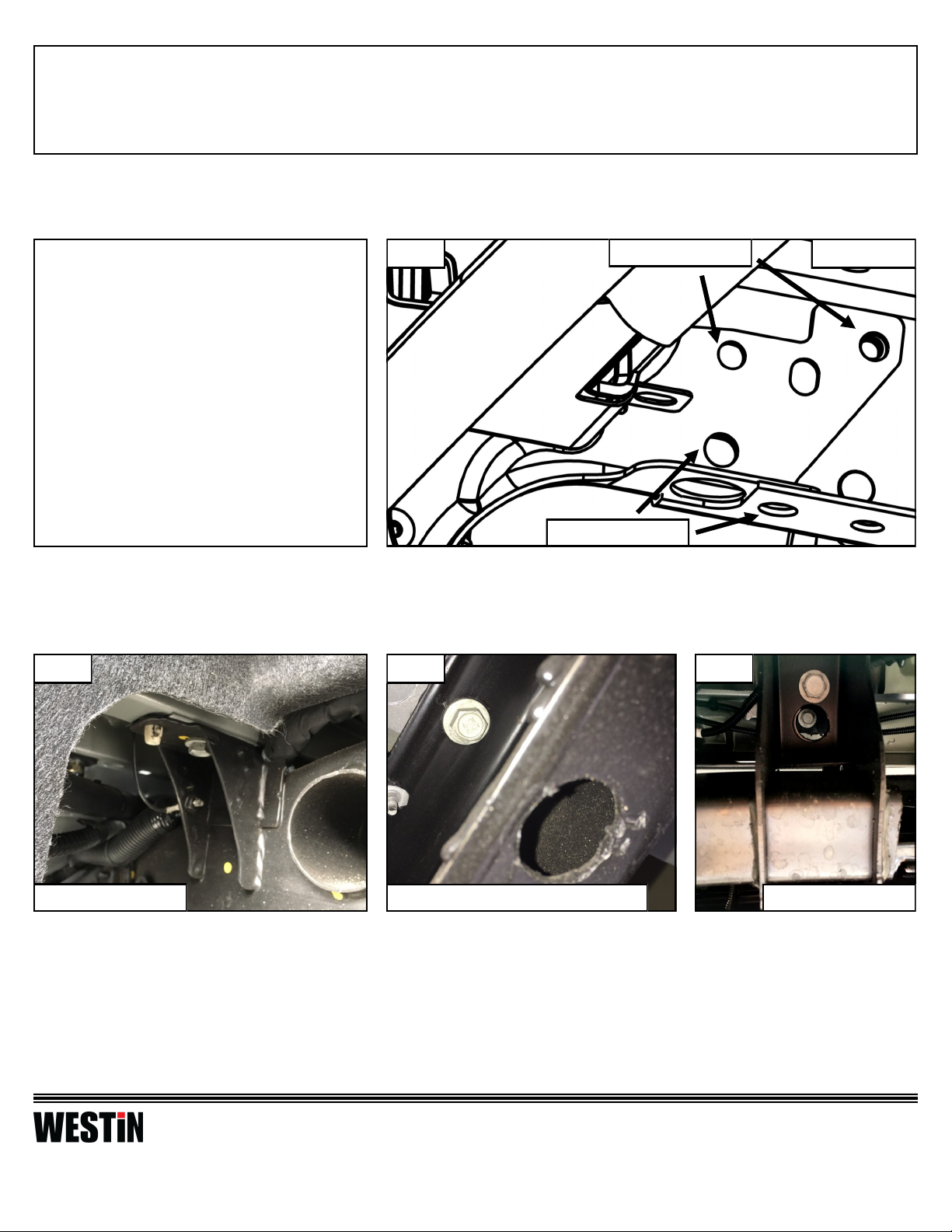

3. Remove the four bolts indicated in

Figure 1 from the driver’s side frame

bracket. Repeat on passenger’s side.

4. In order to remove the stock bumper, three

bolts on each side of the vehicle holding

the bed to the frame must be loosened and

the bed must be lifted slightly. Figures 2-4

show the locations of these three bolts on

the driver’s side. Note: Do not remove

these bolts. Only loosen them Remove bolts

Remove bolts

Fig. 2 Fig. 3 Fig. 4

In front of the rear tire At the rear of vehicleBetween the bumper and the rear tire

Westin Automotive Products, Inc.

320 W. Covina Blvd

San Dimas, Ca. 91773

Thank you for choosing Westin products

for additional installation assistance please call

Customer Service (800) 793-7846

www.westinautomotive.com

P.N.: 75-58421005-RevA ECO #: W19-0139 DATE: 03/23/2020

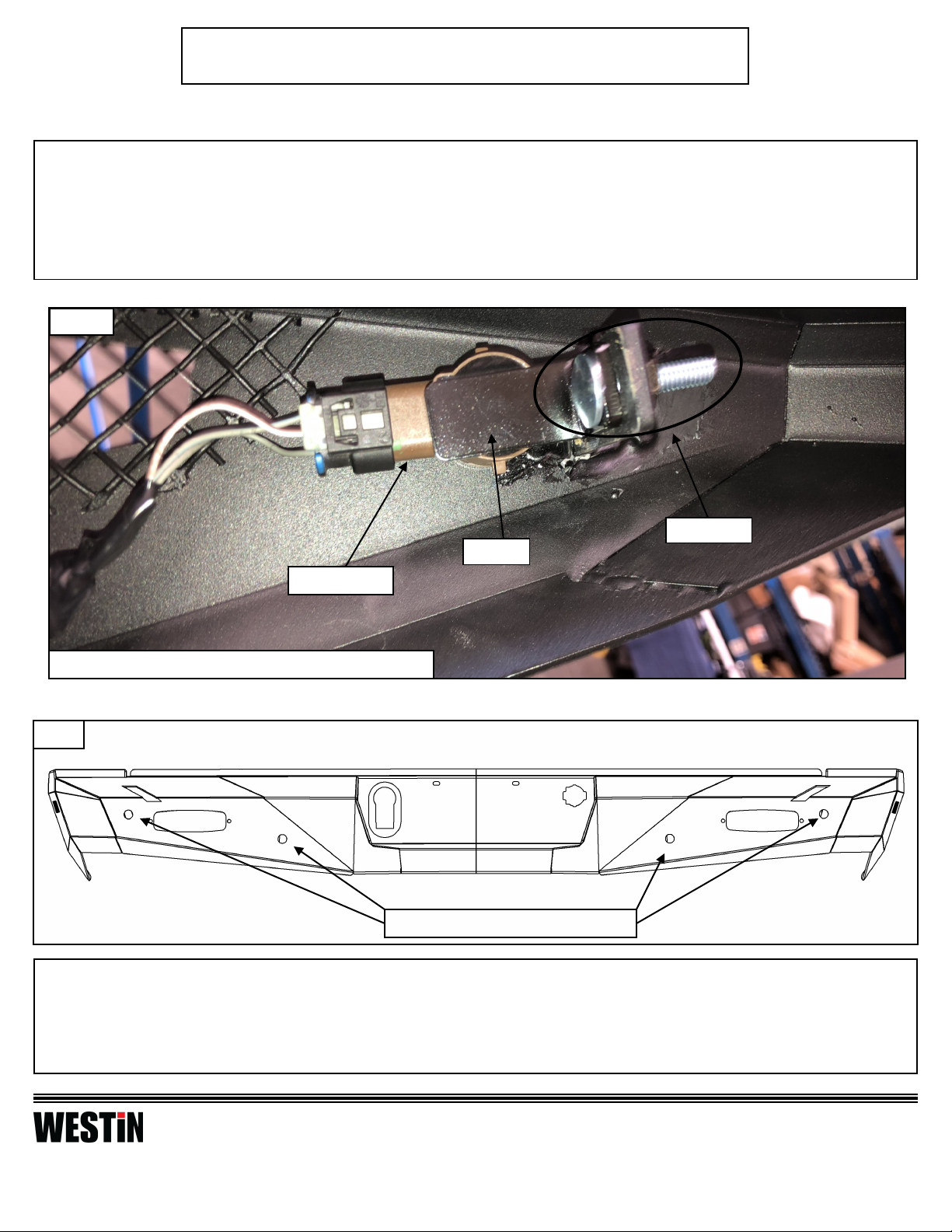

5. Remove the parking sensors from the OEM bumper. Pay attention to the orientation of the sensors. They must be installed

in the same orientation. Handle sensors with care, they are very delicate .

6. Use the Sensor Tab (4) along with the supplied M6 Hardware (10-13) to install the sensors as shown in Figure 4-5.

7. Carefully route the harness around the bumper.

Note: Zip ties or double sided tape can be used to route harness and to hold the sensor in position.

PARKING SENSOR INSTALLATION

*If not installing sensors, install Hole Plugs into holes on bumper and proceed.

Fig. 4

Factory Sensor

Item 4

Items 21-24

Front Pro-Mod shown for reference, rear assembly similar

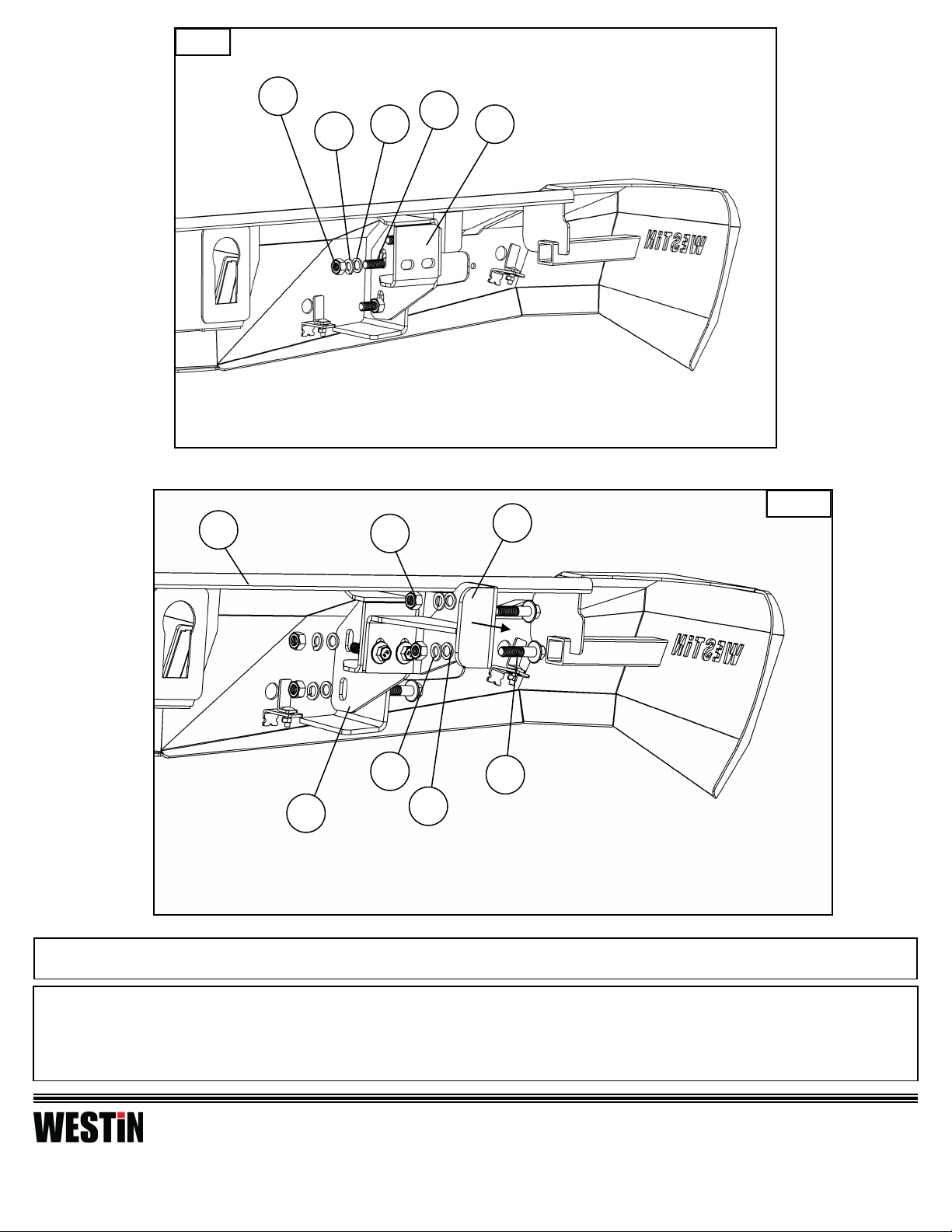

8. Using the supplied M12 hardware, loosely install frame brackets (2) on frame. Note: Do not tighten hardware. See Figure

9. Using the supplied M12 hardware, loosely install bumper brackets on to the bumper. Then loosely assemble the bumper to

the frame brackets. See Figure 7.

Mount Sensors here

Fig. 5

Westin Automotive Products, Inc.

320 W. Covina Blvd

San Dimas, Ca. 91773

Thank you for choosing Westin products

for additional installation assistance please call

Customer Service (800) 793-7846

www.westinautomotive.com

P.N.: 75-58421005-RevA ECO #: W19-0139 DATE: 03/23/2020

9. Install the Trailer plug and license plate at this time.

9 3

Fig. 7

WARNING .

After you have mounted bumper on main brackets. CAREFULLY open tailgate. While tailgate is open, adjust the

height of the bumper so that it has about 3/8” of clearance with respect to the tailgate. Torque to 50-55 ft-lbs.

Fig. 6

6 8 7 3

Westin Automotive Products, Inc.

320 W. Covina Blvd

San Dimas, Ca. 91773

Thank you for choosing Westin products

for additional installation assistance please call

Customer Service (800) 793-7846

www.westinautomotive.com

P.N.: 75-58421005-RevA ECO #: W19-0139 DATE: 03/23/2020

CARE INSTRUCTIONS

 REGULAR WAXING IS RECOMMENDED. DO NOT USE ANY TYPE OF POLISH OR WAX THAT MAY CONTAIN ABRASIVES.

 STAINLESS STEEL PRODUCTS CAN BE CLEANED WITH MILD SOAP AND WATER. STAINLESS STEEL POLISH SHOULD BE USED TO POLISH SMALL SCRATCHES.

 GLOSS BLACK FINISHES SHOULD BE CLEANED WITH MILD SOAP AND WATER.

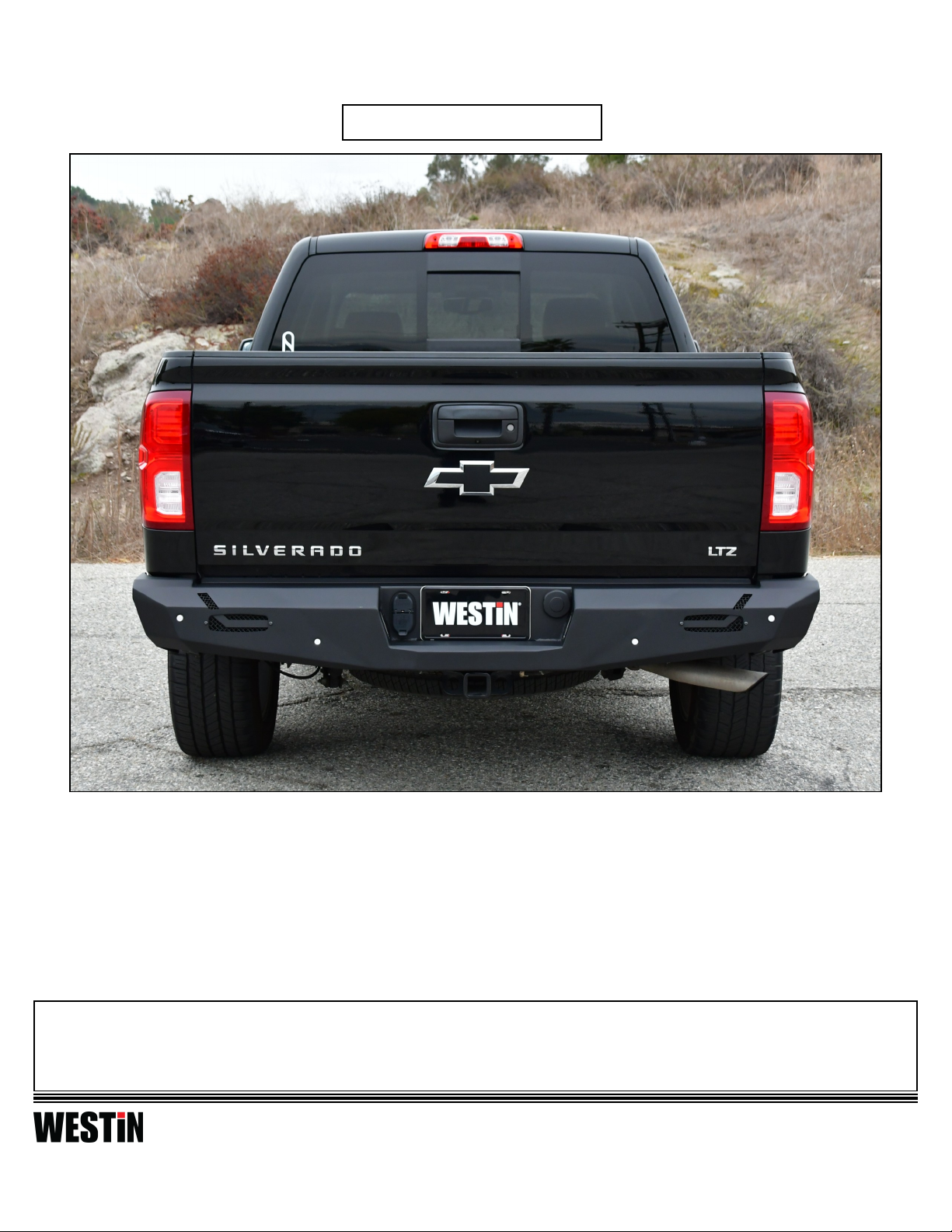

INSTALLATION COMPLETE

Westin Automotive Products, Inc.

320 W. Covina Blvd

San Dimas, Ca. 91773

Thank you for choosing Westin products

for additional installation assistance please call

Customer Service (800) 793-7846

www.westinautomotive.com

P.N.: 75-58421005-RevA ECO #: W19-0139 DATE: 03/23/2020

Failure to follow these instructions could lead to death, personal injury, and / or property damage.

WARNING

Failure to follow these instructions could lead to death, personal injury, and / or property damage.

FASTENERS:

All Westin supplied fasteners must be utilized and installed in accordance with the installation in-

structions and apply torque to the specifications as defined. DOUBLE CHECK ALL FASTENERS

BEFORE INITIAL USE, AND PERIODICALLY IN THE FUTURE TO ENSURE PROPER FUNCTION

AND SAFETY.

DRILLING:

Most Westin products do not require drilling for installation. If drilling is defined as required, use

caution when drilling a vehicle. FAILURE TO REVIEW AN AREA TO BE DRILLED MAY RESULT IN

PERSONAL INJURY AND/OR INJURY TO OTHERS AS WELL AS VEHICLE DAMAGE.

EYE PROTECTION:

ALWAYS WEAR SAFETY GLASSES OR GOGGLES DURING THE INSTALLATION PROCESS TO

AVOID PERSONAL INJURY.

MAXIMUM TOWING/CARRYING CAPACITY: (if applicable)

The Westin Receiver Hitches will have a visible tow rating label affixed directly on the product.

User should never exceed the vehicle manufacturers maximum tow and weight rating regardless

of the capacity of the hitch. FAILURE TO FOLLOW THESE GUIDELINES WILL VOID THE WESTIN

WARRANTY AND MAY RESULT IN PERSONAL INJURY AND/OR INJURY TO OTHERS AS WELL

AS VEHICLE DAMAGE.

FOR CALIFORNIA RESIDENTS ONLY-PROP 65 WARNING:

Some products may contain chemicals such as DEHP, which can cause cancer, birth defects or

other reproductive harm. For more info go to www.p65warnings.ca.gov
